ZUG Magnum User manual

Operating instructions
Magnum
Refrigerator/freezer

Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operating
instructions in order to familiarize yourself with the appliance and get the best use out of
it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifications
for the purpose of the further development of the appliances is reserved.
Validity
The model number corresponds to the first alphanumerics on the identification plate.
These operating instructions apply to:
Model Product family Size system
Magnum 51088 SMS 55 / Euro 60
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6302 Zug, 2019
2

3
Table of contents
1 Safety precautions 4
1.1 Symbols used......................................................... 4
1.2 General safety precautions.................................. 4
1.3 Instructions for use................................................ 4
2 Using for the first time 7
3 Appliance description 7
3.1 Structure .................................................................. 7
3.2 Operating and display elements......................... 8
4 Operation 8
5 Special functions 9
5.1 Fast cooling ..........................................................10
5.2 Sabbath mode......................................................10
6 Glass shelves and door trays 10
6.1 Positioning door trays.........................................10
6.2 Positioning glass shelves...................................11
7 Bottle drawer 11
8 Tips and tricks 12
8.1 General information on using the appliance ..12
8.2 Storing food and food items..............................13
8.3 Notes on refrigerating and freezing food........13
8.4 Notes on saving energy .....................................14
9 Care and maintenance 14
9.1 Cleaning ................................................................14
9.2 Defrosting..............................................................15
9.3 Changing the LED lighting.................................16
10 Noises and warnings 17
10.1 Operating noise ...................................................17
10.2 Warnings ...............................................................17
11 Trouble-shooting 18
12 Technical data 19
12.1 Temperature measurement ...............................19
12.2 Note for testing institutes ...................................19
12.3 Product fiche ........................................................20
13 Disposal 21
14 Index 22
15 Service & Support 23

4
1 Safety precautions
1.1 Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the Operating In-
structions
Symbol ISO 7010 W021
WARNING: Risk of fire / flammable
materials
▸ Indicates step-by-step instructions.
–Describes how the appliance reacts
to the steps taken.
▪Indicates a list.
1.2 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time!
▪This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical install-
ation in accordance with the
installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.3 Instructions for use
Before using for the first time
▪The appliance must be installed and
connected to the electricity supply in
accordance with the separate installa-
tion instructions. Have a qualified fitter/
electrician carry out the necessary
work.
▪Electrical safety (protection against con-
tact) must be ensured by the installa-
tion.

1 Safety precautions
5
▪If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices. Do not use the appliance if the
cold circuit is damaged.
▪WARNING: The required room volume
for the appliance is at least 1m3per
8g refrigerant (isobutane R600a). In
rooms that are too small, a leak can
produce a flammable air-gas mixture.
The filled volume of the refrigerant is
shown on the identification plate.
▪WARNING: When installing the appli-
ance, ensure the mains cable is not
trapped or damaged.
▪WARNING: Do not locate multiple port-
able socket-outlets or portable power
supplies at the rear of the appliance.
▪Avoid using extension cables.
▪When installed, it is important to ensure
that the air inlets and vent openings are
not covered or blocked.
▪Retain these operating instructions for
future reference.
▪Operating instructions for the appliance
can be downloaded from
www.vzug.com.
▪Dispose of the packaging material in
accordance with local regulations.
Correct use
▪The appliance is designed for use in
the home for cooling and storing food.
The appliance must only be used as de-
scribed in the operating instructions.
▪This appliance is intended for use in the
home and similar settings such as: in
staff kitchens in shops, offices and
other commercial establishments; in ag-
ricultural establishments; by guests in
hotels, motels and other accommoda-
tion establishments; in bed and break-
fast establishments. This appliance is
not intended for use in the professional
sector.
▪The appliance corresponds to recog-
nized technology standards and the rel-
evant safety regulations. Proper use of
the appliance is essential to avoid dam-
age and accidents. Please therefore fol-
low the precautions given in these oper-
ating instructions.
▪No liability is assumed for any damage
caused by improper or incorrect use or
by repairs carried out by an unqualified
person. In this case any warranty or
other liability claims are deemed null
and void.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its Cus-
tomer Services or a similarly qualified
person. Repairs if carried out incorrectly
may cause serious injury, damage to
the appliance and fittings, as well as af-
fect the functioning of the appliance. If
the appliance is not working properly or
in case a repair is needed, follow the in-
structions given in the «Service & Sup-
port» section. Contact our Customer
Services if necessary.
▪Use original spare parts only.
Note on use
▪Do not operate any electrical devices
inside the refrigerator compartment
and/or freezer compartment.
▪High-proof alcohol should only be
stored tightly sealed and standing up-
right. Do not store explosive materials
or aerosol cans in the appliance.
Danger of explosion!
▪This appliance is CFC- and FC-free and
contains small quantities of the environ-
mentally friendly, but flammable refriger-
ant isobutane (R600a). When handling
the appliance take care not to damage
the cooling circuit. Any refrigerant that
escapes can ignite. If it were to become
damaged, avoid open flames and other

1 Safety precautions
6
ignition sources as isobutane is flam-
mable. Ventilate the room well for a few
minutes. Switch the appliance off and
disconnect from the power supply. Do
not turn on any power supplies. Notify
our Customer Services.
Caution: Risk of injury!
▪Be careful not to put fingers in the door
hinges. as there is otherwise a risk of
injury if the appliance door is moved.
Particular care should be taken when
children are around.
▪Cut the power going to the appliance
before cleaning. Pull out the mains plug
or switch off the fuse. Never pull the
mains plug out of the mains socket by
the cable or with wet hands. Hold the
mains plug and pull it straight out of the
mains socket.
▪Avoid prolonged skin contact with
frozen food. Never consume frozen
food or ice cubes that are straight out
of the freezer compartment or too cold.
Risk of burns from freezing!
▪Do not remove the evaporation tray on
the compressor. Fire hazard!
▪Do not place bottles or cans of drink in
the freezer compartment. Especially
those containing carbonated drinks can
burst during freezing.
Caution: Risk to life!
▪Packaging materials, e.g. plastic film
and polystyrene, can be dangerous for
children. Danger of suffocation! Keep
packaging material away from children.
▪When carrying out maintenance work
on the appliance, including replacing
light bulbs (if how to remove them is
described in the Operating instructions),
cut off the electricity supply to the appli-
ance: remove the screw fuse from the
holder or switch the circuit breaker off,
or unplug from the mains socket.
How to avoid damaging the appliance
▪Clean the appliance just with water or a
mild soapy solution (water and washing-
up liquid).
▪Do not use pointed or sharp objects to
remove layers of ice or frozen-on food.
▪No mechanical or artificial means other
than those recommended may be used
to accelerate defrosting.
▪Store oils and fats upright in closed
containers. They must not come into
contact with the plastic parts or the
door seal.

2 Using for the first time
Before operating the newly installed appliance for the first time, the following steps
should be taken:
▸ Remove packaging and transport materials as well as any protective film from the in-
terior.
▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa-
ter and washing-up liquid) and dry thoroughly.
▸ Check that all appliance door seals are completely dry and dry them if necessary.
▸ If the appliance was transported in a horizontal position, wait an hour before switching
it on.
3 Appliance description
3.1 Structure
If necessary, the direction in which the door opens can be changed. Customer
Services can make the necessary adjustments to the appliance.
2
1
3
4
5
13
6
7
12
11
10
9
8
1Door tray with cover
2Door trays
3Door tray with bottle holder (bottles
up to max. 1.5litres)
4Appliance door
5Bottle drawer
6Defrost drainage channel
7Vegetable drawer
8Temperature sensor
9Racks
10 LED illumination
11 Half-shelf
12 Freezer compartment
13 Operating and display elements
Identification plate with serial number
(SN)
7

4 Operation

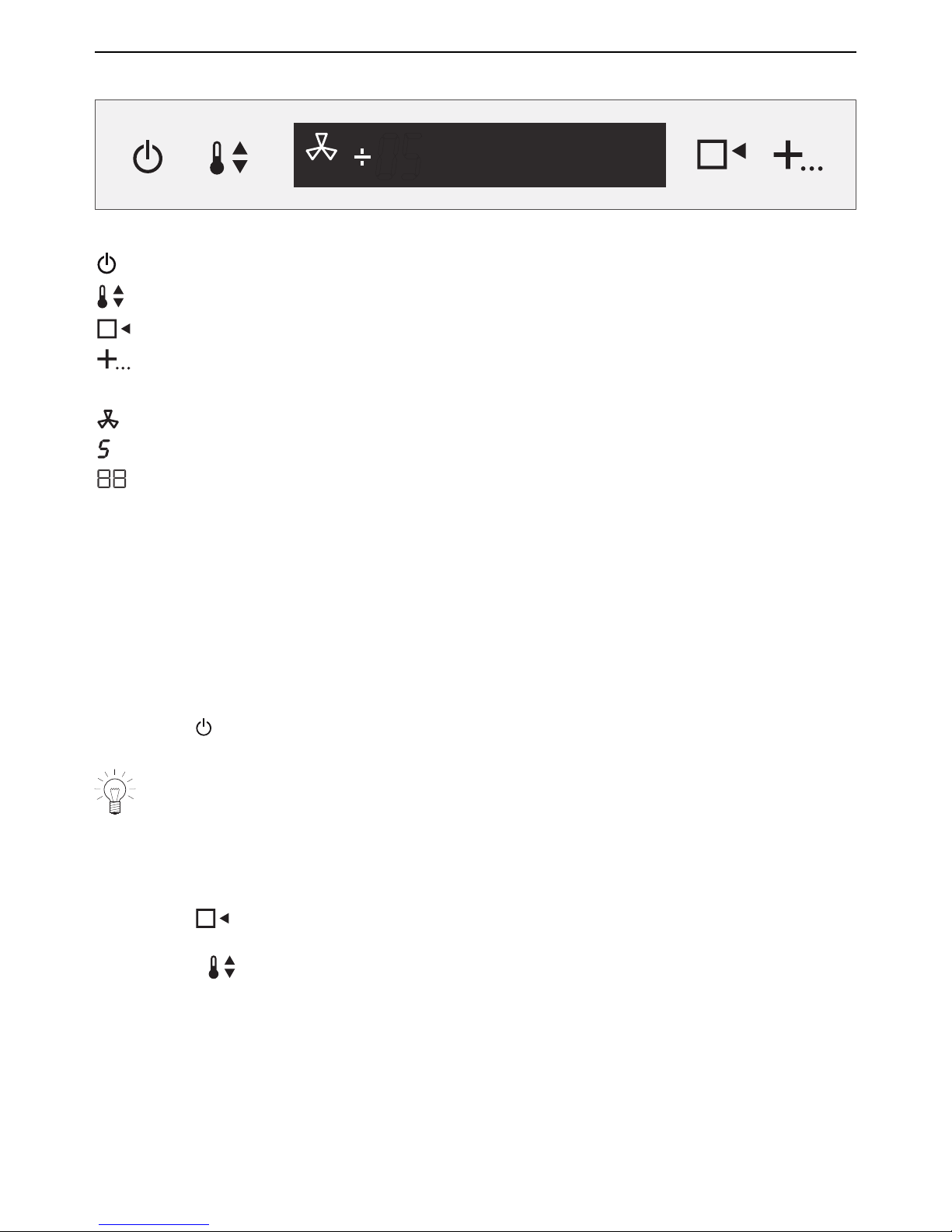

3.2 Operating and display elements
05
o
Buttons
ON/OFF
Temperature setting, confirming a setting
Preselection
Select special functions
Display elements
Fast cooling
Sabbath mode
Value and/or status display
off Appliance switched off
4 Operation
Switching the appliance on
▸ Plug in the appliance at the mains.
–«off» is shown on the right-hand side of the display for 30 seconds.
–«off» is shown in the digital display for 30 seconds when the appliance door is
opened or a button is pressed.
▸ Hold the button depressed for 3 seconds.
–The appliance is switched on.
An appliance that has been started up for the first time takes around 15 hours
(with food inside) to reach its normal operating temperatures.
Setting the temperature for the refrigerator compartment
The temperature can be set between 2°C and 9°C. When the refrigerator compartment
temperature is 5°C, the temperature of the freezer compartment is about -18°C.
▸ Hold the button depressed for 3 seconds.
–The temperature display for the refrigerator compartment flashes in the display.
▸ Touch the button repeatedly until the desired temperature flashes.
–If no further settings are made after 5 seconds, the current value is accepted and
the temperature display stops flashing.
–The average temperature for the last 2hours is shown in the temperature display;
the set temperature will be reached after a few hours.
8

5 Special functions
The value displayed may be different from the target value if the door is open for
an extended period of time or if warm foods have been placed inside.
If the button is pressed without having pressed the button beforehand, a
denial tone is emitted.
Switching the appliance off
▸ Hold the button depressed for 3 seconds.
–The appliance is switched off.
–«off» is shown in the digital display for 30 seconds.
–«off» is shown in the digital display for 30 seconds when the appliance door is
opened or a button is pressed.
If the appliance is being taken out of operation, e.g. for repair work or disposal:
▸ remove the mains plug from the mains socket.
▸ When not in use for an extended period of time: Clear out, defrost and clean the appli-
ance. Leave the refrigerator and freezer compartment doors open.
5 Special functions
Switching a special function on
Special function Symbol Remarks
▸ Hold the but-
ton depressed for
3seconds.
Fast cooling next to the tem-
perature display for
the refrigerator com-
partment.
▸ Touch the
button again
Sabbath mode in the temperature
display for the refri-
gerator compart-
ment.
illuminates for 30
seconds after activa-
tion.
–The corresponding symbol flashes in the display.
▸ Confirm with the button.
–The special function is activated.
–The relevant symbol illuminates in the display.
Switching a special function off (before time)
▸ Hold the button depressed for 3 seconds.
▸ Touch the button repeatedly until the desired special function is selected.
▸ Confirm with the button.
–The special function is deactivated.
9

6 Glass shelves and door trays
5.1 Fast cooling
The fast cooling function allows larger quantities of food, e.g. after a shopping trip or
freezing pre-cooked meals, to be cooled more quickly. It lowers the temperature in the
refrigerator compartment to 2°C for 24hours. During fast cooling, the appliance oper-
ates at higher power, which increases the noise level above the normal operating noise
level. The cooling capacity is increased until the point where the desired set value or the
maximum duration is reached. The function switches off automatically after 24 hours. To
prevent food that is already being stored from warming up: activate fast cooling several
hours beforehand (e.g. before going shopping).
5.2 Sabbath mode
The illumination and all the displays are switched off for 30 hours during the Sabbath
mode.
6 Glass shelves and door trays
The height of both the glass shelves in the refrigerator compartment and the door trays
on the inside of the refrigerator compartment door can be adjusted.
The glass half-shelf enables you to store taller vessels in an upright position. Al-
ways position it at the top to ensure that the air circulates well.
6.1 Positioning door trays
▸ Push the door tray up and remove it.
▸ Select the desired height.
▸ Hang the door tray in the openings in the
door frame.
▸ Push the door tray down as far as it will
go.
The top door tray with the cover is not adjustable.
When the appliance is new, it may require a little more effort to take out the door
trays.
10

7 Bottle drawer

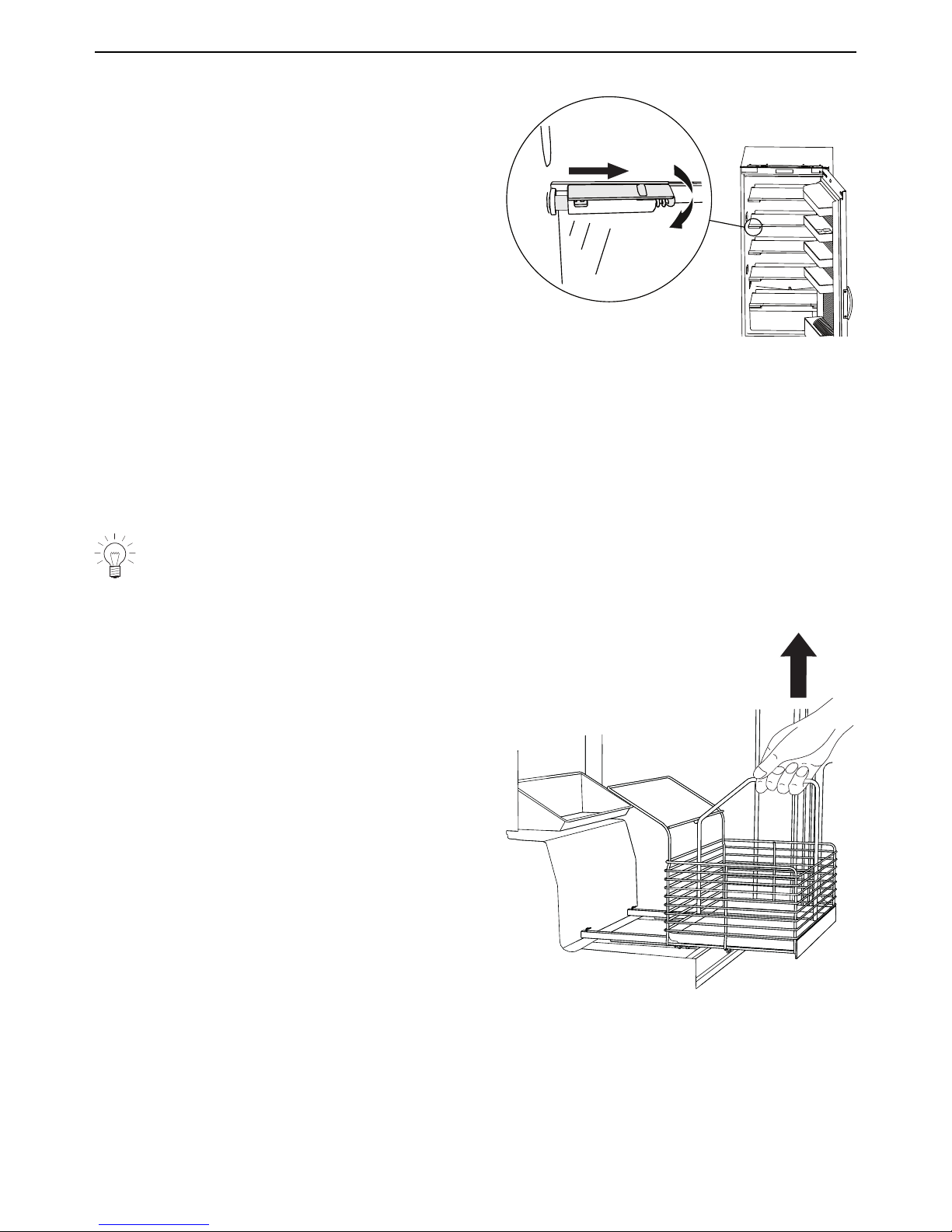

6.2 Positioning glass shelves
▸ On both sides, push the slide bar in-
wards and downwards.
–The slide bar engages and stays in
this position.
▸ Pull the glass shelf out of the rear guide
and insert into desired position.
▸ To fix the glass shelf in place, turn the
slide bar upwards and release it.
–The slide bar engages.
7 Bottle drawer
The temperature in the bottle drawer is about 4–5°C higher than in the rest of the refri-
gerator compartment. Beverages can be chilled at a pleasant drinking temperature in the
bottle drawer. The temperatures are also ideal for refrigerating citrus and tropical fruits
(e.g. pineapples, mangoes) as well as fruit vegetables (e.g. cucumbers, aubergines, to-
matoes, courgettes, sweet peppers).
For longer storage periods and better quality: Store fruit and vegetable in its ori-
ginal packaging or wrapped in the bottle drawer.

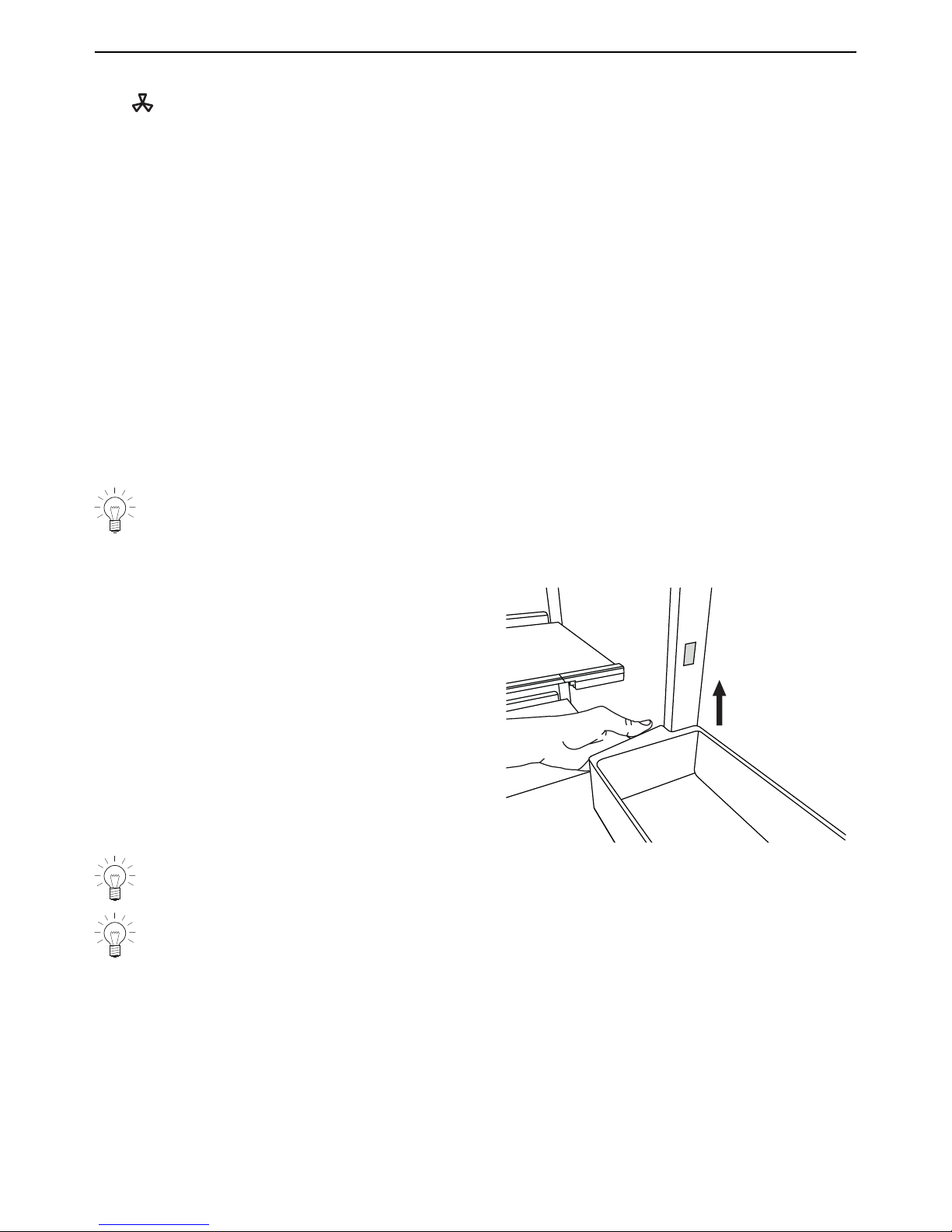

Removing the bottle drawer
▸ Pull the bottle drawer out as far as it will
go.
▸ Pull upwards sharply by the handle.
11

8 Tips and tricks
Inserting the bottle drawer
▸ Tip the bottle drawer back slightly and
place the back edge in the guides.
▸ Push the guides and bottle drawer in as
far as they will go.
▸ Push the handle down so that the front
part of the bottle drawer engages.
8 Tips and tricks
8.1 General information on using the appliance
▪When closing an appliance door make sure that it forms a proper seal all the way
round. The self-closing hinges help keep it closed: The appliance door closes auto-
matically from an opening angle of 20–30°.
▪The electronic controller defrosts the refrigerator compartment once a day. A visible
layer of snow and ice on the rear wall of the refrigerator compartment is therefore nor-
mal.
▪At high ambient temperatures, a significant amount of ice may form on the rear wall.
This is normal: due to the high humidity, more water condenses in the appliance and
ices up. Defrost the appliance manually only if necessary.
▪The food must not come into contact with the rear wall of the refrigerator compartment
or it may freeze. Additionally, when defrosting the appliance, water may enter the refri-
gerator compartment.
▪It can take several hours for food and beverages to cool down from room temperature
to the temperature of the refrigerator compartment.
▪Changing the temperature setting has no effect on the time it takes for food and
beverages to cool down. The fast cooling function increases the cooling rate.
▪Placing very warm or very cold items (e.g. warm, bottled sauces or frozen food for de-
frosting) directly in front of the temperature sensor can affect the temperature regula-
tion of the appliance adversely: it may cool too little or too much.
▪Ensure that the air outlets in the back wall below the top rack are not blocked by food
items.
– Food placed directly in front of an air outlet opening can be frozen by cold air com-
ing out of it.
▪Make sure that food or food items on the glass shelves do not tip over when the appli-
ance door is closed or prevent it from closing properly.
12

8 Tips and tricks
8.2 Storing food and food items

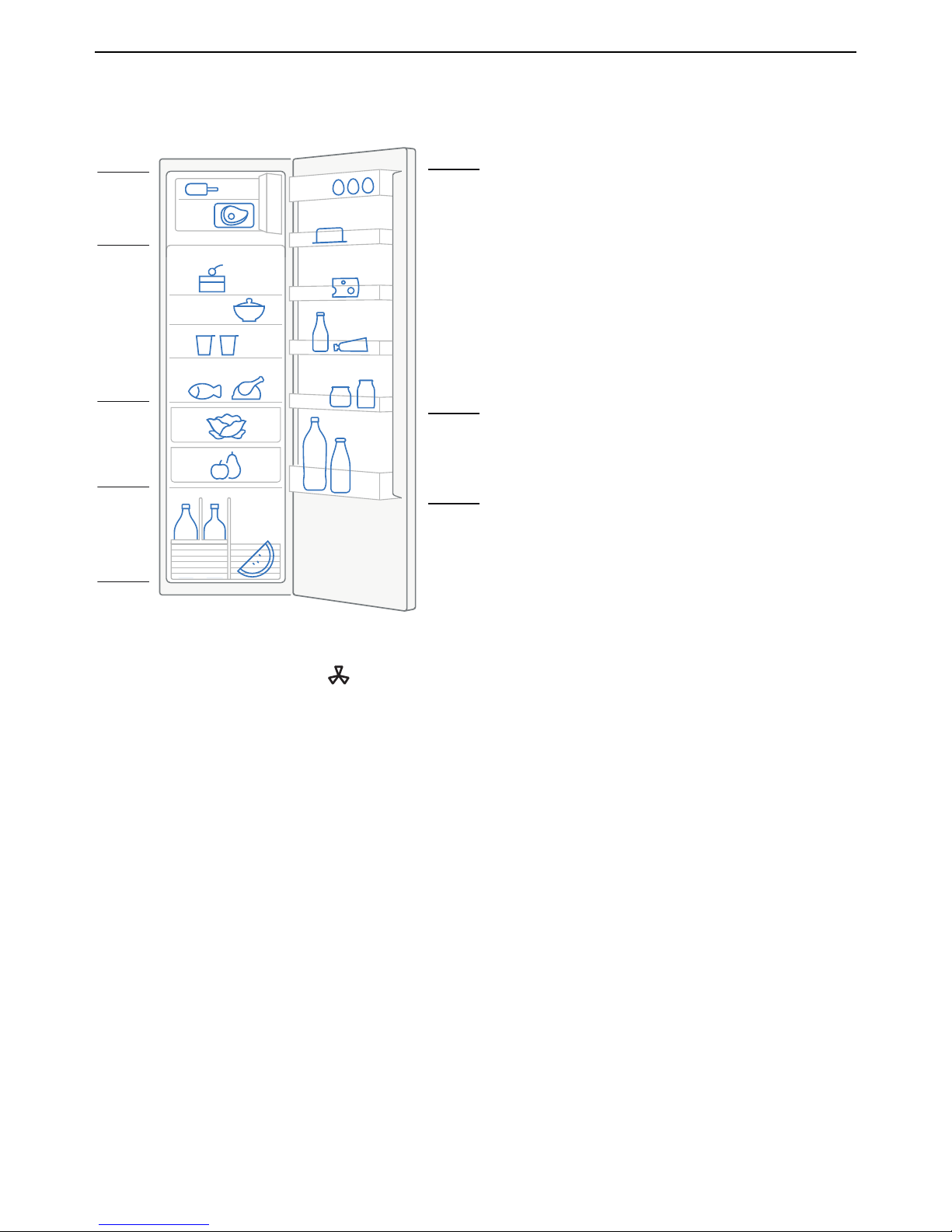

The example arrangement shows the zones and areas in the appliance that are generally
suitable for certain food and food items.
1
5
6
2
3
4
1Ice cream, bakery products,
meat, fish,
ready-made products
2Cheese, jam,
tortes, desserts,
milk and milk products,
prepared meals,
sausages, meat,
poultry, fish
3Vegetables, fruit, salad
4Drinks, wine, fruit juices,
citrus and tropical fruits,
fruit vegetables
5Eggs, butter, cheese,
tubes, sauces, ketchup,
jam, tins
6Drinks, wine, milk,
fruit juices
8.3 Notes on refrigerating and freezing food
▪Activate the fast cooling function before putting the food or food items in the appli-
ance (e.g. before going shopping).
▪High-protein and high-fat foods are delicate/perishable and have a relatively short
storage life.
▪Observe best-before and use-by dates.
▪Wrap or cover food in the refrigerator compartment to prevent it from drying out and
flavours from transferring.
▪Transfer the contents of opened tins to sealable containers.
▪Use the area above the rack in the freezer compartment for freezing food. If there is
frozen food already in the top drawer, distribute it below the rack. Observe the max-
imum freezing capacity (see the identification plate or product fiche).
▪There is a risk that freezing fresh food could cause food that is already frozen to par-
tially thaw. Freeze smaller quantities and avoid contact with food that has already
been frozen.
▪Depending on the product, the following packaging materials are suitable: freezer
bags, aluminium foil or plastic boxes. Freezer burn can be avoided by making the
food packaging as airtight as possible.
▪Do not refreeze food once defrosted! Only after being prepared (through cooking or
frying) can it be refrozen.
▪Blanch vegetables before freezing. Aubergines, sweet peppers, courgettes, mush-
rooms, asparagus and herbs do not have to be blanched.
13

9 Care and maintenance
▪The following products are not suitable for freezing: radishes, lettuces, cucumbers,
raw unshelled eggs, boiled eggs, dairy products such as yogurt, cream cheese, curd
cheese and mayonnaise.
▪Do not defrost frozen food at room temperature or on the heating. Food defrosts
slowly in the fridge. As a quick alternative, defrost in a microwave or steam cooker.
8.4 Notes on saving energy
▪Leave the drawers, glass shelves and door trays as far as possible in the positions
that they were in upon delivery. These ensure ideal temperature distribution and effi-
ciency.
▪Only open the appliance doors when necessary and keep them open for as short a
time as possible.
▪Allow hot or warm food to cool down before putting it in the appliance.
▪Store food that releases moisture in closed containers or covered in the refrigerator
compartment. Moisture can cause the rear wall of the refrigerator to ice up more
quickly and reduce its cooling capacity.
▪For ideal air circulation: Do not store food and food items too close to each other.
9 Care and maintenance
9.1 Cleaning
For hygienic storage of food and meals, the interior should always be kept clean.
Do not use any abrasive cleaning agents or scouring cloths to clean the appliance.
Take care not to press too hard when cleaning the plastic surfaces.
Risk of causing damage to the appliance.
▸ Condensation can form in the vegetable drawers and on the glass shelves, depending
on the kind and quantity of food being stored. Regularly wipe condensation away with
a dry cloth.
▸ Clean the interior at regular intervals with a mild soapy solution and wipe dry thor-
oughly.
▸ Clean the operating and display elements just with a damp cloth.
▸ Regularly check the door seals and if dirty clean using a soft brush and clean water.
Wipe dry.
▸ If the appliance is not to be used for a while, switch it off. Clear out, defrost and clean
the appliance. Leave the refrigerator and freezer compartment doors open.
Ensure that no cleaning water runs through the defrost drainage channel into the
evaporation tray.
Risk of causing damage to the appliance.
14

9 Care and maintenance

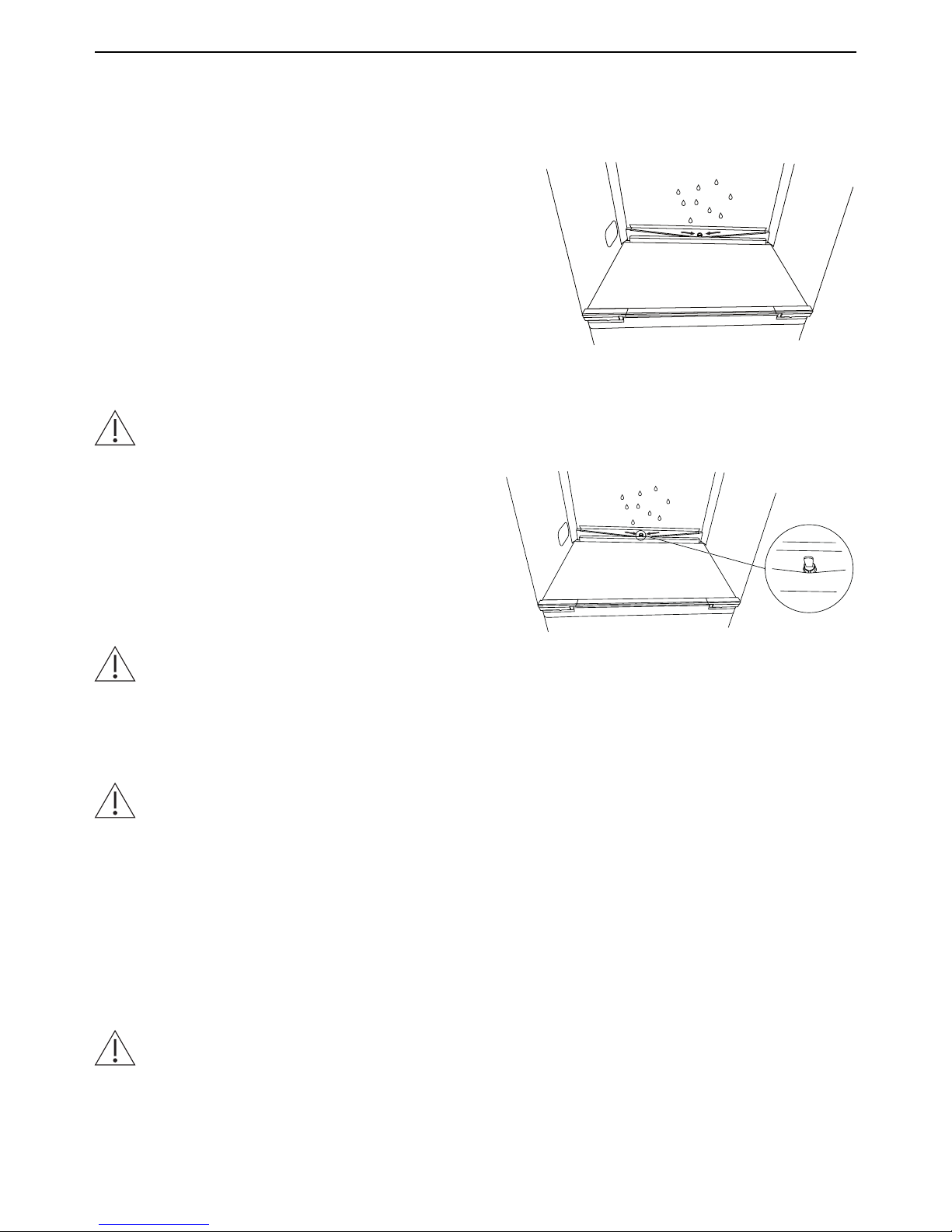

9.2 Defrosting
Defrosting the refrigerator compartment
The refrigerator compartment defrosts once a day automatically.
During defrosting, the temperature inside
the refrigerator compartment increases so
that the ice on the rear wall melts. The wa-
ter created when the ice melts collects in
the defrost channel, flows through the drain
hole and evaporates outside the appliance
in the evaporation tray.
When defrosting is complete, the temperature is lowered back down to the set target
temperature.
Keep the collection channel and the drain pipe clean so that the water can flow un-
impeded.
▸ Using up-and-down and round-and-round
movements, clean the defrost drainage
channel with the green detergent
provided.
If milk has been spilt accidentally and ended up in the defrost drainage channel:
►Push some kitchen towel into the drainage hole and try to absorb as much li-
quid as possible.
►If more than 1dl has flowed into the defrost drainage channel and/or a strong
odour develops after a while: Contact Customer Services.
If any foreign objects get into the defrost drainage channel:
►Carefully push a flexible, plastic object (such as a cable tie) into the drainage
hole and try as far as possible to remove them.
►Do not use hard or sharp objects as these could damage the defrost drainage
channel and neighbouring components.
Defrosting the freezer compartment
A thick coat of ice will impair the transfer of cold to the frozen products. Defrost the
freezer compartment when ice builds up. Keep the frozen food as cold as possible and
wrapped, e.g. in newspaper, for insulation.
Do not use pointed objects to remove ice or food that has frozen on solid. Do not
use electrical heaters or naked flames for defrosting.
15

9 Care and maintenance
▸ Set the appliance to «off» using the button.
▸ Soak up the defrosted water with a sponge.
▸ After defrosting, clean the interior and dry thoroughly.
▸ Start the appliance again using the button.
9.3 Changing the LED lighting
Only use original LED lights from the manufacturer.
▸ Disconnect the power supply to the appliance: Pull out the mains plug or switch off
the fuse.
▸ Click off the LED light cover.
▸ Disconnect the plug connection 1 for the
LED light.
1
▸ Reverse this procedure to insert the new
LED light.
16

10 Noises and warnings
10 Noises and warnings
10.1 Operating noise
The appliance can make various noises during operation. Although the appliance is
noise-optimized, some noise cannot be eliminated completely. This depends on the size
of the appliance, how it is installed and the cooling requirements (e.g. fast cooling), the
ambient temperature and the installation conditions. Operating noises are particularly
audible immediately after switching on the compressor; however, these noises become
quieter as the appliance runs.
Unusual noises are often caused by improper installation. The appliance must be in-
stalled on a level and stable surface. In open kitchens or in the case of appliances in-
stalled in partitioned areas, normal operating noises may seem louder. This is not a fault
but rather an effect of the design/architecture.
Keyword Cause Remarks
Buzzing Compressor/fan Normal operating noise made by the cooling
unit.
Gurgling, bub-
bling, hissing
Cooling circuit Normal operating noise as refrigerant flows
through the cooling circuit.
Hissing Cooling circuit Normal operating noise as refrigerant is in-
jected into the evaporator.
Rattling Glass shelves, bas-
kets, door trays, con-
tents, etc.
Arrange the parts in the interior so that they
are fixed in place and not touching.
Creaking Housing Normal, temperature-dependent stress-strain
of the materials, e.g. plastics, insulation.
10.2 Warnings
Warnings when the appliance doors are open
If the refrigerator door remains open for a few minutes, the following warning is given:
After 2 minutes LEDs flash every 15 seconds.
After 3 minutes LEDs flash every 5 seconds.
After 4 minutes LEDs flash rhythmically every second.
After 10 minutes An acoustic alarm sounds for 3 minutes. The acoustic alarm
repeats every 30minutes.
Note on when the temperature value is raised
If the temperature in the refrigerator compartment rises 10°C above the selected tem-
perature value, an acoustic signal is emitted.
Confirming/acknowledging warnings
▸ Touch any button.
▸ Resolve problem, see Trouble-shooting.
When the Sabbath mode is activated, there are no visual warning signals.
17

11 Trouble-shooting
11 Trouble-shooting
This section lists faults that can be solved simply by following the instructions given. If
the fault cannot be remedied, please contact Customer Services. Before contacting Cus-
tomer Services:
▸ please note down the serial number (SN), which is shown on the identification plate,
as well as
▸ the sequence of events that led to the fault.
Malfunction Possible cause Solution/Measures
Appliance is not
working.
▪An interruption in the
power supply.
▸ Check the power supply.
▸ Change fuse.
▸ Reset automatic circuit breaker.
▪The fuse or circuit breaker
keeps blowing.
▸ Contact Customer Services.
▪Appliance is faulty. ▸ Contact Customer Services.
Illumination is not
working.
▪Sabbath mode is active. ▸ Hold the button depressed
for 3seconds.
▪If the illumination switches on:
The problem is remedied.
▪If the appliance switches off
((«off» in the display):
▸ Switch the appliance back on
again and contact Customer
Services.
▸ Check whether an air flow
is perceptible at the air
outlets in the room con-
cerned.
▪If yes: Door sensor is
faulty.
▪If no: LED light bulb is de-
fective.
▸ Replace the LED light bulb.
▸ If the door sensor is faulty: Con-
tact Customer Services.
Illumination is flash-
ing.
▪Appliance door is left open
for longer than 2 minutes.
▪Appliance door was not
closed properly.
▸ Close the appliance door.
Illumination is flash-
ing and an acoustic
signal is emitted.
▪Appliance door is left open
for longer than 10 minutes.
▪Appliance door was not
closed properly.
▸ Close the appliance door.
18

12 Technical data
Malfunction Possible cause Solution/Measures
Error display ▪Temperature sensor in the
refrigerator compartment is
defective.
▸ Contact Customer Services.
–The appliance switches to the
emergency mode.
Error display ▪Various situations can lead
to an «F» message.
▸ Contact Customer Services.
Malfunction Possible cause Solution/Measures
Temperature display
is flashing and an
acoustic signal is
emitted.
▪The refrigerator compart-
ment temperature is 10°C
higher than the set temper-
ature.
▸ Do not place warm foods right
next to the temperature sensor.
▸ If there is no warm food in the
appliance: Contact Customer
Services.
▪There has been a power
failure. The flashing tem-
perature display shows the
temperature when the ap-
pliance is put back into
service.
▸ Touch any button.
–The set temperature is shown
in the temperature display.
▸ Check any refrigerated or frozen
food and discard if spoiled.
▪The frequent appearance
of warnings indicates a
technical problem.
▸ Contact Customer Services.
12 Technical data
External dimensions
▸ See installation instructions
Electrical connection
▸ See identification plate
12.1 Temperature measurement
The refrigerator and freezer compartment temperature are measured in accordance with
an internationally recognized standard. Own measurements can be imprecise and are
not suitable for checking the accuracy of the temperature.
12.2 Note for testing institutes
If freezing the maximum quantity of food (see the identification plate), the space above
the rack must be used. This requires the special fast cooling function be activated imme-
diately before storing the food.
19

12 Technical data
12.3 Product fiche
In accordance with EU Regulation No. 1060/2010
Brand – V-ZUG Ltd
Model name – Magnum
51088
Category – 7 (refrigerator/freezer)
Energy Efficiency Class – A++
Annual Energy Consumption (AEC) 1) kWh per
year
224
Storage volume, refrigerator compart-
ment overall
l 290
of which chill compartment l -
Storage volume, freezer compartment l 24
Star rating – **** 2)
Frost-free refrigerator/freezer compart-
ment 3)
– No
Power cut safe time h 13
Freezing capacity kg/24 h 2.0
Climate class W SN-ST 4)
Airborne acoustical noise emissions dB (A) 35
Built-in appliance – Yes
1) Annual energy consumption based on standard test results for 24 hours. The actual consumption value will depend on how the appliance is used and
where it is located.
2) Food freezer compartment and frozen-food storage compartment -18°C or colder with a minimum freezing capacity.
3) Automatic defrost system for the refrigerating or freezing zone is present.
4) This appliance is intended to be used at an ambient temperature between 10°C and 38°C.
20
