Zvex Effects Vexter SUPER RINGTONE User manual

OVERVIEW:
This product is a far more advanced version of our original
Ringtone™pedal. Basically, the Super Ringtone™is a 16
step sequencer of ring modulators. Ladies and gentlemen,
you have just entered some very strange waters. Please
allow me to explain. A ring modulator is a circuit that gener-
ates its own pitch or“carrier”tone initially. When another
pitch enters the circuit, it then yields the dierence between
the two frequencies as one tone, and the sum of those two
frequencies as another tone. Describing this process can
sound more like math than music… hearing it is another
matter. Ring modulation can be used to create astonishing
bell like textures, ethereal droning tones, and deep shim-
mery tremolos, and that’s just scratching the surface. Here’s
16 of those crazy things to play with! Don’t let the power go
to your head! Please and thank you. New features include:
tap tempo, MIDI tempo control, glissando, expression pedal
control over tempo and glissando, adjustable number of
stages from 1 to 16, automatic tempo slowing or speeding
(delta), savable/loadable presets and more!
GETTING STARTED:
Important Note: In order to accommodate all of the Super
Ringtone’s features, there are some instances where a knob
may control more than one parameter. This is indicated on
controls that have a slash in their label. For example: the
16 mini step knobs can be set to control either the“ring”
for that individual step, or “groove”for that individual step.
A mini toggle switch labeled“groove/ring”assigns the
function of those 16 mini knobs. Another couple examples
of this type of multi-function are the “tap div/delta”and
“steps/preset”knobs. These are not your father’s knobs!
They are rotary encoders, kind of a cross between a knob
and a switch. They can turn like regular knobs, they can be
pushed down and turned, they can be pushed down and
held, and they can be pushed and released. The parameter
to the left of the slash is controlled by turning the knob nor-
mally. The parameter to the right of the slash is controlled
by pushing down the knob and turning it while depressed.
We’ll cover all of that specically later.
If you’ve used a Ringtone™before you’ll see the familiar
Step/Seq /Rnd mini toggle switch on the upper left. Seq
and Rnd are modes where the pedal’s brain moves you
from step to step, either sequentially or randomly. Step
mode allows you to advance from step to step manually by
tapping on the“tap/hold”button.
TYPE:Vexter Series [V] | MODEL: SUPER RINGTONE™
SPEED CONTROL:
There are four dierent ways to control tempo. The “speed”
knob, the“tap/hold button”, MIDI clock input (from a
computer or other MIDI device), and the expression pedal
input (a 1/4”standard TRS synth-type expression pedal).
You’ll see quickly that adjusting the speed control overrides
the previous tap tempo setting, tapping then overrides the
previous speed control setting, and MIDI overrides all.
SPEED KNOB:
Set as you like.
TAP TEMPO:
Tap Tempo has become a fairly common way to manually
enter tempos into time based pedals like delays, tremolos,
etc. The Super Ringtone powers up in Tap Tempo mode.
Tap Tempo captures and uses the time between your last 2
taps as a foundational pulse. From there, you turn the “tap
div/delta”knob normally (without pushing) to select how
many steps the sequencer travels in between tap pulses.
The chart below lays out your options in multiples.
STEP MULTIPLIER:
MIDI CONTROLLED TEMPO:
The Super Ringtone may be clocked by any device that
outputs MIDI clock information. It considers only the clock
portion of MIDI data. MIDI clock will take priority over the
speed knob, tap tempo, and expression pedal controls. If
the MIDI clock is stopped at any time, the sequencing will
freeze until you tap in a new tempo, turn the speed control,
or MIDI clocking resumes. The “tap div”control applies to
MIDI clock similarly to tapped tempos. But now your op-
tions are the note values listed below.
STEP NOTE:
Congratulations! You’re the proud owner of the Z.Vex Eects Vexter Super Ringtone!™
1 2 3 4 5 6 7 8
²/ 1 2 3 4 6 8 16
³
1 2 3 4 5 6 7 8
½ ¼ 16th 32nd
TRIPLETWHOLE SEXTUPLET
Page 1 of 4
NUMBER OF STEPS:
The“steps/preset” knob allows you to choose how many
total steps are in your sequence. Turn the knob without
pushing to select how many steps before the sequence
starts over. You can select any number from 1 to 16.
ADJUSTING THE RINGTONE SEQUENCE:
Adjusting the individual sequence controls (there are 16 of
them) allows you to tune the pitches of the carrier tone for
each step when the“groove/ring”mini toggle switch on the
right hand side of the pedal switch is set on“ring”.
ADJUSTING THE GROOVE ( ) SEQUENCE:
If you wish, you can individually change the rate at which
each step moves to the next, causing less of a sudden step
and more of a glide to the next step in the sequence. Set
the“groove/ring”switch to“groove” to access this feature.
This part is super fun sounding. It can sound a lot like an
amusement park… of circuit bent analog synthesizers… on
acid.
ADJUSTING THE GLISSANDO GLOBALLY:
There’s a knob on the upper right labeled“gliss”which
globally adjusts all glissando rates between steps to the
same value. It’s labeled dierently from the“groove”switch
to remind you that it adjusts all of them at once, so it’s not
quite as“groovy.” ADJUST THIS ONE FIRST. If you
adjust the individual groove settings and then try to adjust
the global glissando setting, it will erase all of the groove
settings and every step will follow the global glissando con-
trol alone. You can, of course, go back and set your groove
settings, but remember this to save yourself time and ag-
groovation… set the glissando rst, then get groovy, baby.
Just to try to help you understand these controls, here is a
not-so-brief summary. If you never adjust the gliss knob or
set the switch on the right to groove and twist any of the
16 sequence knobs, your steps will all be hard and quick,
jumping from one to the next very quickly like, well, steps.
You can smooth out the movement between steps with the
gliss knob, and they’ll all smoothly move the same from step
to step, getting more smeary as you turn it up. Or, you can
switch the small toggle on the right to groove and individu-
ally adjust how much glissando is applied to each step,
causing some steps to be sudden and others to glide. Or,
you can do both… adjust the whole bunch of them glob-
ally with the gliss knob and then set the groove switch and
groove on using the 16 small knobs, but please do it in
that order, and do not go back and adjust the gliss knob or
you’ll have to start grooving all over again. Got it? Probably
not. Just go screw around with it and something good will
happen.
DELTA CONTROL:
We came up with this mode where the tempo can speed up
and slow down, and the rate at which that happens we call
DELTA.
To activate DELTA mode, push and release both the“tap
div/delta”and “steps/preset”knobs at the same time. Each
push moves the mode led next to the“tap/hold” button.
Stop when you get to delta.
When the“tap div/delta”knob is held down and turned, it
adjusts the delta rate. This controls the rate of change when
the pedal is speeding up or slowing down. Selecting the
little arrow pointing left on the mini toggle switch causes the
tempo to decelerate when you step on the“tap/hold” but-
ton. When you release that button, the speed snaps back to
the original tempo. Fun, huh? If you choose the little arrow
pointing right then press and hold the“tap/hold” button, it
speeds up until you let go of the“tap/hold” button. Then it
again snaps back to the original tempo.
Want even more fun? Put that little switch in the middle
between the arrows. Now, when you hold down the“tap/
hold”button it’ll alternately slow down and stay there (when
you release the button), then speed back up and stay there
(after the next hold and release) and so on, alternating
faster to slower. This middle position of Delta behaves a
little dierently when the pedal is being clocked by a MIDI
device. It will alternately speed up and slow down as before,
but instead of remaining at the tempo when released, it
will snap back to the MIDI clock. Remember, the rate at
which this all takes place is controlled by the“tap div/delta”
knob… just hold down and turn the“tap div/delta”knob to
adjust it to one of the sixteen dierent rates.
HOLD:
When the“tap div/delta”and “steps/preset”knobs are
pushed simultaneously for a moment, you can change the
function of the “tap/hold”switch and select HOLD mode.
In this mode, the sequencing stops when you push and
hold the“tap/hold”switch, and continues when you let go.
This feature works with MIDI clocking and all other tempo
choices.
GO TO 1:
This is another function of the“tap/hold”button. Whenever
you want the sequence to go directly to 1 and collect $200,
tap the“tap/hold”switch ONCE. You have to be in TAP
TEMPO mode (to get there, push and release both the“tap
div/delta”and “steps/preset”knobs to cycle through the modes).
Important Note: this is a really cool trick, but if you tap
too close together you will wind up entering a new tempo.
Using this feature with MIDI is really fun, and you don’t have
to worry about tapping too often. You can interrupt your se-
quence at any time, and jump back to the beginning. This al-
lows you change the sensation of your sequence by moving
the apparent start point. You can also stutter the beginning
of your sequence to complicate the pattern.
INDIVIDUALGLISSANDO
Page 2 of 4
EXPRESSION PEDAL INPUT:
You can control either tempo or global glissando settings
with an external expression pedal. Simply plug an expression
pedal into the input on the back of the Super Ringtone with
a ¼”TRS cable. Set the expression pedal mini toggle switch
to either“gliss”or“speed”. That assigns control of the se-
lected parameter to the expression pedal, and simultaneously
disables the corresponding knob on the pedal.
When using the Super Ringtone without an external expres-
sion pedal, put the expression selector switch in the OFF
position.And there’s one more secret thing you can do with
the expression pedal.If you have the expression set to con-
trol“speed”but you also have the Step/Seq/Rnd toggle in
“Step” you’d think nothing would happen, right? Wrong! In
this setting you can glide forward and backward through the
stages dependent on the position of the expression pedal.
EXTERNAL TAP IN/OUT:
There’s one more ¼”jack on the back that lets you slave
your other Super Seekers(as well as most other pedals with a ¼”
tap tempo in/out jack) together, or use an external momentary
switch to tap in tempo remotely. When Super Seekers are
connected to each other’s tap in/out jack, tapping on any one
of them will cause all of them to jump to that tapped tempo.
SAVING PRESETS:
If you come up with a favorite program and you want to be
able to recall it later, there are 8“slots”in which a complete
setup can be stored. To prepare for storage, push the“steps/
preset”knob down and turn it to one of the 8 slots (one led in
the rst 8 steps will indicate which slot you’ve selected). Next, get
your programming all done, adjusting your individual settings
and ne-tuning the pedal until you’re happy. When you’re ready
to save your settings, hold down the“steps/preset”knob and
then push and hold down the“tap/hold”button until you see
a couple of LEDs icker next to that button.Your program is
saved and will remain in memory even if the battery is removed
from the pedal.
What exactly gets saved? Glissando and groovy settings, last
tempo settings, your last chosen mode (HOLD, DELTA, TAP),
your chosen number of stages, tap/midi division, and DELTA
setting. The DELTA toggle position and STP/SEQ/RND
toggle position are also saved. The expression toggle position
and GROOVE/RING toggle position are not saved.
RECALLING PRESETS:
To access a saved preset, push down and turn the “steps/
preset” knob until you get to the slot you wish to recall. Re-
lease, and voila! You’ve recalled your preset. You might have
to reset the expression toggle position and GROOVE/
RING toggle, those settings are not saved.
HOW TO SAVE A SETUP WHEN YOU’RE NOT IN THE SLOT
WHERE YOU WANT TO SAVE IT:
That was a mouthful. When you’re fooling around with the
Super Ringtone and come up with a really cool setup that
you want to save, you may suddenly realize that you aren’t
parked in the slot where you want to save it. In fact, you may
be parked in a slot that you really don’t want to write over.
What to do? Very simple, really, but be careful. Pick a slot
that you (probably) don’t care about, or may be empty. Push
in the“steps/preset”knob and rotate it to the slot that you
want to over write. DON’T RELEASE IT! Now push down
the“tap/hold”switch and wait until you see the happy blinky
LEDs illuminate next to it. You’ve just saved your settings in
the selected slot.
If you accidentally release the“steps/preset”knob before
you push and hold the“tap/hold” switch, you’ll wind up
loading whatever preset was chosen (if there was one
stored there), and lose the settings you were trying to save.
Also, if you chose a slot that you thought contained nothing
important and it was actually a really wonderful setup that
you never ever ever wanted to lose, you just lost it. DON’T
DO THAT! There are 8 program slots for you to ll with your
creative genius. We left ourselves a little extra room in the
Super Ringtone’s brain for code updates. Just in case we
think of something really fun to add later. Although activat-
ing more features may eventually require pushing all buttons
at once, while rubbing your nose on the back of the unit.
INTERNAL CONTROLS:
There are two internal trim pots in your Super Ringtone.
The one on the left is a mix adjustment. You can use this to
change the ratio of dry guitar signal to wet eected signal.
The other trim pot controls the range of the pitch (low to high)
of the ring modulator. The range trim pot is set here at the
shop for optimal performance. Best leave that one alone. But
feel free to change the mix ratio. You can create some lovely
textures by having the Super Ringtone grinding subliminally,
creating subtle eddies and currents of crosstalk against your
guitar. Super cool!
POWERING YOUR PEDAL:
We highly recommend that you use a high-quality 9VDC
power supply with your Super Ringtone with at least 100mA
capability. It should have a center-negative BOSS-type bar-
rel connector. The pedal can operate using a 9V battery but
do not expect much battery life… this thing is a power hog
because of all of the LEDs and the micro controller.
WARRANTY:
As with all Z.Vex Eects, we will be very happy to help you
out and x up any damaged or defective Z.Vex product. To
extend your Vexter’s warranty from 1 year to 2, please ll
out the enclosed warranty card and mail it to us, or contact
[email protected] with the information. Feel free to contact
us at [email protected] and/or [email protected] with any
questions.
Enjoy!
WE’VE INCLUDED A PHOTO OF THE SUPER RINGTONE™
ON THE REVERSE OF THIS PAGE FOR YOUR CONVENIENCE!
Page 3 of 4
P.O. Box 16078 | Minneapolis, MN 55416
www.zvex.com | [email protected] | [email protected]
Last Updated: December 2013
Page 4 of 4

Other Zvex Effects Music Pedal manuals

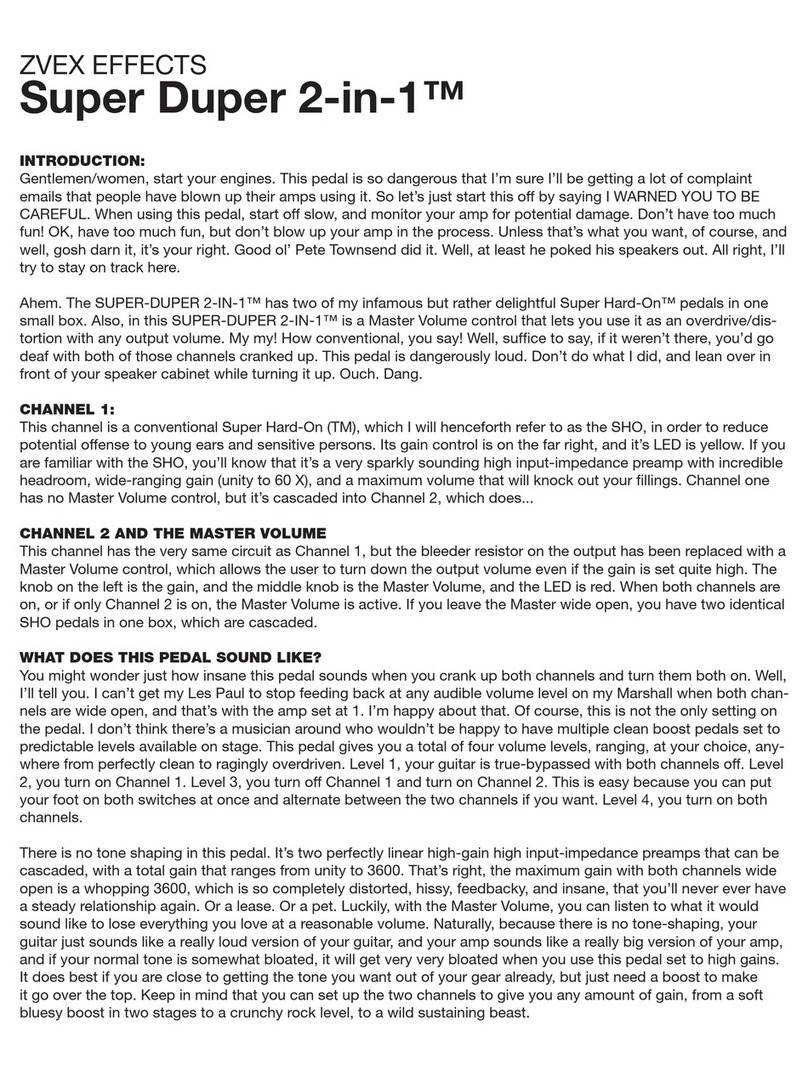

Zvex Effects Vexter Super Duper 2-in-1 User manual

Zvex Effects

Zvex Effects Vexter Super Duper 2-in-1 User manual

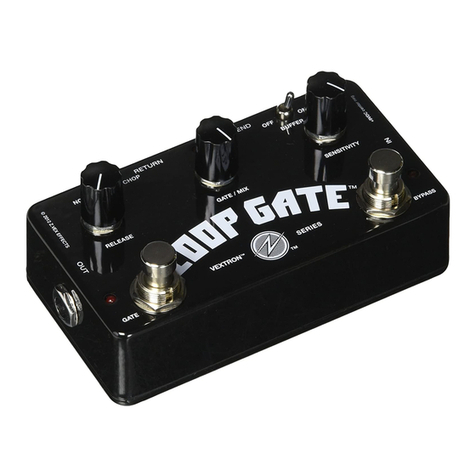

Zvex Effects Loop Gate User manual

Zvex Effects

Zvex Effects Loop Gate User manual

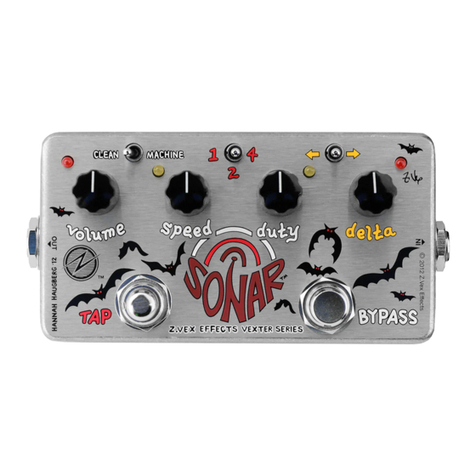

Zvex Effects Sonar User manual

Zvex Effects

Zvex Effects Sonar User manual

Popular Music Pedal manuals by other brands

Onerr Touch Wah Vintage TWA-1 user guide

Onerr

Onerr Touch Wah Vintage TWA-1 user guide

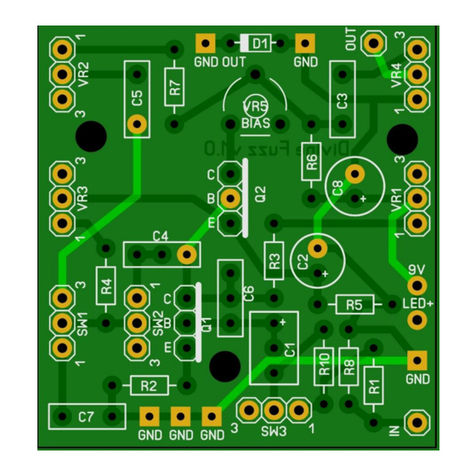

Lithium Grim Divine Fuzz Building instructions

Lithium Grim

Lithium Grim Divine Fuzz Building instructions

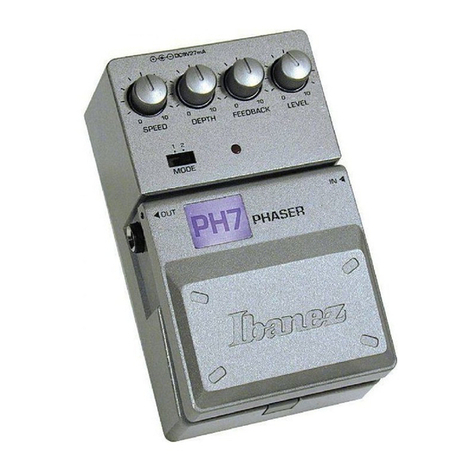

Ibanez Tone-Lok PH7 owner's manual

Ibanez

Ibanez Tone-Lok PH7 owner's manual

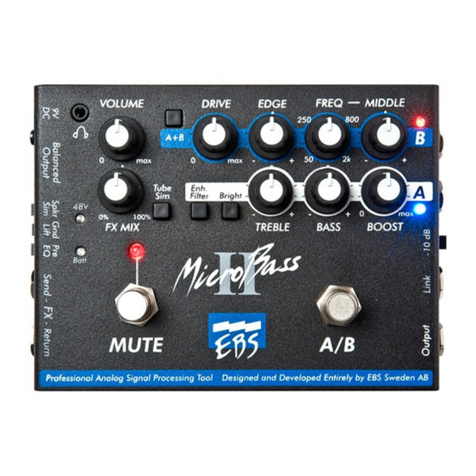

EBS MICROBASSII user manual

EBS

EBS MICROBASSII user manual

Ibanez Tube Screamer TS808HW owner's manual

Ibanez

Ibanez Tube Screamer TS808HW owner's manual

Ceriatone Horse Breaker manual

Ceriatone

Ceriatone Horse Breaker manual

Pyle Pro PPDLOD Specifications

Pyle Pro

Pyle Pro PPDLOD Specifications

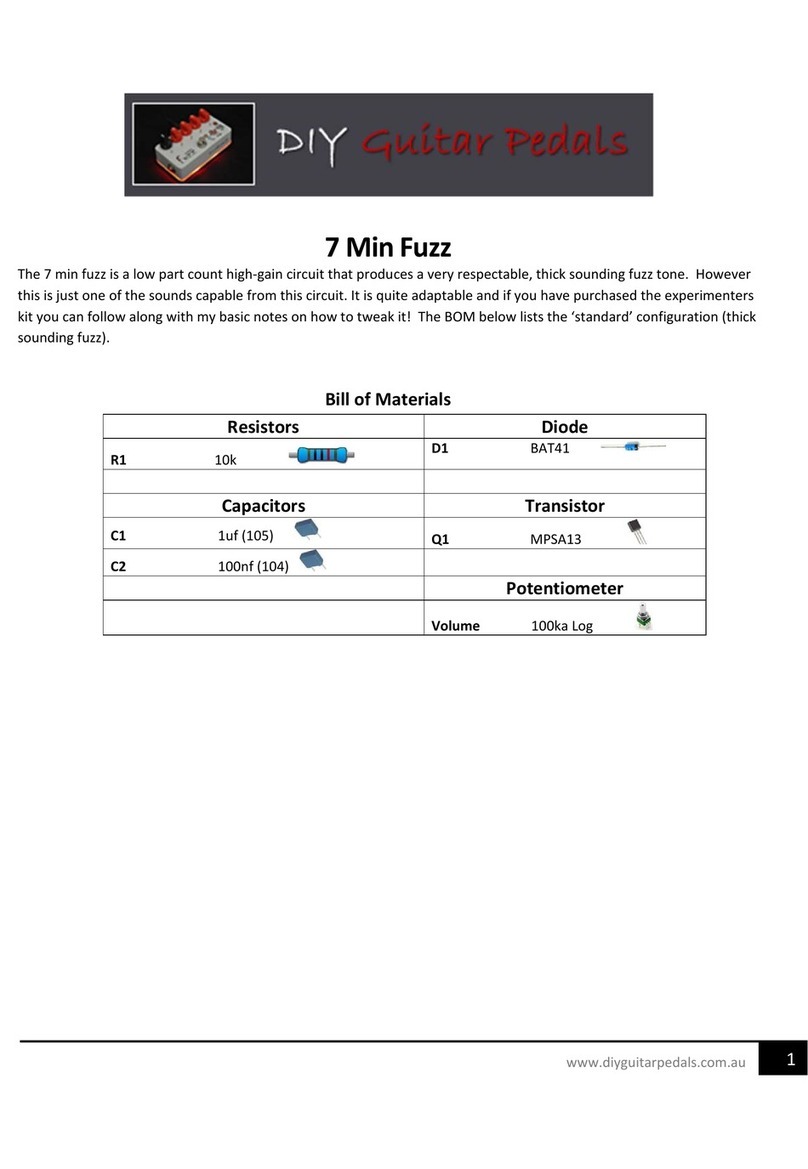

DIY Guitar Pedals 7 Min Fuzz manual

DIY Guitar Pedals

DIY Guitar Pedals 7 Min Fuzz manual

Velleman THE TREMOR Assembly manual

Velleman

Velleman THE TREMOR Assembly manual

Dimavery EPDD-50 user manual

Dimavery

Dimavery EPDD-50 user manual

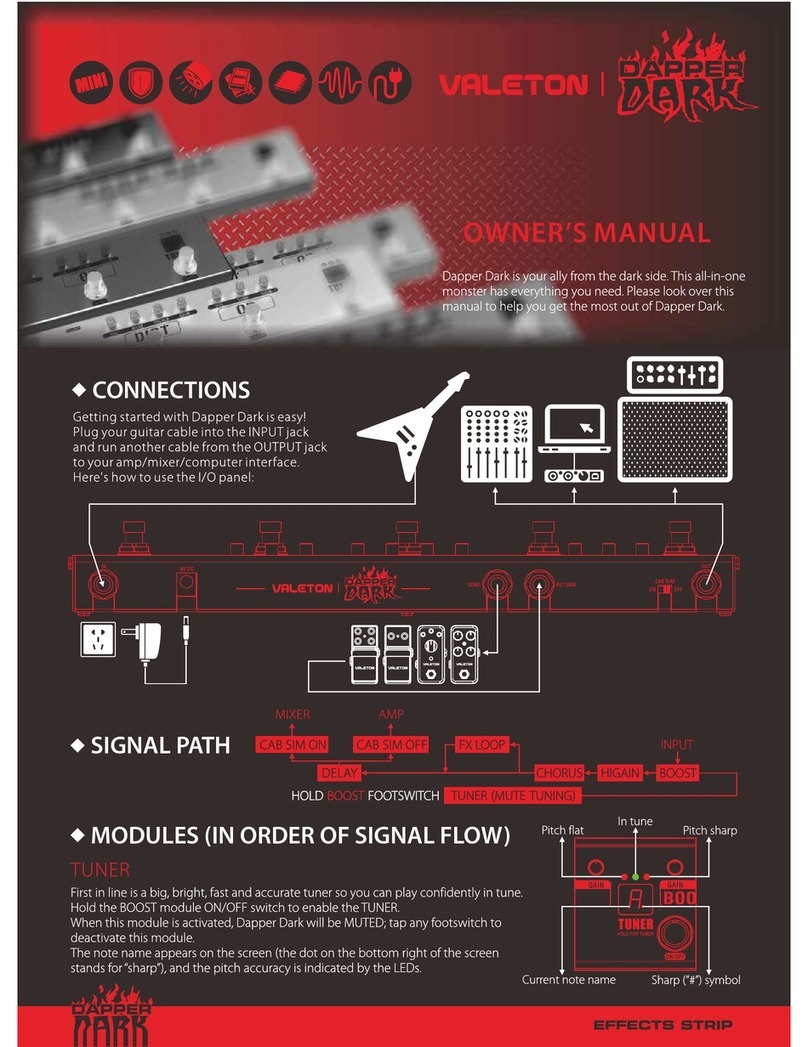

Valeton Dapper Dark owner's manual

Valeton

Valeton Dapper Dark owner's manual

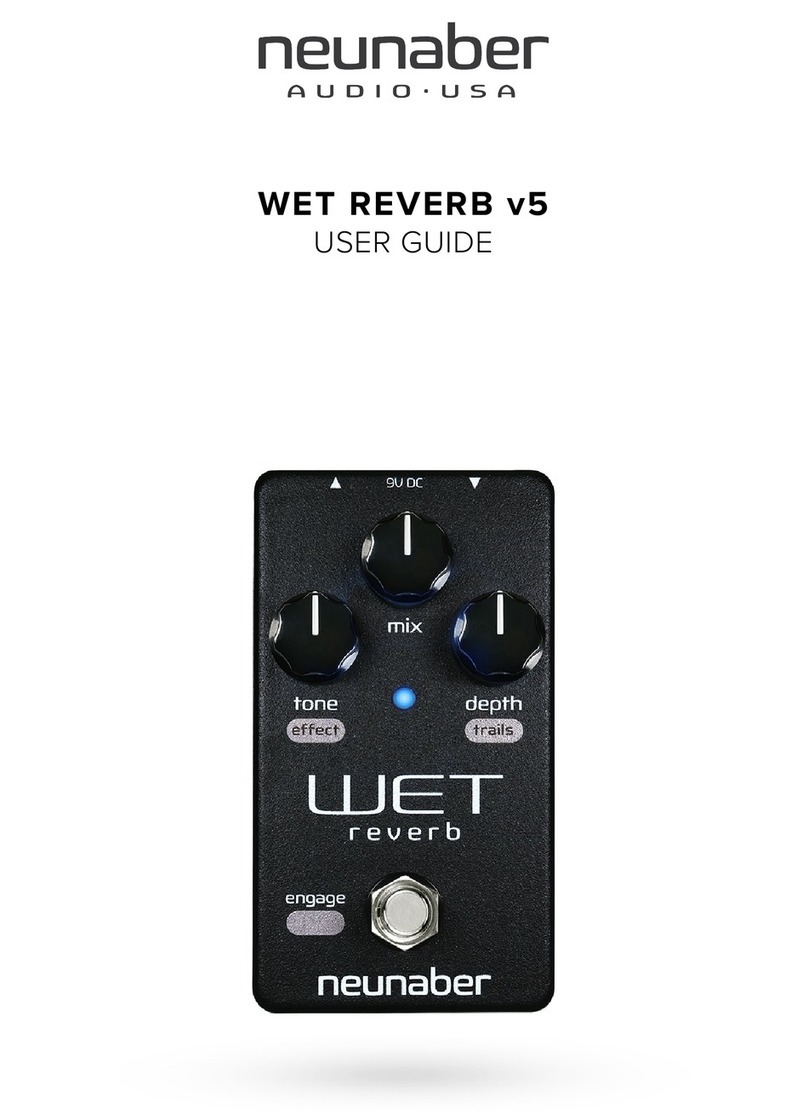

Neunaber WET REVERB v5 user guide

Neunaber

Neunaber WET REVERB v5 user guide

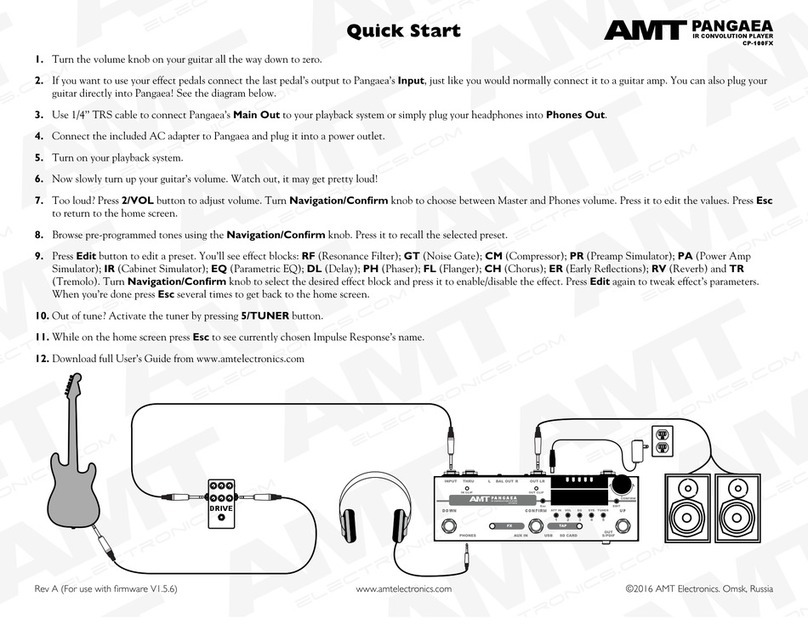

AMT Pangaea CP-100FX quick start

AMT

AMT Pangaea CP-100FX quick start

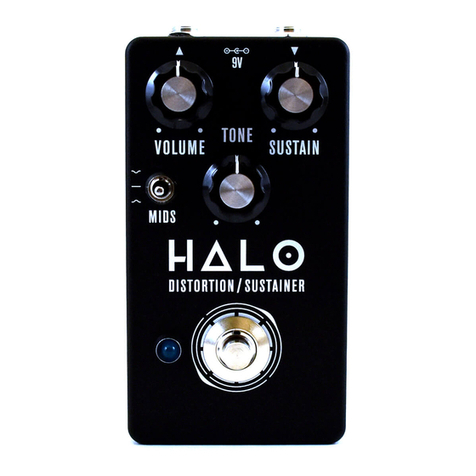

Aion Electronics HALO manual

Aion Electronics

Aion Electronics HALO manual

Paia 4700 G user manual

Paia

Paia 4700 G user manual

Demeter Amplification FUZ-1 user guide

Demeter Amplification

Demeter Amplification FUZ-1 user guide

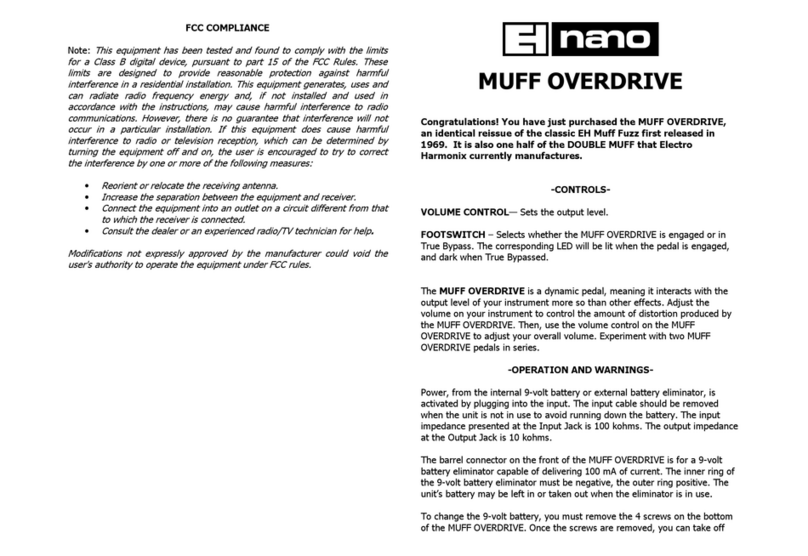

Electro-Harmonix nano MUFF OVERDRIVE manual

Electro-Harmonix

Electro-Harmonix nano MUFF OVERDRIVE manual

Alto alphaVerb II user manual

Alto

Alto alphaVerb II user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
