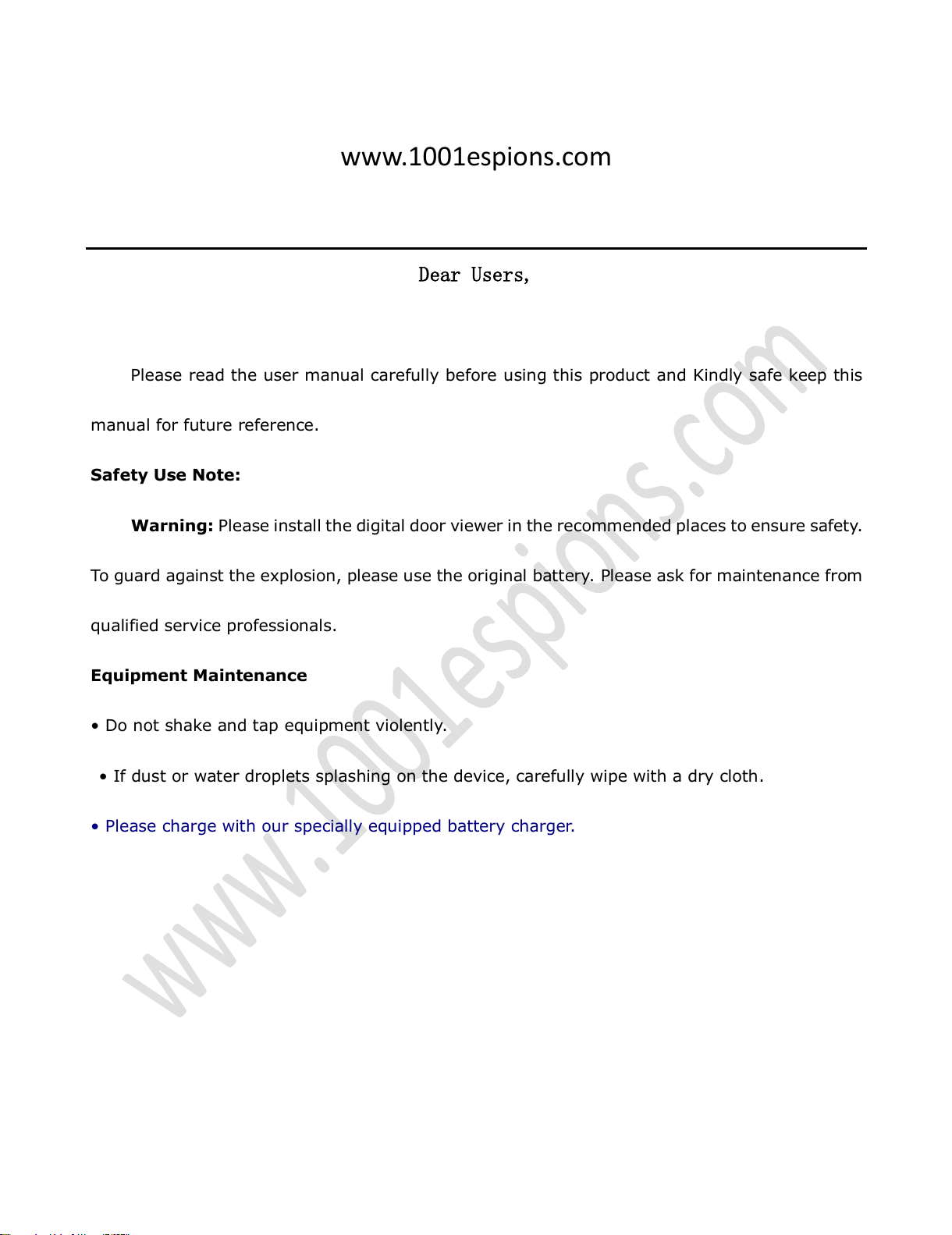

Dear Users,
Please read the user manual carefully before using this product and Kindly safe keep this
manual for future reference.
Safety Use Note:
Warning: Please install the digital door viewer in the recommended places to ensure safety.
To guard against the explosion, please use the original battery. Please ask for maintenance from
qualified service professionals.
Equipment Maintenance
• Do not shake and tap equipment violently.
• If dust or water droplets splashing on the device, carefully wipe with a dry cloth.
• Please charge with our specially equipped battery charger.
All manuals and user guides at all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m

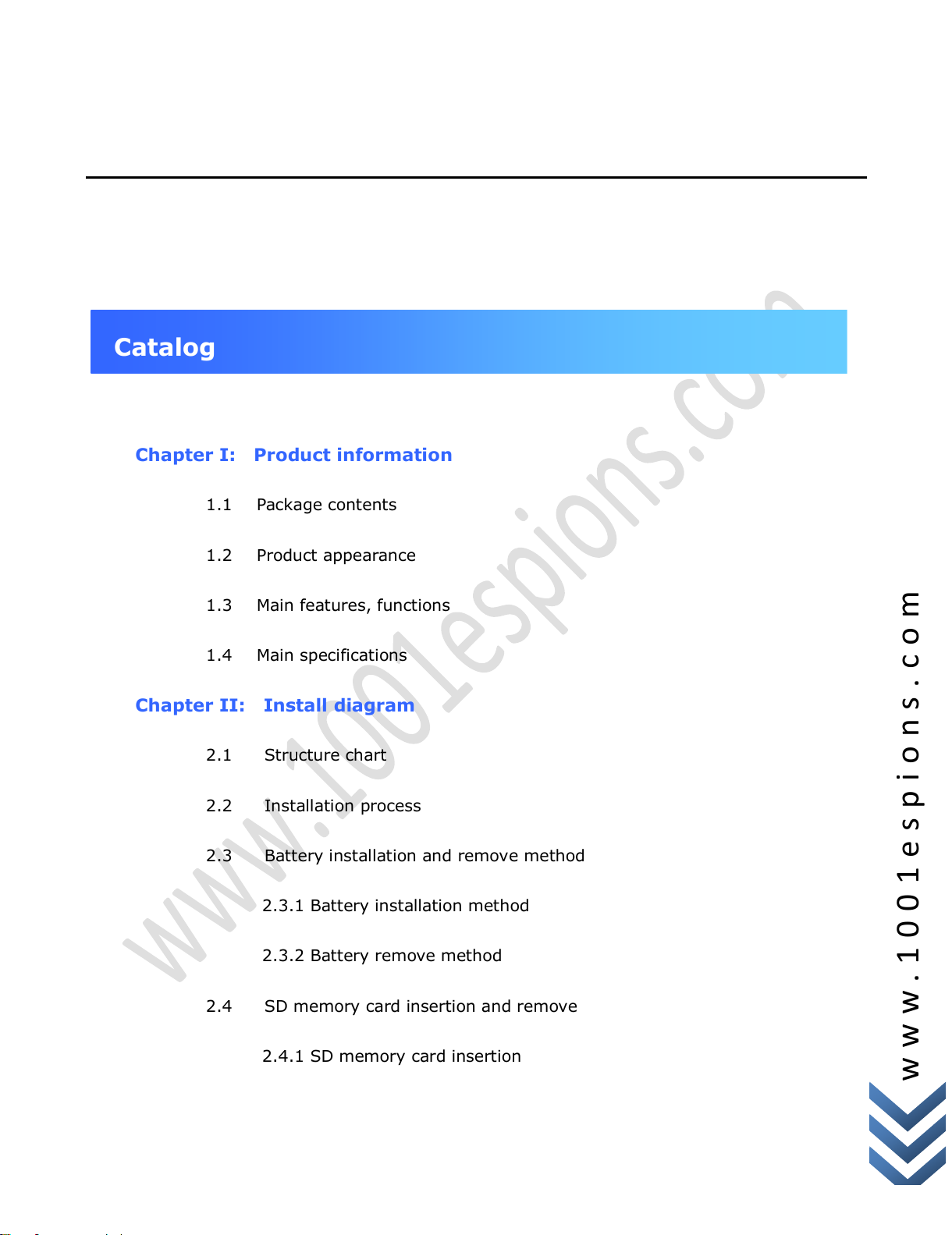

Chapter I: Product information
1.1 Package contents
1.2 Product appearance
1.3 Main features, functions
1.4 Main specifications
Chapter II: Install diagram
2.1 Structure chart
2.2 Installation process
2.3 Battery installation and remove method
2.3.1 Battery installation method
2.3.2 Battery remove method
2.4 SD memory card insertion and remove
2.4.1 SD memory card insertion
Catalog
All manuals and user guides at all-guides.com

www.1001espions.com

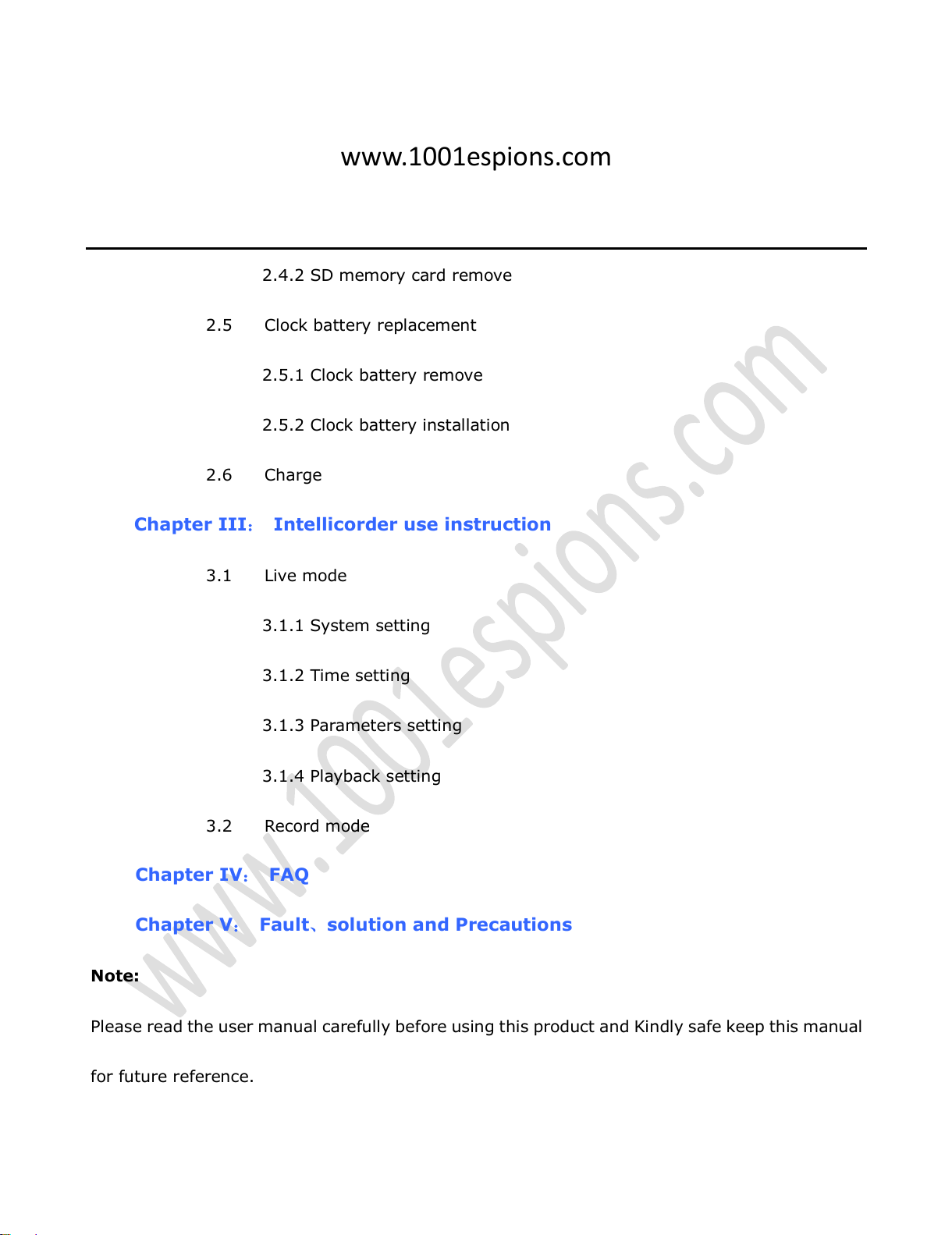

2.4.2 SD memory card remove
2.5 Clock battery replacement
2.5.1 Clock battery remove
2.5.2 Clock battery installation
2.6 Charge
Chapter III：Intellicorder use instruction
3.1 Live mode
3.1.1 System setting
3.1.2 Time setting
3.1.3 Parameters setting
3.1.4 Playback setting
3.2 Record mode
Chapter IV：FAQ
Chapter V：Fault、solution and Precautions
Note:
Please read the user manual carefully before using this product and Kindly safe keep this manual
for future reference.
All manuals and user guides at all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m
1.1 Package contents
(1) Intellicorder indoor host 1pc
(2) Intellicorder outdoor host 1pc
(3) Indoor host mounting plate 1pc
(4) Power adaptor 1pc
(5) Lithium battery 1pc
(6) Clock battery 1pc (Loaded. Not installation for will loss of power, fitted when using)
(7) Fixed nut 1pc
(8) Screw 2pcs
(9) Phillips screwdriver 1pc
Chapter I Product introduction
All manuals and user guides at all-guides.com

www.1001espions.com
(10) User manual 1pc
In the event the packing accessories are incomplete to ensure your interests, kindly contact the
dealer or the company immediately.
1.2 Product Appearance
All manuals and user guides at all-guides.com
all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m
1.3 Product features and functions
The intellicorder SH1006 is a new generation of visual digital recording door viewer, it
incorporated the most advanced technical digital chipset. With a unique assembly method,
user can enjoy easy and convenient installation without the need of any wiring and any need
to alter or modify their current traditional peep-hole on their door construction. This is indeed
a simple, practical and yet highly technologically advanced home security product.
Main features and functions
(1) 2.8” LCD display screen
(2) Attractive & Fashionable appearance
(3) Easy to operate and install, no wiring
All manuals and user guides at all-guides.com

www.1001espions.com
(4) Indoor host monitoring outside
(5) Infrared detection video / photo
(6) Own 256M built-in memory, easy to use
(7) Support SD card extension, up to 32G
(8) Record the date, time, the video length, facilitate to provide valuable data when inquiry
(9) No radiation, low power consumption
(10) 3X digital zoom
(11) 0.3 mega pixel high resolution
(12) Automatic power saving mode

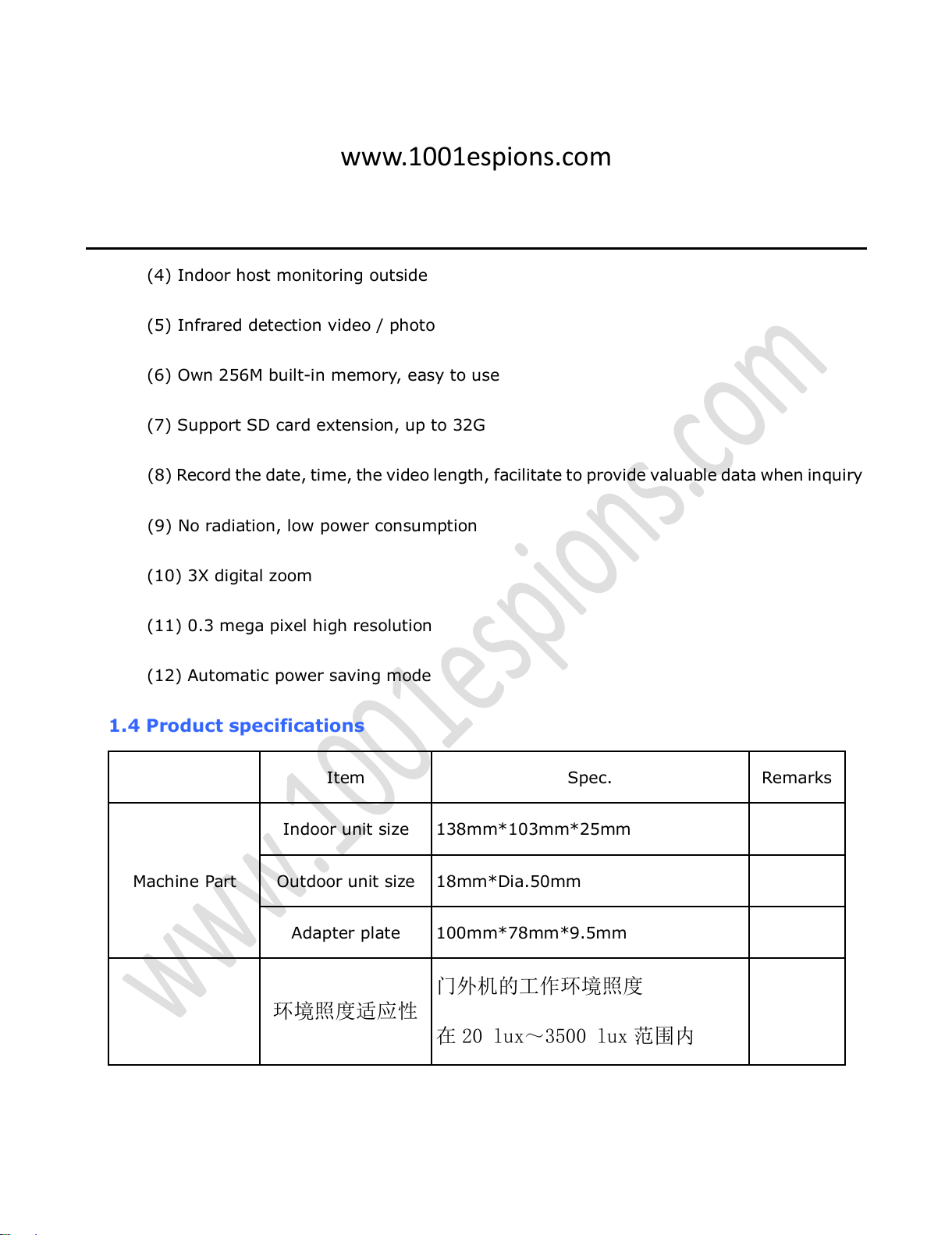

1.4 Product specifications
Item
Spec.
Remarks
Machine Part
Indoor unit size
138mm*103mm*25mm
Outdoor unit size
18mm*Dia.50mm
Adapter plate
100mm*78mm*9.5mm
环境照度适应性
门外机的工作环境照度
在20 lux～3500 lux 范围内
All manuals and user guides at all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m
分辨力
门内机监视器上的图象分辨力
(中心水平)不小于200
TVL(800 lux 环境下)。
MIC part
Capacitive Electret
Microphone
Diameter 6MM Height: 2.7MM
Sensitivity: 40 + /-3dB
Camera Part
Camera Pixel
Width:640, Height:480
300K Pixel
Camera Angle
Diagonal:115+/-5 degrees
Horizontal:102+/-3 degrees
Vertical: 85+/-3 degrees
Digital Zoom
3X digital zoom
Loudspeaker Part
Loudspeaker
Diameter：20MM Power：1W
Impedance：8 OHM
Display Screen
Display Type
240(R+G+B)*320 Dots
LCD Type
2.8 inch TFT LCD
Viewing Direction
6 O”colock
Backlight
4 LED white color
All manuals and user guides at all-guides.com

www.1001espions.com

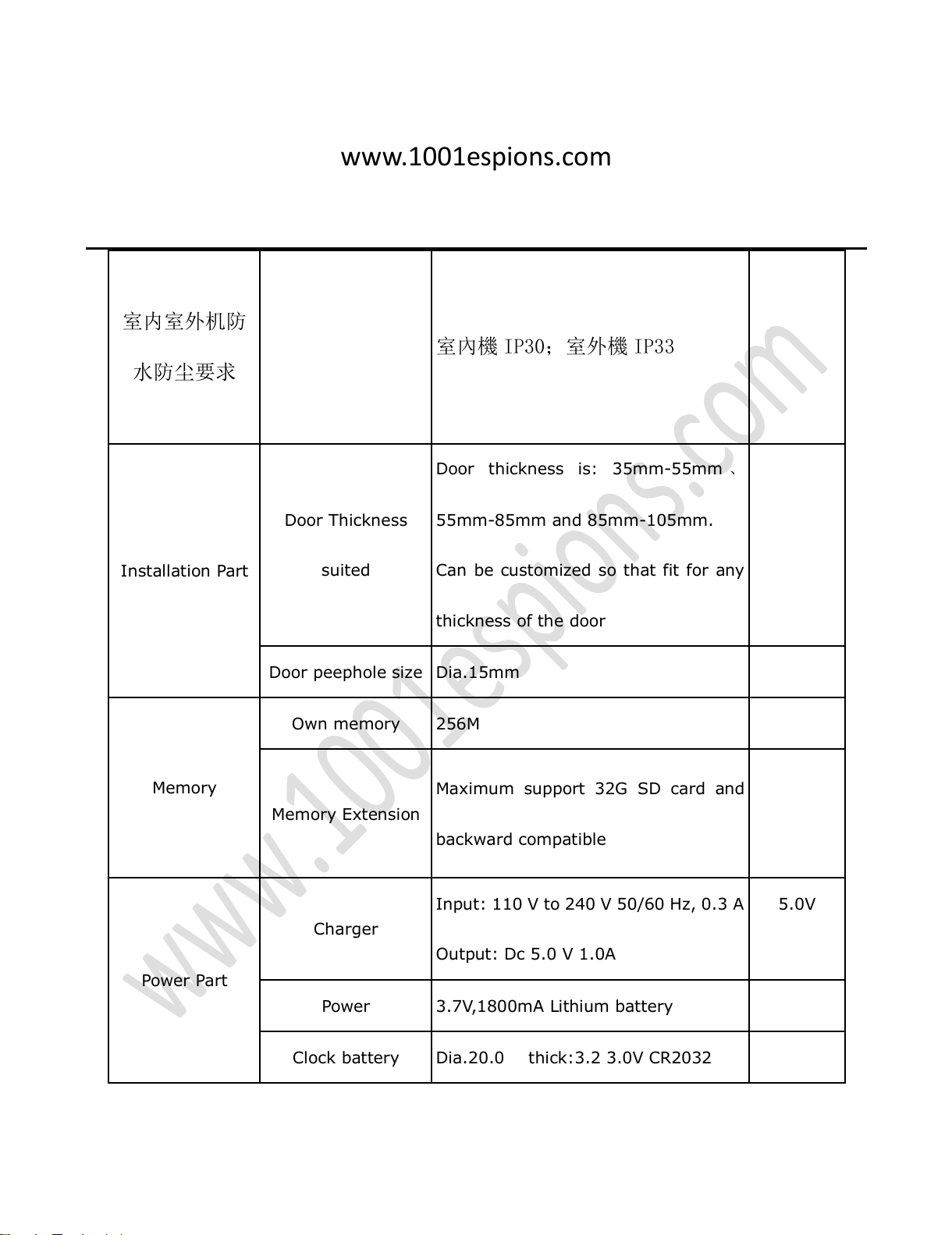

室内室外机防
水防尘要求
室內機 IP30；室外機 IP33
Installation Part
Door Thickness
suited
Door thickness is: 35mm-55mm 、
55mm-85mm and 85mm-105mm.
Can be customized so that fit for any
thickness of the door
Door peephole size
Dia.15mm
Memory
Own memory
256M
Memory Extension
Maximum support 32G SD card and
backward compatible
Power Part
Charger
Input: 110 V to 240 V 50/60 Hz, 0.3 A
Output: Dc 5.0 V 1.0A
5.0V
Power
3.7V,1800mA Lithium battery
Clock battery
Dia.20.0 thick:3.2 3.0V CR2032
All manuals and user guides at all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m
Infrared mobile
monitoring
Distance
近:<1.5M ; 遠:<2.5M
使用條件
环境温度
-10 ℃～+55 ℃；
相对湿度
10 ％～95 ％；
大气压力
86 kPa～106 kPa。
其它
是否帶 SD 卡銷售
根據客人要求可選
是否帶電池銷售
配一塊 1800mA 鋰電池
Language
Kinds of language to set
Settings function
time and date settings function
Sleep automatically
Can automatically go to sleep
File save format
JPEG,MP4
2.1 Intellicorder structure chart
Chapter II Install diagram
All manuals and user guides at all-guides.com
all-guides.com

www.1001espions.com
21
host underside
13
1211
10
98
7
6
5
4
3
host underside
host front
16
15
14

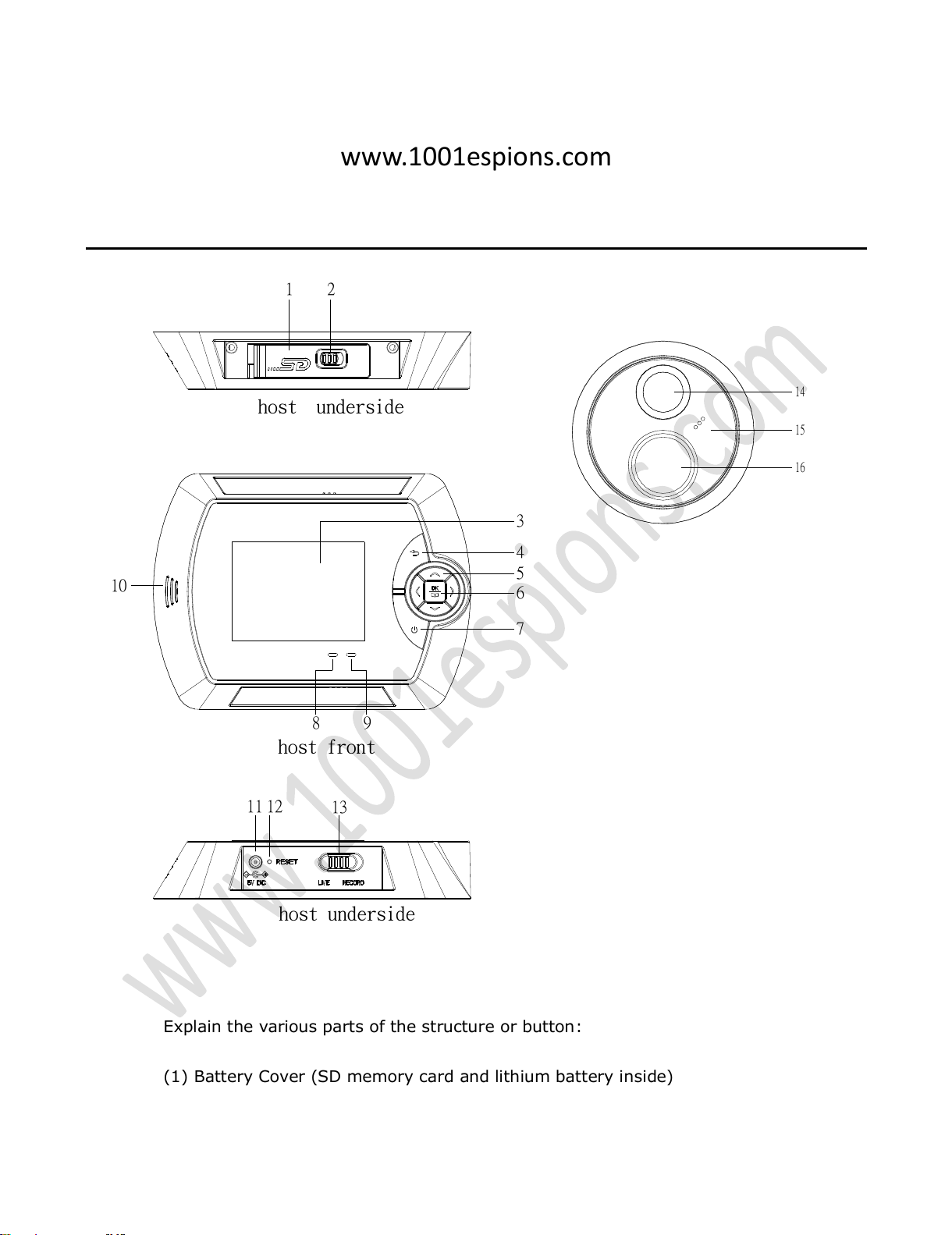

Explain the various parts of the structure or button:
(1) Battery Cover (SD memory card and lithium battery inside)
All manuals and user guides at all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m
(2) Lock bracket for battery cover
(3) Color LCD screen
(4) Return:
(5) Cursor: △▽
(6) OK: confirm setting
(7) Power: power on or power off
(8) Charge indicator (red): when there the external power adaptor is connected, light on
(9) New record indicator (green): recording when in recording mode ,light on
(10) Speaker: Play the recorded audio sound under record mode
(11) Charging interface
(12) RESET –use a pointer or alike to press this button to reset the unit
(13) Mode switch key: switch btw (RECORD) and (LIVE) mode
(14) Lens
(15) Microphone
(16) Infrared motion-activated Sensor –detects motion up to 2-5m
2.2 Install process
All manuals and user guides at all-guides.com

www.1001espions.com

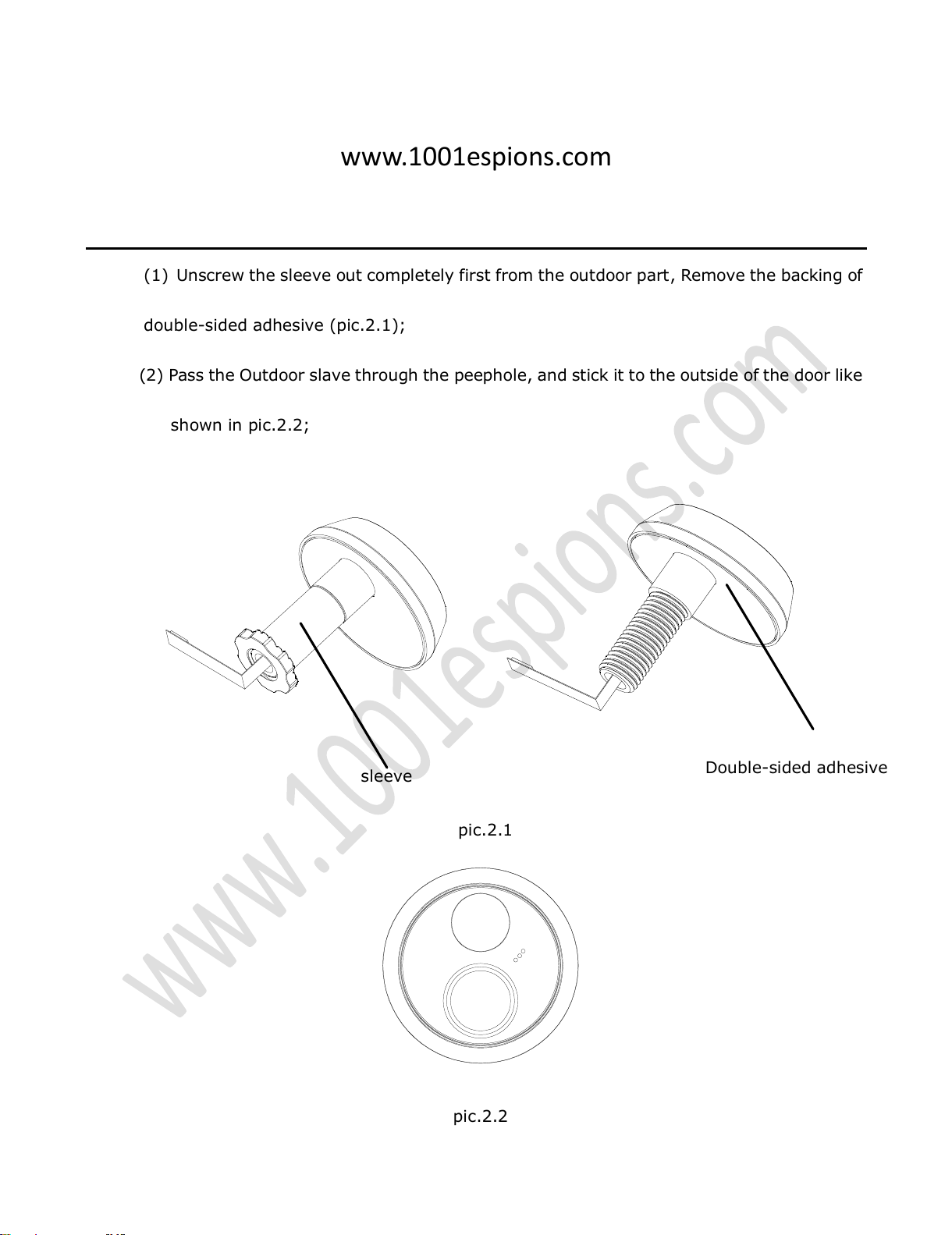

(1) Unscrew the sleeve out completely first from the outdoor part, Remove the backing of
double-sided adhesive (pic.2.1);
(2) Pass the Outdoor slave through the peephole, and stick it to the outside of the door like
shown in pic.2.2;
sleeve
Double-sided adhesive
pic.2.2
pic.2.1
All manuals and user guides at all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m

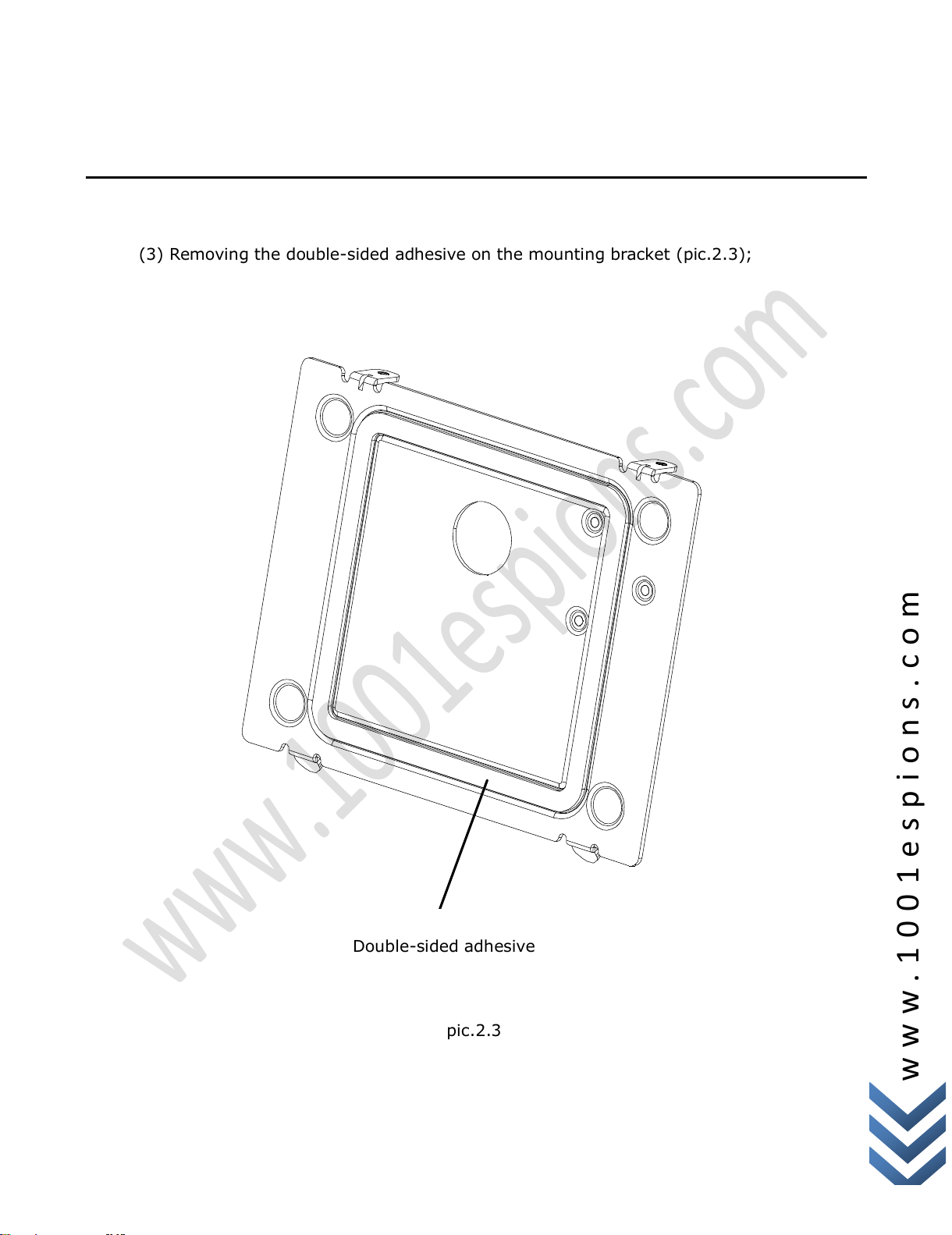

(3) Removing the double-sided adhesive on the mounting bracket (pic.2.3);
Double-sided adhesive
pic.2.3
All manuals and user guides at all-guides.com

www.1001espions.com
(4) Follow pic.2.4, to stick the mounting bracket on the door, then install the Screw for
fixing, and buckle the male connector of the FPC with the female Connector on the
mounting bracket;
All manuals and user guides at all-guides.com
all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m

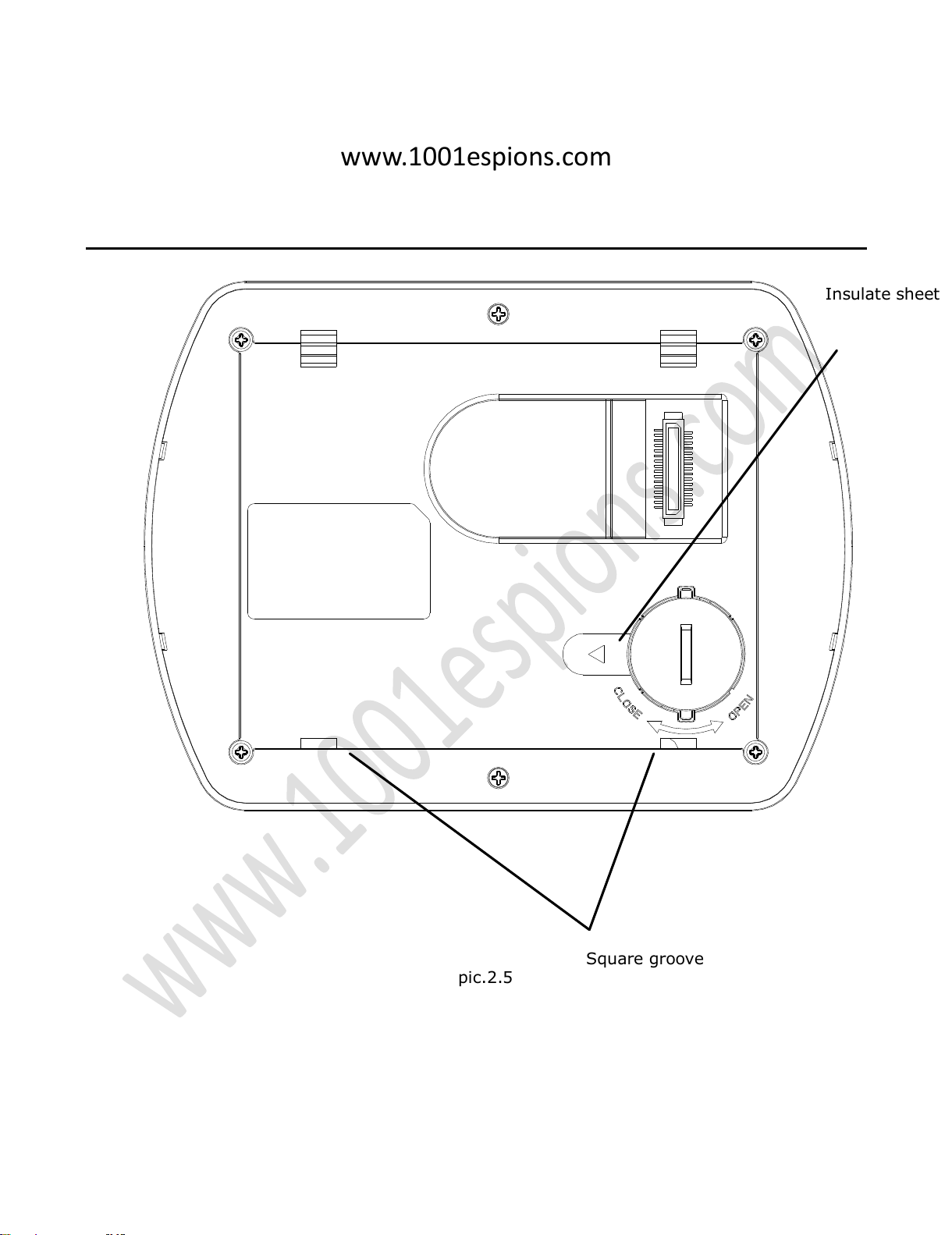

(5) Remove the insulate sheet on the clock battery (pic.2.5);
Director buckle
Door
Fixed nut
FPC
pic.2.4
All manuals and user guides at all-guides.com

www.1001espions.com
Insulate sheet
Square groove
pic.2.5
All manuals and user guides at all-guides.com

w w w . 1 0 0 1 e s p i o n s . c o m
(6) Follow pic.2.6 install the indoor host to the mounting bracket;
图2.7
pic.2.6
All manuals and user guides at all-guides.com

www.1001espions.com

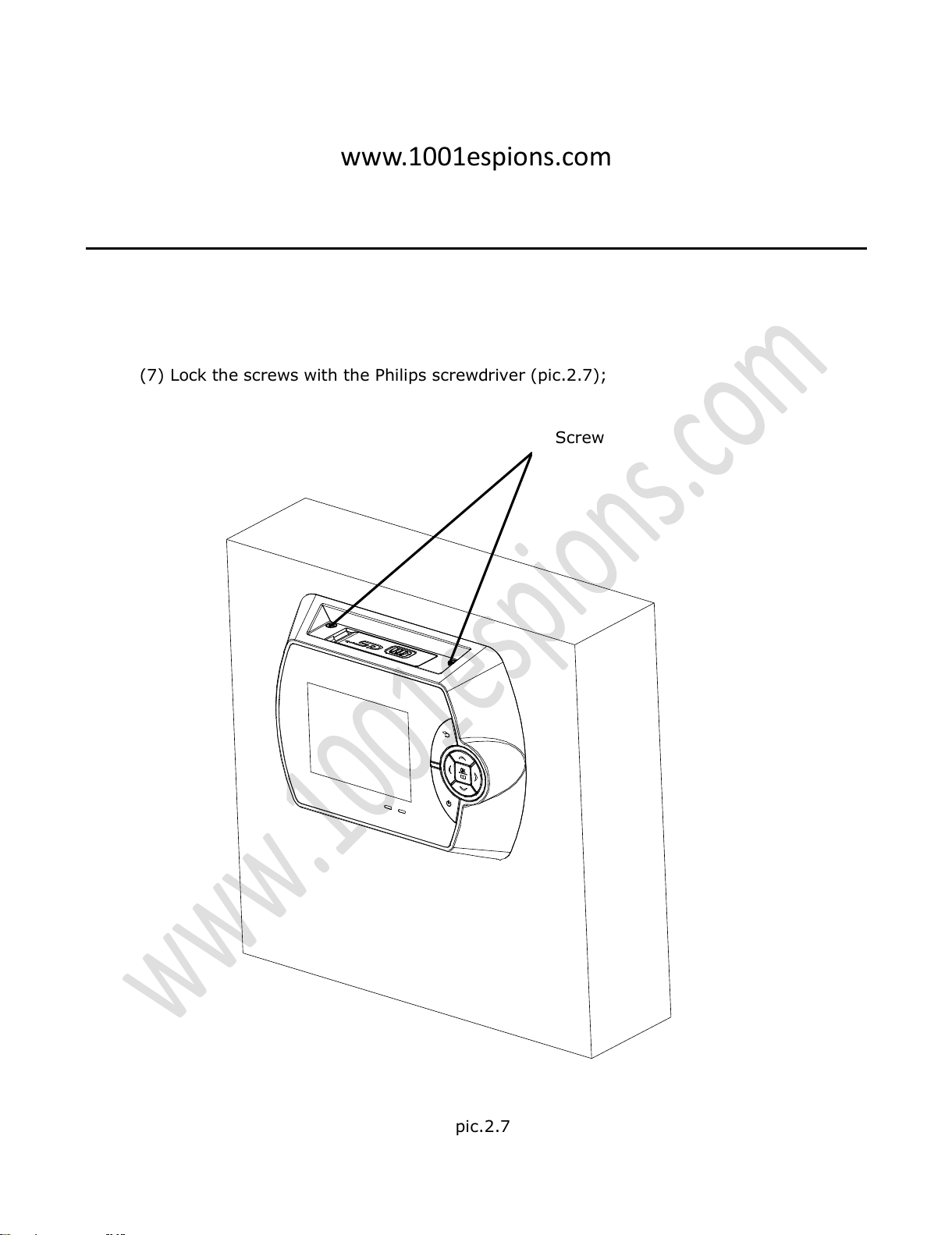

(7) Lock the screws with the Philips screwdriver (pic.2.7);
Screw
pic.2.7
All manuals and user guides at all-guides.com
