360Rize 360Penguin Firmware update

Instructions for 360Rize
360Penguin 360° Panoramic Camera

1 CONTENTS
2 Camera Specifications..................................3
3 Product Layout Details.................................4
4 In The Box....................................................5
5 Button Functions......................................... 5
5.1 Power Button....................................... 5
5.2 WiFI Wireless On/Off Button................ 6
6 Function Of The LED Lights.......................... 6
6.1 Charging With Power Off......................6
6.2 Charging With Power On...................... 7
6.3 Power On Without Charging.................7
6.4 WiFi indicator is a single blue light........7
6.5 Work light is a single ice-blue light........7
7 App – Downloading App.............................. 7
8 App – Main Screens..................................... 8
9 App – Camera Settings.................................9
10 App – How To Social Share...................... 10
11 App – 360 Files On Mobile....................... 12
12 App – 360 Files On Camera...................... 13
13 Mounting Options................................... 14
14 Common Problems.................................. 15
15 FCC Certification...................................... 15
15 FCC Certification …………………………………15

2 CAMERA SPECIFICATIONS
System
ThreadX
Angle of View
Two fisheye lenses, full spherical 360°
by 180° using two 210° fisheye lens
with stitching on board.
Lens
Specification
Lens TTL = 9.98 mm
Focal Length = 1.05 mm
Aperture = F 1.8
Lens Image
Circle
180 = 3.22 mm, 200 = 3.33 mm,
210 = 3.51 mm
Video
Resolution
Up to 6K (5760 x 2880) @ 12 FPS
4K (4096 x 2048) @ 30 FPS
2.7K (2880 x 1440) @ 30 FPS
960P (1920 x 960) @ 30 FPS
Resolution
24M (6912 x 3456), 18M (6112 x 3056),
16M (5760 x 2880), 12M (4896 x 2448),
8M (4000 x 2000)
4M (2880 x 1440)
App
360Penguin (Android & IOS)
APP preview
mode
360° Spherical mode, Google
Cardboard mode, Little Planet, Mirror
Ball, Gyro Mode
Storage mode
Micro SD up to 64 GB Card
Support to
share
WeChat, Facebook, YouTube,
Instagram, Twitter, local share
Connection
USB Type C
Battery
Built in lithium-ion battery 1000 mah
Power
Consumption
4K @ 30FPS on WIFI 50 mins
Or constant power via USB-C
Product
Dimensions
101mm x 49mm x 26mm
4 inch x 1.92 inch x 1 inch

3 PRODUCT LAYOUT DETAILS
Layout of product buttons and LED lights.

4 IN THE BOX
5 BUTTON FUNCTIONS
There are only 2 buttons to understand on
the camera.
5. 1 PO W E R BU T T ON
Power On/Off:
Press the button for 3 seconds to turn
on/off
Restart:
Press the button for 10 seconds
Switch Mode:
Double click the button quickly to
switch to photo mode or video mode.
Side light color determines mode.
Take Photo:
When the Record Mode LED is not lit,
then photo mode is active. Press the
button to take a photo. Photo setting
is saved from the APP setting.
Record Video:
When the Record Mode LED is lit, the
video mode is active. Press the button

to start video. Record Mode LED
flashes when taking video. Press again
to stop video.
Note:
In preparation for taking pictures and
video you must have the micro SD card
installed.
5. 2 WI F I WI R EL E S S ON / O F F BU T T O N
Open Wi-Fi:
Click the Wi-Fi button and Wi-Fi will
open. It will automatically select a
better signal channel. The process will
take about 6-8 seconds. When Wi-Fi
opens, you can search for the Wi-Fi
signal on the phone’s Wi-Fi list. The
SSID is 360Rize_Penguin_xxx-xxxx. The
password is 360chillin.
Close Wi-Fi:
When Wi-Fi opens, you can click this
same button to close Wi-Fi. When Wi-
Fi is opening, this operation is invalid.
Note: After Wi-Fi is enabled, only one handset can connect
to ensure preview flow.
6 FUNCTION OF THE LED LIGHTS
The indicator light of the battery is made
up of red, blue, and green lights.
6. 1 CH A R GI NG WIT H PO W E R OF F
The green light steady
more than 95% charge.
The green light flashes fast
75% - 95% charge.

The blue light flashes fast
25% - 75% charge.
The red-light flashes fast
0 – 25% charge.
6. 2 CH A R GI NG WIT H PO W E R ON
The green light steady
more than 95% charge.
The green light flashes slow
75% - 95% charge.
The blue light flashes slow
25% - 75% charge.
The red-light flashes slow
0 – 25% charge.
6. 3 PO W E R ON WI T H OU T CH A R GI NG
The green light steady
75% - 100% charge.
The blue light steady
25% - 75% charge.
The red-light steady
0 – 25% charge.
6. 4 WI F I I ND I C A TO R IS A SI N G LE BL U E LI G H T
The blue light blinks
Wi-Fi is turned on.
The blue light steady
Phone is connected to Wi-Fi.
The blue light is off
Wi-Fi is off.
Note: After Wi-Fi is enabled, only one handset can connect
to ensure preview flow.
6. 5 WO R K L IG H T IS A SI N G L E IC E - B LUE LI G H T
The ice-blue light
flashes
Camera is recording video.
The ice-blue light is off.
Camera is in photo mode.
The ice-blue light is on.
Camera is in Video mode.
7 APP – DOWNLOADING APP

360Penguin Site Google Play Store
IOS App Store
8 APP – MAIN SCREENS

Figure 1 Figure 2 Figure 3
Figure 1: Main Startup – Allows the user to
access Settings, Edit Files, and connect the
Camera.
Figure 2: Video Record Screen – Allows the
user to record video and toggle multiple
camera views.
Figure 3: File Manager for Camera SD and
Phone – Allows the user to manage both
camera and mobile files.
9 APP – CAMERA SETTINGS

Figure 4 Figure 5
Figure 4: Main Startup -Allows the user to
access Settings, Edit Files, and connect the
camera.
Figure 5: Video – 360 Video, 360 Photo, 360
Time Lapse, 360 Live Streaming, Social Media,
and SD Card Settings are all available settings.

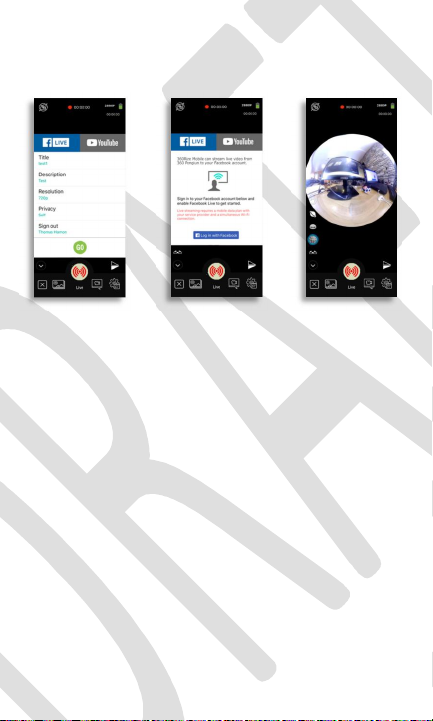

10 APP – HOW TO SOCIAL SHARE

Figure 6 Figure 7 Figure 8
Figure 6: 360 Screen – Allows the user to
Livestream with a simple push of the “GO”
button. Allows a direct login into Facebook or
YouTube.
Figure 7: Live Streaming Facebook – Allows the
user to Live Stream to Facebook.
Figure 8: Live Streaming YouTube – Allows the
user to Live Stream to YouTube.

11 APP – 360 FILES ON MOBILE
Figure 9 Figure 10
Figure 9: Mobile Device Files – Group File
Management of Mobile Files.
Figure 10: Main Startup – Allows the user to
access Settings, Edit Files, and connect the
camera.

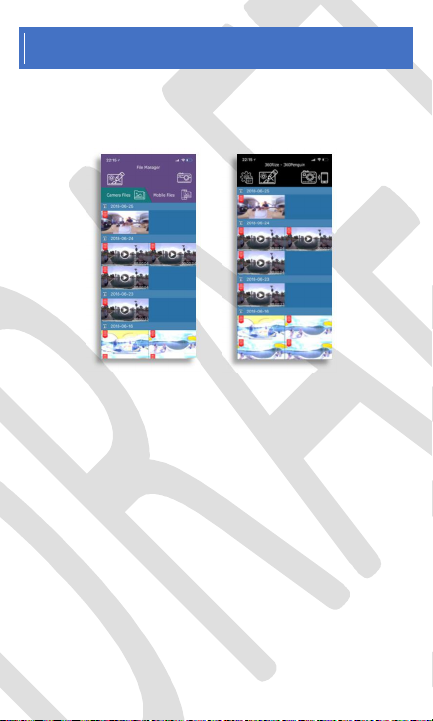

12 APP – 360 FILES ON CAMERA
Figure 11 Figure 12
Figure 11: Camera Files located on Micro SD
Card – Group File Management of Camera
Files.
Figure 12: Main Startup – Allows the user to
access Settings, Edit Files, and connect the
camera.

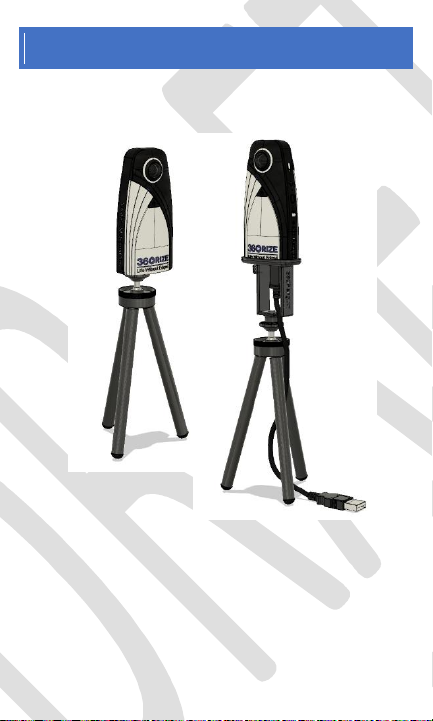

13 MOUNTING OPTIONS
Figure 1 Figure 2
Figure 1: Camera
mounted on
included tripod.
Figure 2: Camera mounted on optional
adapter, to allow for constant power via USB-C
cable.

14 COMMON PROBLEMS
1. Image delay/block?
2. Display abnormal image after change
to 2176X1088 resolution?
3. Why is the image shared out a dual
spherical photo?
4. Share black screen when viewing the
link on the PC?
5. Why is the image shared on YouTube
not clear?
15 FCC CERTIFICATION
FCC STATEMENT :
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following
two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including

interference that may cause undesired
operation.
Warning:Changes or modifications not
expressly approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
NOTE:This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed
to provide reasonable protection against
harmful interference in a residential
installation. This equipment generates
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user

is encouraged to try to correct the
interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
This device comply with FCC SAR requirements.
The highest reported 1g-SAR for body is 0.668 W/Kg
