360Rize 360Penguin User manual

Instructions for 360Rize
360Penguin 360° Panoramic Camera

1CONTENTS
2Camera Specifications ............................ 3
3Product Layout Details............................ 4
4In The Box ............................................... 5
5Button Functions .................................... 6
5.1 Power Button................................. 6
5.2 WiFI Wireless On/Off Button ......... 7
5.3 WiFI Wireless On/Off Button ......... 7
6Function Of The LED Lights ..................... 7
6.1 Charging With Power Off ............... 8
6.2 Charging With Power On ............... 8
6.3 Power On Without Charging.......... 8
6.4 WiFi Indicator................................. 8
6.5 Work Light Indicator ...................... 8
7App – Downloading App ......................... 9
8App – Main Screens .............................. 10
9App – Camera Settings ......................... 11
10 App – How To Social Share ................... 12
11 App – 360 Files On Mobile.................... 13
12 App – 360 Files On Camera................... 14
13 Mounting Options ................................ 15
14 Safety/Certifications ............................. 16

2CAMERA SPECIFICATIONS
System
ThreadX
Angle of View
Full spherical 360° by 180° using two
210° fisheye lenses with stitching on
board.
Lens
Specification
Lens TTL = 9.98 mm
Focal Length = 1.05 mm
Aperture = F 1.8
Lens Image
Circle
180 = 3.22 mm, 200 = 3.33 mm,
210 = 3.51 mm
Video
Resolution
Up to 6K (5760 x 2880) @ 12 FPS
4K (3840 x 1920) @ 30 FPS
2.7K (2880 x 1440) @ 30 FPS
960P (1920 x 960) @ 30 FPS
Resolution
24M (6912 x 3456), 18M (6112 x
3056), 16M (5760 x 2880), 12M
(4896 x 2448), 8M (4000 x 2000)
4M (2880 x 1440)
App
360Penguin (Android & IOS)
APP Preview
Mode
360° Spherical mode, Google
Cardboard mode, Little Planet,
Mirror Ball, Gyro mode
Storage Mode
Micro SD up to 64 GB Card
Support To
Share
WeChat, Facebook, YouTube,
Instagram, Twitter, Local share
Connection
USB Type C
Battery
Built in lithium-ion battery 1000 mah
Power
Consumption
4K @ 30FPS on WIFI 50 mins
or constant power via USB-C

Product
Dimensions
101mm x 49mm x 26mm
4-inch x 1.92-inch x 1 inch
3PRODUCT LAYOUT DETAILS

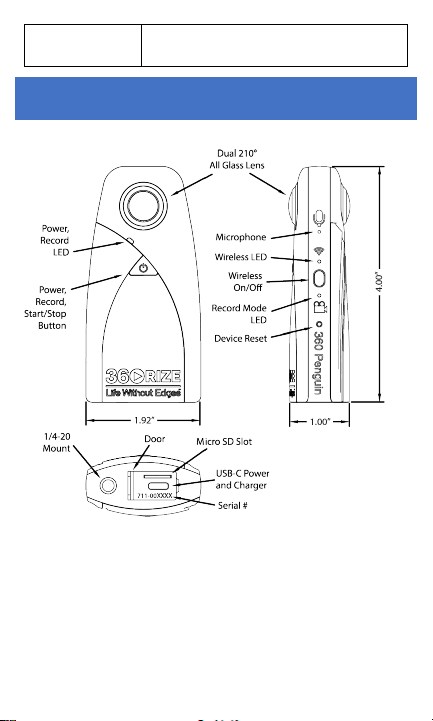

Layout of product buttons and LED lights.

4IN THE BOX

5BUTTON FUNCTIONS
There are only 3 buttons to understand on the
camera.
5.1 POWER BUTTON
Power On:
Hold power button for 3 seconds.
Camera beeps twice and the LED
light on the front comes on. The
color of the light will be green when
it is first powered up, then it will
turn to the color that represents
the battery life.
Power Off:
Hold power button for 3 seconds.
Camera beeps twice and the LED
light on the front turns off.
Power Off
(Idle):
Camera Powers off after being idle
for 5 minutes. The LED light on the
front flashes twice then turns off.
Camera beeps twice.
Photo Mode:
The side LED light will be off. Press
the button once to take the photo.
The camera will beep once. The
side light flashes twice green.
Video Mode:
The side LED light will be on steady
and green. Press the button once to
start the video. The camera will
beep once indicating the start of
the video. The side LED light will
flash until the video is stopped.
Press the button once to stop the
video. The camera will beep once
indicating the end of the video.

Switch Camera
Mode:
Press the power button twice, the
camera beeps twice. The side LED
indicates the camera mode.
Note:
In preparation for taking pictures
and video you must have the micro
SD card installed.
5.2 WIFI WIRELESS ON/OFF BUTTON
Open Wi-Fi:
Click the Wi-Fi button and Wi-Fi will
open. It will automatically select a
better signal channel. The process
will take about 6-8 seconds. When
Wi-Fi opens, you can search for the
Wi-Fi signal on the phone’s Wi-Fi
list. The SSID is
360Rize_Penguin_xxx-xxxx. The
password is 360chillin.
Close Wi-Fi:
When Wi-Fi opens, you can click
this same button to close Wi-Fi.
When Wi-Fi is opening, this
operation is invalid.
Note: After Wi-Fi is enabled, only one handset can
connect to ensure preview flow.
5.3 WIFI WIRELESS ON/OFF BUTTON
Reset Button: Press the reset button for 10
seconds
6FUNCTION OF THE LED LIGHTS
The indicator light of the battery is made up of
red, blue, and green lights.

6.1 CHARGING WITH POWER OFF
The red light is on
Camera is charging
The red light is off
Camera is fully charged
6.2 CHARGING WITH POWER ON
The red light is on
Camera is charging
The green light is on
Camera is fully charged
6.3 POWER ON WITHOUT CHARGING
The green light on
75% - 100% charge
The blue light on
25% - 75% charge
The red-light is on
0 – 25% charge
6.4 WIFI INDICATOR
The blue light blinks
Wi-Fi is turned on
The blue light is steady
Phone is connected to Wi-Fi
The blue light is off
Wi-Fi is off
Note: After Wi-Fi is enabled, only one handset can
connect to ensure preview flow.
6.5 WORK LIGHT INDICATOR
The work light is
steady green
Camera is in Video mode
The work light is
flashing green.
Camera is recording video
The work light is off
Camera is in Photo mode
The work light flashes
green twice
Camera is taking picture
The work light is
steady blue
Camera is in live streaming
mode
The work light flashes
green and blue
Camera is actively live
streaming

7APP – DOWNLOADING APP
360Penguin Site Google Play Store
IOS App Store

8APP – MAIN SCREENS
Figure 1 Figure 2 Figure 3
Figure 1: Main Startup – Allows the user to
access Settings, Edit Files, and connect the
Camera.
Figure 2: Video Record Screen – Allows the
user to record video and toggle multiple
camera views.

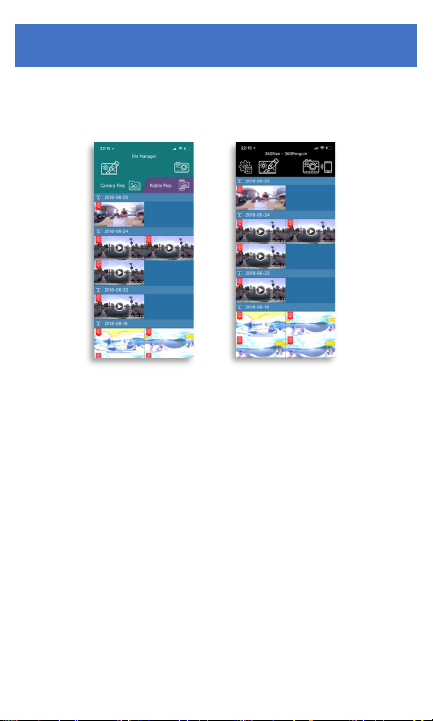

Figure 3: File Manager for Camera SD and
Phone – Allows the user to manage both
camera and mobile files.

9APP – CAMERA SETTINGS
Figure 4 Figure 5
Figure 4: Main Startup -Allows the user to
access Settings, Edit Files, and connect the
camera.
Figure 5: Video – 360 Video, 360 Photo, 360
Time Lapse, 360 Live Streaming, Social Media,
and SD Card Settings are all available settings.

10 APP – HOW TO SOCIAL SHARE
Figure 6 Figure 7 Figure 8
Figure 6: 360 Screen – Allows the user to
Livestream with a simple push of the “GO”
button. Allows a direct login into Facebook or
YouTube.

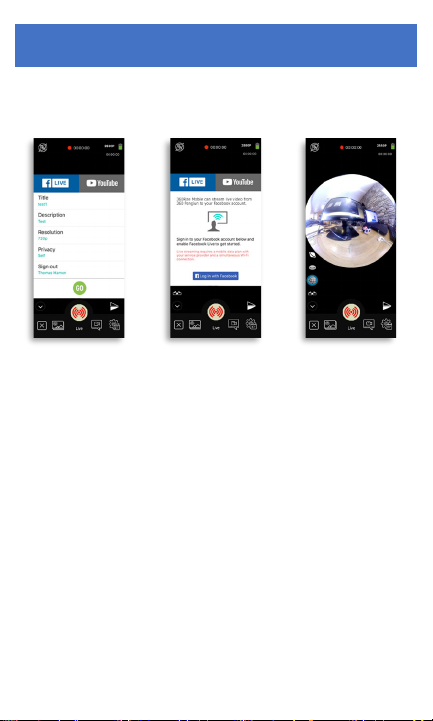

Figure 7: Live Streaming Facebook – Allows
the user to Live Stream to Facebook.
Figure 8: Live Streaming YouTube – Allows the
user to Live Stream to YouTube.

11 APP – 360 FILES ON MOBILE
Figure 9 Figure 10
Figure 9: Mobile Device Files – Group File
Management of Mobile Files.
Figure 10: Main Startup – Allows the user to
access Settings, Edit Files, and connect the
camera.

12 APP – 360 FILES ON CAMERA
Figure 11 Figure 12

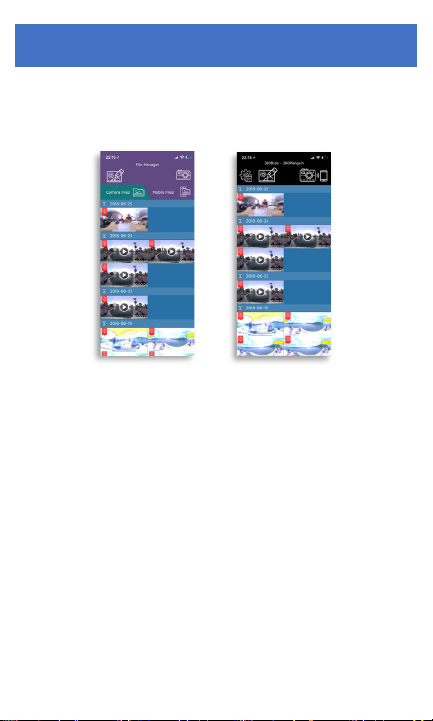

Figure 11: Camera Files located on Micro SD
Card – Group File Management of Camera
Files.
Figure 12: Main Startup – Allows the user to
access Settings, Edit Files, and connect the
camera.

13 MOUNTING OPTIONS
Figure 1 Figure 2 Figure 3

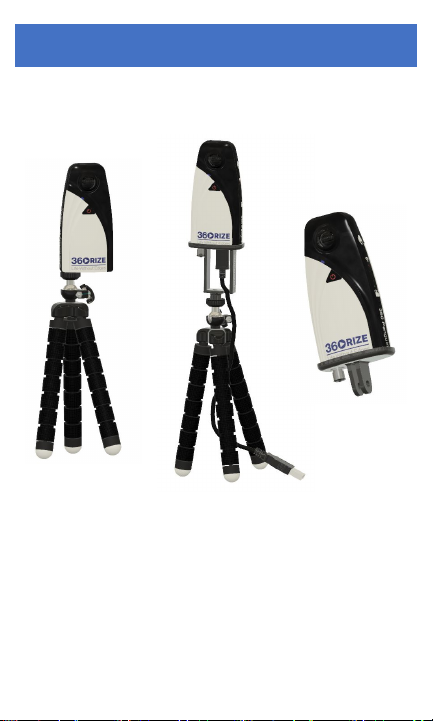

Figure 1: Camera mounted on included tripod.
Figure 2: Camera mounted on optional
adapter, to allow for constant power via USB-C
cable.
Figure 3: Camera mounted on universal action
mount.

14 SAFETY/CERTIFICATIONS
Statement
1. Please read and follow all instructions.
2. Please pay attention to all warnings.
3. Never operate the device near heat sources
such as radiators, heaters, stoves, or other heat
generating equipment.
4. Only use accessories and parts specified and
provided by the manufacturer of 360Penguin.
5. All maintenance should be conducted by
qualified personnel. Repairs are required in
case of damage to the device, for example,
power cord or plug damage, water damage, or
damage because of falling.
Camera Security
Warning: If you fail to take the following precautions, you
may be seriously injured or killed by the electric shock or
fire disaster, or your 360Penguin may be damaged. Please
check before using the camera and accessories to make
sure they are intact. For security, only 360Penguin
accessories that are provided with the device or genuine
ones purchased can be used. Using any other parts,
accessories, or chargers not recommended by 360Rize may
result in fire, electric shock, or casualties. Damage caused
using unauthorized accessories or parts is not covered by
the warranty. To learn about approved accessories, please
visit the 360Rize website: www.360rize.com

1. Never touch the plug or charger with wet
hands while the camera is being charged,
failure to do so may result in electric shock.
2. Do not place this product on an unstable
surface, failure to do so could cause damage to
the camera.
3. If using an external power connection, please
follow all safety guidelines for third party
power devices.
4. The 360Penguin camera lens is made of glass.
In the event of being damaged, keep broken
pieces away from children.
5. If the camera is getting abnormally hot during
use and believed to be at risk of overheating,
power the camera off immediately and let the
device cool.
6. This product is not a toy and you are solely
responsible for complying with all local laws,
regulations, and restrictions.
7. Do not use 360Penguin for unauthorized
monitoring, secret photography, or in any other
way that violates personal privacy laws. Under
normal circumstances, it is strictly forbidden to
use the camera for such purposes; otherwise
the operator may have to assume major
responsibilities and suffer from criminal
lawsuits.
8. Do not place the camera in extremely cold or
extremely hot environments. These
environments may shorten the battery life or
cause the camera to temporarily malfunction.

Certifications
This symbol indicates that your product should be handled
separately from household waste according to local laws
and regulations. When the product life ends, please take it
to the collection site designated by the local authority. The
separate collection and recycling of discarded products are
helpful to the protection of natural resources. Besides,
please make sure that they are recycled in ways that are
beneficial to the human health and environmental
protection.
360Heros Inc. hereby declares that 360Penguin of wireless
device type complies with Directive 2014/53/EU.
Product Name: 360Penguin.
Product Model: 360Penguin v1
Software Version:
Hardware Version:
360Penguin transmits data in the frequency band
802.11b/g/n (HT20) 2412-2462MHz. Particular laws and
regulations of some countries may prohibit or restrict the
use of partial or all frequency bands listed above. The
maximum antenna gain is 2 dBi.

FCC ID: 2AQ3X-V1
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment. This equipment has
been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. End user
must follow the specific operation instructions for
satisfying RF exposure compliance. This transmitter must
not be co-located or operation in conjunction with any
other antenna or transmitter.

The portable device is designed to meet the requirements
for exposure to radio waves established by the Federal
Communications Commission (USA). These requirements
set a SAR limit of 1.6 W/kg averaged over one gram of
tissue. The highest SAR value reported under this standard
during product certification for use when properly worn
on the body (the test distance of SAR is 0mm).
This equipment complies with the FCC radiation exposure
limits set forth for an uncontrolled environment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
