System Overview
Front Panel
1. Power

ON indicates the power on, and OFF indicates the power off.
2. Status

Power and Status both ON indicate system ready, OFF indicates BIOS running, and BLINKING
indicates OS running.
3. WAN

ON indicates connection, OFF indicates no connection, and BLINKING indicates data transmitting.
4. LAN

ON indicates connection, OFF indicates no connection, and BLINKING indicates data transmitting.
Preface
4ipnet WHG303 Secure WLAN Controller is an
ideal solution for small to medium hotspot
deployments, such as in hotels, hospitals,
convention centers, libraries, airport terminals, and
MDUs/MTUs. The WHG303 integrates “secure
access control”, “visitor account provisioning”,
“flexible accounting and billing”, and “high-speed
secure wireless connection” into one box to fulfill the
needs demanded by a public wireless network. It
also provides advanced functions suitable for larger
networks to accommodate more users with multiple
APs to cover a wider service area.
This Quick Installation Guide provides instructions
and reference materials for getting started with
4ipnet WHG303. This guide will also show how to
connect WHG303 to other network devices.
Package Contents
1. 4ipnet WHG303 x 1
2. Quick Installation Guide x 1
3. CD-ROM (with User Manual and QIG) x 1
4. Power Cord x 1
5. Power Adaptor (12DC, 2A) x 1
6. Cross-over Ethernet RJ-45 Cable x 1
7. RS-232 DB9 Console Cable x 1
It is recommended to keep the original
packing material for possible future
shipment when repair or maintenance is
required. Any returned product should be
packed in its original packaging to prevent
damage during delivery.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
Rear Panel
1. DC+12V

Attach the power adaptor here.
2. Reset


•Press and hold the Reset button for about 5 seconds and the LED status indicator on the front panel
will start to blink before restarting the system.
•Press and hold the Reset button for more than 10 seconds and the LED status indicator on the front
panel will start to speed up blinking before resetting the system to default configuration.
3. WAN


•For connecting to external networks which are not managed by WHG303 via ADSL or Cable
Modem, or connecting to a certain LAN of an organization via Switch or Hub.
4. LAN


•For connecting to the networks managed by WHG303, such as client networking devices.
•WHG303 supports Service Zone function including Port-Based mode and Tag-Based mode. Under
Tag-Based mode, service zones are distinguished by VLAN tagging instead of physical LAN ports,
and vise versa. By default, the system is in Port-Based mode and all LAN ports are set to the default
service zone.
5. Console

For displaying text data on an extended monitor via a RS-232 DB9 cable.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
H a rd wa re I n sta l l a tio n
1. Connect the Power adapter to the power socket on the rear panel. The Power LED on the front panel
should be ON to indicate a proper connection.
Using a non-certified power adapter may damage this system.
2. Connect an Ethernet cable to WAN1 Port on the rear panel. Per your needs, connect the other end of the
cable to a networking device such as ADSL modem, cable modem, switch or hub. The WAN1 LED
indicator should be ON to indicate a proper connection.
3. Connect an Ethernet cable to any LAN Port on the rear panel. Connect the other end of the cable to a PC
for configuring the WHG303 system. The LED indicator should be ON to indicate a proper connection.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
G ettin g Sta rted
4ipnet WHG303 supports web-based configuration.
Upon the completion of hardware installation,
WHG303 can be configured through a PC by using
its web browser with JavaScript enabled such as
Internet Explorer version 6.0.
Steps:
1. Set DHCP in TCP/IP of the administrator PC
to get an IP address dynamically. Connect the
PC to any LAN Port of WHG303. An IP
address will be assigned to the PC
automatically via the WHG303 built-in DHCP
server.
2. Launch a web browser to access the web
management interface of WHG303 by
entering “https://192.168.1.254” or
“http://192.168.1.254” in the address field.
 Note: “https” is used for a secured connection.
3. The following Administrator Login Page will
then appear. Enter “admin” (the default value)
in the Username and Password fields, and
then click Login to log in.
4. The Home Page will appear after a
successful login.
 Note:
To logout, simply click the Logout
button at the upper right hand corner
of the interface to return to the
Administrator Login Page.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
C o mmo n Settin g s
< Setup Wizard >
WHG303 provides a Setup Wizard for quick
configuration. To quickly configure WHG303 by
using the Setup Wizard, click on the Setup
Wizard button to start the configuration process.
Step 1: General
•Enter a new password in the New Password
field, and re-enter it again in the Verify
Password field (a maximum of 20 characters
and no spaces allowed in between).
•Select an appropriate time zone from the Time
Zone drop-down list box to set up the system
time.
•Click Next to continue.
For security concern, it is strongly
recommended to change the
administrator's password
Step 2: WAN1 Interface
For setting up both wired WAN and wireless LAN
functions:
•Select a proper type of Internet connection for
WAN1 interface from the following three
available connections: Static, Dynamic, or
PPPoE. Your ISP or network administrator can
advise on the connection type available to you.
Below depicts an example for Dynamic.
•Click Next to continue.
Step 3: Local User Account (Optional)
New local accounts can be created and added into
the database via this optional function. If local user
accounts are not required, click Skip to go directly
to Step 4. However, It is recommended to create at
least one local user account in order to verify the
system‘s readiness upon completion of this Setup
Wizard.
•Enter the Username (e.g. “testuser) and
Password (e.g. “testuser”) to create a new
local account.
•Click Next to continue.
•More local accounts can be added by clicking
the Back button in Step 4.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
Step 4: Confirm and Restart
•Click Finish to save current settings and
restart the system.
•A confirmation dialog box will then appear.
Click OK to continue.
•A Confirm and Restart message will appear
on the screen during the restarting process.
Please do not interrupt the system until the
Administrator Login Page appears.
 Note:
The system is trying to locate a DNS
server at this stage. Therefore, a
longer startup time is required if the
configured DNS cannot be found.
• When the following Administrator Login Page
appears, it means the restart process is now
completed.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
< User Login >
To verify whether the configuration of the new local
user account(s) created via the Setup Wizard has
been completed successfully:
1. Connect a client device (e.g. laptop, PC) to any
LAN Port of WHG303. The device will obtain an
IP address automatically via DHCP.
2. Open a web browser on a client device, access
any URL, and then the default User Login
Page will appear.
3. Enter the Username and Password of a local
user account previously generated via Setup
Wizard (e.g. “testuser@local” as the
Username and “testuser” as the Password);
then Click Login.
Note:
1. WHG303 supports multiple authentication
options including built-in local user database
and external authentication database (e.g.
RADIUS). The system will automatically
identify which authentication option is used
from the full username entered.
2. The format of a full (valid) username is
userid@postfix, where “userid” is the user
ID and “postfix” is the name of the selected
authentication option.
3. Exception: The postfix can be omitted only
when the default authentication option is
used. For example, “LOCAL” is the default
authentication option at this system;
therefore, you may enter either “ testuser ”or
“ testuser @local” in the Username field.
Congratulation!
The Login Success Page will appear after a client
has successfully logged into WHG303 and has
been authenticated by the system.
The appearance of Login Success Page means
that WHG303 has been installed and configured
properly.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r

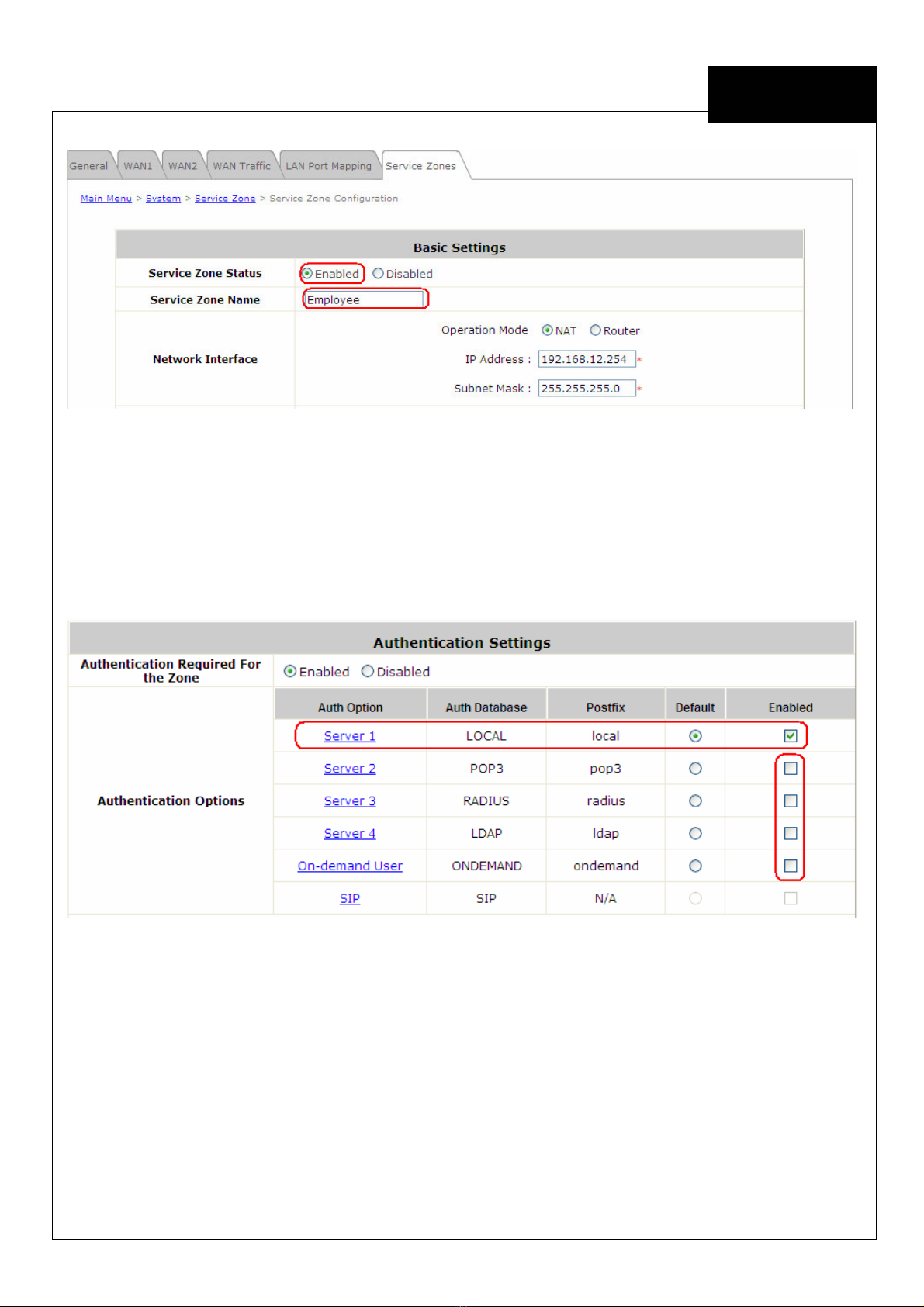

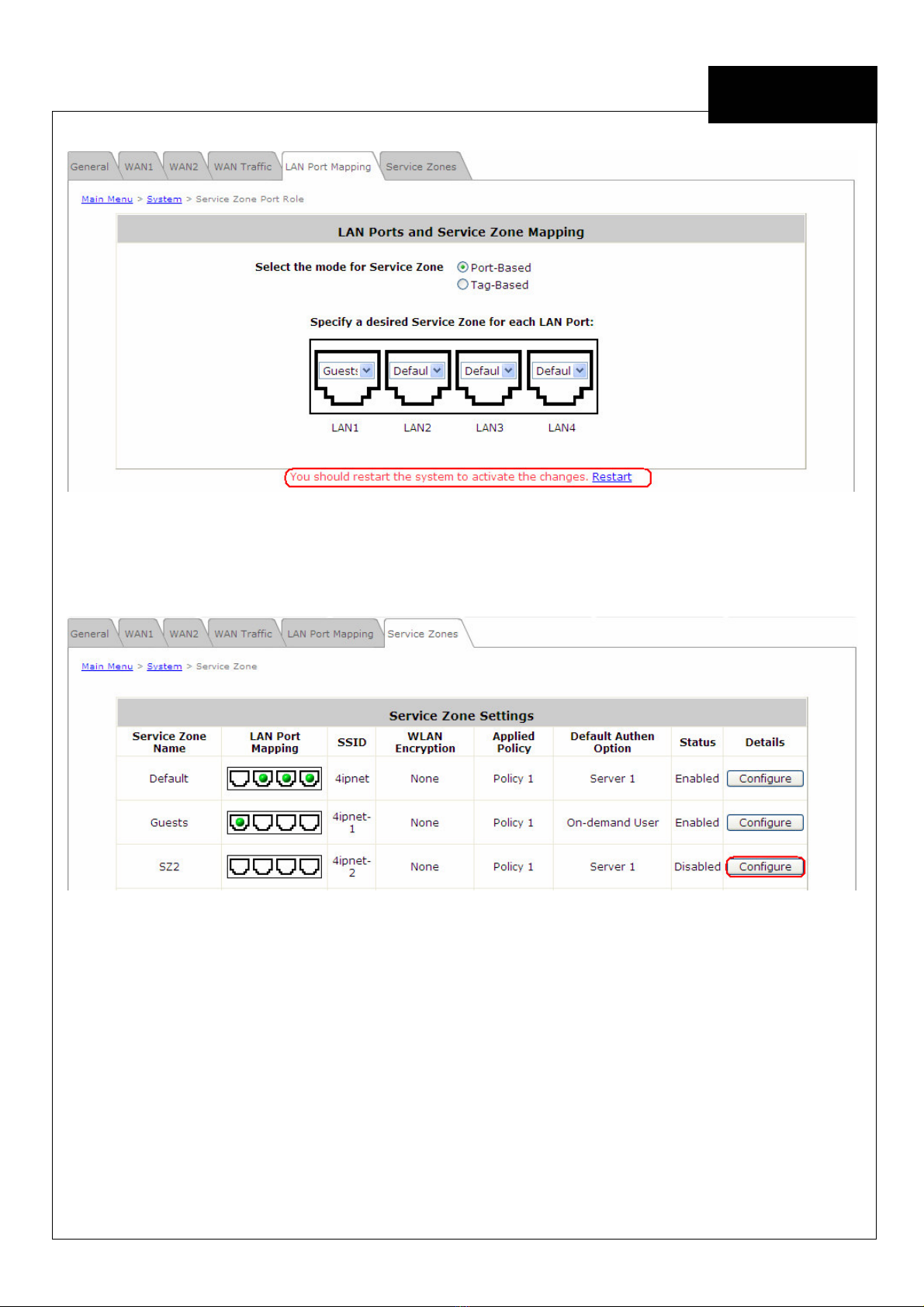

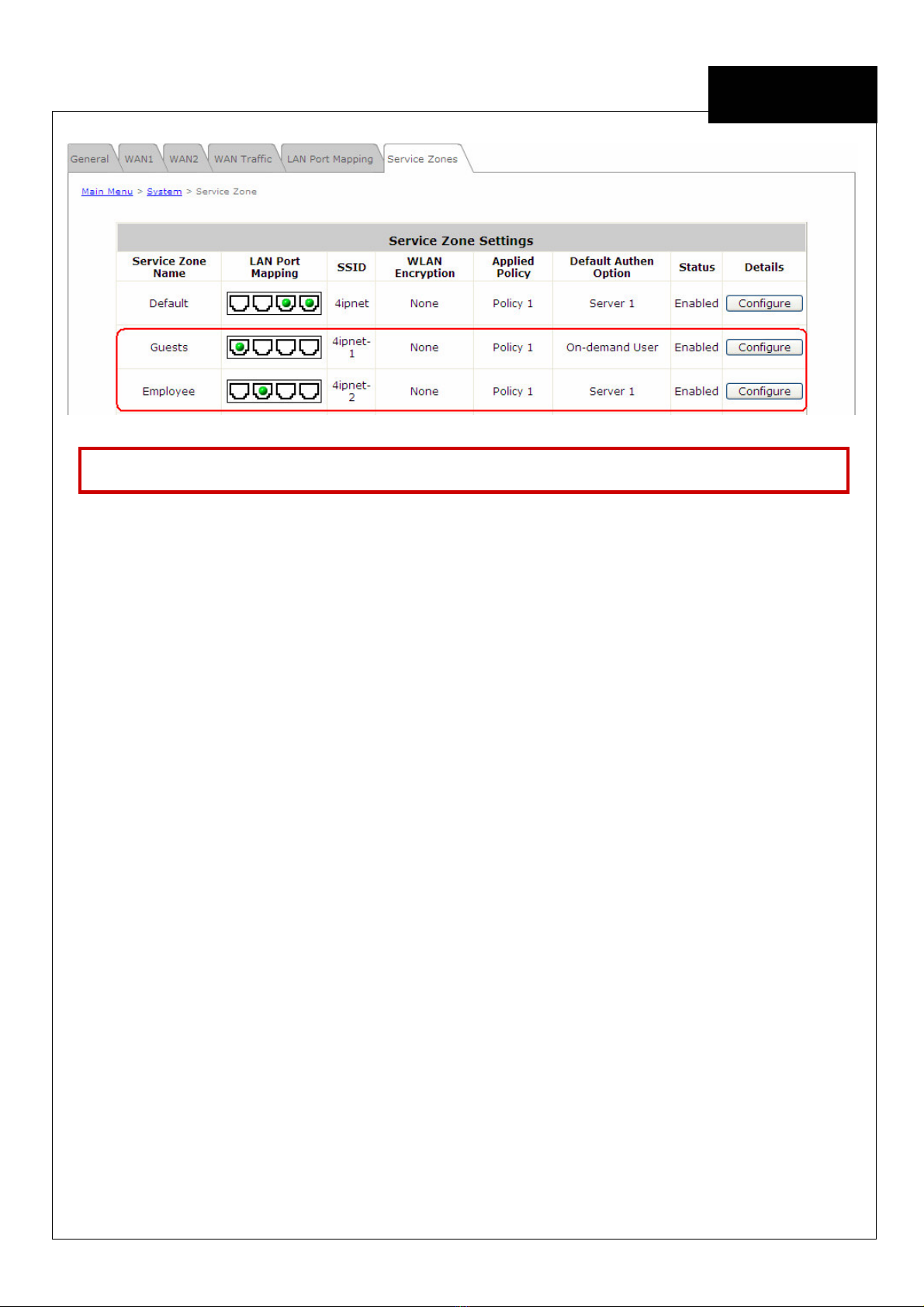

Servic e Z o n e – D ep l o ymen t E x a mp l e
< Small and Mid-size Business Network Environment >
In a Small and Mid-size Business (SMB) network environment, devices such as switches, hubs, and access points
are commonly used, and Internet connection is usually via an ADSL or a cable modem. WHG303 uses virtual LAN
(VLAN) technology to partition one physical network under its control into nine logical virtual networks, called
Service Zones, including one untagged zone and eight tagged zones. The untagged zone is also referred as the
Default Service Zone in this system, which is always enabled. On the other hand, the other four tagged zones can
be enabled or disabled respectively. By default, port-based configuration is used and all of the four physical LAN
ports are set to use the Default Service Zone.
The figure below demonstrates an example of the SMB network deployed with WHG303. Both LAN and WLAN of
the system can be secured by IPSec VPN. WHG303 will actively establish VPN tunnels while the selected users
are logging in. Not only the traffic within the office network will be protected by IPSec VPN, this VPN module can be
configured to support site-to-site IPSec VPN tunnels across remote branch offices. The same clientless VPN setup
implementation can also be extended to remote users in accessing office network from public Internet via PPTP
VPN tunnels. Once the remote client-to-site PPTP VPN tunnels are established, traveling Employee can connect
back to the office network via reliable, secure connections using their portable devices.
Example: Managed network deployment

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
< Port-Based Service Zone Configuration Example >
In Port-Based mode, each LAN port can only serve traffic from one Service Zone. An example of network
application diagram is shown as below: one Service Zone for Guests and one for Employee.
The switches deployed under WHG303 in Port-Based mode must be Layer 2 switches only.
Configuration Steps:
Step 1: Configure Service Zone 1 for Guests
Assume that LAN1 is assigned to the Service Zone 1 (SZ1) for Guests. Click the System menu and select the
Service Zones tab. Click Configure of SZ1.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
Step 2: Configure Basic Settings for SZ1
Check the Enabled radio button of Service Zone Status to activate SZ1.
Enter a name for SZ1 (e.g. “Guests”) in the Service Zone Name field.
Step 3: Configure Authentication Settings for SZ1
Check the Enabled radio button to enable Authentication Required for the Zone.
Check the Default button and Enabled box of Guest Users to set ONDEMAND authentication method as default.
Disable all other authentication options. Then, click Apply to activate the settings made so far. A warning message
“You should restart the system to activate the changes.” will appear at the bottom of the page. Do NOT restart
the system until you have completed all the configuration steps.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
Step 4: Configure LAN Port Mapping for SZ1
Select the LAN Port Mapping tab from the System menu to enter the LAN Ports and Service Zone Mapping
page. Select Guests from the drop-down list box of LAN1. Click Apply to save the selection.
A warning message “You should restart the system to activate the changes.” will appear at the bottom of the
page. Do NOT restart the system until you have completed all the configuration steps.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
LAN1 is now configured for Guests.
Step 5: Configure Service Zone 2 for Employee
Assume that LAN2 is assigned to the Service Zone 2 (SZ2) for Employee. Select the Service Zones tab and click
Configure of SZ2.
Step 6: Configure Basic Settings for SZ2
Check the Enabled radio button of Service Zone Status to activate SZ2.
Enter a name for SZ2 (e.g. Employee) in the Service Zone Name field.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
Step 7: Configure Authentication Settings for SZ2
Check the Enabled radio button to enable Authentication Required for the Zone.
Check the Default button and Enabled box of Server 1 to set LOCAL authentication method as default. Disable all
other authentication options. Then, click Apply to activate the settings made so far. A warning message “You
should restart the system to activate the changes.” will appear at the bottom of the page. Do NOT restart the
system until you have completed all the configuration steps.
Step 8: Configure LAN Port Mapping for SZ2
Select the LAN Port Mapping tab from the System menu to enter the LAN Ports and Service Zone Mapping
page. Select Employee from the drop-down list box of LAN2. Click Apply to save the selection.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
A warning message “You should restart the system to activate the changes.” will appear at the bottom of the
page. Click the hyperlink of Restart to restart the system and activate all configurations.
Please do not interrupt the system during the restarting process.
Once the settings of two Service Zones are completed, the configured result will be displayed in the Service Zone
Settings page: SZ1 and SZ2 are both enabled.

EE
C o p y r i g h t © 4I P N E T , I N C . A l l r i h ts r es er v ed . 
4ipnet W H G 3 0 3
Q u ic k I ns ta l l a tio n G u id e
ENGLISH
4ipnet W H G 3 0 3 S e c u r e W L A N C o n t r o l l e r
For configuration of Tag-based/Port-Based service zone and information, please refer to the
User’s Manual, Appendix D. Service Zone Deployment Example.
P / N : V 10 0 2 0 0 9 0 2 18
