TECHNICAL MANUAL
HUB RADIATOR DHP
Patented high efficiency heat pump with direct exchange
refrigerant gas/water
to produce domestic hot water, heating and conditioning for small /
medium users
HUB RADIATOR DHP
3.0+3.0 - 7.8+3.0 - 7.8+7.8 - 7.8+7.8+3.0
7.8+7.8+7.8 - 7.8+7.8+7.8+7.8
A+
A+
M

2

3
PATENTED HEAT PUMP HUB RADIATOR DHP
Models: 3.0+3.0 - 7.8+3.0 - 7.8+7.8 - 7.8+7.8+3.0 7.8+7.8+7.8 - 7.8+7.8+7.8+7.8
Technical information
SECTION A - GENERAL INFORMATION
It contains all the news related to the description of the air-water heat pumps and their technical
characteristics.
SECTION B - TECHNICAL NEWS FOR THE INSTALLER
It gathers all the indications and the prescriptions that the installer must observe for the optimal
realization of the plant.
SECTION C - USER'S INSTRUCTIONS FOR USE AND MAINTENANCE
It is the section reserved for the user and contains all the information necessary for correct operation
and for periodic checks.
Important notes for consultation
-Important notes for consultation
1 For the purposes of a correct and safe use of the appliance, the installer, the user and the maintenance
technician, for the respective competencies, are required to comply with the instructions in this manual.
2 The word ATTENTION is followed by information that, due to its importance, must be scrupulously
observed and failure to comply with it may cause damage to the appliance and / or prejudice it safe use.
3 The paragraphs highlighted in bold contain important information, warnings or advice recommends to
evaluate carefully.
4 The technical data, aesthetic characteristics, components and accessories shown in this manual are not
binding. The A2B Accorroni E.G. Srl reserves the right to make any changes at any time changes deemed
necessary for the improvement of your product.
References to laws, regulations or technical rules mentioned in this manual are to be understood as a mere
title information and to be considered valid at the time of printing thereof, shown on the last page. Entry into
force of new provisions or amendments to those in force will not constitute a reason for any obligation
towards third parties.
The A2B Accorroni E.G. Srl is responsible for the compliance of its product with laws, directives and
standards of construction, in force at the time of marketing. Knowledge and observance of
legislative provisions and rules concerning the design of the systems, the installation, the operation and the
maintenance are the exclusive responsibility, for the respective competences, of the designer, the installer
and User.

4
INDICE
1. MAIN FEATURES ..................................................................................................................... 6
1.1 Equipment classification ............................................................................................................. 6
1.2 Certifications - CE marking .. ...................................................................................................... 6
1.3 Construction features ................................................................................................................. 6
1.4 Contents of the packaging ......................................................................................................... 6
1.5 Standard equipment and accessories supplied upon request ................................................... 7
1.6 Field of application ..................................................................................................................... 7
1.7 Security rules .............................................................................................................................. 7
2. U.E. CONNECTIONS / I.U. ....................................................................................................... 8
2.1 General provisions ..................................................................................................................... 8
2.2 EU electrical connections ........................................................................................................... 8
2.3 Installation of R410A refrigerant piping ..................................................................................... 8
3. INSTALLATION OF EXTERNAL UNIT ...................................................................................... 11
3.1 General indications ..................................................................................................................... 11
3.2 Distances of respect .................................................................................................................. 12
3.3 Roof installation .......................................................................................................................... 12
3.4 Acoustic requirements ................................................................................................................ 13
4. INSTALLATION OF INTERNAL UNIT ....................................................................................... 16
4.1 Assembly procedure .................................................................................................................. 17
4.2 Internal and external unit dimensions ........................................................................................ 19
4.3 Performance characteristics of external units HUB RADIATOR DHP ...................................... 20
4.4 Technical data table HUB RADIATOR DHP................................................................................... 21
5. HYDRAULIC AND FUNCTIONAL DIAGRAMS HUB RADIATOR DHP .................................... 22
5.1 Hydraulic and operating diagram HR DHP 7.8 + 7.8 + 7.8 with low temperature system .......... ........ 22
5.2 Hydraulic and operating diagram HR DHP 7.8 + 7.8 + 7.8 + 7.8 ..................................................... 22
6. ELECTRICAL DIAGRAMS HUB RADIATOR DHP .................................................................... 23
6.1 Wiring diagram HUB RADIATOR DHP 3.0 + 3.0 ........................................................................... 23
6.2 Wiring diagram HUB RADIATOR DHP 3.0 + 7.8 ........................................................................... 24
6.3 Wiring diagram HUB RADIATOR DHP 7.8 + 7.8 ........................................................................... 25
6.4 Wiring diagram HUB RADIATOR DHP 7.8 + 7.8 + 3.0 .................................................................. 26
6.5 Wiring diagram HUB RADIATOR DHP 7.8 + 7.8 + 7.8 .................................................................. 28
6.6 Wiring diagram HUB RADIATOR DHP 7.8 + 7.8 + 7.8 + 7.8 ......................................................... 30
7. CIRCULATOR HUB RADIATOR DHP ...................................................................................... 32
8. DIVERTER VALVE HUB RADIATOR DHP ............................................................................... 32
9. SUMMER / WINTER HUB RADIATOR DIVERTER VALVE .................................................... 32
10. ELECTRIC RESISTANCE HUB RADIATOR DHP ................................................................... 32
11. WARNINGS ............................................................................................................................... 33
11.1 Qualification of the installer ......................................................................................................... 33
11.2 Preliminary information ............................................................................................................... 33
11.3 Transport and handling ............................................................................................................... 33
11.4 Use of instructions ....................................................................................................................... 33
11.5 General plant checks ................................................................................................................... 33

5
12. START UP................................................................................................................................... 33
12.1 First start-up checks ................................................................................................................... 33
12.2 Starting up .................................................................................................................................. 34
13. REPAIR - COMPONENT REPLACEMENT................................................................................ 34
13.1 Refrigerant circuit ........................................................................................................................ 34
13.2 Drying and vacuum of the plant .................................................................................................. 34
13.3 Circuit cleaning ........................................................................................................................... 35
13.4 Refrigerant charge ...................................................................................................................... 35
13.5 Verification of overheating .......................................................................................................... 35
14. INSTRUCTIONS CLOCK WEEKLY PROGRAMMER ............................................................... 35
14.1 Description ................................................................................................................................... 35
14.2 Operating instructions .................................................................................................................. 35
14.3 Setting the current day and time ................................................................................................. 35
14.4 Programming ............................................................................................................................... 36
14.5 Manual operation ......................................................................................................................... 36
15. DIGITAL CONTROL UNIT .......................................................................................................... 37
15.1 Display.......................................................................................................................................... 37
15.2 Icons and display.......................................................................................................................... 37
15.3 Function keys ............................................................................................................................... 38
15.4 Function keys ............................................................................................................................... 38
15.5 Access to parameters .................................................................................................................. 39
15.6 View and change the set point .................................................................................................... 39
15.7 Main alarms ................................................................................................................................. 40
15.8 Main parameters ......................................................................................................................... 41
15.9 Digital control unit wiring diagram ............................................................................................... 41
16. MAINTENANCE .......................................................................................................................... 42
16.1 Cleaning the exchangers ............................................................................................................ 42
16.2 Annual inspection ........................................................................................................................ 42
17. GENERAL.................................................................................................................................... 42
17.1 Use of instructions ...................................................................................................................... 42
17.2 Improper Uses - Recommendations ...........................................................................................42

6
1.CARATTERISTICHE PRINCIPALI
1.1 CLASSIFICATION OF THE APPLIANCES The
fundamental elements that make up the system
HUB RADIATOR DHP are:
-the covering unit of the outdoor unit is made for all
sheet metal models
pre-painted with epoxy powder. The room
compressor is completely isolated from the air /
refrigerant exchanger compartment; it allows to
better protect the electromechanical components;
-the compressor is of the high rotary type
efficiency, working with R 410A refrigerant,
mounted on elastic anti-vibration mounts, operated
from single-phase electric motor for all models;
-the air / refrigerant gas exchanger
it is made with copper pipes and aluminium fins
blocked by mechanical expansion of the
tubes, with high heat exchange surface;
1.4 CONTENT OF THE PACKAGING
The appliance is shipped on a wooden pallet, with
protections in extruded and wrapped polystyrene
foam in a layer of plastic fabric with air bubbles.
The identification data of the appliance are shown
both on the label on the packaging and on the data
plate applied to the inside of the cover cabinet.
Do not remove the license plate for any reason
technical data, since the references contained
therein are necessary for any interventions of
maintenance.Inside the package there is also an
envelope containing this manual and the certificate
of guarantee, which must be delivered to owner of
the appliance to keep them carefully for any future
use or for consultation.
1) Electronic evaporator motorcycles
defined as: “Monoblock air heat pump
split water ”, fed by cooling fluid
R410A with 3.0 - 7.8 kW ON - OFF compressor.
2) Internal unit defined as accumulator radiator
high performance closed circuit that holds
completely separated the technical water from the
water
sanitary and is realized through 2 accumulations
sequential cylindrical section, inside the
which all copper exchangers are positioned.
1.2 CERTIFICATIONS - CE MARKING
The patented HUB RADIATOR DHP system is
compliant with directives 97/23 / EC and 98/37 / EEC.
They also comply with the provisions of the
following the directives: 73/23 / CEE, 89/336 / CEE,
as amended by Directive 93/68 / EEC.
The internal unit of the HUB RADIATOR DHP system
has been designed to be installed only and
exclusively inside the buildings or on special purpose
external niche thermally insulated and protected by
the
atmospheric agents, if not respected
this indication invalidates any type of warranty
warranty.
1.3 CONSTRUCTION CHARACTERISTICS
All cars are equipped with
microprocessors for control and adjustments of
operation and safety of the units.
The products of the HUB RADIATOR DHP series
thanks to the
patented direct exchange capacitors are able to
achieve high standards of energy efficiency
and SCOP.
Other construction features:
- the ventilating unit consists of a fan
helical driven directly by engine
single phase asynchronous with thermal
protection
internal. The fan is equipped with a grill
accident prevention protection;
- the rapid exchanger DHW, is made in
copper directly immersed in technical water
of the indoor unit with the FIRST IN - FIRST
method
OUT, so as to eliminate the problem of legionella.
- the refrigeration circuit and the connections
between the
individual components are made of
specific copper for refrigeration. They are part of
the
refrigeration circuit the rolling member, the
reverse cycle valve and the liquid separator;
- the electric command and control panel is
made of white ABS with a degree of protection
IP 56 is directly positioned inside the
cover cabinet.
- the microprocessor control system with
keyboard is located on the control panel
accessible directly on the part
front of the cover cabinet, and can
be remoted using the appropriate panel
command and remote control, available
as an accessory, to be installed on the wall
or collection.
- the indoor unit is supplied complete with all
the special internal copper exchangers,
freon connections, DHW connections, valve
air vent jolly, safety valve, automatic filling,
pressure gauge, valve diverter to give priority to
healthcare, electronic circulator, vessel of
expansion, temperature probes.

7
Failure to comply with what is indicated in the
present manual also involves the forfeiture of
thewarranty conditions.
1.7 SAFETY STANDARDS WARNING!
Installation and maintenance must be carried out
exclusively by specially trained qualified personnel.
The connection to the power supply must
be performed in accordance with current regulations
of
national plant engineering.
During installation operations e
maintenance, it is always necessary to operate in the
conditions of maximum security, follow the
instructions in this manual and at
any warning labels applied on product.
Respect the installation and operation limits indicated
in this manual, do not modify
in no case the internal and external electrical wiring
refrigeration pipes, do not modify or disable safety
and adjustment devices.
Before each inspection,
maintenance, or whatever else involves access
to the internal parts of the appliance, remove
the general power supply.
In case of need or clarification for the installation and
maintenance contact a
Technical Assistance Center authorized by A2B
ACCORRONI E.G.
Models Cable CableConnection electrical box QE to
UI
Power supply outdoor unit
C-1-2 Pb3
Sezione Sezione Sezione Sezione
3.0 + 3.0 4.0 mm2 x 3 1.50 mm2 x 3 1,50 mm2 x 3 0,75 mm2 x 2
3.0 + 7.8 4.0 mm2 x 3 2.50 mm2 x 3 1,50 mm2 x 3 0,75 mm2 x 2
7.8 + 7.8 6.0 mm2 x 3 2.50 mm2 x 3 1,50 mm2 x 3 0,75 mm2 x 2
7.8+7.8+3.0 6.0 mm2 x 5 2.50 mm2 x 3 1,50 mm2 x 3 0,75 mm2 x 2
7.8+7.8+7.8 6.0 mm2 x 5 2.50 mm2 x 3 1,50 mm2 x 3 0,75 mm2 x 2
7.8+7.8+7.8+7.8 6.0 mm2 x 5 2.50 mm2 x 3 1,50 mm2 x 3 0,75 mm2 x 2
1.5 STANDARD EQUIPMENT AND SUPPLIED
ACCESSORIES ON DEMAND
The extensive standard equipment and available
accessories on request they allow the optimal
exploitation of
all the functions of the machines and the plant to
which they are enslaved.
1.6 FIELD OF USE
Devices designed and manufactured for the
heating and water conditioning in
hydronic and production air conditioning systems
A.C.S., must be used solely for this purpose
purpose, in relation to their technical specifications
e performance.
The quality and dimensions of the materials used
they guarantee a good life span and they are
suitable for the operation of the appliances both in
their own together than in their individual
components, under reserve
of an installation carried out according to the rules
of the art and in mechanical, chemical and stress
conditions corresponding to a suitable use.
WARNING! All uses not expressly
indicated in this manual are considered improper
and are not allowed; in particular
the use of the devices is not foreseen
in industrial processes and / or installation in
environments with a corrosive or explosive
atmosphere.
The manufacturer declines all responsibility
for damage to persons, animals or things arising
failure to comply with the instructions of this letter
manual, from modifications or tampering with the
product, from installation errors, to adjustment,
maintenance and improper use.

8
2. CONNECTIONS U.E. / U.I.
2.1 GENERAL
-2.3 INSTALLATION OF THE PIPES FOR THE
REFRIGERANT R410A
The main cause of refrigerant gas leaks
is due to a defect in the flaring. Make
the folders correctly respecting the following
indications:
A) Cut the pipes and the cable (Fig. 1)
-Use pipes with adequate dimensions for the unit
installed (table 2).
Measure the distance between the indoor and
outdoor unit.
-Cut the tubes to a slightly length
greater than the measured distance.
- Cut the electric cable 1.5 mt. longer than
tube length.
B) Burr removal (Fig. 2)
-Completely remove all burrs from the
cross section of the tube.
-Processing must be performed with the end of the
tube down so that the burrs do not fall into the
tube.
Tabella 2 - CONNECTION TUBE
Model Ø LIQUID Ø GAS
3.0 + 3.0 1/4” x 2 3/8” x 2
3.0 + 7.8 1/4” x 2 3/8” - 5/8”
7.8 + 7.8 1/4” x 2 5/8” x 2
7.8+7.8+3.0 1/4” x 3 3/8 - 5/8” x 2
7.8+7.8+7.8 1/4” x 3 5/8” x 3
7.8+7.8+7.8+7.8 1/4” x 4 5/8” x 4
CONNECTION TUBE
Fig. 1
PIPE CONNECTIONS
(CUTTING AND BAVA
REMOVAL)
Fig. 2
1) The HUB RADIATOR DHP system is designed
to work exclusively with the indoor unit
positioned within the building to be heated
and the boosters on the outside.
2) During the installation phase it must be verified
carefully that the distance and the height difference
between
the units comply with the data reported above
this manual.
3) Before installation, check that the wall
where you have chosen to place the internal storage
be able to support the weight itself
accumulation and the water contained in it.
4) In case of replacement of a generator
make the system clean
and the addition of a special anti-algae additive.
5) When you choose to install the
HUB RADIATOR DHP system, to keep
considering the electrical absorption of the unit
external. Then prepare all the works
necessary to adapt the electrical system
(counter, cable section, switches
circuit breakers, ect,) to guarantee the correct
operation.
2.2 ELECTRICAL CONNECTIONS
Connect the cable to the electrical panel:
1) The connection cable of the indoor unit
and external must be of the H07RN-F type.
2) Lift the panel of the electrical panel e
remove the screws, then remove the cover.
3) Connect the cables according to the markings.
Connect the cable to the external unit:
1) Remove the cover of the outdoor unit.
2) Connect the terminal cables according to the
numbers present on the terminal board of the unit,
respecting the sections shown in table 1
3) Fix the cables so that they do not come into
contact with electrical or metal parts.

9
C) Flaring (Fig. 3)
Remove the nuts fixed on the internal unit and
outside, put them on the pipe and carry out the
flaring and the removal of burrs, as previously
indicated
.

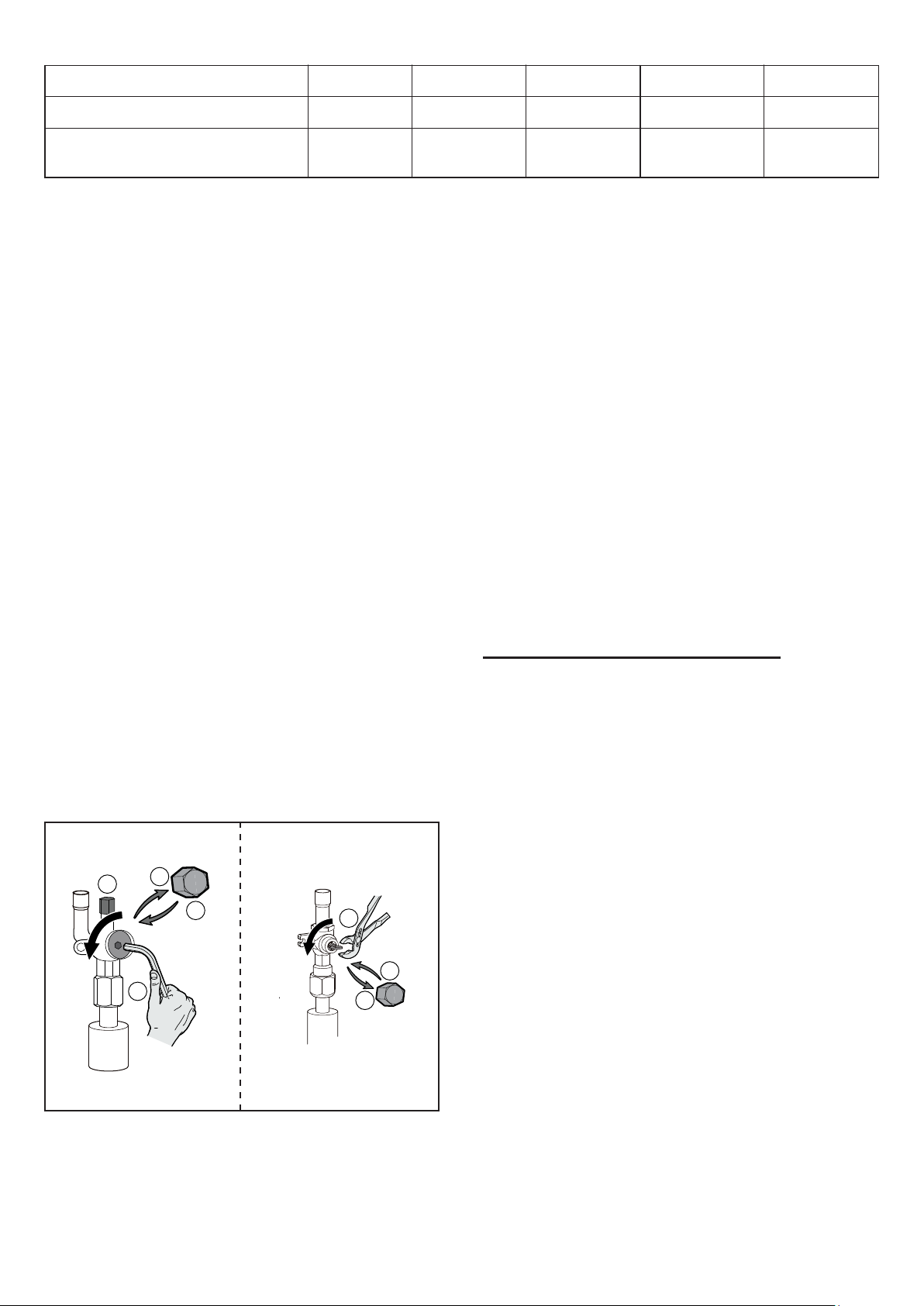

D) Fastening of refrigeration pipes (Fig. 4)
Align the tubes by lubricating the outer surface of the
tubes pipes at the folder. Tighten
sufficiently the nut using two keys like
-Precautions
PIPE CONNECTIONS
Fig. 3
PIPE CONNECTIONS
(FIXING)
Fig. 4
Tabella 4 - Refrigerant charge
Models Dislevel H Length piping (m)
Max (m) Max
Maximum length
addition of additional
refrigerant (g / m)
Quantity add.
refrigerant (g/m)
3.0+3.0 - 7.8+3.0 - 7.8+7.8 - 7.8+7.8+3.0
7.8+7.8+7.8 - 7.8+7.8+7.8+7.8 5 15 5 20
Excessive torque can break the nut or crack the
folder. to avoid such dynamics use a suitable torque
wrench respectingthe tightening torque shown in
table 3.
Tabella 3 - Tightening torque
Diameter Torque Diameter (N / m)
Ø 1/4 18
Ø 3/8 42
Ø 5/8 60
E) Leak test of refrigeration lines
Fig. A
1
3
35 bar
4
2
WARNING!
2
WARNING!
5
1
Faucet on gas side Faucet on liquid side
1) Open the caps of the sectioning valves
2) Check that the sectioning valves are
closed (Fig. A n ° 2).
3) Remove the cap from the service connection
on the sectioning valve (Fig. A No. 3).
4) Connect the pressure gauge and the
nitrogen bottle to the
stop valve then progressively
increase the pressure in the connection pipes
of the refrigerant and in the internal module at
35 bar, with
5 bar increments (Fig. A n ° 4).
5) Check the tightness of the fittings with a
spray
leak detector. If there are leaks,
repeat the operations in the order indicated e
check the seal again (Fig. A n ° 5).
6) Leave the circuit under nitrogen pressure for
at least 24 hours and check that at the end of
this time frame the initial pressure does not
goes down.
7) Release the pressure and the nitrogen.

10
F) ELIMINATION OF AIR WITH THE PUMP
OF THE VACUUM (Fig 8)
Air and moisture in the refrigeration system can
cause side effects as shown below:
To avoid the above, the internal assembly and the
tubes, places between internal and external group,
must be tested for leaks and purged to remove non-
condensing elements and humidity from the system.
Check that each tube, (is the gas side tubes that of the
liquid) between internal group and external group, has
been connected in the correct way and that all wiring
necessary for testing have been carried out. Remove
the valve cap on the assembly external. Make sure that
both are now gas and liquid valves remain
closed.Check the length of the tube and its quantity of
the refrigerant for a correct charge, check the
overheating value.
Fig. 8 ATTENZIONE! WARNING!
To make sure to perform the
procedure of emptying with
the group in COLD MODE.
- Increased pressure in the system.
- Increased current consumption.
- Decreased refrigerant efficiency.
- Freezing and obstruction of the pipes
capillaries.
- Corrosion of the parts of the system of
refrigeration.
When you change places in the unit, carry it out
bleeding with the vacuum pump. Make sure the
refrigerant inside the conditioner is always
in liquid state.
External units are supplied with a charge of
R410A refrigerant gas suitable for guaranteeing
correct operation
operation up to a maximum distance of 5
meters from the indoor unit.
If you decide to install the 2 units at one
distance greater than 5 meters, be sure to add
20 g of refrigerant gas per meter more than
piping (Tab. 3).
For example, if there are external and internal units
7 meters of piping add 40 g of R410A gas.
In any case, never exceed 15 meters.
Do the addition only after making the
vacuum in the pipes that connect the 2 units, such
as illustrated in chapter 3.4, after which you can
proceed with the opening of the gas taps, mounted
on board machine.
G) EVACUATION
Connect the end of the charging hose to the
vacuum pump to evacuate the air from the pipes
of the internal unit. Check that the knob
"LO" of the pressure gauge valve is open.
Then run the vacuum pump. The time of
operation varies depending on the length of the
tubes and pump capacity.
When the desired vacuum is reached, close
the "LO" knob on the pressure gauge valve e
stop the vacuum pump. In conclusion, using
a wrench for service valves, rotate the stem
of the gas side valve counter clockwise for
open it completely.
Loosen the charging hose connected to the socket
gas side service to relieve pressure, then
remove the tube. Replace the cover nut on the
gas valve and service outlet and tighten
well with an adjustable wrench.
This procedure is very important to avoid
plant leaks Replace the service valve caps either
on the gas side than on the liquid side and tighten
well.
This completes the air purge procedure
with the vacuum pump, make sure all the pipes
are connected correctly and that the valves of
service of the gas and liquid sides are completely
open.

11
H) Valve opening and refrigerant release
relative to the external unit
I) PUMP DOWN
This procedure is performed when the group
must be moved or assistance is provided
to the refrigerant circuit.
Emptying allows you to collect everything the
refrigerant in the external unit without yes verify
losses.
L) RECOVERY PROCEDURE
The complete recovery of the refrigerant of the outdoor
unit.
3. OUTDOOR UNIT INSTALLATION
3.1 GENERAL
In choosing the installation position accurately respect
the following indications:
Temperatura esterna
pressione da raggiungere
Tempo di evacuazione dopo il
raggiungimento della pressione
°C
Pa 8 (bar)
h
≥ 20
1000 (0,01)
1
10
600 (0,006)
1
0
250 (0,0025)
2
-10
250 (0,002)
3
Tabella 5 - controllo della pressione
1
8
3
2
5
4
6
Fig. C
Rubinetto lato gas Rubinetto lato liquido
Temperatura esterna
pressione da raggiungere
Tempo di evacuazione dopo il
raggiungimento della pressione
°C
Pa 8 (bar)
h
≥ 20
1000 (0,01)
1
10
600 (0,006)
1
0
250 (0,0025)
2
-10
250 (0,002)
3
Tabella 5 - controllo della pressione
1) Remove the section valve cap
of the coolant, liquid side (Fig. C n ° 1).
2) Open the valve A with the help of a key
hexagonal turning counter clockwise up to his
stop (Fig. C n ° 2).
3) Replace the cap.
4) Remove the cap from the sectioning valve
of the refrigerant gas (Fig. C n ° 4).
5) Open the valve with pliers by turning in
counter-clockwise one quarter turn (Fig. C n ° 5).
6) Replace the cap.
7) Disconnect the vacuum gauge and the
vacuum pump.
8) Replace the cap on the valve (Fig. C n ° 3).
9) Tighten all the caps with the help of a key
torque control with tightening torque 20 a
25 Nm.
10) Check the tightness of the fittings using a
leak detector.
- Connect a low pressure gauge with
a pipe to the service port of the gas valve.
- Open the gas valve in half and empty the air from the
pressure gauge piping using gas refrigerant.
- Completely close the liquid valve.
- Turn on the machine in cooling mode.
- When the pressure of the pressure gauge moves
between 0 and 0.5 kg / cm 2G (between 14.2 and 7.1
P.S.G.I) completely close the gas valve e
turn off.
- Make sure that the difference between INTERNAL
UNITS
and the OUTDOOR UNIT is not greater than 5.0 m.
- The appliance must be installed so
that the influences of adjacent structures and / or i
effects of particular climatic conditions (snow,
wind etc ...), do not compromise the functioning
of the product and / or the safety of people e
of assets.
- Make sure the space in the back
unit is greater than 30 cm, the part
front must have at least 150
cm of space completely free.
- Make sure there are no obstacles to the
free circulation of air through the
heat exchangers: A) do not arrange plants or
animals directly close to the stream
air;
B) avoid installation in the corners where it is used
the depositing of dust, leaves and whatever
can reduce the efficiency of the exchangers
obstructing the passage of air (Fig 5).

12
3.2 DISTANCES OF RESPECT (Fig. 7) Respect
the spaces indicated in figure 8, in such a way to
allow correct operation and all installation and
maintenance operations.
3.3 ROOF INSTALLATION
- If the outdoor unit is installed above a roof,
be sure to level the unit. Make sure that the
roof structure is appropriate for mounting
unit.
- Consult the local codes regarding the
roof mounting.
- If the outdoor unit is installed on the roof or on the
external walls, this could cause
excessive noise and vibration and being
classified as an unsuitable installation at
service.
on the ground, free installation + 3 dB (A)
in a recessed corner of the facade + 9 dB (A)
against the facade + 6 dB (A)
Fig. 6
Fig. 5
- Avoid installation in tight and small spaces
get away because they could be favored
acoustic reverberations. Inquire about the
any limits on expected noise emissions
for the area of the municipal territory in which it is
install the appliance. In case of doubt it is
it is advisable to consult a
acoustic technician, qualified for an evaluation
of the impact, to prevent disputes from
third party.
- Prevent the air expelled by the fans
penetrate through adjacent doors and / or windows,
causing disturbance to people.
- Install the external units on a rigid base
equipped with special anti-vibration pads
to avoid the increase of vibrations and noise,

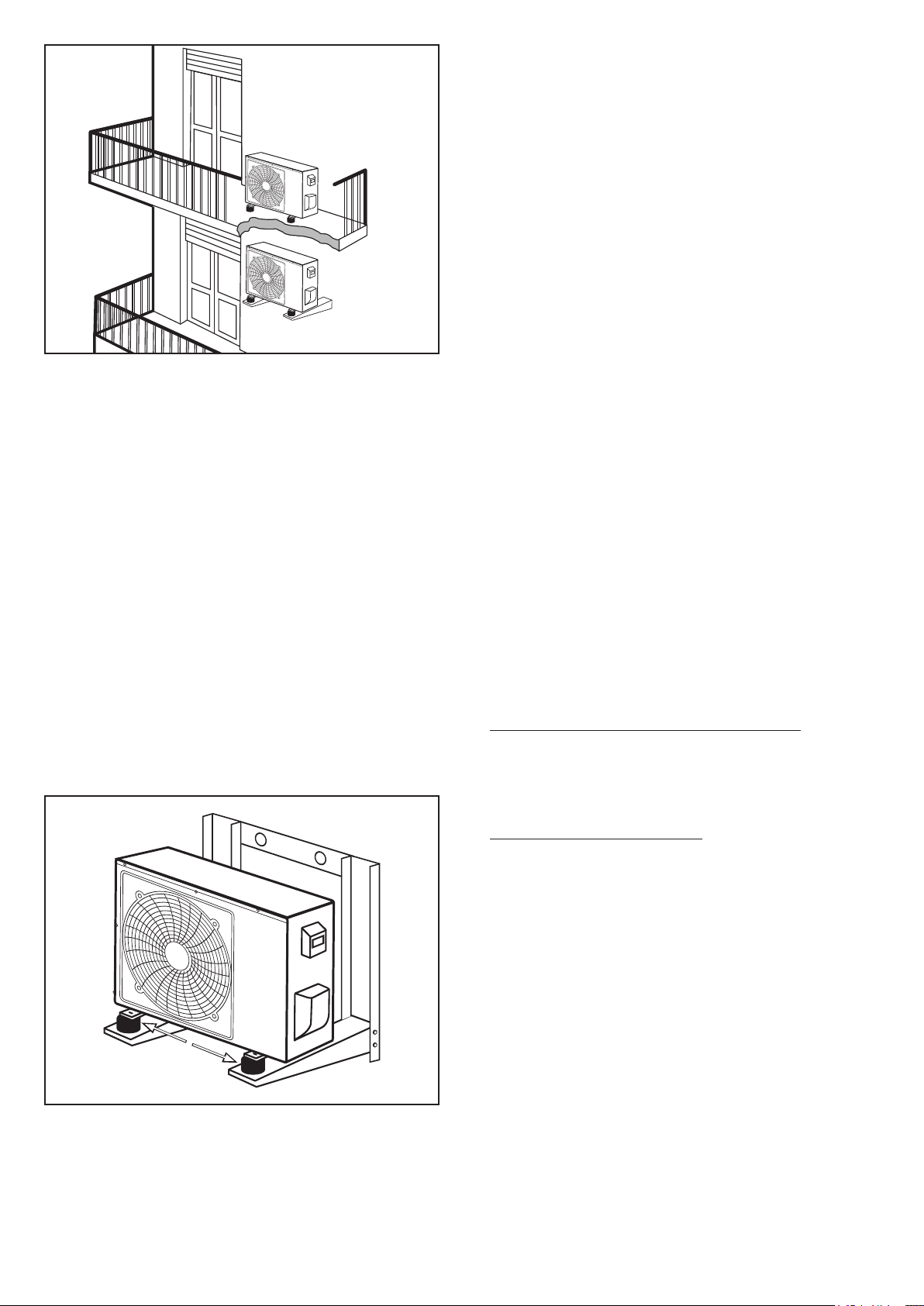

so as not to disturb the neighbours (Fig.6).
- Position the outdoor unit so that the
air flow is not hindered in any way.
In the case of strong winds, make sure the fan
functions correctly, positioning the unit
longitudinally, along a wall or using
a shield.
- If the appliance must be suspended on one
external wall, the support must respect the
Technical specifications. The wall where the unit
should be installed, must be brick or material of
similar consistency, otherwise it must be reinforced.
Support brackets must be stable, durable and with
adequate degree of protection against corrosion.
WARNING! Make sure of bearing capacity
of the part on which the shelves are placed and of the
anchoring system to the wall itself, in function of the
weight of the appliance to be installed.
- Do not install the appliance near sources
of heat and / or areas with fire hazards.
- Installation in highly atmospheric areas
corrosive is not allowed; in condition particular
climatic conditions such as near the sea, it is
mandatory to provide for a duration of
lower life of the product and in any case more
frequent and accurate maintenance.
- In external units, from which it is eliminated
condensation water, provide a special one
drainage and / or channelling of the same, in
so as to avoid dangerous situations
due for example to ice formation
on transit areas.
- The outdoor unit is designed to be installed
outdoors and does not require a base
special, however it must be positioned
safely on a support surface
horizontal of adequate bearing capacity e
equipped with special anti-vibration pads.

13
Fig. 7
In this regard, we advise, if necessary, to do
install a kit made of a compressor cover
complete with upper headphone, sound-absorbing
insulation
on the inside of the compressor compartment and
up
all the inside of the top cover (see
accessory cod. 75100001)
Very important, then, is the installation of systems
that
is combined with the heat pump for this purpose
the following aspects must be considered.
1) POSITIONING OF THE EXTERNAL UNIT
Positioning has an important influence
on sound emission, not to mention cases
in which the outdoor unit is positioned in a loggia
or in a porch, in these cases we have 14 dB (A)
extra that add up to the normal
machine emission.
3.4 ACOUSTIC REQUIREMENTS
During the installation phase of a HUB heat pump
RADIATOR is to be evaluated very carefully where
the external unit is positioned in order to avoid
induced noise that goes beyond the tolerability
threshold. The external evaporating motor unit
during work phase generates external sound
emissions and requires appropriate measures to
reduce the incidence of noise produced by the
compressor and / or fan.
1)POSITIONING OF THE EXTERNAL UNIT

14
2) CHOICE OF ANTI-VIBRATION SUPPORTS TO MAKE OBLIGATORY ON THE ARMS
OF SUPPORTING THE OUTDOOR UNIT, OR ON THE FLOOR IF STORED TO THE GROUND WITH
ANTI-VIBRATION FLOOR BASE
N.B. . it is advisable to place the outdoor unit where possible, always resting on the ground.
Anti-vibration mount on shelf
anti-vibration kit
Anti-vibration support on the floor
anti-vibration floor base
Codice 75100021 Codice 75100018
3) IN THE POSITION OF INSTALLATION ON A SHELF, AVOID FIXING ON
EXTERNAL WALLS OF THE NIGHT AREA AND AVOID FIXING THE SHELF IN
PROXIMITY OF BEAMS OR PILLARS THAT MAY GENERATE ALSO VIBRATIONS
INSIDE THE BUILDING.
YOU MUST ALWAYS APPLY RUBBER BANDS (THICKNESS 3 mm) HOW
ANTI-VIBRATION BETWEEN THE SHELF AND THE WALL OF THE EXTERNAL WALL.
THE SUPPORT BRACKETS MUST ALWAYS BE INSTALLED IN PERFECT
LEVELING DISTANCE FROM THE BOTTOM WALL OF ABOUT 15 cm.
4) APPLICATION OF DAMPING MASSES ON REFRIGERANT GAS PIPES THAT
THEY MAY GENERATE VIBRATIONS BY SENDING THE SYSTEM TO RESONANCE.
IN RELATION TO THE REFRIGERANT GAS PIPE, MAKE SURE THAT THE CHARGE
DI GAS IS ALWAYS CORRECT AS SHOWN ON TARGA DATA.
THE EXTERNAL UNIT TOO MUCH OF GAS GENERATES AN INCREASE OF ABSORPTION
ELECTRIC AND AN INCREASE OF NOISE INDUCED INDIVIDUAL COMPRESSOR.
5) IT IS NECESSARY TO REMEMBER THAT THE PERCEPTION OF THE NOISE DEPENDS VERY MUCH
NOISE LEVEL PRESENT IN THE AREA.
FROM SPECIFIC STUDIES MADE BETWEEN THE DAY AND THE NIGHT PERIOD LA
PERCEPTION OF THE SAME NOISE INCREASES BY 10 dB (A) WHEN THE OUTDOOR UNIT
WORK IN NIGHT HOURS.
IT IS RECOMMENDED FOR THIS PURPOSE TO INSTALL A CLOCK KIT THAT ALLOWS YOU TO
AVOID THE OPERATION OF THE EXTERNAL UNIT AT FULL NIGHT
(SEE CODE 35639900 ACCORRONI TECHNOLOGY).
6) THE PERCEPTION OF THE NOISE IS SUBJECTIVE AND VARIES ACCORDING TO THE THRESHOLD OF
INDIVIDUAL TOLERABILITY AND BASED ON THE DISTANCE BETWEEN THE ISSUE SOURCE
AND THE RECEIVER.

15
7) ON THE 2017 TECHNOLOGY IN EXIT IN NEXT MARCH WE HAVE REPORTED
AS NEW IN THE ACCESSORIES, ABOUT NOISE, THE FOLLOWING DEVICES
ACTI TO ALSO AVOID NOISE TRANSMISSION INDUCED BY IN PIPES
COPPER THAT CONNECT THE INTERNAL UNIT WITH THE EXTERNAL UNIT.
THE ACCESSORIES FOLLOWED BELOW CAN BE ORDERED FROM 02/13/2017
NB: IT IS NOT POSSIBLE TO INSTALL THE OUTDOOR UNITS OF THE HEAT PUMP IN
ENVIRONMENT CLOSED OR SEMI-USE, OR IN CORRESPONDENCE WITH LIVED
ENVIRONMENTS
FROM THE NEIGHBORS.
IT IS NOT POSSIBLE TO INSTALL THE EXTERNAL MOTORWAY UNITS
IN SMALL AND SPACIOUS SPACES WHICH MAY GENERATE RECIRCULATION OF AIR AL
AXIAL FAN OF THE EVAPORATOR WITH SERIOUS MALFUNCTIONS AL
THERMODYNAMIC CYCLE BEYOND ANOMALOUS OBJECTS THAT CAN AMPLIFY THE
NOISE DURING THE OPERATION PHASE.
Flexible anti-vibration joint kit with connection folder and
filler neck for 7.8 curved 90 ° booster (complete with 5/8
”joint) Code 75100018
Flexible anti-vibration joint kit with connection folder and tail
piece for Booster 3.0 90 ° curved (complete with 3/8 ”joint)
Code 75100015
Kit giunto lessibile antivibrante con cartella di raccordo e bocchettone
per Booster 7.8 diritto (completo di giunto da 5/8”)
Code 75100014
Flexible anti-vibration joint kit with connection folder and tail
piece for Booster 3.0 straight (complete with 3/8 ”joint)
Code 75100017
Flexible anti-vibration joint kit with connection folder and tail piece
for 7.8 straight booster (complete with 5/8 ”joint)

16
7 Diverter valve with 3/4 ”connections
8 1/4 ”safety relief
9 3/8 ”air venting jolly valve
10 R410A connection (liquid side
11 R410A connection (gas side)
12 3/4 ”system delivery
13 3/4 ”system return
14 DHW delivery 1/2 "
15 1/2 ”water mains cold water inlet
16 Health priority valve
17 Digital electronic control units
18 Mobile cover
19 Activation of electric heater
20 Summer / winter switch
21 Summer / winter diverter valve
22 Weekly programmer clock - daily
23 Filler cock
24 Technical water inertial storage
4. INSTALLATION OF INDOOR UNITS
Always install the accumulator inside the building to
heat away from atmospheric agents and inside a
room with a controlled temperature. Make sure the
wall on which it will be installed the indoor unit is
able to support the entire weight in system operation.
The main components are listed below make up the
internal unit .
Main components
1 Expansion tanks of 6 liters each
2 Electrical panel
3 WILO YONOS PARA RS 25/6 circulator
4 Electric resistance 1500 W
5 Pressure gauges with 1/4 "connection
6 Safety valve with 3 bar setting
9
11
1415
11 1010
4
6
12 13
6
18
23
5
17
22
19 20
1
2
8
23 23
5 5
17
17
19 20
22
16
12 12
3
7
21

17
4.1 ASSEMBLY PROCEDURE E) Once the indoor unit is fixed to the wall
proceed with the connection of the sanitary circuit
1/2”
F) Proceed with the connection of the delivery and
of the heating system return using
3/4 ”fittings
WARNING! the circulator mounted on board
machine is able to supply the water flow
nominal with the prevalence indicated in the table
of technical data. Check that your losses
load do not exceed the prevalence useful
available.
In any case, it is recommended to comply with the
requirements
below:
- the diameter of the pipe of the sampling line from
the
network should never be less than that
machine attack;
- adequately fix the pipes, whose weight
it must not weigh on the appliance;
- properly insulate the pipes to prevent
heat losses.
1
2
8
Wall mounting points
23 23
5 5
17
17
19 20
22
16
12 12
3
7
21
Water mains entrance DHW delivery
Mandata impianto Ritorno impianto
A) Place the indoor wall unit on the wall
where you want to install.
Make sure it is perfectly level with a spirit level
horizontal and that the support surface is regular.
B) Once the position of the fasteners is marked,
make appropriate holes for the insertion of
wall plugs to choose based on the weight of the
unit
internal in operation and the structural type of the
wall.

18
G) Connect the valves of safety at the threaded
connection 1/2 ”female of the safety valve.
H)Make the electrical connections between the panel
power supply and the main power supply and
between the panel electric and the terminal block
located on the right side of the outdoor unit following
the instructions given in table 1
WARNING! all electrical connections must be
performed by qualified personnel the electrical
system must comply with all of them the current
regulations. All refrigeration connections must
be performed by qualified personnel in
possession of the F-GAS certification
(Presidential Decree 27 January 2012, n. 43)
thermally isolate the remaining space that will remain
between the pipe and the wall.
L) Once all the connections have been made,
request
the indoor unit with the appropriate cover cabinet
that
you must first lean from the top down and
then made to rotate towards the wall until resting.
Screw the n. 4 screws prepared in the side holes.
M) Before filling the system make sure that
all the pipes are well connected and there is none
are leaks, proceed with opening the tap
filling, bleed all the air present
in the plant and put under pressure.
Mandata impianto Ritorno impianto
Electrical connection
Thermal probe
Compressor
Defrost probe
Single phase
Fan
Reversing Valve
Compressor
Liquid line connection
R410A pressure connection
2-way valve (open)
Gas line connection
R410A tap
Pb3 Pb3 STC STC L L C 1 2N N

19
4.2 DIMENSIONS OF INTERNAL AND EXTERNAL UNITS
EXTERNAL UNITS HUB RADIATOR DHP INDOOR UNIT HUB RADIATOR DHP
Models
L
H
P
I
II
Refrigerant quantity
Refrigerant gas connections
Coolant fluid connections
Rated air flow rate
Power supply
Sound level
Weight
Technical data Booster HUB RADIATOR DHP
U.M.
mm
mm
mm
mm
mm
Kg
m3/h
dB(A)
Kg
HR 3.0
700
552
256
275
435
1,1
3/8”
1/4”
1650
52
33
HR 7.8
902
650
307
350
620
2,0
5/8”
1/4”
3280
60
55
P
H
I II
L
230V/1/50Hz
2436
2295
726 284
295
Models
HUB RADIATOR DHP 3.0 + 3.0
HUB RADIATOR DHP 7.8 + 3.0
HUB RADIATOR DHP 7.8 + 7.8
HUB RADIATOR DHP 7.8 + 7.8 + 3.0
HUB RADIATOR DHP 7.8 + 7.8 + 7.8
HUB RADIATOR DHP 7.8 + 7.8 + 7.8 + 7.8
Booster
3.0
7.8 + 3.0
7.8
7.8 + 3.0
7.8
7.8
Quantità
2
1 + 1
2
2 + 1
3
4

20
Thermal power supplied BOOSTER HUB
RADIATOR DHP 7.8
Model
Ta
( °C )
Thermal power supplied kW
Heating water delivery temperature°C
30 35 40 45 50 55
1,074 -10 5,12 5,05 4,91 4,69 4,36 3,93
HR
7.8
-9 5,27 5,20 5,07 4,86 4,55 4,13
-8 5,43 5,36 5,23 5,03 4,73 4,33
-7 5,58 5,52 5,40 5,20 4,92 4,53
-6 5,75 5,68 5,56 5,37 5,10 4,73
-5 5,91 5,85 5,73 5,55 5,28 4,92
-4 6,09 6,02 5,90 5,72 5,47 5,12
-3 6,26 6,19 6,07 5,90 5,65 5,31
-2 6,44 6,36 6,25 6,08 5,83 5,50
-1 6,63 6,54 6,43 6,26 6,02 5,70
0 6,82 6,73 6,61 6,44 6,20 5,89
17,01 6,91 6,79 6,62 6,39 6,08
27,21 7,10 6,97 6,80 6,57 6,27
37,42 7,30 7,16 6,99 6,76 6,46
47,63 7,50 7,35 7,17 6,94 6,65
5 7,84 7,70 7,55 7,36 7,13 6,84
6 8,06 7,91 7,75 7,56 7,32 7,03
7 8,29 8,12 7,95 7,75 7,51 7,22
8 8,52 8,34 8,15 7,95 7,70 7,41
9 8,76 8,56 8,36 8,15 7,90 7,60
10 9,00 8,79 8,57 8,35 8,09 7,79
11 9,25 9,02 8,79 8,55 8,29 7,98
12 9,51 9,26 9,01 8,76 8,49 8,17
13 9,77 9,50 9,24 8,97 8,69 8,36
14 10,04 9,75 9,47 9,19 8,89 8,56
15 10,32 10,00 9,70 9,40 9,09 8,75
POTENZA ELETTRICA ASSORBITA COMPRESSORI BOOSTER
HUB RADIATOR DHP 7.8
Model
Ta
( °C )
BOOSTER ABSORBED ELECTRIC POWER kW
Heating water delivery temperature °C
30 35 40 45 50 55
1,074 -10 1,78 2,00 2,25 2,52 2,83 3,19
HR
7.8
-9 1,78 2,00 2,25 2,53 2,84 3,19
-8 1,78 2,00 2,25 2,53 2,84 3,20
-7 1,78 2,00 2,25 2,53 2,85 3,20
-6 1,78 2,00 2,25 2,53 2,85 3,21
-5 1,78 2,00 2,25 2,53 2,85 3,21
-4 1,78 2,00 2,25 2,53 2,85 3,22
-3 1,78 2,00 2,25 2,53 2,86 3,22
-2 1,77 2,00 2,25 2,54 2,86 3,22
-1 1,77 2,00 2,25 2,54 2,86 3,23
0 1,77 2,00 2,25 2,54 2,86 3,23
11,77 1,99 2,25 2,53 2,86 3,23
21,77 1,99 2,25 2,53 2,86 3,23
31,76 1,99 2,24 2,53 2,86 3,23
41,76 1,99 2,24 2,53 2,86 3,23
5 1,76 1,98 2,24 2,53 2,86 3,23
6 1,76 1,98 2,24 2,53 2,86 3,23
7 1,75 1,98 2,23 2,52 2,86 3,23
8 1,75 1,98 2,23 2,52 2,85 3,23
9 1,75 1,97 2,23 2,52 2,85 3,23
10 1,74 1,97 2,22 2,52 2,85 3,23
11 1,74 1,96 2,22 2,51 2,85 3,23
12 1,73 1,96 2,22 2,51 2,84 3,22
13 1,73 1,95 2,21 2,50 2,84 3,22
14 1,73 1,95 2,21 2,50 2,83 3,22
15 1,72 1,95 2,20 2,49 2,83 3,21
4.3 PERFORMANCE CHARACTERISTICS EXTERNAL UNITS HUB RADIATOR DHPTHERMAL POWER
DELIVERED BOOSTER
Thermal power supplied BOOSTER HUB
RADIATOR DHP 3.0
Model
Ta
( °C )
Thermal power supplied kW
Heating water delivery temperature ° C
30 35 40 45 50 55
1,074 -10 1,96 1,93 1,88 1,80 1,67 1,51
HR
3.0
-9 2,02 1,99 1,94 1,86 1,74 1,58
-8 2,08 2,05 2,01 1,93 1,81 1,66
-7 2,14 2,11 2,07 1,99 1,88 1,74
-6 2,20 2,18 2,13 2,06 1,96 1,81
-5 2,27 2,24 2,20 2,13 2,03 1,89
-4 2,33 2,31 2,26 2,19 2,10 1,96
-3 2,40 2,37 2,33 2,26 2,17 2,04
-2 2,47 2,44 2,39 2,33 2,24 2,11
-1 2,54 2,51 2,46 2,40 2,31 2,18
0 2,61 2,58 2,53 2,47 2,38 2,26
12,69 2,65 2,60 2,54 2,45 2,33
22,76 2,72 2,67 2,61 2,52 2,40
32,84 2,80 2,74 2,68 2,59 2,47
42,92 2,87 2,82 2,75 2,66 2,55
5 3,01 2,95 2,89 2,82 2,73 2,62
6 3,09 3,03 2,97 2,90 2,81 2,69
7 3,18 3,11 3,05 2,97 2,88 2,77
8 3,27 3,20 3,12 3,05 2,95 2,84
9 3,36 3,28 3,20 3,12 3,03 2,91
10 3,45 3,37 3,29 3,20 3,10 2,98
11 3,55 3,46 3,37 3,28 3,18 3,06
12 3,64 3,55 3,45 3,36 3,25 3,13
13 3,75 3,64 3,54 3,44 3,33 3,20
14 3,85 3,74 3,63 3,52 3,41 3,28
15 3,95 3,83 3,72 3,60 3,48 3,35
BOOSTER ABSORBED ELECTRIC POWER
BOOSTER HUB RADIATOR DHP 3.0
Model
Ta
( °C )
BOOSTER ABSORBED ELECTRIC POWER kW
Heating water delivery temperature °C
30 35 40 45 50 55
1,074 -10 0,66 0,75 0,84 0,94 1,05 1,19
HR
3.0
-9 0,66 0,75 0,84 0,94 1,06 1,19
-8 0,66 0,75 0,84 0,94 1,06 1,19
-7 0,66 0,75 0,84 0,94 1,06 1,19
-6 0,66 0,75 0,84 0,94 1,06 1,19
-5 0,66 0,75 0,84 0,94 1,06 1,20
-4 0,66 0,74 0,84 0,94 1,06 1,20
-3 0,66 0,74 0,84 0,94 1,06 1,20
-2 0,66 0,74 0,84 0,94 1,06 1,20
-1 0,66 0,74 0,84 0,94 1,06 1,20
0 0,66 0,74 0,84 0,94 1,06 1,20
10,66 0,74 0,84 0,94 1,06 1,20
20,66 0,74 0,84 0,94 1,06 1,20
30,66 0,74 0,84 0,94 1,06 1,20
40,66 0,74 0,83 0,94 1,06 1,20
5 0,65 0,74 0,83 0,94 1,06 1,20
6 0,65 0,74 0,83 0,94 1,06 1,20
7 0,65 0,74 0,83 0,94 1,06 1,20
8 0,65 0,74 0,83 0,94 1,06 1,20
9 0,65 0,73 0,83 0,94 1,06 1,20
10 0,65 0,73 0,83 0,94 1,06 1,20
11 0,65 0,73 0,83 0,94 1,06 1,20
12 0,65 0,73 0,82 0,93 1,06 1,20
13 0,64 0,73 0,82 0,93 1,06 1,20
14 0,64 0,73 0,82 0,93 1,06 1,20
15 0,64 0,72 0,82 0,93 1,05 1,20
