Thank you for purchasing an A2B Electronics product. The MyM-3T is a
revolutionary solution for reception and modulation of satellite transmitted
TV-content into an analogue format suited for small SMATV networks where
cost efficiency and high quality is required.
The MyM-3T receives DVB-T transmissions.
The MyM-3T unit is delivered with hardware and software that supports
DVB-T reception, MPEG2/MPEG4 decoding, DSB RF modulation with NICAM
or A2 audio, IP control and management.
The MyM-3T can be upgraded for enhanced functionality by software
upgrades.
Software upgrades are available from A2B Electronics web site.
A2B Electronics AB
Phone: [phone]
E-mail: [email protected]
Visit our web site www.a2b.se for more information.
English
1 Introduction

44
The following items are included in the package:
Amount Description
1 MyM-3T Micro Master
1 Installation guide
1 Power supply 12 VDC
Every unit is quality controlled by us before delivery. Should any items be missing
when unpacking, please contact our support service (see page 3 for contact info).
English
Important information about power
supply to MyM-3T unit
To avoid problems with the MyM-3T its is
important to use the supplied power
supply. Operation with other types of
power supplies will void the warranty.
(See picture to the right).
NOTE! Never connect two MyM-3T
units to one power supply. This may
cause damage to your MyM-3T.
2 Unpacking the unit
44

55
English
1. Antenna input Connect the terrestrial signal to this connector
2. Aerial loop through You can connect this connector to next MyM-T for
input signal.
3. Power connector Connect the supplied power supply to this
connector
4. Common Interface 1 Insert a Common Interface module into this slot
(Supports decryption for Channel 1 and 2)
5. Common Interface 2 Insert a Common Interface module into this slot
(Supports decryption for Channel 3)
6. Ethernet port RJ-45 port for 10/100 baseT Ethernet. Connect
your PC to this port for management and upgrades.
7. RF-output Combined 3 channel RF-output for connection to
your SMATV network.
8. Indicator LED Status indicator
1 2 34567
8
3 Connections and indications

6
The MyM-3T has an embedded
web server allowing standard web
browsers (Internet Explorer,
Firefox, Opera etc.) to connect to
the unit for settings and
management.
No controller software is needed.
The MyM-3T has by default a static
IP address for connecting your PC
to the unit.
The MyM-3T is delivered with the
default IP address: 192.168.0.20.
First time installation requires that
you set a static IP address on your
computer. For example set your PC
to IP address: 192.168.0.19 and
Net mask: 255.255.255.0
NOTE! MyM-3T can either be
controlled by the three buttons
on the right side or by web ui
(See Chapter 5.1).
English
4 IP settings
TCP/IP settings for Windows XP (setting your PC to 192.168.0.19)
Select ”Start”, ”Control panel” and ”Network connections”. Next select
“Network and Internet settings”. ”Right click” on [Settings for local network]
and select [Properties].
In Properties select [Internet protocol
(TCP/IP)] and [Properties].

77
English
Select [Use this IP adress] and write:
192.168.0.19 and select [Net mask]
255.255.255.0. Click [OK] and then
click [Close].
NOTE! For PC with other Operating
Systems (OS) than Windows, please
consult the Owners manual for your
PC for [IP/Network settings].
Connecting your PC to the MyM-3T
Connect the MyM-3T to the supplied DC
power supply.
See section 6 for installation.
Next connect your PC to the MyM-3T with
a network cable.
Start your web browser (Internet
Explorer, Firefox, Opera etc.) and write
the IP address 192.168.0.20 in the
address field of your browser.
Settings of IP address
Click the [System options]
menu and then press [IP
Settings] to set a new IP
address, Netmask and
Gateway for the MyM-3T.
4 IP settings (continued)

8
English
5.1 Overview menu
[Current settings]
Contains information of
current input and output
signals, if the tuners are
locked to a signal, firmware
version, bootloader version,
hardware revision, serial
number and current IP
Network settings. By a click
on [Edit] radio button you
get a choice that you have to
make if you shall use the
unit with ”Full web ui” or
”Buttons + limited web ui”.
Here you can also give the
unit a [Name] and a
[Description].
After choosing, click on
[Save] and restart the unit
to store this setting.
All necessary settings can be made in the web GUI via a web browser.
When first connection is made with the MyM-3T following overview menu
will appear.
5 Menus and settings
[Software options]
In this menu you can see
which software options that
are activated.
To continue with settings click the [Input] name in the banner.

99
English
5.2 Input settings
As the MyM-3T contains 2 separate tuners, start by selecting [Tuner 1]
for chosing tuner frequency for programs at Ch1 and Ch2 RF output. Click
on the [Tuner 2] banner to select tuner frequency for program at Ch 3 RF
output.
[Bandwidth] can be selected between 6, 7 or 8 MHz.
Chose [Channel name] or write the center frequency of the wanted Mux
and click on [Set].
NOTE! Don’t click on the [Set] if Channel name are used for
choosing input frequency.
5 Menus and settings (continued)

10
English
5.3 Output settings
Modulation/
Band
Start the output setup by selecting
which band you want to use. You
can select VHF-7, VHF-8 and UHF.
VHF-7 and VHF-8 corresponds to 7
and 8 MHz bandwidth. After
selection press [Set].
Frequency
For each of the 3 possible output
channels, set the desired output
channel or frequency.
Channel Indicator Name
You can set the “Channel Indicator
name” by your personal preference.
The Channel Indicator will enable
you to detect on a TV-screen which
programs that are transmitted from
the MyM-3T. Press [Set] after each
entering.
National
Subtitle
Type
Set type of subtitling to Normal or
for Hearing Impaired or None
National settings enables language
and regional settings depending of
the region the MyM-3T is installed
in, or which parameters you want to
use for the output.
Language
Select subtitling language. Depends
of received languages in the satellite
signal.
Priority
Set DVB or Teletext subtitling as
default selection.
.
5 Menus and settings (continued)

11
English
Advanced
Aspect ratio
Set correct picture format of the
programs transmitted from the
MyM-3T.
Video standard
Select your regional video standard.
Audio system
Set your regional audio standard.
Channel Indication
Select to transmit the Channel
Indicator names as set up under
[Output/Modulation]
Loopthrough
Select here if loopthrough for input
(antenna) signal shall be “On” or
“Off”.
5 Menus and settings (continued)
5.3 Output settings continued
Auto conversion
Converts subtitling to fit actual
picture aspect ratio.
Teletext Charset
Select appropriate characters for
selected language.
Audio
Audio language
Select which language to receive
and transmit on the outgoing
programs.
Audio level
This setting allows to equalise
the difference in sound level
between different programs.
Settings can be done between
+6 and -6 dB.

12
English

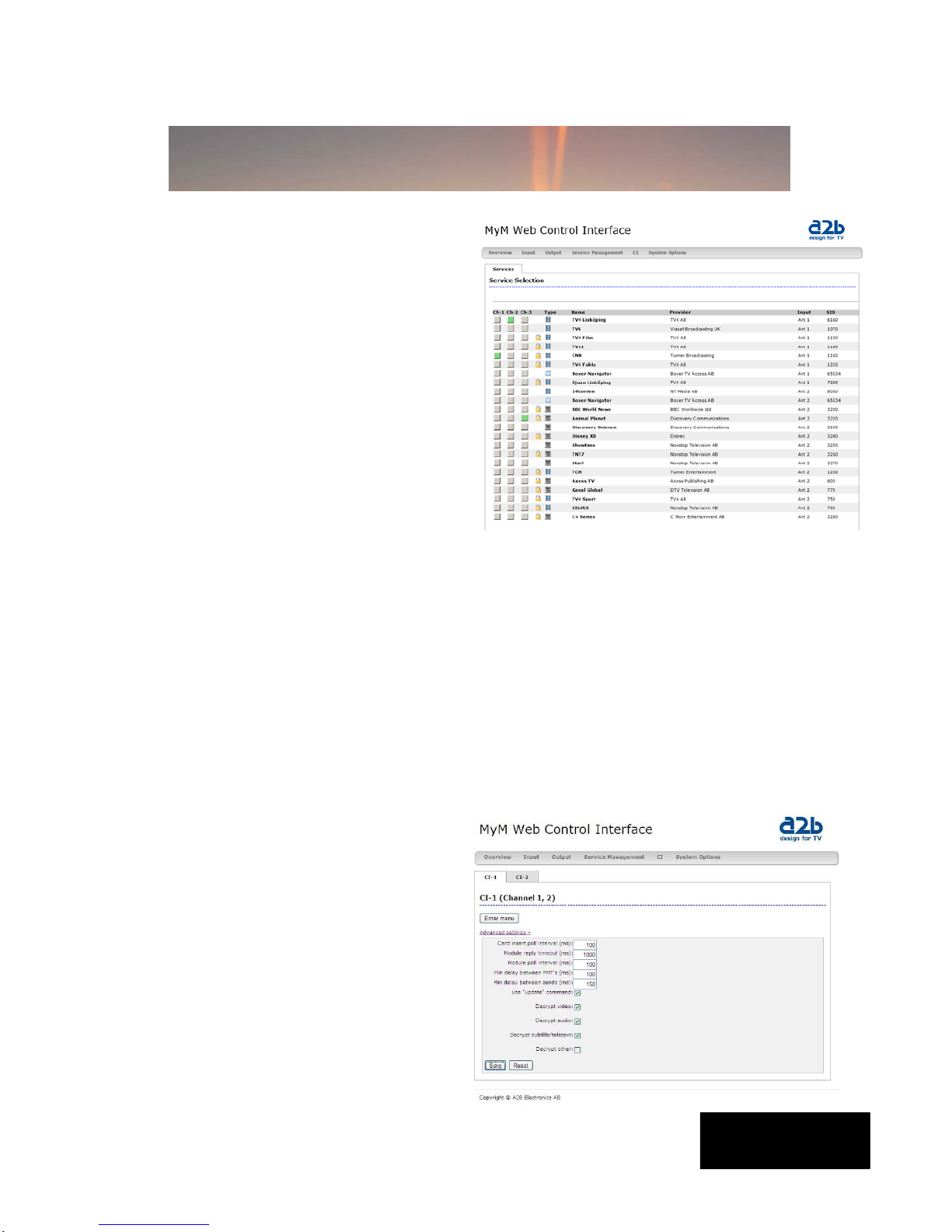

5.4 Service Management
The MyM-3T contains 2 separate DVB-T
tuners and totally 3 services can be
selected for each of output channels,
named [CH-1], [CH-2] and [CH-3].
The list of services presents all received
services from both tuner inputs.
When one program (service) is selected,
the box in front of the program name
changes colour to green.
The service list gives following
information:
Selected service Green colour
indication
Service name Program name
Provider Name of operator
Input Indicates what
antenna input the service
is received from.
SID Service ID number
(as received)
5 Menus and settings (continued)
5.5 CI menu
The MyM-3T contains 2 CI (Common
Interface). CI 1 decrypt services for
output Ch1 and Ch2. The CI 2 decrypt
services for output Ch 3. In menu you
get information about CAM and card.
In the Advanced settings menu you
can change timing settings for the
used CAM if there is a need for
changing that. After a change is made
the “Save” button must be clicked on.
If changes are made and does not
work, you can get the default settings
again by a click on the “Reset” button
and a click on the “Save” button.
NOTE! To detect whether a Common Interface module and smart card
actually decrypts the programs is only possible by watching the outgoing
signal on a TV-set tuned to the correct frequency.
Type Shows type of
service.
Hanglock Shows if service is
encrypted.

13
5.6 System options
Upload/Upgrade
The Upgrade menu is used to be
able to download software
Upgrades or future software
functionality.
The procedure of downloading a
new software looks as described
below:
1.Download the appropriate file
from our web page to your PC.
2.Browse for the file in the MyM-3T
User Interface.
3.Press [Upload]
4.Wait 2 minutes.
5.Make a power reboot of the MyM-
3T
6.Finished
The Upload menu shows current
files downloaded into the units and
can be useful when contacting A2B
support.
Uptime
The Uptime menu gives statistics
of uptime and possible re-starts.
The log can be cleared in order to
have a “clean sheet” after
installation.
English
5 Menus and settings (continued)

14

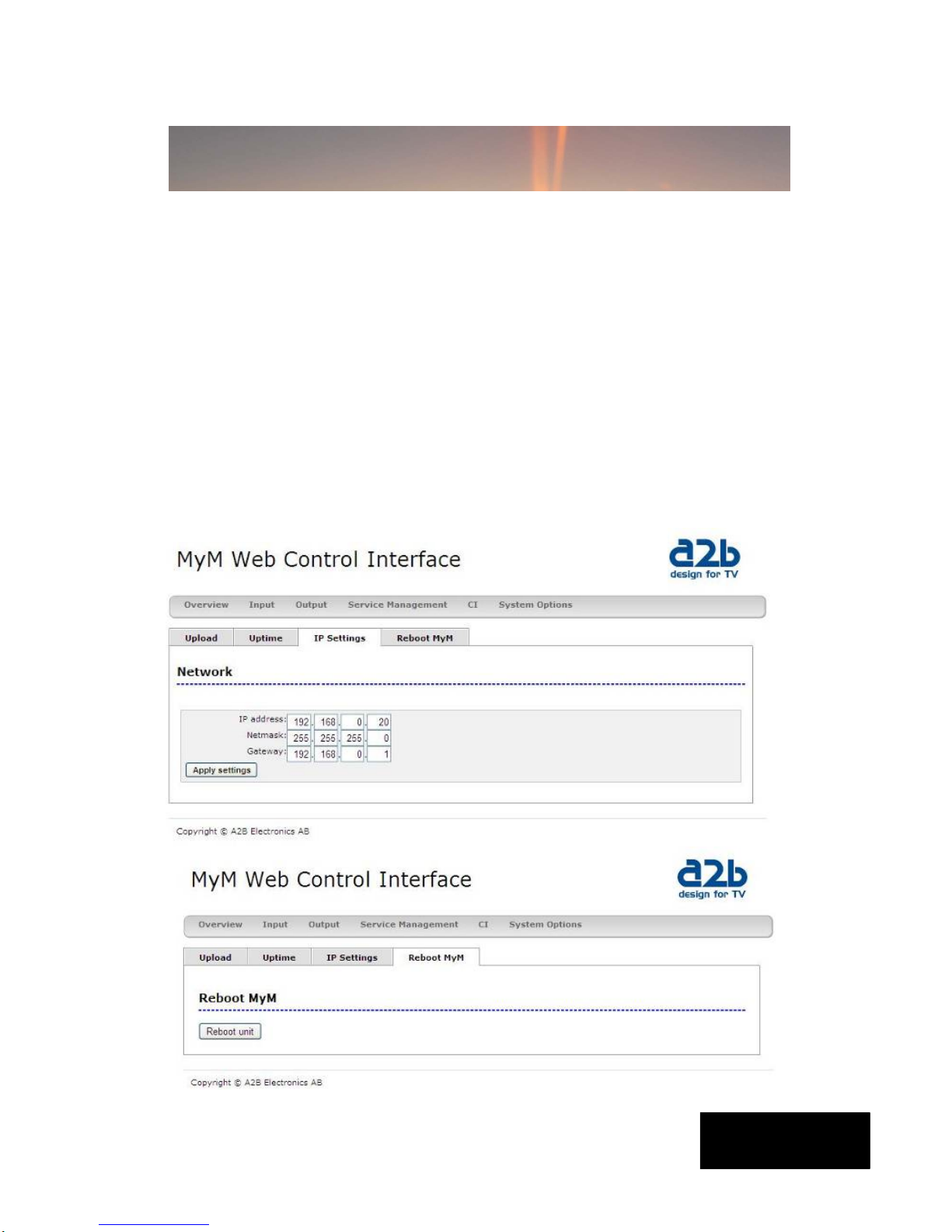

IP settings
This section shows current IP-address, Netmask and Gateway settings.
Remember to change settings if the default IP-address is used by other
devices in your network.
In case you have forgotten your IP-address please consult the A2B support
web site and download free of charge our tool “IP-supporter”. This tool finds
all MyM-3T and their respective IP-addresses available in your network.
Also remember to press [Apply settings] when ready.
Reboot MyM-3T
Pressing [Reboot unit] re-starts the MyM-3T. All settings are preserved so
no settings or programs will be lost.
5 Menus and settings (continued)
English

15
English
The MyM-3T has a button menu system for changing
settings and functionality. The menus are shown on
the TV screen after buttons has been activated in the
web ui (see Chapter 5.1 how to activate button
menu). Press the OK button on the MyM-3T (see
Chapter 6 Connectors and buttons) to display the
menus. The picture to the right shows the main
menu. Use the arrow up and arrow down buttons on
the MyM-3T to navigate the menus. Exit the menu by
moving the indicator to “Return” and then press the
OK button on the MyM-3T.
6 Menu settings with buttons
6.1 Basic settings
In the basic settings you can find information about your MyM-3T, choose what
programs are transmitted by the MyM-3T and/or start a new channel search.
6.1.1 Information
The information box displays the hardware
version and the software version of your MyM-3T.
It also displays the serial number of your
MyM-3T.
6.1.2 Choosing output channels (programs).
This menu is used for selecting which digital
television channels are transmitted by the MyM-3T
on Channels 1, 2 and 3.
Move the indicator (using the arrow buttons on the
MyM-3T) to the Channel you want to change. You
can choose “ALL” or programs from one mux
frequency (E2 to E69).
NOTE! There could be more channels than you
can see in the window. Scroll up or down to
see all channels
Press the OK button on the MyM-3T to show all the
digital television channels.
Select the digital television channel and press the
OK button again.

16
6.1.3 Channel search
The first time the MyM-3T is installed you must do a
channel search to tune in available digital channels.
Before you start the search you must select the
frequency raster that is used in your area.
Connect the TV aerial before starting the channel
search. To follow the channel search process tune a
TV to channel S11 (231,25 MHz). During the
channel search all the signals that come from the
aerial are shown at the bottom of the screen by
individual channels (frequencies) and signal
strength.
6 Menu settings with buttons
6.1.4 National
This menu is used to change the country
settings. You can choose your preferences for
Subtitling, Audio language, and Menu language.
6.1.5 National – Subtitling
Use this menu to set your preferences for
subtitling. It is possible to set the type of
subtitling, choose the subtitle language and select
between DVB or teletext subtitling, select Auto
Conversion and set the teletext character set. This
menu can also be used to switch subtitling off
(None).
English

17
English
6 Menu settings with buttons cont.
6.1.5.1 Type
Use this menu to choose between normal subtitling
or special subtitling for the hearing impaired. This
offers enlarged subtitles and colour coded text.
Alternatively all the subtitling can be switched off.
The MyM-3T is preset to “Normal”.
6.1.5.2 Language
In this menu you select what language that should
be used for subtitling.
NOTE! There are more choices than you can
see in the window. Scroll up or down to see
all choices.
6.1.5 National – Subtitling continue
6.1.5.3 Priority
Subtitling can be transmitted in different
formats; via “Teletext subtitling” or “DVB
subtitling”. The format is automatically selected
by the MyM-3T. Sometimes both formats are
transmitted and the MyM-3T then automatically
chooses the format according to the priority set
here.
6.1.5.4 Auto conversion
If Aspect ratio is 16:9 and some of the
subtitling is out of the image area you can get
all text within the image area by select “On” for
Auto conversion.

18
6 Menu settings with buttons cont.
English
6.1.6 National – Audio language
This menu is used to set your preference for
audio language, when a TV program is broadcast
in more than
one language.
6.1.7 National – Menu language
This menu is used to set your preference for the
language used in all menus in the MyM-3T.

19
6 Menu settings with buttons cont.
6.2 Advanced settings
In the advanced settings menu you will find
settings for Aspect ratio, Output channels,
Quality, Channel indicator, Output audio type,
Loopthrough, CI1 and CI2.
6.2.1 Aspect ratio (Picture format)
The picture format can be set to 4:3 or 16:9
(Widescreen). If the main TV is 4:3 choose 4:3
to watch 4:3 programs in full screen and
widescreen programmes (16:9) in the letterbox
format where the full width of the picture is
shown and the top and bottom of the picture
are black.
Choose 16:9 if the main TV is widescreen to
watch 16:9 programmes in full screen.
6.2.2 Output channels
Use this menu to choose the output frequencies
for the MyM-3T. After the first installation you
will find the pre set channels on VHF output at
channels S11, S13 and S15 respectively. This
menu allows you to choose between VHF 7
MHz(S10 to S20), VHF 8 MHz (SR8 to S40) or
UHF (E21 to E69) as output channels.
NOTE! To use VHF 8MHz for S21 to S41
(western Europe) you must choose one
channel lower to get correct frequency
i.e. S20 gives S21 for western europe
frequency raster. S40 gives S41 for
western europe frequency raster etc.
English

20
6 Menu settings with buttons cont.
English
6.2.3 Quality
This menu is used to test the signal quality and
the aerial reception quality. It may be necessary
to adjust or upgrade the TV aerial to ensure good
picture and sound on all channels. For more
information see Chapter 8.2.3.1 Reception.
The MyM-3T has an inbuilt spectrum analyser to
help optimise the aerial installation. For more
information see Chapter 8.2.3.2 Antenna Quality.
6.2.3.1 Reception
Use this menu to measure the reception quality
of each channel. If these are not optimal it is
possible that the picture and sound quality will
deteriorate in poor reception conditions and it
may be necessary to adjust the aerial. The
information refers to the 2 installed muxes for
the 3 channels.
The menu shows the channels numbers and frequencies of the 2 installed muxes.
Good reception quality requires a strong incoming signal. For more information on
the optimal signal strength see Chapter 8.2.3.2 Antenna Signal. It may be
necessary to adjust the aerial for optimal signal strength. The signal quality C/N
(Carrier to Noise) value is a measurement of the relationship between the aerial
signal and disturbance in the channel. This should be higher than 20 dB. The BER
(Bit Error Rate) measures the ratio of the number of faulty bits received to the
total number of bits received. The BER should be as low as possible and less than
2.00E-4 (2*10-4) to ensure good quality picture and sound.
If all the parameters for the incoming signal are good but there are still problems
with the picture or sound quality it is likely that there is a problem with the cable
that connects the TV / VCR to the MyM-3T.
