Aardee ARCM-550-MC User manual

3 in 1 coffee maker
ARCM-550-MC
KaffeeMashine

Congratulation on your purchase!
This coffee Capsule machine is manufactured with the greatest care. If
you look it after properly it will reward you with many years of good
service. Before using your new machine, please read this operating
manual carefully, paying particular attention to the safety precautions.
CONTENT
1. Safety precautions
2. Notes on this operating manual
3. Unpacking
4. Starting up
5. Overview of machine parts and controls
6. Before using for the first time
------Filling/refilling the water tank
------Flushing out the machine/internal piping
7. Capsule type can be used
8. Standby Modec
------Factory Default setting: Standby
------Standby mode setting
------Clean mode function
------Coffee Volume Setting
------Factory default setting
9. Cleaning
10. Energy saving mode
11. Decalcification
12. Troubleshooting
13. Technical data
2

Please take time to read these safety precautions carefully before
connecting your machine to the power supply. It is essential to follow
them and the operating instructions.
− First read this entire operating manual.
− Danger of electric shock! Never immerse the machine in water or any
other liquid.
– Connect only to a properly grounded power point.
– To make sure that the machine is switched off, remove the plug from
the power point.
− Always pull out the power plug before:
* Relocating the machine.
* Cleaning or maintenance.
* Long periods of disuse.
− Never clamp or run the power cable over sharp corners or edges.
− Danger of electric shock! Damaged power cables may only be
replaced at the customer service centre.
− Danger of electric shock! Never touch the power plug/socket/cable or
the machine with damp or wet hands. Never unplug by pulling out the
power cable; always remove the plug.
− If you need an extension cable, make sure it is suitable for your
machine (3-pole grounded, 1.5 mm2 conductor cross-section), and
lay the cable to avoid tripping.
− Danger of scalding! Never move the machine during operation!
− Never operate the machine without water
− Always make sure there is water in water tank not less than minimum
level.
− Danger of burning! Never touch very hot parts of the machine (e.g.
brew unit during operations).
− Danger of scalding! Do not touch the steam or water jets.
− Danger of scalding! Do not move the operating lever when the
machine is still under pressure making Coffee .
− Do not use the machine in case of:
* Faulty operation.
* Damaged power cable.
* After falling or other damage.
* In such cases immediately have the machine checked and
repaired if necessary at the customer service centre.
1. Safety precautions
3

− The machine location must meet the following requirements:
* Choose a dry, stable and level support surface not immediately
underneath the power point. at least 60 cm away from the washba-
sin and taps.
* Never place on flammable/fusible surfaces or equipment.
* Never place the machine or power cable on or nearer than 50 cm
to hot surfaces or open flames.
* Never cover the machine during operation.
− Keep children away from the machine during operation.
− Keep children away from the machine during operation.
– Only use the machine in dry rooms.
– Danger of tripping! Do not let the power cable hang down.
− This machine is only intended for household use.
− Pull out the power plug and allow the machine to cool down com-
pletely before cleaning and or Maintenance.
− To prevent damage, never use replacement parts or accessories not
recommended by the manufacturer
− This appliance can be used by children aged from 8 years and above
if they have been given supervision or instruction concerning use of
the appliance in a safe way and if they understand the hazards
involved. Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised. Keep the appli-
ance and its cord out of reach of childrenaged less than 8 years.
− Appliances can be used by persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved.Children shall not play with the appliance.
− This appliance is not intended for use by persons (including children)
with reduced physical,sensory or mental capabilities, or lack of experi-
ence and knowledge, unless they have beengiven supervision or
instruction concerninguse of the appliance by a person responsible for
their safety.Children should be supervised to ensure that they do not
play with the appliance.
− If the supply cord is damaged, it must be replaced by the manufactur-
er, its service agent or similarly qualified persons in order to avoid a
hazard.
− This appliance is for household and indoor use only.
− The appliance must not be immersed
− Caution! There is potential injury from misuse.
4

2. Notes on this operating manual
− Heating element surface is subject to residual heat after use.
− Coffee-maker shall not be placed in a cabinet when in use
− Cleaning and user maintenance shall not be made by children with-
out supervision
− This appliance is intended to be used in household and similar applica-
tions such as:
* Staff kitchen areas in shops, offices and other working environ-
ments;
* Farm houses;
* By clients in hotels, motels and other residential type environments;
* Bed and breakfast type environments.
This operating manual cannot cover all possible circumstances. For
further information or in case of problems not adequately covered in this
operating manual, please contact the service and sales centre.
Please keep this operating manual safe and pass it on to the next user.
5

3. Unpacking
4. Starting up
− Remove your espresso Capsule coffee machine from its packaging.
− After unpacking, please check that the following parts are included:
1. Water tank
2. Coffee machine
3. Manual
Note:
− Check that your home power supply voltage is the same as marked on
the machine rating plate
− Destroy all the plastic bags to prevent danger to children!
Tip:
Keep the packaging for transporting the machine (e.g. for removals,
servicing, etc.)
Note:
You may find a little water remaining in the machine.
In order to ensure that this machine works perfectly, it was tested with
water before leaving the factory.
- DANGER OF FROST
Before using for the first time
Caution: Improper handling of electrical equipment is dangerous and
can be lethal. Please pay attention to the safety precautions in this
manual, in particular the following:
• Danger of scalding: beware of hot water!
• Do not operate the machine with an empty water tank or water is less
than MINIMUM level.
• Do not open the handle when the machine is brewing.
• Always pull out the power plug before cleaning the machine.
• Only use the machine in a dry room.
• Thoroughly rinse out the water tank with fresh water before using for the
first time. Clean the Capsule coffee machine using a damp cloth only.
6

Before using for the first time or after long pauses (e.g. holidays) the
machine may be difficult to pump water, this short procedure can help
pump to self priming by using the pipe to fill water into the circuit manually
prior to turn on the machine for first refill.
After above steps, the machine will be able to pump water out normally.
* If necessary, repeat the steps for 2 or 3 times.
Step 1# :
insert the pipe into the water entrance.
Step 2# :
fill water into the pipe.
Step 3# :
inject the water from pipe into the machine so
that the internal circuit is filled with water.
7

5. Overview of machine parts and controls
6. Before using for the first time
No.
A
B
C
D
E
F
G
Handle
Buttons
Water tank cover
Water tank
Brewing basket
Drip tray cover
Drip tray (removable)
Name
Before using for the first time or after long pauses (e.g. holidays) the
machine must be flushed out. This short procedure can flush out and
cleans the internal piping thoroughly.
There are two ways to fill the water tank: directly into the machine, by
using for example a jug, or by removing the water tank.
Filling without removing the tank
– raise the water tank cover
– Fill the tank with cold fresh water
– the maximum capacity is 0.6 litre
– low down the tank cover
1
8

2
4
5
3
Connect the power supply
Press the switch button
The lights at buttons become steady
when the machine is heated up
heating up time is 45 seconds
Press the lungo coffee button, wait for the appliance to
complete the flush out.
– Before pressing the button, make sure that:
– The handle is closed without capsule inside.
– The water tank is full.
– The water tank is firmly in place, otherwise water may leak
– A large bowl ( 250ml size or above) is placed under the
dispenser.
– Press the lungo coffee button to start flush out.
– Open the handle when the flush out process stopped
automatically.
– Empty the cup.
– Flush out cycle is finished.
Filling by removing the water tank
Hold the water grip at tilting angle as
shown in direction to remove the water
tank from the machine.
Fill the tank up to Fill the tank up to the
“MAX” mark with cold fresh water (the
maximum capacity is 0.6 litre).
Slide the water tank slowly on water tank
base, when the water tank outlet is insert-
ed in the inlet receptacle, pushing firmly on
the water grip as shown in direction to lock
the water tank .
–
–
–
9

7. Capsule type can be used
Tips: The machine has different adaptor for differ-
ent capsules, details refer to below
For Nespresso capsules
For Dolce-Gusto capsules
For coffee powder
10

For Nespresso capsules
1 2
3
4
- Press the desired coffee button only once
- The selected button will blink and the machine
will start brewing then complete the brewing
process, dispensing will stop automatically
when reaching the default brewing time (25s for
short espresso, 47s lungo coffee),default setting
can be programmed, please refer to “how to
program brewing time” instruction.
Raise the handle and pull out the brewing basket
to inject used capsule into the container.
Tips: when press the button, maybe the desired
button LED flash a few seconds first ,then start
brewing. the flash process is for heating, this is
normal performance.
Place a cup under the dispenser
- Open the handle
- Pull out the brewing basket for
Nespresso capsules.
- Press the brewing basket cover lid
- Insert a capsule to the brewing
basket.
- Push in the brewing basket with
capsule.
- Close the handle.
11

- Press the desired coffee button only once
- The selected button will blink and the machine
will start brewing then complete the brewing
process, dispensing will stop automatically
when reaching the default brewing time (25s for
short espresso, 47s lungo coffee),default setting
can be programmed, please refer to “how to
program brewing time” instruction.
Raise the handle and pull out the brewing basket
to inject used capsule into the container.
Tips: when press the button, maybe the desired
button LED flash a few seconds first ,then start
brewing. the flash process is for heating, this is
normal performance.
Place a cup under the dispenser
For Dolce-Gusto capsules
21
3
4
- Push in the brewing basket with capsule.
- Close the handle.
- Open the handle
- Pull out the brewing basket for
Dolce-Gusto capsules
- Insert a capsule to the brewing
basket.
12

- Press the desired coffee button only once
- The selected button will blink and the machine
will start brewing then complete the brewing
process, dispensing will stop automatically
when reaching the default brewing time (25s for
short espresso, 47s lungo coffee),default setting
can be programmed, please refer to “how to
program brewing time” instruction.
Raise the handle and pull out the brewing basket
to inject used capsule into the container.
Tips: when press the button, maybe the desired
button LED flash a few seconds first ,then start
brewing. the flash process is for heating, this is
normal performance.
Place a cup under the dispenser
For Coffee powder
21
3
4
- Open the handle
- Pull out the brewing basket for
Dolce-Gusto capsules
Coffee powder
Press down the
coffee powder
- Push in the brewing basket with coffee
powder.
- Close the handle.
13

8. Standby Modeck
>15 minutes
Factory Default setting: Standby
Mode:15 mins
It means the machine will be turn off after
15 mins, and all the indicator lights will be
off.
To press the switch button to activate the
standby mode again if the machine is in
Standby mode
Standby mode setting:
Keep pressing the small cup button and
big cup button, insert the plug to the
socket .
Switch button light will be on
Press small cup button, Small cup button
light off, Standby mode cancelled.
Press small cup button, small cup button
light on, standby mode activated
Clean mode function
1. Put a cup in front of the machine
2. Put some detergent into the water
tank
3. Press the small cup and connect the
power at the same time power at the
same time
4. The switch button and small cup
button are lighted, press the small cup
button Start to clean, work time 120S.
Press the small cup button to stop.
14

Coffee Volume Setting
Factory default setting
Big Cup volume setting
1. Put coffee cup under the coffee outlet
2. The machine is in normal working condi-
tion. Keep pressing the big cup button,
the release the button till you get the
coffee you want (Min:15S,Max：90S)
Press the big cup button, insert The
plug to the socket. The Indicator light
of buttons will Flash twice. It means
the machine Come back to factory
default setting.
Small Cup volume setting
1. Put coffee cup under the coffee outlet.
2. The machine is in normal working
condition. Keep pressing the small
cup button, then release the button till
you get the coffee you want (Min:15S,-
Max:90S)
15

9. Cleaning
Warning tips
Risk of fatal electrical shock and fire. Never immerse the appliance or
part of it in water.
/ Be sure to unplug the machine before cleaning.
/ Do not use any strong cleaning agent or solvent cleaner.
/ Do not use sharp objects, brushesor sharp abrasives.
/ Do not place in a dishwasher.
Brewing cup cleaning.
Holistic cleaning
Dry with a fresh and clean towel, cloth
orpaper and reassemble all parts.
Clean the coffee outlet and inside the
machine regularly with a damp cloth.
Prohibit to pull water to the machine
16

Prohibit to open the handle
Before brewing,to be sure there is
not less 20ml water keep in the
water tank.
There is sharp needle upper the
capsuleAdaptor.
Prohibit to put the hand or Finger
to any part near the needleAfter
the adaptor is removed.
Adaptor is still very hot after brewing
Be careful the HOT!
17

10. Energy saving mode
The machine enters energy saving model automatically once the machine is idle
for 15 minutes, the back light of two buttons and power indicator will off.
To quite energy saving mode, please press power button , appliance will start to
warming up with lights blinking, when the buttons are lit steadily, the machine is
ready to brew coffee.
11. Decalcification
Decalcification / Maintenance
Drinking water varies according to region. The lime particles in hard drinking water
are deposited as residues in the machine and can block the piping and cause
damage. To prevent this, be sure to decalcify the machine at the very least after
making 300 to 400 cups of coffee or,in any case if the output falls significantly or,
after one or two months.
Decalcification must be done correctly to prevent damage. So it is essential to
follow these instructions.
Important:
– Never clean the machine with vinegar. This causes damage and makes your
coffee taste bad.
– Damage caused by incorrect decalcification or failure to decalcify is not
covered by the guarantee.
1. Recommendations: purchase commercially available decalcifier (decalcify-
ing liquid), diluted according to the manufacturer‘s instructions; pour the
mixture in the water tank.
2. Make sure there is without capsule inside the machine.
3. Place a large bowl under the dispensing head to collect the decalcification
diluted and lime residues
4. Fill the water tank with water to maximum level mixed with decalcifying
solution, make sure the solution is dissolved completely.
5. Press the lungo button to run decalcifying water as you brew coffee normally,
repeat for several times to run out the entire tank water.
6. Repeat the process to run another tanks of water mixed with decalcifying
solution.
7. Repeat the process to Flush out the intern circuit with a tank of fresh water
(without the decalcifying solution) to clean the internal circuit completely.
18

13. Technical data
12. Troubleshooting
PROBLEM
No coffee is brewed.
The coffee is not hot
enough.
Water on table
Handle can not close
CAUSE
The water tank is empty.
- the Cold cups / mugs.
- Scale build-up in machine.
- Cold machine.
- Water tank is leaking.
- drip tray is full of water.
- the brewing basket is
not placed well
SOLUTION
Fill water in the water tank.
Preheat cup / mug.
- Descale.
- For cold machine, brewing a cup of water to
warm up the circuit.
- Check if the valve on water tank is stuck.
- empty the drip tray.
- Push the brewing basket into correct position
Rated Voltage: 220-240V AC
Rated Frequency: 50/60Hz
Rated Power: 1450W
N.W./G.W.: 2.5/3.4 kg appr.
Pump Pressure: Max. 19 Bars
Water Tank Capacity: 0.6L
Size: 110mm(W)* 270mm(L) * 250mm(H)
ProtectionClass: I
Design or execution changes are reserved in the interest of technical progress.

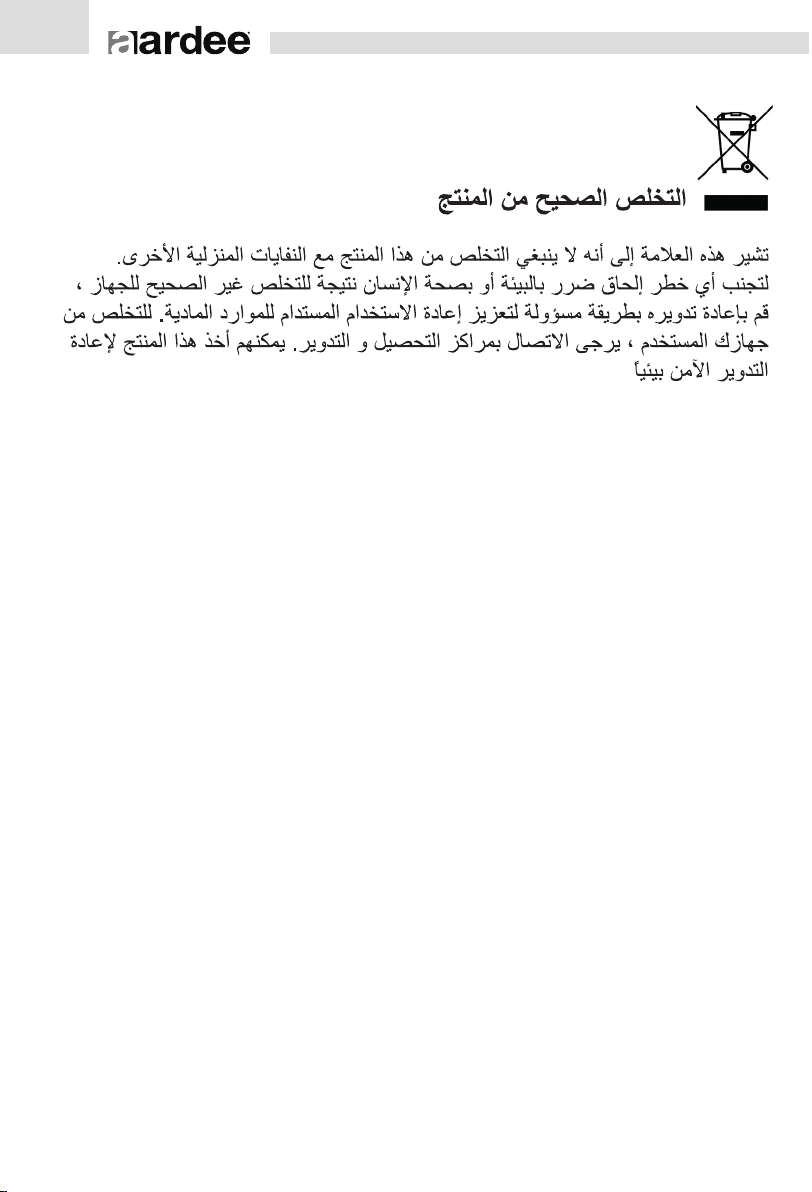

Correct Disposal of this product.
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
19

25
