AAUK UBAS610SS User manual

Version: v00
WARNING: Read the instructions before using the appliance.
Built-in Electric Oven
UBAS610SS
UBAS609G

2
Getting started...
GB Checking instructions
Safety
These instructions are for your safety. Please read the
following instructions carefully before proceeding with
the installation and use of this appliance. Keep the
instruction manuals for future reference.
To avoid the risks that are always present when you use an electrical appliance
it is important that this oven is installed correctly and that you read the safety
instructions carefully to avoid misuse and hazards. After unpacking the oven
please check that it is not damaged. If in doubt, do not use the appliance but
contact Customer Services on 0344 8001128.
Check the package and make sure you have all of the parts listed and decide
upon the appropriate location for your product. If this product contains glass
please take care with tting or handing to prevent personal injury or damage
to the product. The specication plate shown on this appliance displays all the
necessary identication information for ordering replacement parts. If you sell
the appliance, give it away, or leave it behind when you move house, please
ensure that you pass on this manual so that the new owner can become
familiar with the appliance and its safety warnings.
All installation work must be carried out by a suitably qualied
person, strictly following local building regulations and these
instructions.
WARNING: Ensure that the appliance is switched o󰀨 at
the fused spur before replacing the lamp to avoid the
possibility of electric shock.
WARNING: Accessible parts may become hot during use.
Children should be kept away.
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired.
Contact Customer Services for advice.
During installation do not allow the supply cord to touch
the hot parts of the appliance.
WARNING: All installation work must be carried out by a
suitably qualied person, strictly following local building
regulations and these instructions.

3
Getting started...
GB
Make sure that the supply cord is not caught under or in
the appliance and avoid damage to the supply cord.
Do not install the appliance outdoors in a damp place
or in an area which may be prone to water leaks such
as under or near a sink unit. In the event of a water leak
allow the machine to dry naturally. Do not use and contact
Customer Services for advice.
Please dispose of the packing material carefully.
Do not use ammable sprays in close vicinity to the
appliance.
WARNING: This appliance can be used by children
aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision. Keep the appliance and its
supply cord out of the reach of children less than 8 years
old.
If the supply cord becomes damaged, it must be replaced
by the manufacturer, its service agent or similarly qualied
persons in order to avoid a danger or injury.
The appliance is not intended to be operated by means of
an external timer or separated remote control system.
The appliance is for domestic use only and only for
cooking food. Do not use this appliance as a source of
heat.
The manufacturer declines all liability for personal or
material damage as a result of misuse or incorrect
installation of this appliance.
Safety

4
Getting started...
GB
Danger of burns! During use the appliance becomes hot.
Care should be taken to avoid touching heating elements
inside the oven.
Do not lean on the door or place any objects on the door
of the appliance. This can damage the door hinges.
The oven must be installed in accordance with installation
instructions and all dimensions must be followed.
Before connecting the appliance to the power supply,
check that the power supply voltage and current rating
corresponds with the power supply details shown on the
appliance rating label.
Never use a damaged appliance! Disconnect the
appliance from the electrical outlet and contact your
retailer if it is damaged.
Danger of electric shock! Do not attempt to repair the
appliance yourself. In case of malfunction, repairs are to
be conducted by qualied personnel only.
To avoid damaging the cord, do not squeeze, bend or
chafe it on sharp edges. Keep it away from hot surfaces
and open ames.
Lay out the cord in such a way that no unintentional
pulling or tripping over it is possible. Keep the appliance
and its cord out of reach of children.
Do not operate the appliance with wet hands or while
standing on a wet oor.
Always turn the appliance o󰀨 before disconnecting it from
the power supply.
Disconnect the oven from the power supply when not in
use and before cleaning.
WARNING: This appliance is supplied with a three core
supply cord and must be connected direct to the mains
electricity supply via a omni-polar or double pole switch
having a 3mm minimum contact gap on each connector.
Safety

5
Getting started...
GB
The fused spur should be installed in an easily reachable
place so that in case of emergency the appliance can be
disconnected from power immediately.
The xed wiring must be protected against heat surfaces.
Do not hang any objects on the handle of the oven door.
CAUTION: Do not cover the bottom of the oven with
aluminium foil or other objects. There is a risk of re and
damage to the enamel in the oven!
Do not allow aluminium foil, plastic, paper or fabric
contact with heating elements. Never leave the appliance
unattended during use, especially when cooking with
ammable substances (e.g. hot oil, fat, etc.).
Do not store or never use harsh chemicals, sprays,
ammable or non-food in or near the oven. This oven is
designed specically for heating or cooking food. The use
of corrosive chemicals in heating or cleaning will damage
the unit and may cause injury.
Should any food inside the oven catch re, keep the door
closed. Switch the oven o󰀨 and disconnect the power
supply. Always exercise caution when opening the door.
Move to the side, and open the door slowly to vent the hot
air and/or steam. Make sure your face is away from the
opening and make sure there are no children or pets near
the oven.
Only use utensils that are suitable for use in this type of
oven.
The oven should be cleaned regularly and any food
deposits removed.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass. They can scratch
the surface, which may result in shattering of the glass.
A steam cleaner is not to be used.
Safety

6
Getting started...
GB
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
Children less than 8 years of age shall be kept away
unless continuously supervised.
The appliance must not be installed behind a decorative
door in order to avoid overheating.
Safety

7
Getting started...
GB
Let's
get started...
Getting started... 02
Checking instructions 02
Safety 02
Before you start 08
In more detail... 09
Your product
Function & Settings
Care and maintenance
Troubleshooting
Technical date
Recycling & disposal
09
10
13
16
17
17
Appendix
18
Installation

8
Getting started...
GB Before you start

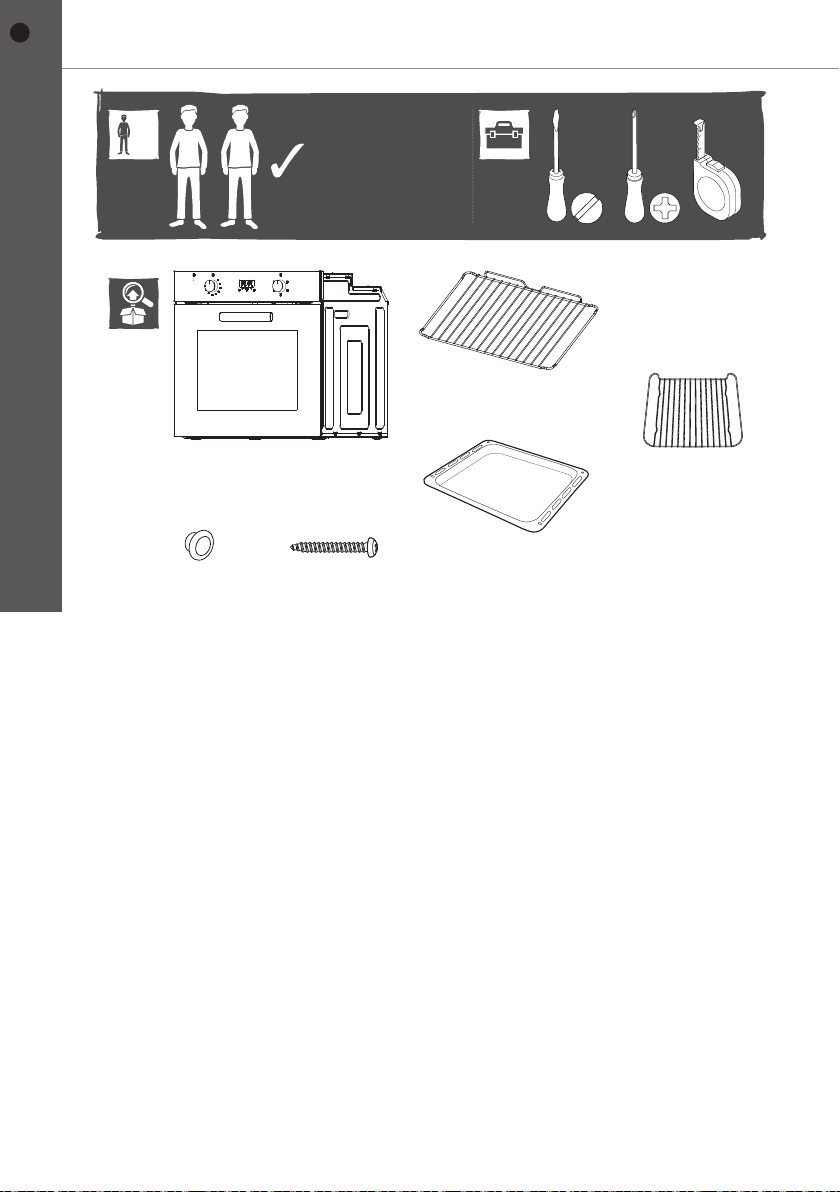

[01] x 1
[02] x 1
[03] x 1
[04] x 1
[06] x 4 [05] x 4
x 2
To avoid the risks that are always present when you use an electrical appliance
it is important that this appliance is installed correctly and that you read the
safety instructions carefully to avoid misuse and hazards.
Please keep this instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please check that it is not
damaged. If in doubt, do not use the appliance but contact the customer
service helpline.
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
This product contains glass, please take care when tting or handling to
prevent personal injury or damage to the product.
If you sell the appliance, give it away, or leave it behind when you move house,
make sure you also pass on this manual so that the new owner can become
familiar with the appliance and its safety warnings.
Note! Before using the oven for the rst time we recommend that the oven is
switched on and set to its highest temperature. Keep the oven door closed and
leave the appliance on for 1.5 hours with nothing in it.
Ensure adequate ventilation during this process by opening doors and
windows in the room. Any odours created during this operation are due to the
evaporation of substances used to protect the appliance during storage prior to
installation.

9
In more detail...
GB
1
2
34
5
6
7
10 a b c d 12
13
11 9
8

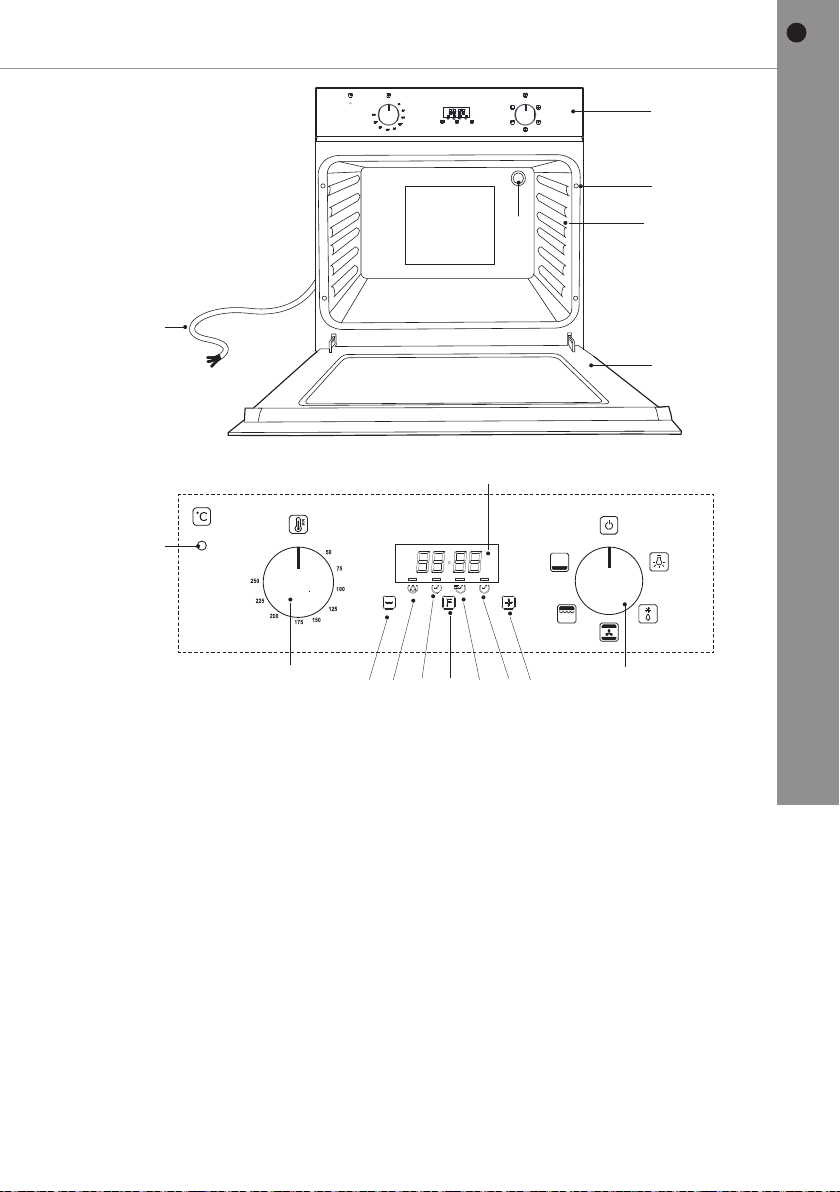

Your product
1. Control panel. 2. Fixing openings
3. Oven lamp 4. Shelf level
5. Door 6. Power cable
7. Temperature indicator 8. Temperature knob
9. Cooking mode knob 10. Reduce Minutes
11. Timer function selector 12. Increase Minutes
13. Display
Description of the timer functions:
aWarning alarm bCooking in automatic
mode (duration)
cEnd of cooking time
(time at end) dSetting the clock.Clock with 24-hour display.

10
In more detail...
GB Function & Settings
Icon Function Description
Oven Light
The oven light will illuminate in the oven cavity. All other cooking
modes are disabled. Note: The oven light also illuminates during
all operation modes.
Defrosting Only the fan comes on and the food is thawed by ventilation
without heat.
Grill
Only the top heating element switches on. Heat is distributed by
natural convection and this means that the top half of the oven is
warmer than the bottom half. Food should be placed on a higher
shelf if the food is to be crisped. It is recommended that the oven
is preheated for 10-15 minutes before commencing cooking.
Fan-Assisted
Circular
Element
Mode
Provides uniform heating with the fan and allows di󰀨erent dishes
to be cooked at the same time on di󰀨erent levels.
Fan-Assisted
Grill
This provides fast browning so that food remains juicy. For
convection baking,this is the most energy-e󰀩cient function.
The oven is controlled by a thermostat (8)between 50 ºC and 250 ºC,
depending on the temperature required. The temperature indicator(7) turns
on and o󰀨 to indicate the temperature control during use.
The required cooking mode is selected using the multi-functional control
button(9). The functions that may be selected are:

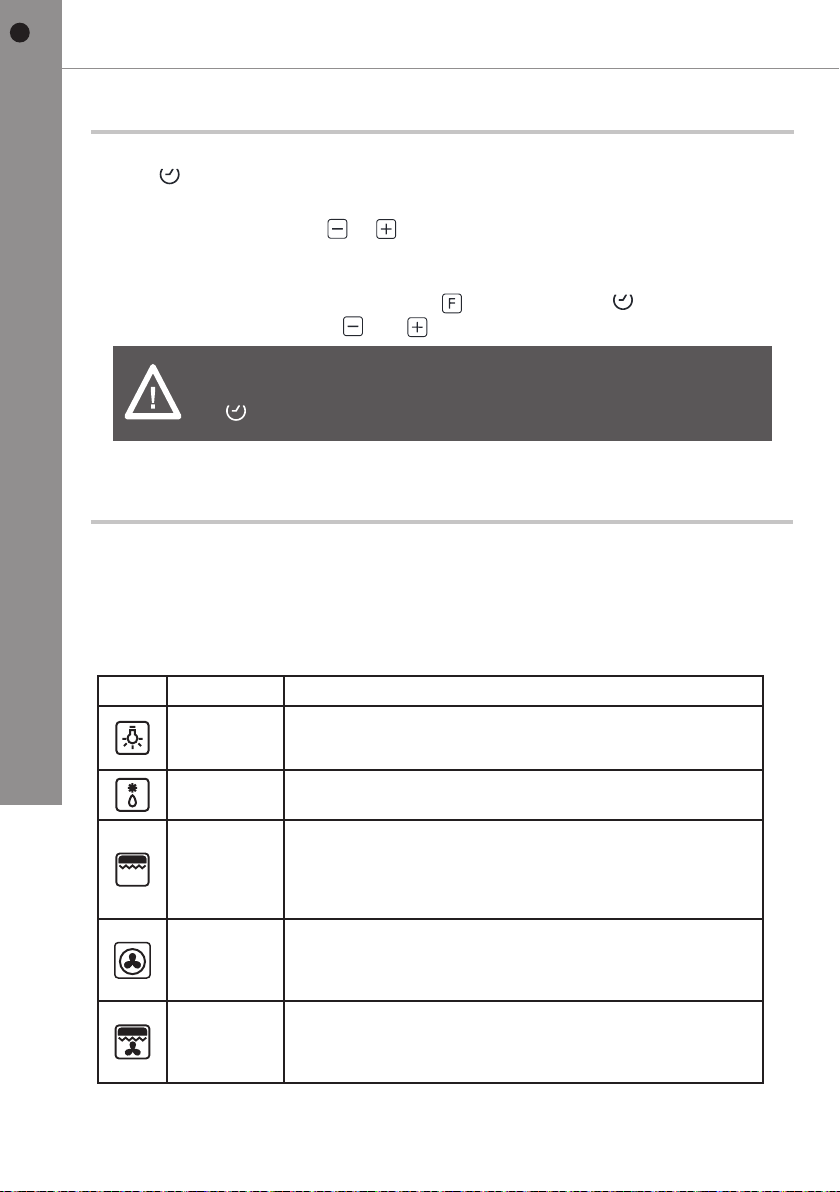

Setting the clock
Once the appliance is connected to the power source, the display shows12:00
and the indicator will ash until we enter the right time. . The clock is now
available for setting in 24-hour format.
To set the right time, press or to adjust. There is a 5-second lapse for
acceptance during which no button must be touched. The rate of change will
increase considerably a few seconds after the buttons have been depressed.
To change the clock time, we can press 4 times until the indicator ashes
and set the correct time with and .
WARNING: any power cut cancels the programmed
functions,including the clock. When the power supply returns,
the indicator will ash and can be reprogrammed.
Using the oven

11
In more detail...
GB
Function & Settings
Setting warning alarm
You have the possibility to set a timer to remind you to turn on the oven.
You can also use this function as a kitchen timer to set a time frame for
other tasks not necessarily related to this oven.
An independent audible signal that can be set to a maximum time of
23 hours and 59 minutes. To set the time, press once. The alarm
indicator will ash for 5 seconds, during which time we can select the
required time by pressing and . The countdown will start immediately.
At the end of the time, the indicator will ash and an intermittent sound
signal will be triggered, which can be interrupted by pressing , or .
If it is not stopped, it will do so automatically after 2 minutes.
To adjust the alarm time, press once and repeat the above process. To
cancel, press and then until the alarm timer becomes zero.
Note! The warning alarm does not control
any of the oven functions.
Setting Semi-automatic(Can use one of the following method.)
This function is used to cook in the desired time range (up to 10 hours).
Before using this function, ensure to:Place the food into the oven rst,Set
the desired cooking function and temperature.
By pressing twice, set the cooking time using and . The cooking
will start immediately and appear on the indicator. At the end of the set
time, the cooking will be interrupted and the intermittent sound signal will
be heard.Cancel it as indicated above.
(A) as per cooking time
(B) as per cooking end time
This function is used to cook in the desired end time(up to 10 hours).
Before using this function, ensure to:Place the food into the oven rst,Set
the desired cooking function and temperature.
By pressing three times, set the chosen cooking end time using
and . The cooking will start immediately and appear on the indicator.
When the cooking time ends, the cooking will stop and the intermittent
sound signal will be heard. Cancel it as indicated above.
To ajust the setting, press three times and repeat the above process.
To cancel, press three times and then press until the cooking end
time is the same as the clock time.
Note! that the oven will continue to work after the end
of the cooking process and when the alarm has been
stopped. It must be turned o󰀨 manually.

12
In more detail...
GB Function & Settings
This function is used to cook for a certain duration and stop at a certain
end time.Before using this function, ensure to:Place the food into the oven
rst.
Start and end of cooking:
1. Programme the cooking time by pressing twice and selecting the
required time with and .
2. Set the end of the cooking time by pressing 3 times and selecting the
required time with and .
3. Select the required temperature and function using the thermostat
controls and selector.
After these operations, the and indicators will continue to be shown
on the display, showing that the oven has been programmed.
Practical example:
We want to cook for 45 minutes and for the cooking to end at 2 p.m.
1. We press twice and select 0.45 by using and .
2. We press three times and select 14.00 with and .
3. After these operations, the current time will reappear on the display
and the and indicators will show that our programming has been
memorised.
4. At 1.15 p.m. (2 p.m. less 45 minutes), the oven will start automatically.
5. At 2 p.m. the cooking will stop automatically and the intermittent sound
signal will be heard.
6. We can switch it o󰀨 by pressing any button.
Setting Automatic cooking
Note! that the oven will continue to work after the end of
the cooking process and when the alarm has been stopped.
It must be turned o󰀨 manually.
The programming status can be seen at any time by
pressing . After programming nish, pressing any buttons
will return the product to manual operation.
If warning alarm is used, the display will show warning alarm
instead of the clock.
Owing that the cooking timer is according to the clock of the
product, so the actual total time set by these functions may
have variance up to a maximum of 59 seconds.

13
In more detail...
GB
Care and maintenance
Cleaning
Before cleaning or performing maintenance, disconnect the oven from the power supply.
To extend the life of your oven, it must be cleaned frequently, keeping in mind that:
Do not use abrasive powders or corrosive substances which could ruin the surfaces.
The inside of the oven should preferably be cleaned immediately after use, when it is still
warm, with hot water and soap. The soap should be rinsed away and the interior dried
thoroughly. Avoid using abrasive detergents (for example cleaning powders, etc.) and
abrasive sponges for dishes or acids (such as lime scale remover, etc.) as these could
damage the enamel. If the grease spots and dirt are particularly tough to remove, use a
special product for oven cleaning, following the instructions provided with the product.
If the oven is in use for an extended period of time, condensation may form. Once the
oven has cooled, remove the condensation using a dry cloth.
There is a rubber seal surrounding the oven opening which creates a heat seal. Check
the condition of this seal on a regular basis. If necessary, clean it and avoid using
abrasive products or objects to do so. Should it become damaged, please contact the
customer services helpline. We recommend you avoid using the oven until it has been
repaired.
Never put aluminium foil or baking trays etc. on the bottom of the oven cavity, as the
build up of heat could compromise cooking and even damage the enamel.
Clean the glass door (5) using non-abrasive products or sponges and dry it with a soft
cloth:
1. Open the door (5).
2. Clean all oven accessories with warm water or washing up liquid and polish dry with a
soft clean cloth.
3. Clean the oven interior with a soft clean cloth.
4. Wipe the front of the appliance with a damp cloth.
5. Let the oven and all accessories dry well.
WARNING! Always switch o󰀨 the electricity
supply before carrying out maintenance
work on the oven. In the event of a fault,
contact customer services.

14
In more detail...
GB Care and maintenance
WARNING! Ensure that the appliance is switched
o󰀨 and completely cool before replacing the lamp to
avoid the possibility of electric shock or burns.
Oven cleaning system equipped with the AQUASMART
SYSTEM
1 Take out the internal components: tray, screen, side screens.
2.Pour 200 ml of soapy water on the bottom of the oven.
3.Turn on and set the oven at 200º for 15 minutes
4 Move the temperature control from 200ºC to 0ºC. Let the oven cool down for 20 minutes.
5 Move the AquaSmart function to 0. Wipe clean with a rag or soft cloth.

15
In more detail...
GB
Care and maintenance
Removing the Door From the Oven
To simplify cleaning interior of the oven, the door (5) can be removed.Follow below steps to do
so:
1. Open the door (5) fully to position “A”.
2. Lift the two mobile links of the hinges to position “B”.
3. Close the door (5) to the half-way position.
4. Lift the door (5) upwards and remove it by sliding the hinges outwards. Hold the door (5)
by the sides close to the hinges when doing this.
5. After cleaning, replace the door (5) in the reverse order.
A
B

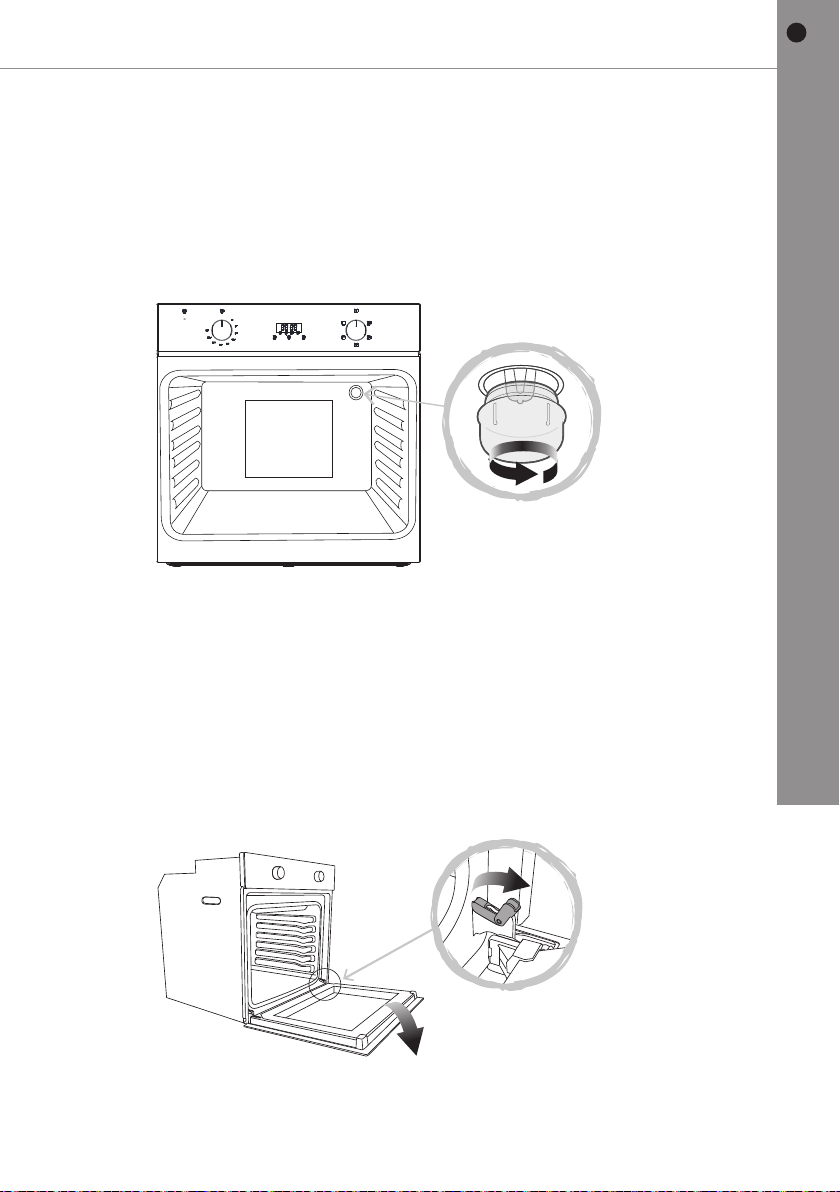

Replacing the oven light bulb
Remove all pans and grills from inside the oven to easily access the lamp cover (3). Unscrew
the glass cover and remove the old lamp. Dispose of it safely and ecologically. Insert a new
G9 halogen lamp into the lamp holder.
Note: Please do not handle the lamp with bare skin to avoid reducing its life. Use a cloth or
tissue. Replace the lamp cover.
25 W, 300 °C, type G9

16
In more detail...
GB Care and maintenance

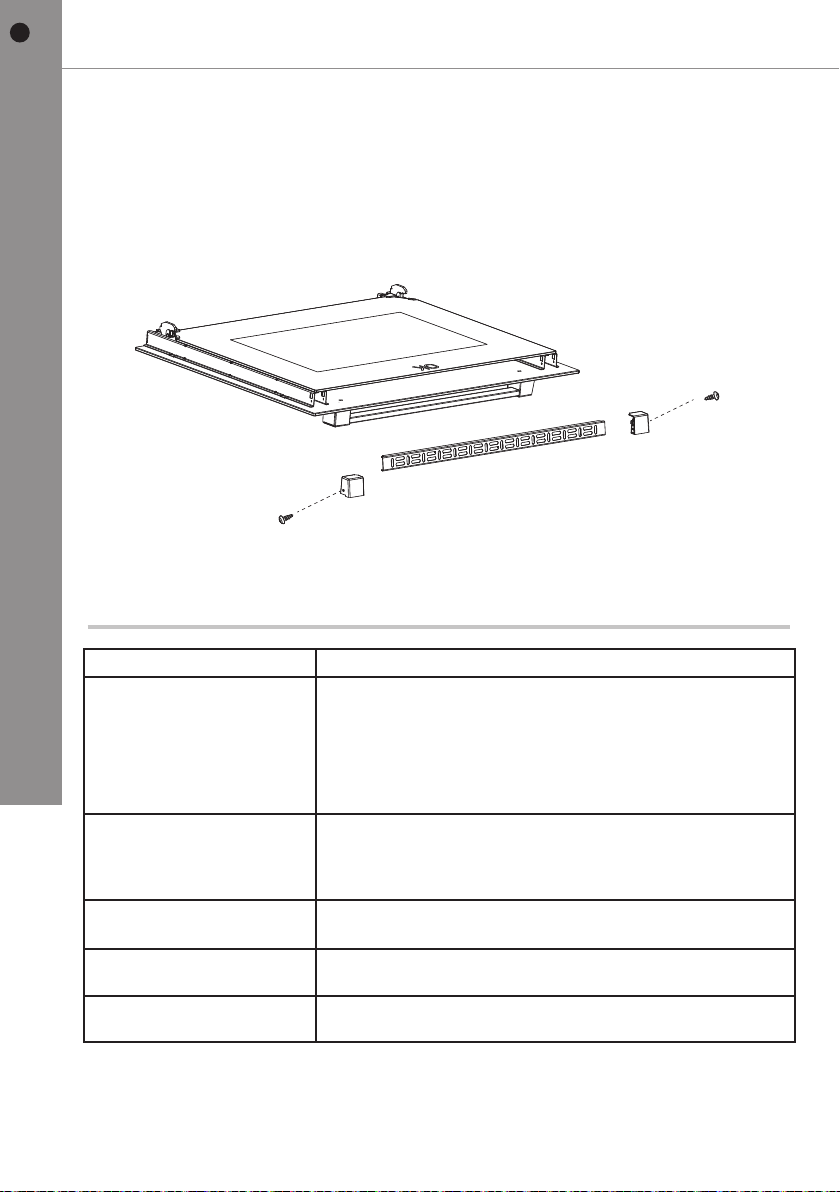

Removing the Inner Glass for Cleaning
To simplify cleaning, the Inner glass panel can be removed.
After loosening 2 screws xing the side supports of the glass, remove the supports and then
the glass panel.
Handle with care!
After cleaning, replace the glass panel in the reverse order.
Trouble shooting
FAQ Solution
What should I do if the oven does
not heat up?
Check to see if one of the following actions resolves the issue:
The oven may not be switched on. Switch on the oven.
Check to see if the required settings have been applied.
A household fuse may have blown or a circuit breaker may have tripped.
Replace the fuses or reset the circuit. If this happens repeatedly, call the
Service Centre.
What should I do if, even though
the oven function and temperature
have been set, the oven does not
heat up?
There may be problems with the internal electrical components.
Call the Service Centre.
What should I do if I cannot
change the set temperature?
Make sure to have used the temperature knob
What should I do if the oven light
does not illuminate?
The oven light is faulty. Replace the oven light bulb
The grill does not heat up
properly?
The grill power is set too low. Turn the temperature control to a higher
temperature.

17
In more detail...
GB
Technical data and Recycling & disposal
Technical data
Item Symbol Value Declared Unit
Model identication UBAS610SS & UBAS609G
Type of oven Single fan oven
Mass of the appliance M 25 kg
Number of cavities 1
Heat source per cavity (electricity or gas) Electricity
Volume per cavity V 60 L
Energy consumption (electricity)
required to heat a standardised load in a
cavity of an electric heated oven during
a cycle in conventional mode per cavity
(electric nal energy)
EC
electric cavity 0.74 kWh/cycle
Energy consumption required to heat
a standardised load in a cavity of an
electric heated oven during a cycle in
fan-forced mode per cavity (electric
nal energy)
EC
electric cavity 0.84 kWh/cycle
Energy E󰀩ciency Index per cavity EEI cavity 90.2
The measurement and calculation method of the above table was done in accordance with
commission regulation (EU) No 65/2014 & 66/2014.
The manufacturer declines all liability for damage caused to persons and objects due to
incorrect or improper installation of the appliance.
Supply voltage 220-240V~50/60Hz
Maximum Power 2000-2380W
Recycling & disposal
Waste electrical products (WEEE) should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local governmental authority, domestic
waste disposal services or the retailer where the product was bought for recycling advice.
The wheelie bin symbol on the product or its packaging indicates that this product cannot be
treated as normal household waste. This product must be handed over to an electric and
electronic equipment collection point for recycling. On ensuring that this product is disposed
of correctly, you will help to avoid possible negative consequences for the environment and
public health, which could occur if this product is not handled correctly.

18
GB
Appendix...
Installation
All installation must be carried out by a competent person or qualied electrician. Before
connecting the mains supply ensure that the mains voltage corresponds to the voltage on the
rating plate.
1.Plug connection
This appliance is equipped with a plug(conforming to BS1363) tted
with a 13 amp fuse.Should the fuse fail, then it must bereplaced with
an ASTA approved fuse (conforming to BS1362) of the same rating.
2.Direct Connection(If no plug)
This appliance must be connected directly to the mains using an omnipolar circuit breaker with
a minimum opening of 3 mm between contacts.
The installer must ensure that the correct electrical connection has been made and that it
complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power cord for damage. If the supply cord is damaged, it must be
replaced by a special cord or assembly available from the manufacturer or its service agent.
WARNING: This is a Class I appliance and MUST be earthed.
This appliance is supplied with a 3 core mains cable coloured as follows:
Brown = L or Live
Blue = N or Neutral
Green and Yellow = E or Earth
The fuse must be rated at 13 Amps.
To avoid the risks that are always present when you use an electrical appliance it is important
that this appliance is installed correctly and that you read the safety instructions carefully to
avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it
on to any future owners. After unpacking the appliance please check that it is not damaged. If in
doubt, do not use the appliance but contact Customer Services.
The manufacturer declines all liability for damage caused to persons and objects due to
incorrect or improper installation of the appliance. Any permanent electrical installation must
comply with the latest wiring regulations applicable to your country and for your own safety a
qualied electrician or contractor should undertake the electrical installation.
USE A 13AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
KURUE
(Blue)
(Brown)
(Green/Yellow)
N
L
N
L
N
L
FUSE ON
OFF

19
Appendix...
GB
Installation
555mm
595mm
595mm
510mm
580mm
20mm
mm395
564mm
2mm
25mm at rear
200mm
10mm
10mm
Upper vent
01
02

20
GB
Appendix...

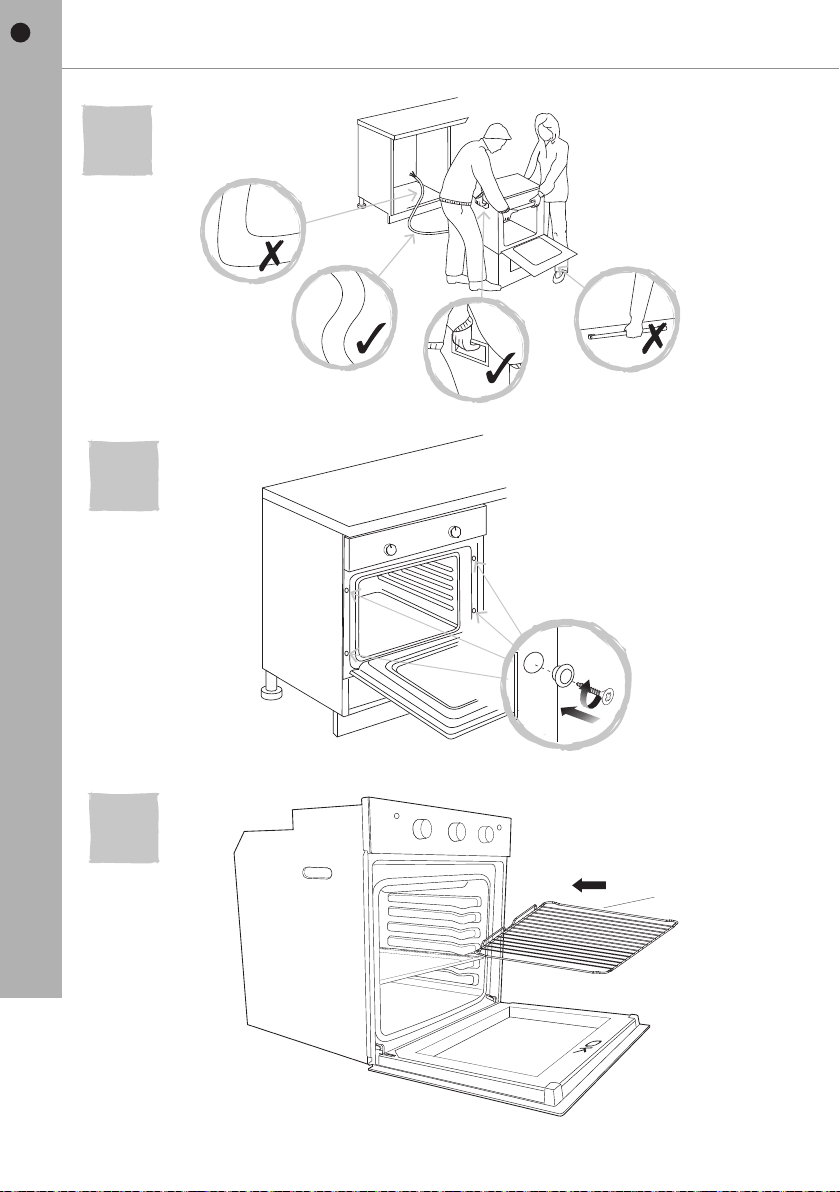

[03]X4
[04]X4
03
04
[02]x1
05
Installation
