Abarth Punto User guide

The data contained in this publication is intended merely as a guide. Abarth reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your Abarth dealer.
Printed in recycled paper without chlorine. OWNER HANDBOOK
ABARTHPUNTO
ENGLISH
COP LUM ABARTH PUNTO GB 7-02-2012 14:27 Pagina 1

We really know your car because we invented, designed and built it: we really know every single detail.
At Abarth Service authorised workshops you can find technicians directly trained by us,
offering quality and professionalism for all service operations.
Abarth workshops are always close to you for the regular servicing operations, season checks
and practical recommendations by our experts.
With Abarth Genuine Parts you keep the reliability, comfort and performance features
of your new car unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our cars; we recommend them because
they come from our steady commitment in research and development of highly innovative technologies.
For all these reasons: rely on Genuine Parts, because they are the only ones designed
by Abarth for your car.
SAFETY:
BRAKING SYSTEM
ENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL MAINTENANCE
COMFORT: SUSPENSION
AND WINDSCREEN WIPERS
PERFORMANCE: SPARK PLUGS,
INJECTORS AND BATTERIES
LINEACCESSORI
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING
GENUINE PARTS
COP LUM ABARTH PUNTO GB 7-02-2012 14:27 Pagina 2

CHOOSING GENUINE PARTS
IS THE MOST NATURAL CHOICE
PERFORMANCE
GENUINE PARTS
COMFORT
GENUINE PARTS
SAFETY
GENUINE PARTS
AMBIENT
GENUINE PARTS
VALUES
GENUINE PARTS
ACCESSORIES
GENUINE PARTS
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina I

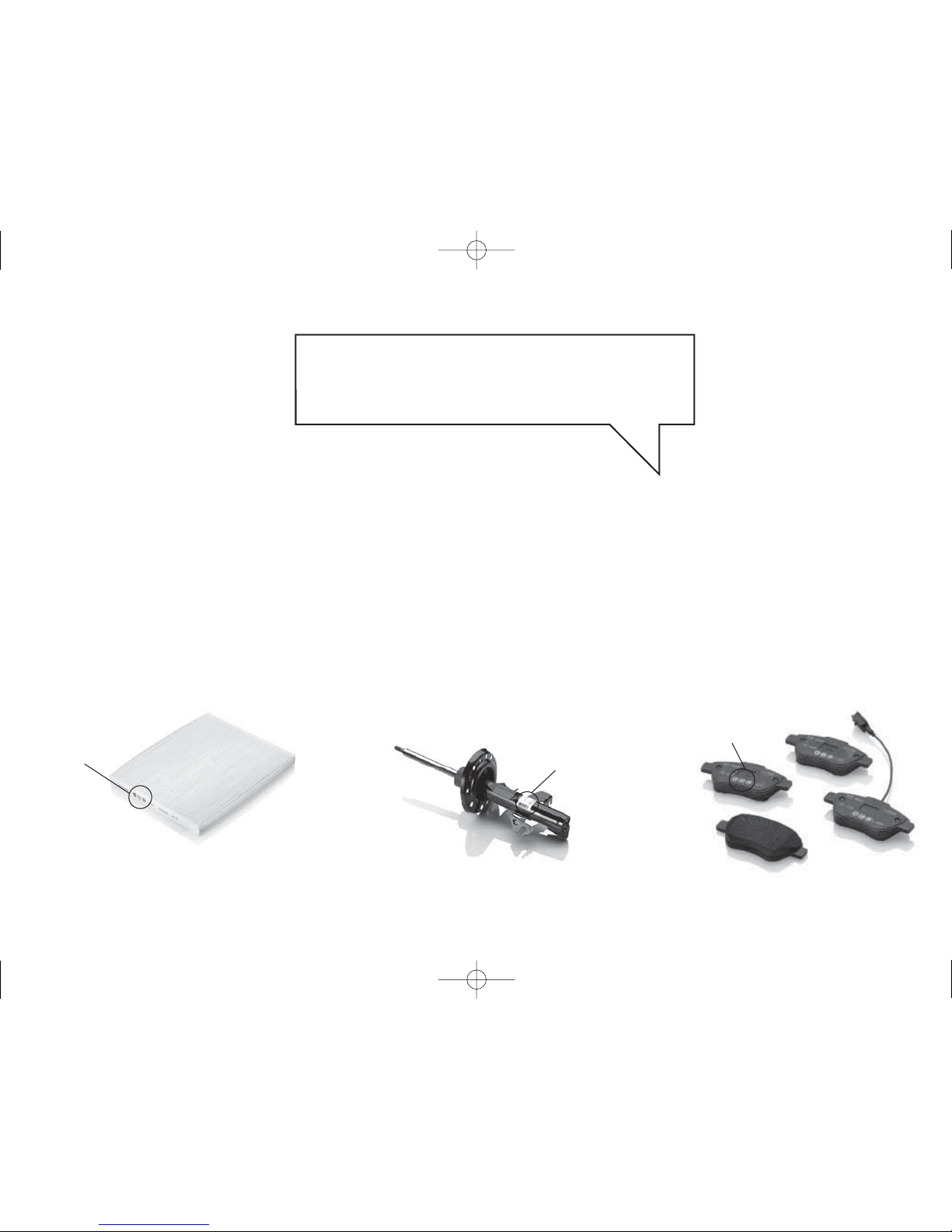

HOW TO RECOGNISE
GENUINE PARTS
Pollen filter
Genuine
Parts
Shock absorber
Genuine
Parts
Brake pads
Genuine
Parts
To recognise a Genuine Part, check that the component bears our brands, always clearly visible on Genuine Parts,
from the braking system to windscreen wipers, from shock absorbers to pollen filter.
All Genuine Parts undergo strict controls, both during design and manufacturing stages,
by specialists using vanguard materials, to test the component reliability.
This to guarantee performance and safety for you and your passengers on board, for a long time.
Always ask for and make sure a Genuine Part has been used.
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina II

Dear Customer,
Thank you for selecting Abarth and congratulations on your choice of an Abarth Punto.
We have written this handbook to help you get to know all the features of your car and use it in the best possible
way.
You should read it right through before taking to the road for the first time.
It contains important information, advice and instructions for the use of the car which will help you get the very best
out of your Abarth.
Read the warnings and indications, marked with the following symbols:
personal safety;
car safety;
environmental protection.
The enclosed Warranty Booklet lists the services that Abarth offers to its customers:
❒ the Warranty Certificate with terms and conditions for maintaining its validity
❒ the range of additional services available to Abarth Customers.
Enjoy reading. Happy motoring!
❒ OWNER HANDBOOK 1-220 ❒ RIGHT HAND DRIVE VERSION 257-258
❒ RADIO 221-254
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 1

REFUELLING
Only refuel with unleaded petrol with octane rating
(RON) not less than 95 conforming to the European
specification EN 228.
The use of petrol that does not conform to the
above-mentioned specification will cause the EOBD
warning light to come on and the irregular operation
of the engine.

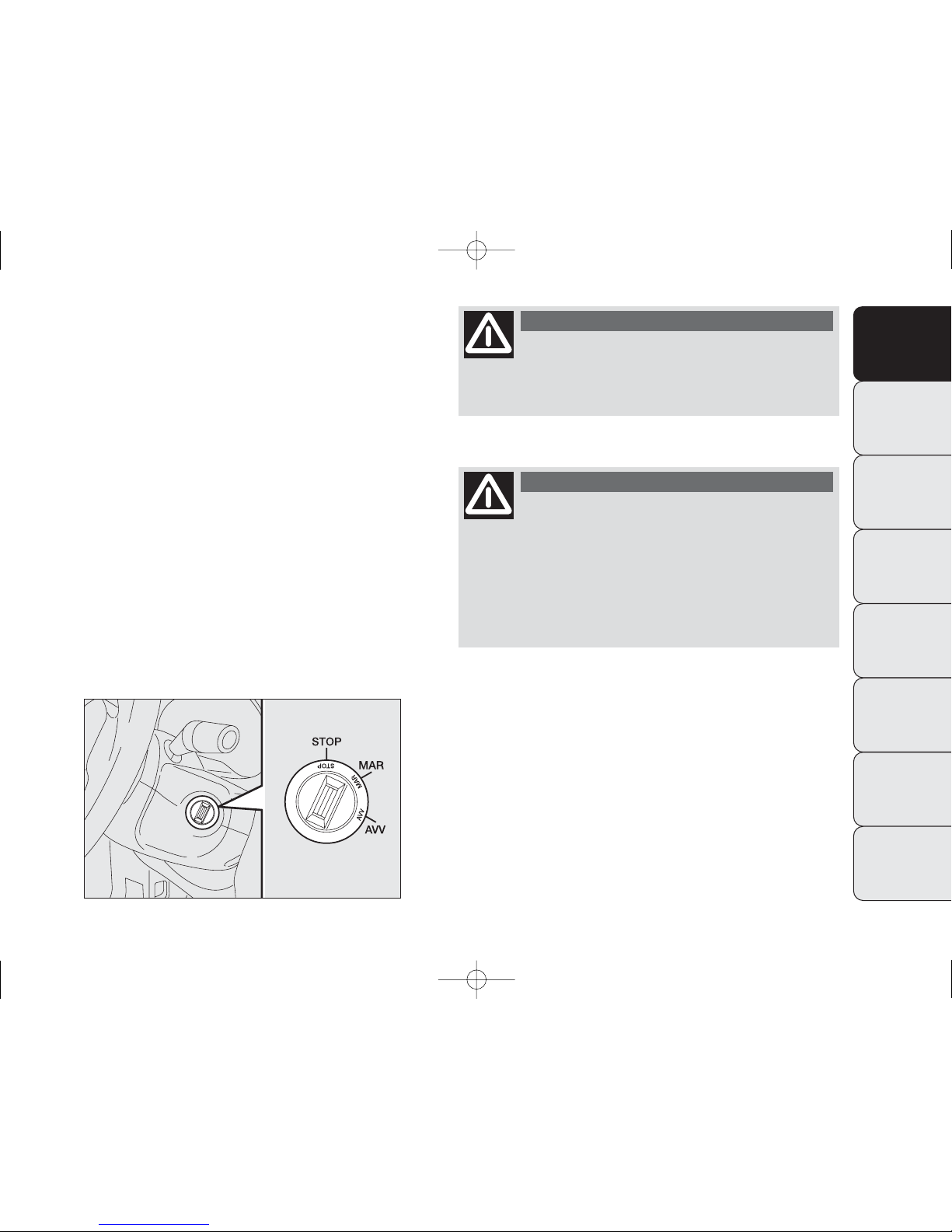

STARTING THE ENGINE
Make sure that the handbrake is engaged; set the
gearshift lever to neutral; fully depress the clutch
without pressing the accelerator, then turn the ignition
key to AVV and release it as soon as the engine has
started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures
during operation. Do not park the car on grass, dry
leaves, pine needles or other flammable material: fire
hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous
diagnosis of the components linked to emissions to
ensure better respect for the environment.
ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical
accessories (with the risk of gradually draining the
battery), contact an Abarth Dealership. They can
calculate the overall electrical requirement and check
that the vehicle electric system can support the
required load.
CODE card (for versions/markets where provided)
Keep the card in a safe place, not in the car.
Make sure you have the electronic code written on
the CODE card with you at all times.
SCHEDULED SERVICING
Correct car servicing is essential for ensuring it stays in
tip-top condition and safeguards its safety features, its
environmental friendliness and low running costs for
a long time to come.
THE OWNER HANDBOOK CONTAINS…
... important information and warnings on the correct
use and maintenance of your car over time as well as
safe driving tips. Pay special attention to the symbols
" (personal safety)
#
(car safety) !(environmental
protection).
VERY IMPORTANT
K

쇵
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 2

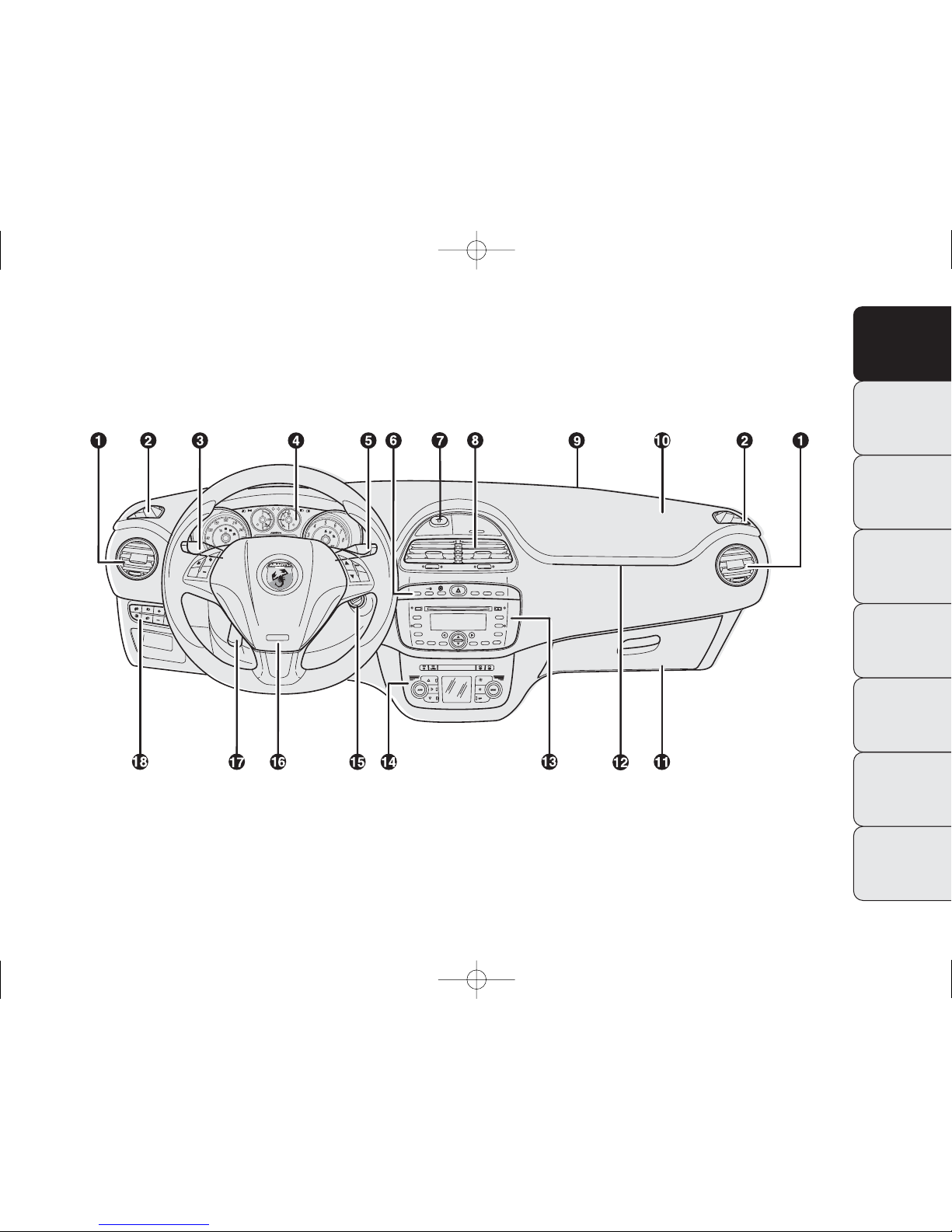

KNOWING YOUR VEHICLE
DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.
F0U001Ab
fig. 1
1. Adjustable side air vents – 2. Fixed side air vents – 3. Left steering column stalk: external lights – 4. Instrument
panel – 5. Right steering column stalk: windscreen wiper controls, rear window wiper, trip computer – 6. Panel
controls – 7. Portable navigation system setup (for versions/markets, where provided) – 8. Adjustable central air
vents – 9. Fixed upper air vent – 10. Front airbag – passenger side – 11. Glove compartment – 12. Light guide –
13. Radio (for versions/markets where provided) – 14. HVAC controls – 15. Ignition device – 16. Front airbag
– driver’s side – 17. Steering wheel adjustment lever – 18. Control panel: headlamp alignment adjustment/
reconfigurable multifunction display.
CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
3
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 3

THE FIAT CODE SYSTEM
This is an electronic engine locking system which
increases protection against attempted thefts of the car.
It is automatically activated when the ignition key is
removed.
An electronic device is fitted in each ignition key grip.
The device transmits a radio-frequency signal when the
engine is started through a special aerial built into the
ignition switch. The modulated signal, which changes
each time the engine is started, is the “password”, by
means of which the control unit recognises the key and
enables to start the engine.
OPERATION
Each time the vehicle is started by turning the ignition
key to MAR, the Fiat CODE system control unit sends
a recognition code to the engine control unit to
deactivate the immobiliser.
The acknowledgement code is sent only if the Fiat
CODE system control unit has recognised the code
transmitted from the key.
Each time the ignition key is turned to STOP, the Fiat
CODE system deactivates the functions of the engine
management control unit.
If the code is not recognised correctly during ignition,
the
Y
warning light comes on in the instrument panel.
SYMBOLS
Special coloured labels have been attached near or
actually on some of the components of your car. These
labels bear symbols that remind you of the precautions
to be taken as regards that particular component.
The plate summarising the symbols used can be found
under the bonnet, fig. 2.
F0U003Ab
fig. 2
CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
4
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 4

THE KEYS

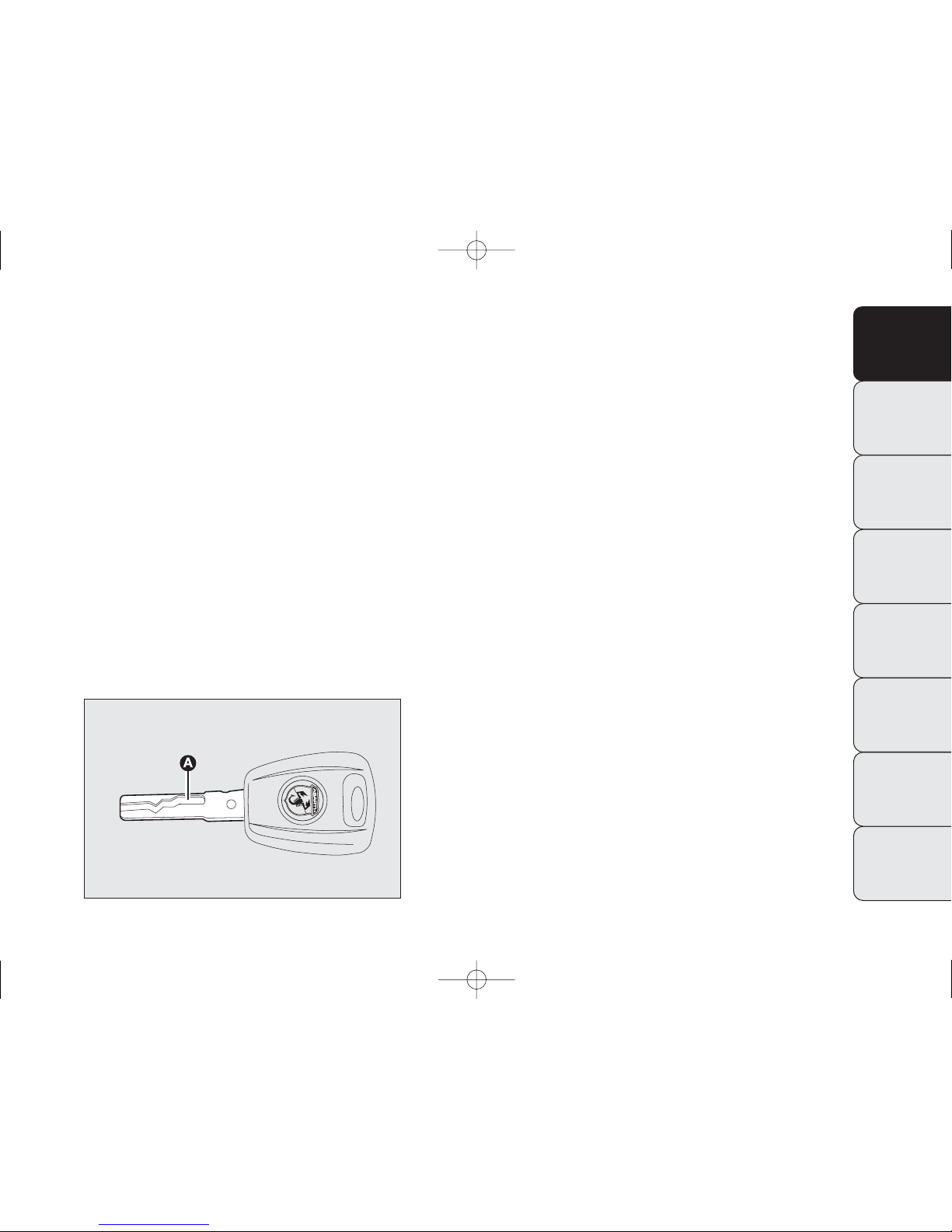

CODE CARD fig. 3
(for versions/markets where provided)
The car is delivered with two copies of the ignition key
and with the CODE card, which bears the following:
A the electronic code;
B The mechanical key code to be given to the Abarth
Dealership when ordering duplicate keys.
You should have the electronic code A-fig. 3 with you at
all times.
IMPORTANT In order to ensure complete efficiency of
the electronic devices inside the keys, they should never
be exposed to direct sunlight.
In this case turn the key to STOP and then to MAR; if
the lock persists try again with the spare set of keys.
Contact an Abarth Dealership if you still cannot start
the engine.
Warning light
Y
coming on when driving
❒ If the warning light
Y
turns on, this means that the
system is running a self-diagnosis (for example for a
voltage drop).
❒ If the warning light
Y
stays on, contact an Abarth
Dealership.
The electronic components inside the key
may be damaged if the key is submitted
to sharp knocks.
F0U004Ab
fig. 3
CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
5
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 5

6
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U005Ab
fig. 4
KEY WITH REMOTE CONTROL fig. 4
The metal insert A operates:
❒ the ignition switch;
❒ the door locks;
❒ the fuel cap lock/release (for versions/markets where
provided);
Pressing button B opens/closes the metal insert.
All the keys and the CODE card must be
handed over to the new owner when
selling the car.
Button B should only be pressed when
the key is away from the body, in
particular from the eyes and from objects that
can be spoilt (e.g. clothes). Never leave the key
unattended and make sure it can never be
touched by others, especially children, who may
inadvertently press the button.
WARNING
Button Ë is used for unlocking the doors and the boot.
Button Áis used for locking the doors and the boot.
Button
R is used to open the boot remotely.
When unlocking the doors, the passenger compartment
ceiling lights will come on for a preset time.
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 6

7
F0U006Ab
fig. 5
F0U007Ab
fig. 6

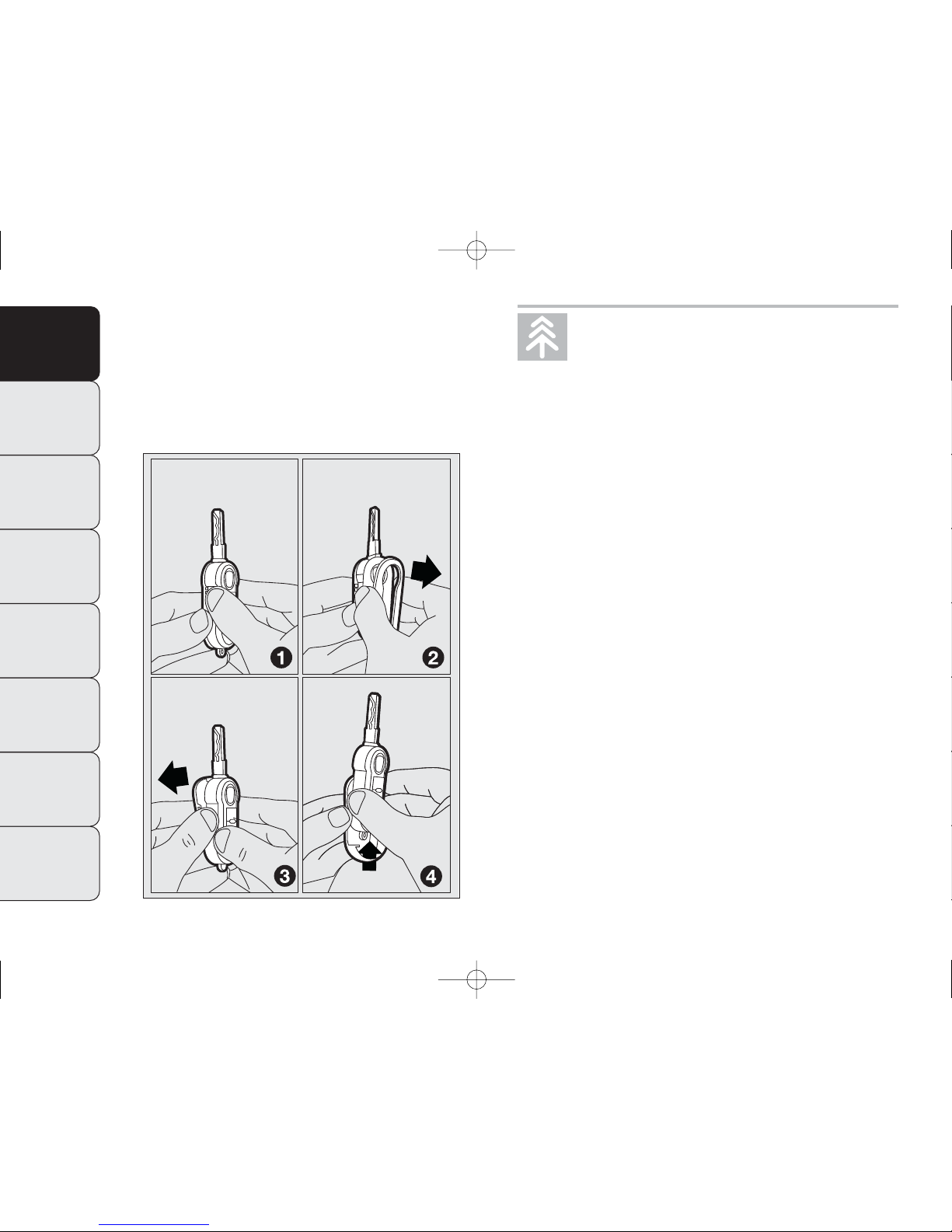

Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒ press button A and bring the metal insert B to the
open position;
❒ turn the screw C to : using a fine bit screwdriver;
❒ take out the battery case D and replace the battery
E, respecting its polarity;
❒ refit the battery case D inside the key and lock it by
turning the screw C to Á .
LED indications on the dashboard fig. 5
When locking the doors, the LED on the button A
switches on for about 3 seconds and than starts flashing
(deterrence function).
Once doors are locked, if one or more doors or the
tailgate are not closed correctly, the LED and direction
indicators start flashing quickly.
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 7

Used batteries are harmful to the
environment. They should be disposed
of, as specified by law, in the special
containers provided, otherwise take them to
the Abarth Dealership, which will deal with
their disposal.
REPLACING THE REMOTE
CONTROL COVER fig. 7
To replace the remote control cover, follow the
procedure shown in the diagram.
Request for additional remote controls
The system can recognise up to 8 keys with
incorporated remote control. Should a new key with
remote control be necessary, contact an Abarth
Dealership, taking the CODE card, a personal identity
document and the car’s ownership documents with you.
fig. 7
F0U008Ab
CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
8
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 8

KEY WITHOUT REMOTE CONTROL fig. 8
The metal insert of the key A is fixed.
The key operates:
❒ the ignition switch;
❒ the door locks;
❒ the fuel tank cap lock (for versions/markets where
provided).
ALARM
The car’s alarm system is available from Lineaccessori
Abarth.
fig. 8
F0U009Ab
9
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 9

10
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The main functions that can be activated with the keys (with or without remote control) are the following:
Type of key
Key without remote control
Key with remote control
Visual indication
Direction indicators flashing
(only for key with remote
control)
Deterrence led
Unlocking the doors
Turn key anticlockwise
(driver’s side)
Turn key anticlockwise
(driver’s side)
Briefly press
Ë button
blinks twice
Off
Door closing
from the outside
Turn key clockwise
(driver’s side)
Turn key clockwise
(driver’s side)
Briefly press
Ábutton
blinks once
On with a fixed light for
about 3 seconds
followed by deterrence
led
flashing
Dead lock (*)
–
–
Double pressing
Á
button
3 blinks
Double flashing, followed
by deterrence led
flashing
Tailgate
opening
–
–
Briefly press
R
button
blinks twice
Deterrent blinking
(*) For versions/markets, where provided.
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 10

11
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 9
F0U010Ab
If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by an Abarth Dealership as soon
as possible.
WARNING
When getting out of the car, always
remove the key to prevent someone
from accidentally activating the controls.
Remember to engage the handbrake. If the car
is parked on a slope uphill, engage the first
gear; if the car is facing downhill, engage the
reverse gear. Never leave children unattended
in the car.
WARNING
IGNITION
The key can be turned to 3 different positions fig. 9:
❒ STOP: engine off, key can be extracted, steering
locked. Some electrical devices (e.g. sound system,
central door locking system, etc.) may work.
❒ MAR: driving position. All electric devices can
operate.
❒ AVV: engine starting (temporary position).
The ignition switch is fitted with an electronic safety
system that requires the ignition key to be turned back
to STOP if the engine will not start, before the starting
operation can be repeated.
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 11

Never remove the key while the car is
moving. The steering wheel would
automatically lock as soon as you try to turn it.
This is always the case, even when the vehicle is
being towed.
WARNING
It is absolutely forbidden to carry out any
after-sales operation involving steering
system or steering column modifications (e.g.
installing an anti-theft device) which could
adversely affect performance and safety,
invalidate the warranty and also result in the car
failing to comply with regulations.
WARNING
STEERING LOCK
Engagement
When the key is at STOP, remove the key and turn the
steering wheel until it locks.
Disengagement
Move the steering wheel slightly as you turn the ignition
key to MAR.
CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
12
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 12

INSTRUMENT PANEL
A Speedometer (speed indicator)
B Fuel level gauge with reserve
warning light
C Engine coolant temperature
gauge with overheating warning
light
D Rev counter
E Reconfigurable multifunction
display
F0U011Ab
fig. 10
CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
13
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 13

CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
14
INSTRUMENTS
The instrument background colour and type may vary
according to the versions.
SPEEDOMETER fig. 11
This shows the speed of the vehicle.
REV COUNTER fig. 12
The rev counter shows the engine rpm.
IMPORTANT The electronic injection control system
gradually shuts off the flow of fuel when the engine is
“over-revving” resulting in a gradual loss of engine
power.
When the engine is idling, the rev counter may indicate
a gradual or sudden increase of the speed.
This behaviour is standard as it takes place during the
activation of the climate control system or the fan.
It should not be considered as a fault. In these cases,
a slow change in revs is used to protect the battery
charge.
FUEL LEVEL GAUGE fig. 13
The needle shows the amount of fuel left in the fuel
tank.
E tank empty
F tank full
The reserve warning light A comes on to indicate that
approximately 7 litres of fuel are left in the tank.
Do not travel with the fuel tank almost empty: the gaps
in fuel delivery could damage the catalytic converter.
fig. 12
F0U014Ab
fig. 11
F0U013Ab
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 14

CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
15
F0U015Ab
fig. 13
F0U016Ab
fig. 14
C Low engine coolant temperature.
H High engine coolant temperature.
Warning light B may light up (and a message on the
reconfigurable multifunction display may appear in
certain versions) to indicate that the coolant
temperature is too high; in this case, stop the engine and
contact an Abarth Dealership.
See the description in the “Refuelling” paragraph.
IMPORTANT The needle will point to E and warning
light A will flash to indicate a fault in the system. If this is
the case, go to an Abarth Dealership to have the system
checked.
ENGINE COOLANT TEMPERATURE
GAUGE fig. 14
This shows the temperature of the engine coolant fluid
and starts working when the fluid temperature exceeds
approx. 50°C.
Under normal conditions, the needle assumes different
positions within the scale depending on the usage
conditions.
If the needle reaches the red area, stop
the engine immediately and contact an
Abarth Dealership.
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 15

CONTENTS
TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY
WARNING LIGHTS
AND MESSAGES
STARTING
AND DRIVING
SAFETY
KNOWING
YOUR VEHICLE
16
fig. 15
F0U2050Abg
RECONFIGURABLE MULTIFUNCTION
DISPLAY
The car may be equipped with a reconfigurable
multifunction display that, according to previous
settings, will show useful driving information.
“STANDARD” SCREEN fig. 15
The standard screen shows the following information:
A Time
B Date
D Odometer (display of distance travelled in
kilometres/miles)
E Car status indications (e.g. doors open, possible ice on
road, etc.)
F Headlamp alignment position (only with dipped
headlamps on)
G Outside temperature
When the ignition key is turned to MAR, the display’s
main screen will show the date fig. 15 or the
turbocharging pressure fig. 16, depending on the setting
previously chosen from the “First page” menu item
(“Date” or “Engine info”).
fig. 16
F0U196Ab
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 16
