ABBA TSP300 User manual

TSP300
www.ABBALightingUSA.com
INSTALLATION GUIDE

WARNING: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS:
RATED VOLTAGE 12V
Congratulations on your purchase of this high-quality product! We want to ensure
that you have the best possible experience with it, so we kindly ask that you take a
moment to carefully read and follow all instructions before assembly, installation,
and use. By doing so, you'll not only guarantee correct function and safety, but also
optimize the full potential of this exceptional product. Thank you for choosing us as
your trusted provider of top-notch products - we truly appreciate your business!
For safety reasons, we recommend that only a qualified professional install
this electrical product.
Before attempting to install this unit, ensure all power connections are off for
your own safety.
www.ABBALightingUSA.com
Fixture(s) must be installed in accordance with all local codes and ordinances.
Do not instal within 10 feet of a pool, spa or fountain
DO NOT DISASSEMBLE
To ensure proper functionality and safety, it is important to refrain from
connecting two or more transformers in parallel. It is advised to maintain
individual electrical circuits for each transformer rather than attempting to
combine their outputs. By adhering to this guideline, you can prevent potential
complications and optimize the performance of each transformer.
For optimal performance and safety, it is recommended not to utilize this device
in conjunction with a dimmer switch. Avoid connecting the device to any
dimming mechanism as it may lead to undesirable consequences or
malfunctioning. It is advisable to operate the device without the use of a dimmer
to ensure its intended functionality and prevent any potential risks.
To ensure the highest level of safety, it is recommended to directly plug the
transformer into a Ground Fault Circuit Interrupter (GFCI) outlet. By utilizing a
GFCI outlet, you enhance protection against electrical shocks and minimize the
risk of electrical hazards.

www.ABBALightingUSA.com
WARRANTY
We stand behind the quality of our product and offer a 3-year warranty from the date of purchase.
Please note that the warranty is valid from the date of purchase, not from the date of installation.
Kindly ensure that you keep the proof of purchase as it will be required for any warranty claims.
Warranty will be void if there is any damage due to improper usage or
modification to the fixture.
Failure to comply with the instruction in this manual may increase the risk of
damage or injury and will void warranty.
To maintain optimal performance and safety, it is strongly advised against
using an extension cord with this device. It is recommended to directly
connect the device to a properly grounded power outlet. Using an extension
cord may introduce electrical inefficiencies, increase the risk of overheating, or
compromise the device's functionality. It is best to avoid extension cords and
ensure a direct and secure power connection for the device.
It is important to note that the maximum output capacity of this transformer
is 300 Watts. To ensure safe and optimal operation, it is crucial to avoid
exceeding this specified limit. Overloading the transformer by drawing power
beyond its maximum capacity can lead to overheating, reduced efficiency,
and potential damage to the device. It is highly advised to carefully monitor
the power requirements of your equipment and ensure they fall within the
specified limits of the transformer to maintain its performance and longevity.
We assure you that this transformer is designed with
utmost consideration for safety, making it suitable for both
indoor and outdoor applications. You can confidently
utilize this transformer in various environments without
any concerns about compromising safety standards.
Moreover, it is essential to note that this transformer is
specifically engineered to be weatherproof, offering
enhanced protection against the elements. This means that
you can rely on its performance and durability even when
exposed to challenging weather conditions. Whether you
are working on a project indoors or venturing into outdoor
settings, this transformer provides a secure and
dependable solution for your electrical needs.

To ensure proper installation of the transformer, it is
essential to position it at a level where the controls are
readily visible and easily accessible. This ensures
convenient operation and maintenance of the transformer.
When selecting the installation location, carefully consider
factors such as line of sight and ergonomic accessibility. By
placing the transformer at an appropriate level, you will be
able to monitor and adjust its settings with ease, facilitating
efficient and effective usage. Prioritizing the visibility and
accessibility of the controls when installing the transformer
contributes to a user-friendly and ergonomic setup.
www.ABBALightingUSA.com
It is crucial to avoid installing the transformer in a position
that obstructs or blocks the sensor responsible for the
dusk-to-dawn mode. When choosing the installation
location, be mindful of the sensor's line of sight and ensure
that it remains unobstructed. Placing the transformer in a
position that allows the sensor to function optimally
ensures the proper operation of the dusk-to-dawn mode,
which automatically adjusts the transformer's functionality
based on ambient light levels. By preventing any
obstructions to the sensor, you guarantee the reliable and
accurate performance of this mode, enhancing the overall
efficiency and effectiveness of the transformer's operation.
MOUNT THE INSTALLATION
To mount the transformer on a wall near an electrical outlet,
carefully follow these step-by-step instructions:
Choose a suitable location on the wall near the electrical
outlet where you intend to install the transformer. Ensure
that the chosen spot allows for easy access to the outlet and
is appropriate for the weight and size of the transformer.
Hold the transformer against the wall at the desired
mounting height. Position it in a way that aligns with the
electrical outlet and any necessary connections.
With a pencil or marker, mark the spots on the wall where the
screw holes of the transformer will align. These marks will
serve as a guide for secure mounting.

www.ABBALightingUSA.com
Obtain appropriate screw that are compatible with the wall
material and the transformer's mounting hole. Generally,
wall anchor may be necessary for mounting on drywall or
other fragile surfaces. If unsure, consult a hardware store or
professional for suitable mounting hardware.
Using a suitable screwdriver or drill, carefully insert the
screw through the mounting holes of the transformer and
into the marked spots on the wall. Ensure that the screws are
driven straight and fully into the wall, providing a secure
hold.
Once the screws are tightly secured, verify that the
transformer is firmly mounted on the wall by giving it a
gentle tug or shake. Ensure that it does not move or feel
loose.
Please ensure that you do not exceed the capacity of the
transformer as it can lead to overheating and overload,
potentially reducing its lifespan. It is recommended to utilize only
up to 85% of the transformer's capacity.

www.ABBALightingUSA.com
To prepare the landscape wire for connection, follow these
simple steps:
Strip 1/2 inch of insulation from both wires.
Twist the exposed ends of the wires together tightly.
To connect the wires to the transformer, please carefully follow
these step-by-step instructions:
Carefully position the wires underneath each terminal plate and proceed to
secure them firmly by tightening the screws.
After connecting the wires to the terminal blocks, it is vital to verify
that they are securely and properly positioned. Follow these steps to
ensure a secure connection and complete the installation:
1.Carefully inspect the terminal blocks to confirm that the wires are fully inserted
and tightly secured within their respective terminals. Make sure there are no loose
or exposed wires.
2.Gently tug on each wire to ensure it is firmly held in place and does not come
loose. This step helps verify the stability of the connections.
By following these instructions, you will guarantee that the wires are securely
placed within the terminal blocks, minimizing the risk of disconnections or
electrical issues. Additionally, closing the casing properly provides protection to
the internal components of the transformer.

www.ABBALightingUSA.com
RUN THE LANDSCAPE WIRE (SOLD SEPARATELY)
To ensure proper installation of the landscape wire, please follow these
guidelines:
When running the landscape wire, make sure it extends directly from the
transformer to each light without any cuts or interruptions. This uncut wire
connection helps maintain a consistent and reliable electrical flow
throughout the lighting system.
Exercise caution and avoid running the wire within a proximity of 10 feet (3
meters) to any pools, spas, or fountains. This safety measure prevents any
potential hazards associated with water and electrical components. It is
important to prioritize the safety of individuals and the proper functioning
of the electrical system.
In the event that the landscape wire is longer than needed, you may need to
trim it to the appropriate length. To cut the wire, use a cable cutter
specifically designed for this purpose. Ensure that the cable cutter is
suitable for the wire's gauge and thickness. Following the manufacturer's
instructions, carefully cut the wire to the desired length.
By adhering to these instructions, you will ensure the integrity and safety of
the landscape wire installation. The wire should remain uncut as it runs from
the transformer to each light, while maintaining a safe distance from pools,
spas, or fountains. If necessary, use a cable cutter to trim the wire to the
required length.

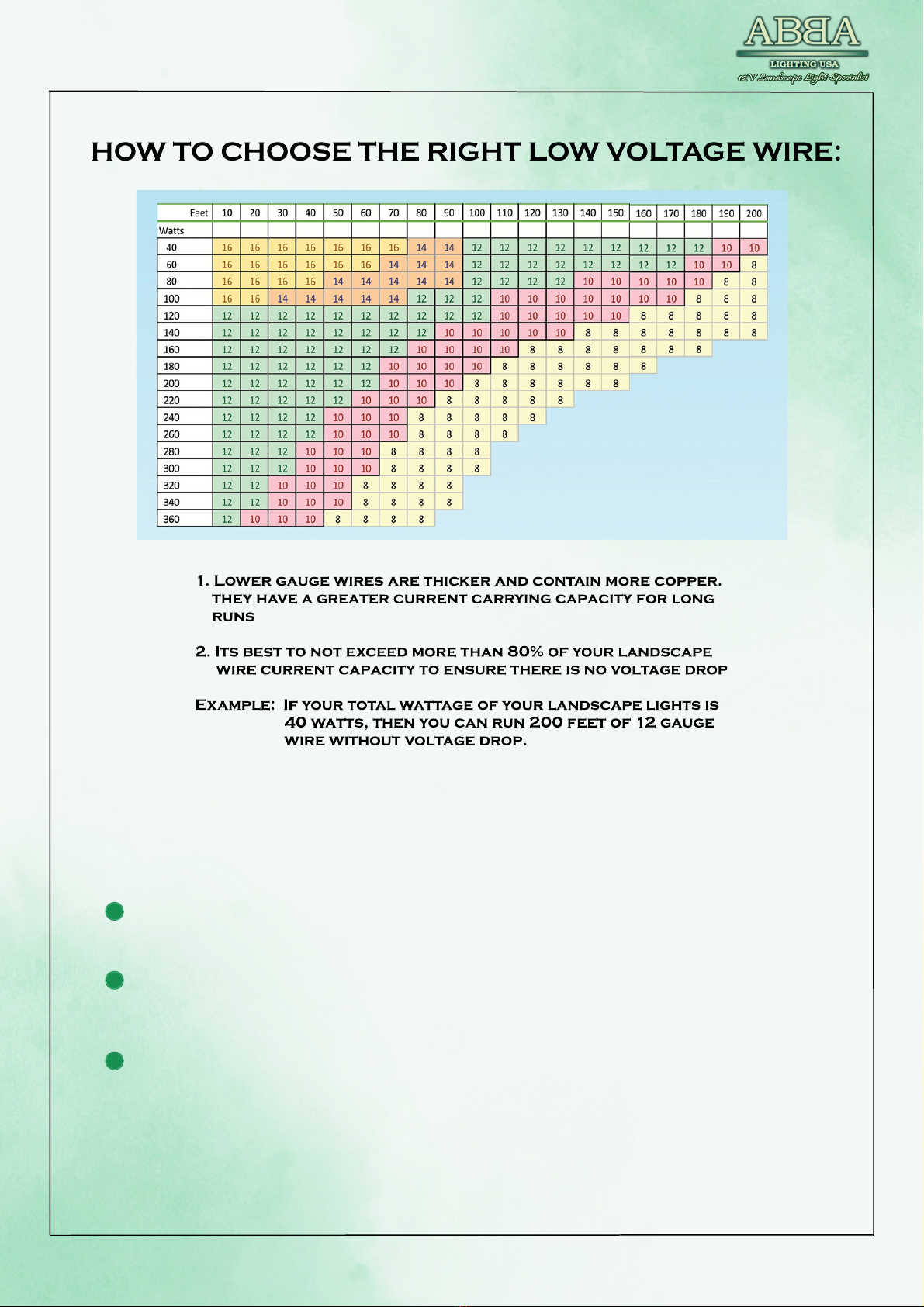

When selecting the cable gauge, consider the distance between the
transformer and the lighting fixtures. It is crucial to choose an appropriate
gauge to ensure efficient power transmission and minimize voltage drop.
Please note that this chart provides general recommendations, and it is
essential to consider specific factors such as the power requirements of your
lighting system and any local electrical codes or regulations that may apply.
Consulting with a qualified electrician can provide further guidance and
ensure the proper selection of cable gauges for your specific installation.

www.ABBALightingUSA.com
POWER UP THE TRANSFORMER
To test the fixtures and change the mode to "ON," please follow these
instructions:
Take the plug of the transformer and insert it into the GFCI plug. Make sure
it is fully inserted and securely connected.
Once the transformer is plugged into the GFCI plug, you can proceed with
testing the fixtures. Turn on the power to the transformer.
Set the mode switch to the "ON" position. This will activate the fixtures and
provide a continuous power supply.
Observe the connected fixtures to verify that they are illuminated and
functioning correctly. Check for any signs of flickering, dimness, or
malfunctions.

www.ABBALightingUSA.com
0%: Normal Less than 20%: Normal Less than 100%: Normal
Mode
Blinking:
Overloaded over 100%
Enterr
Zone Location (Sunwise)
Down
Over 120%, shuts down
North
Load Icon
Central
South
START
Lighting Modes
Transformer interface, controls and modes installation types
Always OFF
Always ON
Press to confirm a selection.
Fixed start and end time
Refers to locations south of Missouri.
Refers to locations from north of Chicago, IL.
Press these to select and go through the interface.
YES
YES
YES
YES
YES
Refers to locations between Chicago, IL and southern
Press to modify or change a mode. Press it to exit any
settings without saving.
Press at the same time to change time and date.
The time at which the lights will turn On. This step comes
NO
YES
YES
YES
YES
NO
NO
NO
YES
YES
SOUTH zone
NORTH zone
CENTRAL zone
/
+
+
Modes Functionality
Recommended Control Settings
Outdoor Indoor Dusk-to-Dawn
START
END
NORTH
CENTRAL
SOUTH
ON
MODE
MODE
MODE
ENTER
ENTER
LOAD LOAD LOAD LOAD LOAD
*The channels will only turn on at the exact start time selected for Timer and dusk for Sunwise.
*Necessary for Timer, Auto and Sunwise settings
to work properly.
Press at the same time to change Sunwise time zone.
*Necessary for optimal Sunwise mode.
after selecting a Mode. (Shows up for Timer Mode only)
The time at which the lights will turn Off. This step comes
after selecting a Mode. (Auto, Timer and Sunwise only)
Select this to close the lights at dawn. When selecting an
end time, scroll using up and down until the icon shows up
(Auto and Sunwise only)
Missouri.
END Timer
DAWN Icon
Up
Photocell
to reduce load
OFF
TIMER
AUTO
SUNWISE
Uses the light sensor
(photocell) to Open/Close
the lights
Astronomical timer auto-
matically adjusts to local
6.

www.ABBALightingUSA.com
7. How to setup the transformer for your lighting system
This step is needed for the lighting modes Auto, Timer and Sunwise to work properly or else they
Sunwise is a feature that does not need a photocell to operate. It can be installed indoor and it will
still open the lights from dusk to dawn. All it needs is your local time and location to calculate the
sun’s position to estimate your local dusk/dawn time.
7.1 Current time & date setting
7.2 Location setting (for Sunwise mode only)
1. Press both MODE and ENTER at the same time quickly.
2. Use UP and DOWN to select the date and ENTER to confirm. Apply the same procedure for the current .
HOW TO SET UP
won't open/close at the right time.
time
1. Press MODE and UP at the same time quickly.
2. According to the map at step #6, enter your location by selecting one of the three following options and
pressing ENTER to confirm (if you live in Canada, select “North”):
7.3 Setting up a lighting timer schedule
This section will help you on how to setup a mode and program the opening/closing of the lights at
the time you want.
Press MODE to access the timer mode settings
Refer to step #6: “Recommended Control Settings” and select one of the five lighting modes: On, Off,
1.
2.
Auto, Timer, Sunwise.
3. START time settings – ONLY FOR TIMER MODE. Select the hours and minutes at which you want the
lights to turn ON.
4. END time settings – ONLY FOR AUTO, TIMER AND SUNWISE LIGHTING MODES. Choose one of the two
END time option:
a) Dawn END time: select this option to make the lights close at dawn automatically every day. It will
use the photocell if you selected the mode Auto and your location if you selected Sunwise. Scroll the
hours until you see the DAWN icon and press ENTER to select it.
HOW TO SET UP
b) Fixed END time: select this option if you want the transformer to close the lights every day at the
same hour. This type of END time will not adjust to the seasons, be it summer or winter, the END
time will stay the same. To select this option, simply select the END time wanted.
Troubleshooting
All of the lights fail to work
• If the LOAD icon is flashing, make sure you are using less than 300 watts. If necessary, remove some
• Check that the transformer power is ON.
• Check if there is a loose connection at the transfomer screw terminal.
• Check that the current mode is not set to «OFF».
fixtures and change the lighting mode to the desired one after.
The lights are “ON” during the day
• The power unit is in a dark area which triggers the photocell to turn ON the lights.
The lights do not switch “ON” at dusk
• The power unit is in a area where there is too much light at night.

www.ABBALightingUSA.com
The lights are not turning on after selecting Timer or Sunwise mode.
• Timer and Sunwise mode only open up at their exact start time setting (Start for timer and dusk for
Sunwise). Ex: if it is 8 PM at your location and you set the start time to 7 PM, the channel won’t turn on
until 7 PM the next day.
There is a significant delay in Sunwise mode.
• Make sure that you selected the right zone. If you live far to the north, or far to the south, Sunwise
may not be optimal.
Maintenance
• To clean, wash with a damp soft cloth.
