ABM International 1081 Series User manual

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
1
Folder Contents:
1. Users Guide
2. Service Manual
3. 18” Pro-frame Assembly
4. 26” Pro-frame Assembly
5. Leader Installation
6. Bobbin Winder Assembly and Operation
7. Light Bar Assembly
8. EZ-Quilt Bracket Installation
9. Innova Warranty
10. Warranty Registration Form

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
2
TABLE OF CONTENTS:
Introduction
Section 1.0 – Safety
Section 2.0 - Machine Setup
Section 3.0 – Machine Operation
Section 4.0 – Parts List
Figure 0.1 – Innova 18” ( Pinky) on adjustable frame

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
3
Introduction
ABM International would like to thank you for the purchase of an Innova Long Arm Sewing Machine. ABM is
confident that this machine will meet or exceed your expectations.
If at anytime you experience problems with your ABM machine we ask that you contact us - 24 hours a day by
calling our service department at [phone]. We can help you solve the problem quickly, and correctly. Your
calls, questions, and comments will in turn help us to perfect the quality of our products and services in the future.
Once again, we thank you for your purchase.
ABM International, Inc.
Joe Podolski
Vice President
Engineering Department

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
4
Section 1: Safety
1.0 Safety Introduction
ABM is dedicated to assuring your safe operation of the Innova quilting machine. This section will alert you to
many precautions that you can take to help avoid unnecessary accidents. Though ABM cannot anticipate all
actions that may create an unsafe environment and we urge you to be aware, and extremely careful when operating
the Innova quilting machine.
It is imperative that the operating person of the Innova quilting machine read and understand the information in
this manual before operating the machine.
1.1 Safety Policy Statement
The conservation of the assets of any company, which include the buildings, equipment, supplies and
inventories as well as personnel, must be and is the responsibility of all levels of management. The purpose of a
personnel and property conservation program is to insure that all phases of management recognize that personnel
and property conservation are both inseparable parts of a company’s objective…to produce quality products at the
lowest possible cost.
Safety of personnel in every aspect must be of first consideration. The implementation of a conservation
program will eliminate human suffering and effectively lower the direct and indirect costs resulting from employee
injury. It will substantially reduce the exposure and probability of damage and / or loss of a company’s physical
assets.
1.2 Safety Practices
The safety factors must be observed to ensure safe operation of the Innova .
1. Read and understand the operating instructions of the Innova before operating.
2. Use extreme caution when working around the Innova electrical controls.
3. Keep hands or other body parts away from the moving parts of the Innova.
4. Wear appropriate personal safety protection.
5. Stop the Innova immediately at any sign of malfunction or danger.
6. Never lean on the Innova Quilting machine.
7. Do not use the Innova quilting machine as leverage to lift yourself off a chair.
8. Do not crawl under or into the Innova for any reason during the operation of the machine.
9. Do not reach into the Innova at any time during the operation of the machine.
10. Do not climb, walk, or stand on the Innova at any time.
11. Do not tamper with factory installed guards and or safety devices.
12. Never operate machinery without all ABM installed guards and safety devices intact, and in working order.
13. Before starting the Innova, ensure that no loose tools, bars or parts are lying in or on any part of the
machine.
14. Proper fire fighting equipment should be kept in good operating condition and kept near in the event of fire.
15. Do not wear loose clothing or jewelry when operating the Innova.
16. Always keep hair from coming in contact with moving parts.

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
5
SECTION 2.0 – Machine Setup
The Innova ships fully tested ready to operate. As a result, this manual provides a section on machine setup so that
you can install the machine. Please read this manual in its entirety and follow all ABM instructions, especially the
inspections. Total setup time will take approximately 1 hour.
SETUP INSTRUCTIONS:
INSPECTION #1: Upon receipt of the machine, check to ensure that there is no visible damage. Figure 0.1 and
the front cover of this manual are enough for this inspection. Note: that some components may be in different
locations depending on the version of the machine.
Determine the location in your facility for the quilting machine. Once a final position has been determined for the
machine, plug it into your 110 volt receptacle, coil any excess cable and wire tie it to the table of the machine,
which will reduce the risk of a tripping hazard.
The machine comes equipped with a 110V plug, and should be plugged directly into the wall receptacle or a surge
protector (not supplied). ABM does not recommend the use of any type of extension cord to power the machine.
As with any machine, power should be run properly through approved ducting with proper termination. You may
connect the power to the machine at this time.
INSPECTION #2: Will confirm that the electronics of the Innova long arm quilting machine are functioning
properly.
WARNING : ELECTRICAL SHOCK HAZARD. NEVER ATTEMPT TO
WORK ON OR OPERATE THE MACHINE WHILE THE ELECTRICAL
COVERS ARE REMOVED. WHENEVER REMOVING THE ELECTRICAL
COVERS PLEASE BE CERTAIN TO TURN-OFF THE MACHINE AND
UNPLUG THE POWER RECEPTICAL.
Upon power up, the PLC should power up and show up on the LCD. If this does not occur, check for incoming
voltage at the outlet.
WARNING – WHEN OPERATING THE MACHINE, YOU MUST ENSURE THAT THERE
ARE NO LOOSE ITEMS SUCH AS TOOLS, FOOD, DRINKS, ETC. ON THE MACHINE AND
THAT ALL PERSONNEL ARE CLEAR OF THE MACHINE.

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
6
Final Test:
Inspect the front of the machine and ensure that the sewhead is free of obstructions. Upon power up the
LCD will read UP or DN and display a speed.
Step 1: Press and release the (Red) left hand button and the needle will move to the up position.
Step 2: Press and release the (Red) left hand button again and the needle will move to the down position.
Step 3: Press and release the (Green) right hand button and the sewhead will start to run
Step 4: Press and hold the (Green) right hand button and the sewhead will increase sewing speed.
Step 5: Press and hold the (Red) left hand button and the sewhead will decrease sewing speed.
Step 6: Press and release the (Green) right hand button again and the sewhead will stop.
Setup and inspection is now complete.

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
7
SECTION 3.0 – Machine Operation
This section will discuss how to properly use the Innova 1018 and 1026 to fulfill all of your quilting needs.
3.1 Rotating the Sewing Head
ABM’s has equipped the Innova with an industry “exclusive” rotating sewhead for ease of material, head, and roller
removal, as well as ease of sewing machine maintenance. To properly rotate the head, follow these easy steps:
Figure 3.1 – Loosen Lock Screw
Figure 3.11 – Depress Locking Lever.
WARNING – DEPRESSING THE
LOCKING LEVER PAST THE SECOND
GROOVE ON THE SIDE OF THE BEAM
MAY DAMAGE THE MACHINE.
Figure 3.12 – Continue holding lever and rotate
Figure 3.13 – Release lever and finish rotation

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
8
3.2 Rotating the Sewing Head Back
Figure 3.20 – Depress Locking Lever
Figure 3.21 – Continue holding lever and rotate
until the head locks
Figure 3.22 – Rotate hand wheel until needle
nears hole in plate
Figure 3.23 – Press on the needle bar gently to
center needle in hole
Figure 3.24 – Turn locking screw

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
9
3.3 Installing the Extension Plate
Figure 3.30 – Rotate the head
Figure 3.31 – Position plate over latches
Figure 3.32 – Remove paper backing
Figure 3.33 – Press plate down firmly
Figure 3.34 – Rotate the head and follow locking
procedures

ABM International, Inc. Series 1081 & 1026
Version 5.0 Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without prior written permission of
ABM INTERNATIONAL, INC.
10
3.4 THREADING THE SEWING HEAD
1. Pull thread from cone
2. Pass thread through upper thread guide
on motor cover.
3. Pass thread through upper hole of thread
post. Thread should go through the hole
from the right to the left.
4. Bring thread around the post and back
into the bottom hole of thread post. Thread
should go through the hole from right
to left.
5. Pass thread through the upper thread
guide of the pre-tension.
6. Bring the thread clockwise around the
pre-tension discs and pass through the lower
thread guide hole of the pre-tension.
NOTE: DO NOTE WRAP THE THREAD COMPLETELY
AROUND THE DISC. THE THREAD SHOULD TRAVEL
FROM THE TOP HOLE TO THE BOTTOM HOLE AND
PASS THROUGH THE DISCS ON THE RIGHT SIDE
ONLY.
7. Pass the thread through thread guide
8. Wrap the thread completely around the rotary tension
assembly twice - clockwise. Pass thread over check spring.
NOTE: OIL FELTS ON ROTARY TENSION TO ENSURE
SMOOTH MOVEMENT.
9. Pass the thread through thread guide
10. Pass the thread through the take-up finger. Make sure thread
Runs from right to left.
11. Pass thread through thread guide
12. Pass thread through thread guide at the bottom of the needle
Bar bushing.
13. Pass the thread through the needle bar thread guide located
on the end of the needle bar.
14. Insert thread through the eye of the needle from left to right. Pull
thread to check for proper threading. As the thread is pulled through
the needle, the check spring should move and thread should pull from the cone.

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 11
3.5 Changing the Bobbin
Large Bobbin- (M) - Release Latch
Pull the release Latch and remove the bobbin case
Remove the old bobbin and press in the new bobbin. Inset the bobbin making sure it turns clockwise
when the thread is pulled (viewed from the bobbin side). Pull the loose thread up and under the guide
into the case. Route the thread under the tension spring, and through the guide hole. Place the loose
thread through the case slot.
Now press the case back into the hook and listen for the latch clicking into place.
You are now ready to begin sewing.

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 12

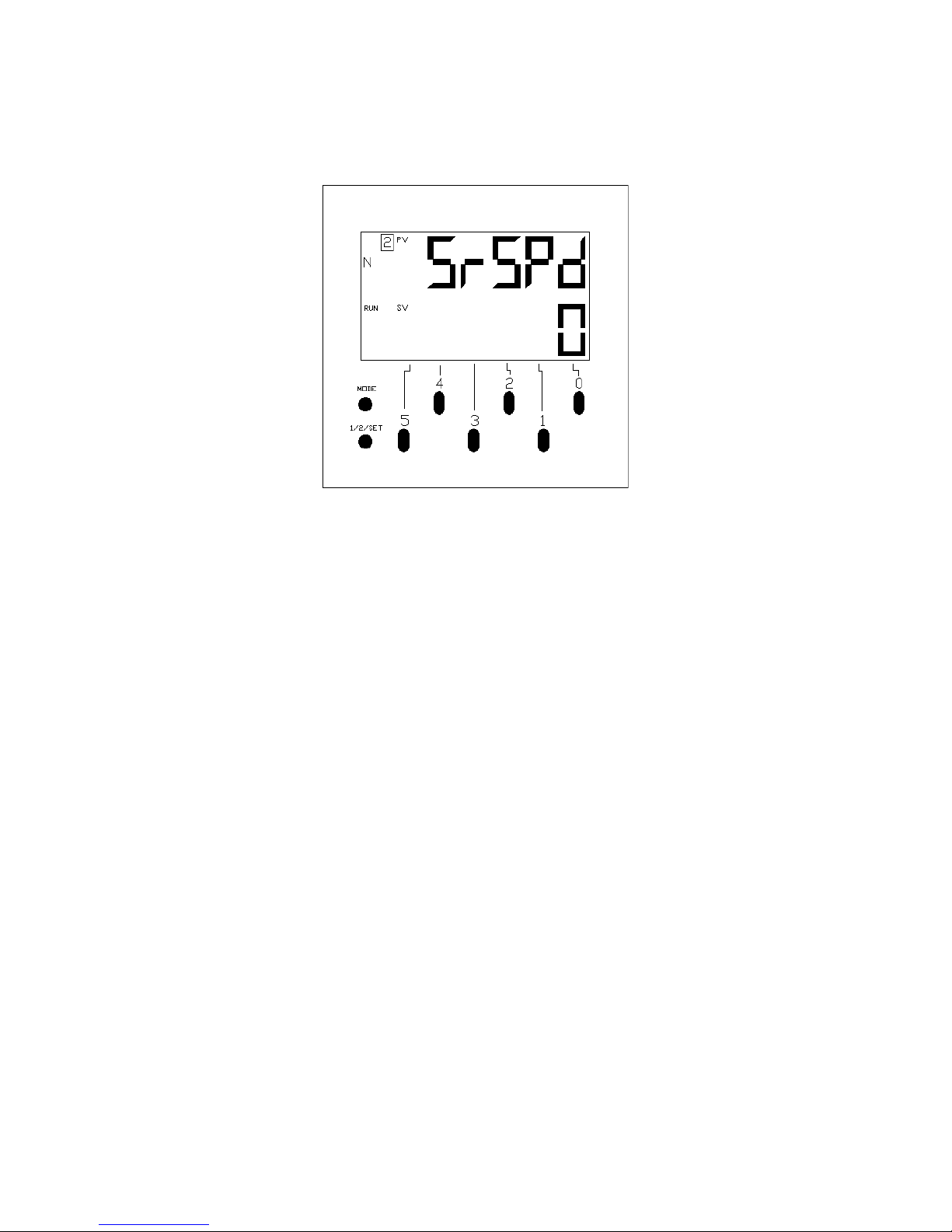

3.6 Controller Operations
The Innova is equipped with a machine controller that handles all of the electronic functions of the machine.
The controller performs the following tasks:
•stop and start the sewing motor
•maintain and adjust sewing speed
•perform needle positioning - up and down
•display sewing speed
•display electronic error messages in case of failure
•maintain stitches per inch (if equipped)
•deactivation of stitch regulation if idle for more than 20 seconds (if equipped)
When the power switch is turned ON, the machine controller defaults to the main screen (Figure 3.60). From
this screen, the user can turn stitch regulation ON or OFF (if equipped), adjust needle stop position UP or DN
and adjust the sewing speed when in manual sewing mode.
Figure 3.60 – Main Screen
The needle stop position is toggled between up and down by pressing the button marked “4”. The upper right
section of the screen displays the current needle stop position “UP” or “dn” (down).
The stitch regulator, if equipped, is turned ON and OFF by pressing the button marked “5”. When stitch
regulation is active, “Sr” will appear on the display. When stitch regulation is turned OFF, the “Sr” will not be
visible and manual sewing mode is active.
Sewing speed in manual mode (SR off), can also be adjusted on the front of the control panel by using the
buttons marked 0,1,2, and 3. Each time the button is pressed, the digit which corresponds to that button will
increase by one. The 0 button adjusts speed from 0-9 in single digit increments. The 1 button adjusts speed
from 10-90 in increments of 10. The 2 button adjusts speed from 100-900 in increments of 100 and the 3 button
adjusts speed from 1000-3000 in increments of 1000. Any value entered that is less than 75 or greater than 3000
will revert to the closest default value, 75 or 3000.

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 13
The “mode” button allows the user to navigate through various screens that provided technical assistance as well
as stitch regulation adjustment. The “mode” button may also be used to lock out the controller so that no
modifications can be made. This may be helpful when allowing inexperienced users to use the machine
unattended. Pressing and holding the “mode” button for more than 2 seconds will put the controller into
“LOCK” mode. The word “LOCK” will be visible on the screen when enabled. To disable the lock, press and
hold the “mode” button for more than 2 seconds. The word “LOCK” will turn off when the mode has been
canceled.
Before setting the stitch regulator the user should understand the basics of the system. Stitch regulation is used
to maintain stitches per inch during quilting. When in regulated mode the machine will automatically accelerate
and decelerate based on the quilting operator’s movements. This occurs when the encoders mounted on the
tracks send digital pulses to the controller which in turn increases and decreases the voltage to the motor running
the sewhead. The number of stitches per inch is fully adjustable from 5-15 stitches per inch. We recommend
that you set your machine between 8 and 12 stitches per inch to achieve the best results. The following steps
will walk you through setting the stitches per inch, adjusting minimum stitch speed and turning stitch regulation
(SR) on and off.
Figure 3.61 – Stitches per inch screen
From the main screen (Figure 3.60), press the “mode” button three times. The stitches per inch screen (Figure
3.61) will now be visible. From this screen, the user can adjust the stitches per inch between 5 and 15. Use
buttons 0 and 1 to modify the value. Pressing the 0 button will adjust the SPI value between 0-9 in increments
of 1. The 1 button will adjust the value between 0-90 in increments of 10 (NOTE: 15 is the maximum value
allowed). When the value is modified, it will begin to flash. To store the modified value in memory, press and
hold the “1/2/SET” button until the value stops flashing.
While in the stitches per inch screen (Figure 3.61), the operator may adjust the stitch regulator minimum speed
(SrSPD). Quickly press and release the “1/2/SET” button. The stitch regulation minimum speed screen (Figure
3.62) will now be displayed.

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 14
Figure 3.62 – Stitch regulation minimum sew speed screen
The SrSPD value controls the speed at which the quilting machine motor runs when the head is at rest (no
movement). A value of zero would mean the head stops sewing when the operator stops moving the machine.
A value greater than zero, between 75 and 500, means the sewhead runs at that set speed when the machine is at
rest (no movement). ABM prefers to not use an SrSPD setting (factory set to 0). SrSPD has been used in the
industry to combat large stitches when accelerating the machine from a stand still or in sharp corners. If the
SrSPD is set too high, the user may notice a significant amount of very small stitches in sharp corners and starts
and stops. Adjusting the SrSPD to a lower setting may help solve this problem. Again, the 0,1, and 2 buttons are
used to set the value between 0 (off) and 75-500. The value will flash when it is being modified. Press and hold
the “1/2/SET” button until the vale stops flashing. This will lock the new value into memory. Quickly pressing
and releasing the “1/2/SET” button will toggle between the SPI menu and SrSPD menu. Pressing the “mode”
button once in either screen will bring the user back to the main screen (Figure 3.60).
Once all of the values are adjusted, the user may start stitch regulation. Press and release the green start button
on the handle bar. If SrSPD is set to zero, the machine starts to sew only when the head is moved, maintaining
the stitches per inch set. If SrSPD is set to some value other than zero, the machine will start to sew at the set
speed. Stitching speed will only increase if the machine is moved fast enough to require a speed increase to hold
the proper stitches per inch. (NOTE: Setting the SrSPD too high may result in poor stitches per inch
consistency).
Press and release the green button again to stop stitch regulation. This will allow the user to move the quilting
machine to a new position without sewing. The button marked “5” can be used to turn stitch regulation on and
off. If “Sr” is not visible on the main screen, the machine is in manual sewing mode.

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 15
3.7 Quick Reference – manual and stitch regulated modes
Operating in manual mode –
Step 1: Quickly pressing and releasing the (Red) left hand button will toggle the machine between needle up and
down position.
Step 2: Press and release the (Green) right hand button and the sewhead will start to run
Step 3: Press and hold the (Green) right hand button and the sewhead will increase sewing speed.
Step 4: Press and hold the (Red) left hand button and the sewhead will decrease sewing speed.
Step 5: Press and release the (Green) right hand button again and the sewhead will stop.
Operating in stitch regulated mode –
Step 1: Quickly pressing and releasing the (Red) left hand button will toggle the machine between needle up and
down.
Step 2: Press the #5 button on the control panel and stitch regulation (SR) is activated. The main screen of the
display will show “Sr” when stitch regulation is activated.
Step 3: Press and release the (Green) right hand button and the sewhead will start to run
Step 4: The faster you move the machine the faster it will run.
Step 5: The slower you move the machine the slower it will run.
Step 6: Press and release the (Green) right hand button again and the sewhead will stop.
Step 7: Press the #5 button on the control panel and stitch regulation mode will turn off.

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 16
SECTION 4.0 – Parts List
This section lists the ABM part numbers needed to order any part on the Innova 1018 and 1026. The
section is divided into four drawings with the item description and ABM part number for all the
components needed to completely rebuild a machine. ABM carries all of the components below in
stock at all times. Any order placed before 6:00 P.M. CST can be shipped the same day for next day
delivery. The parts/service department can be reached at [phone] or (888)99-QUILT. Buying
the correct parts from ABM will ensure that your machines will operate their best. Buying parts from
sources other than ABM will void your warranty.

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 17
1018
10181018
1018-
--
-A00
A00A00
A00 Innova 18” (Pinky)
No
NoNo
No Parts No
Parts NoParts No
Parts No Description
DescriptionDescription
Description Amt.
Amt.Amt.
Amt. No
NoNo
No Parts No
Parts NoParts No
Parts No Description
DescriptionDescription
Description Amt.
Amt.Amt.
Amt.
1 1018-A01 Upper Profile 18” 1 20 BB-MR74ZZ bearing 2
2 1018-A02 Vertical Profile 1 21 1018-A21 Shaft 1
3 1018-A03 Lower Profile 18” 1 22 1018-A22 Bushing 1
4 1018-A04 Backing Plate 1 23 1018-A23 Shaft 1
5 1018-A05 Backing Plate 1 24 1018-A24 Spring 1
6 1018-A06 Sewhead Casting Lwr 1 25 SR-4374006 Screw 1
7.1 1018-A071 Corner Casting Upr 1 26 1018-A26 Bushing 1
7.2 1018-A072 Corner Casting 1 27 SC-79418100 Screw5/16-18UNCX100L 8
8 1018-A08 Base Casting 1 28 SR-3174404 Screw 4
9 SC-7941819 Screw5/16-18UNCX19L 15 29 SR-4374008 Screw 4
10 1018-A10A Spacer (1) 30 1018-A30 Table 1
11 SC-40712 Screw M4X0.7X12L 3 31 1018-A31 Table latch (2)
12 1018-A12 Ball φ 6.35 1 32 1018-A32 Shaft (1)
13 1018-A13 Bolt 1 33 SR-4374006 Screw 1
14 HN-43740 Hex. Nut SM11/64X40 1 34 SD-607506 Screw M6X0.75X6L (26” ) 2
15 1018-A15 Lever 1 35 SD-4374005 Screw SM11X64X40 (26” ) 4
16 1018-A16 Pin 1 36 1026-C36A Bearing 26” (1)
17 ET-05 CliP E5 1 1.1 1026-A01 Upper profile 26” 1
18 1018-A18 Pin 1 2.1 1026-A02 Vertical profile 26” 1
19 ET-03 Clip E3 3 3.1 1026-A03 Lower Profile 26” 1

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 18
1018
10181018
1018-
--
-B00
0000
00 Innova 18” ( Pinky)
No
NoNo
No Parts No
Parts NoParts No
Parts No Description
DescriptionDescription
Description Amt.
Amt.Amt.
Amt. No
NoNo
No Parts No
Parts NoParts No
Parts No Descrip
DescripDescrip
Description
tiontion
tion Amt.
Amt.Amt.
Amt.
1 1018-B01 Upper Drive Shaft 1 16 WP-1271910 Spacer 1
2 1018-B02 Lower Drive Shaft 1 17 1018-B17 Hand Wheel Plate 1
3 1018-B03 Timing belt 1 18 1018-B18 Pin 1
4 1018-B04 Lower Pulley 4 19 1018-B19 Spring 1
5 SD-4763206 Screw 3/16-32NUF 8 20 1018-B20 Hand Wheel 1
6 BB-R8ZZ Bearing 1 21 1018-B21 Shaft 1
7 1018-B07 Gear 1 22 1018-B22 Bushing 1
8 SD-6354006 Screw 2 23 BB-R8ZZ Bearing 2
9 1018-B09 Gear 1 24 WP-081915 Spacer 1
10 1018-B10 Eccentric 1 25 SC-7941865 Screw 5/16-18UNC 1
11 1018-B11 Bushing 2 26 SD-607506 Screw M6X0.75X6L 1
12 SD-607506 Screw M6X0.75X6L 2 27 SC-6352830 Screw 1/4-28UNF 4
13 SD-50805 Screw M5X0.8X5L 2 1.1 1026-B01 Upper Drive Shaft 26” 1
14 1018-B14 Timing belt 1 2.2 1026-B02 Lower Drive Shaft 26” 1
15 1018-B15 Collar 1

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 19
1018
10181018
1018-
--
-C
CC
C00
0000
00 Innova 18” ( Pinky)
No
NoNo
No Parts No
Parts NoParts No
Parts No Description
DescriptionDescription
Description Amt.
Amt.Amt.
Amt. No
NoNo
No Parts No
Parts NoParts No
Parts No Description
DescriptionDescription
Description Amt.
Amt.Amt.
Amt.
1 1018-C01 Counterweight 1 16 SR-3574006 Screw 1
2 SD-607512 Screw M6X0.75 2 17 1018-D10 Presser Bar Pin 1
3 SD-607506 Screw M6X0.75 2 18 SC-40712 Screw M4X0.7X12L 1
4 1018-C04 Crank Rod (1) 19 1018-C19 Presser Bar Bracket 1
4.1 BB-6805ZZ Bearing 1 20 1018-C20A Presser bar (1)
4.2 BB-FR4ZZ Bearing 2 21 1018-C21 Screw 1
4.3 CS-25 Clip 1 22 1018-C22 Hopping Foot 1
5 SR-4374007 Screw 1 23 1018-C23A Needle Bar (1)
6 1018-C06A Take Up Assembly (1) 24 1018-C24 Needle Bar Thread Guide 1
7 1018-C07 Pin 1 25 SR-3174404 Screw 1
8 1018-C08 Pin Lever 1 26 1018-C26 Needle #16 (DPX5) 1
9 1018-C09 Take Up Lever 1 27 1018-C27A Needle Bar Frame (1)
10 BN-8128 Bearing 1 28 WP-051008 Washer 4
11 1018-C11 Take Up Crank 1 29 SC-4763212 Screw 3/16-32UNF 4
12 BN-8128 Bearing 1 20.1 1026-C20A Presser Bar 26” (1)
13 1018-C13 Screw 1 23.1 1026-C23A Needle Bar 26” (1)
14 1018-C14 Take Up Main Body 1 27.1 1026-C27A Needle Bar Frame 26” (1)
15 1018-C15 Needle Bar Holder 1 30 1026-C28 Presser bar spring 1

ABM International, Inc. Series: 1018 & 1026: V4.0
Model: Innova Users Guide
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC. 20
1018
10181018
1018-
--
-D
DD
D00
0000
00 Innova 18” (Pinky)
No
NoNo
No Parts No
Parts NoParts No
Parts No Description
DescriptionDescription
Description Amt.
Amt.Amt.
Amt. No
NoNo
No Parts No
Parts NoParts No
Parts No Description
DescriptionDescription
Description Amt.
Amt.Amt.
Amt.
1 1018-D01A Hook Assembly 1 10 1018-D10 Screw 2
1.1 1018-D011 Rotating Hook(18033C) 1 11 1018-D11 Hook Drive Gear 1
1.2 1018-D012 Screw 1 12 SD-4374005 Screw 2
1.3 1018-D013 Bobbin Case (SC33-LD) 1 13 BB-FR4ZZ Bearing 7
1.4 1018-D014 Bobbin (18034AL) 1 14 1018-D14 Gear 1
2 1018-D02 Needle Plate 1 15 SD-4374004 Screw 1
3 SJ-4374009 Screw 2 16 1018-D16 Timing Belt 1
4 1018-D04 Backing Plate 1 17 1018-D17 Shaft 1
5 SK-4763210 Screw 2 18 SR-4374008 Screw 4
6 WP-051008 Washer 2 19 1018-D19 Plate 1
7 SD-3574006 Screw 4 20 SR-4374010 Screw 1
8 SD-4763206 Screw 1 21 1018-D21 Position Finger 1
9 1018-D09 Hook Drive Gear 2
