ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
773mm
1513mm
FRONT BASE LENGTH: 1.52m SIDE BASE LENGTH: 0.78m HEIGHT: 1.15m
We thank you for choosing an Australian made shed
For further assistance please visit our detailed instructional video library at
http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be number ONE
Please let us know what you think of our instructions
Feedback makes us better
[email protected]
Absco Industries
Bin Cover Model: 1508BCK
PAGE 01

The site for the shed must be level. An uneven surface may result in
misalignment of parts.
It is recommended that the shed be set on a 100mm concrete slab and
anchored down appropriately (refer to last page for details).
Anchor sets suitable for concrete are supplied as standard items with this
product.
Before commencing any assembly, read through these instructions in detail
to gain a thorough understanding of assembly methods and associated
details.
Unpack the carton and carefully identify and check off all the parts against
the parts described and illustrated on "COMPONENTS PACKING LIST" pages.
Some parts may have sharp edges. It is advisable to wear gloves when
handling these items and safety glasses if drilling holes. Sensible shoes are
highly recommended.
Do not erect your shed in windy conditions.
Ensure that the shed is securely anchored to a solid foundation immediately
after construction is completed.
It is recommended to erect the shed with the assistance of another person.
10mm
(Steel)
10mm
(Masonary)
GENERAL INSTRUCTIONS
SITE PREPARATION
TOOLS REQUIRED OPTIONAL TOOLS
SAFETY NOTES
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 02

PSTKSGL - SINGLE DOOR FITTINGS PACK
1PADBOLT
115mm LONG FAST006 1PADBOLT HASP FAST007
13mm
DRILL BIT DRILL
1SCREW
PACK 6 PACK6P
1PHILLIPS HEAD
DRIVER BIT
S2 PH2
FAST038
18G x 3/8 SELF
TAPPING SCREWS
x 220
PACK220
PACK6P - SCREW PACK 6
6SBS43E
POP RIVET FAST009 6
3/16" x 1/2"
COUNTERSUNK
SCREW & NUT
FAST004
FAST005
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 03
1
2
6
12
12
1
6
INSTRUCTIONS & FITTINGS PACK
2
MAIN PACK CARTON (1 OF 1)
QTY QTYDESCRIPTION PART # CHK CHKDESCRIPTION PART #
4
1
1
11
INSTRUCTIONS & FITTINGS PACK INSTP##1508BC
1
1508BC
CHANNEL PACK 1508BCCP
1
1
COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS
SNAPTiTE SHEET
STRAIGHT
1130x773mm
SH44Z
SNAPTiTE SHEET
STRAIGHT
785 x 773mm
SH43Q
SNAPTiTE SHEET
STRAIGHT
785 x 773mm
SH43R
SNAPTiTE SHEET
STRAIGHT
1070 x 731mm
SH37B
SNAPTiTE SHEET
STRAIGHT
1070 x 711mm
SH37C
CAPPING
725mm LONG CO96A
64mm
BUTT HINGE
6 HOLE
FAST012A
DOOR PLATE
165mm CO12A
CHANNEL
JOINER
200mm LONG
ZACSJ
SADDLE
32mm FAST062
M4 x 10mm
PAN HEAD
SCREW
FAST060
63x20x16mm
HASP &
STAPLE
FAST052
8G x 3/4" SELF
TAPPING SCREW FAST013
SBS43E
POP RIVET
x50
PACK12
1
ANCHORS
8 PACK ANCHORSET
1
INSTRUCTION
MANUAL IM
16mm
DRILL BIT DRILL2
DOOR TRACK
BRACKET
150x150x20mm
BKT261
4
SINGLE DOOR
FITTINGS PACK PSTKSGL
1
PADBOLT
115mm LONG FAST006

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 04
1508BC CHANNEL PACK
QTY QTY
DESCRIPTION PART # CHK CHKDESCRIPTION PART #
2 2
1 1
1 1
1 1
1 1
1 1
2
2
12
2
2
1
1
1
2
2
2
COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS
CHANNEL
751.5mm
NOTCHED
ONE END
CH53HL
CHANNEL
751.5mm
NOTCHED
ONE END
CH53HR
CHANNEL
756.5mm
NOTCHED
ONE END
CH53JL
CHANNEL
756.5mm
NOTCHED
ONE END
CH53JR
CHANNEL
756.5mm
NOTCHED
ONE END
CH81FL
CHANNEL
756.5mm
NOTCHED
ONE END
CH81FR
CHANNEL
323mm
STRAIGHT
CH79HL
CHANNEL
1137mm
STRAIGHT
CH79HR
CHANNEL
760mm
STRAIGHT
CH81RL
CHANNEL
760mm
STRAIGHT
CH81RR
CHANNEL
760mm
STRAIGHT
CH81WL
CHANNEL
760mm
STRAIGHT
CH81WR
CHANNEL
1130mm
NOTCHED
BOTH ENDS
CH80F
CHANNEL
1070mm
STRAIGHT
CH58W
CHANNEL
731mm
STRAIGHT
CH58Z
CHANNEL
711mm
STRAIGHT
CH58M
CHANNEL
1070mm
STRAIGHT
CH58Y
CHANNEL
773mm
STRAIGHT
CH81J
JAMB
323mm
NOTCHED
ONE END
JA91HL
JAMB
1137mm
NOTCHED
ONE END
JA91HR
JAMB
1070mm
STRAIGHT
JA91J
JAMB
1130mm
NOTCHED
BOTH ENDS
JA91K
JAMB
990mm
STRAIGHT
JA91L
LIP
785mm LI87H
ANCHORSET - ANCHORS (8 PACK)
8 8
8 8
MASONRY
ANCHOR
Ø10x50mm
FAST015
ANCHOR
BRACKET
45x45x34mm
BKT01
M10x20mm
HEX HEAD BOLT FAST018-1
M10
HEX NUT FAST018-2
2CHANNEL
773mm
STRAIGHT
CH61G
1CHANNEL
1070mm
STRAIGHT
CH58T

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018 PAGE 05
Absco Industries
Bin Cover Model: 1508BCK
20mm
15mm
CHANNEL
PUSH PUSH
CHANNEL
CSJ
CSJ
CSJ
HIGH-SIDE
CHANNEL
LOW-SIDE
CHANNEL
CSJ
CSJ
CSJ
= =
= =
==
==
STEP 1.
Position the channels and the CSJ
joiner channel so the center of the
CSJ is in line with the end of each
channel to be joined together.
STEP 2.
Join the first channel to the CSJ by inserting the center
of the CSJ (on an angle) to the end of the channel
where the JOIN>> text is marked. Push down one side
of the CSJ until you hear a 'click'.
STEP 3.
Join the second channel to the CSJ
by positioning the <<JOIN end of the
channel at the center of the CSJ
(on an angle). Push the CSJ into
the channel until you here a 'click'.
=
The joined channels should now
look like the picture above with the
CSJ positioned equally inside of the
joined channels.
FINISHED CHANNEL
=
NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER.
JOIN>> <<JOIN JOIN>>
JOIN>> SJ
JOIN>>
<<JOIN
JOIN>> <<JOIN
J
CSJ
DRILL 4 x 3mm (2 PER A SIDE)
HOLES TO SECURE SECTIONS
TOGETHER.
(THESE SCREWS MAY HAVE TO
BE TEMPORARILY REMOVED
AND REPLACED DURING LATER
ASSEMBLY)
GUIDE FOR JOINING SPLICED CHANNELS

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018 PAGE 06
Absco Industries
Bin Cover Model: 1508BCK
=
=
=
=
1520mm
1 x 81W
1 x 81F
1 x 53J
2 x 53H
JOIN TOGETHER 12 X CHANNEL SECTIONS USING 6 X CHANNEL JOINERS (PART CSJ)
1 X 81WR
1 X 81WL
1 X 81FR
1 X 81FL
1 X 53JR
1 X 53JL
2 X 53HR
2 X 53HL
=1 x 81R
1 X 81RR
1 X 81RL
1513mm
1503mm
NOTE: SOME CHANNELS HAVE
HOLES IN THEM - YOU WILL NEED
TO RE-DRILL HOLES ON ANY
CHANNEL WHERE THE CSJ
JOINING CHANNEL COVERS
HOLES ON THE CHANNELS
YOU ARE CONNECTING
53HL
53HR
53JL
53JR
81FR
81FL
81WR
81WL
81RR
81RL
STEP ONE - ASSEMBLE THE SPLICED CHANNELS

81W
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
NO.
Absco Industries
Bin Cover Model: 1508BCK
PAGE 07
VIEW OF WALL COMPONENTS
VIEW OF ROOF COMPONENTS
81J
61G
61G
44Z
44Z
44Z
37C
53J
53H
79H
91K
91K
81F
91H
44Z
96A 37B
91L
91L
87H
87H
81R
FAST048
43R
43Q
80F
80F

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
FASTENING SYMBOLS
The snaptite assembly system locks end channels to all roof and wall sheets without
the need for tools and fasteners.
To assemble each panel, the perimeter
channels are secured to the top and
bottom of each panel using the snaptite
system, as detailed on the following
pages wherever you see this symbol.
TIP: Position sheets on timbers,
trestles or partly over edge of
concrete slab.
Each perimeter channel must finish flush with the
edges of the sheets.The snaptite system allows
adjustment for this process by simply tapping the
channel along the sheets until each end is neatly
flush. If you need to remove channels from the
panels, pull the channel along the panel from
opposing ends. You may need someone to help
with this.
Join components together with one screw at this
location only, as some channel sections have extra
holes that are not required for this model of garden
shed
Do not join components together at this location yet,
as the screw may obstruct further assembly of other
components
4mm NUT & BOLT SET
3mm POP RIVETS
PUSH
PUSH
HIGH SIDE
HIGH SIDE
PUSH
HIGH SIDE
HIGH SIDE
After fastening sheets together, position the channel over one end of the sheets.
Gently tap it over the SNAPTiTE lugs, working along the sheets to the other end.
HIGH SIDE
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
Join components together by pre-drilling the holes first.
Use one component as a template to mark where the
holes are. Drill with 3mm drill bit.
D
SNAPTiTE ASSEMBLY GUIDE
Absco Industries
Bin Cover Model: 1508BCK
PAGE 08

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 09
REAR PANEL ASSEMBLY
ROTATE 1x SHEET 180°
44Z
44Z
81F
53J
FAST009
FAST012A
SNAP
T TE
i
SNAP
T TE
i
FIT SCREWS TO SPLICED
JOIN HOLES AFTER
CHANNELS HAVE BEEN
FITTED TO THE SHEETS

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 10
LEFT SIDE PANEL SIDE PANEL ASSEMBLIES RIGHT SIDE PANEL
Reverse side of Door Mullion
80F
61G
81J
SNAP
T TE
i
SNAP
T TE
i
Top
Bottom
44Z
80F Top
Bottom
Top
Bottom
81J
61G
SNAP
T TE
i
SNAP
T TE
i
Bottom
Top
44Z

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 11

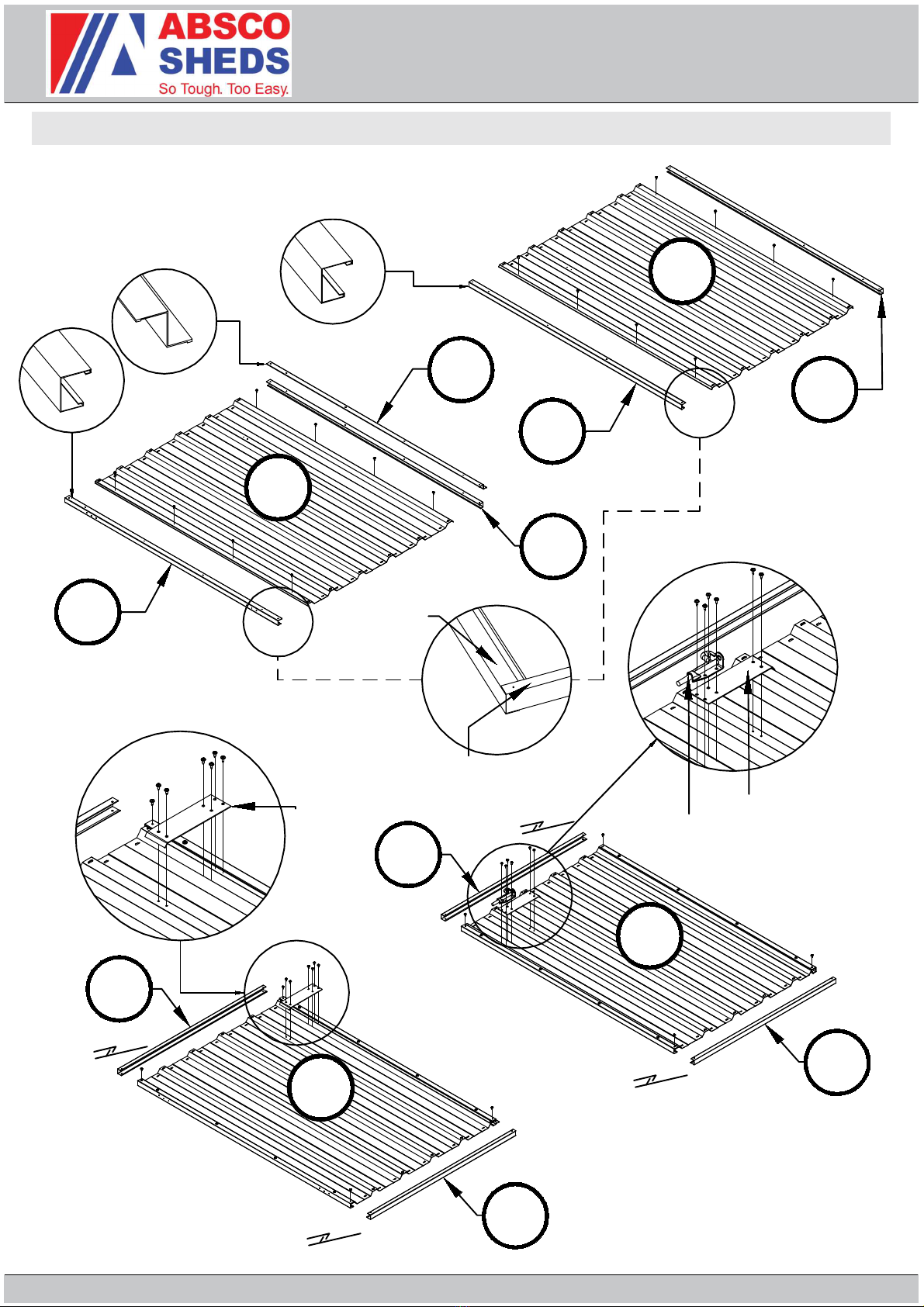

LID ASSEMBLY
87H
87H
91L
91L
D
TIP: Fasten 1x screw at each end of each 91L from the underside
of the lid. Flip over the lid and fit the remaining screws.
The screws at the ends can then be removed and fastened from
the top side of the lid.
NOTE: HOLE ORIENTATION
ON SHEETS ILLUSTRATED
43Q
43R
SNAP
T TE
i
SNAP
T TE
i
81R
81W
D
FAST062
FIT FAST060 SCREWS
DOWN THROUGH TOP
OF PANEL TO SECURE
FAST062 SADDLE ONTO
UNDERSIDE OF PANEL
FIT SCREWS TO SPLICED
JOIN HOLES AFTER
CHANNELS HAVE BEEN
FITTED TO THE SHEETS

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 12

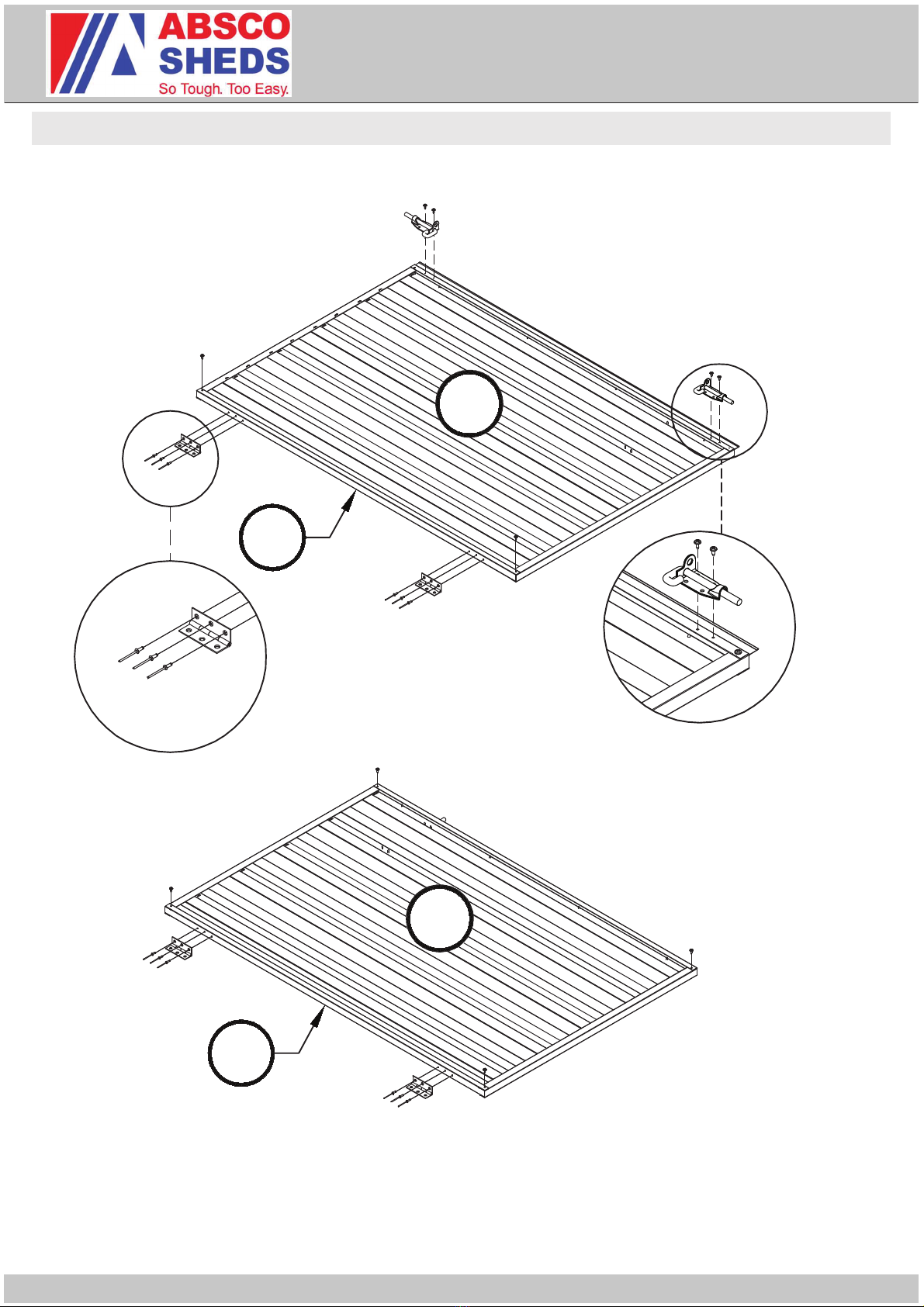

DOOR PANEL ASSEMBLIES
SNAP
T TE
i
37B
37C
91J
58Y
58W
58M
58Z
58Z
58M
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
58T
20mm
15mm FLANGE
ALL VERTICAL DOOR
CHANNELS ARE INSTALLED
IN THE REVERSE DIRECTION
IN COMPARISON TO
HORIZONTAL DOOR
CHANNELS
FLANGE
37C
37B
D
D
DD
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
CO12A
FAST006
CO12A
58Y

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 13
37C
DDD
DDD
58Y
DOOR PANEL ASSEMBLIES - FLIP BOTH PANELS OVER
37B
DDD
DDD
FAST009
FAST012A
FAST001 x2
FAST006
FAST001 x2
FAST006
58Y

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 14
FRONT PANEL ASSEMBLY
91K
91K
53H
53H
79HL
79HR
91HR
91HL
FAST013
FAST013
FAST013
FAST013
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001
FAST001

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
NOTE: NUTS AND BOLTS
(SUPPLIED) MAY BE USED
INSTEAD OF POP RIVETS
(SUPPLIED) BY SIMPLY
ENLARGING THE HINGE
HOLE SETS IN THE JAMB
USING A 4MM DRILL BIT
Absco Industries
Bin Cover Model: 1508BCK
PAGE 15
FRONT PANEL RAMP & DOOR INSTALLATION
CO96A
CO96A
FAST009
FAST009
FAST009
ALIGN THE CO96A RAMPS ON TOP OF 79H CHANNEL
DRILL A Ø3mm HOLE AND FIT 1x FAST009 POP RIVET
AT EACH OF THE LOCATIONS ILLUSTRATED
79H
FAST009
FAST009
FAST009
FAST009
37B
37C

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
SIDE WALL PANEL CHANNELS FIT
INTO THE NOTCHED FRONT AND
REAR WALL PANEL CHANNELS
44Z
80F
91K
CONNECT DOOR MULLION SECTIONS WITH SIX
FAST013 SCREWS ON EACH SIDE
Absco Industries
Bin Cover Model: 1508BCK
PAGE 16
WALL PANEL CONSTRUCTION
FAST001
FAST001
FAST001
FAST001
FAST013
(REFIT)
FAST013
FAST013
FAST013
FAST013
FAST013
(REFIT)
FAST009
FAST009
FAST009
FAST009
FIT 4x BKT261 BRACKETS TO TOP
CORNERS USING FAST001 SCREWS

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
NOTE: The two holes required to connect the
padbolt hasp for each door have not been
pre-punched, to allow for proper alignment.
position each hasp centrally over the padbolt
shaft, and drill 3mm holes and secure with screws
Absco Industries
Bin Cover Model: 1508BCK
PAGE 17
LID PANEL INSTALLATION
FAST009
FAST009
FAST009

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
DYNABOLT
BOLT & NUT
STEEL
ANGLE
SLAB
WALL
SHEET
ANCHORING OF SHED
LOCATION OF 4
CONCRETE
ANCHORS
Absco Industries
Bin Cover Model: 1508BCK
FINAL CONSTRUCTION
PAGE 18
- EACH ANCHOR CONSISTS OF ONE NUT, BOLT,
DYNABOLT AND STEEL ANGLE
- DRILL A 10mm HOLE INTO THE WALL SHEET
- DRILL A 10mm HOLE INTO THE CONCRETE
- POSITION THE STEEL ANGLE
- PLACE THE DYNABOLT INTO THE CONCRETE HOLE & TIGHTEN
- SECURE THE STEEL ANGLE TO THE WALL SHEET USING THE REMAINING NUT & BOLT
- REPEAT FOR EACH ANCHOR LOCATION
- MOVE THE 37B DOOR INTO THE CLOSED
POSITION AND MARK WHERE THE FAST006
PADBOLT TOUCHES THE CO96A RAMP.
- MOVE THE 37B DOOR OUT OF THE WAY
AND DRILL A Ø10mm HOLE THROUGH THE
CO96A RAMP AND 79H CHANNEL.
FAST052
HASP
FAST052
LATCH
TIP: TIE A STRAP OR CORD THROUGH THE FAST062 SADDLE
ONTO YOUR WHEELIE BIN HANDLES TO CREATE A ONE-LIFT
LID OPENING FEATURE

replacement or refund for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled
three business days to advise you of the assessment outcome of the claim, which may include your expenses incurred in making
This warranty does not apply to surface deterioration of panels caused by 'Swarf” (Tiny particles of steel debris left from cutting,
replacement or refund for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled
three business days to advise you of the assessment outcome of the claim, which may include your expenses incurred in making
ABSCO SHEDS - STORAGE GUIDELINES
ABSCO SHEDS include garden sheds, garden beds, storage units, aviaries, garages, awnings and carports.
ABSCO SHEDS are designed to be weatherproof for normal weather conditions. In the event of extreme weather
conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fixings
etc., may exhibit minor deformations which may allow some water entry. These areas should be checked
regularly to ensure that maximum strength and protection is maintained.
Other weather conditions such as extreme heat and extreme cold, moist or dry air can influence the effects of
concrete floor moisture and/or condensation on the underside of the roof sheets.
ABSCO SHEDS and storage units are primarily used for storage of garden equipment such as lawnmowers,
wheelbarrows, garden tools etc. Storage items that might be adversely affected by any of the above conditions
may require additional protection such as being sealed or covered by plastic sheets and/or stacked above the
concrete floor on timber slats.
Waterproof sealants may be used to offer further protection where required around joins and screw fixings, as
can rubber door seals and other products which are available from most hardware outlets.
Placement of waterproof sealants (silicone) between the base of the shed and concrete slab is not
recommended, as this process can have a reverse effect, preventing excess water from escaping, resulting with
water accumulating and being trapped inside the shed.
Absco accepts no responsibility for water entry, floor moisture, condensation or the condition of the Contents
inside your Absco steel building arising from any of the pre-mentioned weather conditions.
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 1508BCK 11-04-2018
Absco Industries
Bin Cover Model: 1508BCK
PAGE 20

Lifetime Warranty Statement
This warranty against defects is given by:
Absco Industries (ABN: 77 869 708 678)
Address: PO Box 119 Acacia Ridge QLD 4110
Ph: 1800 029 701
Fax: [phone]
Email: [e-mail]
Date of issue: 19 December 2018
Details of Manufacturer’s Warranty
This product comes with a Lifetime structural warranty from the date of purchase. This warranty also
applies where there are missing or damaged parts identied in the parts list referred to in the instruction
kit within the product packaging.
Please ensure that you keep this warranty form in a safe place along with your proof of purchase. You can
register your warranty online http://abscosheds.com.au/warranty-details/ or complete the form on the
back of this document and mail it back to Absco, along with a copy of your proof of purchase.
The benets of this warranty are in addition to your rights under the Australian Consumer Law (ACL) and
in particular, the guarantees implied under the ACL and any other rights and remedies of the consumer
under a similar law in relation to the goods and services to which this warranty relates.
Process of claiming warranty:
To make a claim under the warranty within the warranty period, you will need to contact the manufacturer
directly by phone or email:
Contact Number: 1800 029 701
Contact Email: [e-mail]
You will be required to produce proof of purchase (this is at discretion of the manufacturer) at the time of
the claim.
The manufacturer bears the cost of replacing the products or spare parts or repairing the products and
reasonable direct expenses of claiming under this warranty:
Where parts are replaced, the manufacturer will bear the cost of sending the spare part and will endeavour
to deliver it to the customer’s nearest reseller within 20 working days for the customer to pick up. At such
time the customer may be required to return the alleged faulty parts.
Where assessment is required in case of replacing or repairing the product, the manufacturer will appoint
an assessor within 10 working days to identify the alleged defect. The manufacturer will bear the repair
costs by appointing a local tradesman. The manufacturer may choose to replace the product if the repair or
the cost of repair is not feasible. The replacement product will be available for collection from the nearest
reseller within 20 working days. The customer will bear the cost of assembly for the replacement product.
1
