Abt GFMJ Series User manual

C on ten t s
1. Introduction ............................................................................................................01
2. Technical features ..........................................................................................01
3. Applications ...........................................................................................................02
4. Standards ............................................................................................................02
5. Certification ............................................................................................................02
6. Battery construction ...........................................................................................02
7. General Specifications ...........................................................................................04
8. Technology ............................................................................................................05
9. Performance Data ..................................................................................................06
10. Operating instruction and Guidelines ....................................................................12
11. Installation and Commissioning and Maintenance .................................................14

Introduction
ABT-GFMJ series are VRLA Gel technology battery, incorporate key raw material and use the modern
specialized gel equipments for production. Gelelectrolyte design with thick positive plate technology and
patented gel electrolyte and filling technique which guarantee long service life and super reliability. They
are widely used in telecommunication, power supply system, energy storage, UPS and EPS system,
solar energy and cycling applications.
Technical Features
Plate
Following our research on corrosion effect during battery life, we have improved the technology of
grid alloy, lead paste formula additive. During manufacturing process with high temperature and
high humidity this process solidify, increase the content of 4PbO·PbS4O·H2O, improving the binding
ability of active material and grid pasting, avoiding early capacity loss due to barrier layer between
active material and grid paste.
Gel electrolyte
Fumed Silic aused for Gel electrolyte ensuring even distribution inside battery and with no acid
stratification.
High quality electrolyte ensures a high level of filling gel electrolyte in box between and over the
plates and separators which give perfect heat dispersion and prevent thermal runaway caused by
water loss, and gel electorlyte protects active materials from shedding.
Special separator
PVC-SiO2 micro-porous separator ensures low internal resistance, high porosity, intense
absorption of gel electrolyte and long cyclic life.
Patented relief valve
Multi-fold vent system, comprised of proprietary gel-specialized low-pressure safety valve with acid
filtering and flash arrester, minimizes bulging and prevents flash back explosion from external
ignition source.
Long service life
The grid is made of lead-calcium-tin alloy which has effect against corrosion effect, and provide
good gas recombination technology.
Low density of gel electrolyte decelerate corrosion of plate grids.
Plates cured by high-temperature and high-moisture process forming long life 4PbO·PbSO4·H 2O
crystal structure; Efficient container formation process, guarantee for the plates quality;
Design life: 2V GFMJ series 18 years, 12V GFMJ series 12 years;
Cycle life: Under standard using conditions, 2V GFMJ series 25% DOD cycle 3500 times; 12V
GFMJ series 25%DOD cycle 2950 times
Deep discharge performance
With excellent anti-deep discharge performance, the battery can be connected in load after 100%
discharge and recover the original capacity after 4 weeks.
Strong recharger ecovering ability after battery deep discharge, excellent long cyclic endurance
performance.
Low self-discharge rate
Low self-dischargerate, average month rate ≤2%;
Gel electrolyte with high purity; storage at ambient temperature 20 for two years, the rest capacity
remains more than 50%.
Reliable sealing performance
Patented and time tested integrity terminal sealing of “O” ring, pressing nuts and secondary epoxy
resin ensures leakage free operation.
Exceptional gas recombination performance, no acid leakage and gas emission in operation which
provide the battery to be installed with equipment and in cabinet.
01

Wide working temperature range
The operation temperature range is -20℃～55℃,and the recommended optimal temperature is 20℃
±5℃.
Extra electrolyte design ensures it can work in high temperature or over discharge condition,
preventing dry up of the battery.
Thickened ABS (FV0 is optional) and cover are shock and vibration resistant, prevents leakage and
container deformation.
Applications
Telecommunication base station, exchange
station.
Dedicated telecommunication station for
power system, military station.
Data transmission and TV signal
transmission
EPS/UPS
Wind,solar energy and wind/pv hybrid power
system
Certification
CE
UL
GOST
Standards
IEC60896-21/22:2004
IEC61427-2005
DIN43539-T5 1984
YD/T1360-2005
Eurobat Guide
Battery construction
6GFMJ-33 6GFMJ-50 and 6GFMJ-65
6GFMJ-85 6GFMJ-100/120/150/200
02

GFMJ-200 and GFMJ-300 GFMJ-400/500/600
GFMJ-800 and GFMJ-1000 GFMJ-1200
GFMJ-1500 and GFMJ-2000
03

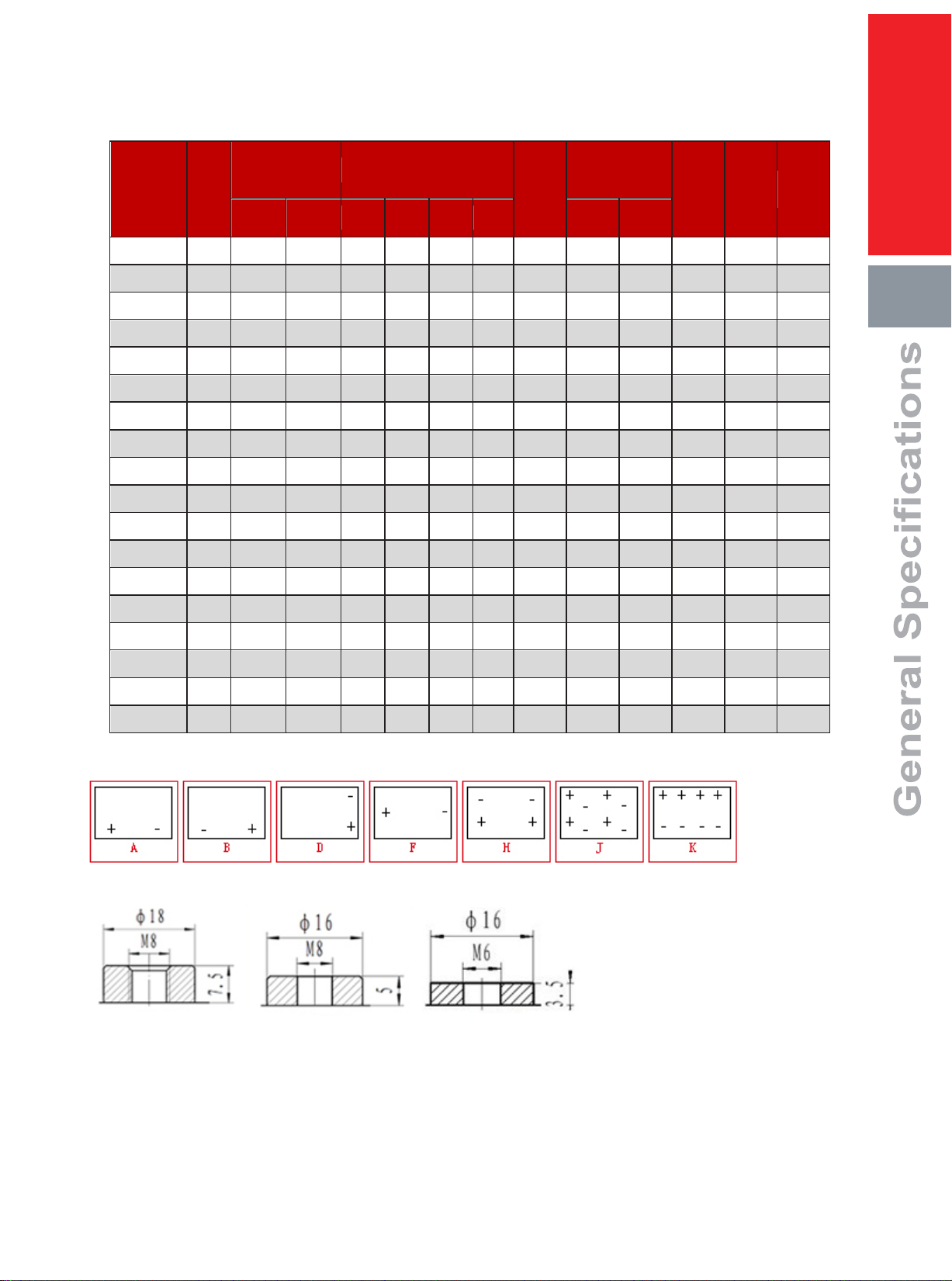

General Specifications
Battery Type
Nominal
Voltage
(V)
Nominal
Capacity
(Ah,20℃)
Dimensions (mm)
Weight
(kg)
Maximum Current
(20℃, A)
Internal
Resistance
(mΩ,20℃)
Terminal
Type
Terminal
Layout
C10
1.80V/cell
C100
1.80V/cell
L
W
H
TH
1 min
1 sec
6GFMJ-33
12
33
41
198
166
170
170
14
165
550
8.50
M6×Φ16
B
6GFMJ-50
12
50
63
276
174
169
198
21
220
780
7.64
M8×Φ16
B
6GFMJ-65
12
65
81
310
174
209
236
30
260
900
7.35
M8×Φ16
B
6GFMJ-85
12
85
106
414
174
218
228
37
320
1100
5.85
M8×Φ16
A
6GFMJ-100
12
100
125
513
163
218
228
44
360
1200
3.91
M8×Φ16
D
6GFMJ-120
12
120
150
513
232
218
228
52.3
380
1300
3.86
M8×Φ16
D
6GFMJ-150
12
150
188
513
232
218
228
63.8
560
1600
3.65
M8×Φ16
D
6GFMJ-200
12
200
250
513
296.5
218
228
82.8
660
1850
3.20
M8×Φ16
D
GFMJ-200
2
200
250
171
107
334
344
14.8
800
1900
0.68
M8×Φ18
F
GFMJ-300
2
300
375
171
151
334
344
21.3
1000
2000
0.54
M8×Φ18
F
GFMJ-400
2
400
500
211
175
334
344
30
1500
2800
0.45
M8×Φ18
H
GFMJ-500
2
500
625
243
174
334
344
35.5
2000
3200
0.39
M8×Φ18
H
GFMJ-600
2
600
750
302
177
334
344
44
2400
3600
0.33
M8×Φ18
H
GFMJ-800
2
800
1000
410
175
334
344
60
3000
4800
0.28
M8×Φ18
K
GFMJ-1000
2
1000
1250
478
175
334
344
71
4000
6000
0.24
M8×Φ18
K
GFMJ-1200
2
1200
1500
346
310
335
357
85.5
4800
7200
0.165
M8×Φ18
J
GFMJ-1500
2
1500
1875
401
351
340
350
107
6000
9000
0.184
M8×Φ18
J
GFMJ-2000
2
2000
2500
490
350
340
350
140
8000
12000
0.12
M8×Φ18
J
Terminal Layout
Terminals
04

Technology
Working and sealing principle
In the charge and discharge process of ABT-GEL battery, it occurs to below reaction in the battery inside
Discharge
PbO2 +2H2SO4 + Pb PbSO4 + 2H2O + PbSO4
Charge
At the later stage of charging or over-charge condition, oxygen would be evolved from positive electrode
and hydrogen would be evolved from negative electrode. The negative electrode is made of high pure
lead-calcium alloy, which inhibit the hydrogen evolution. The batteries apply special gel electrolyte
technology, and the gel is with three dimensional net porous structures, and also with some tiny cracks
as gas passage. The oxygen from positive electrode get to negative through the special gel and rapidly
react with the spongy lead existing on the negative electrode and produce water. This process is called
gas recombination and no water loss during it. The battery is sealed in this way and achieves
maintenance free.
Reaction in the process
1. H2O→2H++1/2O2+2e-
2. O2+2H2SO4+2Pb=2PbSO4+2H2O
3. PbSO4+2H++2e-→Pb+H2SO4
05

Performance Data
GFMJ Series 12V Battery Constant Current Discharge (Amperes @ 20℃)
Constant Current Discharge Data Sheet (20℃)-------Amperes(A)
Battery Type
End Voltage
(V/cell)
Discharge Time
5min
10min
15min
20min
30min
45min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
24 h
48 h
100 h
120 h
240 h
6GFMJ-33
1.60
92
67
52
44
32
25
19.1
14.8
11.4
8.60
5.80
3.30
1.78
1.52
0.80
0.41
0.36
0.19
1.65
88
65
51
43
32
25
18.7
14.6
11.4
8.60
5.80
3.30
1.78
1.52
0.80
0.41
0.36
0.19
1.70
82
61
50
42
31
24
18.7
14.4
11.4
8.60
5.80
3.30
1.78
1.52
0.80
0.41
0.36
0.19
1.75
76
57
49
41
30
23
18.4
14.2
11.4
8.60
5.80
3.30
1.78
1.52
0.80
0.41
0.36
0.19
1.80
65
52
46
38
29
22
18.2
13.8
11.0
8.30
5.65
3.30
1.72
1.45
0.80
0.41
0.36
0.19
6GFMJ-50
1.60
140
102
79
67
49
38
28.9
22.5
17.2
13.10
8.80
5.00
2.70
2.31
1.22
0.63
0.55
0.29
1.65
133
98
78
66
48
37
28.4
22.2
17.2
13.10
8.80
5.00
2.70
2.31
1.22
0.63
0.55
0.29
1.70
125
93
76
64
48
36
28.4
21.8
17.2
13.10
8.80
5.00
2.70
2.31
1.22
0.63
0.55
0.29
1.75
116
87
74
61
46
35
27.9
21.5
17.2
13.10
8.80
5.00
2.70
2.31
1.22
0.63
0.55
0.29
1.80
99
79
69
57
44
34
27.5
20.9
16.7
12.50
8.50
5.00
2.60
2.20
1.22
0.63
0.55
0.29
6GFMJ-65
1.60
182
132
103
87
63
50
37.6
29.2
22.4
17.00
11.40
6.50
3.51
3.00
1.58
0.81
0.71
0.38
1.65
172
128
101
85
63
49
36.9
28.8
22.4
17.00
11.40
6.50
3.51
3.00
1.58
0.81
0.71
0.38
1.70
162
121
99
83
62
47
36.9
28.3
22.4
17.00
11.40
6.50
3.51
3.00
1.58
0.81
0.71
0.38
1.75
150
112
96
80
60
46
36.2
28
22.4
17.00
11.40
6.50
3.51
3.00
1.58
0.81
0.71
0.38
1.80
128
102
90
75
57
44
35.8
27.2
21.7
16.30
11.10
6.50
3.38
2.86
1.58
0.81
0.71
0.38
6GFMJ-85
1.60
237
173
135
113
83
65
49.1
38.2
29.2
22.30
14.90
8.50
4.59
3.93
2.07
1.06
0.93
0.49
1.65
225
167
132
111
82
64
48.2
37.7
29.2
22.30
14.90
8.50
4.59
3.93
2.07
1.06
0.93
0.49
1.70
212
158
130
109
81
62
48.2
37.1
29.2
22.30
14.90
8.50
4.59
3.93
2.07
1.06
0.93
0.49
1.75
197
147
125
104
78
60
47.3
36.6
29.2
22.30
14.90
8.50
4.59
3.93
2.07
1.06
0.93
0.49
1.80
168
134
117
97
74
58
46.8
35.5
28.4
21.30
14.50
8.50
4.42
3.74
2.07
1.06
0.93
0.49
6GFMJ-100
1.60
279
204
159
133
97
76
57.8
44.9
34.4
26.20
17.50
10.00
5.40
4.62
2.43
1.25
1.09
0.58
1.65
265
196
156
131
96
75
56.7
44.3
34.4
26.20
17.50
10.00
5.40
4.62
2.43
1.25
1.09
0.58
1.70
250
186
152
128
95
72
56.7
43.6
34.4
26.20
17.50
10.00
5.40
4.62
2.43
1.25
1.09
0.58
1.75
231
173
147
123
92
70
55.7
43
34.4
26.20
17.50
10.00
5.40
4.62
2.43
1.25
1.09
0.58
1.80
197
158
138
115
87
68
55.0
41.8
33.4
25.00
17.00
10.00
5.20
4.40
2.43
1.25
1.09
0.58
6GFMJ-120
1.60
335
244
190
160
117
91
69.4
53.9
41.3
31.40
21.00
12.00
6.48
5.54
2.92
1.50
1.31
0.70
1.65
318
236
187
157
115
90
68
53.2
41.3
31.40
21.00
12.00
6.48
5.54
2.92
1.50
1.31
0.70
1.70
300
223
183
154
114
87
68
52.3
41.3
31.40
21.00
12.00
6.48
5.54
2.92
1.50
1.31
0.70
1.75
277
208
177
147
111
85
66.8
51.6
41.3
31.40
21.00
12.00
6.48
5.54
2.92
1.50
1.31
0.70
1.80
237
189
166
138
104
81
66.0
50.2
40.1
30.00
20.40
12.00
6.24
5.28
2.92
1.50
1.31
0.70
6GFMJ-150
1.60
419
305
238
200
146
114
86.7
67.4
51.6
39.30
26.25
15.00
8.10
6.93
3.65
1.88
1.64
0.87
1.65
398
295
233
196
144
112
85.1
66.5
51.6
39.30
26.25
15.00
8.10
6.93
3.65
1.88
1.64
0.87
1.70
374
279
229
192
143
109
85.1
65.4
51.6
39.30
26.25
15.00
8.10
6.93
3.65
1.88
1.64
0.87
1.75
347
259
221
184
138
106
83.6
64.5
51.6
39.30
26.25
15.00
8.10
6.93
3.65
1.88
1.64
0.87
1.80
296
236
207
172
131
102
82.5
62.7
50.1
37.50
25.50
15.00
7.80
6.60
3.65
1.88
1.64
0.87
06

Performance Data
GFMJ Series 12V Battery Constant Current Discharge (Amperes @ 20℃)
Constant Current Discharge Data Sheet (20℃)-------Amperes(A)
Battery Type
End Voltage
(V/cell)
Discharge Time
5min
10min
15min
20min
30min
45min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
24 h
48 h
100 h
120 h
240 h
6GFMJ-200
1.60
559
407
317
266
194
152
115.6
89.8
68.8
52.40
35.00
20.00
10.80
9.24
4.86
2.50
2.18
1.16
1.65
530
393
311
262
192
149
113.4
88.6
68.8
52.40
35.00
20.00
10.80
9.24
4.86
2.50
2.18
1.16
1.70
499
372
305
256
190
145
113.4
87.2
68.8
52.40
35.00
20.00
10.80
9.24
4.86
2.50
2.18
1.16
1.75
462
346
295
246
184
141
111.4
86
68.8
52.40
35.00
20.00
10.80
9.24
4.86
2.50
2.18
1.16
1.80
395
315
276
229
174
136
110.0
83.6
66.8
50.00
34.00
20.00
10.40
8.80
4.86
2.50
2.18
1.16
GFMJ Series 2V Battery Constant Current Discharge (Amperes @ 20℃)
Constant Current Discharge Data Sheet (20℃)-------Amperes(A)
Battery Type
End Voltage
(V/cell)
Discharge Time
5min
10min
15min
20min
30min
45min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
24 h
48 h
100 h
120 h
240 h
GFMJ-200
1.65
340
310
288
260
202
125
75
55
38
34.00
26.60
22.10
11.20
9.45
4.86
2.51
2.18
1.16
1.70
320
295
260
227
190
123
73.7
54.4
37.1
32.20
25.80
21.30
10.80
9.20
4.86
2.51
2.18
1.16
1.75
300
279
248
219
184
121
72.3
53.6
36.4
31.70
25.30
20.90
10.60
9.10
4.86
2.51
2.18
1.16
1.80
280
265
229
202
170
112
69.4
51.2
35
30.50
24.30
20.00
10.20
9.02
4.86
2.51
2.18
1.16
1.85
240
229
209
189
159
108
65.3
48.0
32.9
28.60
22.80
18.90
9.80
8.90
4.86
2.51
2.18
1.16
GFMJ-300
1.65
510
465
432
390
303
188
112.5
82.5
57
51.00
39.90
33.75
16.95
14.22
7.29
3.75
3.27
1.74
1.70
480
443
390
341
285
185
110.6
81.6
55.65
48.30
38.70
31.95
16.65
14.05
7.29
3.75
3.27
1.74
1.75
450
419
372
329
276
182
108.5
80.4
54.6
47.55
37.95
31.35
16.50
13.90
7.29
3.75
3.27
1.74
1.80
420
398
344
303
255
168
104.1
76.8
52.5
45.75
36.45
30.00
16.20
13.72
7.29
3.75
3.27
1.74
1.85
360
344
314
284
239
162
98.0
72.0
49.4
42.90
34.20
28.35
15.30
13.20
7.29
3.75
3.27
1.74
GFMJ-400
1.65
680
620
576
520
404
250
150
110
76
68.00
53.20
45.00
22.60
19.02
9.72
5.00
4.36
2.32
1.70
640
590
520
454
380
246
147.4
108.8
74.2
64.40
51.60
42.60
22.20
18.68
9.72
5.00
4.36
2.32
1.75
600
558
496
438
368
242
144.6
107.2
72.8
63.40
50.60
41.80
22.00
18.58
9.72
5.00
4.36
2.32
1.80
560
530
458
404
340
224
138.8
102.4
70
61.00
48.60
40.00
21.60
18.43
9.72
5.00
4.36
2.32
1.85
480
458
418
378
318
216
130.6
96.0
65.8
57.20
45.60
37.80
20.40
17.60
9.72
5.00
4.36
2.32
GFMJ-500
1.65
850
775
720
650
505
313
187.5
137.5
95
85.00
66.50
56.25
28.25
23.75
12.15
6.25
5.45
2.90
1.70
800
738
650
568
475
308
184.3
136
92.75
80.50
64.50
53.25
27.75
23.30
12.15
6.25
5.45
2.90
1.75
750
698
620
548
460
303
180.8
134
91
79.25
63.25
52.25
27.50
23.10
12.15
6.25
5.45
2.90
1.80
700
663
573
505
425
280
173.5
128
87.5
76.25
60.75
50.00
27.00
23.10
12.15
6.25
5.45
2.90
1.85
600
573
523
473
398
270
163.3
120.0
82.3
71.50
57.00
47.25
25.50
22.00
12.15
6.25
5.45
2.90
GFMJ-600
1.65
1020
930
864
780
606
375
225
165
114
102.00
79.80
67.50
33.90
27.72
14.58
7.50
6.54
3.48
1.70
960
885
780
681
570
369
221.1
163.2
111.3
96.60
77.40
63.90
33.30
27.72
14.58
7.50
6.54
3.48
1.75
900
837
744
657
552
363
216.9
160.8
109.2
95.10
75.90
62.70
33.00
27.72
14.58
7.50
6.54
3.48
1.80
840
795
687
606
510
336
208.2
153.6
105
91.50
72.90
60.00
32.40
27.72
14.58
7.50
6.54
3.48
1.85
720
687
627
567
477
324
195.9
144.0
98.7
85.80
68.40
56.70
30.60
26.40
14.58
7.50
6.54
3.48
07

Performance Data
GFMJ Series 2V Battery Constant Current Discharge (Amperes @ 20℃)
Constant Current Discharge Data Sheet (20℃)-------Amperes(A)
Battery Type
End Voltage
(V/cell)
Discharge Time
5min
10min
15min
20min
30min
45min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
24 h
48 h
100 h
120 h
240 h
GFMJ-800
1.65
1360
1240
1152
1040
808
500
300
220
152
136.00
106.40
90.00
45.20
38.35
19.44
10.00
8.72
4.64
1.70
1280
1180
1040
908
760
492
294.8
217.6
148.4
128.80
103.20
85.20
44.40
38.00
19.44
10.00
8.72
4.64
1.75
1200
1116
992
876
736
484
289.2
214.4
145.6
126.80
101.20
83.60
44.00
37.40
19.44
10.00
8.72
4.64
1.80
1120
1060
916
808
680
448
277.6
204.8
140
122.00
97.20
80.00
43.20
36.96
19.44
10.00
8.72
4.64
1.85
960
916
836
756
636
432
261.2
192.0
131.6
114.40
91.20
75.60
40.80
36.25
19.44
10.00
8.72
4.64
GFMJ-1000
1.65
1700
1550
1440
1300
1010
625
375
275
190
170.00
133.00
112.50
56.50
47.80
24.30
12.50
10.90
5.80
1.70
1600
1475
1300
1135
950
615
368.5
272
185.5
161.00
129.00
106.50
55.50
47.40
24.30
12.50
10.90
5.80
1.75
1500
1395
1240
1095
920
605
361.5
268
182
158.50
126.50
104.50
55.00
47.10
24.30
12.50
10.90
5.80
1.80
1400
1325
1145
1010
850
560
347
256
175
152.50
121.50
100.00
54.00
46.80
24.30
12.50
10.90
5.80
1.85
1200
1145
1045
945
795
540
326.5
240.0
164.5
143.00
114.00
94.50
51.00
46.50
24.30
12.50
10.90
5.80
GFMJ-1200
1.65
2040
1860
1728
1560
1212
750
450
330
228
204.00
159.60
135.00
67.80
57.50
29.16
15.00
13.08
6.96
1.70
1920
1770
1560
1362
1140
738
442.2
326.4
222.6
193.20
154.80
127.80
66.60
57.30
29.16
15.00
13.08
6.96
1.75
1800
1674
1488
1314
1104
726
433.8
321.6
218.4
190.20
151.80
125.40
66.00
57.00
29.16
15.00
13.08
6.96
1.80
1680
1590
1374
1212
1020
672
416.4
307.2
210
183.00
145.80
120.00
64.80
56.80
29.16
15.00
13.08
6.96
1.85
1440
1374
1254
1134
954
648
391.8
288.0
197.4
171.60
136.80
113.40
61.20
54.50
29.16
15.00
13.08
6.96
GFMJ-1500
1.65
2550
2325
2160
1950
1515
938
562.5
412.5
285
255.00
199.50
168.75
84.75
70.90
36.45
18.75
16.35
8.70
1.70
2400
2213
1950
1703
1425
923
552.8
408
278.3
241.50
193.50
159.75
83.25
70.40
36.45
18.75
16.35
8.70
1.75
2250
2093
1860
1643
1380
908
542.3
402
273
237.75
189.75
156.75
82.50
70.00
36.45
18.75
16.35
8.70
1.80
2100
1988
1718
1515
1275
840
520.5
384
262.5
228.75
182.25
150.00
81.00
69.30
36.45
18.75
16.35
8.70
1.85
1800
1718
1568
1418
1193
810
489.8
360.0
246.8
214.50
171.00
141.75
76.50
66.00
36.45
18.75
16.35
8.70
GFMJ-2000
1.65
3400
3100
2880
2600
2020
1250
750
550
380
340.00
266.00
225.00
113.00
95.40
48.60
25.00
21.80
11.60
1.70
3200
2950
2600
2270
1900
1230
737
544
371
322.00
258.00
213.00
111.00
95.00
48.60
25.00
21.80
11.60
1.75
3000
2790
2480
2190
1840
1210
723
536
364
317.00
253.00
209.00
110.00
94.30
48.60
25.00
21.80
11.60
1.80
2800
2650
2290
2020
1700
1120
694
512
350
305.00
243.00
200.00
108.00
93.70
48.60
25.00
21.80
11.60
1.85
2400
2290
2090
1890
1590
1080
653.0
480.0
329.0
286.00
228.00
189.00
102.00
93.00
48.60
25.00
21.80
11.60
08

Performance Data
GFMJ Series 12V Battery Constant Power Discharge (Watt per cell @ 20℃)
Constant Power Discharge Data Sheet (20℃)-------Watt (W)
Battery Type
End Voltage
(V/cell)
Discharge Time
5min
10min
15min
20min
30min
45min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
24 h
48 h
100 h
120 h
240 h
6GFMJ-33
1.60
163
122
96
80
60
45
35.2
27.4
21.5
15.50
10.60
6.30
3.40
3.02
1.60
0.83
0.73
0.39
1.65
151
117
94
79
60
45
34.6
27.2
21.5
15.50
10.60
6.20
3.40
3.02
1.60
0.83
0.73
0.39
1.70
138
111
90
78
59
44
34.6
26.9
21.5
15.50
10.60
6.20
3.40
3.02
1.60
0.83
0.73
0.39
1.75
128
103
88
75
57
43
34
26.7
21.5
15.50
10.60
6.10
3.40
3.02
1.60
0.83
0.73
0.39
1.80
119
94
84
70
55
42
33.5
26.0
20.9
15.10
10.10
6.00
3.30
2.90
1.60
0.83
0.73
0.39
6GFMJ-50
1.60
247
185
145
122
91
69
53.4
41.5
32.5
23.60
16.10
9.50
5.10
4.58
2.43
1.25
1.10
0.59
1.65
229
178
142
120
90
68
52.5
41.2
32.5
23.60
16.10
9.40
5.10
4.58
2.43
1.25
1.10
0.59
1.70
210
168
137
118
89
67
52.5
40.8
32.5
23.60
16.10
9.40
5.10
4.58
2.43
1.25
1.10
0.59
1.75
193
156
133
113
87
66
51.5
40.4
32.5
23.60
16.10
9.30
5.10
4.58
2.43
1.25
1.10
0.59
1.80
180
142
127
106
83
63
50.8
39.5
31.7
23.00
15.30
9.10
5.00
4.40
2.43
1.25
1.10
0.59
6GFMJ-65
1.60
321
240
188
158
119
89
69.4
54
42.3
30.60
20.90
12.40
6.60
5.95
3.16
1.63
1.43
0.76
1.65
298
231
184
156
118
88
68.2
53.6
42.3
30.60
20.90
12.20
6.60
5.95
3.16
1.63
1.43
0.76
1.70
273
219
178
153
116
87
68.2
53
42.3
30.60
20.90
12.20
6.60
5.95
3.16
1.63
1.43
0.76
1.75
251
203
173
147
113
85
67
52.5
42.3
30.60
20.90
12.10
6.60
5.95
3.16
1.63
1.43
0.76
1.80
234
185
165
138
108
82
66.0
51.3
41.2
29.80
19.80
11.80
6.40
5.72
3.16
1.63
1.43
0.76
6GFMJ-85
1.60
419
314
246
207
155
117
90.8
70.6
55.3
40.00
27.40
16.20
8.70
7.78
4.13
2.13
1.87
0.99
1.65
390
302
241
204
154
116
89.2
70
55.3
40.00
27.40
16.00
8.70
7.78
4.13
2.13
1.87
0.99
1.70
356
286
233
200
152
114
89.2
69.4
55.3
40.00
27.40
16.00
8.70
7.78
4.13
2.13
1.87
0.99
1.75
329
265
226
193
148
111
87.6
68.7
55.3
40.00
27.40
15.80
8.70
7.78
4.13
2.13
1.87
0.99
1.80
306
241
216
181
141
107
86.4
67.1
53.9
39.00
25.90
15.40
8.40
7.48
4.13
2.13
1.87
0.99
6GFMJ-100
1.60
493
369
290
243
182
137
106.8
83
65
47.10
32.20
19.00
10.20
9.15
4.86
2.50
2.20
1.17
1.65
459
356
284
240
181
136
104.9
82.4
65
47.10
32.20
18.80
10.20
9.15
4.86
2.50
2.20
1.17
1.70
419
336
274
236
178
134
104.9
81.6
65
47.10
32.20
18.80
10.20
9.15
4.86
2.50
2.20
1.17
1.75
387
312
266
227
174
131
103
80.8
65
47.10
32.20
18.60
10.20
9.15
4.86
2.50
2.20
1.17
1.80
360
284
254
212
165
126
101.6
78.9
63.4
45.90
30.50
18.10
9.92
8.80
4.86
2.50
2.20
1.17
6GFMJ-120
1.60
592
443
348
292
219
165
128.2
99.6
78
56.50
38.60
22.80
12.20
10.98
5.83
3.00
2.64
1.40
1.65
550
427
340
289
217
163
125.9
98.9
78
56.50
38.60
22.60
12.20
10.98
5.83
3.00
2.64
1.40
1.70
503
403
329
283
214
161
125.9
97.9
78
56.50
38.60
22.60
12.20
10.98
5.83
3.00
2.64
1.40
1.75
503
403
329
283
214
161
125.9
97.9
78
56.50
38.60
22.60
12.20
10.98
5.83
3.00
2.64
1.40
1.80
464
374
319
272
208
157
123.6
97.0
78.0
56.50
38.60
22.30
12.20
10.56
5.83
3.00
2.64
1.40
09

Performance Data
GFMJ Series 12V Battery Constant Power Discharge (Watt per cell @ 20℃)
Constant Power Discharge Data Sheet (20℃)-------Watt (W)
Battery Type
End Voltage
(V/cell)
Discharge Time
5min
10min
15min
20min
30min
45min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
24 h
48 h
100 h
120 h
240 h
6GFMJ-150
1.60
740
554
435
365
274
206
160.2
124.5
97.5
70.70
48.30
28.50
15.30
13.73
7.29
3.75
3.30
1.76
1.65
688
534
425
361
271
204
157.4
123.6
97.5
70.65
48.30
28.20
15.30
13.73
7.29
3.75
3.30
1.76
1.70
629
504
411
353
267
201
157.4
122.4
97.5
70.65
48.30
28.20
15.30
13.73
7.29
3.75
3.30
1.76
1.75
580
467
398
340
260
196
154.5
121.2
97.5
70.65
48.30
27.90
15.30
13.73
7.29
3.75
3.30
1.76
1.80
539
426
380
319
248
189
152.4
118.4
95.1
68.85
45.75
27.15
14.88
13.20
7.29
3.75
3.30
1.76
6GFMJ-200
1.60
986
739
580
487
365
274
213.6
166
130
94.20
64.40
38.00
20.40
18.30
9.72
5.00
4.40
2.34
1.65
917
711
567
481
361
272
209.8
164.8
130
94.20
64.40
37.60
20.40
18.30
9.72
5.00
4.40
2.34
1.70
839
672
548
471
356
268
209.8
163.2
130
94.20
64.40
37.60
20.40
18.30
9.72
5.00
4.40
2.34
1.75
773
623
531
453
347
262
206
161.6
130
94.20
64.40
37.20
20.40
18.30
9.72
5.00
4.40
2.34
1.80
719
568
507
425
331
252
203.2
157.8
126.8
91.80
61.00
36.20
19.84
17.60
9.72
5.00
4.40
2.34
GFMJ Series 2V Battery Constant Power Discharge (Watt per cell @ 20℃)
Constant Power Discharge Data Sheet (20℃)-------Watt (W)
Battery Type
End Voltage
(V/cell)
Discharge Time
5min
10min
15min
20min
30min
45min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
24 h
48 h
100 h
120 h
240 h
GFMJ-200
1.65
594
551
518
471
369
232
140
104
72
50.10
40.00
33.00
18.30
16.90
9.72
5.00
4.40
2.34
1.70
569
534
475
418
351
230
139
104
71
48.60
38.50
31.90
18.30
16.70
9.72
5.00
4.40
2.34
1.75
547
515
462
410
346
229
138
103
70
46.90
37.20
30.70
18.30
16.50
9.72
5.00
4.40
2.34
1.80
523
498
434
383
325
214
135
99
68
45.20
35.80
30.00
18.30
16.10
9.72
5.00
4.40
2.34
1.85
458
439
402
366
309
211
128.0
94.0
65.0
42.90
34.10
28.30
17.60
15.30
9.72
5.00
4.40
2.34
GFMJ-300
1.65
891
827
777
707
554
348
210
156
108
75.15
60.00
49.50
25.35
27.45
14.58
7.50
6.60
3.51
1.70
854
801
713
627
527
345
208.5
156
106.5
72.90
57.75
47.85
25.05
27.45
14.58
7.50
6.60
3.51
1.75
821
773
693
615
519
344
207
154.5
105
70.35
55.80
46.05
24.75
27.45
14.58
7.50
6.60
3.51
1.80
785
747
651
575
488
321
202.5
148.5
102
67.80
53.70
45.00
24.15
27.45
14.58
7.50
6.60
3.51
1.85
687
659
603
549
464
317
192.0
141.0
97.5
64.35
51.15
42.45
22.95
26.40
14.58
7.50
6.60
3.51
GFMJ-400
1.65
1188
1102
1036
942
738
464
280
208
144
100.20
80.00
66.00
33.80
30.60
19.44
10.00
8.80
4.68
1.70
1138
1068
950
836
702
460
278
208
142
97.20
77.00
63.80
33.40
29.80
19.44
10.00
8.80
4.68
1.75
1094
1030
924
820
692
458
276
206
140
93.80
74.40
61.40
33.00
29.20
19.44
10.00
8.80
4.68
1.80
1046
996
868
766
650
428
270
198
136
90.40
71.60
60.00
32.20
28.90
19.44
10.00
8.80
4.68
1.85
916
878
804
732
618
422
256.0
188.0
130.0
85.80
68.20
56.60
30.60
28.30
19.44
10.00
8.80
4.68
GFMJ-500
1.65
1485
1378
1295
1178
923
580
350
260
180
125.25
100.00
82.50
42.25
39.80
24.30
12.50
11.00
5.85
1.70
1423
1335
1188
1045
878
575
347.5
260
177.5
121.50
96.25
79.75
41.75
39.40
24.30
12.50
11.00
5.85
1.75
1368
1288
1155
1025
865
573
345
257.5
175
117.25
93.00
76.75
41.25
39.00
24.30
12.50
11.00
5.85
1.80
1308
1245
1085
958
813
535
337.5
247.5
170
113.00
89.50
75.00
40.25
38.60
24.30
12.50
11.00
5.85
1.85
1145
1098
1005
915
773
528
320.0
235.0
162.5
107.25
85.25
70.75
38.25
36.90
24.30
12.50
11.00
5.85
10

Performance Data
GFMJ Series 2V Battery Constant Power Discharge (Watt per cell @ 20℃)
Constant Power Discharge Data Sheet (20℃)-------Watt (W)
Battery Type
End Voltage
(V/cell)
Discharge Time
5min
10min
15min
20min
30min
45min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
24 h
48 h
100 h
120 h
240 h
GFMJ-600
1.65
1782
1653
1554
1413
1107
696
420
312
216
150.00
120.00
99.00
50.70
48.70
29.16
15.00
13.20
7.02
1.70
1707
1602
1425
1254
1053
690
417
312
213
146.00
116.00
95.70
50.10
48.10
29.16
15.00
13.20
7.02
1.75
1641
1545
1386
1230
1038
687
414
309
210
141.00
112.00
92.10
49.50
47.50
29.16
15.00
13.20
7.02
1.80
1569
1494
1302
1149
975
642
405
297
204
136.00
107.00
90.00
48.30
46.50
29.16
15.00
13.20
7.02
1.85
1374
1317
1206
1098
927
633
384.0
282.0
195.0
129.00
102.00
84.90
45.90
44.50
29.16
15.00
13.20
7.02
GFMJ-800
1.65
2376
2204
2072
1884
1476
928
560
416
288
200.00
160.00
132.00
67.60
63.40
38.88
20.00
17.60
9.36
1.70
2276
2136
1900
1672
1404
920
556
416
284
194.00
154.00
128.00
66.80
63.00
38.88
20.00
17.60
9.36
1.75
2188
2060
1848
1640
1384
916
552
412
280
188.00
149.00
123.00
66.00
62.40
38.88
20.00
17.60
9.36
1.80
2092
1992
1736
1532
1300
856
540
396
272
181.00
143.00
120.00
64.40
61.80
38.88
20.00
17.60
9.36
1.85
1832
1756
1608
1464
1236
844
512.0
376.0
260.0
172.00
136.00
113.00
61.20
60.70
38.88
20.00
17.60
9.36
GFMJ-1000
1.65
2970
2755
2590
2355
1845
1160
700
520
360
251.00
200.00
165.00
84.50
91.50
48.60
25.00
22.00
11.70
1.70
2845
2670
2375
2090
1755
1150
695
520
355
243.00
193.00
160.00
83.50
91.50
48.60
25.00
22.00
11.70
1.75
2735
2575
2310
2050
1730
1145
690
515
350
235.00
186.00
154.00
82.50
91.50
48.60
25.00
22.00
11.70
1.80
2615
2490
2170
1915
1625
1070
675
495
340
226.00
179.00
150.00
80.50
91.50
48.60
25.00
22.00
11.70
1.85
2290
2195
2010
1830
1545
1055
640.0
470.0
325.0
215.00
171.00
142.00
76.50
88.00
48.60
25.00
22.00
11.70
GFMJ-1200
1.65
3564
3306
3108
2826
2214
1392
840
624
432
300.60
240.00
198.00
101.40
100.20
58.32
30.00
26.40
14.04
1.70
3414
3204
2850
2508
2106
1380
834
624
426
291.60
231.00
191.40
100.20
99.30
58.32
30.00
26.40
14.04
1.75
3282
3090
2772
2460
2076
1374
828
618
420
281.40
223.20
184.20
99.00
98.10
58.32
30.00
26.40
14.04
1.80
3138
2988
2604
2298
1950
1284
810
594
408
271.20
214.80
180.00
96.60
95.40
58.32
30.00
26.40
14.04
1.85
2748
2634
2412
2196
1854
1266
768.0
564.0
390.0
257.40
204.60
169.80
91.80
90.10
58.32
30.00
26.40
14.04
GFMJ-1500
1.65
4455
4133
3885
3533
2768
1740
1050
780
540
375.75
300.00
247.50
126.75
119.30
72.90
37.50
33.00
17.55
1.70
4268
4005
3563
3135
2633
1725
1042.5
780
532.5
364.50
288.75
239.25
125.25
119.00
72.90
37.50
33.00
17.55
1.75
4103
3863
3465
3075
2595
1718
1035
772.5
525
351.75
279.00
230.25
123.75
118.50
72.90
37.50
33.00
17.55
1.80
3923
3735
3255
2873
2438
1605
1012.5
742.5
510
339.00
268.50
225.00
120.75
116.90
72.90
37.50
33.00
17.55
1.85
3435
3293
3015
2745
2318
1583
960.0
705.0
487.5
321.75
255.75
212.25
114.75
113.00
72.90
37.50
33.00
17.55
GFMJ-2000
1.65
5940
5510
5180
4710
3690
2320
1400
1040
720
501.00
400.00
330.00
169.00
165.00
97.20
50.00
44.00
23.40
1.70
5690
5340
4750
4180
3510
2300
1390
1040
710
486.00
385.00
319.00
167.00
163.50
97.20
50.00
44.00
23.40
1.75
5470
5150
4620
4100
3460
2290
1380
1030
700
469.00
372.00
307.00
165.00
162.20
97.20
50.00
44.00
23.40
1.80
5230
4980
4340
3830
3250
2140
1350
990
680
452.00
358.00
300.00
161.00
159.10
97.20
50.00
44.00
23.40
1.85
4580
4390
4020
3660
3090
2110
1280.0
940.0
650.0
429.00
341.00
283.00
153.00
151.60
97.20
50.00
44.00
23.40
11

Operating Instruction and Guidelines
1. Discharge
End voltage with different discharge rate must be
less than the specified value. Charge the battery
as soon as possible after discharge.
In order to extend the service life, the depth of
discharge should be less than 60% of the rated
capacity. The discharge over 60% DOD is deep
discharge and would shorten the service life.
2. Temperature
The operation temperature range is -20℃
--55℃. .All the performance data is measured at
ambient temperature of 20℃. The optimal
temperature is 20 ±5 , extreme high
temperature would shorten the service life and
very low temperature would lower the capacity
available. The highest acceptable temperature is
55℃.
3. Floating charge and Equalization Charge
3.1 Floating charging operation is optimal for gel
battery, battery has been in full charge ensuring
battery maximum service life. The recommended
battery floating charge voltage is 2.24 volts/cell at
20℃. The recharge time is about 24 to 36 hour.
Floating charge voltage shall be adjusted
according to the ambient temperature, and
temperature compensate coefficient for battery is
-3.5mV//cell, the specifications is expressed by
the following table.
Table Floating charge at different temperature
Ambient temperature
Float charge (V/cell)
0℃
2.32
10℃
2.28
20℃
2.24
25℃
2.22
30℃
2.21
35℃
2.19
3.2 The batteries need an equalization charge or
supplemental charge in the following
conditions:
Supplemental charge battery after the
installation of battery system and before the
operation.
The batteries are on shelf for six months.
Floating operation for a long time or not
discharge 40% C20 plus, the batteries need
an equalization charge regularly and the
equalizing charge cycle are 6 months to one
year.
We recommend the below method for equalizing
charge or supplemental charge:
Charge with 2.35Vpc and limited current 0.15C(A)
for 8 to 12 hours (non continuous charging is
allowed).
Charge voltage shall be adjusted according to the
ambient temperature, and temperaturec
ompensate coefficient for battery is -3.5mV//cell,
the specifications is expressed by the following
table.
Table Equalizing voltage at different temperature
Ambient temperature
Float charge (V/cell)
0℃
2.45
10℃
2.39
20℃
2.35
25℃
2.33
30℃
2.31
35℃
2.30
40℃
2.29
4. Cycle charge characteristic
Cycle charge characteristic curve (at 20℃/68℉)
Cycle times at different DOD and different
discharge rate
GFMJ(2V)
30%DOD
50%DOD
60%DOD
70%DOD
80%DOD
100%DOD
C10
3100
1750
1400
1100
850
700
C20
2810
1600
1300
980
720
580
C50
2650
1540
1200
850
660
460
C100
2300
1400
1040
750
600
400
C120
2080
1290
960
665
520
340
GFMJ(12V)
30%DOD
50%DOD
60%DOD
70%DOD
80%DOD
100%DOD
C10
2100
1150
900
750
650
550
C20
1810
1050
820
680
570
470
C50
1650
850
750
630
510
410
C100
1400
730
690
550
430
350
C120
1280
690
610
465
310
290
12

Operating Instructions and Guidelines
5. Recharge
Battery should be recharged in time after
discharge, the recommended charge methods
are:
Charge the battery with constant current of less
than 0.2C10Auntil the battery boost voltage reach
2.33~2.37Vpc, then charge battery with the
constant voltage 2.33~2.37Vpc until the end of
charge. Charge voltage shall be adjusted along
with ambient temperature, the temperature
compensate coefficient for battery is -3.5mV/℃
/cell.
Whether the batteries are fully charged can be
decided according to any one of two standards
as follows:
Different discharge depth. Sufficient charging
time varies according to the different discharge
depth. Please note from the table below
Under constant voltage charge condition, the
charge current value maintains the same
during the last three hour when the battery
reaches the final stage of charging.
Table charge time with different DOD
Discharge
depth (%)
Constant
current (A)
Time for constant
voltage converting
to constant voltage
(h)
Constant
voltage
(V/cell)
Charging
time (h)
20
0.1C10
1.6
2.35
8
0.15C10
1.2
2.35
6
50
0.1C10
4.3
2.35
14
0.15C10
3.3
2.35
12
80
0.1C10
6.8
2.35
16
0.15C10
5.5
2.35
14
100
0.1C10
8.7
2.35
18
0.15C10
6.8
2.35
16
6. Storage
GEL batteries should be stored in a dry, clean,
and ventilated location. Since the batteries are
fully charged, the recommended storage time is
as follows:
6 months at ambient temperature no warmer
than 68°F (20℃)
3 months at 86°F (30℃)
6 weeks at 104°F (40℃)
The state of charge can be decided by the testing
result of open circuit voltage after storage for 24
hours at 20±5℃.
Table open circuit voltage
State of charge
Voltage (V/cell)
100%
≥2.18
80%
≥2.16
60%
≥2.12
40%
≥2.10
20%
≥2.06
The battery supplemental charge method during
the storage is: charge battery with 2.35V/cell for 8
to 12 hours.
It is necessary to limit the current, and the
optimum limiting value is 0.2C10A .
Testing of the open circuit with the storage
battery can decide whether it shall be
supplemental charged. If the voltage drops to
2.10Vpc, the battery shall be supplemental
charged in time.
Improper maintenance will shorten the battery
service life or decrease the service performance.
13

Installation, Commissioning and Maintenance
Installation
The ground shall be strong enough to back up
load.
Batteries integrated in equipment should be
compliance with the installation instructions,
separately installed on rack and cabinets should
be connected by bolts to the foundation.
Battery racks or cabinets should be properly
installed according to instructions.
Connecting
Before connecting, make a overall check of all
the batteries and connectors to see whether
there is hardware damage or manufacturing
defects in order to guarantee the polarity are
correct.
The charge equipments are in cut-off state and
without loads, then connect the positive and
negative terminals to chargers.
During the installation and transit of the battery,
use insulted tools, gloves, aprons and safety
glasses; do not touch connecting terminals and
safety valve in transit.
Placing tools and conductive articles on the
battery is strictly prohibited.
Maintain the connecting terminals clean and
tighten the connectors as per required torque
value.
Commissioning
Assure battery operation in the clean
environment;
At 20℃, charge the battery with 2.24Vpc for 16 to
24 hours, or with 2.35Vpc for 8 to 12 hours;
charge voltage should be adjusted according to
the ambient temperature.
Maintenance
Monthly maintenance:
Measure and record the ambient temperature
of the battery room, battery container and
terminals.
Check container, lid and terminal surface
defects and temperature of each battery.
Measure and record the total voltage and
floating current of the battery system.
Correct problems once found.
Quarterly Maintenance:
Repeat every item of monthly inspection.
Measure and record floating voltage of every
on-line battery.
Annually Maintenance:
Repeat quarterly maintenance and inspection.
Check whether the connectors are loose or
not.
Check whether the safety valve is tight or not.
Perform a discharge test to check the exact
load every year and discharge 30~40% of the
rated capacity.
Three-year Maintenance:
Carry out a capacity test(C10) every three
years and every year after six years' of
operation. If the capacity of the battery is lower
than 60% of the rated capacity, the battery
should be replaced.
Security Instruction
Only professionals shall be allowed to open
and maintain the battery with insulated tools;
Any metal objects to be put on top of the
battery shall be strictly prohibited;
The battery should be stored and installed
upright; upright down or on one side is
prohibited;
Please do not use any organic solvent to clean
batteries;
Please do not smoke or set out fire near
batteries;
Please do not remove the relief valve or put
anything into the battery;
Please charge the battery within 24 hour after
the discharge;
Long storage time would result the
degeneration of battery performance, and
suggest use the battery early.
14

ABT VRLA Battery:
PowerLine/Thunder/Enduro/Sunwind/e-Trek/Gel
ABT World Wide
Our sales growth is due to a complete Global Network with
Master distributors and Country managers who apply ABT
commercial strategy and through Global Key Account, in
Advanced Battery Technology BV
Add: New Yorkstraat 14 1175 RD LijndenAmsterdam, Netherland
Website: www.abtbatt.com
Email: [e-mail]
Version:201503
Copyright 2015, Advanced Battery Technology BV. All rights reserved
