ACADEMY Outdoor Gourmet Triton Owner's manual

Please keep this instruction manual for future reference
Assembly Instructions & User’s Manual
Triton HT Pellet Grill
ITEM# 156589
Customer Service: [phone] 7:00 am to 12:00 am CST (daily)
Live Chat at: www.academy.com
Email: [email protected]
(Made in China)
READ INSTRUCTION MANUAL BEFORE ATTEMPTING TO ASSEMBLE OR
OPERATE THIS PRODUCT.
Adult assembly required.
Keep screws and parts out of reach of children.
Customer Service: [phone], 8:00am to 8:00pm,
Monday thru Friday Eastern Standard Time
--------------------------------------OR-------------------------------------
Warning:
5009725
CONFORMS TO UL STD
SUBJECT 2728
CERTIFIED TO ULC STD
ORD C2728

Safety Warnings…………………………………………………………….............2-3
Exploded View & Parts List…………………………………………......................4-7
Preparation for Use & Lighting Instructions…………...................................... 20-21
Assembly Instructions………………………………………………….................. 9-18
Hardware and Tools…………………………………………................................8
ControllerInstructions....................................................................................... 19
ProperCare&Maintenace……………………………........................................2-
WarrantyInformation…………………………………………………....................3
OperatingInstructions…………………………………………………..................23-2
GrillCookingTips………………………………………….....................................2
Troubleshooting..............................................................................................3-3
NOTE: Before beginning assembly of product, make sure all parts are present.
Compare parts with package content list and hardware contents. If any part is
missing or damaged, do not attempt to assemble the unit. Contact customer
service for replacement parts.
Shutdown Instructions ..................................................................................... 22
Table of Contents
1

WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION
WHICH FOLLOWS!
POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL.
Before proceeding, make certain that you understand the IMPORTANT INFORMATION
sections of this manual.
Failure to adhere to the safety instructions in this manual could result in a hazardous fire.
It is the customer’s responsibility to see that the grill is properly assembled, installed and
maintained. Failure to follow the instructions in this manual could result in bodily injury
and/or property damage.
For outdoor use only – do not use indoors.
This grill is not for commercial use.
Do not use this grill in wet or rainy conditions. Keep it at least 10 feet away from large body of water,
such as pond, lake, swimming pool, etc.
Do not use the grill in extremely windy conditions.
Never operate the grill with damaged power cord or plug, or after the grill has
malfunctioned or been damaged in any manner.
Keep any power cord away from any heated surfaces.
Use only extension cords with a 3 prong grounding plug, rated for the power of the
equipment, and approved for outdoor use with a W-A marking (120V,60Hz).
Keep the extension cord connection dry and off the ground.
WARNING
IMPORTANT SAFETY WARNINGS
WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE.
THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO
BEFORE ASSEMBLING AND OPERATING YOUR GRILL, READ ALL SAFETY WARNINGS AND
INSTRUCTIONS CAREFULLY.
!
This grill is not intended to be installed in or on boats. It is not intended to be installed in or on
recreational vehicles. Do not use it for any purpose other than intended.
Keep the grill on a hard, non-combustible, smooth and level surface.
Minimum clearance from sides and back of grill to combustible material is 36 inches.
Do not use this appliance under overhead surfaces.
Do not use in areas with flammable objects, structures, or surfaces.
In case of fire, turn OFF the grill. Shut off the electric power, leave the fire to burn out on its own. Do
not try to extinguish the fire by water.
Parts of this grill can become very hot. Keep children and pets away from the grill during or after
use until surface has cooled.
Use only dry potholders. Moist or damp potholders on hot surfaces may cause burns from stream.
Do not use a towel or bulky cloth in place of potholders. Do not let potholders touch hot portions of
the grill or cooking grates.
To protect against electric shock, never immerse cord, plugs or electric elements in water or any
liquid.
!
!
Safety Warnings
2

WARNING
Use only a Ground Fault Interrupt (GFI) protected circuit with this grill.
Only use a properly-grounded power source.
Do not alter or remove the grounding plugs on the power cord or household outlet.
Never move the grill while it is operating, or when it contains hot pellets or ashes.
Always open the grill lid carefully. The heat and stream inside grill body is hot.
Before using the grill, be sure that is has been completely assembled, and all parts have been
securely fastened and tightened.
Unplug the grill from electric power when it is not in use. Make sure the grill is cool before
cleaning or conducting other maintenance.
Keep the grill covered when not in use. Keep grill out of children's reach.
Do not clean the grill with water spray or similar liquid.
Check the grill periodically. Make sure that Digital Controller and Power Cord are not abraded,
worn, cut or damaged.
Keep the grill clean.
Do not use accessories that are not specified for use with this grill.
Never add the pellets to a Hot Fire Pot by hand. You could be seriously burned.
If the pellets run out, or the fire goes out, let the grill completely cool and then follow the
"Lighting Instructions" found in this manual.
Always start the grill on " SMOKE " setting with the cooking chamber lid open.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GRILL.
FAILURE TOADHERE TO SAFETY WARNINGS AND GUIDELINES IN THIS MANUAL CAN RESULT IN
BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
!
Only use cooking grade pellets. DO NOT use heating grade pellets!
Never use lighter fluid, charcoal, lava rocks, gasoline, kerosene, or alcohol with this grill. Always
store the wood pellets away from heat.
Keep wood pellets in a dry location to prevent swelling or degrading due to moisture. Keep extra
pellets in a dry place.
NEVER put wood chips or chunks into the hopper!
Burning wood gives off carbon monoxide which can cause death.
WARNING:
This product can expose you to chemicals including lead, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information, go to:
www.P65Warnings.ca.gov.
Safety Warnings
3

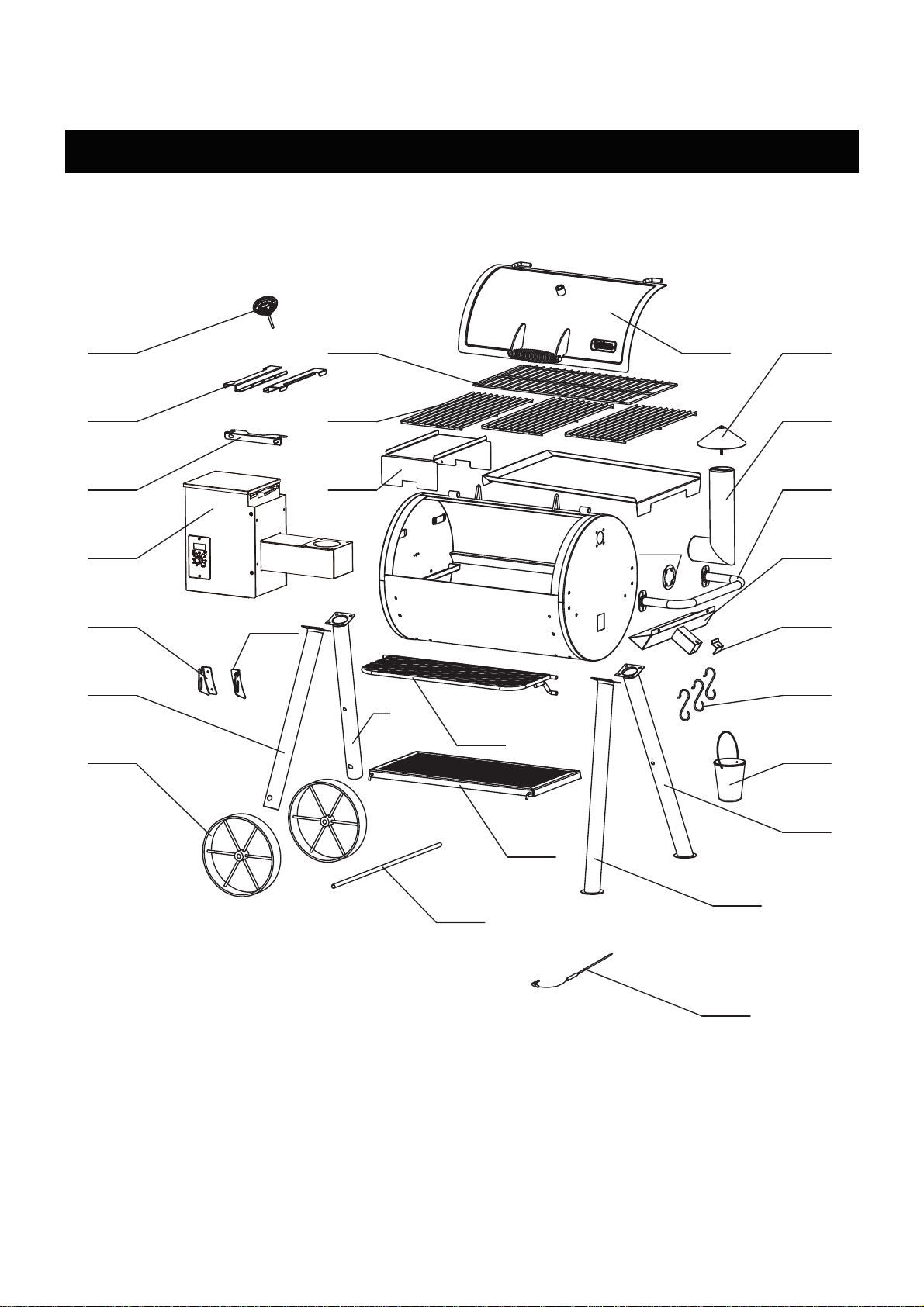

Exploded View - A
4
117 16 15
14
20
25
27 22
23
24
13
12
11
10
9
8
18
19
2
3
4
5
6
26
7
28
29
21

Exploded View - B
5
36
30 3
37
38
39
40
42
43
31
32
33
34
35
44
41

6
Parts List
Warming Rack Bracket
Chimney Cap
115
Chamber Lid16
Warming Rack17
Cooking Grate18
Flamer Tamer19
Grease Tray20
Cooking Chamber21
Front Shelf22
Bottom Shelf23
Wheel Axle24
Chimney Gasket25
Front Shelf Bracket R
Back Left Leg
26
27
Front Right Leg28
Meat Probe29
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
4
5
6
2
3Power Cord Bracket
Hopper Assembly
Front Shelf Bracket L
Front Left Leg
7 Wagon Wheel
8 Back Right Leg
9 Grease Bucket
10 Utensil Hook
11 Grease Bucket Bracket
12 Chamber Right Bracket
1
1
1
1
2
1
2
1
1
3
1
1
13 Side Handle 1
14 1Chimney Pipe

30 Hopper LDWFK
31 HopperBo[
32 Rubber Sealer
33 Digital Controller
34 Power Cord
35
1
1
1
1
1
1Hopper Bottom Panel
Part # QtyDescription Picture
Parts List
3Fire Pot
3Auger
 Hot Rod
4
Auger Housing
4
Blower Fan
4
1
1
1
1
1
1
Part # QtyDescription Picture
7
36 1
Auger Motor 1
3
Grill Probe
+RSSHU*DVNHW
1
5XEEHU&DS
4

Hardware # Description
M6 x 12 Bolt 31
Picture Qty
M6 Nut 26
AA
BB
CC M12 Lock Nut 2
DD
M6 x 20 Bolt 4 EE
M4 x 10 Bolt 1
2
FF
M5 x 12 BoltGG
Tools Required
Phillips Head Screwdriver
(Not included)
Adjustable Wrench
(Not included)
M4 Nut 1
Hardware
8

Step 1
Assembly Instructions
Step 2 Step 2
Step 1
Remove the lid (#16) from the cooking chamber
(#21) by removing bolt and washer and sliding
the hinge pins on the lid out of the hinge
holes on the cooking chamber. Set bolt and
washer aside for Step15.
Choose a suitable, clear area for assembly. Ask a friend for help as some parts are heavy or difficult for one
person to hold and assemble. To help protect the smoker’s finish, cover the area with cardboard.
Hardware Used
M6 Nut
M6 x 12 Bolt 8 pcs
8 pcs
AA
BB
With the help of a friend, place the cooking
chamber (#21) on its side. Orient the cooking
chamber (#21) so the hopper side faces up.
Make sure that another person is holding the
cooking chamber (#21) during the assembly
process.
Find legs labeled "Back Left" and "Back Right".
Attach back left leg (#27) and back right leg (#8) to
the cooking chamber (#21) with (8) M6 x 12 bolts
(AA) and (8) M6 nuts (BB) as illustrated.
NOTE: Leave hardware loose for now.
27
8
AA BB
21
9
21
16

Assembly Instructions
Step 3 Step 3
Step 4
Step 4

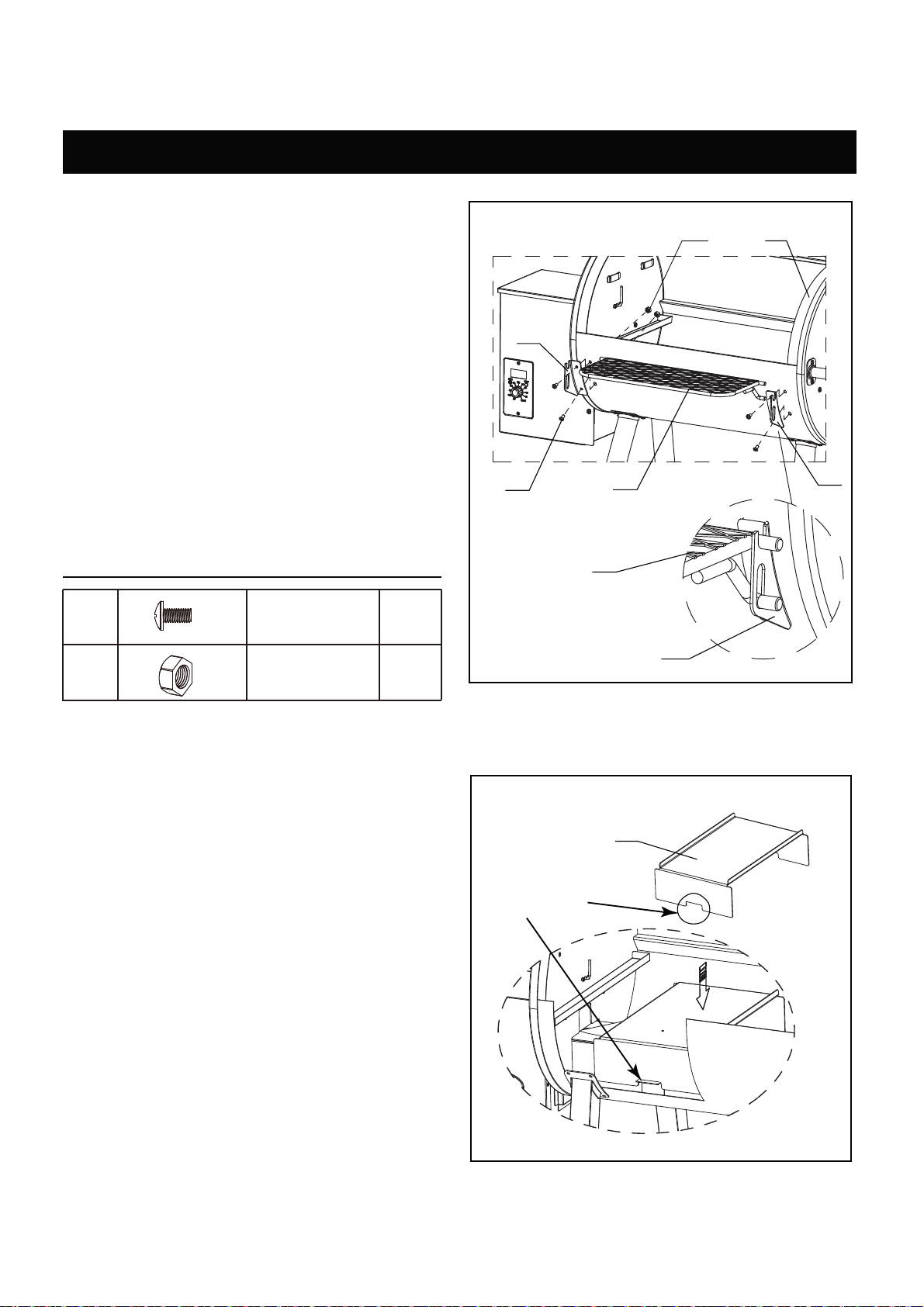

Insert the bottom shelf (#23) into the mounted legs.
Attach remaining two legs ("Front Left" (#6) & "Front
Right" (#28))by inserting the hooks of the bottom
shelf (#23) into the holes in the legs before bolting
to the cooking chamber (#21) with (8) M6 x 12 bolts
(AA) and (8) M6 nuts (BB) as illustrated.
Tighten all leg hardware.
Note: Bottom shelf (#23) must be mounted before
securing remaining two legs.
Hardware Used
M6 Nut
M6 x 12 Bolt 8 pcs
8 pcs
AA
BB
7
828
24
23
CC 21
27 6
Hardware Used
M12 Lock Nut 2 pcs
CC
Insert the wheel axle (#24) through the bottom holes
in the "Front Left" (#6) and "Back Left" (#27) legs.
Attach the wagon wheels (#7) onto the wheel axle
(#24) with (2) M12 lock nuts (CC) as illustrated. Do
not over tighten.
10
6
27
21
AA
BB
23
828

Assembly Instructions
Step 6
Step 5
With assistance, turn the cooking
chamber assembly horizontally.
Attach chamber right bracket (#12) onto cooking
chamber right endcap inside with (2) M6 x 12
bolts (AA) and (2) M6 nuts (BB).
Fix grease bucket bracket (#11) on the square tube
end of chamber right bracket (#12) with (1) M6 x 12
bolt (AA) as illustrated.
Attach chimney pipe (#14) and chimney gasket (#25)
to the cooking chamber (#21) right endcap with (4)
M6 x 12 bolts (AA) as illustrated.
Attach side handle (#13) to chamber right
endcap with (4) M6 x 12 bolts (AA) and (4)
M6 nuts (BB) as illustrated.
Screw chimney cap (#15) into chimney pipe (#14)
top as illustrated.
Hardware Used
M6 Nut
M6 x 12 Bolt 7 pcs
2 pcs
AA
BB
Hardware Used
M6 Nut
M6 x 12 Bolt 4 pcs
4 pcs
AA
BB
11
Step 5
Step 6 15
AA
BB
14
14
25
AA
12
13
21 BB AA
21
11

Step 8
Step 7
Slide hopper gasket over auger housing.
Slide the pellet hopper assembly (#4) onto the
cooking chamber (#21) by inserting the auger
housing through the left side wall. Slide hopper
halfway, while holding the hopper assembly (#4)
away from the wall, insert grill probe (#42)
through the wall. The grill probe (#42) should be
vertical as illustrated. Secure the grill probe (#42)
into the place with (1) M4 x 10 bolts (FF) and
(1) M4 nuts (DD) as illustrated.
Note：Make sure grill probe tip end is facing towards
the chamber back and up when installing.
Secure the hopper assembly (#4) to the cooking
chamber (#21) left wall with (4) M6 x 20 bolts (EE) as
illustrated.
Note: Step must be performed by two capable adults.
Hardware Used
M4 x 10 Bolt
M4 Nut 1 pc
1 pc
DD
FF
Hardware Used
M6 x 20 Bolt 4 pcs
EE
Assembly Instructions
12
Step 7
Step 8
42
4
4
EE
21
FF
DD
21

Assembly Instructions
Step 9
Step 10
Attach front shelf bracket L (#5) to the front of
cooking chamber (#21) near the left leg with (2)
M6 x 12 bolts (AA) and (2) M6 Nuts (BB).
Position front shelf (#22) to front shelf bracket R
(26) by inserting the shelf hooks through the
bracket. Then insert the left side of the shelf
through the front shelf bracket L (#5) on the cooking
chamber (#21).
Insert front shelf bracket R (#26) to the front
of the cooking chamber (#21) with (2) M6 x 12
bolts (AA) and (2) M6 nuts (BB).
See illustration for proper orientation.
Place flame tamer (#19) over the fire pot inside the
cooking chamber. It should rest in place as
illustrated.
Hardware Used
M6 Nut
M6 x 12 Bolt 4 pcs
4 pcs
AA
BB
Tighten all hardware.
13
Step 9
Step 10
26
26
22
21
Position Slot
19
AA
5
BB
22

Assembly Instructions
Step 12
Place cooking grates (#18) onto cooking chamber
grid brackets/rails .detartsullisa
Step 11

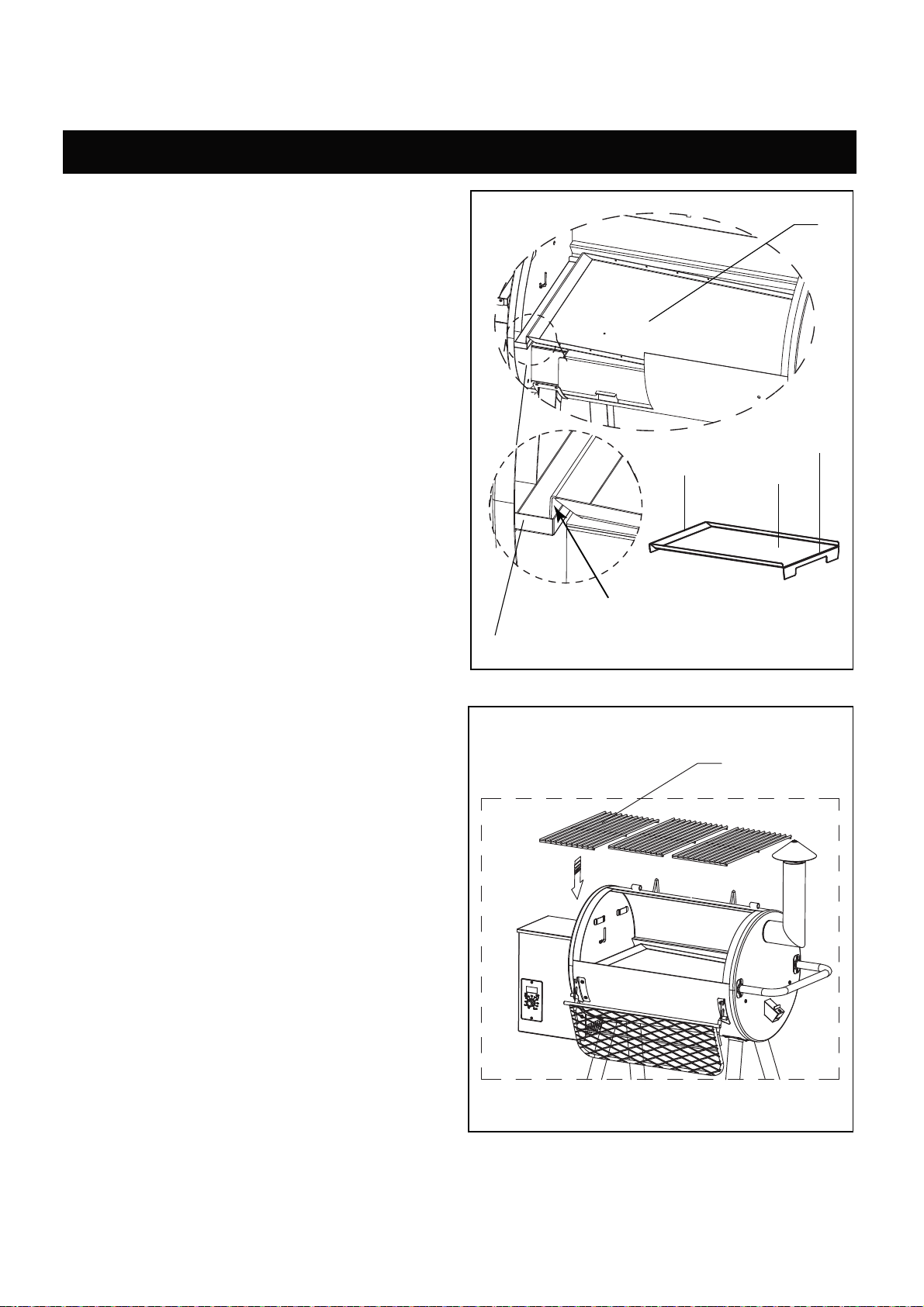

Place grease tray (#20) on the chamber right side
bracket and chamber left side bracket as
illustrated.
14
Step 11
Step 12
Chamber Left Side Bracket
Tray should fit into
chamber left bracket
Left Side Right Side
20
20
18

Assembly Instructions
Step 14
Step 13
Step 13
Step 14
Insert warming rack brackets (#2) into the
mounting tabs found on cooking chamber
VLGHZDOOV.
Place warming rack (#17) on warning rack
brackets (#2)
2
217
15

Assembly Instructions
Step 15
Reinstall the cooking chamber lid (#16) by
sliding the hinge pins into the hinges. Secure
it with the washer and bolt removed in Step 1.
Step 16
Carefully screw the temp gauge (#1) fully into the lid.
Adjust the orientation and lock the gauge into
position using the pre-attached nut.
16
Step 15
Step 16 1

Assembly Instructions
Step 17
Step 17
Hang the grease bucket (#9) from the tube as
illustrated.
If desired, install the utensil "S" hooks onto
the side handle.
Step 18
Step 18
Attach the power cord bracket (#3) to the back
of the hopper assembly (#4) with (2) M5 x 12
bolts (GG) as illustrated.
17
9
Hardware Used
M5 x 12 Bolt 2 pcs
GG GG
3
4

Assembly Instructions
(Assembled)
Pellet Grill
18
Step 19 Step 19
Step 20 Step 20

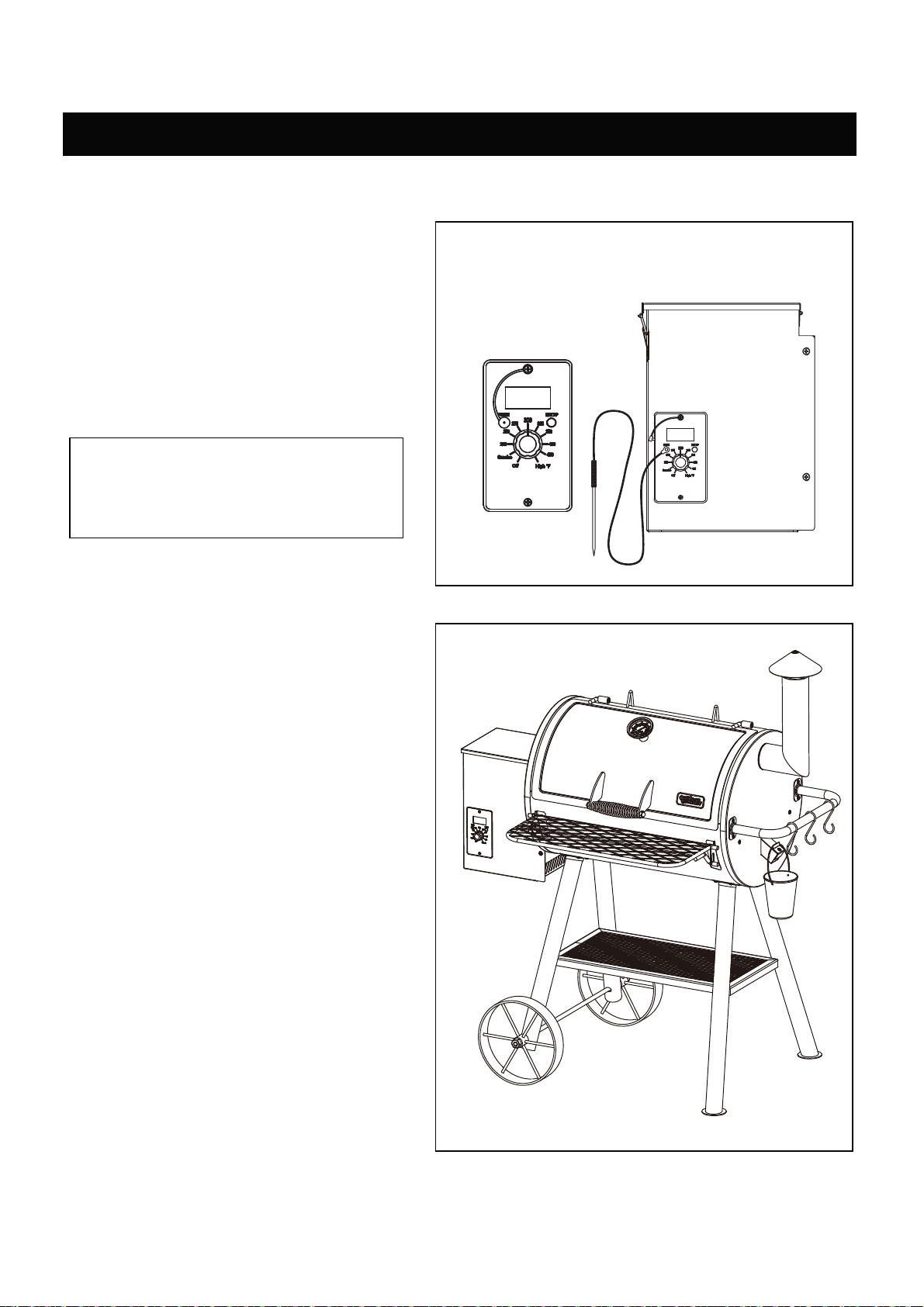

When needed, connect the meat probe to the
controller by inserting the female plug into the
controller socket marked “Meat Probe”. If not in
use, leave disconnected and store indoors.
CAUTION: When not in use, the rubber
cap should be placed in the meat probe
adaptor socket to keep rain or moisture
from damaging the circuit board.
NOTE: When connecting meat probe, unplug the
rubber cap from the controller socket first.

CONTROLLER FUNCTIONS
The maximum temperature that the pellet grill can achieve is influenced by the ambient temperature. In
colder weather, the grill may not be able to achieve the highest set temperature and it will continually feed
pellets into the fire pot attempting to reach the set temperature.
NOTE:
There might be some discrepancy between the digital temperature displayed and the temperature
observed on the analog lid gauge. Some variance is normal due to the location and calibration differences.
When changing the operating temperature, allow up to 15 minutes for the temperature to stabilize.
If lowering the temperature, it is best to leave the open lid for a few minutes to help decrease quicker.
250
Smoke
225
275 300 325
350
400
450
Off High ℉
COOK
℉
SMOKE PRESET
COOK TEMP. SETTING
ACTUAL TEMP.
LCD SCREEN
TEMP. CONTROL
Displays Grill Temperature, Smoke
Settings, igniter, temperature status
and error.
Turn the control knob to
change the temperature
setpoint.
Controller Instructions
19
Meat / P
Press and hold the button for 3seconds to
switch the display between grill and meat
probe
Press the button to change the smoke preset
with the range of P0 to P3
Grill
DISPLAY TYPE
Display grill temperature or meat probe
Meat
Probe
MEAT / P BUTTON
MEAT PROBE INPUT
temperature
