Acces I/O products MPCIE-LAN-GBE User manual

ACCES I/O Products, Inc. 858 550 9559 www.ACCESio.com
10623 Roselle Street 800 326 1649 https://accesio.com/mPCIe-LAN-GbE
San Diego CA 92121-1506 USA [email protected]om MADE IN THE USA
GIGABIT ETHERNET FOR MINI PCI EXPRESS
HARDWARE MANUAL
MODEL MPCIE-LAN-GBE

ACCES I/O Products, Inc. MADE IN THE USA mPCIe-LAN-GbE Family Manual
2Rev B1
CHAPTER 1: QUICK START
It is recommended that you install the software package before
installing the PCI Express Mini Card (mPCIe) in your computer. You
can install the software1using either a stand-alone installer
downloaded from the website or an optional Software Master CD.
Run the installer you downloaded (or autorun.exe on the Software
Master CD) and follow the prompts to install the software for your
device.
Please note: during the installation you may be prompted regarding
the installation of non-WHQL-certified drivers; please carefully
confirm the digitally signed source of the drivers and accept the
installation.
After the Software package has finished installing the Intel I210
driver installation program will run.
Once the software and driver has been installed, shut down your
system and carefully install the mPCIe card.
Caution: Do not connect an Ethernet cable at this time.
Re-start your system. Once the computer finishes booting your new
Ethernet port should already be installed and ready for use; you can
confirm this by launching Device Manager and looking under the
“Network Adapters” section.
1In Linux or OSX please refer to the instructions in those directories.
CHAPTER 2: INTRODUCTION
PCI Express Mini Card (mPCIe), a low-profile small-footprint bus
standard originally intended for adding peripherals to notebook
computers, has become the de-facto standard for high-
performance, small form-factor devices in many applications.
•PCI Express Mini Card (mPCIe) type F1, with latching I/O connectors
•Rugged design with overvoltage protection and buffering on all signals
•Onboard magnetics with built in isolation via transformer coupling
•Industrial temperature and RoHS standard
•10/100/1000 BASE-T interface on mPCIe
•PCI Express v2.1 (2.5GT/s) interface
•Powered by +3.3V from PCI Express Mini Card Connector
•Optional low-PPM XTAL to support IEEE 1488 precision timing protocol

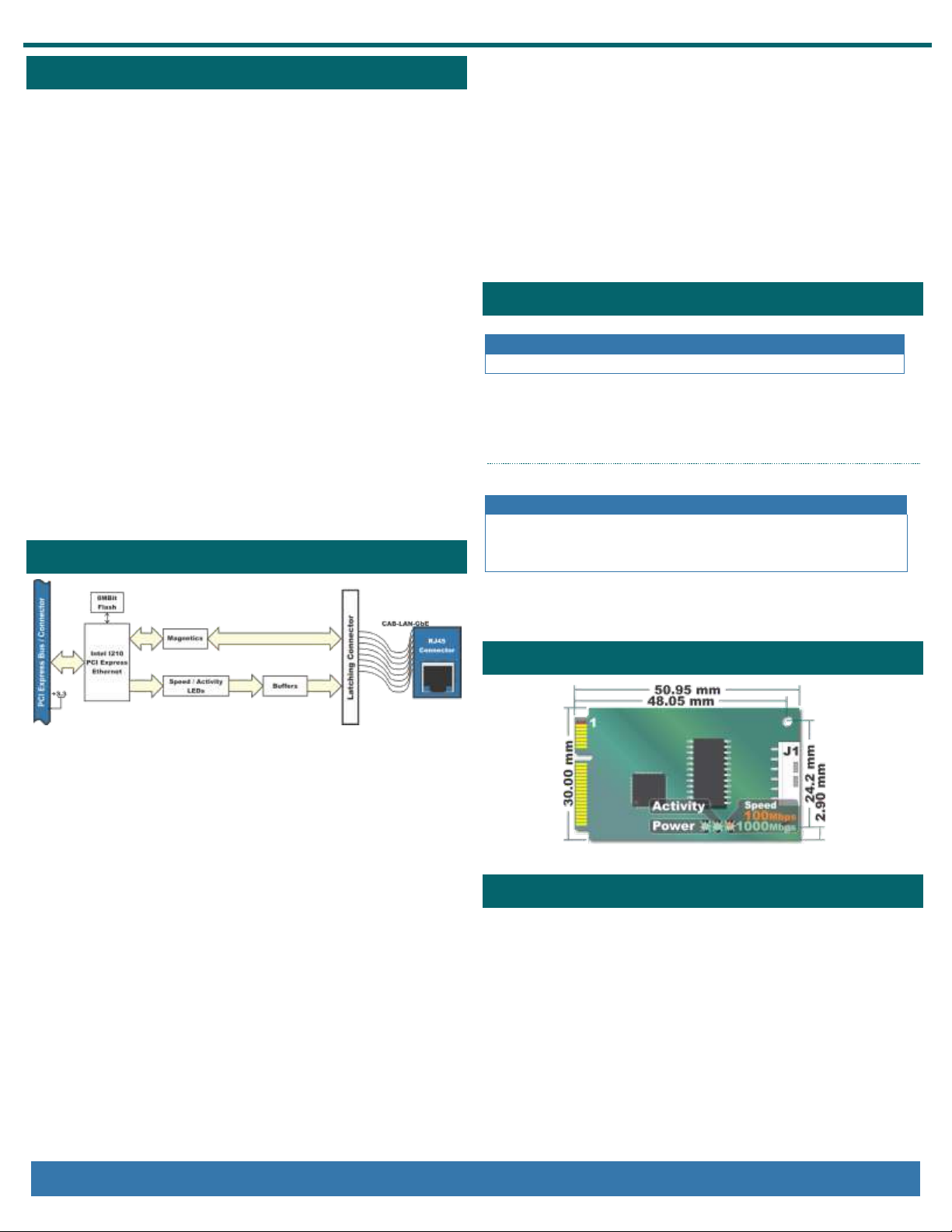

FUNCTIONAL DESCRIPTION
The mPCIe-LAN-GbE is a type F1 PCI Express Mini Card ("mPCIe")
optimized for use in mobile and rugged environments, with latching
connectors and protection on all signals. The onboard magnetics
feature robust built in isolation via transformer coupling. In addition,
industrial temperature and RoHS compliance are standard.
The card's high speed PCI Express 2.1 controller and Intel's industry-
leading I210 Ethernet chip provide an often necessary 1000Base-T
(gigabit) Ethernet port while low power-consumption, small form-
factor and light weight make integration into existing designs a snap.
Onboard LEDs provide diagnostic and status information about
power, link/activity, and data rate.
Full 10/100/1000 BASE-T compatibility —with IEEE 1488 Precision
Timing Protocol support when ordered with a low-PPM XTAL
(optional) —makes the mPCIe-LAN-GbE perfect for use in any
Ethernet environment, from servers to users; mobile, rack, or
desktop. The 104e-mPCIe-4 can support 4 mPCIe-LAN-GbE cards in
a single stack height for the most compact and robust applications
using the PC/104 form factor.
An optional RJ45 positive-retention cable assembly is designed to be
easily panel-mounted.
CHAPTER 3: HARDWARE
This manual applies to the following models:
mPCIe-LAN-GbE
1 port 10/100/1000 Ethernet mPCIe Card
These models are full-length “F1” mPCIe devices (30 × 50.95 mm).
All units are RoHS compliant and support Industrial temperature
environments (-40°C to 85°C operating and storage.)
INCLUDED IN YOUR PACKAGE
1-port mPCIe-LAN card
Available accessories include:
CAB-mPCIe-LAN
9 inch panel-mount RJ45 cable
mPCIe-HDW-KIT2
Mounting hardware for 2mm
mPCIe-HDW-KIT2.5
Mounting hardware for 2.5mm
Contact the factory for information regarding additional accessories,
options, and specials that may be available to best fit your specific
application requirements.
CHAPTER 4: CONFIGURATION SETTINGS
There are no configuration options to set.
CHAPTER 5: PC INTERFACE
This product interfaces with a PC using a PCI Express Mini Card
(mPCIe) connection; a small-form-factor, high-performance, rugged
peripheral interconnect technology first introduced for use in
laptops and other portable computers.
mPCIe’s small size and powerful performance, combined with
perfect software compatibility with PCI and PCIe peripheral designs,
have led to its recent adoption as a go-to standard for embedded
Data Acquisition and Control, and many other applications.
Although mPCIe is a broadly-adopted industry standard, the actual
connection to the computer shares a specification with mSATA:
both mSATA and mPCIe use the same edge-connector. In fact, well-
designed PCs can automatically detect and configure their onboard

ACCES I/O Products, Inc. MADE IN THE USA mPCIe-LAN-GbE Manual
3 Rev B1
connectors to work with either mPCIe or mSATA devices –and,
according to the standards for mPCIe and mSATA they are supposed
to do so! However, some PC manufacturers ship computers that
only support mSATA devices. Please confirm in your PC
documentation that your edge-connector is actually PCI Express
Mini Card compliant before installing this, or any, mPCIe card.
Damage might occur if you install an mPCIe device into a computer
that only supports mSATA.
mPCIe defines mounting holes for securing the otherwise loose end
of the card, so it is impossible for these cards to wiggle or flap
themselves loose (which was a recurring problem with the older PCI
Mini devices). Eliminating this concern for PCI Express Mini Cards is
a major reason this standard has seen rapid adoption by the Data
Acquisition and Control industry.
The mPCIe standard, like its PCI Mini Card predecessor, was
designed assuming use primarily in Laptop or Notebook and similar
devices, where physical dimension is often the paramount design
constraint. In Data Acquisition and Control applications low-weight
combined with vibration tolerance tend to be of more concern.
CHAPTER 6: I/O INTERFACE
The card incorporates a 12-pin right-angle latching connector
suitable for rugged environments. When used with the CAB-mPCIe-
LAN optional cable accessory this 12-pin embeddable connector is
broken out to a standard RJ45 panel-mount connector.
On Card Pin Assignments
Function
Pin Name
Pin
Pin
Pin Name
Function
Ethernet Link/Activity
LINKACT LED
1
7
SPEED1000
1000Mbps speed ind
MDIx LANE 1 Positive
LAN1+
2
8
LAN0+
MDIx LANE 0 Positive
MDIx LANE 1 Negative
LAN1-
3
9
LAN0-
MDIx LANE 0 Negative
MDIx LANE 3 Positive
LAN3+
4
10
LAN2+
MDIx LANE 2 Positive
MDIx LANE 3 Negative
LAN3-
5
11
LAN2-
MDIx LANE 2 Negative
100Mbps speed ind
SPEED100
6
12
3.3V
+3.3V voltage rail
RJ45 Pin Assignments
Pin
Pin Name
Function
1
LAN0+
MDIx LANE 0 Positive
2
LAN0-
MDIx LANE 0 Negative
3
LAN1+
MDIx LANE 1 Positive
4
LAN2+
MDIx LANE 2 Positive
5
LAN2-
MDIx LANE 2 Negative
6
LAN1-
MDIx LANE 1 Negative
7
LAN3+
MDIx LANE 3 Positive
8
LAN3-
MDIx LANE 3 Negative
CHAPTER 7: SOFTWARE INTERFACE
This card provides a standard 10/100/1000 Ethernet Interface using
the Intel I210 PCI Express to Ethernet Bridge chip, and operates
seamlessly using your operating systems’native Ethernet utilities
and driver stack. Configure and operate the Ethernet port as you
would any other; refer to your operating system manual for specific
information, if needed.
The latest information can always be found on the product page on
the website. Here are some useful links:
Links to useful downloads
Main web site
https://accesio.com
Product web page
accesio.com/mPCIe-LAN-GbE
This manual
accesio.com/MANUALS/mPCIe-LAN-GbE.pdf
Windows Software
Install Package
accesio.com/files/packages/mPCIe-LAN-GbE
Install.exe
Intel I210 Driver
https://downloadcenter.intel.com/product/6
4399/Intel-Ethernet-Controller-I210-Series
CHAPTER 8: SPECIFICATIONS
PC Interface
PCI Express Mini Card
Type F1 “Full Length”
Ethernet I/O
Protocol
10/100/1000 Base T
Environmental
Temperature
Operating
-40° to +85°C
Storage
-40° to +85°C
Humidity
5% to 95%, non-condensing
Power
required
+3.3VDC @ 176mA (1000Mbps)
+3.3VDC @ 109mA (100Mbps)
+3.3VDC @ 86mA (idle, no link)
Physical
mPCIe board characteristics
Weight
Ounces
0.19
Size
Length
50.95mm (2.006”)
Width
30.00mm (1.181”)
I/O connector
On-card
On-cable
Amphenol FCI 98417-G61-12ULF
Amphenol FCI 10073599-012LF

ACCES I/O Products, Inc. MADE IN THE USA mPCIe-LAN-GbE Family Manual
4Rev B1
CHAPTER 9: CERTIFICATIONS
CE & FCC
These devices are designed to meet all applicable EM interference
and emission standards. However, as they are intended for use
installed on motherboards, and inside the chassis of industrial
PCs, important care in the selection of PC and chassis is important
to achieve compliance for the computer as a whole.
UL & TUV
No DC voltages above 5V, and no AC voltages of any kind, are
consumed or produced during normal operation of this device.
This product is therefore exempt from any related safety
standards. Use it with confidence!
ROHS / LEAD-FREE STATEMENT
All models are produced in compliance with RoHS and various
other lead-free initiatives.
WARNING
A SINGLE STATIC DISCHARGE CAN DAMAGE YOUR CARD
AND CAUSE PREMATURE FAILURE! PLEASE FOLLOW ALL
REASONABLE PRECAUTIONS TO PREVENT A STATIC
DISCHARGE SUCH AS GROUNDING YOURSELF BY TOUCHING
ANY GROUNDED SURFACE PRIOR TO TOUCHING THE CARD.
ALWAYS CONNECT AND DISCONNECT YOUR FIELD CABLING
WITH THE COMPUTER POWER OFF. ALWAYS TURN
COMPUTER POWER OFF BEFORE INSTALLING A CARD.
CONNECTING AND DISCONNECTING CABLES, OR
INSTALLING CARDS, INTO A SYSTEM WITH THE COMPUTER
OR FIELD POWER ON MAY CAUSE DAMAGE TO THE I/O
CARD AND WILL VOID ALL WARRANTIES, IMPLIED OR
EXPRESSED.
WARRANTY
Prior to shipment, ACCES equipment is thoroughly inspected and
tested to applicable specifications. However, should equipment
failure occur, ACCES assures its customers that prompt service
and support will be available. All equipment originally
manufactured by ACCES which is found to be defective will be
repaired or replaced subject to the following considerations:
GENERAL
Under this Warranty, liability of ACCES is limited to replacing,
repairing or issuing credit (at ACCES discretion) for any products
which are proved to be defective during the warranty period. In
no case is ACCES liable for consequential or special damage
arriving from use or misuse of our product. The customer is
responsible for all charges caused by modifications or additions to
ACCES equipment not approved in writing by ACCES or, if in
ACCES opinion the equipment has been subjected to abnormal
use. "Abnormal use" for purposes of this warranty is defined as
any use to which the equipment is exposed other than that use
specified or intended as evidenced by purchase or sales
representation. Other than the above, no other warranty,
expressed or implied, shall apply to any and all such equipment
furnished or sold by ACCES.
TERMS AND CONDITIONS
If a unit is suspected of failure, contact ACCES' Customer Service
department. Be prepared to give the unit model number, serial
number, and a description of the failure symptom(s). We may
suggest some simple tests to confirm the failure. We will assign a
Return Material Authorization (RMA) number which must appear
on the outer label of the return package. All units/components
should be properly packed for handling and returned with freight
prepaid to the ACCES designated Service Center, and will be
returned to the customer's/user's site freight prepaid and
invoiced.
COVERAGE
FIRST THREE YEARS: Returned unit/part will be repaired and/or
replaced at ACCES option with no charge for labor or parts not
excluded by warranty. Warranty commences with equipment
shipment.
FOLLOWING YEARS: Throughout your equipment's lifetime, ACCES
stands ready to provide on-site or in-plant service at reasonable
rates similar to those of other manufacturers in the industry.
EQUIPMENT NOT MANUFACTURED BY ACCES
Equipment provided but not manufactured by ACCES is warranted
and will be repaired according to the terms and conditions of the
respective equipment manufacturer's warranty.
DISCLAIMER
The information in this document is provided for reference only.
ACCES does not assume any liability arising out of the application
or use of the information or products described herein. This
document may contain or reference information and products
protected by copyrights or patents and does not convey any
license under the patent rights of ACCES, nor the rights of others.
PCI EXPRESS MINI CARD STANDARD NOTICE
The mPCI-LAN-GbE is fully compliant with PCI Express Mini Card
v1.2.
