D-Link DHP?P309AV User manual

ITS
GDY
WLEN
H O
UYR
NT
APR
N TE
THE INCREDIBLY SIMPLE GUIDE TO
CONNECTING YOUR NEW D-LINK POWERLINE
ADAPTOR TO YOUR SET TOP BOX AND MODEM

G LO ATE
B ETHERNET CABLE D ETHERNET CABLE
A WHITE ADAPTOR C WHITE ADAPTOR
TO VIEW A VIDEO OF THIS INSTALLATION,
VISIT OPTUS.COM.AU/OPTUSTV/PLCINSTALL
OR CHECK OUT THE FULL USER GUIDE AVAILABLE
AT OPTUS.COM.AU/OPTUSTV/HELP
T WO N
GTEU
The D-Link Powerline Adaptor Kit lets you connect your Optus TV with Fetch Set Top Box to
your broadband internet through the electrical wires in your home. It’s an alternative to using
adirect ethernet connection or wireless solution.
And since you are dealing with electricity, there are some things you need to check
before you get going:
• If you are using power boards, refer to the power board notes in Step 1 and Step 2.
• Identify a power point near your modem or router to plug one of the Adaptors into.
• Identify a power point near your Optus TV Set Top Box to plug the other Adaptor into.
• Ensure you have easy access to the power points and existing modem or router for setup.
SAFETY TIP: Turn power points off before you plug in any new devices or unplug any existing devices.

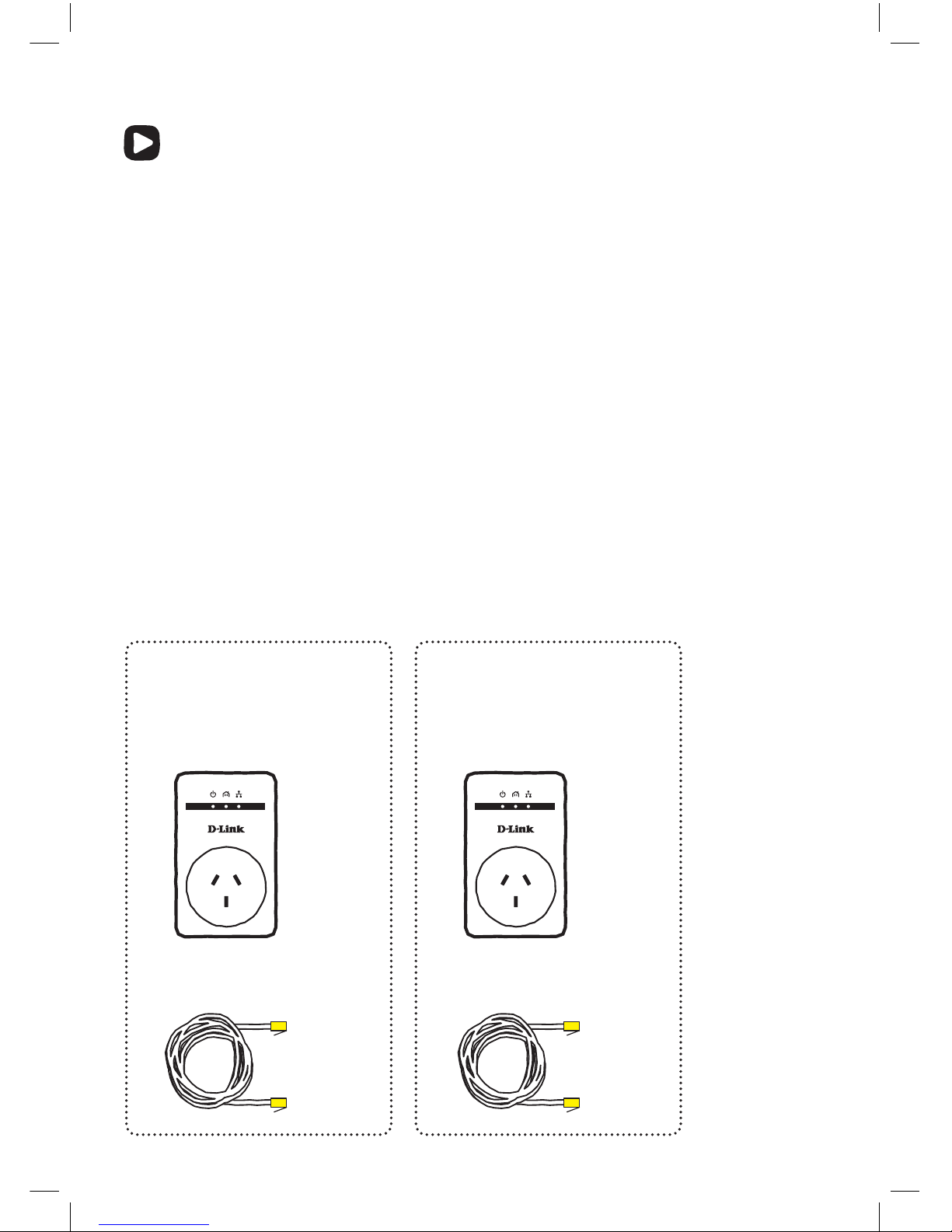

THE THINGS YOU’LL USE IN
THE ROOM WITH YOUR MODEM
OR ROUTER
THE THINGS YOU’LL USE IN
THE ROOM WITH YOUR SET TOP
BOX AND TV
2

SP CNTO T
APRT YR
MEO RT
BITS YOU’LL NEED: AWHITE ADAPTOR BETHERNET CABLE

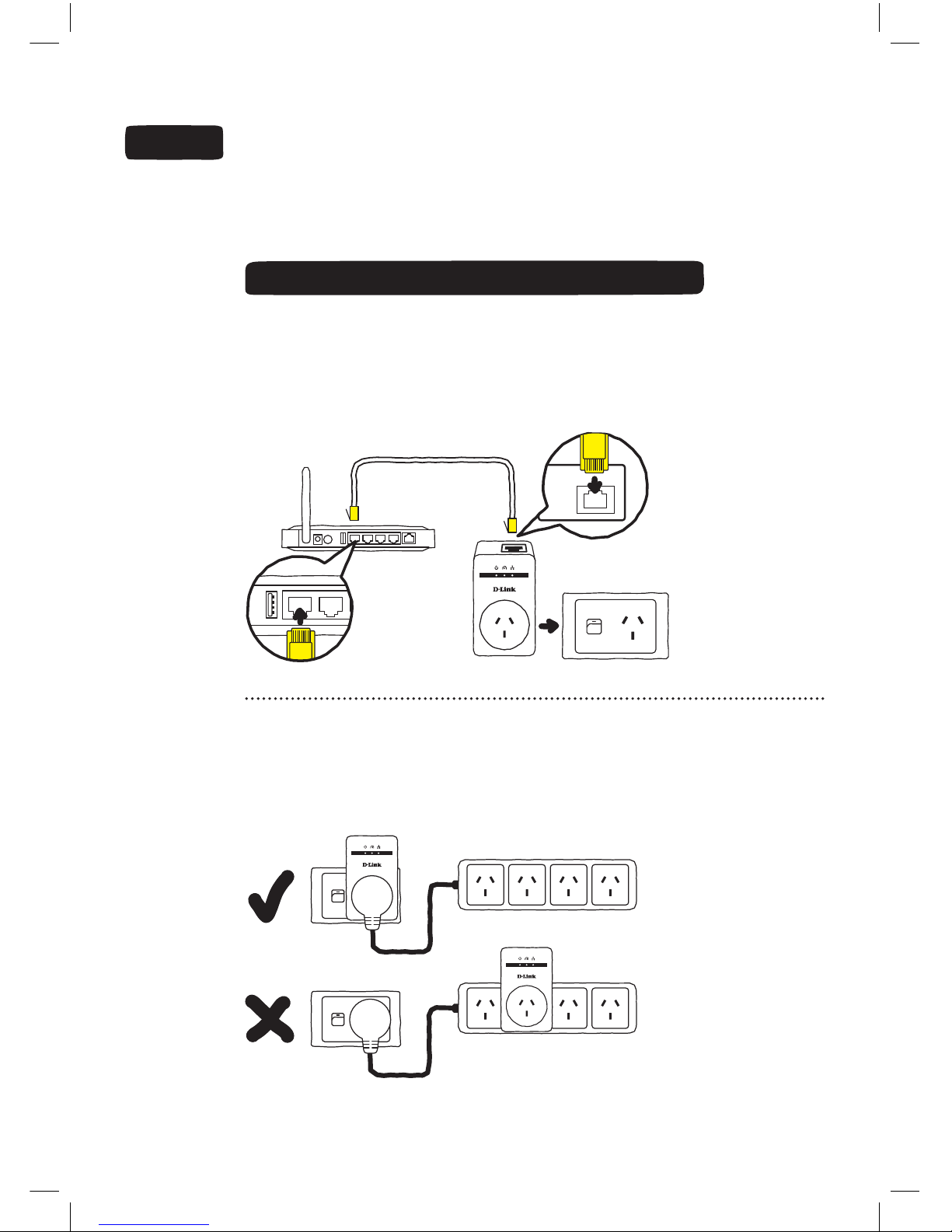

Go to the room with your existing modem or router.
Plug one end of the Ethernet Cable (B) into a spare port on the back of your
existing modem or router.
Plug the other end of the Ethernet Cable (B) into the top of the Adaptor (A).
Plug the Adaptor (A) attached to the Ethernet Cable (B) into a power point
near your existing modem or router.
(B)
YOUR MODEM
WALL POWER POINT
(A)
IF YOU’RE USING POWERBOARDS, EXTENSION CORDS
OR SURGE-PROTECTION BOARDS
DO plug the Adaptor (A) directly into the wall socket.
DO plug the extension cord, surge-protection board or powerboard into the power
socket on the front face of the Adaptor (A) only if it is plugged into the wall.
DON’T plug the Adaptor (A) directly into an extension cord, surge-protection
board or powerboard.
(A)
POWER BOARD
(A)
POWER BOARD
3

INTERNETANTENNA POWERUSB
HDMI
OPTICALAUDIOVIDEO
12V D C
IN OUT L R
RJ45
SP HKPHOE
APROTH
S PO
BITS YOU’LL NEED:  WHITE ADAPTOR D ETHERNET CABLE

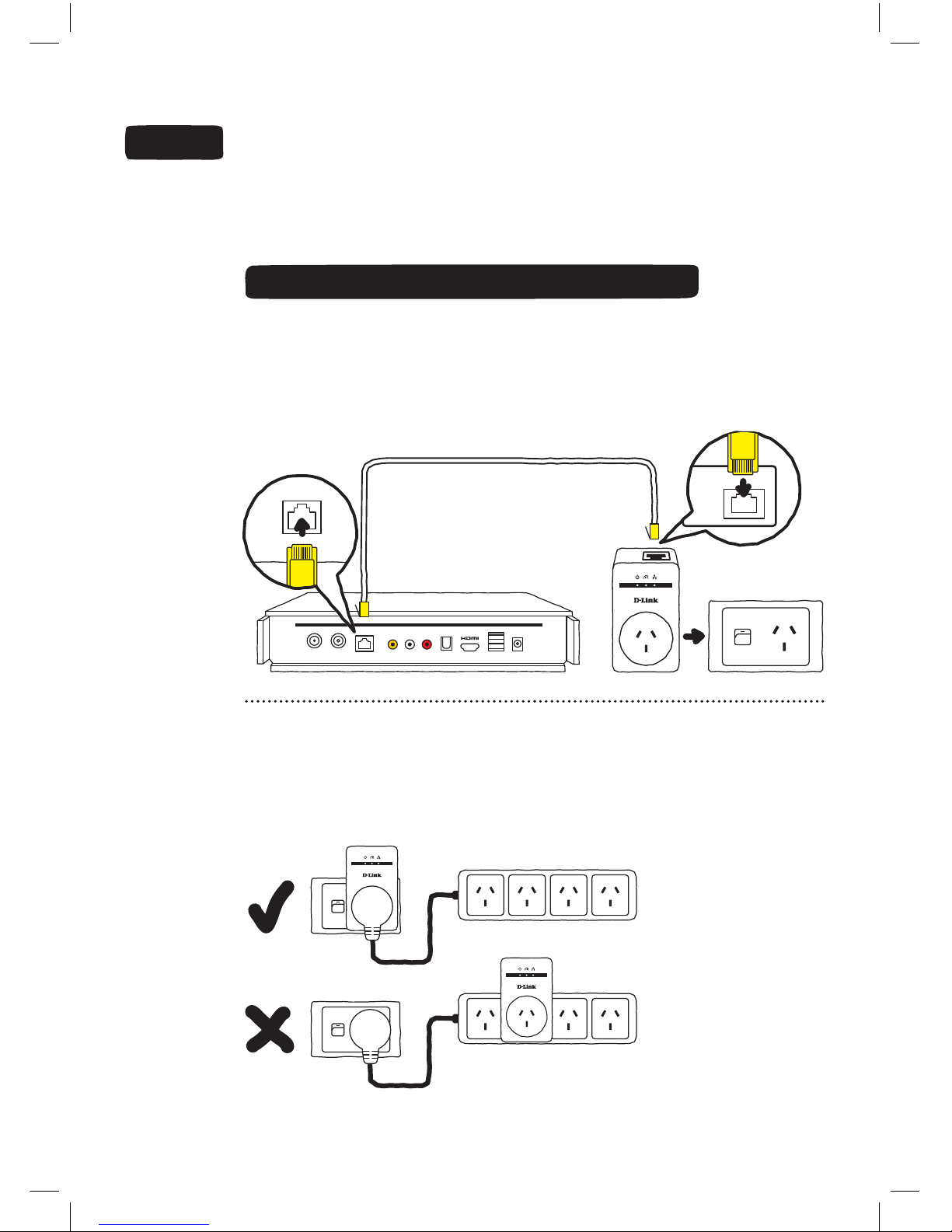

Go to the room with your Set Top Box and TV.
Plug one end of the Ethernet Cable (D) into the port labelled ‘INTERNET’
on the back of your Optus Set Top Box.
Plug the other end of the Ethernet Cable (D) into the top of the Adaptor (C).
Plug the Adaptor (C) into a power point near your Set Top Box.
(D)
(C)
SET TOP BOX
IF YOU’RE USING POWER-BOARDS, EXTENSION CORDS
OR SURGE-PROTECTION BOARDS
DO plug the Adaptor (C) directly into the wall socket.
DO plug the extension cord, surge-protection board or powerboard into the power
socket on the front face of the Adaptor (C) only if it is plugged into the wall.
DON’T plug the Adaptor (C) directly into an extension cord, surge-protection
board or powerboard.
(C)
POWER BOARD
(C)
POWER BOARD
4

SP
IO
PEU
Turn on the power points for both Adaptors.
Check that both Adaptor Power lights blink and then turn a solid green. The Powerline
light should illuminate a solid colour once the Adaptors have found each other.
The Ethernet light on the Adaptor connected to your existing modem or router should
turn to a solid green (the Ethernet light on the Adaptor connected to your Set Top Box
won’t turn green until the Set Top Box is fully setup).
RU E
S POGD
If all of the above has been checked, your internet connection should be set up correctly.
Go back to Step 2 in your Set Top Box Quick Install Guide to finish setting up Optus TV.
NEED MORE HELP? SEE PAGE 7 FOR FAQS

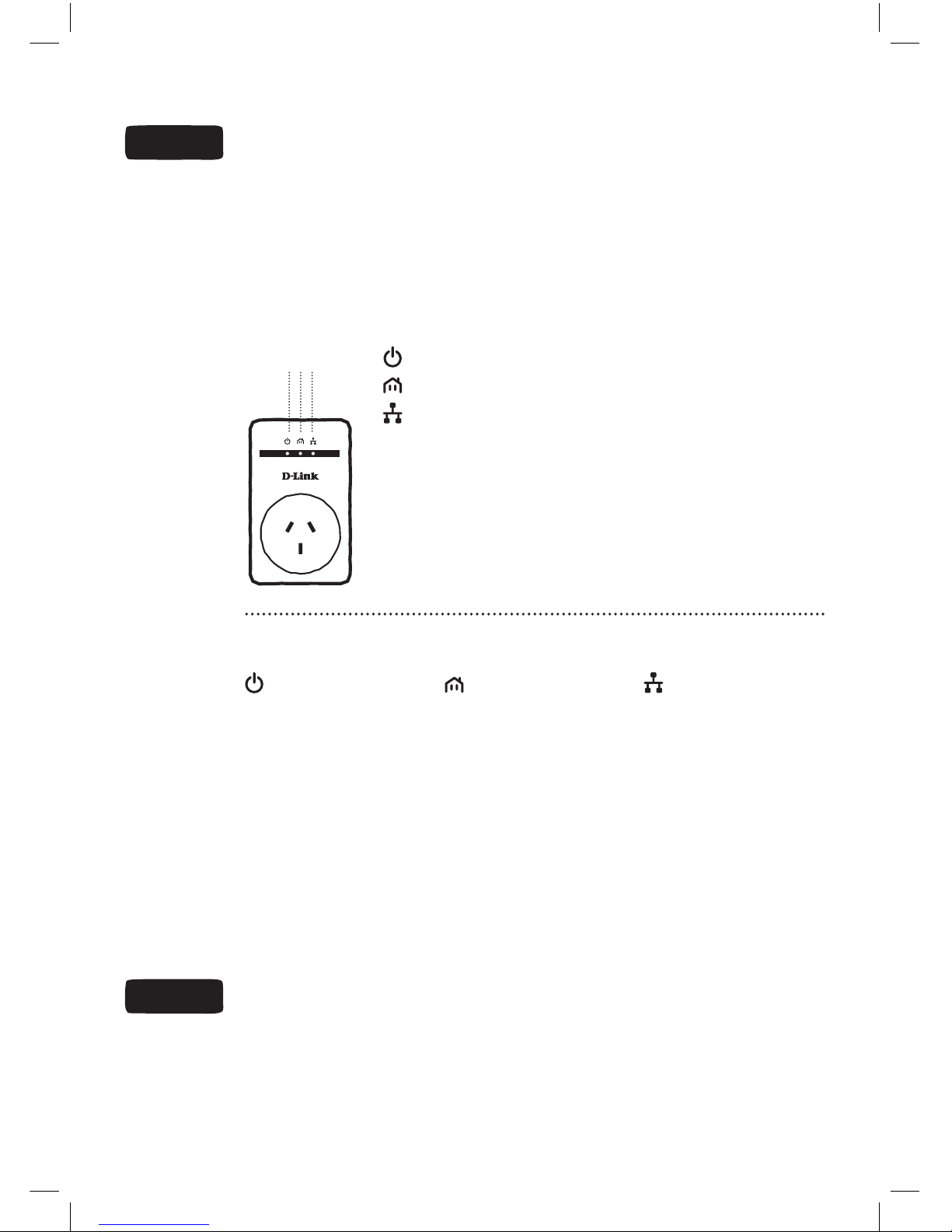

WHAT DO THE LIGHTS MEAN?
Power
Solid: The electrical
power is switched on.
Blinking: The Adaptor is
in the process of resetting,
is in power saving mode
or the simple connect
button is on.
Off: There is no
electrical power.
Powerline
Solid on: The Adaptor is
connected to a Powerline
network.
Off: The Adaptor has
not found any other
compatible Powerline
devices.
Note: Colour represents
the power line link rate.
Ethernet
Solid on: The Ethernet
connection is up and
running.
Off: There is no Ethernet
connection. Check your
modem/router or Set
Top Box, as they may be
turned off.
1 Power light
2 Powerline light
3 Ethernet light
123
5

ISU O
SEI KTIS
BITS YOU’LL NEED:  WHITE ADAPTOR B ETHERNET CABLE
C WHITE ADAPTOR D ETHERNET CABLE
INTERNETANTENNA POWERUSB
HDMI
OPTICALAUDIOVIDEO
12V D C
IN OUT L R
(D)
(C)
(A)
(B)
SET TOP BOX
YOUR MODEM

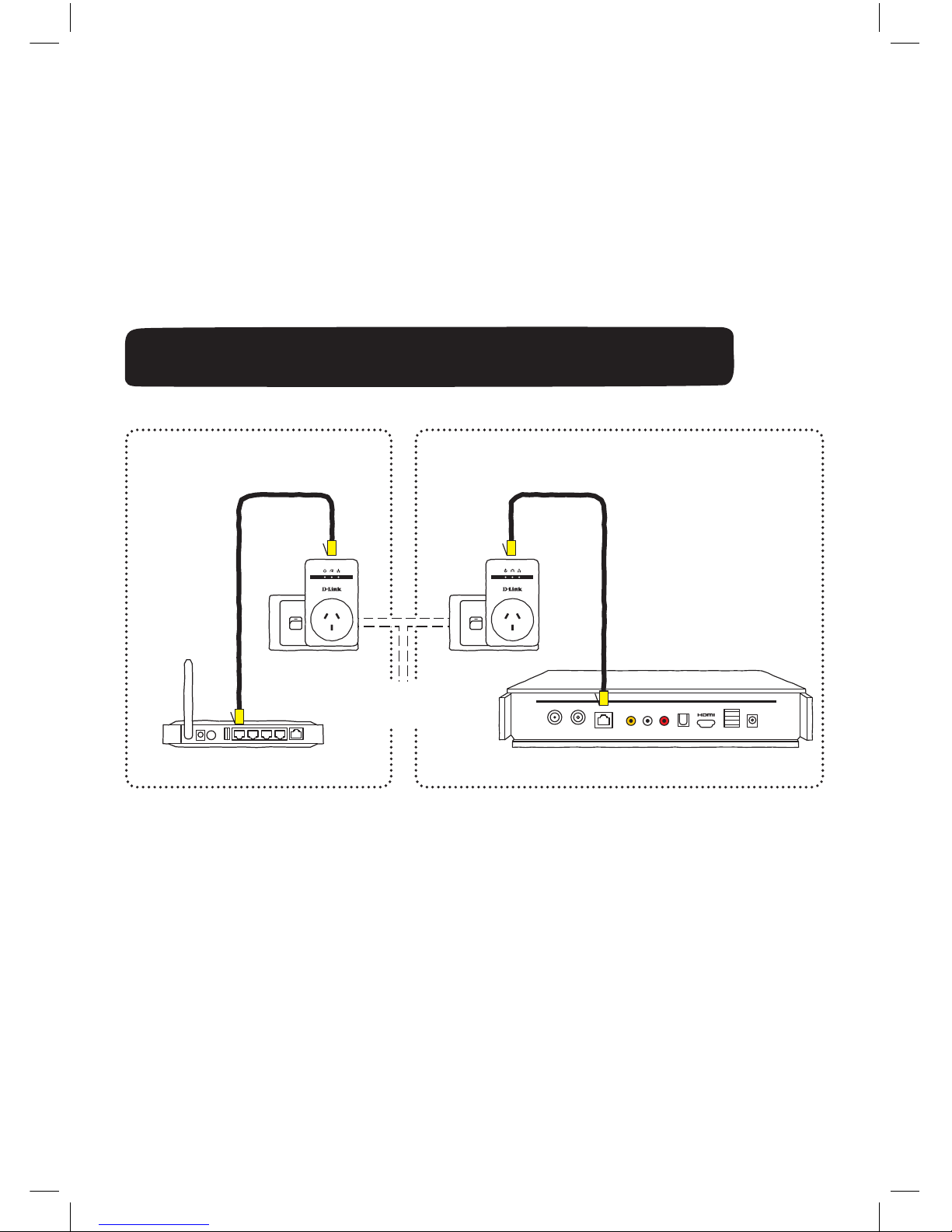

INTERNET DELIVERED
THROUGH YOUR
POWER LINES
THE ROOM WITH YOUR MODEM THE ROOM WITH YOUR SET TOP BOX AND TV
6

Q. What if I don’t have a spare Ethernet port on my
modem or router?
A. You will need to unplug an existing device from
your modem or router to free up an Ethernet port
toconnect your adaptor.
Q. Why is the Power light off?
A. Make sure that power is supplied to the power
socket, and that the Powerline Adaptors are not
plugged into an extension cord, power board or
surge-protector board.
Q. Why is my Powerline LED off?
A. Move the white adapter to a power socket
location closer to the other white adapter.
Reset both adapters to factory default settings
using the simple connect button. Refer to the
full D-Link User Guide for instructions at
support.dlink.com.au
Q. Why does the Powerline light on my device
appear to be amber or red?
A. An amber or red Powerline light indicates
that the device has successfully connected to
the Powerline network, however it is currently
connected between your modem and TV at a lower
speed - above 50Mbps (green), between 30Mbps
and 50Mbps (amber) or below 30Mbps (red).
Make sure both Adaptors are plugged directly into a
power socket and not into a powerboard, extension
cord or surge-protection board. If possible, try moving
one of the Adaptors to a different power socket.
Q. What if the Ethernet light is off?
A. Make sure that your modem or router and Set
Top Box are on and working correctly. Make sure
both Ethernet cables are working and securely
plugged into the devices. Reset both Adaptors to
factory default settings using the simple connect
button. Refer to the full D-Link User Guide for
instructions at support.dlink.com.au
Q. Can I change the default encryption key?
A. Yes. Please refer to the full D-Link User Guide
for more information.
Further help is available at support.dlink.com.au
WTIE L
GOT ANY ISSUES, PROBLEMS
OR HEAD-SCRATCHERS?
7

ERHG
Y’ OE
SOF S
L I
ME
Ver1.00(OP) MNM-P309AVAUKD01
OPTUS16893/1401304 (10/13)
WE ARE SURE YOU HAVE MASTERED YOUR
TASK LIKE A TRUE TECHNICAL GENIUS.
BUT, IN CASE YOU NEED A LITTLE HELP,
PLEASE CALL OPTUS TECHNICAL
SUPPORT ON 13 39 37 OR GO TO
OPTUS.COM.AU/OPTUSTV/PLCINSTALL
