Acclaim Lighting AL Graze DC User manual

www.acclaimlighting.com AL Graze DC (CV and DMX)
User guide

1
www.acclaimlighting.com
Contents
Introduction .....................................................................2
Welcome 2
Safety 2
Supplied items 3
Optional extras 3
Installation........................................................................5
Mount adjustment 5
Removing and replacing brackets 6

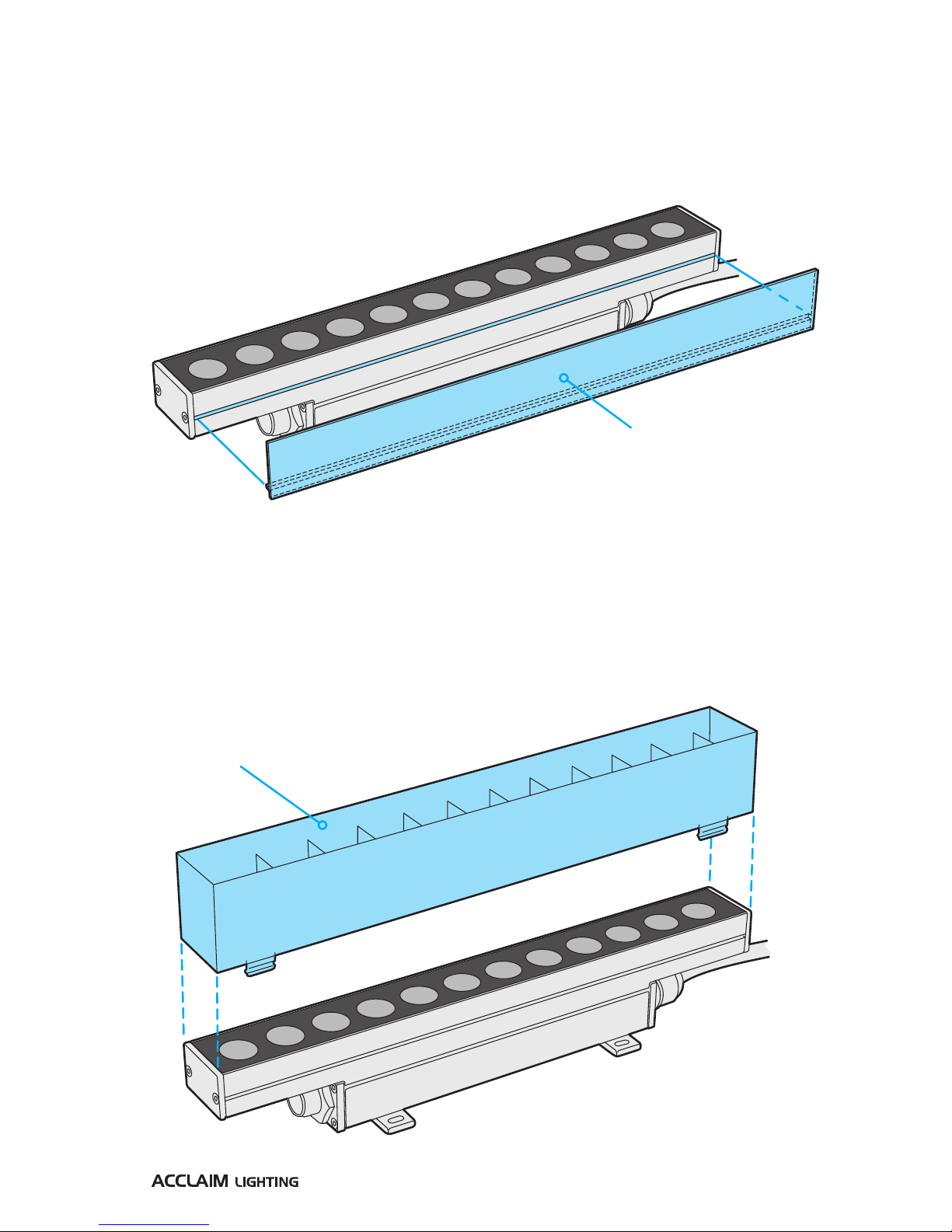

Fitting a glare shield 7
Fitting a louver 7
Fitting extender bars 8
Power and control wiring 9
Extending fixture runs beyond 12 feet 10
DMX channel designations 13
Operation....................................................................... 14
Addressing fixtures 14

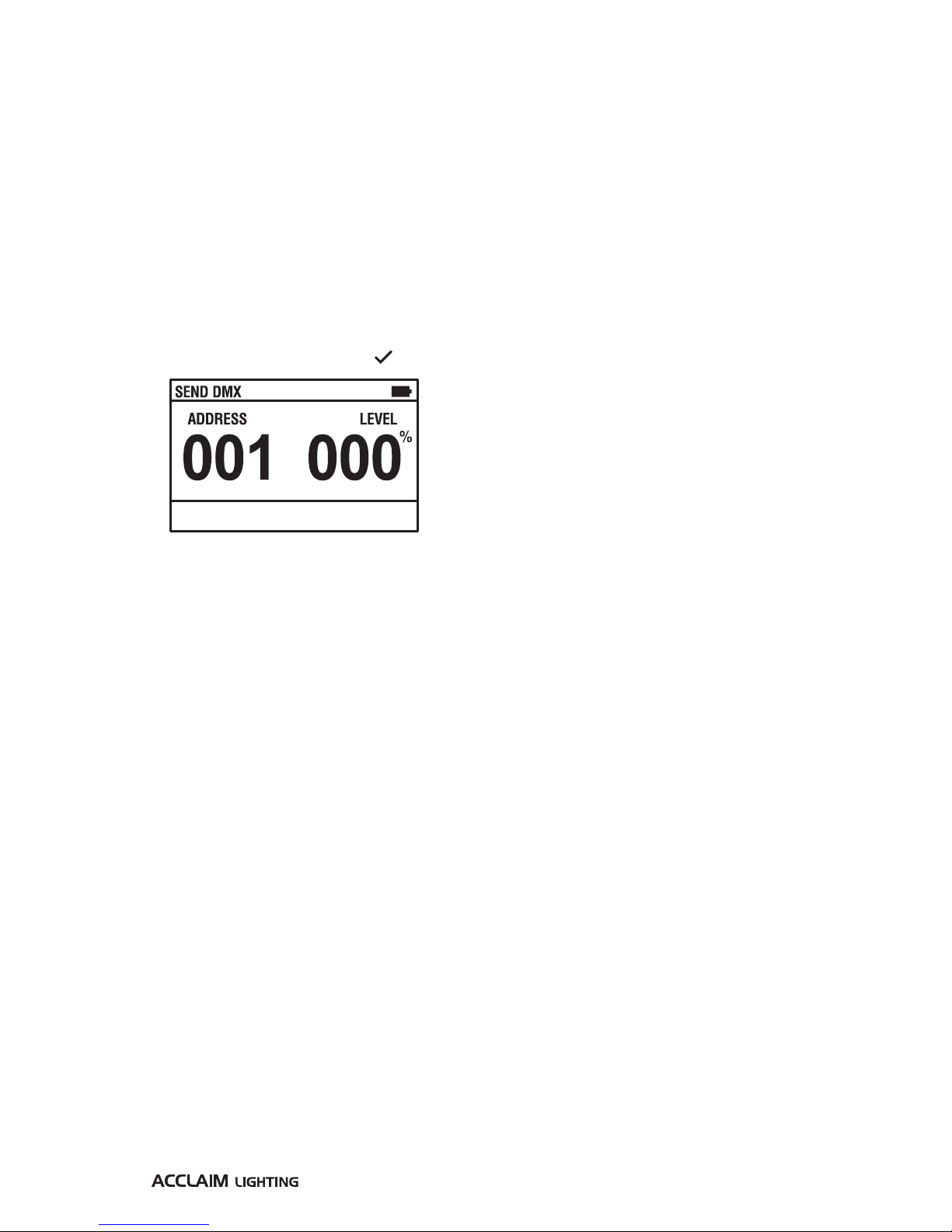

Testing emitter output 15
Further information ...................................................... 16
Troubleshooting 16

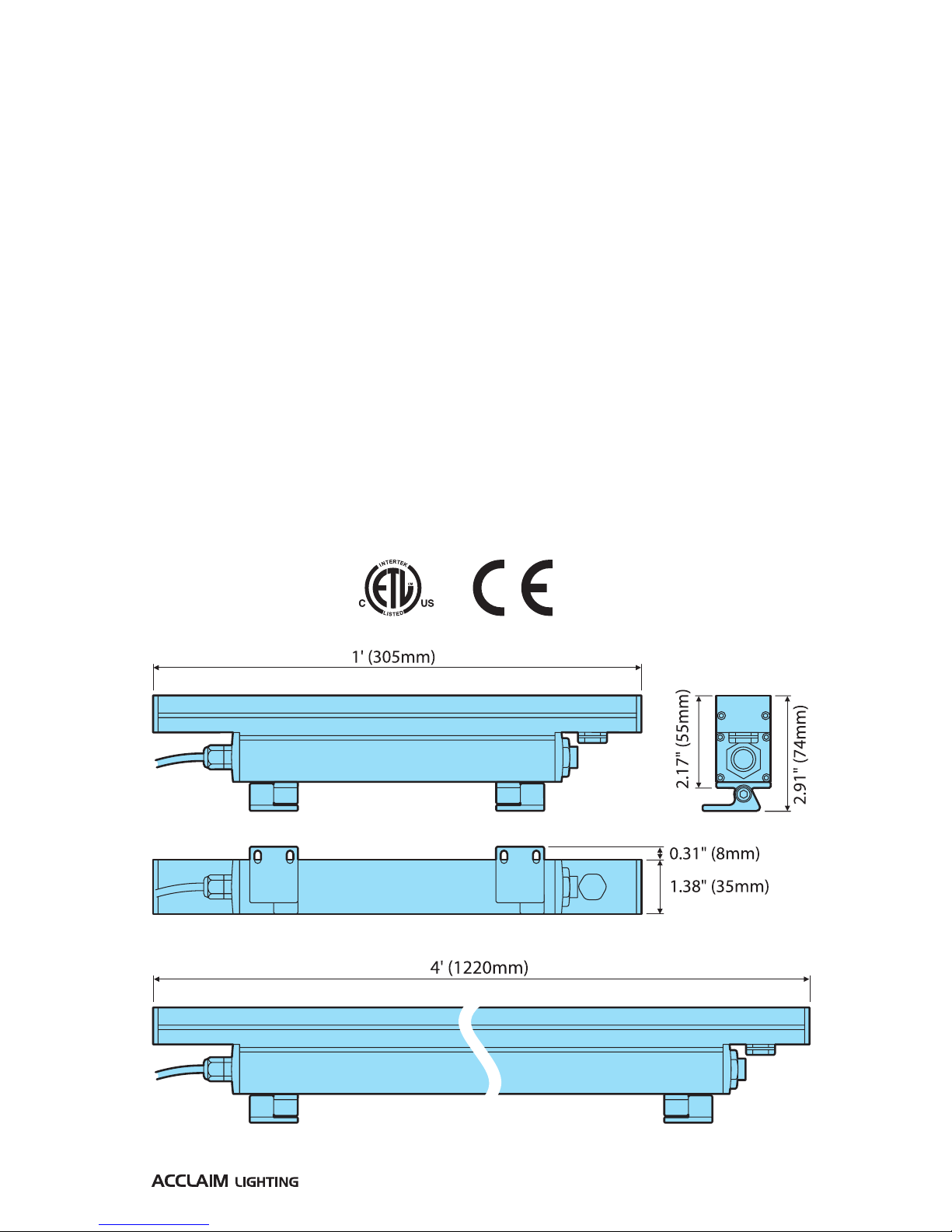

Specifications 17
Limited product warranty 18

2www.acclaimlighting.com
Introduction
Welcome
Welcome to the AL Graze DC range from Acclaim Lighting. These aluminum bodied wet
location (IP66) fixtures are designed specifically to graze indoor and outdoor surfaces in
close proximity. Available in 1’ and 4’ lengths these robust units can be connected in series
to greatly simplify installation.
In both 1’ and 4’ lengths, the AL Graze DC range is divided into two control methods:
•AL Graze DC CV - controlled entirely by the power input. For non-dim applications
simply attach a regulated 24VDC supply. Dimming can be achieved using either a 24VDC
constant voltage (CV) dimming driver (such as the AL Driver 800) or, where integration
into a mains level dimmed installation is required, use a MLV (Magnetic Low Voltage)
dimmable transformer, such as the M-Series from Acclaim Lighting (see page 11).
•AL Graze DC DMX - controlled by an external DMX input, using separate channels
for each emitter color. RDM (Remote Device Management) is used via the DMX link to
configure the addressing and mode options (see page 14). In addition to the DMX
control input, these models require a regulated 24VDC supply.
The range of emitter colors available are dependent on the chosen control method:
CV DMX
2700K white ü ü
3000K white ü ü
3500K white ü ü
4000K white ü ü
RGB
ü
RGBW
ü
RGBA
ü
Dynamic White (2200K-5500K) ü
* Dynamic White models use a mixture of 2200K, 3500K and 5000K white emitters.
Additionally, to ensure the correct fit with your installation, you have four beam angle
options:
•15º x 15º,
•10º x 60º,
•30º x 60º, or
•60º x 60º.
Safety
•Ensure that the power input is supplied from a correctly fused, earthed and
environmentally protected location.

3
www.acclaimlighting.com
Supplied items

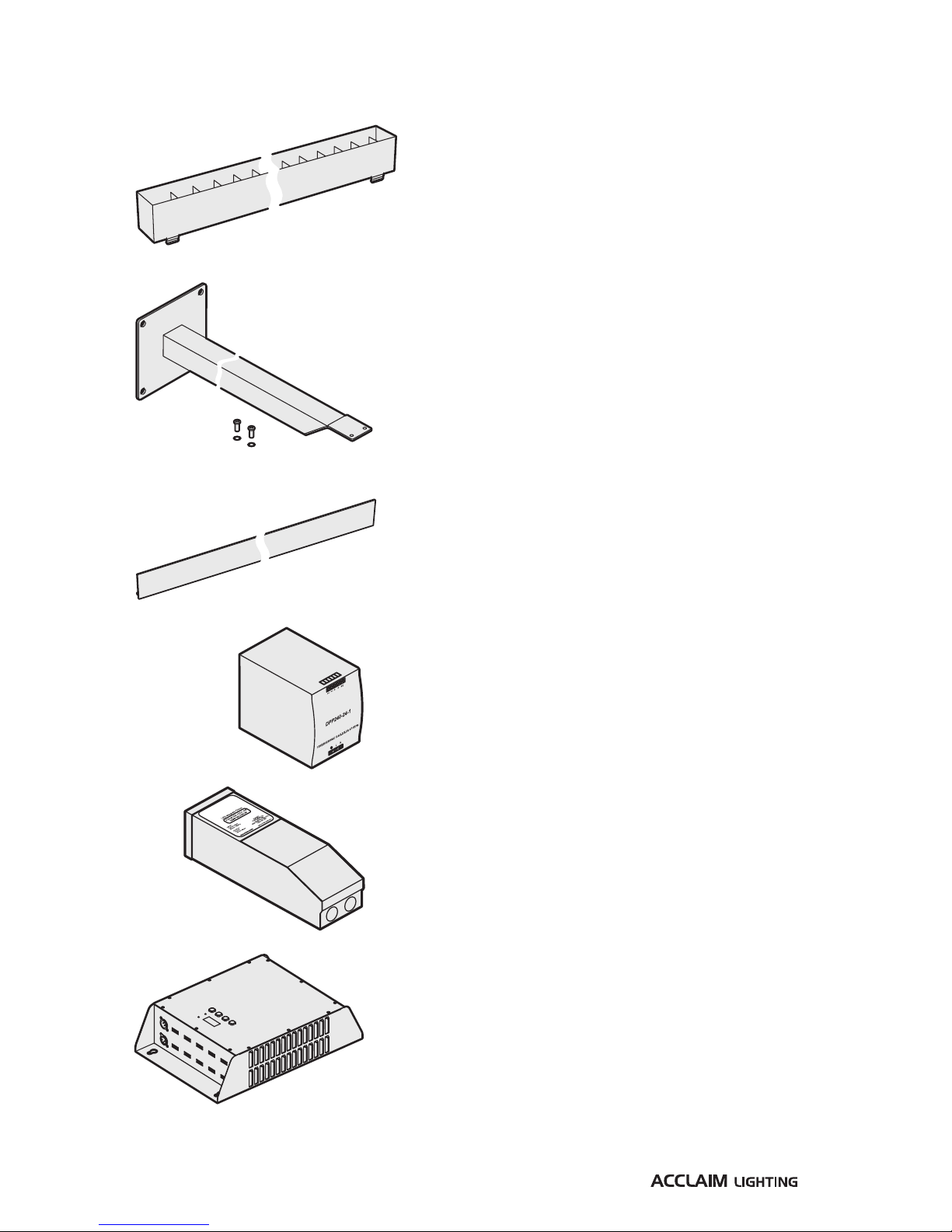

Optional extras
AL Graze DC 1’ or 4’
with two swivel mount
brackets tted plus two
additional at brackets
(and grub screws)
Link cables CV DMX
1’ (30cm) [AGELC1] [AGDLC1]
5’ (1.5m) [AGELC5] [AGDLC5]
10’ (3m) [AGELC10] [AGDLC10]
Feed cables plus end cap CV DMX
10’ (3m) [AGEFC10] [AGDFC10]
End caps CV DMX
[AGEEC] [AGDEC]
T-cable (for AL Graze DC DMX models) [AGDT1]
DMX/RDM tool plus male 5pin XLR lead
(for AL Graze DC DMX models) [XMT350]
continued overleaf
