Accolade 2 LRF Pro User manual

Accolade 2 LRF Pro
Manual

Content
Description
Package Contents
Features
Components and Controls
Button Operation
Using the Battery Pack
Battery Charging
Battery Installation
Safety Measures
External Power Supply
Powering on and Image Setting
Microbolometer Calibration
Discrete Digital Zoom
Status Bar
Quick Menu Functions
Main Menu Functions
Enter the Main Menu
Wi-Fi Activation
Image Detail Boost
Mode
Icon Brightness
Color Modes
Calibration Mode
PiP Mode
Wi-Fi Settings
General Settings
Microphone
Rangefinder
Remote Control
Defective Pixel Repair
Defective Pixel Repair
Restore Default Pixel Map
Device Information
Video Recording and Photography
Wi-Fi Function
Built-In Laser Rangefinder
Display-Off Function
PiP Function
Stream Vision
Firmware Update
USB Connection
Wireless Remote Control
Technical Inspection
Technical Maintenance and Storage
Troubleshooting

Description
Accolade 2 LRF Pro thermal binoculars are based on an IR sensor (uncooled
microbolometer) and are designed for comfortable viewing with both eyes.
Accolade 2 LRF Pro scopes accommodate day and nighttime observations. Accolade 2 LRF
Pro Binoculars provide exceptional image quality even in adverse weather conditions (fog,
smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder
target detection.
Accolade 2 LRF Pro devices do not require an external light source and are not affected by
bright light exposure.
These binoculars are equipped with a precise built-in laser rangefinger capable of measuring
distances up to 1000 m accurately (± 1 m).
Accolade 2 LRF Pro Thermal Imaging Binoculars are perfectly suited for night hunting,
observation, trail orientation, identifying hazards, rescue operations, etc.

Package Contents
Accolade 2 LRF Pro thermal binocular
IPS7 rechargeable battery
Battery Charger
Power adapter
Micro USB cable
Carrying case
Neck strap
Quick-Start guide
Lens cloth
Warranty card

Features
NETD less than 25 mK
Built-in laser rangefinder (up to 1000 m)
Variable interpupillary distance
High refresh rate 50 Hz
Built-in video recorder
Integral Wi-Fi module
Wi-Fi video transmission
Live internet video sharing
Frost resistant AMOLED display
Quick-change, long-life rechargeable Battery Packs
Fully waterproof IPX7
Extra features:
Picture-in-Picture mode
8 color palettes
4 observation modes
3 calibration modes
Manual contrast and brightness adjustment

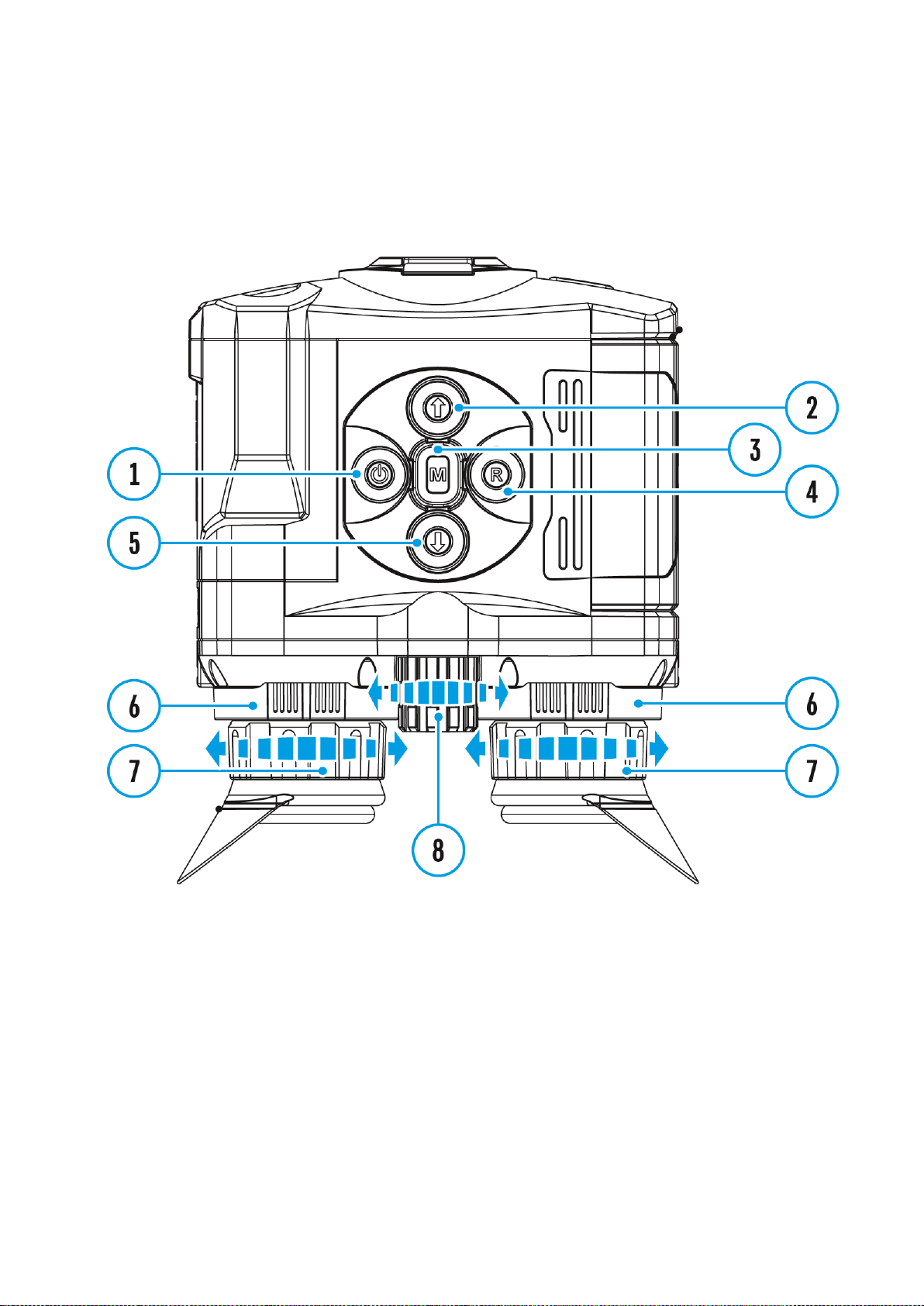

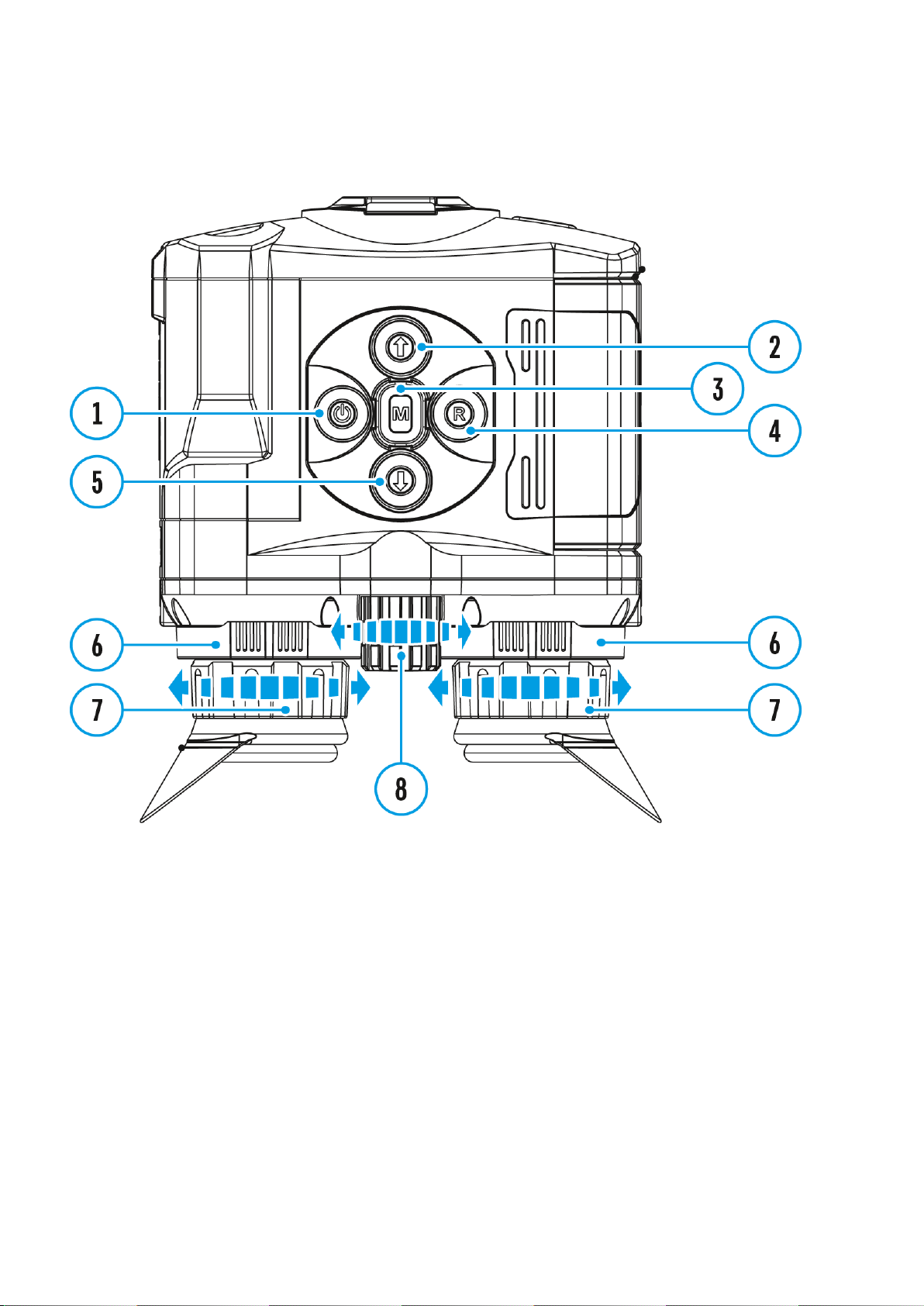

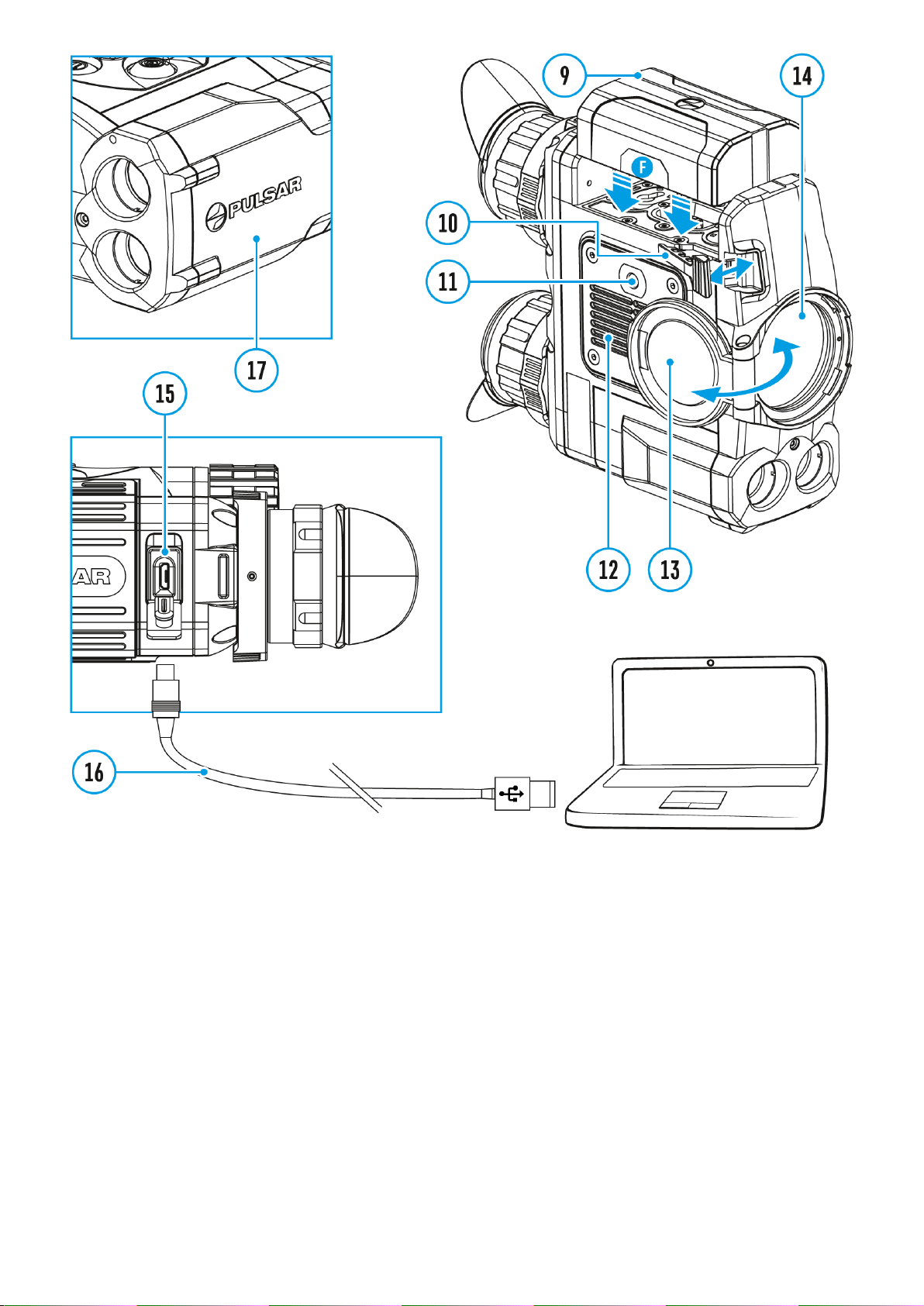

Components and Controls

1. Power ON/OFF/Calibration button
2. Navigation button UP
3. Button MENU
4. Recording button REC
5. Navigation button DOWN
6. Interpupillary distance adjustment rings
7. Diopter adjustment rings
8. Lens focusing ring
9. Battery Pack
10. Battery Pack latch
11. Tripod mount
12. Radiator cooling system
13. Lens cover
14. Objective lens
15. MicroUSB port

16. MicroUSB cable
17. Integrated laser rangefinder

Button Operation
Operation Button
Power device on short press
Power device off long press for 3 secs
Turn display o? long press for less than 3 secs
Turn display on short press
Calibrate the microbolometer short press
Control discrete digital zoom short press
Change observation modes long press
Video Recorder Button
Start/pause/resume video recording short press

Stop video recording long press
Switch to video / photo long press
Capture Photo short press
Main Menu Button
Enter main menu long press
Navigation upwards/rightwards short press
Navigation downwards/leftwards short press
Con?rm selection short press
Exit submenu without con?rming
selection long press
Exit menu (switch to viewing mode) long press
Quick Menu Button
Enter quick menu short press
Switch between quick menu options short press
Increase value short press
Decrease value short press
Exit quick menu long press

Rangefinder Button
Activate rangefinder short press
Measure distance short press
Start/stop SCAN mode long press

Battery Charging
Accolade 2 LRF Prothermal imaging binoculars are supplied with a rechargeable Li-Ion
Battery Pack IPS7 which allows operation for up to 9 hours. Please remember to charge the
Battery Pack before first use.
Charging
Step 1. Install the battery into the charger
1. Lift the lever (C) of the charger.
2. Remove the protective cover from the Battery Pack.
3. Install the Battery Pack into the charger.
4. Click the lever (C).
Step 2. ?heck the current battery level
Upon installation, a green LED indicator (D) on the charger will start to glow and begin
flashing:
- once if the battery charge ranges from 0% to 50%;
- twice if the battery charge ranges from 51% to 75%;

- three times if the battery charge ranges from 76% to 100%;
If the indicator lights green continuously, the battery is fully charged.
You can remove the battery from the charger by lifting the lever (?).
If the indicator of the charger lights red continuously upon battery installation, probably
the battery's charge level is lower than acceptable (the battery has been long in deep
discharge). Keep the battery in the charger for a long time (up to several hours), remove
and re-insert it.
If the indicator starts blinking green, the battery is good.
If the indicator keeps lighting red, the battery defective. Do not use the battery!
The LED indicator (D) will display the battery charge status:
LED Indicator Battery Charge Status
Battery is empty
Image not found or type unknown Battery is full
Step 3. ?onnect the charger to the mains supply
1. Connect the Micro-USB plug of the USB cable to the port(E) of the charger.
2. Connect the Micro-USB plug to the power adapter.
3. Insert the plug of the power adapter to the 100-240 V socket.

Battery Installation
1. Lift the lever (10).
2. Install the battery (9) all the way into the dedicated slot on the device housing so that
element Fappears from below.
3. Fix the battery by clicking the lever (10).

Safety Measures
Only use the charger supplied with the Battery Pack. The use of any other charger may
irreparably damage the Battery Pack or the charger and may cause fire.
During long-term storage, the Battery Pack should be partially charged – the charge level
should be between 50% and 80%.
Do not charge the Battery Pack immediately after bringing it from a cold environment to a
warm one. Wait for 30-40 minutes for the Battery Pack to get warm.
Charge the Battery Pack at a temperature from 0° C to +45° C (32° F to +113° F),
otherwise the battery life will decrease significantly.
Do not leave the Battery Pack unattended while charging.
Never use a modified or damaged charger.
Do not leave the Battery Pack with a charger connected to the power adapter after
charging is complete.
Do not expose the Battery Pack to high temperatures or an open flame.
Do not submerge the Battery Pack in water.
Do not connect an external device with a current consumption that exceeds permitted
levels.
The Battery Pack is short circuit protected; however, any situation that may cause short-
circuiting should be avoided.
Do not dismantle or deform the Battery Pack.
Do not drop or hit the Battery Pack.
When using the Battery Pack at sub-zero (sub 32°F) temperatures the battery capacity
decreases. This is normal and is not a defect.
Do not use the Battery Pack at temperatures above those shown in the table – this may
decrease battery life.
Keep the Battery Pack out of the reach of children.

External Power Supply
☐
Show device diagram

The device can be powered with an external power supply such as Power Bank (5 V).
1. Connect the external power supply to the USB port (15) of the device.
2. The device switches to operation from external power supply, and the IPS7 Battery Pack
will begin slowly charging.
3. The display will show the battery icon with charge level as a percentage.
4. If the device operates on external power supply but the IPS7 battery is not connected,
icon is shown.
5. When the external power supply is disconnected, the device switches to the internal
battery pack without powering off.
Warning! Charging IPS7 / IPS14 batteries at air temperatures below 0° C (32° F) may reduce
battery life. When using external power, connect the Power Bank to the device after it has
been turned on and working for several minutes.

Powering on and Image Setting
☐
Show device diagram

1. Open the lens cover (13).
2. Turn the device on with a short press of the ON/OFF (1) button.
3. Adjust the interpupillary distance with the rings (6) by moving the eyepieces farther or
closer to each other.
4. To obtain a crisp image of the icons on the display, rotate the diopter adjustment ring (7).
Once adjusted, there is no need to rotate the diopter adjustment ring for distance or any
other conditions.
5. To focus on the object being observed rotate the lens focusing ring (8).
6. Select the calibration mode: manual (M), semi-automatic (SA) orautomatic (A) in the
main menu (enter the menu by long pressing theMENU (3) button).
7. Calibrate the image with a short press of theON/OFF (1) button (when calibration mode
(SA) or (M) has been selected). Close the lens cap before manual calibration.
8. Select the desired observation mode (Forest, Rocks, Identification or User) by a long
press of the DOWN (5) button or in the main menu. User mode allows you to configure
and save custom
9. To set up display brightness and contrast and continuous zoom, please refer to the
Quick Menu Functions
