Accsoon SeeMo Pro User manual

1
User Maunal
User Manual
使用说明书
V1.0

2 3
User Maunal
1. Use only the included USB-C to Lightning cable to
connect the Accsoon SeeMo product lines with your
iPhone/iPad. Accsoon SeeMo product lines cannot be used
with other brands’ USB-C to Lightning cables.
2. The included cables are custom cables only for use
with Accsoon SeeMo product lines. Please do not use the
cable with products other than Accsoon SeeMo product
lines otherwise Accsoon makes no commitment to the
performance of the cable, and the user is responsible for
the consequences.
*Note:

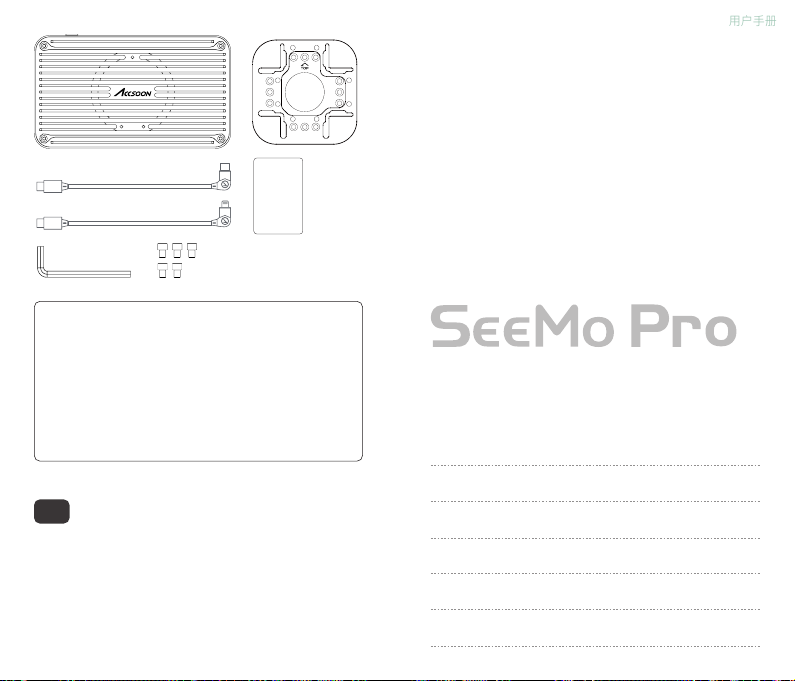

Accsoon SeeMo Pro
USB-C to Lightning Cable*
USB-C to USB-C Cable*
SeeMo Mount Bracket
M2.5*8 Screw
L Shape Wrench
User Manual
× 1
× 1
× 1
× 1
× 5
× 1
× 1
Contents
Accsoon SeeMo Pro
Introduction
Instruction
Specication
Warranty
Contact Us
04
06
07
11
12
13
User
Manual

4 5
User Maunal
SeeMo Pro
1/4
1/4VIDE O
ON/OFF
HDMI IN
SDI IN
SDI OUT
1/4
VIDEOOU T5VOUT1/4
SDI/HDMI To iOS Vi deo Captur e Adapt er
Made In Chin aMODE LW=UIT0 2-S
DC 6.4~16.8 V
①
⑤
②
③
⑥
⑦ ⑧ ⑨ ⑩
⑪
⑫
⑭ ⑮
⑬
④
① 1/4"-20 Mounting Point
② Power Button
③ 1/4"-20 Mounting Point
④ Video Source and Power Level Indicator Light
⑤ Mounting Points for SeeMo Bracket
⑥ HDMI Input Port
⑦ 2 Pin DC Power Input
⑧ 1/4"-20 Mounting Point
⑨ SDI Input Port
⑩ SDI Loop Out Port
⑪ USB-C Power Ouput Port (5V Out)
⑫ 1/4"-20 Mounting Point
⑬ Video Output Port
⑭ Safety Lock
⑮ NP-F Battery Holder

6 7
User Maunal
Instruction
App Store Accsoon SEE
Mount the Accsoon SeeMo Pro via a 1/4”-20
mounting point. To use with iPads, you can use with an
Accsoon iPad PowerCage (optional product).
Download and install the Accsoon SEE App on your
iPhone or iPad from Apple App Store.
Attach an NP-F series battery or connect to a DC
power (6.4-16.8V).
01
02
03
Product Features
Turn your iPhone/iPad into a professional monitor
SDI in & loop out
HDMI in
Video input and output support up to 1080p 60fps
Powered by 2 pin DC or NP-F battery
iPhone and iPad charging
USB-C charging for other devices
H.264 video compression
Variable Bitrate
Visually lossless image quality
Rich monitoring features
Video and audio recording
RTMP live streaming
Flexible and versatile
Standard 1/4"-20 mounting points
Introduction
Built on the technology of the original SeeMo HDMI model,
the SeeMo Pro SDI is a small box that goes in-between
your camera or other SDI/HDMI source and your iOS device
via Lightning or USB-C cable.
The SeeMo Pro SDI can accept HD signals up to 1080p
60fps over either HD SDI or HDMI from cameras, mixers,
game consoles and wireless receivers.
SeeMo Pro connects your SDI or HDMI camera to the vast
world of iOS connectivity and apps. You can now record,
edit, stream and share video from your SDI camera as
simply as if it were shot on your iPhone to start with. It
opens up new ways of working, all with the simplicity and
elegance of iOS apps and hardware.
HDMI IN
SDI IN
SDI OUT
1/4
HDMI IN
SDI IN
SDI OUT
1/4
1/4”-20 mounting point × 4

8 9
User Maunal
04
05
Connect your iPhone/iPad to the Accsoon SeeMo
Pro’s USB-C video output port using the corresponding
USB-C cable.
06
iPhone/iPad (USB-C port):
Use USB-C to USB-C cable
iPhone/iPad (Lightning):
Use USB-C to Lighting cable
Connect the Accsoon SeeMo Pro to the camera using
a SDI or HDMI cable (not included).
If there is a need to power other devices (e.g. Accsoon
CineView series), connect the cable to the USB-C power
output port.
Power On | Power O
Open the Accsoon SEE App, tap “Monitor" to start
monitoring.
07
08
Accsoon SEE
Power On:
Press the power button
and the power indicator
light will turn on
Power O：
Hold the power button
for 2 seconds
SDI/HDMI To iOS Vide o Captur e Adapt er
MadeIn Chin aMODELW=UIT02-S
DC6.4~16.8V
Screw the SeeMo bracket to the front of the Accsoon SeeMo Pro.
Attach the Accsoon SeeMo Pro to the Accsoon
iPad PowerCage Gen 2 (optional product)
Slide and lock down the Accsoon SeeMo Pro to the back of the
iPad PowerCage Gen 2.
Monitor
SeeMo Series

10 11
User Maunal
Video source indicator
On - Valid video input detected
O - No valid video input
Live Streaming
10
Please make sure the iPhone/iPad can access the
network via "WiFi" or "4G/5G" network.
Tap the "Live" button on the App, enter the RTMP
live address and code then tap "OK" to start live
streaming.
i áî É
i áî É
Live
Live Address Code
Note:The uency of the live streaming depends on the stability of
the internet connection. When the video is buering, please check
whether your internet connection is heavily loaded or your mobile
network has poor reception quality.
Status Indicator
Power level indicator
09
>75%
50%~75%
25%~50%
0%~25%
Flash: power level low
Specication
Video Input Port SDI in, HDMI in
SDI Video Input
Format
1080p 23.98/24/25/29.97/30/50/
59.94/60fps Level A/B
720p 50/59.94/60fps
SDI Loop Out
Format
1080p 23.98/24/25/29.97/30/50/
59.94/60fps Level A/B
720p 50/59.94/60fps
Video Output Port SDI loop out, USB out
Video Output
Format
1080p 24/25/30/50/60fps
720p 50/60fps
Battery
Compatibility NP-F550/F750/F970
Power Output Port USB-C Output
5V/3A
Power Input Port 2 PIN DC Input
6.4-16.8V
iOS Version iOS 12.0 or later
Power Consumption 3.5Watt
(without charging other devices)
Operating
Environment
Temperature
-10℃ ~40℃
Dimensions 125mm×72mm×35.5mm
Weight 224g

12 13
User Maunal
03 Warranty Process
1. Contact your local Accsoon authorized dealers for after-
sales service. If there is no local authorized dealers, you
can contact our customer service via our email (support@
accsoon.com) or website (www.accsoon.com) and get
appropriate support.
2. You will get detailed solutions from the authorized
dealers or Accsoon.
3. Accsoon reserves the right to review the damaged
product.
Warranty
01 Warranty Period
02 Warranty Exclusions
1. If there is a quality problem that occurs within 15 days
after receiving the product, Accsoon will be providing
complimentary maintenance or replacement.
2. Under proper use and maintenance, from the date of
receipt, Accsoon will provide a one-year warranty on the
product and a three-month warranty on the accessories
and cables. Free maintenance service is available during
the warranty period.
3. Please keep the proof of purchase and the user manual
in a safe place.
1. Out of warranty (If the proof of purchase is not available,
the warranty will be calculated from the date the product is
delivered from the factory).
2. Damage caused by use or maintenance is not following
the requirements of the product manual.
3. Unauthorized repair, modication or disassembly.
4. Damage caused by force majeure such as re, ood,
lightning strike, etc.
Safety Information
• When operating this equipment, read and follow all
the instructions in this manual.
• Use only accessories/batteries/chargers specied
or recommended by Accsoon.
• Do not expose to moisture, excessive heat or re.
• Keep away from water and other liquids.
• Keep the equipment properly during lightning storms
or when unused for long periods of time.
• Please do not use the product in a place
overheating, under cooling or with lots of moisture, or
nearby strong magnetic devices.
• To reduce the risk of re or electric shock, refer
servicing to qualied service personnel.
