Accurian ADR-3223 User manual

Thank you for purchasing this Accuran ALL Write DVD
Recorder with Progressive Scan. Your recorder contains
an 80GB hard drive for recording. You can record and
store up to an average of 50 movies on the HDD. Plus,
this recorder works with the leading media formats.
Accurian ALL Write DVD Recorder
with 80GB HDD
ADR-3223
WHAT’S INCLUDED
Please read this user’s guide before installing, setting up, or using your new product
Please check and identify the supplied accessories.
 1x Remote control  1x Audio/Video cable  1x RF cable
 User’s Guide  1x Power Cord (In some models, the power
cord is attached to the unit)

2
GETTING STARTED
What’s Included..............................................................................................1
Important safety instructions ...................................................................3
Warnings, cautions and others .................................................................4

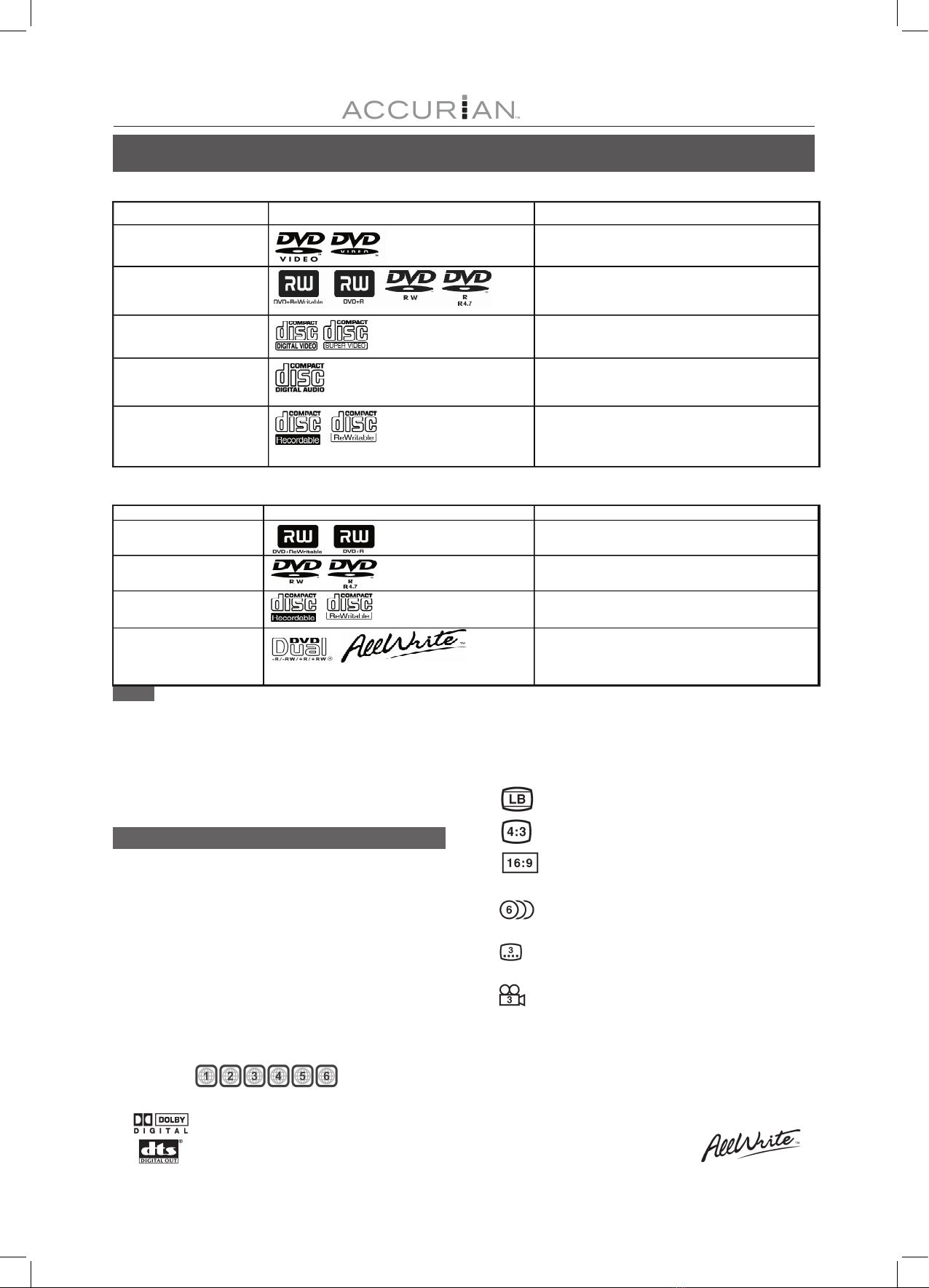

Disc information ............................................................................................5
CONTROLS AND DISPLAYS
Remote control ..............................................................................................6

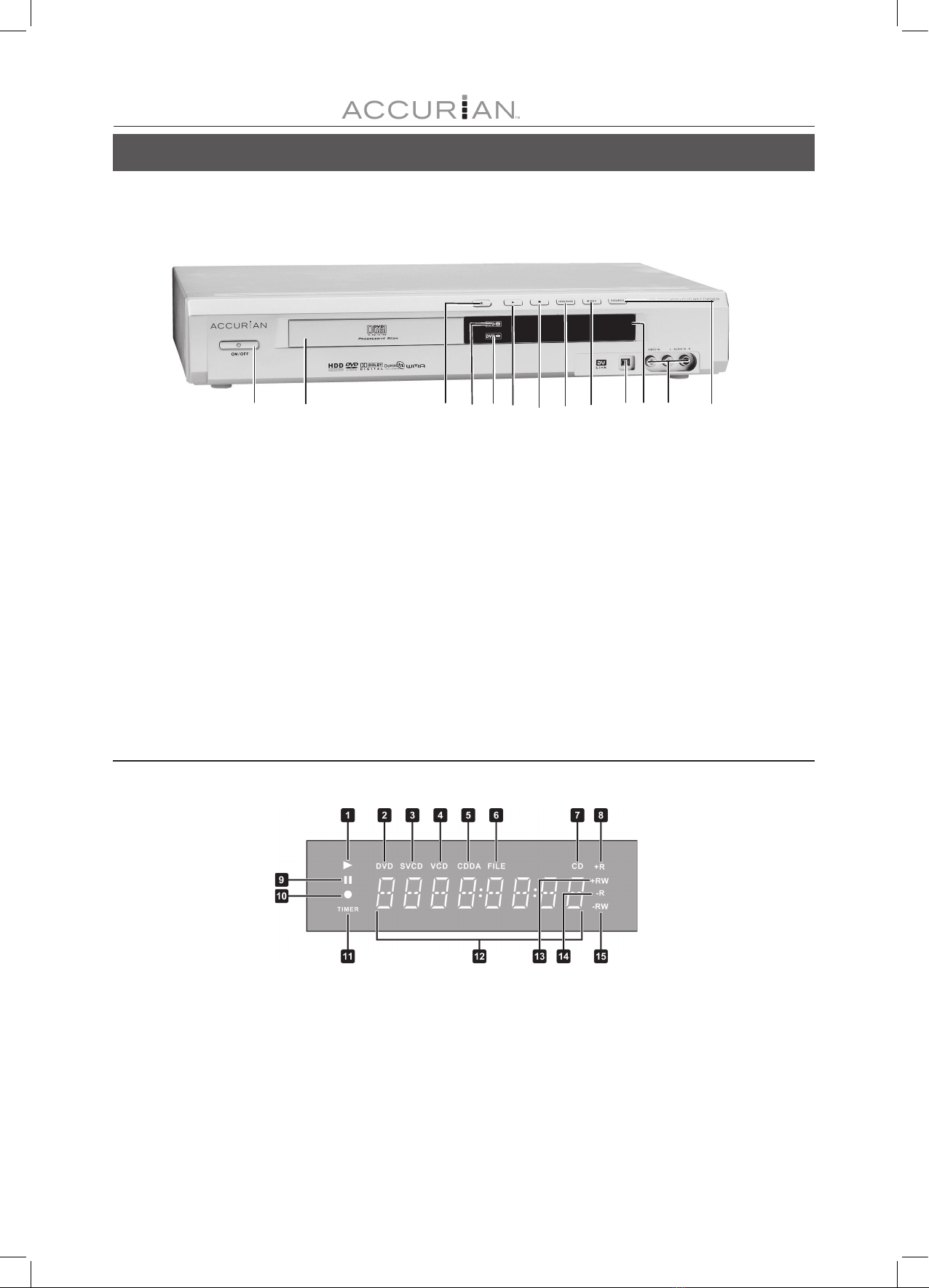

Front panel ......................................................................................................7
Display window .............................................................................................7
Rear panel ....................................................................................................... 8
CONNECTIONS

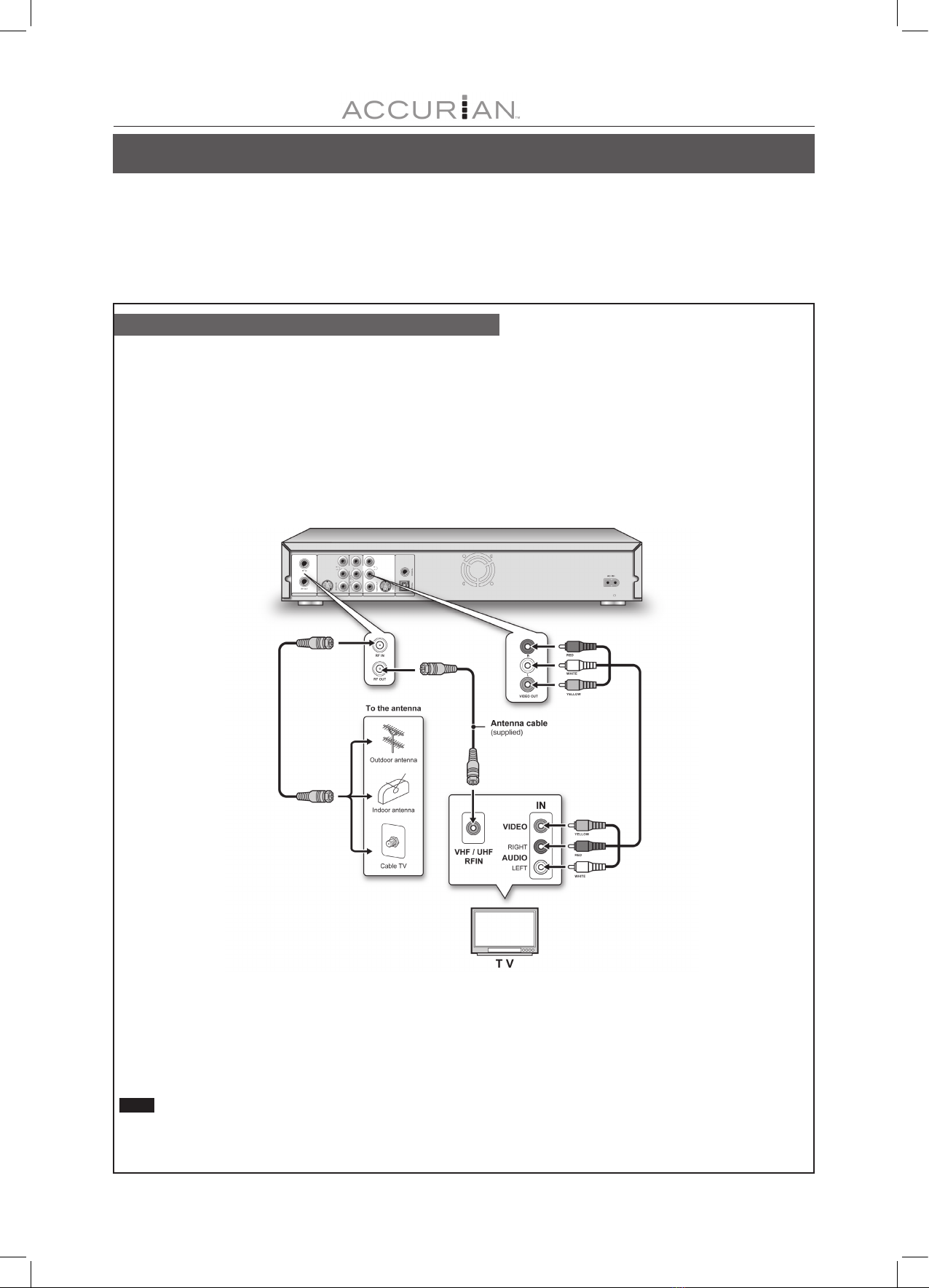

Connecting the antenna cable and television ...................................9
For better video quality ...........................................................................10

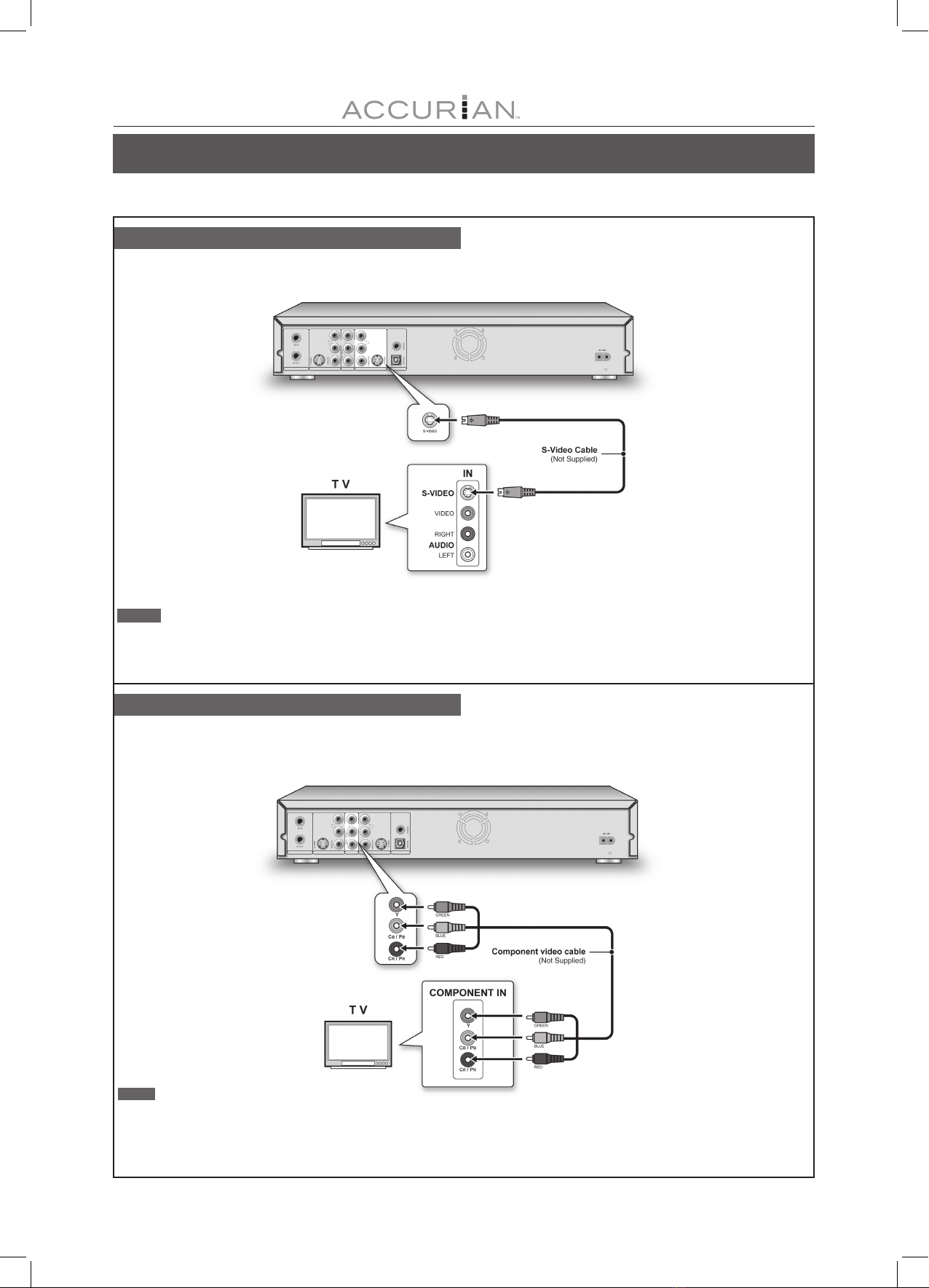

Connecting to a TV via S-Video out ......................................... 10
Connecting to a TV via Component out ................................ 10
For better audio quality ...........................................................................11
Connecting to a stereo audio amplifier or receiver ........... 11
Connecting to a digital audio device ......................................11
Digital out optical ..........................................................................11
Digital out coaxial ..........................................................................11
Connecting a satellite receiver or cable box ...................................12
SETTING UP
Setup menu.............. ....................................................................................13
TV CHANNEL SETUP
Automatic TV channel scanning ........................................................... 14
Fine-tuning TV channels manually ...................................................... 14
Editing TV channels manually ............................................................... 14

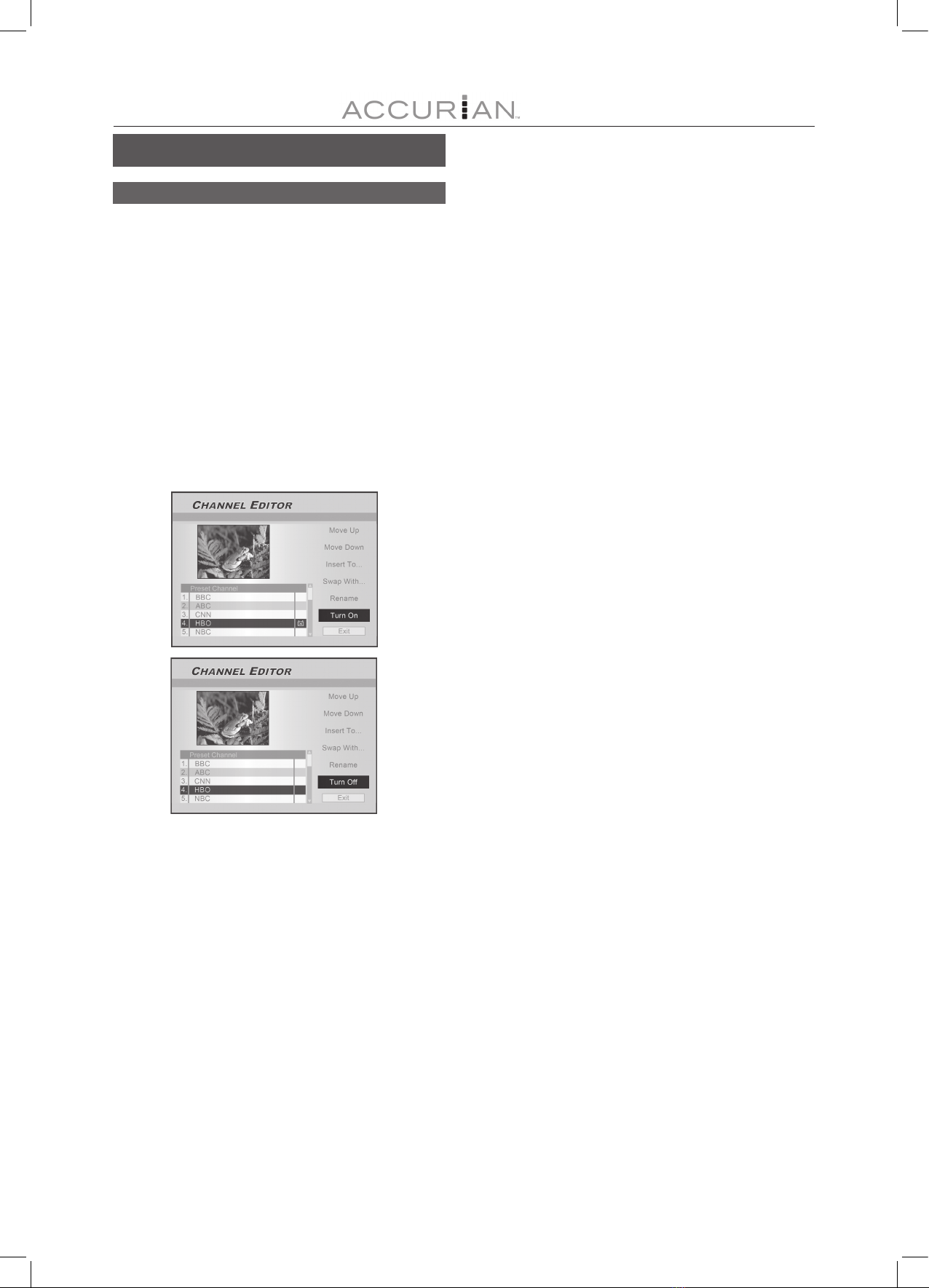

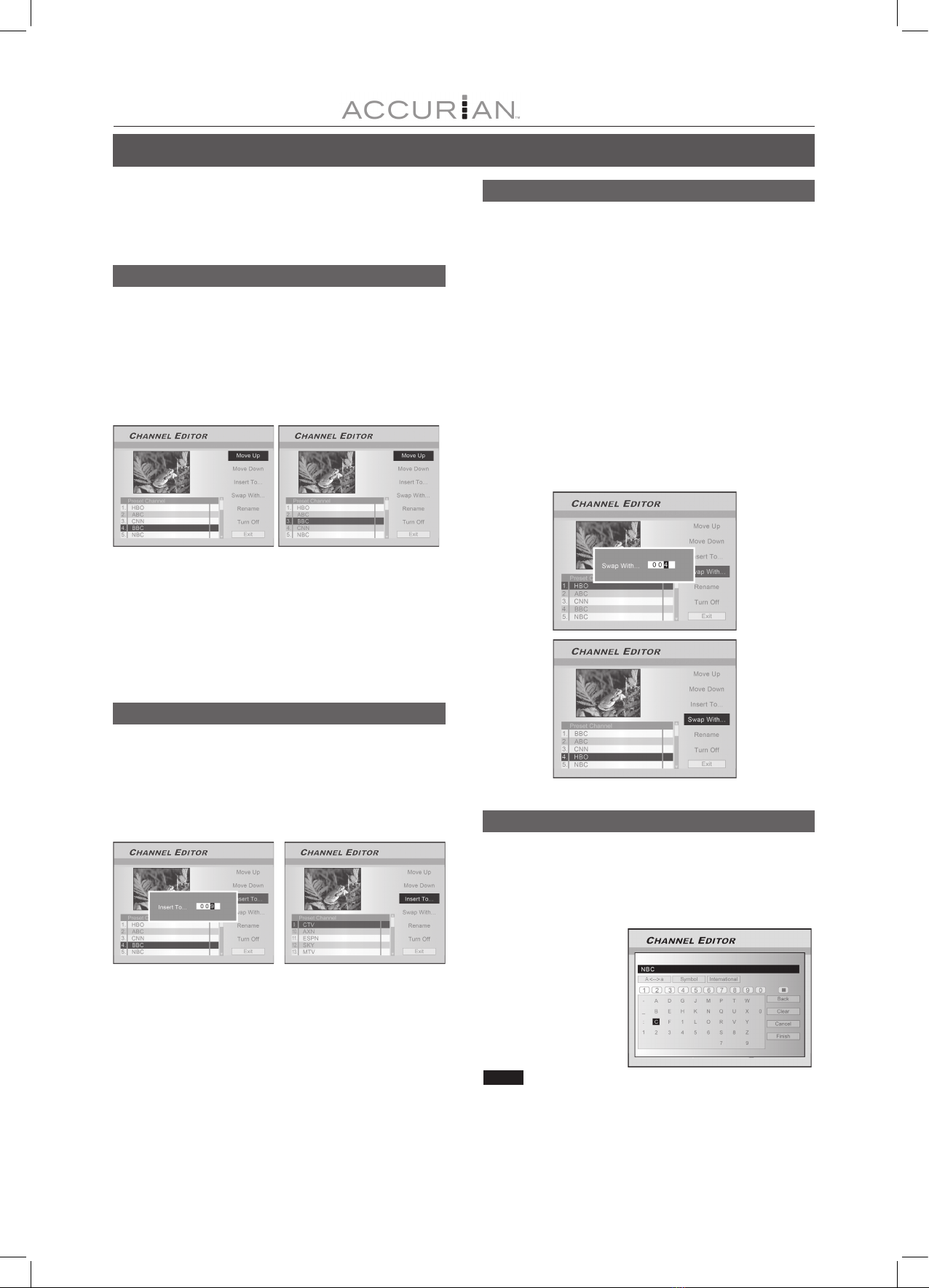

Channel Editor ............................................................................................. 15

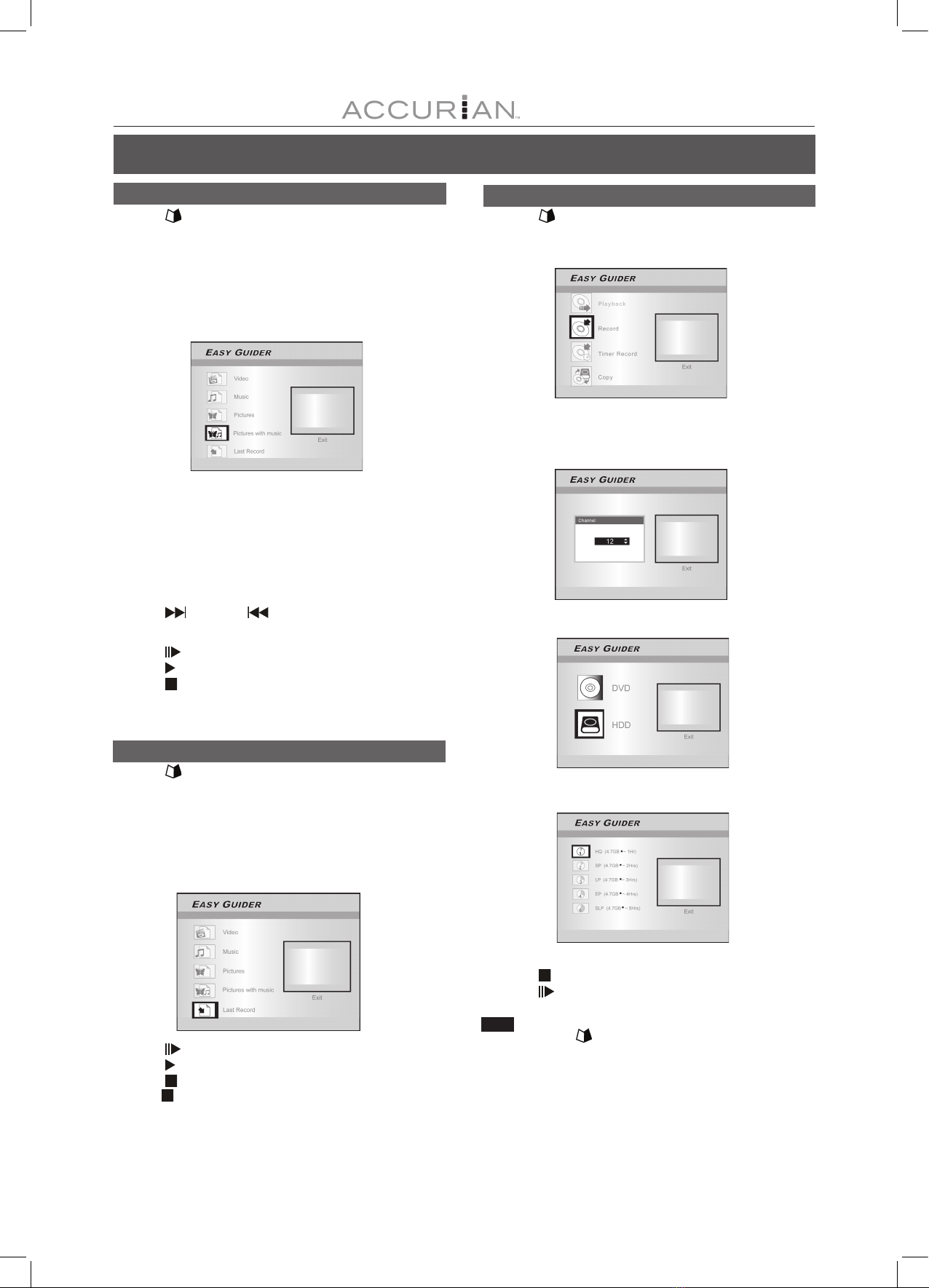

EASY GUIDER
Playback ........................................................................................................ 17
Record on the HDD .................................................................................... 18
Record on DVD ............................................................................................19

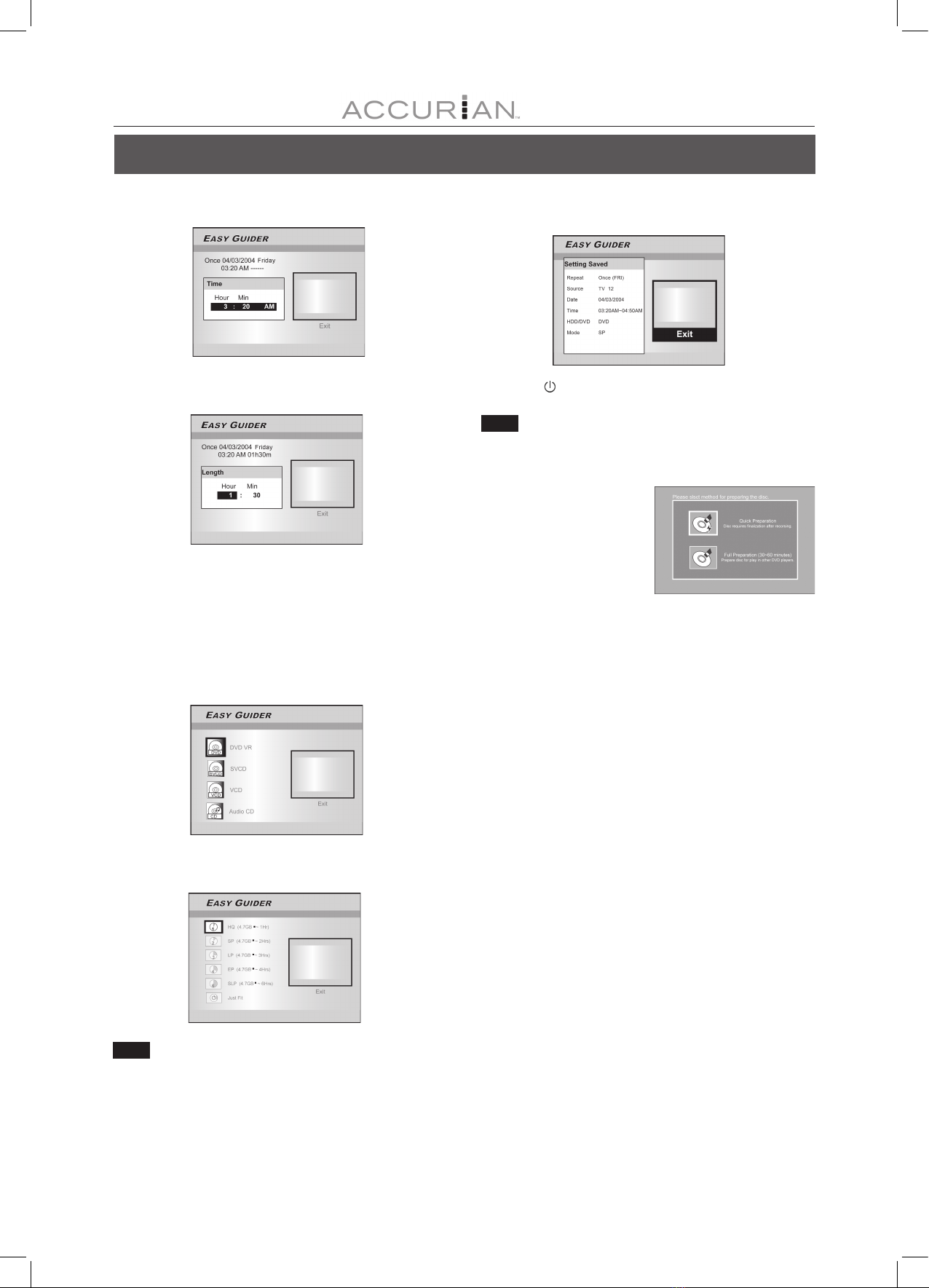

Timer record ................................................................................................. 19
Copy (From HDD to DVD) .......................................................................21
Copy (From DVD to HDD) .......................................................................21
RECORDING
Before recording .........................................................................................22
Recording television programs ............................................................. 22
Adding new recordings ...........................................................................23
Changing chapter intervals ................................................................... 23
Playing back the last recorded title .....................................................23
Recording from a VCR or Camcorder ..................................................24
One touch recording .................................................................................25
DV recording — One–Touch Recording ........................................... 26
DV control ..................................................................................................... 26
Recording on a CD-R/CD-RW disc ........................................................ 27
TABLE OF CONTENTS
SPECIFICATIONS.....................................................................46
GLOSSARY.................................................................................45
TROUBLESHOOTING GUIDE...............................................47
TIMER RECORD
Setting the timer ........................................................................................ 28
TIME SHIFT
Pausing Live TV Broadcast .....................................................................30
Record and Play .......................................................................................... 30
PLAYBACK
Basic playback ............................................................................................31
Navigation operation ..............................................................................32
REPEAT, ZOOM ................................................................................. 32
SLOW MOTION, SEARCH .............................................................. 32
A-B REPEAT,SUBTITLE ................................................................... 32
AUDIO, ANGLE ................................................................................. 32
INFORMATION ................................................................................. 32
Video title playback (by Browser) ........................................................ 33
Music file playback (by Browser) ......................................................... 34
Picture file playback ................................................................................34
Audio CD playback ...................................................................................35
Slide Show (Pictures with music) ........................................................35
COPY
Copy from DVD to HDD ..........................................................................36
Copy from HDD to DVD ..........................................................................36
EDIT
Browser menu ............... ............................................................................ 37
Naming a title ............................................................................................ 37
Protecting a title (HDD and DVD) .......................................................37
Overwriting a title ....................................................................................37
Splitting a title ...........................................................................................38
Merging two titles into one ..................................................................38
Erasing a title (HDD and DVD only) ...................................................38
Setting a title thumbnail ........................................................................ 38
Chapter marks relevant setting ........................................................... 39
DISC TOOLS
Erase ..............................................................................................................41
Finalize (make compatible) ..................................................................... 41
Clean up HDD .............................................................................................. 42
Defragment (HDD only).............. ............................................................. 42
GUI OPERATION.....................................................................43
FCC INFORMATION

3
1) Read instructions. Read all the safety and operating instructions
before operating the product.
2) Retain instructions. Keep the safety and operating instructions for
future reference.
3) Heed warnings. Adhere to all warnings on the product and in the
operating instructions.
4) Follow instructions. Follow all operating and use instructions.
5) Cleaning - Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6) Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7) Water and Moisture - Do not use this product near water for ex-
ample, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool.
8) Accessories - Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious
injury to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with the product. Any mounting of the
product should follow the manufacturer’s instructions and should
use a mounting accessory recommended by the manufacturer.
9) CART - A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
product and cart combination to overturn.
10) Ventilation - Slots and openings in the cabinet provide ventila-
tion, ensure reliable operation of the product, and protect it from
overheating. Do not block or cover these openings. The openings
should never be blocked by placing the product on a bed, sofa,
rug, or other similar surface. Do not place this product in a built-in
installation such as a bookcase or rack unless proper ventilation is
provided or the manufacturer’s instructions have been adhered to.
11) Power Sources - This product should be operated only from the
type of power source indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the operating
instructions.
12) LOCATION - The appliance should be installed in a stable location.
13) NONUSE PERIODS - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period of
time.
14) Grounding or Polarization -
• If this product is equipped with a polarized alternating current line
plug (a plug having one blade wider than the other), it will fit into
the outlet only one way. This is a safety feature. If you are unable
to insert the plug fully into the outlet, try reversing the plug. If
the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
• If this product is equipped with a three-wire grounding type
plug, it will only fit into a grounding type power outlet. This is a
safety feature. If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding type plug.
15) Power-Cord Protection - Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the
product.
16) Outdoor Antenna Grounding - If an outside antenna or cable
system is connected to the product, be sure the antenna or cable
system is grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the
grounding electrode.
17) Lightning - For added protection of this product during a lightning
storm, or when it is left unattended and unused for long periods
of time, unplug it from the wall outlet and disconnect the antenna
or cable system. This will prevent damage to the product due to
lightning and power-line surges.
18) Power Lines - An outside antenna system should not be located in
the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, take extreme care to keep it
from touching power lines or circuits. Contact with them might be
fatal.
19) Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles. This can result in a risk of fire or
electric shock.
20) Objects and Liquids - Do not push objects of any kind into this
product through openings. They may touch dangerous voltage
points or short out parts, resulting in a fire or electric shock. Liquids
of any kind should not be used on or around this product.
21) Servicing - Do not attempt to service this product yourself. Opening
or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
22) Damage Requiring Service - Unplug this product from the wall
outlet and refer servicing to qualified service personnel under the
following conditions:
• When the power supply cord or plug is damaged,
• If liquid has spilled or objects have fallen into the product,
• If the product has been exposed to rain or water,
• If the product does not function properly after following the
operating instructions, contact Customer Service for technical
support.
• If the product has been dropped or damaged in any way,
• When the product exhibits a distinct change in performance. This
indicates a need for service.
23) Replacement Parts - When replacement parts are required, be sure
the service technician uses replacement parts specified by the
manufacturer or having the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock, or
other hazards.
24) Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
25) Wall or Ceiling Mounting - Mount the product to a wall or ceiling
only as recommended by the manufacturer.
26) Heat - Keep this product away from heat sources, such as radiators,
heat registers, stoves, or amplifiers.
27) Battery Usage - Battery leakage may result in bodily injury or
damage to the unit. In order to avoid battery problems, please
follow these instructions.
• Install all batteries correctly, with + and - aligned as marked on
the unit.
• Do not mix batteries (old/new, carbon/alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
IMPORTANT SAFETY INSTRUCTIONS

4
WARNINGS, CAUTIONS AND OTHERS
THE FOLLOWING APPLIES ONLY FOR U.S.A.
CAUTION!
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
IMPORTANT FOR LASER PRODUCTS
1) CLASS 1 LASER PRODUCT
2) DANGER: Visible and invisible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to beam.
3) CAUTION: Do not open the top cover. There are no user
serviceable parts inside the Unit; leave all servicing to qualified
service personnel.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN THE COVER AND
DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,
DO NOT EXPOSE THIS APPARATUS TO MOISTURE AND ENSURE THAT
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED AWAY
FROM THE APPARATUS.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to humans.
The exclamation point within an equilateral tri-
angle is intended to alert the user to the presence
of important operating and maintenance (servic-
ing) instructions in the literature accompanying
the appliance.
CAUTION! –– POWER button
Disconnect the main plug to shut the power off completely. The POWER
button in any position does not disconnect the main line. Power can
be controlled from the remote.
CAUTION!
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER OF THIS UNIT.
THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
NOTES!
• Recorder may not play CD-R/RW discs recorded using a per-
sonal computer or a CD Recorder if the disc is damaged or dirty,
or if there is dirt or condensation on the player’s lens.
• Unfinalized CD-R/RW discs can be played, but not all time
information (playing time, etc.) will be displayed.
• Check the copyright laws in your country before recording from
DVD VIDEO, SVCD, Video CD, Audio CD, MP3 and JPEG discs.
Recording of copyrighted material may infringe copyright laws.
Legal Notices Regarding
Macrovision’s Property Rights
“U.S. Patent Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; and
6,516,132.”
“ This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited. “
PRODUCTS WITH 525P PROGRESSIVE SCAN OUTPUTS
NOTICE REQUIREMENTS
“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION
SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525
PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE
USER SWITCH THE CONNECTION TO THE “STANDARD DEFINITION”
OUTPUT. IF THERE ARE QUESTIONS REGARDING TV SET
COMPATIBILITY WITH THIS MODEL 525P DVD PLAYER, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.”

5
 Playable Disc types
 Video System (NTSC & PAL)
This DVD recorder accepts both PAL and NTSC systems.
(This recorder is designed to record using the NTSC coloring system
and play back using the PAL or NTSC coloring system.)
 Aspect Ratio
4:3 (Letter Box) Standard
4:3 Pan & Scan
16:9 (Wide-Screen)
 Others
Audio : Appears at the beginning of a scene recorded
with multiple audio languages.
Subtitle: Appears at the beginning of a scene recorded with
multiple subtitle languages.
Angle : Appears at the beginning of a scene recorded from
multiple angles.
 AllWriteTM Technology
“AllWriteTM” technology makes it okay to record on almost all
recordable disc formats: DVD+RW, DVD+R, DVD-RW, DVD-R, CD-RW
or CD-R discs
Notes:
The DVD-Video/DVD+RW/DVD+R/DVD-R/DVD-RW Logos are
trademarks of the respective companies.
For best results, use disks with the above logos. The unit may not
playback other disks correctly. Do not use irregular-shaped discs (e.g.
heart-shaped), as these can damage the unit.
It may not be possible to play CD-R, CD-RW, DVD-R, DVD-RW,
DVD+R, DVD+RW in all cases due to the type of disc or condition of
the recording.
Unplayable disc types
The unit does not play back disc type listed below. If you try to
play back these discs, excessive noise may cause damage to your
speakers.
1) Unfinalized discs from other DVD/CD recorders.
2) DVD-VR, DVD AUDIO, PHOTO CD, SACD, HDCD
(When placing an unplayable disc on the disc tray, the DVD recorder
will display “Unknown Disc” on the display panel after attempts to
load the disc fail.)
 Region code of DVD-Video
This unit can play back DVD-VIDEO discs compatible with the
region code printed on the rear of the unit.
Example of playable DVD-VIDEO discs:
Notes:
 Audio System
Dolby Digital Linear PCM
DTS (Digital Theater Systems)
 Recordable Disk types
Disc Types
L ogos
C haracteris tics
DV D-VIDE O
This unit can play DV D-Video discs and the region
code is printed on the rear of the unit.
DV D＋R / ＋RW
DV D－R / －R W
DV D－R , DV D－R W and DV D＋R , DV D＋R W, discs
written in the finalized DV D-Video format or
DV D+ VR format
Video C D (V C D)
S uper V ideo C D (S V C D)
Video with C D sound, V HS quality, M PEG -1&
MPEG -2 compression technology.
Audio C D
C D is recorded as a Digital S ignal with better audio
quality, less distortion and less deterioration of audio
quality over time.
C D-R / R W
(J PE G / B M P/ MP3/ W MA
/ WAV )
This unit can play C D-R and C D-R W discs recorded
with Audio C D or Video C D format, or with
J PE G / B MP/ MP3/ W MA/ W AV files. C lose the
sessions or finalize the disc after recording.
D is c T ypes
L ogos
C haracteris tics
DVD＋R / ＋R W
DVD＋R disc written in the DVD＋V R format.
DVD＋R W disc written in the DVD＋V R format.
DVD－R / －R W
DVD－R disc written in the DVD＋V R format.
DVD－R W disc written in the DVD＋V R format.
C D－R/ R W
C D－R / C D－R W disc written in the MPE G 1 or
MPE G2 video format or written in P C M Audio mode.
“DV D Dual” & “AllWriteTM ”
“DV D Dual” -- Written on both DV D＋R / D V D＋R W /
DVD－R / D V D－R W disc.
“AllWriteTM” – Written on all recordable DV D disc and
C D－R/ C D-R W disc.
DISC INFORMATION

6
Remote Control
To install batteries
 Open the battery compartment and
insert the batteries. Make sure the
polarities (+ and -) match the marks
indicated inside the remote control.
 Do not use rechargeable type batteries.
Remote sensor
The remote has a range of
approximately 9 feet and works
best when pointed directly at the
unit horizontally at angles up to
30° from the front of the unit.
CONTROLS AND DISPLAYS
The Remote Control
1) Display button (DISPLAY)
2) Open/Close button ( OPEN/CLOSE)
3) Number buttons (1~9,0)
4) Easy Guider Menu button ( GUIDER)
5) Navigation button (NAVI)
6) Cursor (), Enter buttons (ENTER)
7) Top menu button (TOP MENU)
8) Stop button ( STOP)
9) Skip buttons
( PREVIOUS/ NEXT )
10) Timer button (TIMER)
11) Record button (RECORD)
12) CM Skip button (CM SKIP)
13) HDD/DVD button (HDD/DVD )
14) Setup button (SETUP)
15) Power button ( POWER)
16) CH buttons (CHANNEL)
17) Browser (BROWSER)
18) Source button (SOURCE)
19) Menu button (MENU)
20) Play button ( PLAY)
21) Pause/Step button ( PAUSE/STEP)
22) REW./F.F. buttons ( REW./ F.F )
23) Disc Tools button (TOOLS)
24) Time Shift button (TIME SHIFT)
25) Copy button (COPY)
26) Edit button (EDIT)
1
2
3
14
15
16
17
18
19
20
21
22
23
24
25
26
4
5
6
7
8
9
10
11
12
13

13
12
11
10
7
Front panel
Names of parts and controls
1) POWER ON/OFF Button
Turns the recorder on and off.
2) DISC TRAY
Holds discs securely during recording or playback
3) OPEN/CLOSE Button
Opens or closes the disc tray.
4) HDD Indicator
Lights up when HDD is set as the target device
5) DVD Indicator
Lights up when DVD is set as the target device.
6) PLAY Button
Plays a disc.
7) STOP Button
Stops playing or recording a disc.
8) HDD/DVD Button
Press to switch between HDD and DVD.
9) RECORD Button
Starts recording.
10) DV-LINK (IEEE-1394) Jack
Connects digital video camcorders to this DVD Recorder.
11) DISPLAY Window
Operation indicators are displayed here.
12) AV1 FRONT (VIDEO/AUDIO L/R) Jacks
Connects the input of external equipment.
13) SOURCE Button
Select equipment connected to the line inputs
CONTROLS AND DISPLAYS
1) Play indicator
2) DVD indicator
3) SVCD indicator
4) VCD indicator
5) CDDA indicator
6) FILE indicator
7) CD indicator
8) DVD+R indicator
9) Pause indicator
10) Record indicator
11) Timer record mode
12) Multi-information window
13) DVD+RW indicator
14) CD-R/DVD-R indicator
15) CD-RW/DVD-RW indicator
9
8
7
6
5
4
3
2
1

8
CONTROLS AND DISPLAYS
Rear panel
(for reference only)
Names of parts
1) TUNER Signal IN/OUT Jacks
Tuner signal input and output.
Note:
Playback signals don’t go through here. Make
proper connections before using this DVD Recorder.
2) LINE IN (S-VIDEO) Jack
S-Video signal input.
3) AV2-REAR (VIDEO/AUDIO L/R) Jacks
Composite signal input.
4) COMPONENT VIDEO OUTPUT (Y/Pb/Pr) Jacks
Component signal output.
5) LINE OUT (VIDEO/AUDIO L/R) Jacks
Composite signal output.
6) LINE OUT (S-VIDEO) Jack
S-Video signal output.
7) DIGITAL AUDIO OUT (COAXIAL) Jack
Connects an amplifier or receiver having a digital input jack.
8) DIGITAL AUDIO OUT (OPTICAL) Jack
Connects an amplifier or receiver having a digital input jack.
9) AC In Terminal
(For models that have detachable power cord)

9
CONNECTIONS
Before making connections
1) Do not plug the AC power cord into the outlet until all other connections are made.
2) Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the unit to a TV via a VCR may cause a view-
ing problem when playing back a copy-protected disc. You may also have a viewing problem when connecting the unit to an integrated
TV/Video system.
Connecting to the antenna cable and television
Before using the unit, follow the steps below to connect the unit to the antenna cable and TV.
Connecting to a TV with COMPOSITE jacks
Use an RF cable (supplied) to connect the RF IN on the unit to the antenna outlet.
Use an RF cable (same as supplied) to connect the RF OUT on the unit to the RF input on the television.
Use AUDIO/VIDEO cables (supplied) to connect the AUDIO/VIDEO output on the unit to the audio/video input on the television.
Notes:
1. Do not place this unit on top of other equipment that may generate heat. Excessive heat may cause this unit to
malfunction.
2. For Digital Cable and Satellite TV users please connect your decoder’s output to this unit’s input.

10
FOR BETTER VIDEO QUALITY
If your TV has S-Video or Component Video inputs, you can enjoy superior picture quality.
1. Connecting to a TV via S-Video out
Connecting to a TV with a S-Video jack
Use an S-Video cable (not supplied) to connect the S-Video output on the unit to the S-Video input on the television.
Notes:
1. When using an S-Video connection, there’s no need to adjust the “video output” setting in the Setup menu.
2. When using an S-Video connection, please remove all other video output connections.
3. In this configuration, the Red and White audio connections are required.
2. Connecting to a TV via COMPONENT out
Connecting to a TV with component jacks
Use COMPONENT cables (not supplied) to connect the COMPONENT output on the unit to the COMPONENT input on the television.
Notes:
1. Enter system setup to enable COMPONENT (refer to the section titled “Quick Setup”).
2. When using COMPONENT connections, please remove all other video output connections.
3. In this configuration, the Red and White audio connections are required.

11
Connecting to a stereo audio amplifier or receiver
Use an audio cord to connect the AUDIO OUT on the unit to the
audio input on a stereo amplifier or a receiver.
There are two types of audio connections, analog and digital.
Connecting to a digital audio device
Connect an amplifier with Dolby Digital and DTS decoders to enjoy
surround sound.
Digital out optical
Use a fiber-optic cable (not supplied) to connect the DIGITAL
OUT OPTICAL (digital optical output) on the unit to the digital
optical input on an stereo amplifier or a receiver.
Digital out coaxial
Use a coaxial cable (not supplied) to connect the DIGITAL OUT
COAXIAL (coaxial digital output) on the unit to the coaxial digital
input on a stereo amplifier or a receiver.
FOR BETTER AUDIO QUALITY

12
Connecting the cable box/satellite box and television
Before using the unit, follow the steps below to connect the unit to the cable box and TV.
Connecting to a satellite box or a cable box with COMPOSITE jacks
Use an RF cable (supplied) to connect the RF IN on the cable box/satellite receiver to the antenna outlet.
Use an RF cable (same as supplied) to connect the RF OUT on the cable box/satellite receiver to the RF input on the DVD Recorder.
Use an RF cable (same as supplied) to connect the RF OUT on the DVD Recorder to the RF IN on the television.
Use AUDIO/VIDEO cables (supplied) to connect the AUDIO/VIDEO output on the unit to the audio/video input on the television.
CONNECTING SATELLITE RECEIVER OR CABLE BOX

13

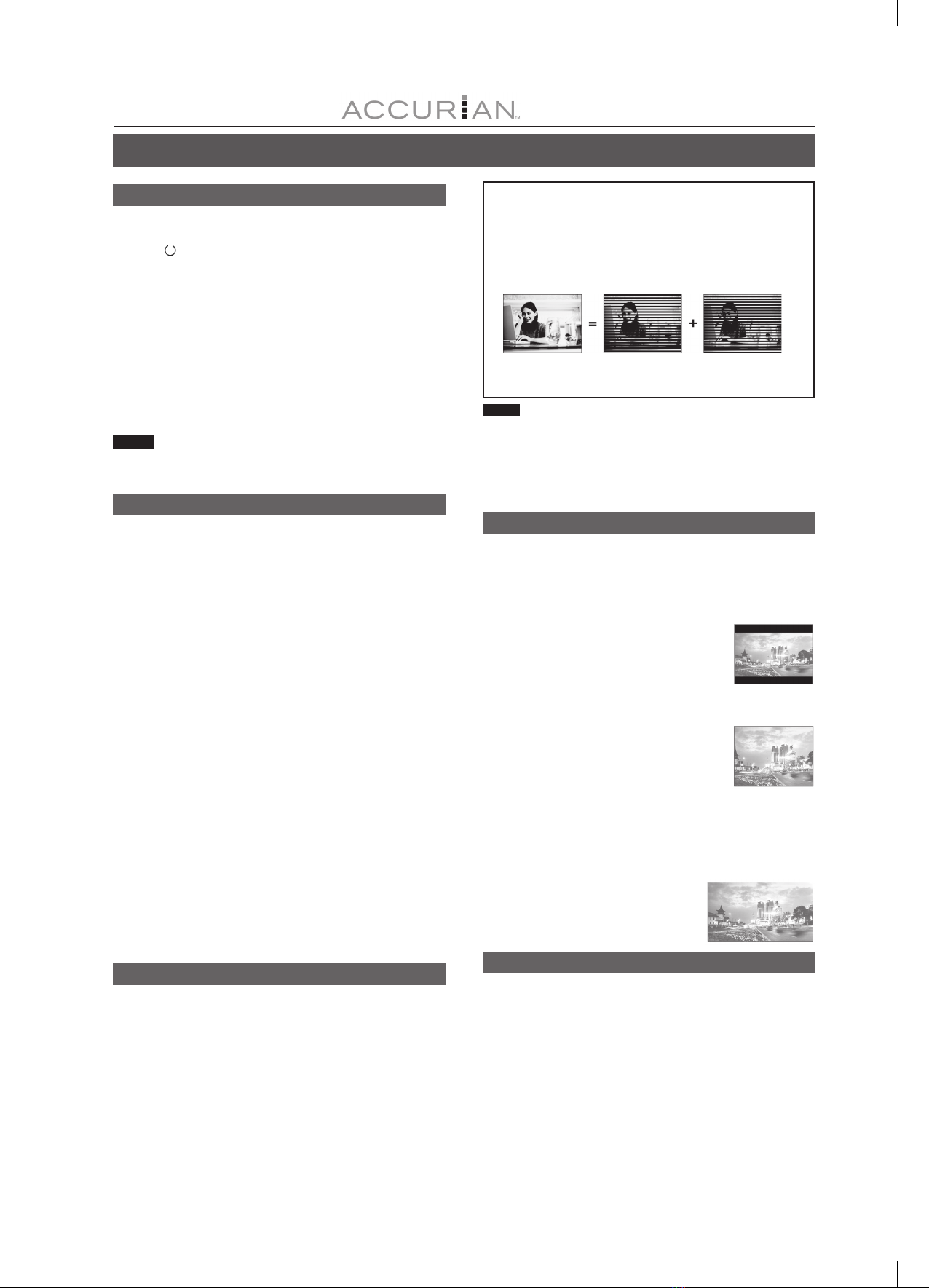

Remote Control & Setup menu
Follow the steps below to reset personal preferences for using the
DVD recorder. Confirm that all connections are secured properly.
1. Press [ POWER] to turn on the unit.
2. Press [SETUP] to display the Setup menu.
3. Press [] [] to select “System,” “Language,”
“Playback,” “Record,” “Audio,” “TV Tuner” or “EXIT” and press [] or
[] to move to the next or previous menu.
4. Press [] [] to select the item you want to change and press
[] or [ENTER].
(Refer to the “GUI operation” section for detailed menu)
5. Press [ENTER] to confirm the setting.
6. Press [SETUP] to exit the Setup menu or press [] to return to
the previous menu.
Notes:
To record TV programs using the Timer Record feature, you must set
the time accurately.
Setting the date and time
Check that the clock is correctly set before initiating the timer
recording function. If the clock is set incorrectly, Timer Record results
may not be accurate.
Set the date
1. Press [SETUP] and the Setup menu will be displayed.
2. Select “System” using [] or [] and press [ENTER].
3. Select “Date” using [] or [] and press [ENTER].
4. Change the day/month/year in the highlighted field using
[] or [] or the numbered buttons (0~9) on your remote
control and confirm by pressing [ENTER].
5. When all settings are correct, press [] to return to the
main menu.
6. To exit the Setup menu, press the [SETUP] button.
Set the time
1. Press [SETUP] and the Setup menu will be displayed.
2. Select “System” using [] or [] and press [ENTER].
3. Select “Time” using [] or [] and press [ENTER].
4. Change the “hour/minute/second” in the highlighted field
using [] or [] or the numbered buttons (0~9) on your
remote control.
5. Change the “AM/PM” mode using [] or [] and confirm by
pressing [ENTER].
6. When all settings are correct, press [] to return to the
main menu.
7. To exit the Setup menu, press the [SETUP] button.
SETUP MENU
Note:
If you accidentally set “Progressive” as the Video Output when not
connecting to a progressive scan-compatible TV, you may lose the
video signal on your TV instantly. To get the picture back, press
[](Cursor Right) and the numbered buttons “5,” “0,” “2” and “0” on
the remote control and then [ENTER]. In about 8 seconds, you can
re-set the video output.
Setting video output
1. Press [SETUP] and the Setup menu will be displayed.
2. Select “System” using [] or [] and press [ENTER].
3. Select “Video Output” as “Component” or “Progressive”
using [] or [] and press [ENTER]. (Refer to “GUI
operation” section for details)
4. When all settings are correct, press [] to return to the
main menu.
5. To exit the Setup menu, press the [SETUP] button.
Progressive Scan mode
You can change the video output mode when you press the
[SETUP] button and to select “System-->Video Output-->
Progressive.”
Video output mode:
480p: Progressive video 480i: Interlace video
You must connect the component output on the unit to a 480p
compatible television.
Setting Audio
Digital Output
PCM / Bit Stream
(Enable digital audio output with PCM or encoded data)
DTS Out
ON / OFF
Surround
Stereo / Dolby / DTS
MPEG
PCM / Bit Stream
(Enable digital audio output with PCM or encoded data)
Setting Aspect ratio
Press [SETUP] and select “Playback”-->”Aspect Ratio.”
Select “4:3” (regular) or “16:9” (widescreen) to suit your television. If
you have a regular 4:3 television, you can also select how the video
title on some discs is presented.
4:3 L.Box (4:3 Letter Box)
Select when you connect the unit to a normal
(4:3) TV.
When playing back a DVD-VIDEO disc recorded
in wide picture format, the picture is shown with
black bars at the top and bottom.
4:3 Pan (4:3 Pan & Scan)
Select when you connect the unit to a normal
(4:3) TV.
When playing back a DVD-VIDEO disc recorded in
wide picture format, the picture is zoomed to fill
the screen vertically, and the left and right sides
of the image are chopped off. Note, however, that
the picture will be shown in the 4:3 L.Box (4:3 Letter Box) mode,
even if you select the 4:3 Pan (4:3 Pan & Scan) mode depending on
the disc.
16:9 Wide (16:9 Wide Screen)
Select when you connect the unit to a
wide-screen (16:9) TV.

14
TV CHANNEL SETUP
9. The channel scanning starts. This process may
take a few minutes.
10. When all the TV channels have been searched
and stored, press [SETUP] to exit.
Note:
If the available channel number in your residence area exceeds
the maximum receivable channel numbers of this DVD Recorder,
the scan will be discontinued. The maximum receivable channel
numbers are:
Antenna: 68 (chs)
Cable: 125 (chs)
Auto: 125 (chs)
Fine-tuning TV channels manually
After you have performed the channel scanning, you may like to
fine-tune the TV channel signal manually. Follow the steps below to
1complete fine tuning.
1. Press [SETUP] to display the Setup menu. Then, press
[] [] to select the “TV Tuner” icon. Press [].
2. Press [CH ] [CH ] to shift channels.
3. Press [] [] to select “Fine Tune” and press [].
4. Press [] [] to fine-tune the channel signal.
5. When complete, press [ENTER] and the press [SETUP] to
exit the setup menu.
Editing TV channels manually
After you have performed channel scanning, you may like to further
edit the TV channels. This function allows manually adding/deleting
channels, swapping channel order, inserting a channel to a specific
order, renaming the channels and so on.
1. Press [SETUP] to display the Setup menu, press
[] [] to select the “TV Tuner” icon and press [].
2. Press [] [] to select “Utilities” and press [].
3. Press [] [] to select “Edit Channel” and press [ENTER].
The Channel Editor menu will be displayed.
For detailed operation instructions on the “Channel Editor” menu,
refer to the “Channel Editor” section.
TV channel scanning
When the “Scan Channel” function is activated, the TV channels are
searched and stored in a specific order. If the channel assignment
of your TV content provider is changed, or if you are reinstalling this
DVD recorder, you may need to start this procedure again. This will
replace the TV channel stored with the new ones.
Before scanning channeld, set the “TV signal” and “Country” for
initiation.
1. Ensure the antennas are securely connected to
the DVD recorder.
2. Switch on the TV set and the DVD recorder.
3. Press [SETUP] to display the Setup menu, press
[] [] to select the “TV Tuner” icon and press
[].
4. Press [] [] to select “TV Signal” and press
[].
5. Press [] [] to select “Antenna,” “Cable” or “Auto”,
depending on how you receive your TV channels and
press [ENTER].
If you select “Auto,” the unit will automatically scan all channels
available at cable and antenna connections, which might take
longer than needed.
6. Press [] [] to select “Country” and press [].
Press [] [] to select the country of your residence from
the list and press [ENTER] to save the settings.
7. Press [] [] to select “Utilities” and press [].
8. Press [] [] to select “Scan Channel” and
press [ENTER] to start channel scanning.
If you wish to stop scanning, move to “Stop Scan” and press [ENTER].
The scanning process will be discontinued.

15
CHANNEL EDITOR
Moving up or moving down the TV channel
1. Press [] [] to select one of the TV channels
and press [].
2. Press [] [] to select “Move Up” or “Move Down” and
press [ENTER].
The order of the TV channels will be changed.
Each time you press [ENTER] and the item changes as
follows:
3. To move the location of other TV channels, repeat
step 1~2 to complete the settings.
4. Press [] [][] [] to select “Exit,” press [ENTER]
to save the setting and exit the Channel Editor menu.
Inserting TV channels
1. Press [] [] to select a TV channels and press [].
2. Press [] [] to select “Insert To...” and press [ENTER].
3. Press [] [][] [] to enter the “Channel number,” and
press [ENTER]. The channel will be moved to the desired
location.
4. To change the locations of other TV channels, repeat
steps 1~3 to complete the settings.
5. Press [] [][] [] to select “Exit,” press [ENTER] to save
the setting and exit the Channel Editor menu.
To access the Channel Editor menu, press [SETUP], select “TV Tuner,”
“Utilities,” “Edit Channel” and press [ENTER]. Or, press [SOURCE] to
set “TV” as the input signal source and press [EDIT]. Either way, the
Channel Editor menu will be displayed.
Swapping TV channels
This function allows you to manually swap the TV channel order
stored in the unit to match the TV channel order stored in your
TV set.
1. Press [] [] to select a TV Channel and press [].
2. Press [] [] to select “Swap With...” and press
[ENTER].
3. Press [] [][] [] to enter the Channel
number, and press [ENTER] to swap. The order
of the channels will be swapped with the channel
number entered.
4. To swap other TV channels, repeat step 1~ 3 to
complete the settings.
5. Press [] [][] [] to select “Exit”. Press [ENTER] to
save the setting and exit the Channel Editor menu.
Renaming TV channels
1. Press [] / [] to select a TV channel and press [].
2. Press [] [] to select “Rename” and press [ENTER].
The display for entering a title name appears.
3. Select the desired characters from the keypad.
Press [ENTER] after
each entry.
4. When you finish
entering the title
name, press
[] [] [] [] to
select “Finish” and
press [ENTER].
Note:
You can only enter up to 10 characters for a name.

16
CHANNEL EDITOR
Turning TV channels On or Off manually
After you have performed the channel scanning process, you may
want to add or delete some of the TV channels. This function allows
you to turn on a channel not found during channel scanning or
to turn off a channel found manually.
1. Press [] [] to select a TV Channel not found during
channel scanning and press [].
2. Press [] [] to select “Turn On” and press [ENTER].
The TV channel selected will be turned on.
To turn off the TV channel, move to “Turn Off” and press [ENTER].
The TV channel selected will be turned off.
3. To turn on other TV channels, repeat step 1~2 to
complete the settings.
4. Press [] [][] [] to select “Exit,” press [ENTER]
to save the setting and exit the Channel Editor menu.

17
EASY GUIDER
Playback video files
1. Press [ GUIDER] to display the Easy Guider
menu.
2. Press [] [] to select “Playback” and then press [ENTER].
3. Press [] [] to select DVD or HDD and then
press [ENTER].
4. Press [] [] to select “Video” and press [ENTER].
The Browser menu is displayed.
5. Press [] [] [] [] to select a title (program)
you want to play and press [ENTER].
To go to the next page or return to the previous page,
you can select the [ ] [ ] icon or the page number icon.
Playback music files
1. Press [ GUIDER] to display the Easy Guider
menu.
2. Press [] [] to select “Playback” and then
press [ENTER].
3. Press [] [] to select DVD or HDD and then
press [ENTER].
4. Press [] [] to select “music” and press [ENTER].
The browser menu is displayed.
5. Press [] [] [] [] to select a music file you want to
play and press [ENTER].
To the next page or to the return previous page, you can select
the [ ] [ ] icon or the page number icon.
6. Press [ PAUSE] to pause playback.
Press [ PLAY] to resume normal playback .
Press [ STOP] to stop playback at a marked stop.
Press [ STOP] twice to bring the playback to a full stop.
Playback picture files
1. Press [ GUIDER] to display the Easy Guider Menu.
2. Press [] [] to select “Playback,” and then
press [ENTER].
3. Press [] [] to select DVD or HDD and then
press [ENTER].
4. Press [] [] to select “Pictures” and press [ENTER].
5. Press [] [] [] [] to select a picture file
you want to play and press [ENTER].
To go to the next page or return to the previous page, select the
[ ] [ ] icon or the page number icon.
6. Press [ PAUSE] to pause playback.
Press [ PLAY] to resume normal playback .
Press [ STOP] to stop playback.
The Easy Guider menu is a unique user interface
to guide you through the basic functions of this
recorder. Using the Easy Guider menu requires
less time to operate this system. Users no longer
need to go through normal operations that may
require far more steps and different interfaces.
6. Press [ PAUSE] to pause playback.
Press [ PLAY] to resume normal playback .
Press [ STOP] to stop playback at a marked stop.
Press [ STOP] twice to bring the playback to a full stop.

18
Playback pictures with music
1. Press [ GUIDER] to display the Easy Guider menu.
2. Press [] [] to select “Playback” and then press [ENTER].
3. Press [] [] to select DVD or HDD and then
press [ENTER].
4. Press [] [] to select “Pictures With Music” and
press [ENTER].
The browser menu of picture files will be displayed.
5. Press [] [][] [] to select the picture file to start
playback with and press [ENTER].
The browser menu of audio files will be displayed.
6. Press [] [][] [] to select a music file to start
playback with and press [ENTER]. Playback will start.
7. Press []/[] to rotate the picture.
Press [] or [] to skip the picture.
Press [ NEXT ] or [ PREVIOUS ] to skip the
MP3 file.
8. Press [ PAUSE] to pause playback.
Press [ PLAY] to resume normal playback.
Press [ STOP] to stop playback.
EASY GUIDER
Playback the last recorded title (on HDD only)
1. Press [ GUIDER] to display the Easy Guider menu.
2. Press [] [] to select “Playback”, and then
press [ENTER].
3. Press [] [] to select HDD and press [ENTER].
4. Press [] [] to select “Last Record” and press [ENTER].
Play back of the title last recorded on your HDD will begin.
5. Press [ PAUSE] to pause playback.
Press [ PLAY] to resume normal playback .
Press [ STOP] to stop playback at a marked stop.
Press [ STOP] twice to bring the playback to a full stop.
Record on the HDD
1. Press [ GUIDER] to display the Easy Guider menu.
2. Press [] [] to select “Record” and then
press [ENTER].
3. Press [] [] to select the Signal- Input
(TV, AV1, AV2, S-Video, DV) and press [ENTER].
If you select “TV,” press [] [] to select the channel you want
to record and press [ENTER].
4. Press [] [] to select “HDD” and press [ENTER].
5. Press [] [] to select “Recording mode” and
then press [ENTER].
6. Press [ENTER] to start recording.
Press [ STOP] to stop recording.
Press [ PAUSE] to pause recording.
Note:
You can press the [ GUIDER] button to exit the Easy Guider menu.

19
EASY GUIDER
Record on DVD
Make sure a recordable disc is inserted before recording.
1. Press [ GUIDER] to display the Easy Guider menu.
2. Press [] [] to select “Record” and then
press [ENTER].
3. Press [] [] to select the Signal-Input
(TV, AV1, AV2, S-Video, DV) and press [ENTER].
If you select “TV,” press [] [] to select the channel you want to
record and press [ENTER].
4. Press [] [] to select “DVD” and press [ENTER].
5. Press [] [] to select the disc recording format
and then press [ENTER].
If a CD-R or CD-RW is used for recording, you need to select VCD,
VCD or Audio CD. If a DVD disc is used for recording, you need to
select “DVD VR” format.
When a DVD disc is used for recording, after selecting the recording
format, press [] [] to select a recording mode and then press
[ENTER].
6. Press [ENTER] to start recording.
Press [ STOP] to stop recording.
Press [ PAUSE] to pause recording.
Notes:
1. If a new recordable CD-R or a newly erased CD-RW is used for
recording, press [] [] [] [] to select a format for the disc and
press [ENTER]: SVCD, VCD, Audio CD or Data CD.
2. When a recordable DVD-RW disc is used for recording, you need to
first select either “Quick preparation” or “Full preparation” and press
[ENTER] for the disc to be prepared for recording.
Timer Record (Date/Time Setting)
1. Press [ GUIDER] to display the Easy Guider menu.
2. Press [] [] to select “Timer Record”, and
then press [ENTER].
3. Press [] [] to select the Signal-Input
(TV, AV1, AV2, S-Video, DV) and press [ENTER].
If you select “TV,” press [] [] to select the channel you want to
record and press [ENTER].
4. Press [][] to select “Once,” “Daily,” or “Weekly.”
5. Press [][] [] [] or the numbered buttons
(0~9) to set the date and press [ENTER] when done.

20
EASY GUIDER
Note:
7. Press [][] [] [] or the numbered buttons
(0~9) to set the time and press [ENTER] when
done.
8. Press [][] to set “Length” and then press [ENTER] .
9. Press [][] to select “HDD” or “DVD” and then
press [ENTER] .
10. Press [] [] to select a recording disc format and
press [ENTER].
If you select “DVD,” press [] [] to select a recording disc
format and then press [ENTER]. For CD-R/RW discs, select the
same format the disc is first prepared as. (SVCD, VCD or Audio
CD) For DVD disc, select “DVD VR” format.
11. Press [] [] to select a recording mode and
press [ENTER].
Note:
For Timer Record, there are six recording modes: HQ, SP, LP, EP, SLP
and Just Fit. When the recording mode is set as “Just Fit,” the
recording mode will be automatically adjusted, depending on how
much recording space is available on the disc or the HDD.
12. The timer record information will appear and
press [ENTER] to exit the timer record settings.
13. Press [ POWER] to turn the recorder off
and activate Timer Record function.
Notes:
1. When you first play a recordable CD-R disc or an empty CD-RW
disc on the disc tray, select a disc format the disc is to be prepared
as: SVCD, VCD, Audio CD or Data CD.
2. When a recordable
DVD-RW disc is used for
recording, you need to first
select either
“Quick Preparation” or
“Full Preparation” and press
[ENTER] for the disc to be
prepared for recording.
