Ace All-in-one Karaoke Player User manual

All-in-oneKaraokePlayer
USERGUIDE
www.ace-karaoke.net
PoweredbyAce-karaokeTech

Thankyouforpurchasing ourall-in-
onekaraokeplayer.Forproperoperationand
systemsecurity, pleasereadtheusermanualcarefully,Keepitforfuturereference.
Informationinthisdocumentisaccurateuptothetimeofpublication,butdoesnot
necessarilyreflecttheenhancementsmadetoAce-Karaoke
Technologies products,
whicharereleasedwithoutnotice.Nopar
tofthisguidemaybereproducedor
transmittedinanyformorbyanymeans,electronicormechanical,including
photocopying,recording,orinformationrecordingandretrievalsystems,forany
purposeotherthanthelicensedoperator spersonaluse,with
outtheexpress written
permissionof Ace-KaraokeTechnologies.

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
3
TableContent
1. PRODUCTINTRODUCTION.................................................................................................4
1.1. PRODUCT FEATURES..................................................................................................4
1.2. ACCESSORIES LIST .....................................................................................................5
1.3. OUTPORT INTRODUCTION..........................................................................................6
1.4. THE REMOTE CONTROLLER INTRODUCTION........................................................8
2. HOW TO SELECT SONGS....................................................................................................9
2.1. THE SELECT-SONGS OPERATING INTERFACE......................................................9
2.2. SELECT SONGS BY SONG NUMBER.........................................................................9
2.3. SELECT SONGS BY OSD MENU.................................................................................9
3. DVDPLAYERFEATURES..................................................................................................11
4. USB/SDMULTIMEDIAPLAYERFUNCTION....................................................................11
5. HARD DISKVODMULTIMEDIAPLAYERFUNCTION....................................................11
6. KARAOKESYSTEMTECHNOLOGYPARAMETER.......................................................11
6.1. THE KARAOKE FILES SYSTEM................................................................................11
6.2. THE KARAOKE FILEFOLDER ALLOTMENT...........................................................12
6.3. THE MTVFILES FORMAT LIST..................................................................................13
6.4. THE SONGLIST.TXT RULES......................................................................................14
6.5. HOWMAKE THE SONGLIST.TXT..............................................................................15
6.6. HOWTO DEFINE OSD MENU BY YOURSELF.........................................................15
7. SETUPOPTIONOPERATION............................................................................................17
7.1. OSD LANGUAGE SETUP: ..........................................................................................17
7.2. TVTYPE ........................................................................................................................18
7.3. SETUP MACHINE START MODE...............................................................................18
7.4. DVD-ROM ON/OFF SETUP.........................................................................................19
7.5. KARAOKE SETUP.......................................................................................................19
7.6. VGA OUTPUT SETUP................................................................................................21
7.7. PASSWORD SETUP....................................................................................................22
8. HOW TO ADD SONGS........................................................................................................22
8.1. ADD SONGS INTO INTERNAL HDD FROM COMPUTER........................................22
8.2. ADD SONGS FROM DVD-ROM DISC OR USB DISK...............................................22
9. TECHNOLOGYLIMITED.....................................................................................................23

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-4-
1.PRODUCTINTRODUCTION
1.1.PRODUCTFEATURES
1.1.1.Karaoke Features ofAll-in-onekaraoke player:
The karaokeplayersupportsplaying max35000sMTVsongs. Support
VCD(MPEG1-DAT)/DVD(MPEG2-VOB),JPEG,MPEG4(DIVX-AVI), mp3_lyric
MTVetcformat.
The karaokeplayerSupport IDEorSATAharddisk,maxcapacity2000G by
FAT32 format. About500G HDD can save20000sAVI(MPEG4)songs,or
35000sMP3_lyricsongs.
Songsinsert,repeat,selected songslisting function.
Selecting songsoperateeasily:select songsbynumber,bymenu,by
singer,bylanguage etc.intuitionisticand expeditious.
Offerapowerful songlistmanage software, adding songscan by
yourself,makenewsonglist.
Fourmethodsforadding songstokaraokeplayer:
§You can connect karaokeplayertoyourcomputerbyUSB2.0lineand
add newsongsintothe harddriveof the karaokeplayer.
§You couldmanage thesonglist and prepareallnewsongsincomputer
first,then add thesesongstokaraokeplayerand updatethe songlistvia
USB flashdisc/USB
§You couldadd songsviaexternal Harddisk.You can plug itintothe
masterUSBportofmachine and usethe remotecontroltoadd songs.
§You couldadd songsviaDVDROM.
The KaraokePlayercouldshowSCOREat exitofaMTVsong end ,with4
level applausemusic,thatisgood sportfuleffect.
WithMasterCOINorslaveCOINfunction,itcouldsatisfythe requireof
business.
Auto-loop randomplaying function.
WithBuilt-inMICecho,you couldplug microphone inmachine forsinging
directly.
ThereisaextraIRport,you couldconnect aextrasensorforremote
keyboardreplaceremotecontrol.

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-5-
If thereisno harddiskinside the karaokeplayer, you couldstillenjoyit via
USB/SDMEMORYDISK forsinging songs.
1.1.2.VODFeatures ofAll-in-oneKaraoke Player:
You coulduseremotecontroltodirectlybrowseplaythe
movies,music,picturefilesinthe HDD;SDcard; USBdisc;USB partableHDD.
You couldsupport VCD(MPEG1-DAT)/DVD(MPEG2,VOB),MPEG4(DIVX-
AVI) mp3 WMA JPEGetc,multimediaformat.
1.1.3.DVDFeatures ofAll-in-oneKaraoke Player:
4decode, compatiblewithvariousdiscssuchas
DVD/SVCD/DVCD/VCD/MP3/CD/ HDCD/JPG/ALBUM/Mr.OKOetc
Video output:
(1)CVBS interlacescan.
(2)ComponentR,G,Binterlacescan orprogressivescan.
(3)S-Video.interlacescan.
Audiooutput:DolbyAC-35.1AudioChannel
DVDCSS(ContentScrambling System)decoding
Reserved Analogue power amplifier, X1/4,X1/2, X2, X4flexiblezoom.
1.2.ACCESSORIES LIST
1. USB2.0line1pcs
2. AVline1pcs
3. Remotecontroller1pcs
4. UserManual1pcs
5. HDD Fixed setscrew4pcs

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-6-
1.3.OUTPORT INTRODUCTION
Front
:
1．POWER
2．Remotereceivewidow,the red LEDis POWER”,blue LEDis remoteSignal”.
3．MICIN
4．MICVolumecontrol
5.MICECHO
6．SDCardslider
7．DVD-ROM

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-7-
Back :
1.Centralaudio
2.Surround R
3.Raudiochannel
4.Sub wooferspeaker
5.Surround L
6.Laudiochannel
7.SCOREin
8.(Reserve）Y/U/Vvideo
9.S-VIDEO
10．Optical
11．VIDEOOUTPORT
12．Coaxially
13．VGAport（Reserve）
14．USB2.0port(connecttocomputer)
15．COINinportorsignal output
16．DC 12Voutput.
17．Host USB port (plug inU-flashdisk)
18．EXT-IR（remotesensorport）

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-8-
1.4.THEREMOTECONTROLLERINTRODUCTION
1.EJECT
2.SERVE
3.OSD/MENU/DISPLAY
4. SELECTED
5. DELETE/MODIFY
7.TONE+-
8. PAGEUP
9.INSERT
10.F.R./F.F
11.RANDOMPlay
12.BACKGROUND
13.SUBTITLE
14.TITLE
15.AUDIO/LANGUAGE
16.KTV/DVD/USB/SD/HDD swit
ch
17.STYLE/VGA
18.MUTE
19.VOCAL/MUSIC
20.ENTER/OK
21.volume+-
22. PAGEDown
23.ENTER(OK)
24. BACK
25.STOP
26.PLAY/PAUSE
27.SETUP
28. P/N
29. PBC/MENU
30.SLOW
31.REPEAT

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-9-
2.HOWTO SELECTSONGS
2.1.THESELECT-SONGSOPERATINGINTERFACE
1)Sumofselected songs.
2)Numberof nextselected song.
3)Numberof nextsomeselected songslist.
4)Sumofcoin.
5)Nameof nextselected song
6)Song numberinput.
7)Showthe songnamewhen input number
8)Song lyricshow。
9)Menu of selectsongsat OSDmode
2.2.SELECT SONGSBYSONG NUMBER
Usercouldpressthe numberkey(0-9)ofremotecontroltoselect songsviasong
numberaccording tosongbook.
2.3.SELECT SONGSBYOSDMENU
Usercan pressOSDkeyof remotecontrol selectsong bysong name/singerwhen
without songbook

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-10-
2.3.1MainMenu
SPELLING-
Searchsongsnamebyspellingmethod,can press numberkey
of remotecontrollertoinputlettera~z)
2.3.2ForeignSub-Menu
Note：
The blackboldfacefontoption itemofOSD(language type)
can be defined byuser. Pleaserefertothe detailson chapter
6.6at page 15.
2.3.3Singer Sub-Menu
Selectsongsbysingeraccording tosingertype

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-11-
2.3.4Other Sub-Menu
Note：
The blackboldfacefontoption itemofOSD(song catergory)
can be defined byuser. Pleaserefertothe detailson chapter
6.6at page 15.
3.DVDPLAYERFEATURES
Press <KTV/DVD-USB/SD/HDD>keyof remotecontrol, switch
toDVDplaying status, Putinthe DVD,VCD orMP3disc,
Press <PLAY>Keytoplaythe disc(The discsettingsshould
be set ON”forDVD-rominSETUP,Pleasereferto SETUP
OPTIONOPERATION”on chapter7.4atpage 11.
4.USB/SDMULTIMEDIAPLAYERFUNCTION
You can plug USBflashdiskorUSBportableHDD intothe
masterUSBport
at the rearofmachine orplug SDcardintofaceofmachine,
Press <KTV/DVD-USB/SD/HDD>keyof remotecontrolto
switchtoUSB/SDplaying status, the screen willshowthe
folderof U-diskorSDFlashcard, then you canselect
multimediafilestoadd themtothe playlist.
5.HARDDISKVODMULTIMEDIAPLAYERFUNCTION
Press <KTV/DVD-USB/SD/HDD>keyof remotecontrol, switch
toHARD DISK option.The screen willshowthe folderof hard
disk, you can browseand selectmultimediafilestoaddthem
tothe playlist.
6.KARAOKESYSTEMTECHNOLOGYPARAMETER.
6.1.THEKARAOKEFILES SYSTEM
The karaokemachine can working allright, must need to

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-12-
createfilesysteminthe harddisk(even inU-diskorSDcard):
(The HDD shouldbe formatted onlyone partition byFAT32
mode and set toMASTER)

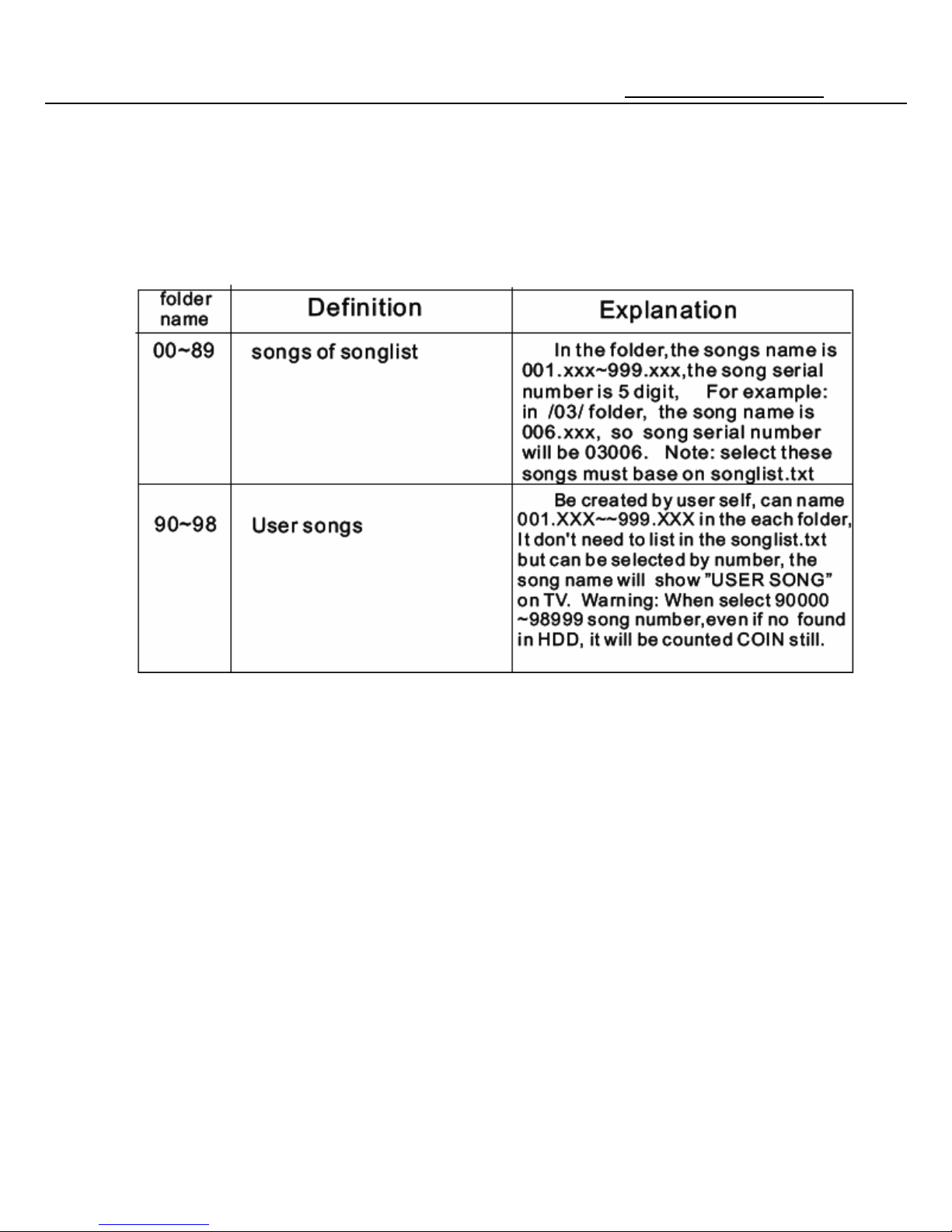

6.2.THEKARAOKEFILEFOLDERALLOTMENT

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-13-
6.3.THEMTVFILESFORMATLIST
***.AVIMPEG4formatDivxcode isgood
***.MPG
MPEG1&2formatVCD/DVD
***.DAT
VCD format
***.VOB
DVDformat
***.WMV
WMVformat
***.WMA
WMAaudioformatFileSizeissmallerthan MP3
***.MP3
MPEG_3 audioformat
***.kscLyric+timefileEditable

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-14-
***.mtvLyric+timefile Fileiseditable,Maybe encrypted
ornot.
***.sgkLyric+timefile(SINGMATE)
Encrypted file
***.IDKLyric+timefileEncrypted file
6.4.THESONGLIST.TXT RULES
Songssheet isaSonglist.txtfile,init,Eachline ismeaning a
song, thereare11semicolonsfordefinition the information of
song, the ruleis:
(1)Song name
(2)0-the song'sVOCALat Rightchannelof MTVfile.
1-the song'sVOCALat Left channel ofMTVfile.
(Don't need option usually.)
(3)Singername
(4)Sumof the song name'swords
(5)The Language itemNo.
1--CHNIESE 5--ENGLISH6--JAPANESE 7--DISCO8--
MOVES11--KOREAN
13--TAGALOG15--OtherForeign
The machine baseon thisoption toallot thesongsat OSD
menu item.
(6)Volumeoption:
1~9, say10%~90% of MaxVolume,
0and spaceblankmean keep currentlyvolume,(Don't need
option usually).
(7)The first spelling ofsong name. useforSPELLING
selecting songsat OSDmenu.
(8)The Numberof song:
foldername+filename, in5digit,Forexample: in/03/ folder,
the song nameis006.XXX,sothe song serialnumberwillbe
03006.
(9)The first spelling ofSinger.
(10)The singerclassification:
1--Malesinger2--Femalesinger3--Group

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-15-
(11）Song Type:
9--SPECIALOCCASIONSONGS11-CONCERT12-MTV
13-SPORTS14-MP3
The machine basethisoption toallot the songsat OSDmenu
item.
(12)The Singercode:
The namenumberof the singerphotopicturefileintheHDD's
/SYSTEM/STAR/
folder.Thisoption be used indoublescreen karaokemachine
only.
Warning:Mustmakeone spaceline inthe end ofsonglist.txt,
and onlyone,moreorless spaceline willcausemachine
shutdown.
6.5.HOWMAKETHESONGLIST.TXT
(1). Usetexteditorsoftware(Notepad)toedit it.
(2). Usethe EXCELsoftwaretoeditand manage songlist.txt,
usesomeformulafunction toautomaticbuildsonglist.txtfile,
bythisway, you can manage song sheet when inquireand
sort , itisvery efficient.ExamplefileisMake_song list. xls,
pleasecheck it inthe setup disc
(3). Usethe machine'sSONGLISTMANAGEsoftwaretoedit
it(ThatisSetupEN.exefileinthe /system/ folderofmachine's
HDD. You will be installed intoC:\system).Afterinstallation,
run it,loading and editthe songlist.txt file, bythisway, you can
check the songlist.txttoconformwithrulesand check song
filesinthe HDD withsonglist.
Wesuggest using Make_songlist.xlstomanage songlist.txt
6.6.HOW TO DEFINEOSDMENUBYYOURSELF
At select-song OSDmenu,the song language itemcan be
modified byyourself.You just need tomodifyOSDMENU.TXT
fileinthe /SYSTEM/ folderof HDD.

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-16-
Lookcontent of OSDMENU.TXT:
begin
[E_OSD_MAIN_1_5]=ENGLISH
[E_OSD_MAIN_2_1]=CHINESE
[E_OSD_MAIN_3_13]=TAGALOG
[E_OSD_MAIN_3_8]=MOVIES
[E_OSD_FOREIGN_1_6]=JAPANESE
[E_OSD_FOREIGN_2_11]=KOREAN
[E_OSD_FOREIGN_3_15]=OTHER
[E_OSD_OTHER_1_T11]=CONCERT
[E_OSD_OTHER_2_T12]=MTV
[E_OSD_OTHER_3_7]=DISCO
[E_OSD_OTHER_4_T14]=MP3
[E_OSD_OTHER_5_T13]=SPORTS
[E_OSD_OTHER_6_9]=SPECIAL
end
You can modifythe language type at yourrequest.
Forexample:If need tomodifyTAGALOGtoMALAY, you can
modifyOSDMENU.TXT asbelow:
InOSDMENU.TXTfile:
Then saveOSDMENU.TXT and poweron again.

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-17-
7.SETUPOPTIONOPERATION
At the<STOP>status, press <SETUP>keyofthe remotecontrol and
boot intosystemsetup menu.
7.1.OSDLANGUAGESETUP:
Boot into GENERALSETUP”->”OSDLANG”option
Boot into”GENERALSETUP”-->”OSDLANG”tochoosepreferred
interfacelanguage

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-18-
7.2.TVTYPE
Boot into PREFERENCES”-> TVTYPE”--> NTSC”.
7.3.SETUPMACHINESTARTMODE
Boot into PREFERENCES”--> SMARTNAVI”toselect NO MENU”or WITH
MENU”option.
NO MENU”----when thisoption isselected,the machinewillwork on NUMBER
SELECTSONGSmode.Whenyou turnonmachine,it willfirst showNUMBER
INPUT statusdirectly.
WITHMENU”-----when thisoption isselected,the machine willwork on OSD
SELECTSONGSmode.Whenyou turnonmachine,it willshowMAINOSDstatus
first.

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-19-
7.4.DVD-ROMON/OFFSETUP
Boot Into GENERALSETUP”-> DVD-ROM”option, Youdisableorenablethe DVD
device.Forall-in-one karaokeplayer, sinceit’sbuilt-inDVD-ROM,thisoption is
ON”asdefault.
7.5.KARAOKESETUP
7.5.1.Karaoke Modeoption:
OFF”------------selectthisoption that 5.1channelwill be opened
KARAOKE”-----the machine willbe 2channelaudioexport mode.
REALSCORING”-----The SCORING willshowreallevelswhen singersinging with
microphone
AUTOSCORING”-----The SCORING willshowrandomlevelsnumberno matter
singersinging ornot.
Note:Onlywhen thenumberofsong is00001~79999can beshowed theSCORE.

UserGuideofAll-in-oneKaraokePlayer www.ace-karaoke.net
-20-
7.5.2.Score levelsoption
The scoreisbaseon 70, 80, 90 three levels. You need passwordtochange the
option.Pleasereferto
7.5.3.CoinControl setup
Set theseoptionstocontrol fee rulethat howmanycoinsdoesit need forselect
songs. The”COINFREE”option can be set asON/FREE.
The optionneedspassword. Pleaserefertoon chapter7.7atpage 22.
7.5.4.Files copyingoption
