ACEC AB256X User manual

35
ENGLISH
It is most important that this instruction
book should be retained with the
appliance for future reference. Should
the appliance be sold or transferred,
always ensure that the book is left with
the appliance in order that the new owner
can get to know the functions of the
appliance and the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.

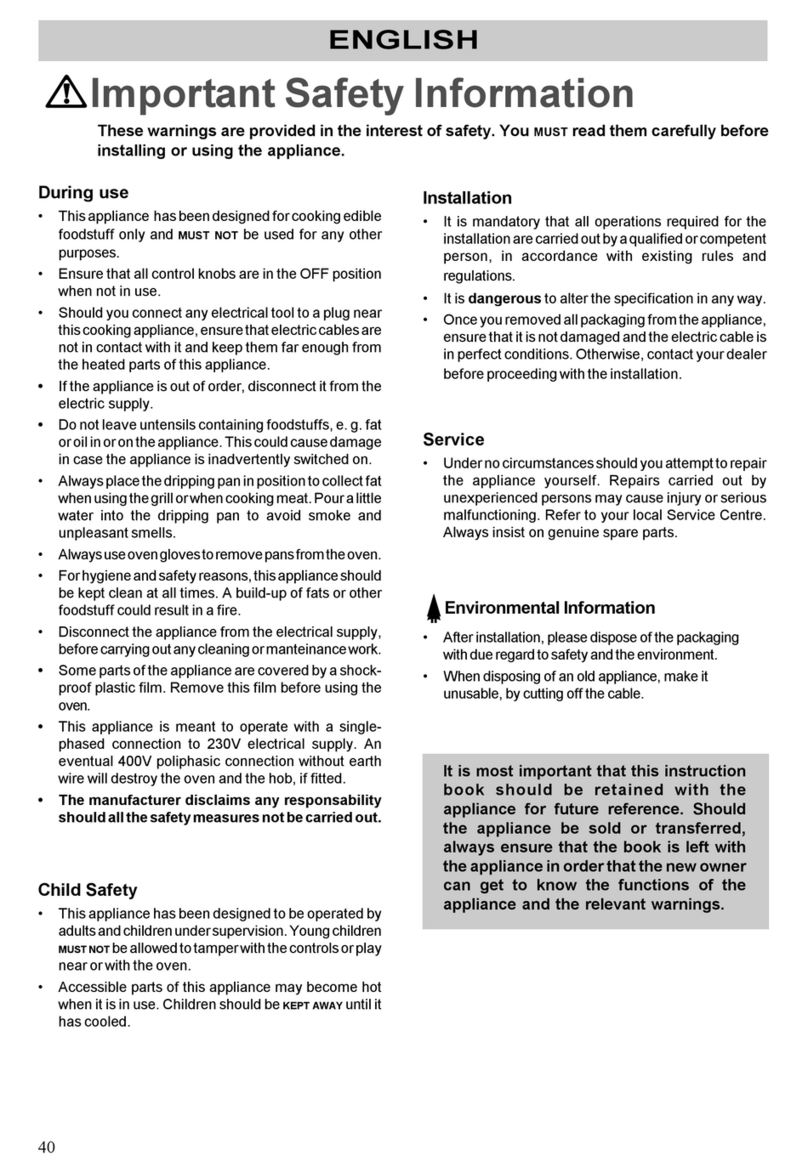

Important Safety Information
During use
 This appliance has been designed for cooking edible
foodstuff only and MUST NOT be used for any other
purposes.
 Ensure that all control knobs are in the OFF position
when not in use.
 Should you connect any electrical tool to a plug near
this cooking appliance, ensure that electric cables are
not in contact with it and keep them far enough from
the heated parts of this appliance.
If the appliance is out of order, disconnect it from the
electric supply.
o not leave untensils containing foodstuffs, e. g. fat
or oil in or on the appliance. This could cause damage
in case the appliance is inadvertently switched on.
 Always place the dripping pan in position to collect fat
when using the grill or when cooking meat. Pour a little
water into the dripping pan to avoid smoke and
unpleasant smells.
 Always use oven gloves to remove pans from the oven.
 For hygiene and safety reasons, this appliance should
be kept clean at all times. A build-up of fats or other
foodstuff could result in a fire.
 isconnect the appliance from the electrical supply,
before carrying out any cleaning or manteinance work.
Some parts of the appliance are covered by a shock-
proof plastic film. Remove this film before using the
oven.
This appliance is meant to operate with a single-
phased connection to 230V electrical supply. An
eventual 400V poliphasic connection without earth
wire will destroy the oven and the hob, if fitted.
 The manufacturer disclaims any responsability
should all the safety measures not be carried out.
Child Safety
 This appliance has been designed to be operated by
adults and children under supervision. Young children
MUST NOT be allowed to tamper with the controls or play
near or with the oven.
 Accessible parts of this appliance may become hot
when it is in use. Children should be KEPT AWAY until it
has cooled.
Installation
 It is mandatory that all operations required for the
installation are carried out by a qualified or competent
person, in accordance with existing rules and
regulations.
 It is dangerous to alter the specification in any way.
 Once you removed all packaging from the appliance,
ensure that it is not damaged and the electric cable is
in perfect conditions. Otherwise, contact your dealer
before proceeding with the installation.
Service
 Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
unexperienced persons may cause injury or serious
malfunctioning. Refer to your local Service Centre.
Always insist on genuine spare parts.
Environmental Information
 After installation, please dispose of the packaging
with due regard to safety and the environment.
 When disposing of an old appliance, make it
unusable, by cutting off the cable.

36
OVEN DOOR PROTECT ON DEV CE
(MO . AB 256 X)
All our appliances comply with the European Safety
Standards. Nevertheless, in order to ensure the
highest safety level, and avoid little children to be
exposed to the heat when the appliance is operated,
it is possible to fit a special protection device to the
oven door. This device can be purchased in our
Service Force Centres, specifying the relevant code
(35791) and the Product No. shown on the rating
plate. Fitting instructions are provided with the kit
package.
Contents
Warnings and important advice 35
Control panel 37
Using the oven 37
When the oven is first installed 38
Cooking with the turnspit 38
Cooking with the traditional oven 39
Cooking tables 4
Cleaning and Maintenance 41
If something goes wrong 42
Assistance and spare parts 42
Guarantee conditions 45
This appliance complies with the
following E.E.C. irectives:
- 73/23 - 90/683 (Low Voltage irective);
- 89/336 (Electromagnetical Compatibility
irective);
- 93/68 (General irectives)
and subsequent modifications.
MANUFACTURER:
ELECTROLUX ZANUSSI S.p.A.
Viale Bologna, 298
47100 FORLÌ (Italie)
For the User
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
Environmental information
i
F
Guide to Use the instructions
For the Installer
Technical data 43
Installation 43
Electrical connection 44

37
°C
°C
Oven function control knob (Fig. 1)
Conventional cooking - The heat comes from both
the top and bottom element, ensuring even
heating inside the oven.
Top heating element - The heat comes from the top
of the oven only.
Bottom heating element - The heat comes from the
bottom of the oven only.
Inner grill element only - can be used for grilling
small quantities.
Thermostat control knob (Fig. 2)
Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (MAX).
Thermostat control light
Once the oven temperature has been selected, the
temperature light will come on and remain on until the
oven has reached the correct setting; after that, it will go
on and off with the thermostat, showing how the tempe-
rature is being maintained.
Oven control light
It will come on every time an heating element is set on
operation.
Using the Oven
FO 2004
FO 2001
Fig. 1
Fig. 2
100
150
200
MAX
50
0
Control Panel
Oven
Control Light
Thermostat
Control Light Oven Function
Control Knob
Thermostat
Control Knob

38
All cookings must be carried out
with the oven door closed
Once the oven has been installed:
a) set the thermostat knob to MAX;
b) switch the oven function control knob to
conventional cooking ( );
c) allow the oven to run empty for approximately
45 minutes;
d) open a window for ventilation.
uring this time, an unpleasant odour may be emitted.
This is absolutely normal, and is caused by residues of
manufacturing.
Once this operation is carried out, let the oven cool
down, then clean the oven cavity with a soft cloth soaked
in warm soapy water.
Before cooking for the first time, carefully wash the
shelf and the dripping pan.
To open the oven door, always catch the
handle in its central part (Fig. 3).
Fig. 3 FO 0799
When the oven is first installed
F
- Place the spit-support frame into the third grid
runner from the bottom of the oven (Fig. 4).
- Pierce and secure well food on the spit.
- Fit the spit tip into the spit motor drive in the
back of the oven and lay its front part on the fra-
me groove.
- Remove the spit handle.
- Turn the oven function control knob on .
Leave the oven door closed
Set the thermostat function knob on 200°C
maximum.
FO 0329
Fig. 4
Cooking with the turnspit
F
The Safety Thermostat
This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequent
over-heating, the safety device will stop the power supply
to the appliance. If this happens, call your local Service
Centre. Under no circumstances should you attempt to
repair the appliance yourself.

39
Conventional cooking
Turn the oven function control knob to the relevant symbol
() and set the thermostat knob on the required tempe-
rature.
If you need more heat from the bottom or from the top,
turn the oven function control knob to (top heating
element only) or (bottom heating element only).
Otherwise, adjust the shelf level (Fig. 5) as required.
Grilling
Turn the oven function control knob to the relevant
symbol ( ) and set the thermostat knob on the required
temperature.
When grilling meat or fish, spread a little oil on them and
always place them on the oven grid. The shelf level
depends on the thinckness of the food.
Always place the dripping pan at the lowest level, with
some water in it, to avoid smoke and unpleasant smells.
 The temperatures inside the oven can reach 250°C.
Always ensure that you are using oven proof baking
trays, oven dishes, etc.
 o not place pans, biscuit pans or aluminium foil
directly on the base of the oven. This could cause a
heat build-up which could affect the performance of
the oven and damage the oven enamel.
 Carefully supervise cookings with fats or oil, since
these types of foodstuff can result in a fire, if over-
heated. For the same reason, be careful when
placing or removing food in the oven, not to let any
fat or oil fall on the oven base. If this happens,
carefully clean the oven to avoid unpleasant smells
or smoke.
Fig. 5
4
2
1
3
FO 0285
Hints and Tips on Cooking ish and Meat
You can place meat in oven proof dishes, or directly on the
oven shelf. In this case, remember to place the dripping
pan in the first position from the bottom with some water
in it. The dripping pan will avoid the falling of melted fat on
the oven base.
White meat, poultry and fish in general, need a medium
temperature cooking (between 150 and 175 ° C). If you
need to cook red meat (slightly browned on the outside
and more gently cooked in the inside), a higher tempe-
rature (between 200 and 250 ° C) for a short time is
recommended.
Hints and Tips on baking
Cakes usually need a medium temperature cooking,
between 150 and 200 °C.
A short oven pre-heating (about 10 minutes) is
recommeded when cooking cakes or baking. Once the
cooking has been started, keep the oven door closed
during all the cooking time, and check the cooking
results through the oven door glass.
Hints and Tips on grilling
If you need to grill meat or fish, place them directly on the
shelf after spreading a little oil on them. In the grill
function, heat comes only from the top element.
Therefore, you need to adjust the cooking level depending
on meat or fish's thickness. Always remember to place
the dripping pan in the lower position with some water in
it.
Cooking with the Multifunction
Oven
ints and Tips
i

40
Steaks 4 800 4 max 10 8
Chops 4 600 4 max 12 8
Sausages 8 500 4 max 10 6
Chicken (cut in pieces) 6 800 3 max 30 20
Kebabs 4 700 4 max 12 10
Chicken (b east) 4 400 4 max 13 10
Tomatoes 8 500 4 max 12 
Fish (fillets) 4 400 4 max 8 6
Sandwiches 4  4 max 8 
Toast 4  4 max 2~3 1
temp.
Cakes
Whipped up kneading 2 180 45 ~ 60
Leavened kneading 2 180 20 ~ 35
Sho tb ead dough 2 180 20 ~ 30
Butte -milk cheese cake 1 175 60 ~ 80
Apple cake 1 180 40 ~ 60
St udel 2 175 60 ~ 80
Jam-ta t 2 180 45 ~ 60
Small cakes 2 180 15 ~ 25
Biscuits 2 180 10 ~ 20
Me ingues 2 100 90 ~ 120
Bread and Pizza
1000 White b ead 1 200 45 ~ 60 1 piece
500 Rye b ead 2 200 30 ~ 45 In b ead pan
500 B ead olls 2 200 20 ~ 35 8 olls
250 Pizza 1 220 20 ~ 35 In baking pan
Flans
Pasta flan 2 200 40 ~ 50
Vegetable flan 2 200 45 ~ 60
Quiches 2 200 35 ~ 45
Lasagne 2 200 45 ~ 60
Meat
1000 Beef 2 200 50 ~ 70 On g id
1200 Po k 2 200 100 ~ 130 On g id
1000 Veal 2 200 90 ~ 120 On g id
1500 English oast beef 2 220 50 ~ 70 On g id
1200 Lamb 2 200 110 ~ 130 Leg
1000 Chicken 2 200 60 ~ 80 Whole
4000 Tu key 2 200 210 ~ 240 Whole
1500 Duck 2 175 120 ~ 150 Whole
3000 Goose 2 175 150 ~ 200 Whole
1200 Ha e 2 200 60 ~ 80 Cut in pieces
Fish
1000 Whole 2 200 40 ~ 60 2 fishes
800 Fillets 2 200 30 ~ 40 4 fillets
Traditional Cooking NOTES
WEIGHT
(GR.)
Cooking
time
minutes
Traditional cooking
TYPE OF ISH
Level
4
3
2
1
°C
Grilling
Upper
side
°C
temp.
PIECES WEIGHT
Quantity Cooking time
(minutes)
Lower
side
Grilling
TYPE OF ISH
Level
4
3
2
1
Remarks: Cooking times do not include preheating, so we advise you, particularly for cakes, pizzas and bread, to
preheat the oven for approximately 10 minutes.
Cooking Tables

41
Replacing the Oven Light
 Ensure the electricity supply is switched off before
carrying out this operation.
The oven bulb has to comply to these features:
a) resistant to temperatures of 300 °C;
b) electric rate: 230 V - 50 Hz;
c) electric power rate: 15 W.;
d) connection type: E 14.
To replace the bulb, proceed as follows (Fig. 8):
a) push in and turn the glass lid anticlockwise;
b) remove tha faulty bulb;
c) replace it with a new one;
d) refit the glass lid;
e) switch on the electricity supply.
General Cleaning
 Before cleaning, always allow the oven to cool down.
 When using spray cleaning products, be careful not
to spread them on the heating elements or on the
thermostat sensor.
 Never use harsh abrasives, steel wool or cleaners
with bleach, as they could damage the enamel and
the oven door glass.
The Oven Cavity
The enamelled oven cavity is best cleaned whilst the oven
is still warm. It is advisable to wipe the oven over with a soft
cloth soaked in warm soapy water after each use.
However, from time to time, it will be necessary to do a
more complete cleaning, using a proper oven cleaner.
In case of particularly tough stains, you can use stainless
steel cleaning products or some warm vinegar.
f cooking fruits, some over-heated natual acids can
squeeze and settle on the oven enamel, causing stains
quite difficult to remove. This could affect the enamel
brightness, but it will have no consequence on the oven
performances. To avoid these stains to be burnt out during
the next cooking, carefully clean the oven cavity after all
fruits cookings.
The Oven Door and its gasket
Before cleaning the oven door, we recommend you to
remove it from the oven.
Proceed as follows:
a) open the oven door completely;
b) find the hinges linking the door to the oven (fig 6);
c) unlock and turn the small levers located on the
two hinges (fig. 6);
d) handle the door by its left- and right-hand sides,
then slowly turn it towards the oven until it is half-
closed;
e) gently pull the oven door off its site (fig. 6);
f) place it on a steady plan;
g) unscrew the two screws marked with lett. A
fig.7;
h) pull up the oven door glass and take it away from
the oven door.
Clean the oven door glass with warm water and a softh
cloth only.
Once the cleaning is carried out, refit the oven door,
following the procedure in reverse.
The correct operation of the oven is ensured by a gasket
placed round the edge of the oven cavity.
 Periodically check the condition of this gasket. If
necessary, clean it without using abrasive cleaning
products.
 If the gasket shows to be damaged, call you local
Service Centre. o not use the oven until it has been
repaired.
Fig. 8 FO 0287
Fig. 6
Fig. 7
FO 0288
FO 0027
Cleaning and Maintenance
F

42
SOLUTION
uCheck the oven is in manual operation and that both a
cooking function and a temperature have been selected
or
uCheck the appliance is wired in properly, and the socket
switch or the switch from the mains supply to the oven are
ON.
uTurn the thermostat knob on a temperature
or
uTurn the oven function control knob on a function.
uTurn the oven function control knob on a function
or
uBuy a new oven light bulb, asking for it to your local Service
Centre and replace it by following the instruction provided in
this booklet.
uRefer to the contents of this booklet, especially to the chapter
"Using the Oven".
uLeave dishes inside the oven no longer than 15-20 minutes
after the cooking is completed.
SYMPTOM
nThe oven does not come on
nThe oven temperature light does not come on
nThe oven light does not come on
nIt takes too much time to finish the dishes, or they are
cooked too fast.
nSteam and condensation settle on the food and the oven
cavity.
f the appliance is not working correctly, please carry out the following checks, before contacting your local
Service Centre.
If after the checks listed in the
previous chapter, the appliance
still does not work correctly,
contact your locals Zanussi
Service Centre, specifying the
type of malfunctioning, the
appliance model (Mod.), the
product number (Prod. No.) and
the serial number (Ser. No.)
marked on the identification plate.
This plate is placed on the front
external edge of the oven cavity.
Original spareparts,
certified by the product
manufacturer and
carrying this symbol are
only available at our
Service Centre and
authorized spareparts
shops.
SER.NO.
Mod.
PROD.NO.
SER. NO.
MOD.
PROD. NO. TYPE
What happens if something
goes wrong
Technical Assistance and
Spare Parts

43
Height 59,1 cm
Width 56,0 cm
epth 50,0 cm
Height 32,5 cm
Width 42,0 cm
epth 39,0 cm
Volume 53 l
RECESS
DIMENSIONS
OVEN CAVITY
DIMENSIONS
Technical Data
Heating elements ratings
Bottom heating element 1000 W
Top heating element 800 W
Full Oven (Top+Bottom)(1000 + 800) 1800 W
Grill heating element 1750 W
Turnspit motor 4 W
Oven lamp 15 W
Maximum power rating (230V - 50Hz) 1815 W
Voltage tension (50 Hz) 230 V
nstallation
The following instructions are meant to a
qualified technician, in order to allow him carry
out the installation in compliance with the rules
in force.
The building-in and the electrical connection fo
the appliance must be carried out by a qualified
and authorized technician only.
Building In
It is important that the dimensions and materials of the
surround or cabinet into which the oven will be built are
correct and will withstand a temperature increase.
A correct installation will have to ensure a proper
protection against contact with electric parts or merely
functionally isolated parts.
All the units meant to ensure protection have to be fitted
not to be taken away without using any tool.
We recommed not to install the appliance near
refrigerators or freezer, since the heat could affect the
performance of these appliances.
Overall dimensions of the oven (Fig. 9)
In-Column Recess Dimensions
The recess must have the dimensions shown in Fig. 10.
Undertop Recess Dimensions
The recess must have the dimensions shown in Fig. 11.
FO 0276
FO 0340
FO 0513Fig. 9
Fig. 10
Fig. 11

44
Terminal block
The oven has an easily accessible terminal block,
which is meant to work with an electric single-phase
rate of 230 V.
The manufacturer disclaims any
responsability should all the safety
measures not be carried out.
Electrical Connection
Before the appliance is connected:
1) check that the main fuse and the domestic installation
can support the load;
2) check that the power supply is properly earthed in
compliance with the current rules;
3) check the socket or the double pole switch used for
the electrical connection can be easily reached with
the appliance built in the forniture unit.
This appliance is delivered without an electric supply
cable, therefore, you will have to fit to it a supply
cable with standard plug, suitable for the total electric
load shown on the rating plate. The plug is to be
inserted into a suitable wall socket.
If connecting the appliance directly to the electric system,
a double pole switch must be installed between the
appliance and the electricity supply, with a minimum
gap of 3 mm. between the switch contacts and of a type
suitable for the required load in compliance with the
current rules. The earth wire must not be interrupted by
the double switch pole.
The connection cable has to be placed in order that, in
each part, it cannot reach a temperature 50 °C higher
than the room temperature.
After the connection is carried out, test the heating
elements for about 3 minutes.
Suitable power supply cables are the following types,
considering the respective necessary section of cable.
H07 RN-F
H05 RN-F
H05 RR-F
H05 VV-F
FO 2159
Fig. 13
FO 0039
Fig. 12
Securing the Oven to the Cabinet
Fit the appliance into the cabinet recess.
Open teh oven door and secure the oven to the kitchen
cabinet with four wood screws, which fit the holes provided
in the oven frame (Fig.12).
When installing an electric plate hob over the oven, the
hob's electrical connection and the oven's one have to be
carried out separately, for security reasons and to let the
oven be taken off the unit easier, if necessary.

45
When calling fo epai s du ing the pe iod of gua antee ofthe
appliance, the o iginal invoice o eceipt must be shown o
sent togethe with the appliance to be epai ed.
General conditions of guarantee
1The manufactu e gua antees the appliance indicated
on the elative invoice fo a pe iod of one yea f om the
date of pu chase. In case of a fault du ing this pe iod if
caused bya defect in mate ials and/o const uction, the
client is entitled to epai f ee of cha ge.
1a Conce ning vacuum cleane s fo domestic use, the total
pe iodof gua antee is two yea s. Accesso ies a e subject
to a di ect usage, consequently these a ticles a e
excluded f om the gua antee.
2The manufactu e gua antees technical assistance and
epai sfo one yea . Spa e pa ts fitted du ing epai a e
also cove ed by a one yea gua antee f om the date of
epai . In case of fault du ing this pe iod, as a di ect esult
of the epai wo k ca ied out o caused by the new pa ts
fitted on such occasion, the client is entitled to epai f ee
of cha ge. The execution of epai s does not p olong the
total pe iod of gua antee cove ing the appliance.
3Technical Assistance at domicile will be p ovided only fo
la ge appa atus which a e difficult to t anspo t such as:
washing machines, spin-d ie s,
dishwashe s, ef ige ato s, f eeze s (ve tical o
ho izontal), ovens, cooke s and built-in appliances.
3a The above-mentioned conditions a e also valid fo
ef ige ato s fo ca avens on condition that they a e
situated within the national bounda ies and a e
accessible by oads open to t affic. Fu the mo e, at the
time of the inte vention the appliance and its owne , o
the pe son so autho ized, must be p esent at the place
ag eed upon fo the inte vention.
4If, in the opinion of the manufactu e , the appliance as
desc ibed in point 3 must be t anspo ted to a Technical
Assistance labo ato y, the t anspo tation will be ca ied
out as established by the manufactu e , at his expense
and unde his esponsibility.
5All appliances not mentioned unde points 3 and 3a,
includingappliances having the same functional
cha acte istics but whose t anspo t is easy, must be
sent to the Technical Assistance o taken to them.
Th oughout the pe iod of gua antee the cost of etu n
t anspo tation will be taken ca e by the manufactu e .
6If du ing the pe iod of gua antee a disfunction occu s due
to a defect which cannot be epai ed, the appliance will
be eplaced f ee of cha ge.
E tension of the guarantee
7Fo moto comp esso s of ef ige ato s/ f eeze s
(excluding the sta ting device and the mal inte upte ) a
dec easing gua antee of 20% pe yea fo a pe iod of five
yea s f om the date of pu chase of the appliance indicated
on the elative invoice with epai s f ee of cha ge
th oughout the enti e pe iod unde gua antee. On
completion of the total pe iod of gua antee the cost of
t avel, wo kmanship and eventual spa e pa ts will be at
the expense of the client.
E clusion from guarantee
8The f ee execution of wo k fo the epai and/ o substitution
as set out above will not apply if:
- The pu chase invoice o eceipt indicating the date of
pu chase and the identification of the appliance cannot
be p esented o was not sent with the appliance to be
epai ed;
- The appliance is used fo pu poses othe than those of
the domestic natu e fo which it was made;
- The appliance was not installed, handled o used in
confo mity with the indications in the inst uction manual
o in the modalities fo use;
- The appliance has been epai ed o modified inco ectly
by unqualified pe sonnel.
8a If the appliance has been built-in, unde inse ted,
suspendedo installed in such a way that the time equi ed
to move it and put it back in position exceeds thi ty
minutes in total, the ext a expenditu es occu ed will be
billed to the owne of the appliance.
8b ln case of dete io ation due to an i egula installation
ca ied out in ag eement with the owne of the appliance,
the manufactu e and the technical assistance decline
all esponsibility.
8c Damage such as sc atches, knocks o b eakage of
movable o dismountable units which we e not notified
to the manufactu e at the time of delive y a e not cove ed
by the gua antee.
Important notice
This appliance has been made to be safe. Inadequate
epai s can nonetheless comp omise this safety. To avoid
such p oblems and to p event any eventual damage we
advise you to have epai s ca ied out exclusively by qualified
pe sonnel.We advise you to have epai s o maintenance
ca ied out by the etaile o the Elg oep Se vice and to
equest only o iginal spa e pa ts.
GUARANTEE - SPARE PARTS (only for BENELUX)
Belgium
Electric Household Appliances
Bergensesteenweg 719
B - 1520 Halle (Lembeek)
Repairing to customer's house:
Tel.: [phone]
Fax.: [phone]
Spare parts:
Tel.: [phone]
Fax.: [phone]
Telex: 22915 eluxbe

46

47

35674-2001 02/00
Grafiche MDM - Forlì
