Acer XD1150 Series User manual

ModelName:PD100/PD100D/PD120/
PD120D/XD1170D/XD1270D/XD1150/
XD1250
SERVICEMANUAL
Date Revise Version Description
2005/8 V1.0 Initial Issue(PD100/PD100D/PD120/PD120D)
2006/7 V2.0 Add XD1170D/1270D model, add page 2/5/7/15/49/80-111
2006/8 V3.0 Add XD1150/XD1250 model
Prepared bySI:
________________________________________
Prepared byTSE :
________________________________________
Check by:
________________________________________
Approved by:
________________________________________
CopyrightAugust, 2006 .All RightsReserved
P/N#36.86L01G002 .

Preface
Thismanualisapplied toAcerPD100 0.55 inch120DDRDMDSVGAMicroPortable
Projector/PD100D0.55 inch120DDRDMDSVGAMicroPortableProjector/PD120 0.55
inch120DDRDMDSVGAMicroPortableProjector/PD120D0.55inch120DDRDMDSVGA
MicroPortableProjector/XD1170D0.55 inch120DDRDMDSVGAMicroPortableProjector
/XD1270D0.55 inch120DDRDMDXGAMicroPortableProjector/XD1150 0.55 inch120
DDRDMDSVGAMicroPortableProjector/XD1250 0.55 inch120DDRDMDXGAMicro
PortableProjector.The manualgivesyouabriefdescription ofbasictechnicalinformationto
helpinserviceand maintaining the product.
Yourcustomerswill appreciatethe quick responsetimewhen you immediatelyidentify
problemsthatoccurwithourproducts.Weexpectyourcustomerswillappreciatethe service
thatyouofferthem.
Thismanualisfortechniciansand peoplewho haveanelectronicbackground.Please
send the productback tothe distributorforrepairing and do notattempttodo anything thatis
complexorisnotmentioned inthe troubleshooting.
NOTICE:
The information found inthismanualissubjecttochange withoutpriornotice.Any
subsequentchangesmade tothe datahereinwill be incorporated infurtheredition.
PD100/PD100D/PD120/PD120D/XD1170D/XD1270D/XD1150/XD1250ServiceManual
CopyrightAugust, 2006
AllRightsReserved
ManualVersion3.0

PD100 PD100DPD120 PD120DXD1170DXD1270DXD1150 XD1250
ServiceGuide
PRINTEDINTAIWAN
Service guidefiles and updates areavailable
on theAIPG/CSDweb;formoreinformation,
please refertohttp://csd.acer.com.tw
RevisionHistory
Pleaserefertothe tablebelowforthe updatesmade onPD100,PD100D,PD120,PD120D,
XD1170D,XD1270D,XD1150,XD1250 serviceguide.
Date Chapter Updates

Conventions
The following conventionsareused inthismanual:
Screen messages Denotes actual messages that
appear on screen.
NOTE Gives bits and pieces of additional information related to
the current topic.
WARNING Alerts you to any damage that might result from doing or not
doing specific actions.
CAUTION Gives precautionary measures to avoid possible hardware or
software problems.
IMPORTANT Reminds you to do specific actions relevant to the
accomplishment of procedures.
Copyright
Copyright©2006 byAcerIncorporated.Allrightsreserved.Nopartofthispublicationmaybe
reproduced,transmitted,transcribed,stored inaretrievalsystem,ortranslated intoanylan-
guage orcomputerlanguage,inanyform orbyanymeans,electronic,mechanical,magnetic,
optical,chemical,manualorotherwise,withoutthe priorwrittenpermissionofAcer
Incorporated.
Disclaimer
The informationinthisguide issubjecttochange withoutnotice.
AcerIncorporated makesno representationsorwarranties,eitherexpressed orimplied,with
respecttothe contentshereofand specificallydisclaimsanywarrantiesofmerchantabilityor
fitness foranyparticularpurpose.AnyAcerIncorporated softwaredescribed inthismanualis
soldorlicensed “asis”.Shouldthe programsprovedefectivefollowing theirpurchase,the
buyer(and notAcerIncorporated,itsdistributor,oritsdealer) assumesthe entirecostofall
necessaryservicing,repair,and anyincidentalorconsequentialdamagesresulting fromany
defectinthe software.
AcerisaregisteredtrademarkofAcerCorporation.
IntelisaregisteredtrademarkofIntelCorporation.
Pentium4and Celeron aretrademarks ofIntelCorporation.
Otherbrand and productnames aretrademarks and/orregisteredtrademarks oftheirrespective holders.
III

Preface
Beforeusing thisinformationand the productitsupports,pleaseread the following general
information.
1.ThisServiceGuide providesyouwithalltechnicalinformationrelating tothe BASICCON-
FIGURATIONdecided forAcer’s “global”productoffering.Tobetterfitlocalmarketrequire-
mentsand enhanceproductcompetitiveness,yourregionalofficeMAYhavedecided to
extend the functionalityofamachine (e.g.add-oncard,modem,orextramemorycapability).
TheseLOCALIZEDFEATURES willNOTbe covered inthisgenericserviceguide.Insuch
cases,pleasecontactyourregionalofficesorthe responsiblepersonnel/channeltoprovide
youwithfurthertechnicaldetails.
2.PleasenoteWHENORDERINGFRUPARTS,thatyoushouldcheck the mostup-to-date
informationavailableonyourregionalweb orchannel.If, forwhateverreason,apartnumber
change ismade,itwillnotbenoted inthe printed ServiceGuide.ForACER-AUTHORIZED
SERVICEPROVIDERS,yourAcerofficemayhaveaDIFFERENTpartnumbercode tothose
giveninthe FRUlistofthisprinted ServiceGuide.YouMUSTusethe listprovided byyour
regionalAcerofficetoorderFRUpartsforrepairand serviceofcustomermachines.
V

TableofContents
Chapter1SystemIntroduction 1-1
TechnicalSpecification 1-1
ProductOverview1-3
Chapter2MechanicalDisassemblyand Reassembly 2-1
EquipmentNeeded 2-1
GeneralInformation 2-1
MechanicalDisassemblyProcedure 2-2
MechanicalReassemblyProcedure 2-15
Chapter3Troubleshooting 3-1
EquipmentNeeded 3-1
LEDLighting Message 3-1
MainProcedure 3-2
Chapter4Function Testand AlignmentProcedure 4-1
Product/TestEquipment/TestCondition 4-1
InspectionProcecdure 4-2
Guide toEntering ServiceMode and FactoryReset(PD100)4-5
Chapter5FirwareUpgrade 5-1
EquipmentNeeded 5-1
InstallationProcedure 5-2
USBDriverUpgrade Procedure 5-4
FirmwareUpgrade Procedure 5-6
Chapter6EDIDUpgrade 6-1
EquipmentNeeded 6-1
Setup Procedure 6-2
EDIDKey-inProcedure 6-2
AppendixAExplodedOverview
AppendixBSerialNumberDefinition System

1
Confidential
SystemIntroduction
Item Description
Dimensions (WxHxD) 230 x 122.8 x 238 mm
Tilt Angle 7 degree with elevator mechanism
Keystone correction +/-16 degree (32 degree) (Horizontal)
Lamp Door Projection Lamp power supply shut off automatically when door open
Power Supply
Universal AC 100-240V ~ 50-60Hz with PFC input
200W for Philips UHP Lamp @ normal operation
Variance FAN speed control
(Depends on temperature variant)
Throw Distance 1.5m - 10m (Optical Performance)
1.5m - 12m (Mechanical Travel)
Contrast 1000 : 1 Full White and Black (Minimum; Full Power Mode)
1800 : 1 Full White and Black (Typical; Full Power Mode)
Uniformity 75% Japan standard (Minimum; Full Power Mode)
85% Japan standard (Typical; Full Power Mode)
Temperature Opterating : 5~35oC
Storage : -20~60oC
Maximum Humidity Operating : 5~35oC, 80%RH (Max.), non-condensing
Storage : -20~60oC, 80%RH (Max.), non-condensing
Lamp Life 1500 hours min, 50% survival rate (Full Power Mode)
2000 hours min, 50% survival rate (Eco Mode)
Altitude
Operating : 0~2,500 ft for 5 oC~35oC
2,500~5,000 ft for 5 oC~30oC
5,000~10,000 ft for 5 oC~25oC
Storage : 40,000 ft (Max.)
MTBF Operating more than 12,000 hours (90% Confidence Level)
Chapter1
TechnicalSpecification(PD100/PD100D/PD120/PD120D/
XD1170D/XD1270D/XD1150/XD1250)
TechnicalSpecification(PD100/PD100D/PD120/PD120D)
Item Description
Weight Approx. 4.85 lbs (2.2 Kg)
Projection Lens F#2.7~3.0, f=21.83mm~23.81mm, 1.10X Mechanical Zoom Lens
Brightness 1700 ANSI Lumens (Typical; Full Power Mode)
1170 ANSI Lumens (Typical; Eco Mode)
Acoustic noise level 38 dB(A) (Typical, Under 23 +/- 20C; Full Power Mode without DVD/wireless)
30 dB(A) (Typical, Under 23 +/- 20C; Eco Mode without DVD/wireless)

Confidential2
TechnicalSpecification(XD1170D)
Item Description
Weight Approx. 5.3 lbs (2.4 Kg)
Projection Lens F#2.35~2.47, f=21.83mm~23.81mm, 1.10X Mechanical Zoom Lens
Brightness 1850 ANSI Lumens (Typical; Full Power Mode)
1450 ANSI Lumens (Typical; Eco Mode)
Acoustic noise level 35 dB(A) (Typical, Under 23 +/- 20C; Full Power Mode without DVD/wireless)
30 dB(A) (Typical, Under 23 +/- 20C; Eco Mode without DVD/wireless)
Computer Compatibility SVGA: 800 x 600
TechnicalSpecification(XD1270D)
Item Description
Weight Approx. 4.85 lbs (2.2 Kg)
Projection Lens F#2.35~2.47, f=21.83mm~23.81mm, 1.10X Mechanical Zoom Lens
Brightness 1850 ANSI Lumens (Typical; Full Power Mode)
1450 ANSI Lumens (Typical; Eco Mode)
Acoustic noise level 35 dB(A) (Typical, Under 23 +/- 20C; Full Power Mode without DVD/wireless)
30 dB(A) (Typical, Under 23 +/- 20C; Eco Mode without DVD/wireless)
Computer Compatibility XGA: 1024 x 768
TechnicalSpecification(XD1150/XD1250)
Item Description
Weight < 5.0 lbs
Projection Lens F#2.35~2.47, f=21.83mm~23.81mm, 1.10X Mechanical Zoom Lens
Brightness 1450 ANSI Lumens (Typical; Full Power Mode)
1150 ANSI Lumens (Engineering Minimum; Full power mode)
Acoustic noise level Typical 35 dB(A) and maximum 37 dB(A) at 23 +/- 20C
Computer Compatibility SVGA: 800 x 600 (for XD1150)
XGA: 1024 x 768 (for XD1250)

3
Confidential
ProductOverview
MainUnit
Item Description
1Focus Ring
2Zoom Ring
3Zoom Lens
4Elevator Button
5Elevator Foot
6Remote Control Receiver
7Connection Ports
8Power Socket
9Control Panel

Confidential4
ControlPanel
Item Description
1Lamp Indicator LED
2Temp Indicator LED
3Power / Standby and Indicator LED (Power LED)
4Source
5Resync
6Four Directional Select Keys
7Menu

5
Confidential
Connection Ports
Item Description
1DVI Input Connector (for Digital signal with HDCP function) (Optional)
(for PD100D/PD120D/XD1170D/XD1270D only)
2PC Analog Signal / HDTV / Component Video Input Connector
3Audio Input Connector
(for PD100/PD100D/PD120/PD120D/XD1170D/XD1270D only)
4S-Video Input Connector
5Monitor Loop-through Output Connector
(for PD100/PD100D/PD120/PD120D/XD1170D/XD1270D only)
6USB Connector
7Remote Control IR Receiver
(for PD100/PD100D/PD120/PD120D only)
8Composite Video Input Connector
9KensingtonTM Lock Port
10 5V DC Output Jack (dfor attached dongle device)
(for PD100/PD120 only)
11 RS232 Connector
(for XD1170D/XD1270D only)

Confidential6
Item Description
1Power Cord
2VGA Cable
3Composite Video Cable
4USB Cable
5VGA to Component / HDTV Adapter
6S-Video Cable
7Audio Cable Jack / Jack
(for PD100/PD100D/PD120/PD120D/XD1170D/XD1270D only)
8DVI Cable (Optional Accessory)
(for PD100D/PD120D/XD1170D/XD1270D only)
95V DC Output Jack for attached Dongle Device
(for PD100/PD120 only)

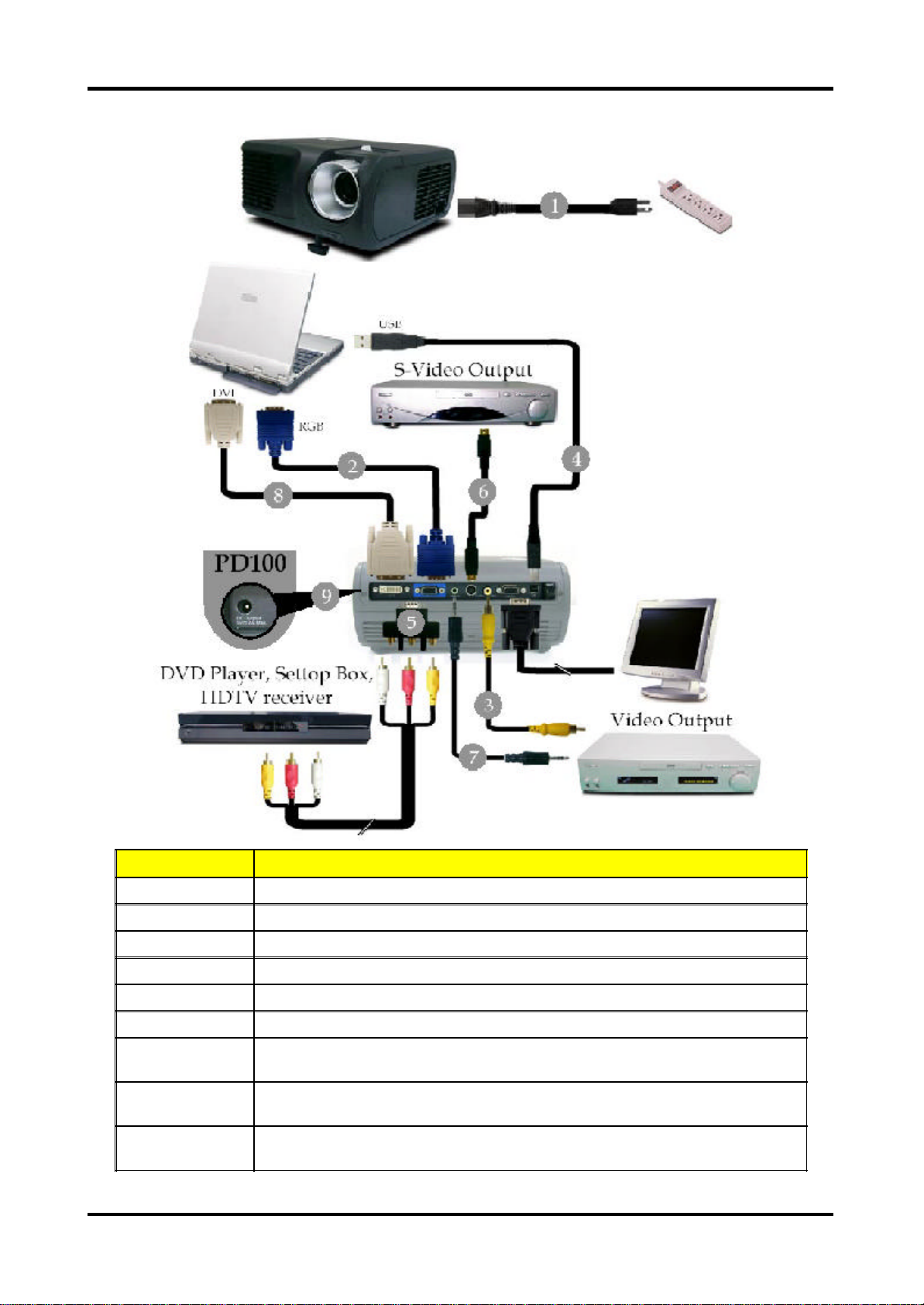

Connecting theProjector

1
Confidential
Mechanical Disassembly & Reassembly
This section provides disassembly & Reassembly procedures for PD100 Micro Portable SVGA
DMD Projector. Before you begin any of these procedures, be sure to turn off the power,
computer system, and other attached devices; then disconnect the power cable from the
electrical outlet. Moreover, when you disassemble the projector, be sure to put the screws
in a safe place and separate them according to their category.
Equipment Needed
Chapter 2
General Information
Before You Begin
Before proceeding with the disassembly procedure, make sure that you do the following
procedures:
1. Turn off the power of the system and all the peripherals.
2. Unplug the AC adapter and all power and signal cables from the system.
3. Anti-static wrist strap.
Item Photo Item Photo
Philips (+) : 107 Philips (+) : 102
Screw Bit Hex Screw :
5mm
Tweezers Screw Bit

Confidential 2

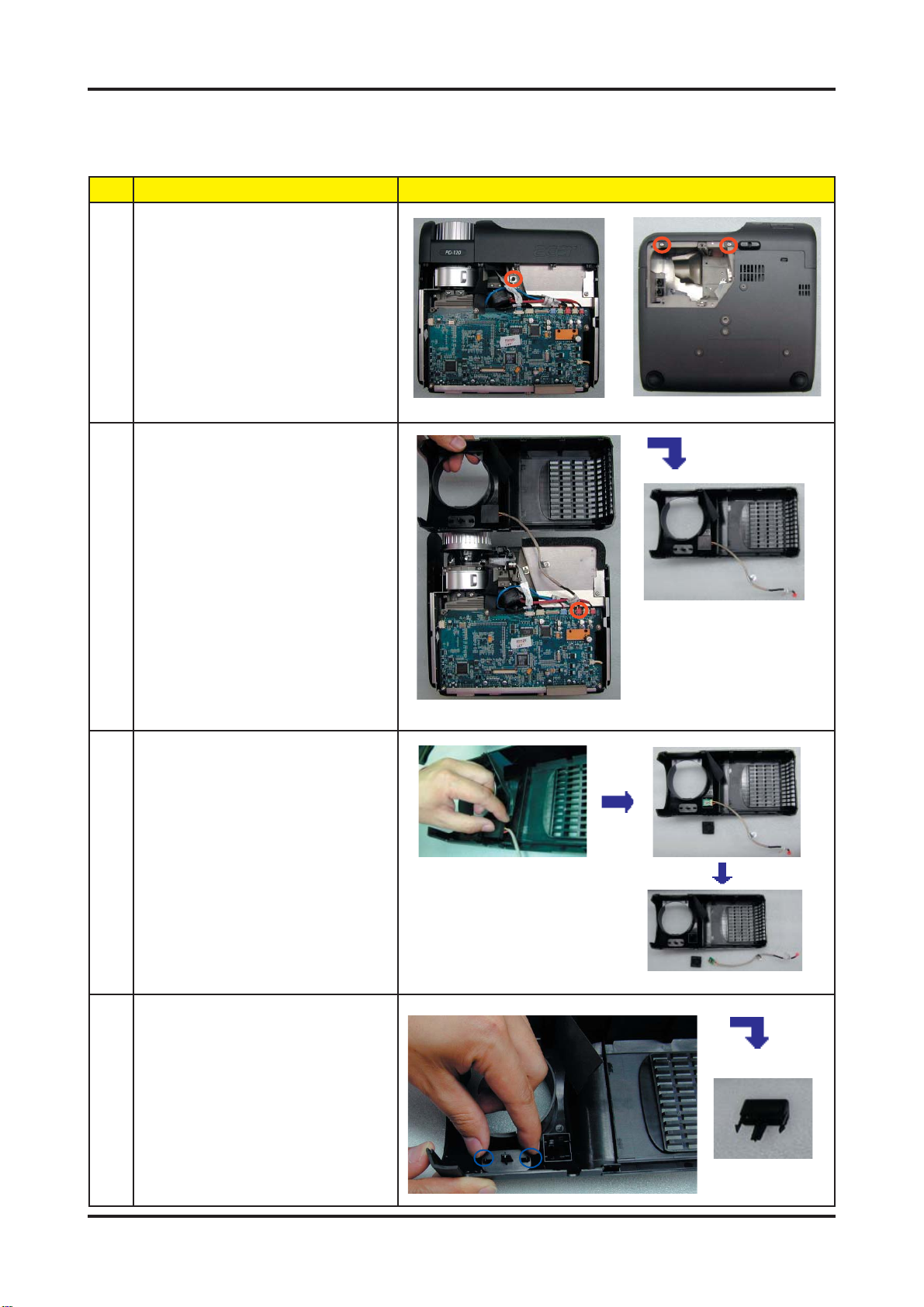

1. Remove Lamp Module
No Procedure Photo
1 Unscrew 2 screws to remove
the Lamp Cover.
2 Unscrew 2 screws to remove
the Lamp Module.
Mechanical Disassembly Procedure

3
Confidential
2. Remove IO Cover / Top Cover
No Procedure Photo
1 Unscrew 2 screws & 6 hex
screws to remove the IO
Cover.
Unscrew 2 screws & 2 hex
screws to remove the IO
Cover.
(Note: Only for XD1150/
XD1250)
2 1. Lift up the Top Cover first
and then pull the Bottom
Cover for easily separting the
Top Cover.
2. Remove 1 FPC Cable to
remove the Top Cover.
XD1150/XD1250

Confidential 4
3. Remove Keypad Board
No Procedure Photo
1 1. Unscrew 4 screws to
remove the Keypad Board.
2. Separate the Keypad
Module.
2 Unscrew 2 screws to remove
the Top Cover Shielding.

5
Confidential
4. Remove Front Cover / IR Sensor Board / Elevator
Push Button
No Procedure Photo
1 1. Unscrew 1 screw to remove
the IR Receiver.
2. Unscrew 2 screws to
remove the Front Cover.
2 Unplug 1 connector (red color)
to remove the Front Cover
Module.
3 Remove the Front IR Cover
directly, and loosen 2 tenons
to remove the IR Receiver
Board.
4 Loosen 2 tenons to remove
the Elevator Push Button
directly.

Confidential 6
5. Remove Bottom Cover Module
No Procedure Photo
1 Remove Bottom Cover
Sponge.
2 Remove Side Covers. (Right
Cover & Left Cover)
Note 1:
When disassembing the Side
Cover, push the side cover
outside forwards and then pull
it up directly.
Note 2:
When reassembing the Side
Cover, please locate & align
the tenons as the picture
shows.
3 Unplug 2 tenons in the
shieldings to separate the
Bottom Cover Module with the
unit.

7
Confidential
6. Remove Main Board
No Procedure Photo
1 Unplug 8 connectors first and
then unscrew 4 screws.
Note:
When Reassembling the
Main Board with the Top
Cover, please be aware of the
wire arrangement. The wire
arrangement should go as the
picture shows (not exceeding
1/2 of the red blank space) to
best allocate the Top Cover
Sponge.
2 1. Lift up the front part of Main
Board first; then, take off the
Main Board.
2. Unplug 1 connector to
remove the Main Board.

Confidential 8
7. Remove EMI Shielding / Speaker
No Procedure Photo
1 Unscrew 4 screws to remove
the EMI Shielding Cover of
units.
2 Unscrew 2 screws to remove
the Speaker.
Note:
The Speaker isn’t designed
with error-proof. Please be
aware of wire-arrangement as
the picture shows.
