acerpure Cozy Series User manual

Series
Air Circulator
Model: AF551-20W
www.acerpure.com
Copyright©2021 AcerPure Inc. All Rights Reserved.
User Manual
使用說明書

User Manual03
使用說明書14

User Manual
Thank you for purchasing this product.
Please read this manual carefully, use this
product correctly, and store it properly.

4
CONTENTS
Safety Instructions 05
Product Introduction and Product Overview 06
Product Assembly and Use 07
Panel Introduction 09
Maintenance and Disassembly 11
Before Contacting Customer Service 12
Product Specications and Company Info 13

5
This product is for home and oce use.
Do not use it for other purposes.
Before using, check the AC adapter and
its plug for damage. To avoid poor contact,
do not twist or pull the AC adapter.
Before using, please check if the voltage on your
power socket is compatible with the
voltage label on the product.
Turn o the power before pulling out the plug.
Do not touch the AC adapter with wet hands to
avoid risks of electric shock.
This product can only be powered by the
included AC adapter, to avoid product failures
or res.
Attend to your children and make sure that they
do not tamper with the product.
If you need to disassemble the product, make
sure that the power is turned o and the AC
adapter is unplugged.
Do not store the button cell battery of the
remote control in places within reach of infants
to prevent it from being swallowed accidentally.
If swallowed, please consult a doctor
immediately.
To avoid product damage, do not use the
product in a place where foreign objects may be
sucked into the circulation fan, such as curtains.
Do not use the product without assembling and
do not insert hands or pointed objects into the
circulation fan guard to avoid injuries.
Do not let children play with parts of the
packages (such as plastic bags).
Do not hang clothes on the circulation fan
guard and do not use the product on unstable
surfaces or in places with obstacles. If you need
to place the product on a stand, make sure that
it is secured so that it won't fell o the stand in
case of earthquakes or other emergencies.
This product is not intended for use by persons
(including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge,
unless they are using it in a safe manner and
under the supervision of their guardian.
Do not continuously to blow the baby or the
patient directly for a long time.
Do not spray volatile agents, insecticides or
other liquids on the product.
Do not use the product in high temperatures
(higher than 40°C), highly humid places (such as
bathrooms) or dusty places.
Do not use the product where acid, alkali or oil is
stored.
If the product is not used for long periods of
time, please unplug the AC adapter.
More specically, please turn o the power and
unplug the AC adapter immediately in the event
of emergencies such as thunderstorms,
lightning, earthquakes or res.
The product only requires general external
cleaning. Do not use cleaning tools with rough
surfaces and do not rinse the product directly
with water.
The fan shall be used for temperate climates
and tropical climates.
If the product is accidentally immersed in water,
please stop using it immediately and contact
customer service.
If the product is operating abnormally, such as
giving o noise, smoke, or odors, please turn o
the power and unplug the product immediately
and contact customer service.
Do not repair or modify the product
unless you are an authorized repair technician
of the company. If the AC adapter is damaged, it
must be replaced by an authorized repair
technician to avoid dangers.
For customer service contact information,
please see the company information at the
end of this manual.
Safety Instructions Prohibited Attention

6

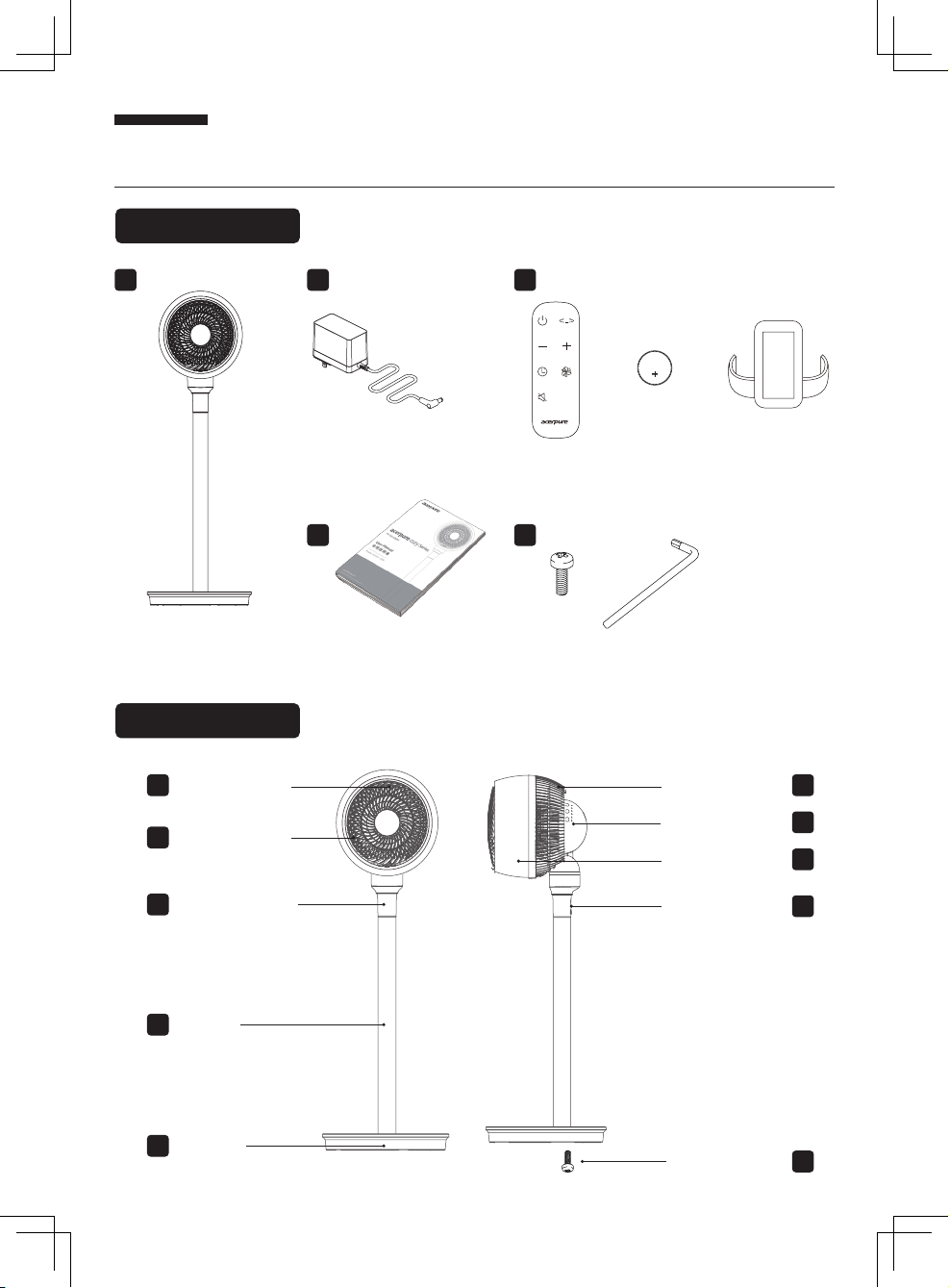

Product Introduction and Product Overview
+ +
+
Machine Body
AC Adapter Remote Control with
Battery (CR2032)
Remote
Control
Magnetic
Stand
User Manual &
Warranty Card Pedestal Screw + Hex Key Wrench
1 2 3
1 6
7
8
9
10
2
3
4
5
54
Circulation Fan
Front Guard
Circulation Fan
Rear Guard
Control Panel
Circulation Fan
Guard Support
AC Adapter
Connection
Port
Pedestal Screw
Circulation Fan
Blades
Remote Control
Signal Receiver
Column
Pedestal
Product Overview
Product Introduction

7
Product Assembly and Use
Before using, please follow the steps below to assemble the product and keep the packaging
materials properly for future storage use.
The product can be adjusted in a vertical range of 0–90° to suit your needs. You can directly adjust the
angle with your hands.

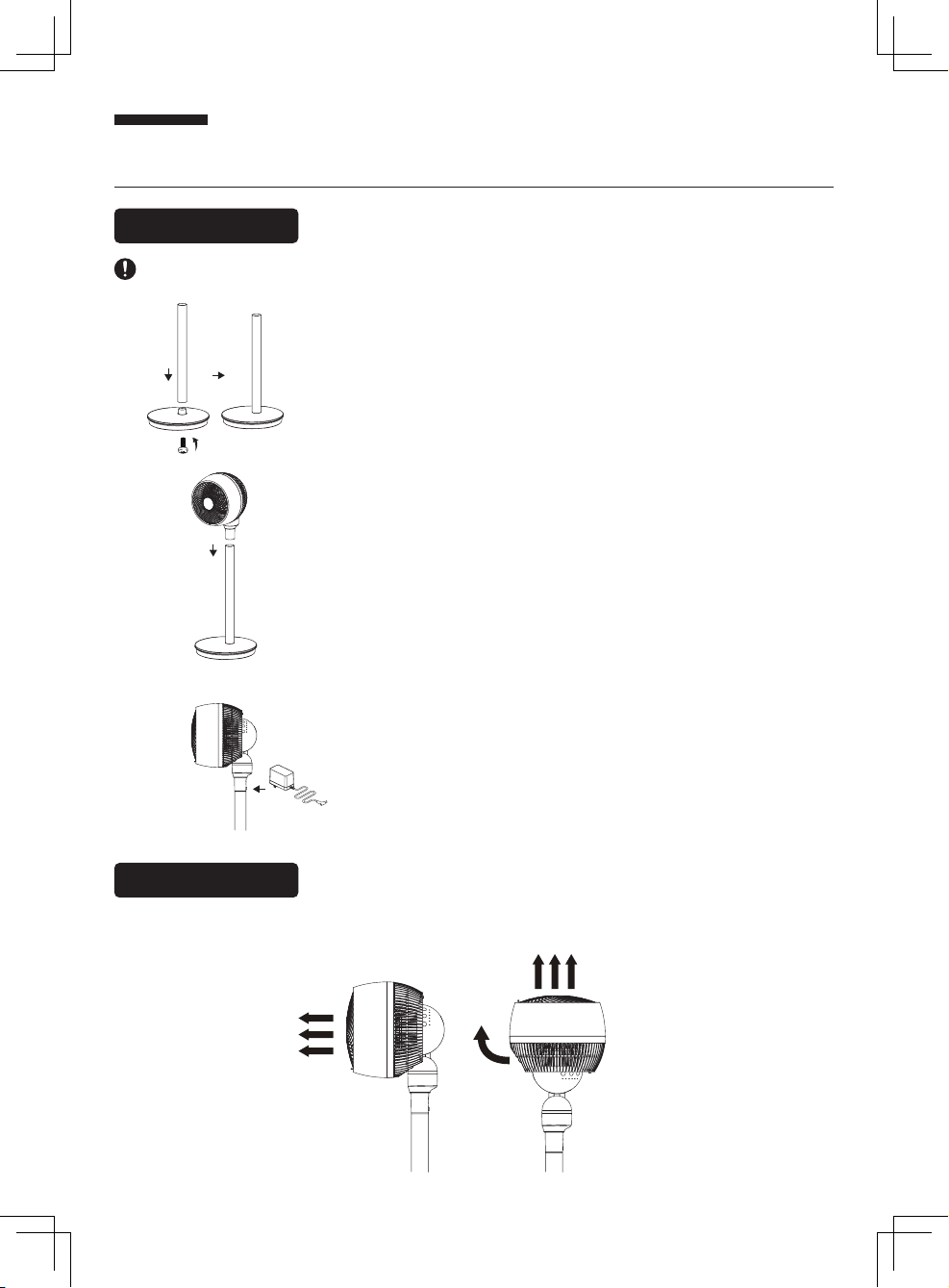

Product Assembly
Adjusting the vertical angle of the fan
Assembling the pedestal
Insert the column into the center hole of the pedestal,
attach the pedestal screw onto the pedestal and then use
the included hex key wrench to tighten the screw.
Assembling the circulation fan
Attach the circulation fan to the column and the
product assembly is complete.
Connecting the AC adapter
Plug the power supply unit into the AC adapter
connection port of the product and turn on the power
to start using the product.

8
Product Assembly and Use

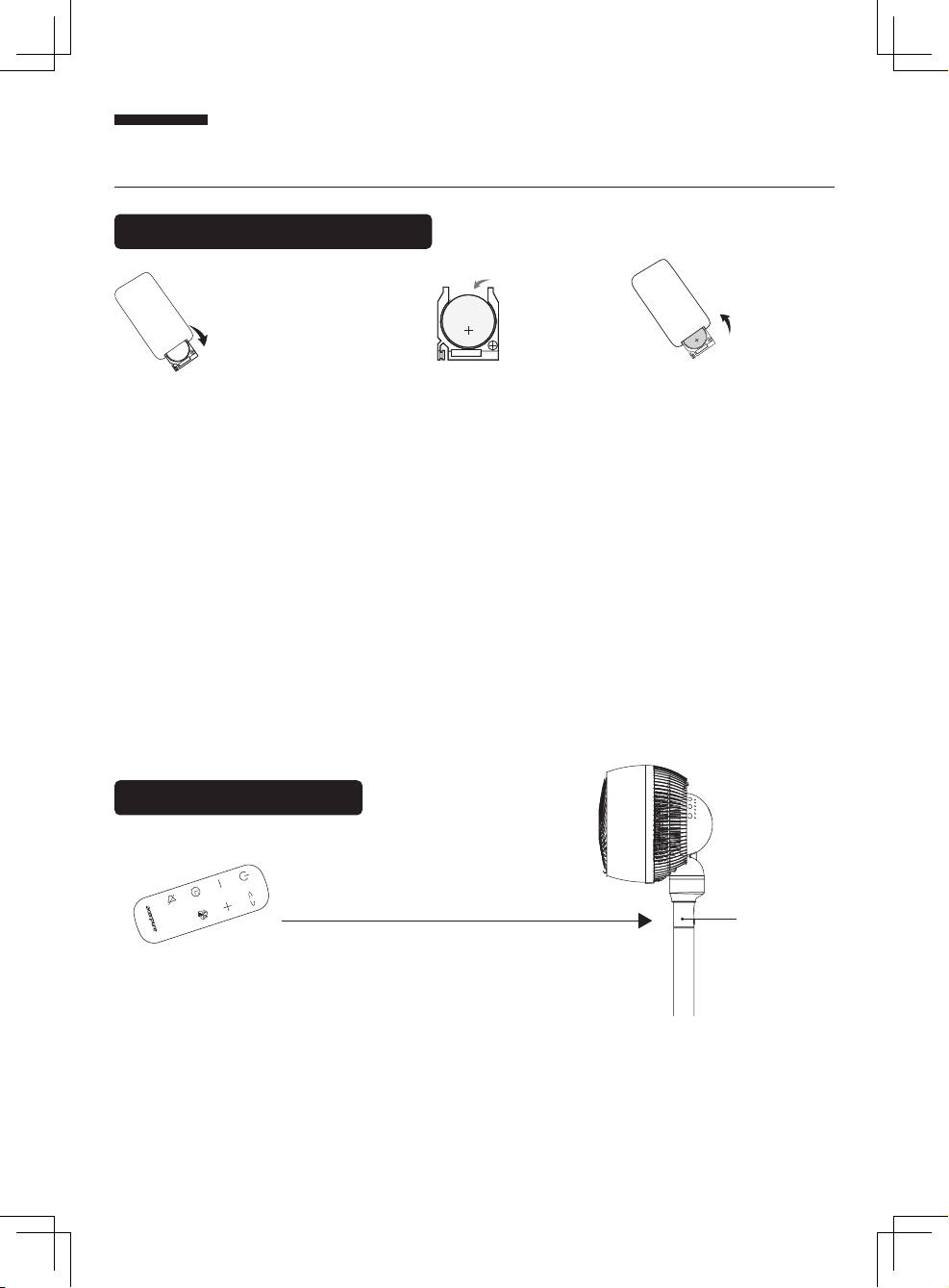

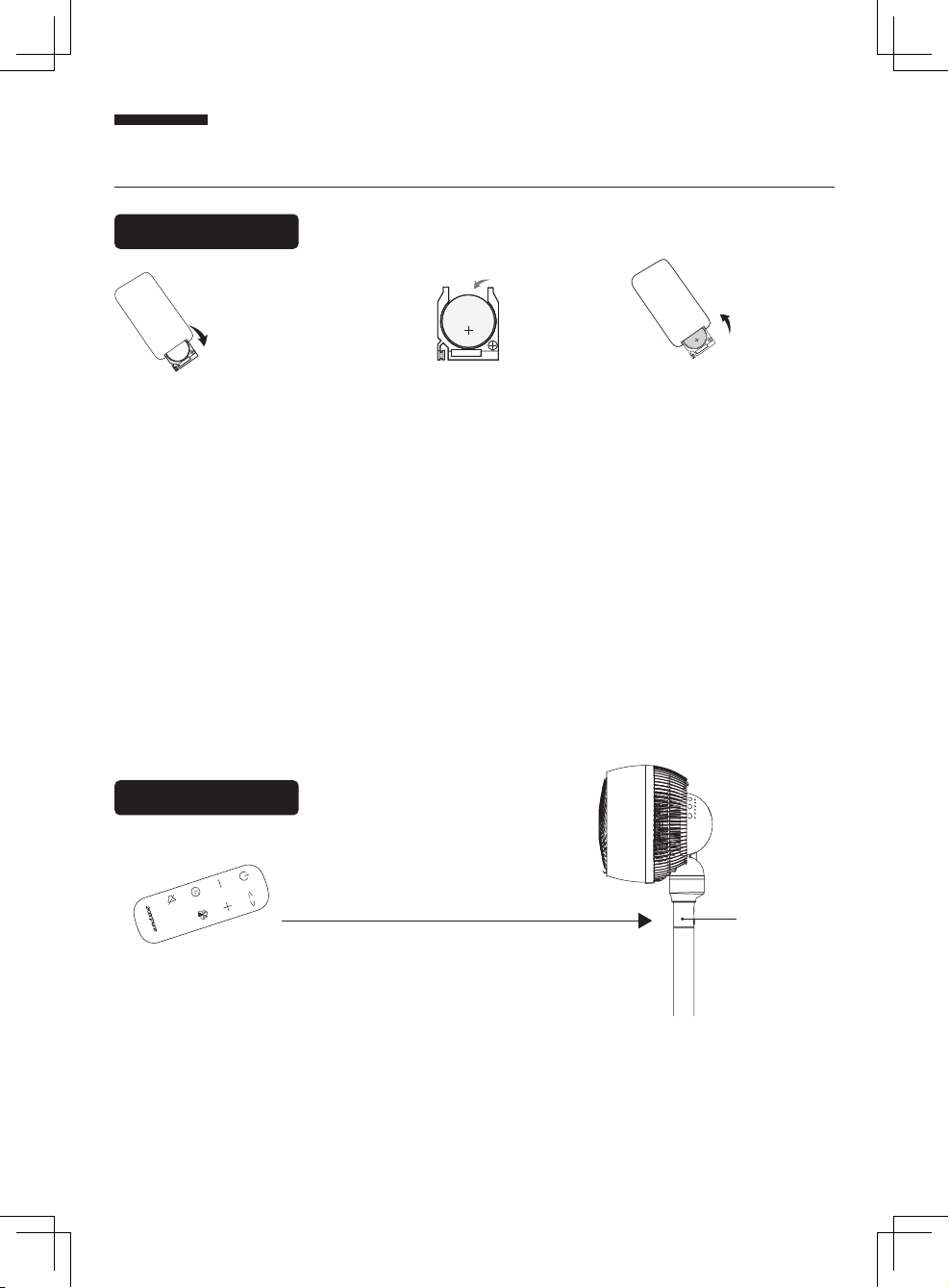

Installing the remote control battery
Using the remote control
1. Gently press the button
on the left side and pull
down the battery case to
take it out.
Up to 600 cm
Open
2. Place the battery such
that the positive pole (+)
faces upwards.
3. Place the battery case
back into the slot and x
it into place.
Close
Open Install Close
Battery use precautions
1. Do not store the battery in places within the reach of children or infants. If accidentally swallowed, please
consult a doctor immediately.
2. If the uids leaking out of the battery come into contact with the eyes, do not rub the eyes. Rinse thoroughly
with clean water and consult a doctor immediately. Please note that this may lead to vision loss.
3. If the uids leaking out of the battery come into contact with the skin or clothes, rinse with water immediately.
Please note that this may lead to stains.
4. If you need to dispose of the battery, please follow the local waste sorting requirements (and use clear tape to
wrap both the "+" and "-" sides).
Remote control precautions
1. The remote control must face the signal receiver directly.
2. The remote control shall be used within a distance of approximately 600cm from the signal receiver and facing
towards the signal receiver. If the remote control is not facing towards the signal receiver, the eective
distance will be decreased.
3. Do not place any objects between the signal receiver and the remote control.
4. Please store the remote control properly and avoid crashing or dropping it. Please remove the battery and
store it properly when the remote control is not used.
Remote Control
Signal Receiver

9
Panel Introduction
Power On/O
You can use this button to power on/
o the product.
Left and Right Swing Mode
Allow you to set the product to swing left
and right. Press this button again to stop
swinging.
Timer Mode
You can use the remote control to set the
product to start/stop at a given time. The
times will be simultaneously displayed on
the machine control panel.
Circulation Speed
The product has 12 dierent speeds
as well as a Turbo mode. You can
choose your desired speed or mode
according to you needs.
The indicator corresponding to
your selected speed will be lit up.
The brightness indicates the
speed level.
Turbo Mode (You can only use the remote control to switch into this mode)

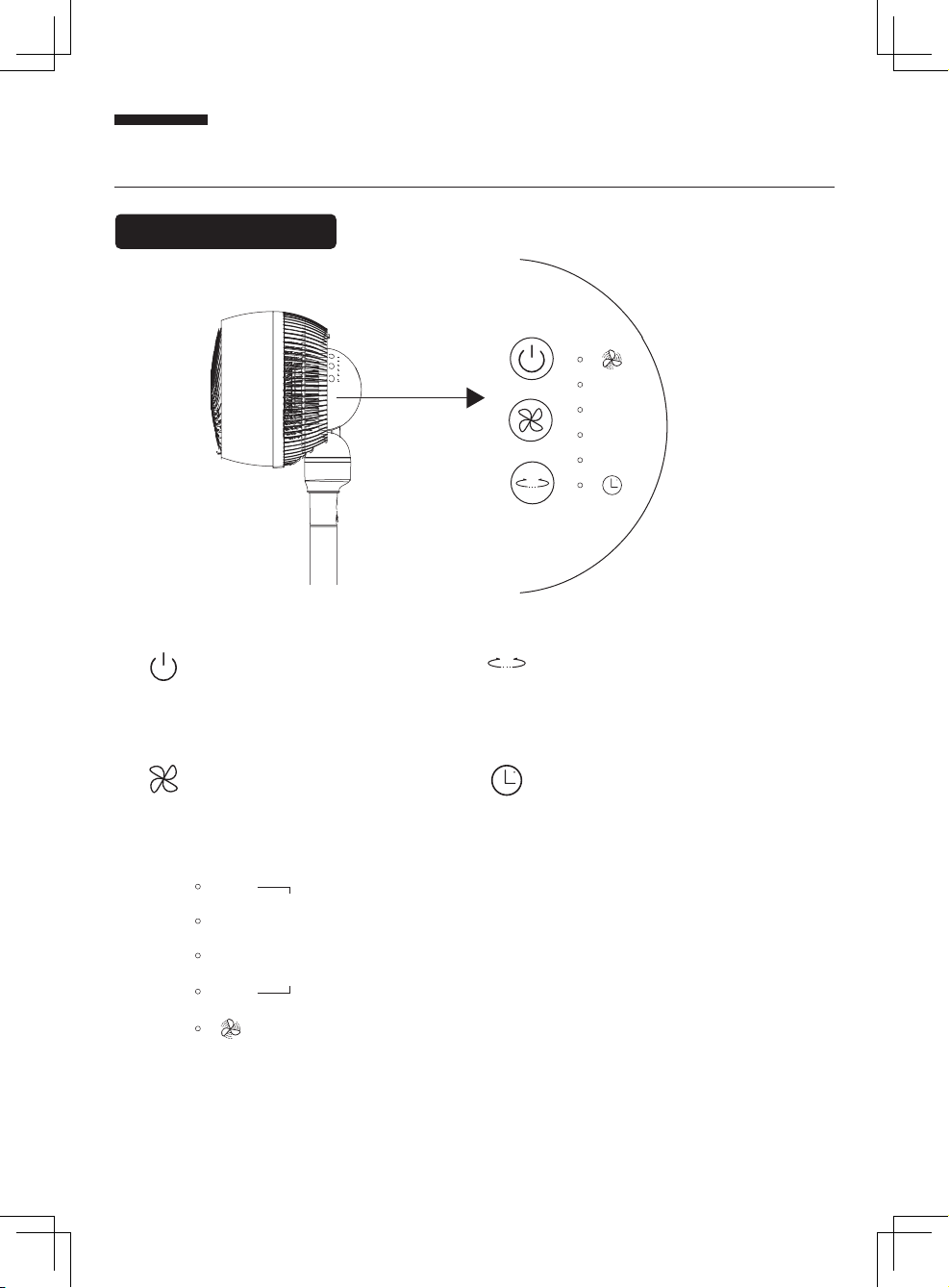

Machine control panel
10-12
7-9
4-6
1-3
4-6
1-3
7-9
10-12

10
Panel Introduction

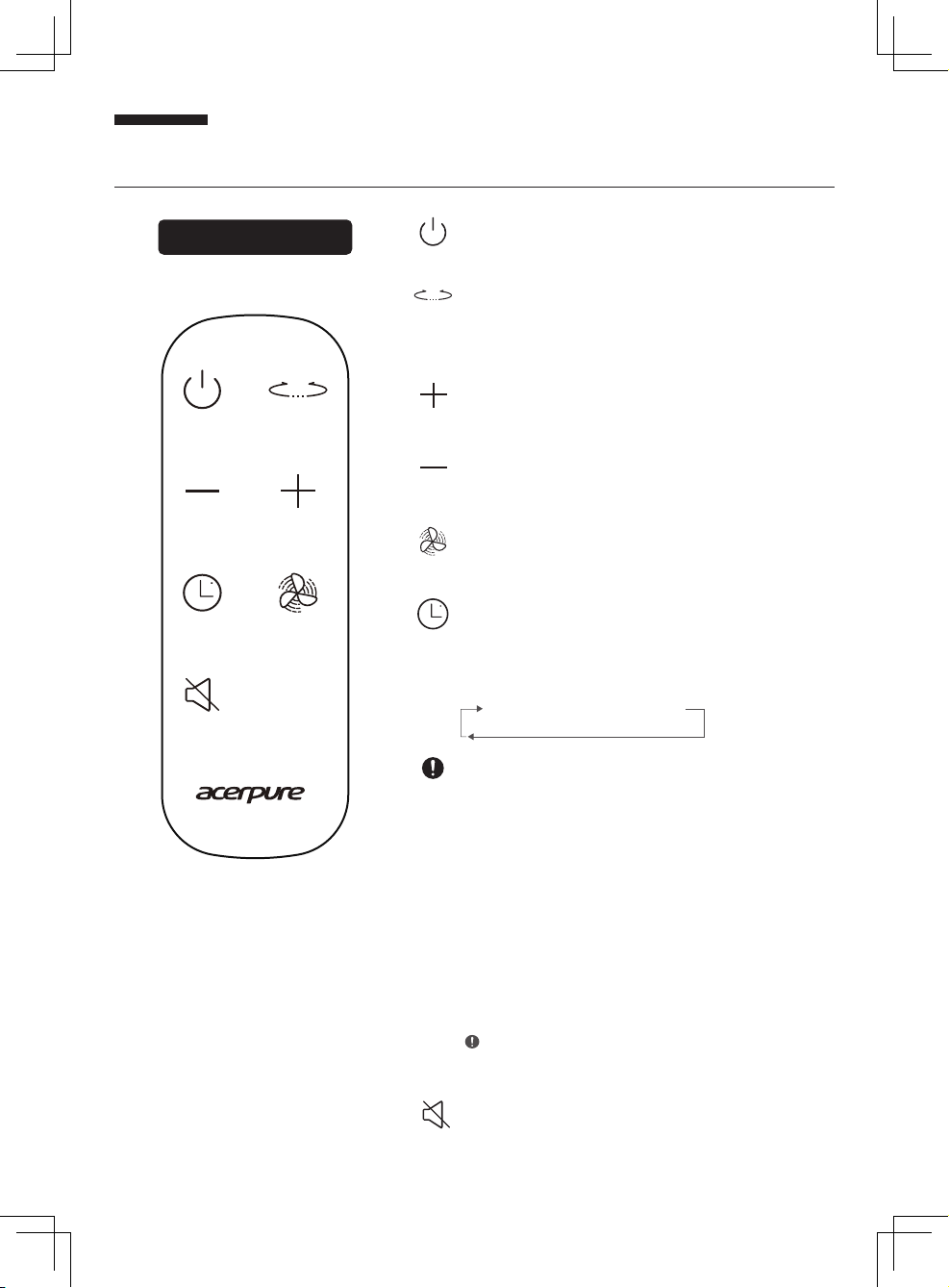

Remote control panel Power On/O
You can use this button on the remote control to
power on/o the product.
Left and Right Swing Mode
Press this button on the remote control to set the
machine to oscillate horizontally. Press this button
again to stop the oscillation.
Circulation Speed Decrease
You can use this button on the remote control to
adjust the circulation speed .
Circulation Speed Increase
You can use this button on the remote control to
adjust the circulation speed.
Turbo Mode
You can use this button on the remote control to
switch into the turbo mode.
Timed start
When the product is stopped but still powered on, you
can press this button to set a time to start the machine.
You can press this button again to cancel the timed start.
Timed stop
When the product is started, you can press this button
to set a time to stop the machine. You can press this
button again to cancel the timed stop.
Timer Mode
You can use the remote control to set the product
to start/stop at a given time and use the "+"/"-"
buttons on the remote control to adjust the time.
The maximum time range you can set is 12 hours.
1h→2h→3h→4h.............11h→12h
When the machine is started and there is not a timed stop, the
machine will automatically stop working after 24 hours without
operation.
Silent Mode
When the machine is timed to start, you can press
this button to enter the Silent mode. You can press
it again to exit the Silent mode.
Please note that when you are setting up timed
start/stop, a ashing indicator on the machine
control panel means that you can adjust the time.
When the indicator stops ashing and is solid on,
it means the timed start/stop is successfully set.

11
Disassembly of the circulation fan
The product only requires general external cleaning
(as shown).
Do not use thinners, toluene, acid agents, lamp
oil, alcohol or chemical wipes to clean the
product to avoid discoloration or degradation. Use neutral kitchen detergents to clean.
Then use clean, soft cloth to wipe.
Please note that the product must not be
powered on or stored away after maintenance or
cleaning until it has been fully dried. If you need
to put away the product, please put it in the
packaging box and properly store in a dry place.
2
2. Rotate the front guard
counterclockwise.
Maintenance and Disassembly
Maintenance
3. Back out the front
guard and remove the
circulation fan blades.
3
1. Drive out the screw at the
bottom of the circulation
fan front guard.
1
Before disassembling the circulation fan guard, make sure that the product has been powered o.

12
Before Contacting Customer Service
If you nd a problem with the product, please check the following tips before contacting customer service.
Problem Possible Cause Solution
The product fails to start. The power supply unit may not be
plugged into the power outlet.
Make sure that the power supply unit is
properly plugged into the power outlet.
The circulation fan fails to run after the
product is started.
There may be foreign objects
stuck in the circulation fan.
Please remove the foreign objects from
the circulation fan guard.
The noise is unusually big
Dust may have accumulated
in the circulating fan. Please clean the circulating fan guard.
There may be foreign objects
stuck in the circulation fan.
Please remove the foreign objects from
the circulation fan guard.
The oor or desktop where the
product is placed may be uneven.
Please place the product on an even
surface or desktop.
The circulation fan blades may not be
properly tted on the motor shaft.
Please properly t the circulation fan
blades on the motor shaft.
The remote control fails to work.
The battery may be dead. Please replace the battery.
(Applicable model: CR2032)
The remote control may not be facing
towards the product straight.
Please change a position and face the
remote control straight towards
the signal receiver.

13
Product Specications
Air Circulation Fan Specications
Product name Air Circulation Fan
Product model AF551-20W
Rated voltage/rated power DC24V⎓/25W
Net weight 3.92 kg
Product dimensions 333.4 × 333.4 × 1000 mm
Country of origin China
AC Adapter Specications
Rated voltage/rated frequency 100-240V–50/60Hz
Output voltage DC24V⎓
Company Info
www.acerpure.com
The appliance is only to be used with the power supply unit provided with the appliance.
The appliance must only be supplied at safety extra low voltage.

14

15
使用說明書
非常感謝您購買本產品，請務必詳閱本使用
手冊，正確使用本產品，並妥善保存。

16
目 錄
安全指示 17
產品配備與結構 18
產品組裝與使用 19
面板介紹 22
保養與拆卸 23
限用物質含有情況標示 24
尋求售後服務之前 24
產品規格與公司資訊 25

17
本產品為家庭、辦公室使用。
請勿用於其他用途。
使用前，須先檢查電源供應器以及插頭是
否有破損，也請勿曲折、拉扯電源供應
器，以免接觸不良。
使用前，請先檢查電壓是否與本產品電壓
標籤上之標示相符。
拔掉插頭前，請先關閉電源。請勿溼手觸
碰電源供應器，以避免觸電的危險。
本產品僅可由隨附之電源供應器供電，
以避免發生產品故障或火災等情況。
孩童應受監護，以確保孩童不嬉玩本產
品。
若有拆卸本產品的需求時，請確保已切斷
電源，並拔下電源供應器。
請勿將遙控器的鈕扣電池放置於嬰幼兒伸
手可及之處使用，以避免導致誤食。若不
甚吞下電池，請立即就醫。
請勿在可能會有異物被吸進循環扇內的地
方使用，例如窗簾，以避免產品毀損。
嚴禁在未組裝好本產品的情況下使用，
也禁止用手或尖物插入循環扇風罩內，
以防止意外發生。
切勿將衣物掛於循環扇風罩上，且勿在有
障礙物或不平穩處使用，如欲放在架子等
處使用，請確實固定以避免因地震等原因
而導致產品掉落。
本產品不預期供生理、感知、心智能力、
經驗或知識不足之使用者(包含孩童)使
用，除非在對其負有安全責任的人員之
監護或指導下安全使用。
請勿於本產品上噴灑揮發劑、
殺蟲劑等液體。
請勿在高溫(40°C以上)、高濕度(如浴
室)、多灰塵或是酸鹼油易潑灑的地方使
用本產品。
若長時間不使用本產品，請將電源供應器
拔下。尤其是在打雷、閃電、地震、火災
等緊急異常情況時，請立即關閉電源，並
拔起電源供應器。
本產品只需做一般外部性清潔保養，請勿
使用表面粗糙的清洗工具，也請勿直接用
水沖洗。
如果產品不慎浸泡在水中，請立即停止使
用，並聯繫客服人員。
若您發現任何異常的現象，如噪音、煙霧
或是異味，請立即關閉電源，拔下插頭並
聯繫客服人員。
未經本公司授權之維修人員，不得自行
修理或改造本產品。若電源供應器損壞
時，也須由已授權之維修人員加以更換以
避免危險。
客服聯絡方式，請見本說明書最後的公司
資訊。
安全指示 表示應「禁止」 表示需「注意」

18
產品配備與結構
+ +
+
主機
電源供應器 遙控器 適用CR2032
鈕扣型鋰電池
遙控器
磁吸式支架
說明書+保證卡 底座螺絲+專用板手
1 2 3
1 6
7
8
9
10
2
3
4
5
54
循環扇前風罩 循環扇後風罩
控制面板
循環扇中圈
電源供應器
連接孔
底座螺絲
循環扇葉
遙控器訊號接收器
支柱
底座
產品結構
產品配備

19
產品組裝與使用
使用前請依照下列順序正確的組合本產品，並將包裝物妥善保管，以便儲藏時使用。
本產品可依您需求調整上下 0～90°風向，請直接以手自由調整上下擺頭即可。
產品組裝方式
產品上下擺頭調整
腳座組裝方式
將支柱插入底座的中心孔，再將底座螺絲栓入底座，
並用隨附的專用扳手拴緊固定。
循環扇組裝方式
將循環扇與產品支柱連接，
即可完成本產品的組裝。
電源供應器連接
將電源供應器連結本產品的電源供應器連接孔，
插上電源後，即可開始使用本產品。

20
產品組裝與使用
遙控器電池安裝
遙控器使用
1. 輕按左側壓鈕，同時將
電池蓋向下拉動，即可
取出電池盒蓋。
最遠約 600cm
Open
2. 將電池正極(+)朝上。 3. 將電池蓋送入原出口，
並扣合完全。
Close
開啟 安裝 關閉
電池使用注意事項
1. 電池請勿放置於嬰幼兒伸手可及之處。如不慎吞下電池，請立即就醫。
2. 萬一電池漏出的液體噴到眼睛時，請勿搓揉眼睛，並利用自來水等清水充分清洗後立即就醫。請注意這可
能因此導致失明。
3. 萬一電池漏出的液體沾到皮膚及衣物時，請立即利用自來水等清洗。請注意這可能會出現染色的情形。
4. 如欲丟棄電池，請依照居住地區的垃圾分類方式處理 (丟棄時請使用透明膠帶包住「+」及「-」兩面)。
遙控器注意事項
1. 遙控器必須正對著訊號接收器
2. 遙控器使用範圍在正面離接收器約 600cm 內，如果遙控器沒有面向接收器，其使用範圍將縮小。
3. 不要在訊號接收器與遙控器之間放置任何遮攔物。
4. 請妥善保管遙控器，避免撞擊和摔落。不使用遙控器時，請取出電池，並妥善保存。
遙控器
訊號接收器
