ACKme Networks AMW106 Moray Instruction sheet

AMW106 Evaluation Guide
ARG-MW106E-101R •AMW106 Evaluation Guide September 1, 2015
©2014-2015 ACKme Networks
AMW106
Evaluation Guide
AMW106-E03
‘Moray’

AMW106 Evaluation Guide
ARG-MW106E-101R •AMW106 Evaluation Guide Page | i Page | i
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
Disclaimer
While the information provided in this document is
believed to be accurate, it is under development and
ACKme Networks reserves the right to make changes
without further notice to the product described herein
to improve reliability, function, or design, and makes no
guarantee or warranty concerning the accuracy of said
information, nor shall it be responsible for any loss or
damage of whatever nature resulting from the use of,
or reliance upon, such information. ACKme Networks
makes no warranties of any kind, whether express,
implied or arising by custom or course of trade or
performance, and specifically disclaims the implied
warranties of title, non-infringement, merchantability,
or fitness for a particular purpose.
No part of this document may be copied, reproduced,
stored in a retrieval system, or transmitted, in any form
or by any means, electronic, mechanical, photographic,
or otherwise, or used as the basis for manufacture or
sale of any items without the prior written consent of
ACKme Networks.
Trademarks
ACKme Networks and the ACKme Networks logo are
trademarks of ACKme Networks. WICED™ is
a trademark of Cypress Semiconductor Corporation.
Other trademarks in this document belong to their
respective owners.
Copyright © 2014-2015 ACKme Networks, Inc.
All rights reserved.
Document Number: ARG-MW106E-101R
Release Date: September 1, 2015
Contact
http://ack.me/contact
About this User Guide
This guide provides information and basic usage
instructions for the WiConnect serial Wi-Fi application
and the AMW106 ‘Numbat’ module available from
ACKme Networks.
Evaluation boards covered by this guide include:
AMW106-E03 ‘Moray’(Revision 3)
Further information about WiConnect is available in the
WiConnect Reference manual online at:
http://wiconnect.ack.me
Organization
This document is organized into the following sections:
Introduction
Feature Identification
Using WiConnect
Measuring Power Usage
Ordering Information
Revision History & Glossary

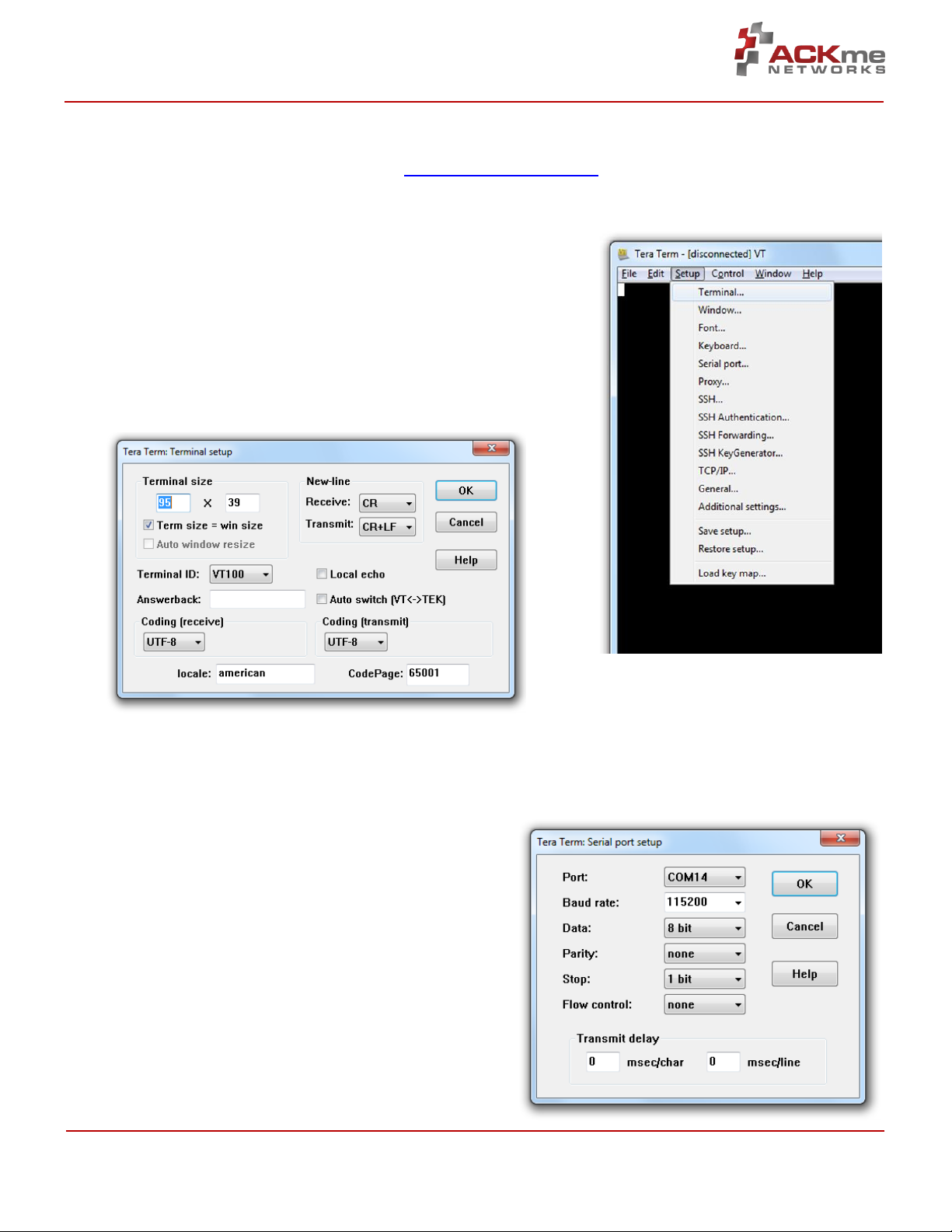

Appendix A –Setting up a Terminal Emulator
Appendix B –Evaluation Board Schematics

AMW106 Evaluation Guide
ARG-MW106E-101R •AMW106 Evaluation Guide Page | ii Page | ii
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
Contents
1 Introduction ...........................................................1
2 Feature Identification ............................................2
2.1 AMW106-E03 ‘Moray’ ....................................2
3 Using WiConnect....................................................4
3.1 Getting Help....................................................4
3.2 System Indicator LEDs ....................................5
3.3 Scanning for Wi-Fi Networks ..........................5
3.4 Joining a Wi-Fi Network..................................5
Web Setup ..............................................5
Script Setup.............................................6
Manual Setup..........................................7
Wireless Protected Setup (WPS) ............8
3.5 Filesystem .......................................................8
3.6 Saving Custom Configurations........................9
3.7 UDP / TCP / TLS Clients...................................9
3.8 HTTP / HTTPS Clients ....................................10
3.9 Using GPIOs ..................................................10
3.10 Factory Reset ................................................11
3.11 Save & Reboot ..............................................11
3.12 Command vs. Stream Mode .........................12
Command Mode ...................................12
Stream Mode ........................................13
3.13 Want more?..................................................13
4 Measuring Power Usage ......................................13
4.1 Measuring Coarse Current Consumption .....13
4.2 Measuring Sleep Current..............................13
5 Ordering Information...........................................14
6 Revision History & Glossary .................................15
6.1 Revision History ............................................15
6.2 Glossary ........................................................15
APPENDIX A –Configuring a Terminal Application
APPENDIX B –Evaluation Board Schematics

AMW106 Evaluation Guide
Introduction, Section 1
ARG-MW106E-101R •AMW106 Evaluation Guide Page | 1 Page | 1
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
1Introduction
The family of AMWx06 ‘Numbat’ modules are fully certified small form factor, low power Wi-Fi networking modules
perfectly suited to deeply embedded applications requiring medium/high data throughput in medium to high
volume.
The Sensors.com WiConnect Operating System is pre-installed on all AMWx06 modules. WiConnect provides
products with an intuitive, reliable and secure Wi-Fi networking connection featuring an embedded TCP/IP
networking stack that includes a webserver with REST & websockets, a fully customizable javascript-based web
application and SSL/TLS security.
Evaluation of WiConnect and the AMWx06 module is available with the AMW106-E03 ‘Moray’ evaluation board. The
evaluation board is shown in Figure 1 and its features are shown in Table 1.
This document describes how to use the Moray evaluation board populated with an AMW106 module, usage is
however identical whether the board is populated with an AMW006 module or an AMW106 module.
Figure 1. AMW106 Moray Evaluation Board
Table 1. AMW106 Evaluation Board Features
Feature
AMW106-E03 ‘Moray’
Product Number
AMW106-E03
Module style
Surface mount
Serial Interface
USB-UART
Power supply
from USB
User LEDs
2 + 3
User Buttons
2
Reset Button
Yes
GPIO Expansion Headers
35-pin
GPIO Isolation Header
2x15-pin
AMW106-E03 ‘Moray’
(with AMW106 surface mount module)

AMW106 Evaluation Guide
Feature Identification, Section 2
ARG-MW106E-101R •AMW106 Evaluation Guide Page | 2 Page | 2
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
2Feature Identification
2.1 AMW106-E03 ‘Moray’
The Moray evaluation board comes complete with a surface mount AMW106 ‘Numbat’ module. Each pin on the
Numbat module is connected to the expansion header. Schematics for the board are provided in Appendix B.

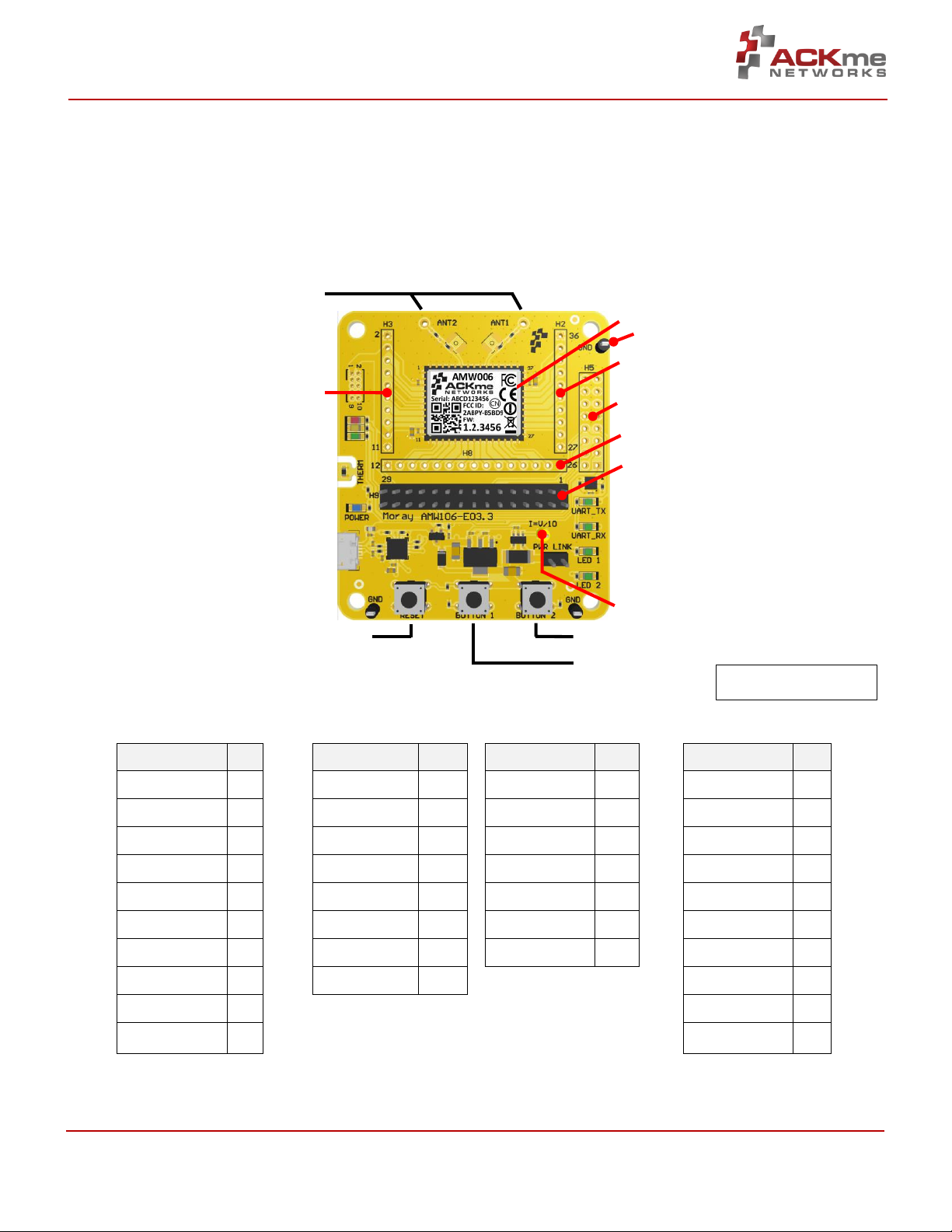

Figure 2. AMW106-E03 Features
Table 2. AMW106-E03 GPIO Expansion Header Connections
AMW106
H3
AMW106
H8
AMW106
H8
AMW106
H2
GND
2
GND
12
UART0_TX
20
GND
27
VDD_DUT
3
GPIO 5
13
GPIO 13
21
GPIO 18
28
GPIO 0
4
GPIO 6
14
GPIO 14
22
GPIO 19
29
GPIO 1
5
GPIO 7
15
GPIO 15
23
GPIO 20
30
GPIO 2
6
GPIO 8
16
GPIO 16
24
GPIO 21
31
GPIO 3
7
UART0_RTS
17
GPIO 17
25
GPIO 22
32
GPIO 4
8
UART0_CTS
18
GND
26
GPIO 23
33
OSC_32K
9
UART0_RX
19
RESET_N
34
VDD_DUT*
10
VDD_DUT*
35
GND
11
GND
36
*Note: You can safely draw up to 100mA from the VDD expansion header pins
USB UART Tx LED
Expansion Header H2
USB UART Rx LED
User LED 1*
User Button 2*
User Button 1*
Reset Button
Used to reset the AMW106 module
Power LED
Thermistor
Expansion Header H3
USB Micro Connector
Provides power to the board &
USB-Serial UART to computer
Ground Hook
User LED 2*
AMW106 Module
System Indicator LEDs*
UART Header H5
GPIO Expansion Header H8
H8
Antenna Connections
* User configurable
GPIO Isolation Header
H9
Power measurement

AMW106 Evaluation Guide
Using WiConnect, Section 3
ARG-MW106E-101R •AMW106 Evaluation Guide Page | 3 Page | 3
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
Table 3. AMW106-E03 GPIO Isolation Header H9
AMW106
H9
H9
AMW106
RESET_N
1
2
RESET_BTN
GPIO 23
3
4
LED_G
GPIO 22
5
6
BUTTON_2
GPIO 20
7
8
THERM
GPIO 18
9
10
LED_Y
GPIO 16
11
12
LED_1
GPIO 15
13
14
I2C_SDA
GPIO 14
15
16
I2C_SCL
GPIO 13
17
18
LED_2
GPIO 12
19
20
UART0_TX
GPIO 11
21
22
UART0_RX
GPIO 10
23
24
UART0_CTS
GPIO 9
25
26
UART0_RTS
GPIO 5
27
28
LED_R
GPIO 0
29
30
BUTTON_1
By removing all jumpers from the GPIO isolation header, all peripherals may be completely disconnected from
module GPIOs. This provides several benefits including the option to connect custom peripherals without
interference from on-board peripherals, and simplification of power consumption measurements described in the
Measuring Power Usage section.

AMW106 Evaluation Guide
Using WiConnect, Section 3
ARG-MW106E-101R •AMW106 Evaluation Guide Page | 4 Page | 4
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
3Using WiConnect
To get started with WiConnect, plug the AMW106 evaluation board into the USB port of the computer and open a
terminal emulator as described in Appendix A. The USB cable provides the evaluation board with power and a serial
UART connection to the computer.
With the board connected to the computer, verify the power LED is illuminated. If the power LED is NOT illuminated,
try re-plugging the USB cable, or try a different USB cable.
Note! Be sure to use a quality USB cable. Inferior cables may result in reduced or intermittent operation
of the evaluation board.
3.1 Getting Help
WiConnect provides extensive help for each command and variable. To obtain a list of help options, type the help
command.
> help
The following help options are available ...
help all -> Print a list of all Commands and Variables
help commands -> Print a list of Commands
help variables -> Print a list of Variables
help <command> -> Print help for a specific Command
help <variable> -> Print help for a specific Variable
Additional help is available online at http://wiconnect.ack.me
To obtain help for a particular command or variable, type help <command> or help <variable>.
To obtain help for the wlan_scan variable, type help wlan_scan.
> help wlan_scan
Usage : wlan_scan [-v] [<channel> [ssid]]
Shortcut: scan
Brief : Initiate a Wi-Fi scan and return results; optionally specify
a channel and AP SSID to scan for. For verbose scans, -v must be the first argument
Computer with Terminal Emulator
Moray Evaluation Board
USB Serial

AMW106 Evaluation Guide
Using WiConnect, Section 3
ARG-MW106E-101R •AMW106 Evaluation Guide Page | 5 Page | 5
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
3.2 System Indicator LEDs
The Moray evaluation board comes with three system indicator LEDs and two user LEDs. The LED functions are
configurable, using the WiConnect peripheral commands and variables. See http://wiconnect.ack.me for more
details., in particular the variables system.indicator.gpio and system.indicator.state.
By default the system indicator LEDs are configured as follows:
LED
Function
Behavior
Red
Soft AP Indicator
Off
Soft AP off
Fast blink
Soft AP error
Medium blink
Soft AP active
Slow blink
Client connected
Yellow
Network Indicator
Fast blink
No IP address
Medium blink
DHCP in progress
Slow blink
DHCP successful, IP address obtained
Green
WLAN indicator
Off
Wi-Fi off
Fast blink
Error
Medium blink
Connecting to AP
Slow blink
Joined to AP
Blink rates are as follows: Fast blink: 4Hz, Medium blink: 1Hz, Slow blink: 0.5 Hz
3.3 Scanning for Wi-Fi Networks
To scan for Wi-Fi networks in range, use the wlan_scan command. Each AP in range is listed on a separate line.
> wlan_scan -v
!3 networks found
! # Ch RSSI MAC BSSID Rate Security Mode Len Network (SSID)
# 0 06 -27 84:1B:5E:29:9D:F7 450.0 WPA2-Mixed Inf 17 YOUR_NETWORK_NAME
# 1 11 -73 2C:B0:5D:31:6F:6A 300.0 WPA2-AES Inf 6 button
# 2 11 -73 EC:1A:59:36:5B:6C 144.4 WPA2-Mixed Inf 5 ACKme
3.4 Joining a Wi-Fi Network
Several methods are available to configure and join the AMW106 module to a Wi-Fi network.
Web Setup
WiConnect provides the option to use a web browser running on a network client (such as a smartphone, tablet or
computer) to select the remote Wi-Fi network the AMW106 module should join, and to enter a password for the
remote network.
When web setup is used, it is helpful to think of the network client as the keyboard and display for the module as
shown in Figure 3.

AMW106 Evaluation Guide
Using WiConnect, Section 3
ARG-MW106E-101R •AMW106 Evaluation Guide Page | 6 Page | 6
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
Figure 3. Web setup using a network client
To start web setup mode, enter the command setup web. WiConnect starts the local network and web server as
indicated by the final message: In progress.
> setup web
[Disassociated]
IPv4 address: 10.10.10.1
Web setup started with the SSID: WiConnect-F1A
In progress
Open the Wi-Fi settings on your smartphone, tablet or computer and join the network called WiConnect-###
(where ### are the last 3 digits of the Wi-Fi module MAC address). The password for the network is simply:
password. The local network name and password, and the web address may be customised to suit your needs, see
the online WiConnect Reference Manual for further information.
After joining the local network, open a web browser on the network client and go to setup.com. The WiConnect web
page appears (see Figure 3), and a scan begins for Wi-Fi access points in range. Select the remote network you wish
to join, enter the network password then select Save & Exit and follow the prompts.
Once the settings are successfully saved, WiConnect prints Web Setup Mode exited to the terminal. Check that
the settings were successfully saved using get wlan.ssid and get wlan.passkey.
Web Setup Mode exited
> get wlan.ssid
YOUR_NETWORK_NAME
> get wlan.passkey
YOUR_NETWORK_PASSWORD
Script Setup
If you prefer instead to enter configuration details for the Wi-Fi network, WiConnect provides a default setup script
to step you through the process. The setup script is provided as a file called default_setup.script on the
WiConnect file system. The setup script may be customised as required.
> setup cmd
> Enter Wi-Fi network name:
set wlan.ssid YOUR_NETWORK_NAME
Set OK
Remote Network
Name: YOUR_NETWORK_NAME
Local Network
Name: WiConnect-###
Password: password

AMW106 Evaluation Guide
Using WiConnect, Section 3
ARG-MW106E-101R •AMW106 Evaluation Guide Page | 7 Page | 7
©2014-2015 ACKme Networks http://ack.me September 1, 2015 September 1, 2015
> Enter Wi-Fi network password:
set wlan.passkey YOUR_NETWORK_PASSWORD
Set OK
>
set wlan.auto_join.enabled true
Set OK
> Saving settings
save
Saved
Success
>
network_up
[2014-05-17 | 11:48:31: Associating to YOUR_NETWORK_NAME]
In progress
> Security type from probe: WPA2-Mixed
Obtaining IPv4 address via DHCP
IPv4 address: 192.168.0.31
[2014-05-17 | 11:48:41: Associated]
> Exiting Cmd Setup Mode
Manual Setup
It is straightforward to manually enter the name and password for the network using the wlan.ssid and
wlan.passkey variables too. Be sure to save afterwards, or the values will be lost when the module reboots. Any
subsequent command requiring network access, such as an ICMP (Internet Control Message Protocol) ping,
automatically results in the module attempting to join the network.
> set wlan.ssid YOUR_NETWORK_NAME
Set OK
> set wlan.passkey YOUR_NETWORK_PASSWORD
Set OK
> save
Saved
Success
> ping -g
[Associating to YOUR_NETWORK_NAME]
Security type from probe: WPA2-Mixed
Obtaining IPv4 address via DHCP
IPv4 address: 192.168.0.31
[Associated]
Ping reply in 25ms
The network up –scommand provides a shortcut to the process, by scanning for wireless Access Points, offering a
choice of networks to join and automatically saving the ssid and passkey:
> network_up -s
Scanning for networks...
! 3 networks found
! # Ch RSSI MAC (BSSID) Network (SSID)
# 0 1 -40 4C:55:CC:10:2E:50 ABC
# 1 1 -32 9C:D6:43:28:50:A0 myAP
# 2 6 -77 30:85:A9:E7:9C:B0 DEF
Type the number # that matches your Network: 1
Type the password for your Network : secretpassword
