Acoustic Research AP001 Technical document

RIGHT LEFT RED GREEN BLUE
VIDEO
S-VIDEO
DVI
INPUTS OUTPUTS
OUTPUTS
SAT
ANT IN
HDTV ANT
SAT
HDMI
COMPONENT
VIDEO
IEEE1394
OPTICAL
DIGITAL
COAX
HDTV TUNER | CABLE BOX | SATELLITE RECEIVER
RIGHT LEFT RED GREEN BLUE
VIDEO
S-VIDEO
HDMI
IEEE1394
OPTICAL
DIGITAL
COAX
DVD PLAYER
COMPONENT
VIDEO
INPUTS
RIGHT LEFT
RED GREEN BLUE
VIDEO
S-VIDEO
HDMI
IEEE1394
HDTV MONITOR
COMPONENT
VIDEO
INPUTS OUTPUTS
RIGHT LEFT
DVD
VCR
TV SAT
AUX
DIGITAL
COAX
DIGITAL AV RECIEVER
VIDEO S-VIDEO Y PB Pr IEEE1394 HDMIOPTICAL VIDEO
S-VIDEO
RED GREEN BLUE
HDMI
IEEE1394
DVI
COMPONENT
VIDEO
COMPONENT
VIDEO
BEST CONNECTIONS
HDMI, FIREWIRE
DVI CABLE
BETTER CONNECTIONS
COMPONENT VIDEO
DIGITAL COAX AUDIO CABLE
GOOD CONNECTIONS
STEREO AUDIO CABLE
DIGITAL OPTICAL AUDIO CABLE
(3)
(3)
(3,6)
(1,2)
(6)
(6)
(3)
(5)
(5)
RIGHT LEFT VIDEO
INPUT
TV INPUT
S-VIDEO
S-VIDEO
VIDEO
JACK
CAMCORDER
COMPONENT VIDEO
Carries video signal over three individual
paths for best picture quality.
AP090 3 ft. (0.9 m)
AP091 6 ft. (1.8 m)
AP092 12 ft. (3.6 m)
A/V RECEIVER • HDTV • DVD
HDTV CABLE BOX
SATELLITE RECEIVER
BETTER
With the introduction of sophisticated components
and digital signal processing, there are multitudes of
connection options available. Each option provides you with
the opportunity to experience amazing video and audio
performance like never before. It’s really about what kind
of cable matches your component and hook-up scenario.
The Best options provide both a digital video and digital
audio signal through a single cable. Better connection
options require independent cables to provide a digital
video signal or an audio signal. And good connection
options offer you the best of an analog signal delivery.
HDMI
Carries digital audio and video signals for the
best signal integrity and performance.
AP085 6 ft. (1.8 m)
AP086 12 ft. (3.6 m)
A/V RECEIVER • HDTV • HDTV TUNER
HDTV CABLE BOX • HD DVD PLAYER
SATELLITE RECEIVER
DVI adapter available to convert inputs/
outputs. See specialty solutions.
BEST
STEREO AUDIO
Carries stereo audio signal for
best sound quality.
AP030 3 ft. (0.9 m)
AP031 6 ft. (1.8 m)
AP032 12 ft. (3.6 m)
A/V RECEIVER • HDTV
DVD • VCR
HDTV CABLE BOX
SATELLITE RECEIVER
GOOD
Footnotes
(1) DVI and Component Video cables carry video signal only. You will need a separate audio connection such as Digital Coax, Digital Optical, 5.1 Digital
Audio when available) or Analog Stereo Audio (left and right) to complete your hookup.
(2) Component Video is the best analog video connection available. The video signal is carried on three individual paths to help ensure integrity of the
signal for best picture reproduction. Use this cable when the digital HDMI or DVI connections are not available.
(3) A limited number of A/V receivers includes HDMI inputs and outputs. If your receiver does not have this connection, use Component Video cable to
carry video signal from the video source, such as a DVD player or Cable/Satellite Receiver, to your A/V receiver. You will also need a separate audio
connection such as Digital Coax or Digital Optical. If your TV supports the HDMI connection, you can run HDMI cable straight to your TV. This will
however prevent you from being able to use the A/V Receiver to switch between components.
(4) The Analog Stereo Audio (left and right) does not carry digital surround sound. You must use either a Digital Coax or Digital Optical audio cable from
your audio source (a DVD player or a Cable/Satellite Receiver for example) in order to be able to transfer digital surround sound audio signals to your
A/V Receiver.
(5) If your components support IEEE 1394 FireWire®connections, you can use this connection instead of HDMI. Both HDMI and FireWire®carry digital
audio and video data, and you will not need a separate audio connection.
(6) In case when your HDTV has DVI inputs (not HDMI) and your components have HDMI outputs (not DVI), you can still utilize your HDMI outputs on your
components and connect to DVI inputs on your HDTV via HDMI-to-DVI Adapter. Note, DVI carries only the video signal, therefore if you want sound to
come out directly from your HDTV, you will need to run a separate analog stereo audio cable from your components to your HDTV.
DIGITAL OPTICAL AUDIO
Carries digital audio signal as light.
AP080 3 ft. (0.9 m)
AP081 6 ft. (1.8 m)
AP082 12 ft. (3.6 m)
A/V RECEIVER • HDTV • DVD
HDTV CABLE BOX
SATELLITE RECEIVER • CD
DIGITAL COAX AUDIO
Carries digital audio signal through oxygen-
free copper center connector with two layers
of shielding for improved performance.
AP070 3 ft. (0.9 m)
AP071 6 ft. (1.8 m)
AP072 12 ft. (3.6 m)
A/V RECEIVER • HDTV • DVD
HDTV CABLE BOX
SATELLITE RECEIVER • CD
BESTBESTBETTER BEST
RIGHT LEFT VIDEO
INPUT DVI
HDMI
HDTV TUNER | CABLE BOX | SATELLITE RECEIVER OUTPUT
HDTV INPUT
RIGHT LEFT VIDEO
RIGHT LEFT VIDEO
INPUT
TV INPUT
S-VIDEO
AUDIO
VIDEO
CAMCORDER
HDMI TO DVI ADAPTER
Converts HDMI connector to be used with DVI inputs/outputs.
AP088
IEEE1394 FIREWIRE®
CAMCORDER CABLE
4 PIN TO 6 PIN CONNECTION
For hooking up a digital camcorder to a TV or a computer.
AP406 6 ft. (1.8 m)
AUDIO/VIDEO
VIDEO
VIDEO
AUDIO
AUDIO
AUDIO
You’ve invested wisely in today’s digital high definition video components and multi-
channel digital audio components. Get the most out of your investment with a hook-up
solution tailored to your entertainment and performance expectations.
1. Identify which components you want to connect and what kinds of inputs and outputs each
component offers.
2. Determine the level of connection you prefer and select the cables you need from the illustration below.
3. Install the cables.
4. Remember, you need to have both an audio and a video signal running from each component.
PERFORMANCE SERIES
DIGITAL HOME THEATER
HOOK-UP GUIDE
S-VIDEO CAMCORDER CABLE
MINI A/V PLUG TO RCA AUDIO AND S-VIDEO
For hooking up a camcorder or a portable DVD player to a TV or A/V receiver.
AP029 6 ft. (1.8 m)
IEEE1394 FIREWIRE®
Provides high-speed digital audio and video
signals and data transfer.
4 pin to 4 pin AP403 6 ft. (1.8m)
AP404 15 ft. (4.5m)
6 pin to 6 pin AP409 6 ft. (1.8m)
AP410 15 ft. (4.5m)
4 pin to 6 pin AP406 6 ft. (1.8m)
A/V RECEIVER • HDTV
HDTV TUNER • HD DVD PLAYER
HDTV CABLE BOX
SATELLITE RECEIVER
SPECIALTY
SPECIALTY
SPECIALTY
SPECIALTY
AUDIO/VIDEO
SPECIALTY 5.1 DIGITAL AUDIO
CABLE
Carries six surround sound audio
channels (front left, front right,
rear left, rear right, center and a
subwoofer) on 6 individual cables
for best signal transfer and audio
reproduction.
Allows for separate amplification of
individual channels.
AP036 6 ft. (1.8 m)
IDEAL FOR HOOKING UP A
SACD OR DVDA PLAYER TO
AN A/V RECEIVER.
DVI
Carries digital video signal. Supports high-
definition video formats (HDTV) including
720P and 1080I.
AP097 6 ft. (1.8 m)
AP098 12 ft. (3.6 m)
A/V RECEIVER • HDTV
HDTV TUNER • HD DVD PLAYER
HDTV CABLE BOX
SATELLITE RECEIVER
COMPOSITE VIDEO CAMCORDER CABLE
MINI A/V PLUG TO RCA AUDIO AND VIDEO
For hooking up a camcorder or a portable DVD player to a TV,
an A/V receiver or a VCR.
AP026 6 ft. (1.8 m)
KEY
Select the level of connection(s) you prefer (best, better, good) to
create a video and audio connection between each component.
This hook-up guide represents virtually all possible audio and video
connections, utilizing different performance cables. You will need
one audio and video connection between components. Choose your
connections based on desired performance of your home theater.
See other side for surround sound speaker connections.

ANTENNA IN TV OUTSATELLITE IN
RIGHT LEFT VIDEO
OUTPUT
RIGHT LEFT
RIGHT
RIGHT LEFT
FRONT SPEAKERS
RIGHT LEFT
REAR SPEAKERS
CENTER LEFT OPTICAL D-COAX
AUDIO/VIDEO INPUT
TV OUTPUT
SPEAKERS
SUB
SUB
IN
RED GREEN BLUE
COMPONENT VIDEO
RIGHT LEFT VIDEO
INPUT
INOUT
ANTENNA IN TV OUT
RIGHT LEFT
INPUT
RIGHT LEFT VIDEOVIDEO
OUTPUT
RED GREEN BLUE
COMPONENT VIDEO
RIGHT LEFT VIDEO S-VIDEO OPTICAL D-COAX
OUTPUT
RIGHT LEFT OPTICAL D-COAX
OUTPUT
VCR
DVD
CD
AUX
VIDEO S-VIDEO VIDEO S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO S-VIDEO
COMPONENT
VIDEO
COMPONENT
VIDEO
BEST CONNECTIONS
COMPONENT VIDEO CABLE
DIGITAL OPTICAL AUDIO CABLE
BETTER CONNECTIONS
S-VIDEO CABLE
DIGITAL COAX AUDIO CABLE
GOOD CONNECTIONS
COAXIAL CABLE (RG6 Quad)
COMPOSITE VIDEO
STEREO AUDIO CABLE
SPECIALTY
SUBWOOFER CABLE
SPEAKER WIRE
S-VIDEO
Carries video signal on two
separate paths for sharper
picture.
AP020 3 ft. (0.9 m)
AP021 6 ft. (1.8 m)
AP022 12 ft. (3.6 m)
A/V RECEIVER • TV • DVD
VCR • CABLE BOX
SATELLITE RECEIVER
CAMCORDER
STEREO AUDIO/
COMPOSITE VIDEO
Combo package includes
both a separate video and
audio connection for a full
solution in each package.
AP060 3 ft. (0.9 m)
AP061 6 ft. (1.8 m)
AP062 12 ft. (3.6 m)
A/V RECEIVER • TV
DVD • VCR • MD
SATELLITE RECEIVER
CAMCORDER

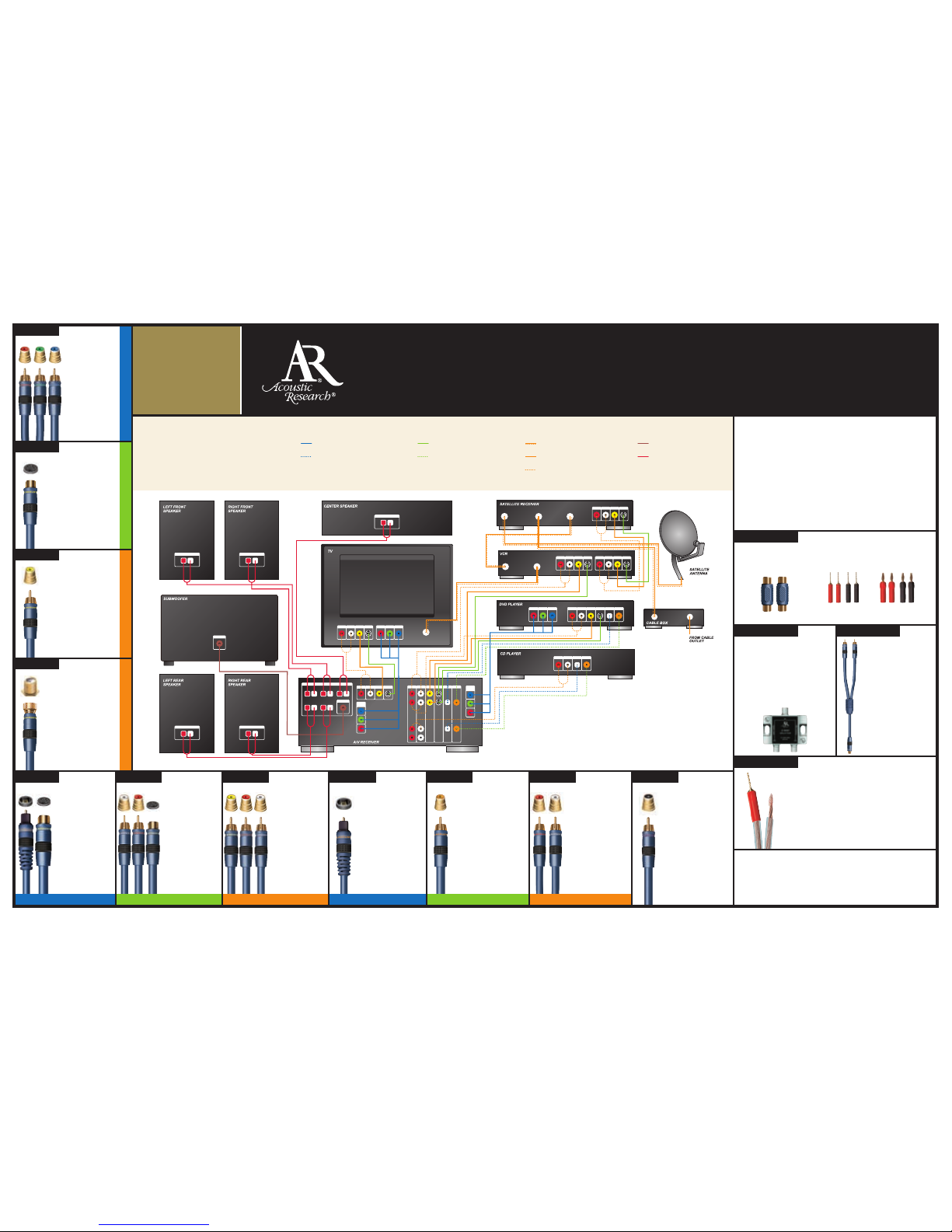

PERFORMANCE SERIES
HOME THEATER
HOOK-UP GUIDE
LIMITED LIFETIME WARRANTY Audiovox Electronics Corporation (the “Company”) warrants to
you the original retail purchaser of this product that should it, under normal use and conditions, be proven
defective in material or workmanship during its lifetime while you own it, such defect(s) will be repaired or
replaced (at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement
within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated
bill of sale), specification of defect(s), transportation prepaid, to the Company at the address shown below. Do
not return this product to the Retailer.
This Warranty does not cover product purchased, serviced or used outside the United States or Canada. This
Warranty is not transferable and does not extend to costs incurred for installation, removal or reinstallation
of the product. This Warranty does not apply if in the Company’s opinion, the product has been damaged
through alteration, improper installation, mishandling, misuse, neglect, or accident. THE EXTENT OF THE
COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT. This Warranty is in lieu of all other express warranties or liabilities. ANY
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE SHALL BE LIMITED TO DURATION OF THIS WARRANTY. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. No person or
representative is authorized to assume for the Company any liability other than expressed herein in connection
with the sale of this product. Some states/provinces do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damage so the above limitations or exclusions
may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which
vary from state/province to state/province.
U.S.A.: Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit #3 Door 16,
Mississauga Ontario, L5T 3A5.
DIGITAL OPTICAL
AUDIO TOSLINK™-
TO-TOSLINK™
Carries digital audio signal as
light for the highest sound
quality. Optical corrected
curved finish to improve light
transfer, with wire restraint and
machined, gold-plated tips.
AP080 3 ft. (0.9 m)
AP081 6 ft. (1.8 m)
AP082 12 ft. (3.6 m)
A/V RECEIVER • DVD
CD • SATELLITE RECEIVER
CONNECTORS
VIDEO SPLITTERS
High quality solid-state circuit board
design with power pass provides video
signals to more than one TV.
AP230 2 way Splitter – allows
hookup of 1 additional TV
AP231 3 way Splitter – allows
hookup of 2 additional TVs
AP232 4 way Splitter – allows
of 3 additional TVs
COAXIAL
Carries both audio and video
signals for the easiest A/V
connection.
AP010 3 ft. (0.9 m)
AP011 6 ft. (1.8 m)
AP012 12 ft. (3.6 m)
AP013W 25 ft. (7.6 m)
AP014W 50 ft. (15.2 m)
TV • VCR • CABLE BOX
SATELLITE RECEIVER
STEREO AUDIO
Carries audio signal only for
best sound quality.
AP030 3 ft. (0.9 m)
AP031 6 ft. (1.8 m)
AP032 12 ft. (3.6 m)
A/V RECEIVER • TV
VCR • CD • TAPE
SATELLITE RECEIVER
CAMCORDER
DIGITAL COAX
AUDIO
Carries digital audio signal
through oxygen-free copper
center conductor with two
layers of shielding for improved
performance.
AP070 3 ft. (0.9 m)
AP071 6 ft. (1.8 m)
AP072 12 ft. (3.6 m)
A/V RECEIVER • DVD
CD • SATELLITE
STEREO AUDIO/
S-VIDEO
Combo package includes
both a separate video
and audio connection
for a full solution in each
package.
AP064 6 ft. (1.8 m)
AP065 12 ft. (3.6 m)
A/V RECEIVER • TV
DVD • VCR
SATELLITE RECEIVER
CAMCORDER
AP307
Set screw banana pins
2 pairs
AP306
Speaker Pins
2 pairs
Connects two cables together.
Provides clean termination ends for speaker cable
connections. Accommodates all cable gauges and
types in the AR Performance Series.
BESTBETTERGOOD GOOD
GOODBETTERBEST BEST BETTER GOOD
VIDEO
VIDEO
VIDEO
VIDEO
COMBO COMBO AUDIO AUDIO AUDIO AUDIO
SPECIALTY
SPECIALTY
SPECIALTY
SPECIALTY
KEY
Select the level of connection(s) you prefer (best, better, good) to
create a video and audio connection between each component.
This hook-up guide represents virtually all possible audio and video
connections, utilizing different performance cables. You will need
one audio and video connection between components. Choose your
connections based on desired performance of your home theater.
COMBO
Relaxed Installation… This hook-up represents virtually all possible audio and video connections,
utilizing different performance cables. You will only need one audio and one video connection
between components. Choose your connections based on desired performance.
1. Identify which components you would like to hook up.
2. Determine which cables you need from the illustration and cable descriptions.
3. Install cables based on each cable’s instructions.
AUDIO RCA “Y”
ADAPTER/CABLE
Audio RCA “Y” adapter cable
splits or combines audio signals.
AP040 1 Female to 2 Male
AP041 1 Male to 2 Female
AP042 2 Male to 1 Mini
3 ft. (0.9 m)
A/V RECEIVER • TV
VCR • SUBWOOFER
CAMCORDER
OXYGEN-FREE COPPER SPEAKER CABLE
For speaker connections in which highest performance is desired.
Also excellent for longer than average hookups.
AP1630 30 ft. (9.1 m)
AP1650 50 ft. (15.2 m)
AP16100 100 ft. (30.5 m)
AP1650W 50 ft. (15.2 m)
AP16100W 100 ft. (30.5 m)
Carefully strip insulation to expose wire. Check polarity for proper
phasing before connecting. AP1630 comes with pins attached.
Specifications and features subject to change without notice.
Product may vary from that shown. Performance is device and signal source dependent.
Consult your component instruction manual for more information.
Trademark(s) ® Registered.
©2007 Audiovox Accessories Corporation
111 Congressional Blvd., Suite 350
Carmel IN 46032 USA
www.araccessories.com
ARPS HOOKUP GUIDE US REVB 10/2007
COMPOSITE VIDEO
Carries video signal only for
better picture quality.
AP000 3ft. (0.9 m)
AP001 6ft. (1.8 m)
AP002 12ft. (3.6 m)
A/V RECEIVER • TV • DVD
VCR • CABLE BOX
SATELLITE RECEIVER
CAMCORDER
COMPONENT
VIDEO
Carries video signal over
three discreet paths for
best picture quality.
AP090 3 ft. (0.9 m)
AP091 6 ft. (1.8 m)
AP092 12 ft. (3.6 m)
A/V RECEIVER • TV
DVD • CABLE BOX
SATELLITE RECEIVER
DIGITAL OPTICAL
AUDIO (TOSLINK™)/
S-VIDEO
Combo package includes
both a separate video and
audio connection for a full
solution in each package.
AP067 6 ft. (1.8 m)
AP068 12 ft. (3.6 m)
A/V RECEIVER • DVD
SATELLITE RECEIVER
SUBWOOFER
Carries audio signal to the
subwoofer with minimal loss.
AP052 15 ft. (4.6 m)
AP053 25 ft. (7.6 m)
A/V RECEIVER •
SUBWOOFER
AP316
RCA type female to
female couplers
