ACPro AUD36W/A-D User manual

Owner's Manual
Original Instructions
Air Conditioners
DC Inverter X-Series for R410A Unitary
Split Air Conditioner
Models:
Outdoor Unit
$8':$'8
$8':$'8
Thank you for choosing AC Pro air conditioners. Please read this
Owner's Manual carefully before operation and retain it for future
reference.

To Users
Thank you for selecting $& 352’s product. Please read this instruction
manual carefully before installing and using the product.
(1) This appliance can be used by children aged from 8years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they havebeen given supervision or
instruction concerning use of the appliance ina safe way and understand
the hazards involved. Children shall notplay with the appliance. Cleaning
and user maintenance shall notbe made by children without supervision.
(2) In order to ensure reliability of product, the product may consume some
power under stand-by status for maintaining normal communication of
system and preheating refrigerant and lubricant. Ifthe product isnot to be
used for long, cut off the power supply; please energize and preheat the unit
in advance before reusing it.
(3) Please properly select the model according to actual using environment;
otherwise it may impact the using convenience.
(4) This product has gone through strict inspection and operational test before
leaving the factory.In order to avoid damagedue to improper disassembly
and inspection, which may impact the normal operation of unit, please do
not disassemble the unit by yourself. You can contact AC Pro
technical support ifnecessary.
(5) When the product isfaulted and cannot be operated, please contact AC
Pro technical support as soon as possible by providing the following
information.
1) Contents of nameplate of product (model, cooling/heating capacity,
product No, ex-factory date).
2) Malfunction status (specify the situations before and after the error
occurs).
(6) All the illustrations andinformation in the instruction manual are only for
reference. In order to make the product better, we will continuously conduct
improvement and innovation. We have the right to make necessary revision

to the product from time to time due to the reason of sales or production,
and reserve the right to revise the contents without further notice.
(7) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
(8) $&352assumes no responsibilityforSHUVRQDOLQMXU\
propertylossorequipment damagecaused by improper
installation and commissioning, unnecessary maintenance, or not following
relevant national rules and regulations, industrial standards and
requirements in this instruction manual.
(9) The final right to interpret for this instruction manual belongs to $&352
Exception Clauses
Manufacturer will bear no responsibilities when personal injury or property loss
is caused by the following reasons:
(1) Damage the product due to improper use or misuse of the product.
(2) Alter, change, maintain or use the product with other equipment without
abiding by the instruction manual of manufacturer.
(3) After verification, the defect of product is directly caused by corrosive gas.
(4) After verification, defects are due to improper operation during
transportation of product.
(5) Operate, repair, maintain the unit without abiding by instruction manual or
related regulations.
(6) After verification, the problem or dispute is caused by the quality
specification or performance of parts and components that produced by
other manufacturers.
(7) The damage is caused by natural calamities, bad using environment or
force majeure.

Contents
1 Safety Precautions ............................................................ 1
2 Product Introduction ......................................................... 5
2.1 Operating Range....................................................................5
2.2 Standard Accessories.............................................................5
2.3 Optional Accessories..............................................................5
3 Installation.......................................................................... 5
3.1 Installation Preparation ..........................................................5
3.2 Unit Installation ....................................................................11
3.3 Electrical Installation ............................................................18
3.4 Check after Installation.........................................................23
3.5 Test Running ........................................................................24
4 Maintenance..................................................................... 28
4.1 Failures Not Caused by Faults ofThe AC ............................28
4.2 Error Code ...........................................................................30
4.3 Unit Maintenance .................................................................31
4.4 Notice on Maintenance ........................................................33
4.5 After-Sales Services.............................................................38
This marking indicates that this product should not be disposed with other
household wastes.To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this
product for environmental safe recycling.
3.6Functions..... ........................................................................25

DC Inverter X-Series for R410A Unitary Split Air Conditioner
1
1 Safety Precautions
This product can’t be installed at corrosive, inflammable or explosive
environment or the place with special requirements, such as kitchen. Otherwise, it
will affect the normal operation or shorten the service life of the unit, or even cause
fire hazard or serious injury. As for above special places, please adopt special air
conditioner with anti-corrosive or anti-explosion function.
Improper installation, adjustment, alteration, service, maintenance, or use can
cause explosion, fire, electrical shock, or other conditions which may cause death,
personal injury, or property damage. Consult a qualified installer, service agency, or
your distributor or branch for information or assistance. The qualified installer or
agency must use factory--authorized kits or accessories when modifying this
product. Refer to the individual instructions packaged with the kits or accessories
when installing. Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Use quenching cloth for brazing operations. Have fire extinguisher
available. Read these instructions thoroughly and follow all warnings or cautions
included in literature and attached to the unit. Consult local building codes and
National Electrical Code (NEC) for special requirements. Recognize safety
information. This is the safety--alert symbol .
When you see this symbol on the unit and in instructions or manuals, be alert to
the potential for personal injury. Understand these signal words: DANGER,
WARNING, CAUTION and NOTICE. These words are used with the safety--alert
symbol.
Indicates a hazardous situation that, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation that, if not avoided, may result
in minor or moderate injury.
Indicates important but not hazard-related information, used to
indicate risk of property damage.

DC Inverter X-Series for R410A Unitary Split Air Conditioner
2
Electrical shock hazard:
Failure to follow this warning could result in personal injury or death.
Before installing, modifying, or servicing system, main electrical disconnect
switch must be in the OFF position. There may be more than 1 disconnect switch.
Lock out and tag switch with a suitable warning label.
(1) The air conditioner should be grounded to avoid electric shock. Do not connect
the ground wire to gas pipe, water pipe, lightning arrester or telephone wire.
(2) The appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
(3) The appliance shall be stored in a room without continuously operating open
flames (for example an operating gas appliance) and ignition sources (for
example an operating electric heater).
(4)
According to federal/state/local laws and regulations, all packages and
transportation materials, including nails, metal or wooden parts, and plastic
packing material, must be treated in a safe way.
(1)
Please install according to this instruction manual. Installation must be
performed in accordance with the requirement of NEC and CEC by authorized
personnel only.
(2) Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment
authority, which authorises their competence to handle refrigerants safely in
accordance with an industry recognised assessment specification.
(3) Servicing shall only be performed as recommended by the equipment
manufacturer.
(4) The appliance shall be installed in accordance with national wiring regulations.
(5) The fixed wires connecting to the appliance must be configured with all-pole
disconnection device under voltage grade III according to wiring rules.
(6) Air conditioner should be stored with protective measures against mechanical
damage caused by accident.
(7) If the installation space for air conditioner pipe is too small, adopt a protective
measure to prevent the pipe from physical damage.

DC Inverter X-Series for R410A Unitary Split Air Conditioner
3
(8) During installation, use the specialized accessories and components, otherwise
water leakage, electric shock or fire hazard may occur.
(9) Please install the air conditioner in a secure place that can withstand the weight
of air conditioner. Insecure installation may cause the air conditioner falling
down and lead to injury.
(10) Be sure to adopt independent power circuit. If the power cord is damaged, it
must be repaired by the manufacturer, service agent or other professional
agents.
(11)
The air conditioner can be cleaned only after it is turned off and
power-disconnected, otherwise electric shock may occur.
(12) The air conditioner is not intended to be cleaned or maintained by children
without supervision.
(13) Do not alter the setting of pressure sensor or other protective devices. If the
protective devices are short-circuited or changed against rules, fire hazard or
even explosion may occur.
(14) Do not operate the air conditioner with wet hands. Do not wash or sprinkle
water on the air conditioner, otherwise malfunction or electric shock will occur.
(15) Do not dry the filter with naked flame or an air blower; otherwise the filter will be
out of shape.
(16) If the unit is to be installed in a small space, please adopt protective measures
to prevent the concentration of refrigerant from exceeding the allowable safety
limit; excessive refrigerant leakage may lead to explosion.
(17) When installing or re-installing the air conditioner, please keep the refrigerant
circuit away from substances other than the specified refrigerant, such as air.
Any presence of foreign substances will cause abnormal pressure change or
even explosion, resulting in injury.
(1) Do not put a finger or other objects into the air inlet or return air grill.
(2) Please adopt safety protection measures before touching the refrigerant pipe;
otherwise your hands may be hurt.
(3) Please arrange the drain pipe according to the instruction manual.
(4) Never stop the air conditioner by directly cutting off the power.
(5) Please select the proper copper pipe according to the requirement for pipe
thickness.

DC Inverter X-Series for R410A Unitary Split Air Conditioner
4
(6) Never install the air conditioner in the following places:
a) Places with oil smoke or volatile liquid: plastic parts may deteriorate and fall
off or even cause water leakage.
b)
Places with corrosive gas: copper pipe or the welding parts may be
corroded and cause refrigerant leakage.
(7) Adopt proper measures to protect the outdoor unit from small animals because
they may damage the electric components and cause malfunction of the air
conditioner.
(1) If wired control is to be used, it should be connected first before powering up
the unit, otherwise the wired control may not be able to use.
(2) Only use soft dry cloth or slightly wet cloth with neutral detergent to clean the
casing of the air conditioner.
(3) Before operating the unit under low temperature, connect it to power for 8
hours. If it is stopped for a short time, for example, one night, do not cut off the
power (This is to protect the compressor).

DC Inverter X-Series for R410A Unitary Split Air Conditioner
5
2 Product Introduction
2.1 Operating Range
—
Cooling
Heating
Outdoor
temperature
5°F~118.4°F -22°F ~75.2°F

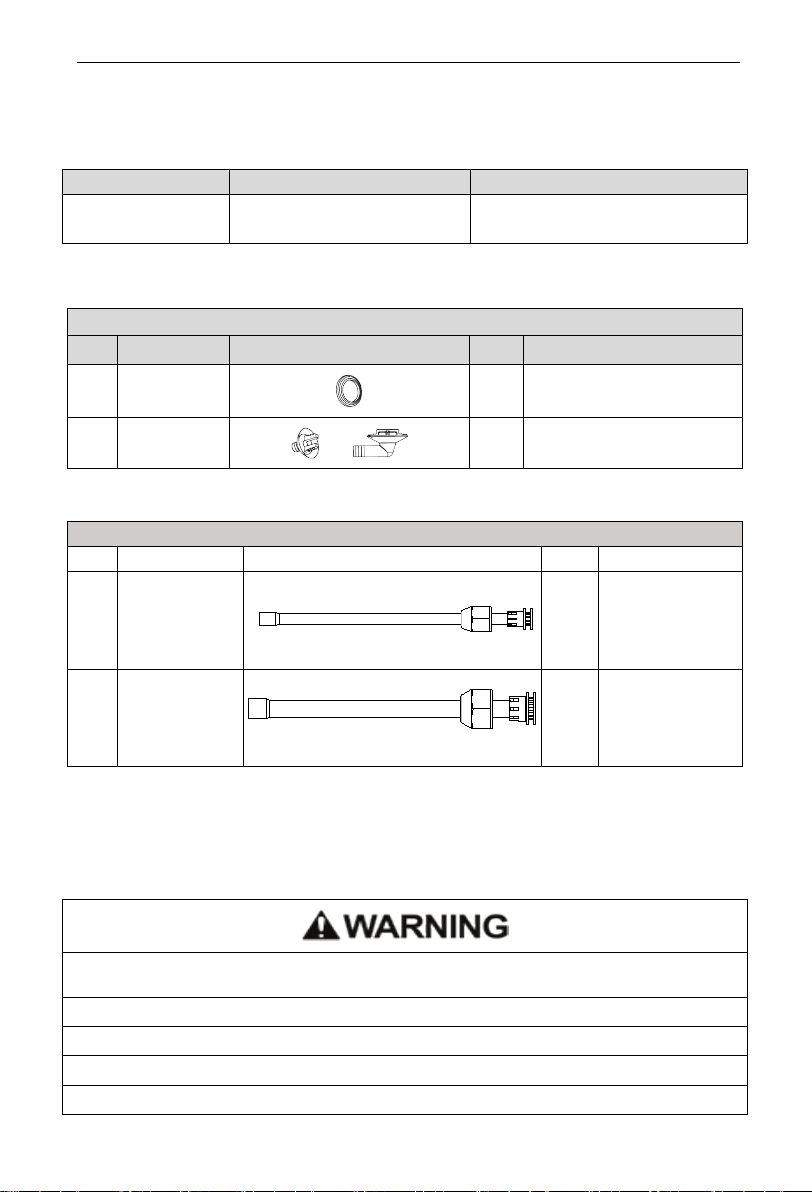

2.2 Standard Accessories
Outdoor unit accessories
No.
Name
Appearance
Q'ty
Usage
1 Drain plug 3 To plug the unused drain
hole
2 Drainage
connecter
or 1 To connect with the hard
PVC drain pipe
2.3 Optional Accessories
Outdoor unit accessories
No.
Name
Appearance
Q'ty
Usage
1 1
Copper
Pipe Connector
Liquid Line
2 1
3 Installation
3.1 Installation Preparation
3.1.1 Selection of Installation Location
①
.The unit must be installed where strong enough to withstand the weight of the
unit and fixed securely, otherwise the unit would topple or fall off.
②.Install the air conditioner at a place where the inclination is less than 5°.
③.Do not install the unit at a place with direct sunlight.
④
.Do not install where there is the danger of combustible gas leakage.
⑤.Do not install the unit at a place with leakage of inflammable gas.
3/8 CPC
3/4 CPC
Copper
Pipe Connector
Gas Line

DC Inverter X-Series for R410A Unitary Split Air Conditioner
6
Selection of installation location for outdoor unit (Select a location pursuant to
the following condition).
(1) Noise and air flow produced by the outdoor unit will not disturb the neighbors.
(2) Select a location that is safe and away from animals and plants. If not, please
add safety fences to protect the unit.
(3) Install at a place with good ventilation. Make sure the outdoor unit stays at a
well-ventilated place with no obstacles nearby that may obstruct the air inlet
and outlet.
(4) The installation location should be able to withstand the weight and vibration of
outdoor unit and allow the installation to be carried out safely.
(5) Avoid installing at a place with leakage of inflammable gas, oil smoke or
corrosive gas.
(6) Keep it away from strong wind because strong wind will affect the outdoor fan
and lead to insufficient air flow volume and thus affecting the unit’s
performance.
(7) Away from any object that may get the air conditioner generating noise.
(8) Install the outdoor unit at a place where condensate can be easily drained.

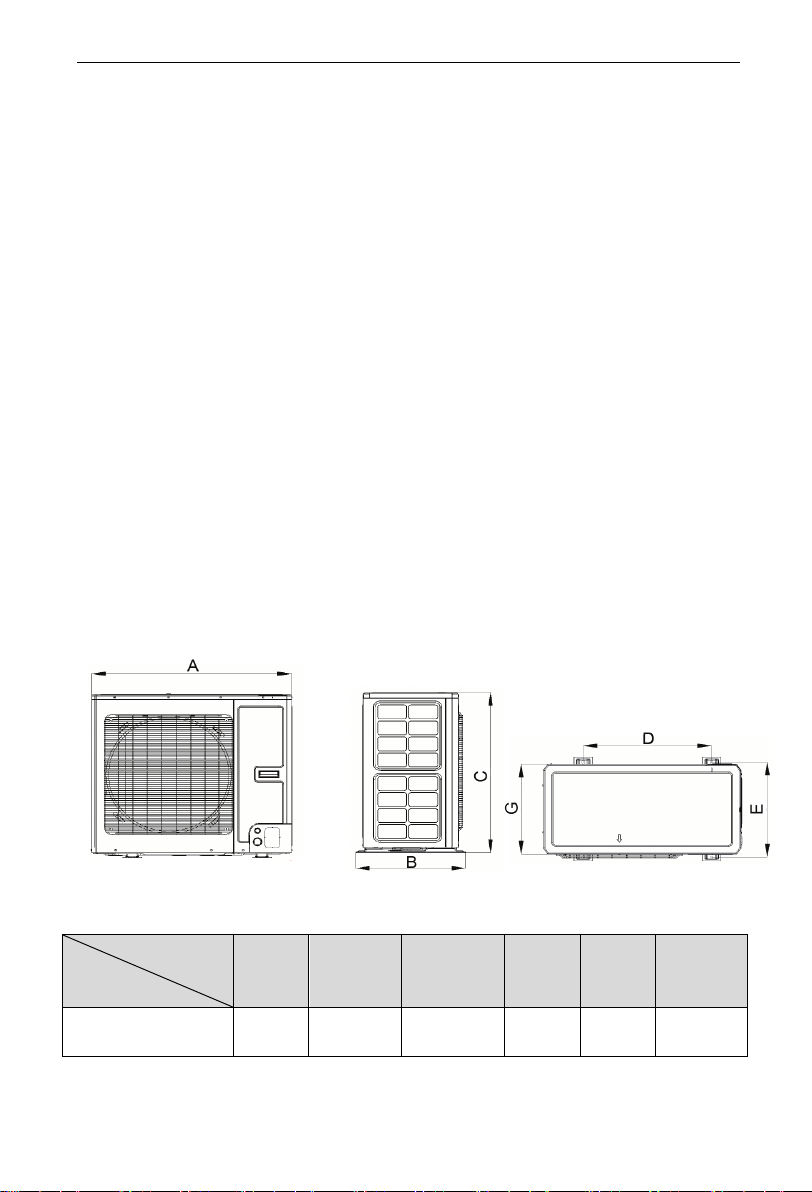

3.1.2 Unit Dimension $8':$'8.
Dimensions
Model
A B C D E G
AUD36W/A-D(U) 37 20-7/8 32-1/4 24 19-1/8 18-1/8

DC Inverter X-Series for R410A Unitary Split Air Conditioner
7
Unit: inch
AUD60W/A-D(U)
Unit: inch
Dimensions
Model
A B C D E G
AUD60W/A-D(U) 42-3/4 16-7/8 53-3/424-1/2 15-1/2 14-1/2
3.1.3 Diagram of Unit Installation Space and Location
(1) Diagram of installation space and location for outdoor unit (Notice: for best
performance of the outdoor unit, make sure its installation space conforms
to the following installation dimensions).

DC Inverter X-Series for R410A Unitary Split Air Conditioner
8

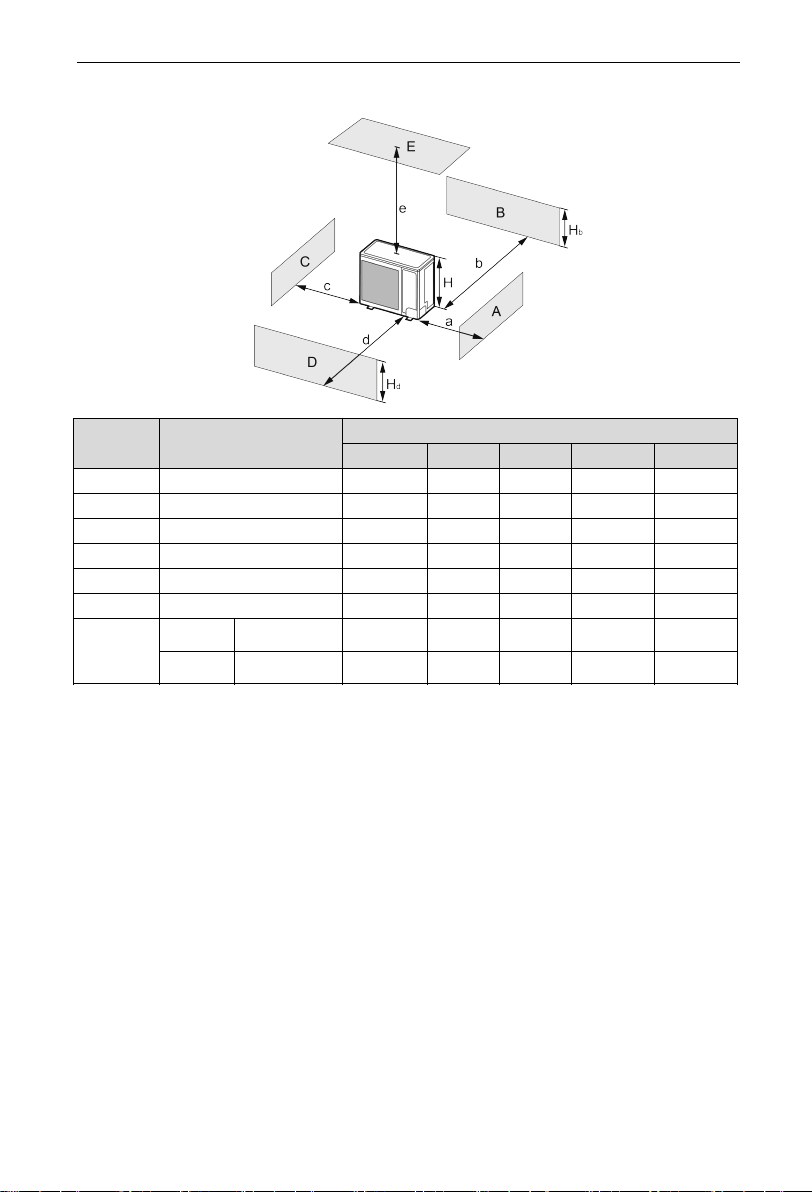

1) When one outdoor unit is to be installed.
A~E (inches)
a
b
c
d
e
B
-
≥4"
-
-
-
A,B,C,
≥12"≥4"≥4"
-
-
B,E
-
≥4"
-
-
≥40"
A,B,C,E
≥12"≥6"≥6"
-
≥40"
D
-
-
-
≥40"
-
-
-
-
-
Service Clearance >30"

DC Inverter X-Series for R410A Unitary Split Air Conditioner
9

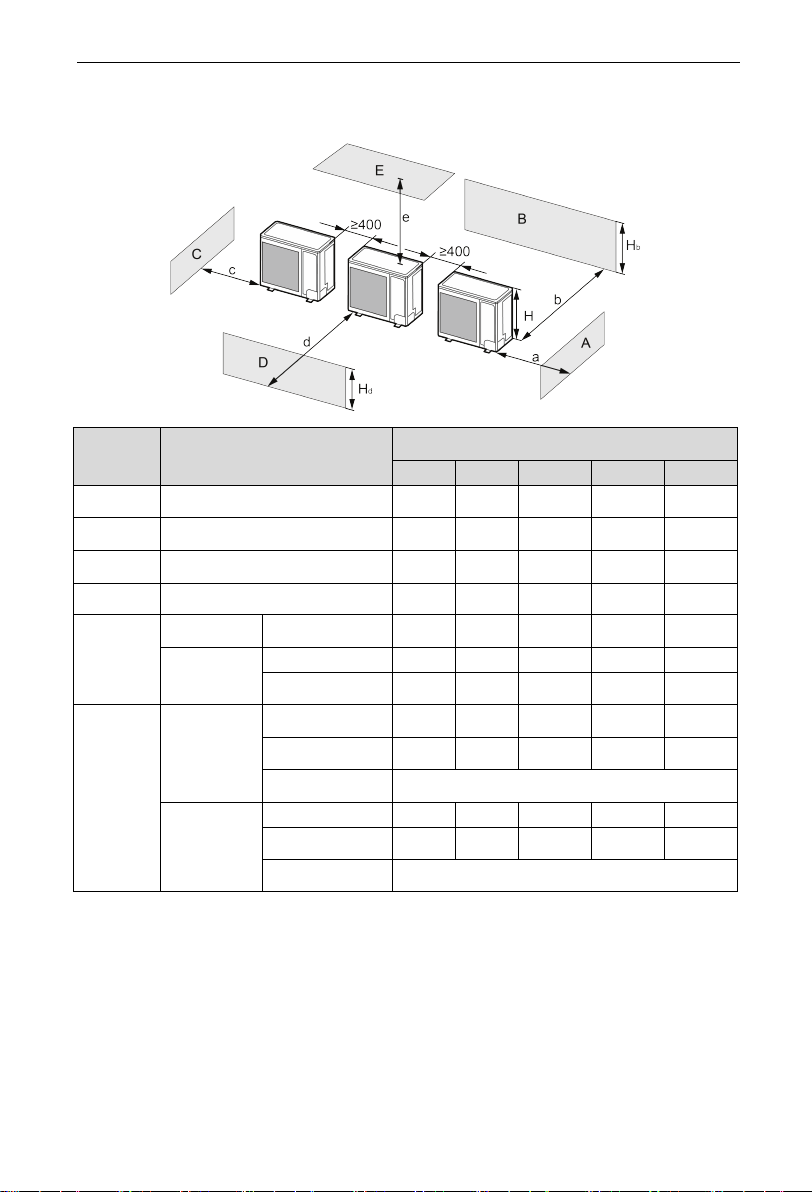

2) When two or more outdoor units are to be installed side by side.
Unit: mm (inches)
A~E HbHdH (inches)
a
b
c
d
e
A,B,C — ≥12" ≥12" ≥40" - -
A,B,C,E — ≥12" ≥12" ≥40" - ≥40"
D — - - - ≥78" -
D,E
—
-
-
-
≥78" ≥40"
B,D
Hb＜HdHd＞H - ≥12" - ≥78" -
Hb＞Hd
Hd ≤ 1/2H
-
≥12"
-
≥78"
-
1/2H＜Hd ≤ H - ≥12" - ≥78" -
B,D,E
Hb＜Hd
Hb ≤ 1/2H - ≥12" - ≥78" ≥40"
1/2H＜Hb≤H - ≥12" - ≥78" ≥40"
Hb＞H Prohibited
Hb＞Hd
Hd ≤ 1/2H
-
≥12"
-
≥98" ≥40"
1/ H＜Hd ≤ H - ≥12" - ≥98" ≥40"
Hd＞1/2H Prohibited
(16")
(16")

DC Inverter X-Series for R410A Unitary Split Air Conditioner
10

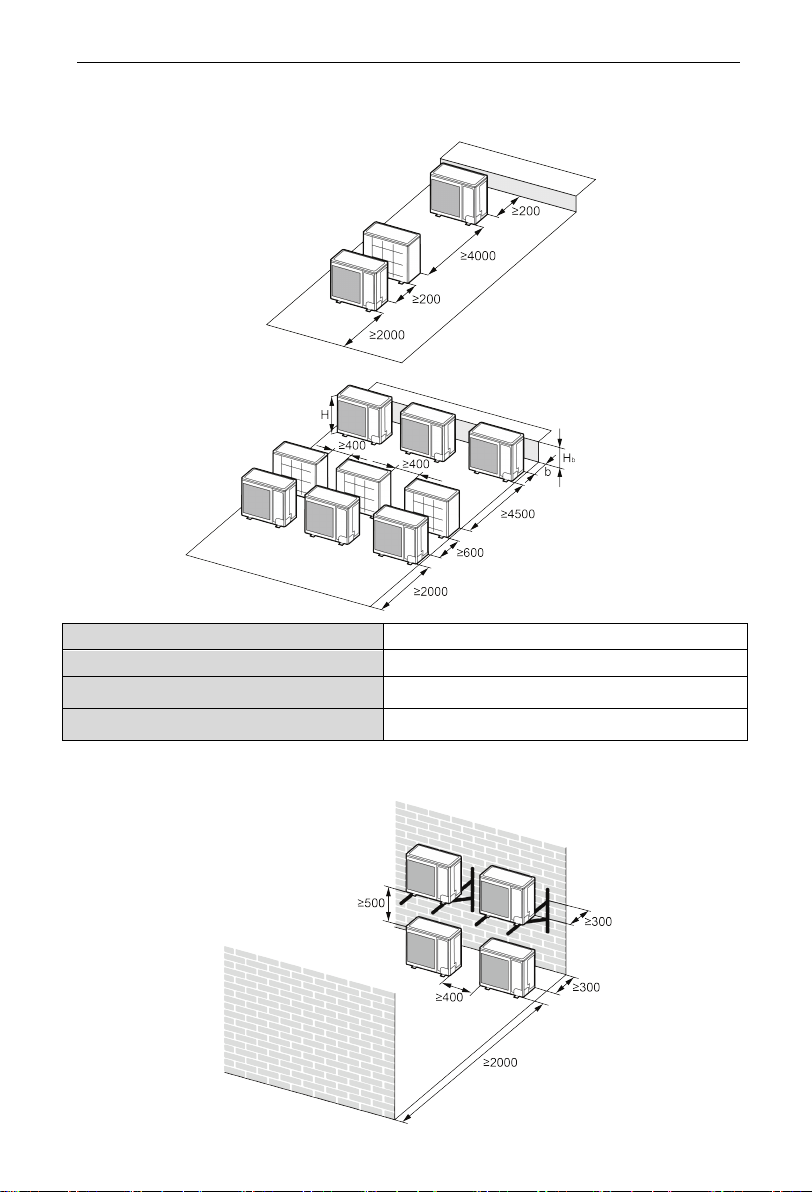

3) When outdoor units are installed in rows.
Unit: mm (inches)
Hb H
(inches)
Hb ≤ 1/2H
B ≥ 10"
1/2H＜Hb ≤ H B ≥ 12"
Hb＞H Prohibited
4) When outdoor units are installed one above another.
Unit: (inches)
(8")
(157")
(78")
(177")
(24")
(78")
(16")
(16")
(8")
(12")
(16") (12")
(20")
(78")

DC Inverter X-Series for R410A Unitary Split Air Conditioner
11
3.2 Unit Installation
3.2.1 Outdoor Unit Installation
(1) If the outdoor unit is installed on a solid ground such as concrete, use M10
screw bolts and nuts to secure the unit and make sure the unit stands erect
and level.
(2) Do not install it on top of the building.
(3) If it vibrates and causes noise, please add rubber cushion between the
outdoor unit and the installation base.
(4) When the outdoor unit is in heating or defrosting, it needs to drain water.
When installing the drain pipe, plug the accompanied drainage connector to
the drainage hole on the chassis of the outdoor unit. Then connect a drain
hose to the drainage connector (If drainage connector is used, the outdoor
unit should be at least 10cm from the installation ground. See the following
figures).
(5) Plugs and drainage connector are not recommended if there is an electrical
heater on the chassis.
3.2.2 Connection Pipe Installation
3.2.2.1 Installation Notice and Requirement on Connection Pipe

DC Inverter X-Series for R410A Unitary Split Air Conditioner
12
Installation method: Connect the connection pipes first to the unit. When
bending a connection pipe, be careful not to damage the pipe. Do not over-tighten
the screw nut, otherwise leakage will occur. Besides, the outside of connection pipe
should be added with a layer of insulating cotton to protect it from mechanical
damage during installation, maintenance and transportation.
Item
Model
Size of fitting pipe(inch)
Maximum
pipe
length
feet
Biggest drop between
indoor and outdoor
units
feet
Liquid pipe Gas pipe
AUD36W/A-D(U)
AUD60W/A-D(U) Φ3/8 Φ3/4 98.4 49.2
Connection pipe should adopt water-proof insulating material. Its wall
thickness should meet local code. The longer the connection pipe is the more
capacity loss may be experienced.

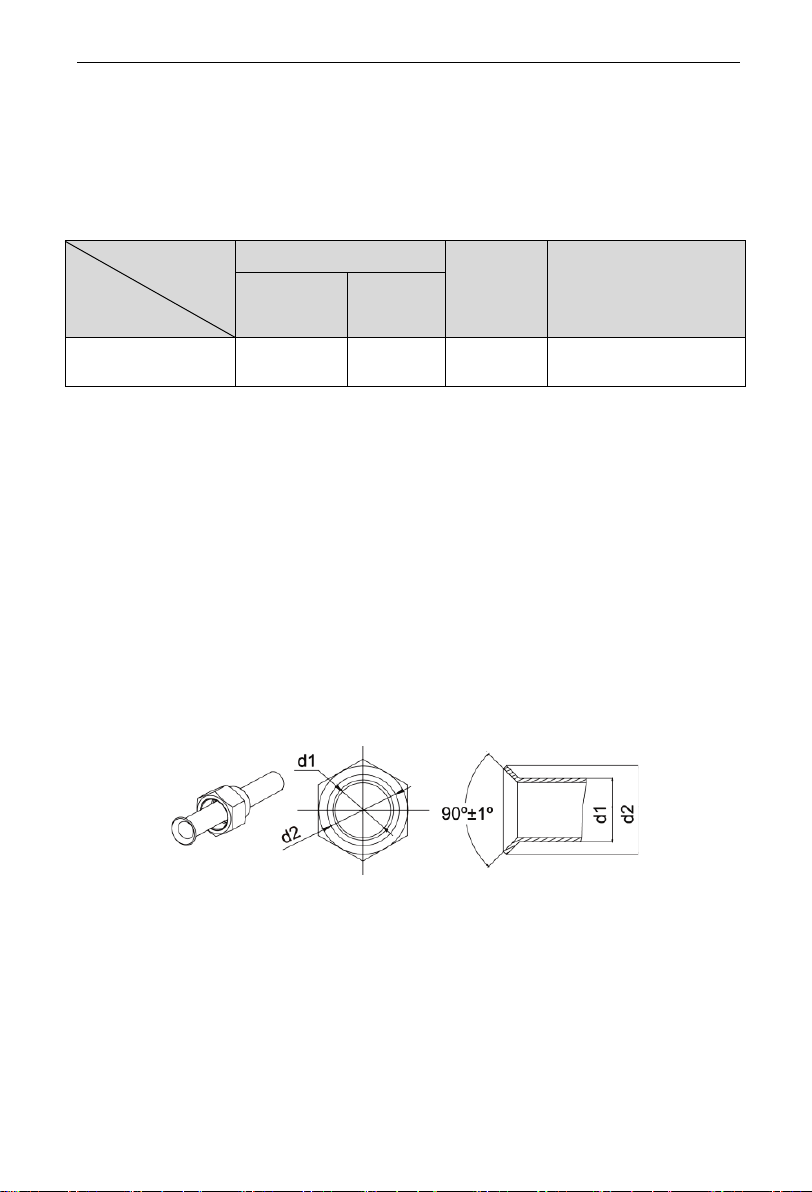

3.2.2.2 Pipe Flaring
(1) Cut the connection pipe with a pipe cutter.
(2) The mouth of connection pipe should face downward. Remove burrs with
the cut surface so that the chips do not enter the pipe.
(3) Remove the cut-off valve of outdoor unit and take out the flare nut from the
bag of indoor unit accessories. Then fit the flare nut on the pipe and use a
flaring tool to flare the mouth of connection pipe.
(4) Check whether the flaring part has cracked. (See the figure below).

DC Inverter X-Series for R410A Unitary Split Air Conditioner
13
3.2.2.3 Pipe Bending
(1) The pipes are shaped by your hands. Be careful not to collapse them.
(2) Do not bend the pipes in an angle more than 90°.
(3) If the pipe is repeatedly bent or extended, it will become hard and difficult to
be bent or extended. So do not bend or extend the pipe for more than 3
times.
(4) When bending the pipe, do not bend it
excessively, otherwise it will get
broken. As shown beside, use a sharp
cutter to cut the heat insulating pipe
and bend it after the pipe is exposed.
After bending, place the heat
insulating pipe b
ack on the pipeline
and fix it with adhesive tape.
3.2.2.4 Connection Pipe Of The Units
①
.Connect the pipe to the unit. Please follow the instructions stated in the figures
below. Use both spanner and torque wrench.
②.When connecting the tapered screw nut, first apply chilled machine oil on its
inner and outer surface and then screw it up for 3~4 circles.
③.Confirm the tightening torque by referring to the following table (If the screw
nut is over-twisted, it may be damaged and cause leakage).
④.Check whether gas leakage occurs to the connection pipe and then apply
thermal insulation, as shown below.
⑤.Wind sponge around the joint of gas pipe and heat insulation sheath of gas
collecting pipe.
⑥.Be sure to connect gas pipe after liquid pipe is connected.

DC Inverter X-Series for R410A Unitary Split Air Conditioner
14
3.2.2.4.1 Solder Connection
Screw on the flare nut of the flaring connecting pipe on the outdoor unit valve.
3.2.2.4.2 Screw Connection
Pipe diameter (inch)
Tightening torque (ft-lb)
Ф1/4
11-15
Ф3/8
20-29
Ф1/2
33-40
Ф5/8
44-47
Ф3/4
51-55
Ф7/8
59-62
3.2.2.5 Sealing of the Knock-off Hole
As for the built-in valve model, during the installation process for connection
pipe, when the connection pipe is passing through the knock-off hole, conduct
sealing with insulated cotton in the knock-off hole of outdoor unit to prevent small
animals from entering. See the following figures.

DC Inverter X-Series for R410A Unitary Split Air Conditioner
15
3.2.3 Connection Pipe Vacuum Pumping and Leak Detection
3.2.3.1 Vacuum Pumping
①Make sure the outlet of vacuum pump is away from fire source and is
well-ventilated.
②Before vacuum pumping, make sure the unit cut-off valves are closed.
(1) Remove the caps of the liquid valve, gas valve and also the service port.
(2) Connect the hose at the low pressure side of the manifold valve assembly to
the service port of the unit’s gas valve, and meanwhile the gas and liquid
valves should be kept closed in case of refrigerant leak.
(3) Connect the hose used for evacuation to the vacuum pump.
(4) Open the switch at the lower pressure side of the manifold valve assembly
and start the vacuum pump. Meanwhile, the switch at the high pressure side
of the manifold valve assembly should be kept closed, otherwise evacuation
would fail.
(5) The evacuation duration depends on the unit’s capacity, generally.
Model Time(min)
AUD36W/A-D(U)
30
AUD60W/A-D(U) 45
And verify if the pressure gauge at the low pressure side of the manifold
valve assembly reads >750 Microns if not, it indicates there is leak somewhere.
Then, close the switch fully and then stop the vacuum pump.
(6) Wait for 10min to see if the system pressure can remain unchanged. During
this time, the reading of the pressure gauge at the low pressure side can not
be larger than 37 Microns.
(7) Slightly open the liquid valve and let some refrigerant go to the connection
pipe to balance the pressure inside and outside of the connection pipe, so
that airwill not come into the connection pipe when removing the hose.
Note that the gas and liquid valve can be opened fully only after the
manifold valve assembly isremoved.

DC Inverter X-Series for R410A Unitary Split Air Conditioner
16

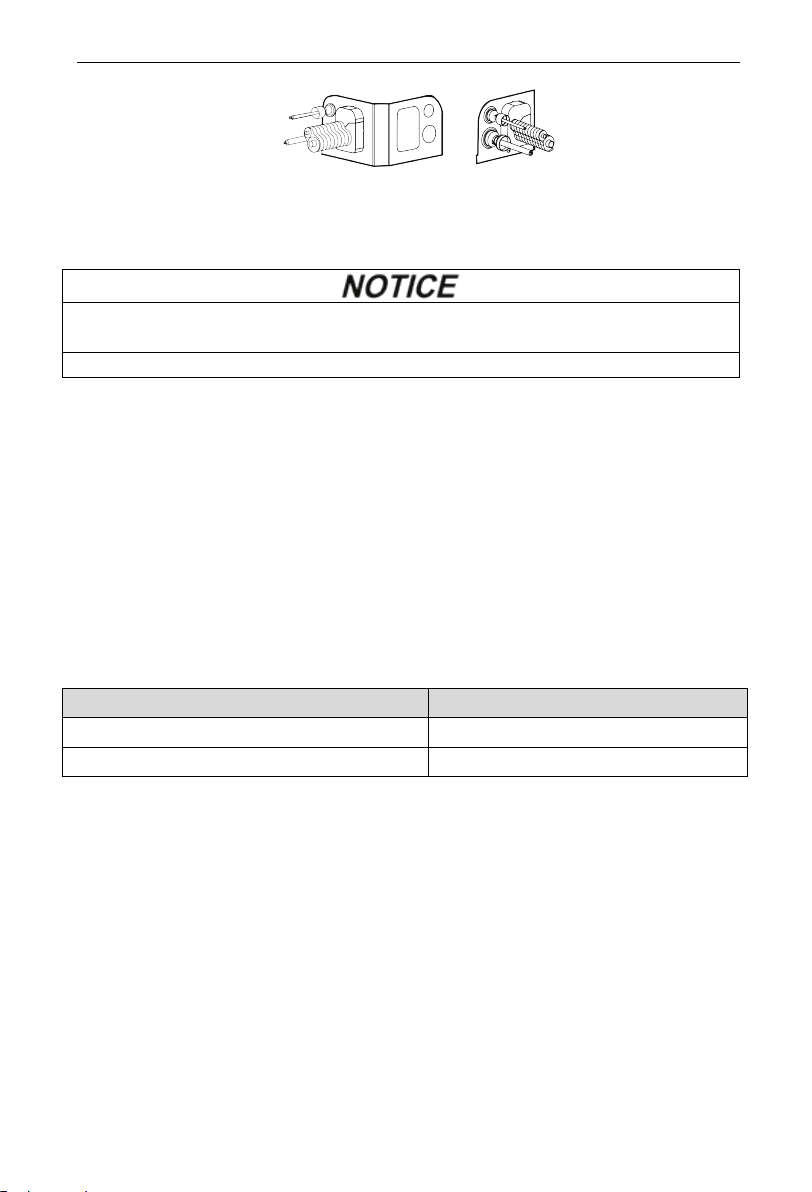

(8) Place back the caps of the liquid valve, gas valve and also the service port.
For large-size units, there are maintenance ports for liquid valve
and gas valve. During evacuation, you may connect the two hoses of the branch
valve assembly to the maintenance ports to speed up the evacuation.
Item
Model
Standard
pipe length
No additional
charge needed Additional refrigerant
amount for extra pipe
AUD36W/A-D(U)
AUD60W/A-D(U) 24.6 ≤31.2 .32 oz. per Ft
3.2.5 Installation of Drain Pipe
3.2.5.1 Outdoor Side Drainage Pipe
(1) If the outdoor unit is underneath the indoor unit, arrange the pipeline
according to the following diagram.
1) Drain hose should be placed on the ground and its end should not be
immersed into water. The whole pipeline should be supported and fixed
onto the wall.
2) Wind the insulating tape from bottom to top.
3) The whole pipeline should be wound with insulating tape and fixed onto
the wall with saddles.
Charge by weight only not Sub Cooling or Superheat
3.2.4 Refrigerant Charge
