ACPro GMV-ND07C/A-T(U) User manual

Owner's Manual
Air Conditioners
Models:
GMV-ND07C/A-T(U)
GMV-ND09C/A-T(U)
GMV-ND12C/A-T(U)
GMV-ND18C/A-T(U)
Multi Variable Air Conditioners Console
Type Indoor Unit
Thank you for choosing Air Conditioners, please read this owner’s manual carefully before
operation and retain it for future reference.

Preface
For correct installation and operation, please read all instructions carefully. Before reading the
instructions, please be aware of the following items:
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.
WARNING
This mark indicates procedures which, if improperly performed, might lead to the
death or serious injury of the user.
CAUTION
This mark indicates procedures which, if improperly performed, might possibly
result in personal harm to the user, or damage to property.
NOTICE is used to address practices not related to personal injury.
WARNING
(1) Instructions for installation and use of this product are provided by the manufacturer.
(2) Installation must be performed in accordance with the requirements of NEC and CEC by authorized
personnel only.
(3) For the safe operation of this unit, please read and follow the instructions carefully.
(4) During operation, total capacity of indoor units should not exceed the total capacity of outdoor units.
otherwise, poor effect of cooling or heating may result.
(5) Direct operators or maintainers should well keep this manual.
(6) If this unit fails to operate normally, please contact our service center as soon as possible and provide
the following information:
a) Content on the nameplate (model number, cooling capacity, production code, ex-factory date.
b) Malfunction details (before and after the malfunction occurs.
(7) Each unit has been strictly tested and proved to be qualified before ex-factory. In order to prevent units
from being damaged or operating normally because of improper disassembly, please do not disassemble
the unit by yourself. If you need to disassemble and check units, please contact our service center. We
will send specialists to guide the disassembly.
(8) All graphics in this manual is only for your reference. For sales or production reasons,these graphics are
subject to change by manufacturer without prior notice.
(9) This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.Children should be
supervised to ensure that they do not play with the appliance.
USER NOTICE
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.

Content
1 Safety Precautions ·································································································· 1
2 Installation of Indoor Unit························································································· 2
2.1 Indoor Unit··················································································································· 2
2.2 Refrigerant Piping ········································································································ 4
2.3 Drain Piping ················································································································· 5
2.4 Installing Indoor Unit ···································································································· 5
3 Constitutes and Names of Every Part of Indoor Unit············································· 12
4 Working Temperature Range················································································· 13
5 Remote Controller YAP1F ····················································································· 14
5.1 Button name and function introduction········································································14
5.2 Preparation before operation·······················································································15
5.3 Introduction of operation functions ··············································································15
5.4 Introduction of special functions··················································································18
5.5 Replacing batteries in remote controller and notes······················································18
6 Maintenance Method····························································································· 19
6.1 Units····························································································································19
6.2 Front Panel ·················································································································19
6.3 Filters··························································································································21
6.4 Titanium Apatite Photocatalytic····················································································22
6.5 Replacement···············································································································22
6.6 Before a Long Idle Period····························································································22
7 Function Description of Functional Dial Switch S7 ················································ 23
8 Malfunction Analyzing···························································································· 23
8.1 Service Center············································································································24
8.2 After-sales Service······································································································24

Multi Variable Air Conditioners Console Type Indoor Unit
1
1 Safety Precautions
(1) Follow this instruction to complete the installation work. Please carefully read this manual before unit
startup and service.
(2) Wire size of power cord should be large enough.The damaged power cord and connection wire should be
replaced by exclusive cable.
(3) After connecting the power cord, please fix the electric box cover properly in order to avoid accident.
(4) Never fail to comply with the nitrigen charge requirements.Charge nitrogen when welding pipes.
(5) Never short-circiut or cancel the pressure switch to prevent unit damage.
(6) Please firstly connect the wired controller before energization, otherwise wired controller can not be
used.
(7) Before using the unit, please check if the piping and wiring are correct to avoid water leakage, refrigerant
leakage, electric shock, or fire etc.
(8) Do not insert fingers or objects into air outlet/inlet grille.
(9) Open the door and window and keep good ventilation in the room to avoid oxygen deficit when the gas/oil
supplied heating equipment is used.
(10)Never start up or shut off the air conditioner by means of directly plug or unplug the power cord.
(11)Turn off the unit after it runs at least five minutes; otherwise it will influence oil return of the compressor.
(12)Do not allow children operate this unit.
(13)Do not operate this unit with wet hands.
(14)Turn off the unit or cut off the power supply before cleaning the unit, otherwise electric shock or injury
may happen.
(15)Never spray or flush water towards unit, otherwise malfunction or electric shock may happen.
(16)Do not expose the unit to the moist or corrosive circumstances.
(17)Under cooling mode, please don't set the room temperature too low and keep the temperature difference
between indoor and outdoor unit within 5℃(41℉).
(18)User is not allowed to repair the unit. Fault service may cause electric shock or fire accidents. Please
contact Gree appointed service center for help.
(19)Before installation, please check if the power supply is in accordance with the requirements specified on
the nameplate. And also take care of the power safety.
(20)Installation should be conducted by dealer or qualified personnel. Please do not attempt to install the unit
by yourself. Improper handling may result in water leakage, electric shock or fire disaster etc..
(21)Be sure to use the exclusive accessory and part to prevent the water leakage, electric shock and fire
accidents.
(22)Make sure the unit can be earthed properly and soundly after plugging into the socket so as to avoid
electric shock. Please do not connect the ground wire to gas pipe, water pipe, lightning rod or telephone
line.
(23)Electrify the unit 8 hours before operation. Please switch on for 8 hours before operation. Do not cut off
the power when 24 hours short-time halting (to protect the compressor).

Multi Variable Air Conditioners Console Type Indoor Unit
2
2 Installation of Indoor Unit
Selection of Installation location.
(1). Such a place where cool air can be distributed throughout the room.
(2). Such a place where condensation water is easily drained out.
(3). Such a place that can handle the weight of indoor unit.
(4). Such a place which has easy access for maintenance.
(5). The appliance shall not be installed in the laundry.
There are 2 styles of installation.
(1). Wall mounted;
(2). Floor type.
Each type is similar to the other as follows;
2.1 Indoor Unit
The indoor unit should be sited in a place where:
(1). The restrictions on installation specified in the indoor unit installation drawings are met.
(2). Both air intake and exhaust have clear paths met.
(3). The unit is not in the path of direct sunlight.
(4). The unit is away from the source of heat or steam.
(5). There is no source of machine oil vapour (this may shorten indoor unit life).
(6). Cool (warm) air is circulated throughout the room.
(7). The unit is away from electronic ignition type fluorwscent lamps (inverter or rapid stert type)
as they may shorten the remote controller range.
(8). The unit is at least 1 metre away from any television or radio set (unit may cause
interference with the picture or sound).
Cautions for Installation where air conditioner troubleis liable tooccur.
·Where there is too much of oil area.
·Where it is acid base area.
·Where there is irregular electrical supply.
Indoor Unit Installation Drawings
The indoor unit may be mounted in any of the three styles shown here.

Multi Variable Air Conditioners Console Type Indoor Unit
3
Location for securing the installation pane Schematic drawing of hooks.

Multi Variable Air Conditioners Console Type Indoor Unit
4
2.2 Refrigerant Piping
(1). Drill a hole (65mm (2-5/9in) in diameter ) in the spot indicated by О the symbol in the
illustration ad below.
(2). The location of the hole is different depending on which side of the pipe is taken out.
(3). For piping, see connecting the refrigerant pipe, under Indoor Unit Installation.
(4). Allow space around the pipe for a easier indoor unit pipe connection.
NOTICE! The suggested shortest pipe length is 2.5m(8-1/5ft),in order to avoid noise from
the outdoor unit and vibration.
Mechanical noise and vibration may occur depending on how the unit is installed and the
environment in which it is used.

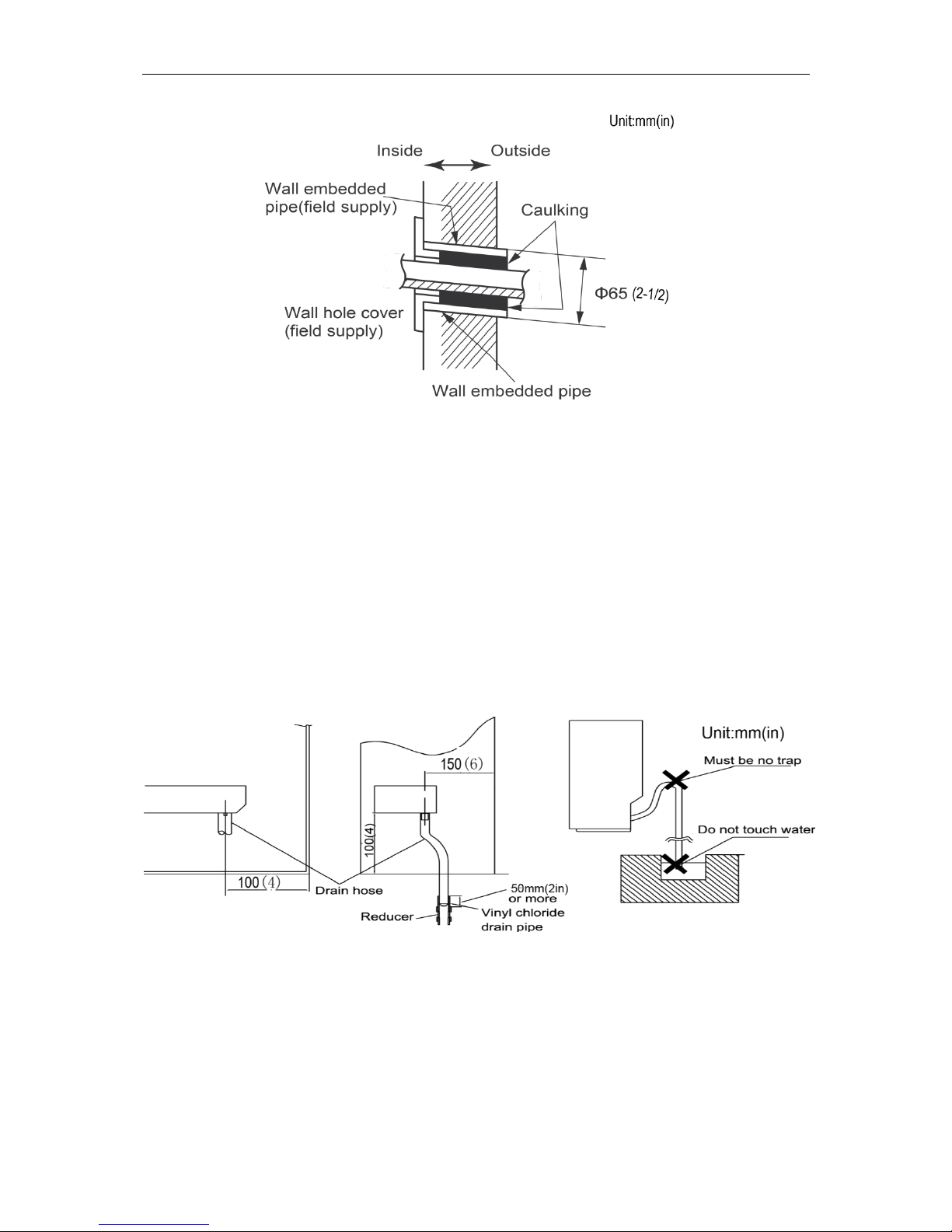

Boring a wall hole and installing wall embedded pipe
For walls containing metal frame or metal board, be sure to use a wall embedded pipe and
wall cover in the feed-through hole to.
Be sure to caulk the gaps around the pipes with caulking material to prevent water leakage.
(1). Bore a feed-through hole of 65mm(2-5/9in) in the wall so it has a down slope toward the
outside.
(2). Insert a wall pipe into the hole.
(3). Insert a wall cover into wall pipe.
(4). After completing refrigerant piping, wiring, and drain piping, caulk pipe hole gap with putty.

Multi Variable Air Conditioners Console Type Indoor Unit
5
2.3 Drain Piping
(1). Use commercial regid polyvinyl chloride pipe general VP 20 pipe, outer diameter
26mm(1in), inner diameter 20mm(3/4in) for the drain pipe.
(2). The drain hose (outer diameter 18mm(7/10in) at connecting end, 220mm(8-2/3in) long)is
supplied with the indoor unit. Prepare the drain pipe picture below position.
(3). The drain pipe should be inclined downward so that water will flow smoothly without any
(Should not be trap.)
(4). Insert the drain hose to this depth so it won’t be pulled out of the drain pipe.

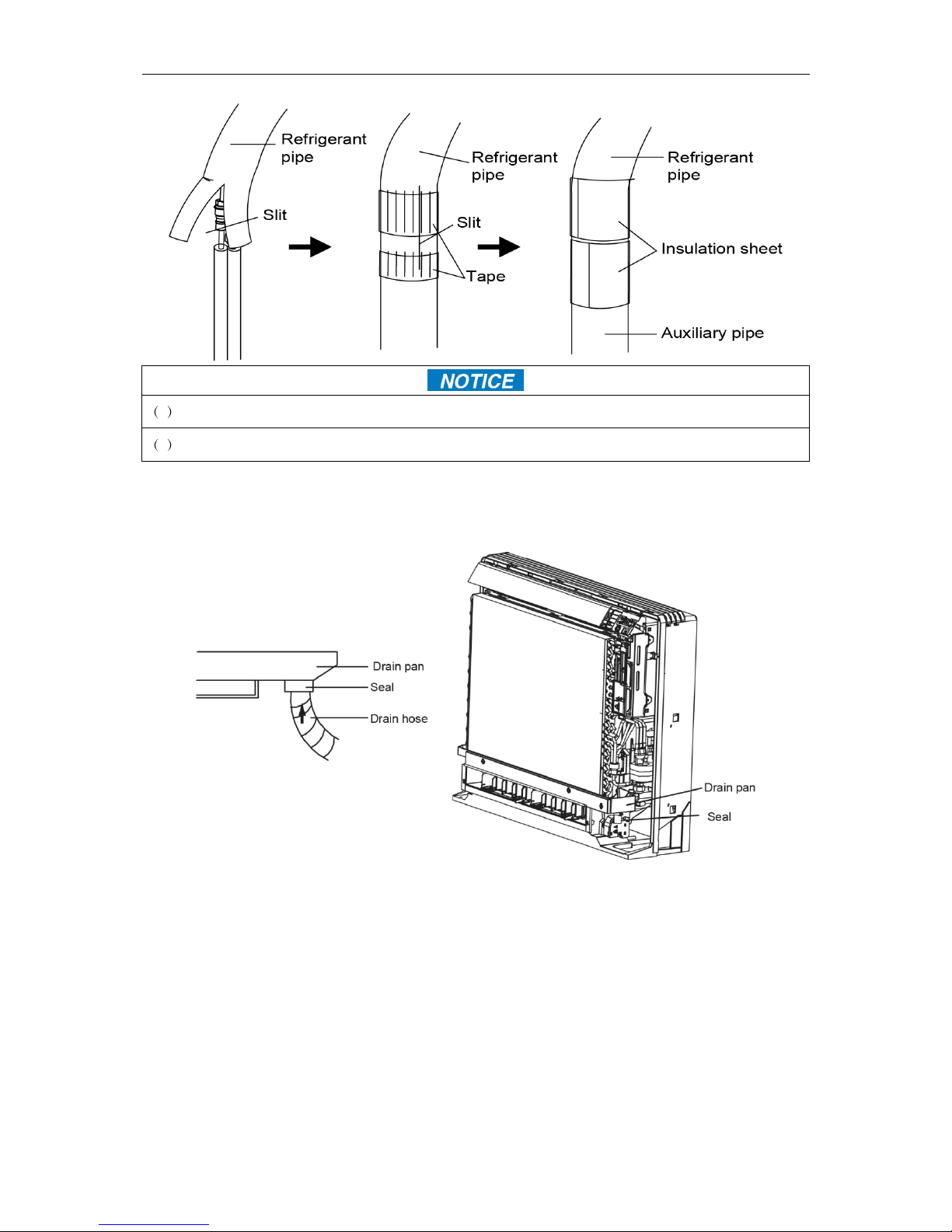

(5). Insulate the indoor drain pipe with 10mm(2/5in) or more of insulation material to prevent
condensation.
(6). Remove the air filters and pour some water into the drain pan to check the water flows
smoothly.
2.4 Installing Indoor Unit
2.4.1 Preparation

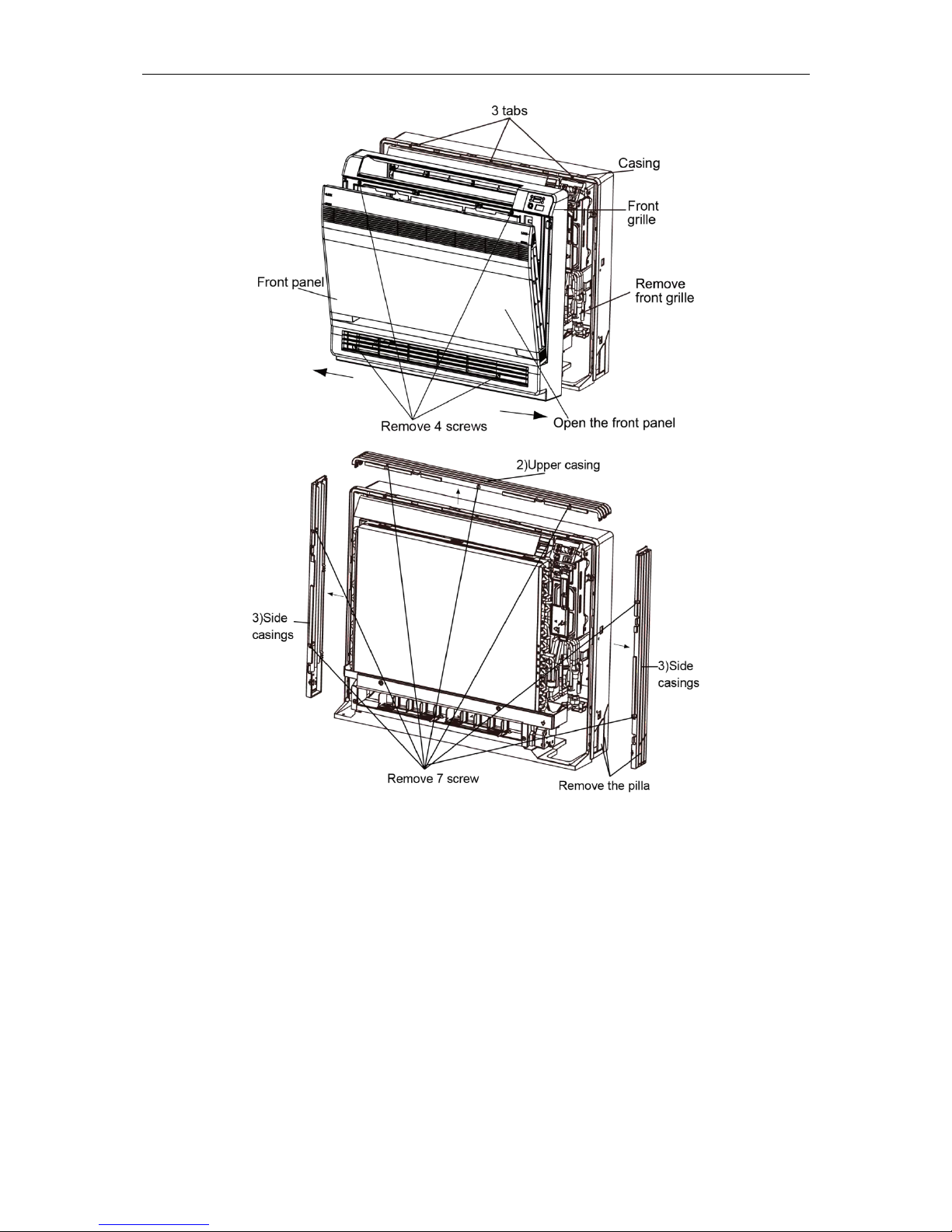

(1). Open the front panel, remove the 4 screws and dismount the front grille while pulling it
forward.
(2). Follow the arrows to disengage the clasps on the front case to remove it.
(3). Follow the procedure below when removing the slit portions.

Multi Variable Air Conditioners Console Type Indoor Unit
6
For Moldings:
Remove the pillars. (Remove the slit portions on the bottom frame using nippers.)
For Side Piping:
Remove the pillars.
(1). Remove the 7screws.
(2). Remove the upper casing (2 tabs).
(3). Remove the left and right casings (2 tabs on each side ).
(4). Remove the slit portions on the bottom frame and casings using nippers.
(5). Return by following the steps in reverse order (3>2>1).

Multi Variable Air Conditioners Console Type Indoor Unit
7
2.4.2 Installation
Secure using 6 screws for floor installations. (Do not forget to secure to the rear wall.)
For wall installations, secure the mounting plate using 5 screws and the indoor unit using 4
screws.
The mounting plate should be installed on a wall which can support the weight of the indoor
unit.
(1). Temporarily secure the mounting plate to the wall, make sure that the panel is completely
level, and mark the boringpoints on the wall.
(2). Secure the mounting plate to the wall with screws.
(3). Once refrigerant piping and drain piping connections are complete, fill in the gap of the
through hole with putty. A gap can lead to condensation on the refrigerant pipe, and drain
pipe, and the entry of insects into the pipes.
(4). Attach the front panel and front grille in their original positions once all connections are
complete.
Flaring the pipe end
(1). Cut the pipe end with a pipe cutter.
(2). Remove burrs with the cut surface facing downward so that the chips do not enter the
pipe.
(3). Fit the flare nut on the pipe.

Multi Variable Air Conditioners Console Type Indoor Unit
8
(4). Flare the pipe.
(5). Check that the flaring is properly made.
1DO not use mineral oil on flared part.
2 Prevent mineral oil from getting into the system as this would reduce the lifetime of the units.
3 Never use piping which had been used for previous installations. Only use parts which are delivered with the
unit.
4 Do never install a drier to this R410A unit in order to guarantee its lifetime.
5 The drying material may dissolve and damage the system.
6 Incomplete flaring may cause refrigerant gas leakage.
Connecting the refrigerant pipe:
(1). Use torque wrenches when tightening the flare nuts to prevent damage to the flare nuts
and gas leaks.
(2). Align the centres of both flares and tighten the flares and tighten the flare nuts 3 or 4 turns
by hand. Then tighten them fully with the torque wrenches.
(3). To prevent gas leakage, apply refrigeration oil on both inner and outer surfaces in the flare.
(Use refrigeration oil for R410A.)
Flarenut tightening torque
Gas side
Liquid side
07/09 class
12/18 class
07/09/12/18 class
3/8 inch
1/2 inch
1/4 inch
32.7-39.9 N.m
(333-407kfg.cm)
49.5-60.3 N.m
(505-615kfg.cm)
14.2-17.2 N.m
(144-175kfg.cm)
Caution on piping handling:
(1). Protect the open end of the pipe against dust and moisture.
(2). All pipe bends should be as gentle as possible. Use a pipe bender for bending.
(Bending radius should be 30 to 40mm (1-1/5in to 1-4/7in) or larger.)

Multi Variable Air Conditioners Console Type Indoor Unit
9
Selection of copper and heat insulation materials:
When using commercial copper pipes and fittings, observe the following:
(1). Insulation material: Polyethylene foam
Heat transfer rate:0.041 to 0.052W/mK(0.035 to 0.045kca/(mh℃)
Refrigerant gas pipe’s surface temperature reaches 110℃（230℉） max.
Choose heat insulation materials that will withstand this temperature.
(2). Be sure to insulate both the gas and liquid piping and to provide insulation dimensions as
below.
Gas side
Liquid side
Gas pipe thermal insulation
Liquid pipe
thermal insulation
07/09 class
12/18 class
-
07/09 class
12/18 class
-
O.D.9.52mm
(3/8in)
O.D.12.7mm
(1/2in)
O.D.6.4mm
(1/4in)
I.D.12-15mm
(1/2 - 3/5in)
I.D.14-16mm
(9/16 -5/8in)
I.D.8-10mm
(5/16 - 2/5in)
Thickness 0.8mm(1/32in)
Thickness 10mm(2/5in) Min.
(3). Use separate thermal insulation pipes for gas and liquid refrigerant pipes.
Checking for gas leakage
(1). Check for leakage of gas after air purging
(2). See the sections on air purges and gas leak checks in the installation manual for the
outdoor unit.
Attaching the connection pipe
Attach the pipe after checking for gas leakage, described above.
(1). Cut the insulated portion of the on-site piping, matching it up with the connecting portion.
(2). Secure the slit on the refrigerant piping side with the butt joint on the auxiliary piping using
the tape, making sure there are no gaps.
(3). Wrap the slit and butt joint with the included insulation sheet, making sure there are no
gaps.

Multi Variable Air Conditioners Console Type Indoor Unit
10
1 Insulate the joint of the pipes securely.Incomplete insulation may lead to water leakage.
2 Push the pipe inside so it does not place undue force on the front grille.
Connecting the drain hose
Insert the supplied C drain hose into the socket of the drain pan.
Fully insert the drain hose until it adheres to a seat of the socket.
With a Multi indoor unit, install as described in the installation manual supplied with the
outdoor unit.
Live the sensor securing plate, remove the front metal plate cover, and connect the wire to the
therminal board.
(1). Open the cover of electric box of indoor unit.
(2). Lead the communication line across the rubber ring.
(3). Connect the communication line to terminal D1 and D2 on the wiring board of indoor unit.
(4). Secure the communication line with the wire clamp on the electric box. Pull wires to make
sure that they are securely latches up, then retain wires with wire retainer.

Multi Variable Air Conditioners Console Type Indoor Unit
11
1 The power of every indoor unit should be unity power supply.
2 Do not use tapped wires, stranded wires, extensioncords, or starburst connections, as they may cause
overheating,electrical shock, or fire.
3 Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain
pump, etc, from the terminal block.) Doing so may cause electric shock or fire.)
(1). The power connection cord have been inserted on the mainboard through the piping hole
of the chassis.Please connect the power connection cord with the breaker. If the power
cord is not long enough,please prolong it with terminal block.
(2). Reinstall the wiring cover on the original place and tighten the bolt;
(3). Recover the surface panel.
Install the drainage pipe
(1). For well draining, the drain hose should be placed at a downward slant.
(2). Do not wrench or bend the drain hose or flood its end by water.
(3). Wrap heat resistant material when connect the longer drainage tube though indoor.

Multi Variable Air Conditioners Console Type Indoor Unit
12
Install the connection pipes
Connect the connect pipe with the two relative leading pipe, tie the nut on tie in of the connect
pipe tightly.
1 Be careful in bending the connection pipes, or you will damage the pipes.
2 If the tightening torque is too great in tightening the flare nut, leakage will happen.
3 Constitutes and Names of Every Part of Indoor Unit
(1). Titanium Apatite Photocatalytic
Air-Purifying Filter:
These filters are attached to the inside of the air filters.
(2). Air outlet
(3). Display
(4). Front panel
(5). Louvers (vertical blades)

Multi Variable Air Conditioners Console Type Indoor Unit
13
The louvers are inside of the air outlet.
(6). Air inlet
(7). Air filter
(8). Flap (horizontal blade)
(9). Cool mode lamp
(10).Heat mode lamp
(11).Dry mode lamp
(12).Run lamp
(13).LED display
(14).Indoor Unit ON/OFF switch:
·Push this switch once to start operation.
·Push once again to stop it.
·The operation mode refers to the following table.
Model
Mode
Temperature seting
Air flow rate
HEAT PUMP
AUTO
26℃(78.8℉)
AUTO
·This switch is useful when the remote controller is missing.
(15).Signal receiver:
·It receives signals from the remote controller.
·When the unit receives a signal, you will hear a short beep.
·Settings changed beep.
(16).Air outlet selection switch.
1 Before opening the front panel, be sure to stop the operation and turn the breaker OFF.
2 Do not touch the metal parts on the inside of the indoor unit, as it may result in injury.
3 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
4 The appliance shall be installed in accordance with national wiring regulations.
5 An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected
in fixed wiring.
4 Working Temperature Range
Indoor side state
Outdoor side state
Dry bulb temp℃(℉)
Wet bulb temp℃(℉)
Dry bulb temp℃(℉)
Wet bulb temp℃(℉)
Rated Cooling
27(80.6)
19(66.2)
35(95)
24(75.2)
Max. cooling
32(89.6)
23(73.4)
43(109.4)
26(78.8)
Min. cooling
21(69.8)
15(59)
18(59)
—
Rated Heating
20(68)
15(59)
7(44.6)
(42.8)
Max. heating
27(80.6)
—
24(75.2)
18(64.4)
Min. heating
20(68)
15(59)
-15(5)
-16(3.2)

Multi Variable Air Conditioners Console Type Indoor Unit
14
5 Remote Controller YAP1F
5.1 Button name and function introduction
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
TURBO
Set turbo function
3
MODE
Set operation mode
4
Set up&down swing status
5
I FEEL
Set I FEEL function
6
TEMP
Switch temperature displaying type on the unit’s display
7
Set health function and air function
8
LIGHT
Set light function
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time

Multi Variable Air Conditioners Console Type Indoor Unit
15
5.2 Preparation before operation
When using the remote controller for the first time or after replacing the batteries, please set
the time of the system according to current time in the following steps:
(1). Pressing CLOCK button, is blinking.
(2). Pressing or button, the clock time will increase or decrease rapidly.
(3). Press CLOCK button again to confirm the time and return to display current time.
5.3 Introduction of operation functions

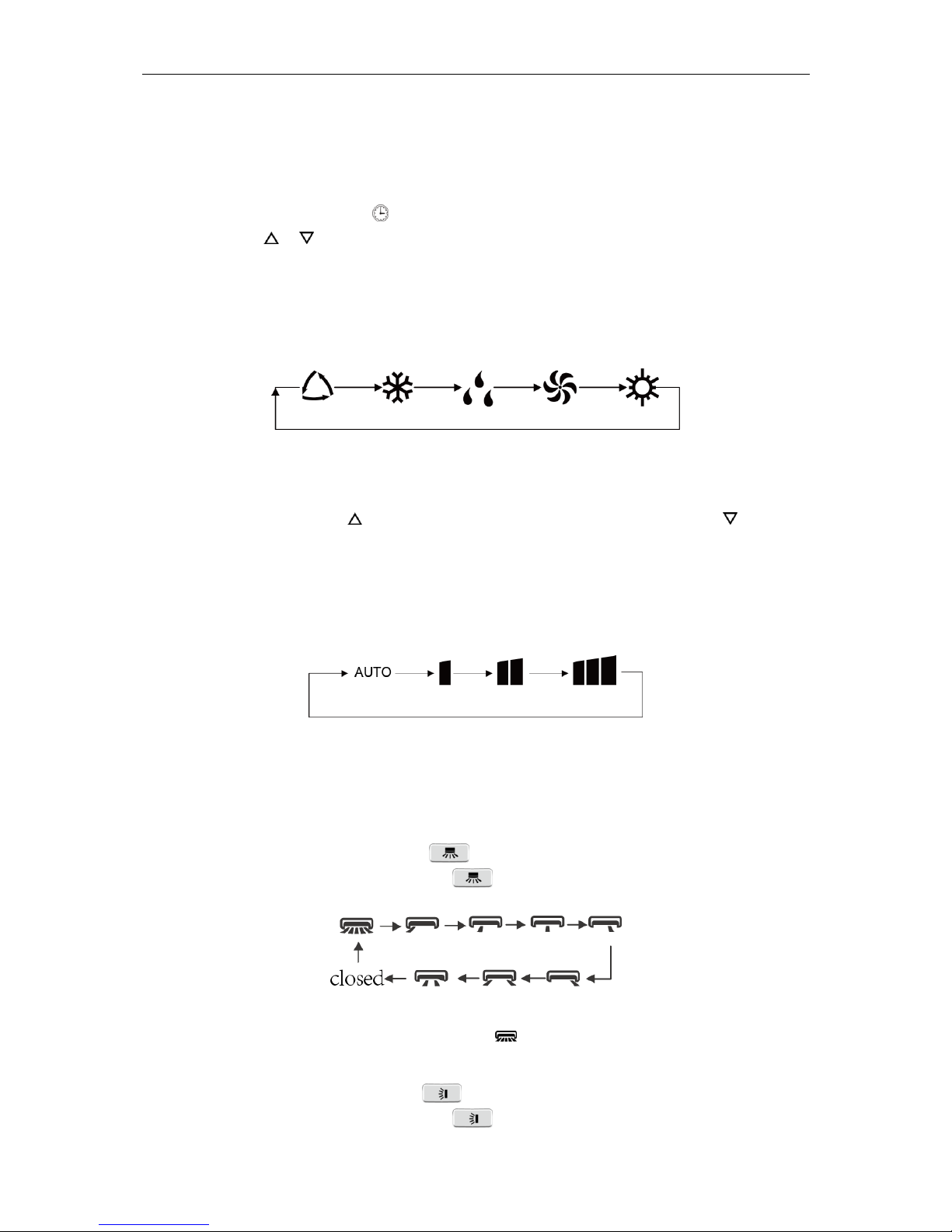

（1）Selecting operation mode
In unit on status, press MODE button to select operation mode in following sequence:
（2）Setting temperature
In unit on status, press ▲ button to increase set temperature and press ▼ button to decrease
set temperature.
In unit on status, press button to increase setting temperature and press button to
decrease setting temperature. The range of temperature is from 16℃to 30℃（ from 60.8℉to 86
℉）.
Note: Under auto mode, manual adjustment of temperature is not needed.
（3）Adjusting fan speed
In unit on status, press FAN button to adjust fan speed in following sequence:
When operation mode changes, fan speed is memoried;
Under dry mode, fan speed is low and can not be adjusted.
（4）Setting swing function
Setting left&right swing
1).Under simple swing status, press button to adjust left&right swing status;
2).Under fixed-angle swing status, press button to adjust left&right swing angle
circularly as below:
Note: operate continuously left&right swing in 2 seconds, swing states will change according to
above-mentioned order, or switch closed state and state.
Setting up&down swing
1).Under simple swing status, press button to adjust up&down swing status;
2).Under fixed-angle swing status, press button to adjust up&down swing angle

Multi Variable Air Conditioners Console Type Indoor Unit
16
circularly as below:
Note: operate continuously left&right swing in 2 seconds, swing states will change according to
above-mentioned order, or switch closed state and state;
（5）Setting turbo function
Under cool or heat mode, press TURBO button to set turbo function.
When is displayed, turbo function is on.
When is not displayed, turbo function is off.
When turbo function is on, the unit operates in super high speed to achieve quick cooling or
heating. When turbo function is off, the unit operates in setting fan speed.
（6）Setting light function
The light on the receiver light board will display present operation status. If you want to turn off
the light, please press LIGHT button. Press this button again to turn on the light.
（7）Viewing ambient temperature
In unit on status, receiver light board or wired controller is defaulted to display setting
temperature. Press TEMP button to view indoor or outdoor ambient temperature.
When is displayed, it means the displayed temperature is setting temperature.
When is displayed, it means the displayed temperature is indoor ambient temperature.
When is displayed, it means the displayed temperature is outdoor ambient temperature.
Note: setting temperature is always displayed in Remote Controller.
（8）Setting X-FAN function
In cool or dry mode, press X-FAN button to set X-FAN function.
When is displayed, X-FAN function is on.
When is not displayed, X-FAN function is off.
When X-FAN function is on, the water on the evaporator will be blown away until turning off
the unit to avoid mildew.
（9）Setting health function
In unit on status, press button to set health function.
When is displayed, health function is on.
When is not displayed, health function is off.
Health function is available when the unit is equipped with anion generator. When health
function is on, the anion generator will start operation, adsorbing the dusts and killing the bacteria
in the room.
（10）Setting air function
Press button until is displayed, then air function is turned on.

Multi Variable Air Conditioners Console Type Indoor Unit
17
Press button until is disappeared, then air function is turned off.
When the indoor unit is connected with fresh air valve, air function setting can control the
connection of fresh air valve, which can control the fresh air volume and improve the air quality
inside the room.
（11）Setting sleep function
In unit on status, press SLEEP button to turn on or turn off sleep function.
When is displayed, sleep function is on.
When is not displayed, sleep function is off.
Notes:
①.Sleep function can not be set in auto and fan mode;
②.When turning off the unit or switching mode, sleep function is cancelled;
（12）Setting I FEEL function
In unit on status, press I FEEL button to turn on or turn off I FEEL function.
When is displayed, I FEEL function is on.
When is not displayed, I FEEL function is off.
When I FEEL function is turned on, the unit will adjust temperature according to the
temperature detected by the remote controller to achieve the best air-conditioning effect. In this
case, you should place the remote controller within the valid receiving range.
（13）Setting timer
You can set the operation time of unit as you need. You can also set timer on and timer off in
combination.
Before setting, check if the time of the system is the same as the current time. If not, please
set the time according to current time.
1).Setting timer off
①.
Pressing TOFF button, “OFF” is blinking and time displaying zone displays the timer time
of last setting.
②.
Press or button to adjust the timer time.
③.
Press TOFF button again to confirm setting. OFF is displayed and time displaying zone
resumes to display current time.
④.
Press TOFF button again to cancel timer and OFF is not displayed.
2).Setting timer on
①.
Pressing TON button, “ON” is blinking and time displaying zone displays the timer time of
last setting.
②.
Press or button to adjust the timer time.
③.
Press TON button again to confirm setting. ON is displayed and time displaying zone
resumes to display current time.
④.
Press TON button again to cancel timer and ON is not displayed.
