ACQUA SOURCE WPLD-6R User manual

14
Wall Mounted Lamp
Installa�on Instruc�on
PLEASE READ THE FOLLOWING CAREFULLY AND
KEEP THIS USER MANUAL SAVE FOR FUTURE REFERENCE
Select the desired color, turn OFF the lamps more than 34 seconds,
the chosen color has now been memorized.
1. All lamps need to be connected to the same transformer.
2. Turn the lamps OFF and back ON within 5-30 seconds.
3. All the lamps back to first program (blue).
Turn the lamps OFF and quickly back ON (0-3 seconds).
Opera�on
Changing colors:
Synchronizing mul�ple lamps:
Memorizing the last color:
Fixed Blue
Fixed Red
Fixed Green
Fixed Red/Blue
Fixed Blue/Green
Fixed Red/Green
Fixed White
Cycle Red-Red/Green-Green
Cycle Green-Green/Blue-Blue
Same as program 11, the speed is slower.
Cycle Red-Green-Blue,Speed from fast to low.
Cycle gradual change of all colors.
Cycle gradual change of Red-Green-Blue.
Cycel Green-Red/Blue-Blue-Red-White-Blue/Green-Red/Green
Cycle Red-Red/Blue-Blue
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15 Color Programs (Only for RGB lamps)
W2005-S108WW AC12V 6W 500lm SMD2835 108pcs /
Warm White
3000K
AC12V 6W 600lm SMD2835 108pcs /
AC12V 6W 300lm SMD2835 108pcs
White
6400K
AC12V 10W 450lm SMD2835 162pcs /
/
Cool White
6400K
AC12V 10W
AC12V 10W RGB
Blue
450lm SMD2835 162pcs
RGB
900lm SMD2835 162pcs
Remote
W2005-S108WHT
W2005-S108RGB
WPLD-6R162-PBB
WPLD-6R162-PBCW
/
Warm White
3000K
AC12V 10W 800lm SMD2835 162pcs
WPLD-6R162-PBWW
Remote
WPLD-6R162-PBM
ITEM NO. Voltage Power Color Lumens LED Type LED Qty Control
3222 Blackwell Street
Fairbanks, AK 99701
inf[email protected]m
www.websiteurl.com
012 . 345. 6780
012 . 345. 6780
VISUAL ART & DESIGN
Dream Studio
John Smeeth
Manager
This is a sample letter that has been placed to demonstrate typing remat (Your Company). letterhead
design. When positioned properly, it will serve to work in harmony with all other elements letterhead.
This letterhead design is meant to project an image
This letterhead design is meant project an image of professionalism reliability. By using simple aligen
we have created a very spacious feeling. The simplicity suggest rengththe spaciousnes contributes h
aesthetics the layout. These basic qualities along with the (Your Company)
look and helps reinforce the (Your Company) brand. letterhead design is meant to project an image p
design. When positioned properly, it will serve to work in harmony all the other elements letterhead.
sionalism and reliability.
This letterhead design is based on the (Form of your logo) form (Your Company) logo. Each stationery
we have created a very spacious feeling. The simplicity suggests strength the spaciousnes contribute
part of the (Form of your logo).
Date, 10 September, 2019
James Doe
Chief Director
A : 45-1,Anson Road Singapore - 8989
W : [email protected], www.myweb.com
P : +880 - 12345 - 6789
WPLD-6R
14
Wall Mounted Lamp
Installa�on Instruc�on
PLEASE READ THE FOLLOWING CAREFULLY AND
KEEP THIS USER MANUAL SAVE FOR FUTURE REFERENCE
Select the desired color, turn OFF the lamps more than 34 seconds,
the chosen color has now been memorized.
1. All lamps need to be connected to the same transformer.
2. Turn the lamps OFF and back ON within 5-30 seconds.
3. All the lamps back to first program (blue).
Turn the lamps OFF and quickly back ON (0-3 seconds).
Opera�on
Changing colors:
Synchronizing mul�ple lamps:
Memorizing the last color:
Fixed Blue
Fixed Red
Fixed Green
Fixed Red/Blue
Fixed Blue/Green
Fixed Red/Green
Fixed White
Cycle Red-Red/Green-Green
Cycle Green-Green/Blue-Blue
Same as program 11, the speed is slower.
Cycle Red-Green-Blue,Speed from fast to low.
Cycle gradual change of all colors.
Cycle gradual change of Red-Green-Blue.
Cycel Green-Red/Blue-Blue-Red-White-Blue/Green-Red/Green
Cycle Red-Red/Blue-Blue
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15 Color Programs (Only for RGB lamps)
W2005-S108WW AC12V 6W 500lm SMD2835 108pcs /
Warm White
3000K
AC12V 6W 600lm SMD2835 108pcs /
AC12V 6W 300lm SMD2835 108pcs
White
6400K
AC12V 10W 450lm SMD2835 162pcs /
/
Cool White
6400K
AC12V 10W
AC12V 10W RGB
Blue
450lm SMD2835 162pcs
RGB
900lm SMD2835 162pcs
Remote
W2005-S108WHT
W2005-S108RGB
WPLD-6R162-PBB
WPLD-6R162-PBCW
/
Warm White
3000K
AC12V 10W 800lm SMD2835 162pcs
WPLD-6R162-PBWW
Remote
WPLD-6R162-PBM
ITEM NO. Voltage Power Color Lumens LED Type LED Qty Control
Wall Mounted Lamp
Installa�on Instruc�on
PLEASE READ THE FOLLOWING CAREFULLY AND
KEEP THIS USER MANUAL SAVE FOR FUTURE REFERENCE

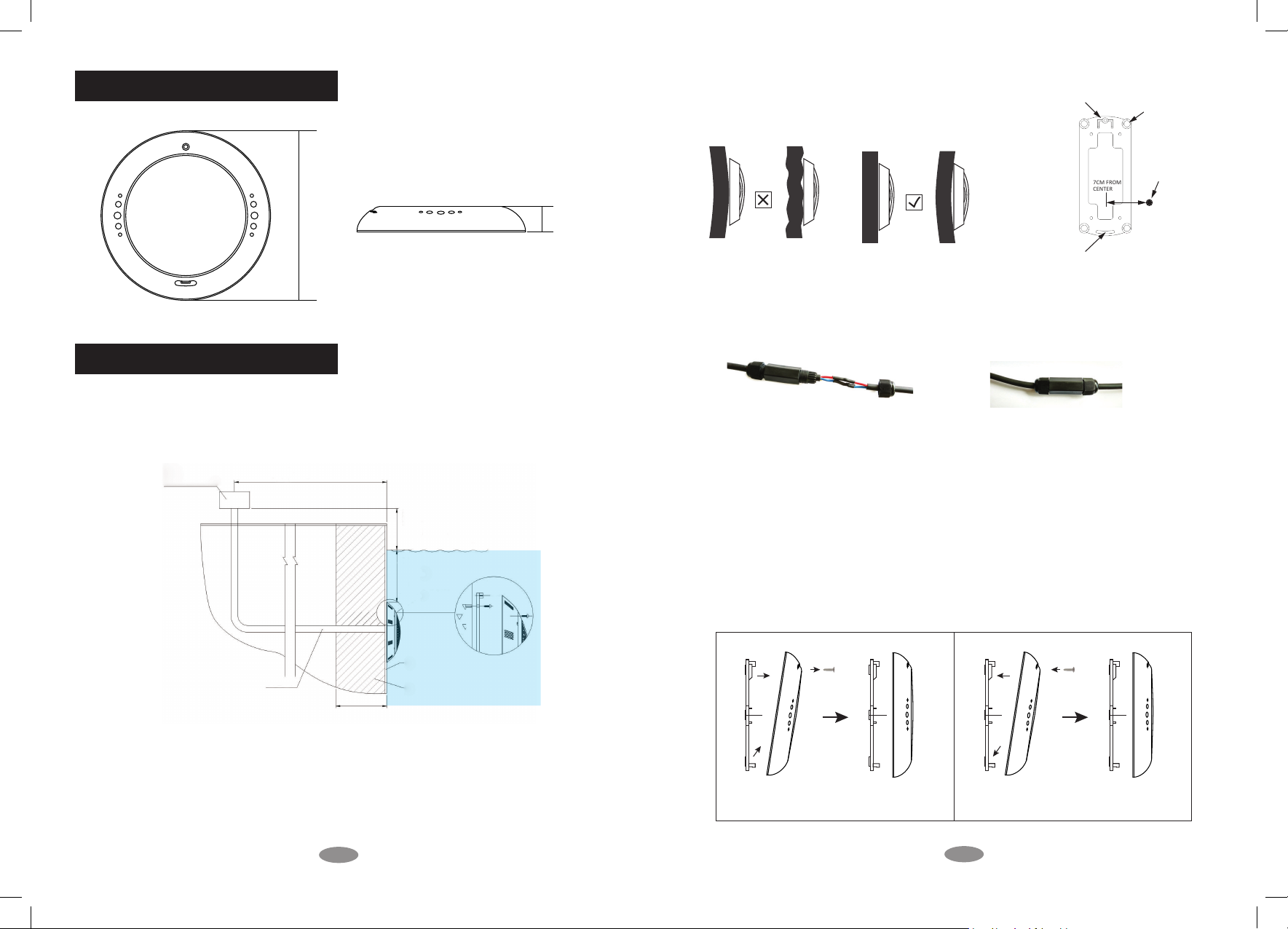

DIMENSION
No.1
ON OFF
Blue Red
Green Red/Blue
Blue/Green Red/Green
White Red-Red/Grn-Grn
Grn-Grn/Blu-Blue
Cycle Red-Grn-Blu,Speed from fast to low.
Gradual change of all colors.
Grn-Red/Blu-Blu-Red-White-Blu/Grn-Red/Grn
Red-Red/Blu-Blue
No.2
No.3 No.4
No.5 No.6
No.7 No.8
No.9 No.10
No.11 No.12
No.13
No.14
No.15
Select the desired color, turn OFF the lamps more than 14 seconds, the
chosen color has now been memorized.
1. All lamps need to be connected to the same transformer.
2. Turn the lamps OFF and back ON within 4-13 seconds.
3. All the lamps back to first program (blue).
Turn the lamps OFF and quickly back ON (0-3 seconds).
Opera�on
Changing colors:
Synchronizing mul�ple lamps:
Memorizing the last color:
4 1
240mm
38mm
13 Color Programs (For RGB Remote Control)
Suit for 2-3 lamps in one pool, if install more than 3pcs lamps, pls choose ON/OFF type.
WPLD-5R351-SBWW AC12V 25W 2100lm SMD2835 351pcs /
Warm White
3000K
AC12V 25W 2250lm SMD2835 351pcs /
AC12V 25W 1200lm SMD2835 351pcs /
Cool White
6400K
AC12V 25W RGB
Blue
1400lm SMD2835 351pcs ON/OFF
WPLD-5R351-SBCW
WPLD-5R351-SBB
WPLD-5R351-SBM
ITEM NO. Voltage Power Color Lumens LED Type LED Qty Cotrol
14
Wall Mounted Lamp
Installa�on Instruc�on
PLEASE READ THE FOLLOWING CAREFULLY AND
KEEP THIS USER MANUAL SAVE FOR FUTURE REFERENCE
Select the desired color, turn OFF the lamps more than 34 seconds,
the chosen color has now been memorized.
1. All lamps need to be connected to the same transformer.
2. Turn the lamps OFF and back ON within 5-30 seconds.
3. All the lamps back to first program (blue).
Turn the lamps OFF and quickly back ON (0-3 seconds).
Opera�on
Changing colors:
Synchronizing mul�ple lamps:
Memorizing the last color:
Fixed Blue
Fixed Red
Fixed Green
Fixed Red/Blue
Fixed Blue/Green
Fixed Red/Green
Fixed White
Cycle Red-Red/Green-Green
Cycle Green-Green/Blue-Blue
Same as program 11, the speed is slower.
Cycle Red-Green-Blue,Speed from fast to low.
Cycle gradual change of all colors.
Cycle gradual change of Red-Green-Blue.
Cycel Green-Red/Blue-Blue-Red-White-Blue/Green-Red/Green
Cycle Red-Red/Blue-Blue
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15 Color Programs (Only for RGB lamps)
W2005-S108WW AC12V 6W 500lm SMD2835 108pcs /
Warm White
3000K
AC12V 6W 600lm SMD2835 108pcs /
AC12V 6W 300lm SMD2835 108pcs
White
6400K
AC12V 10W 450lm SMD2835 162pcs /
/
Cool White
6400K
AC12V 10W
AC12V 10W RGB
Blue
450lm SMD2835 162pcs
RGB
900lm SMD2835 162pcs
Remote
W2005-S108WHT
W2005-S108RGB
WPLD-6R162-PBB
WPLD-6R162-PBCW
/
Warm White
3000K
AC12V 10W 800lm SMD2835 162pcs
WPLD-6R162-PBWW
Remote
WPLD-6R162-PBM
ITEM NO. Voltage Power Color Lumens LED Type LED Qty Control
15 Souri str., 121 31 Peristeri, Athens, Greece Tel. & Fax: [phone] E-mail: in[email protected]
ACQUA SOURCE S.A.
Manufacturer of swimming pool and fountain products
www.acquasource.gr
Wall Mounted Lamp
Installa�on Instruc�on
PLEASE READ THE FOLLOWING CAREFULLY AND
KEEP THIS USER MANUAL SAVE FOR FUTURE REFERENCE
DIMENSION
No.1
ON OFF
Blue Red
Green Red/Blue
Blue/Green Red/Green
White Red-Red/Grn-Grn
Grn-Grn/Blu-Blue
Cycle Red-Grn-Blu,Speed from fast to low.
Gradual change of all colors.
Grn-Red/Blu-Blu-Red-White-Blu/Grn-Red/Grn
Red-Red/Blu-Blue
No.2
No.3 No.4
No.5 No.6
No.7 No.8
No.9 No.10
No.11 No.12
No.13
No.14
No.15
Select the desired color, turn OFF the lamps more than 14 seconds, the
chosen color has now been memorized.
1. All lamps need to be connected to the same transformer.
2. Turn the lamps OFF and back ON within 4-13 seconds.
3. All the lamps back to first program (blue).
Turn the lamps OFF and quickly back ON (0-3 seconds).
Opera�on
Changing colors:
Synchronizing mul�ple lamps:
Memorizing the last color:
4 1
240mm
38mm
13 Color Programs (For RGB Remote Control)
Suit for 2-3 lamps in one pool, if install more than 3pcs lamps, pls choose ON/OFF type.
WPLD-5R351-SBWW AC12V 25W 2100lm SMD2835 351pcs /
Warm White
3000K
AC12V 25W 2250lm SMD2835 351pcs /
AC12V 25W 1200lm SMD2835 351pcs /
Cool White
6400K
AC12V 25W RGB
Blue
1400lm SMD2835 351pcs ON/OFF
WPLD-5R351-SBCW
WPLD-5R351-SBB
WPLD-5R351-SBM
ITEM NO. Voltage Power Color Lumens LED Type LED Qty Cotrol
