Actionbikes A30 User manual

• Suitable for 37~96 months
•Maximum user weight: 30kg
•Adult assembly required
Please keep this manual for future reference as it contains important
information.
Before first time use, charge the battery for at least 4-6 hours.
OWNER'S MANUAL
Read and understand this entire manual before using!
ELEKTRO KINDERAUTO
HUMMER A30
Mit Fernbedienung

Use the vehicle on generally level ground ONLY!
caution
About Your New Vehicle
Thank you for your purchasing our products, we wants your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.
WARNING!
Suitable age: 37~96 months
6V10AH x1(Fuse: 10A),
Load Capacity:
Under 30KGS
Size of car:
118 x 67 x 76.5 CM
Speed: 3KM/H 3~5KM/H
Power way:
Charging type
Charger: Input: depend on local voltage
Output: DC DC6V1A or DC12V1A
Average
battery life:
Approximately
300 times
Charge time: 8-12 Hours
Battery &
Fuse:
1WD
2WD
1WD
1WD
2WD
2WD
IMPORTANT
WARNING
This label means the information or assembly for One Wheel Drive version ONLY!
This label means the information or assembly for Two Wheels Drive version ONLY!
CHOKING HAZARD - Small parts.
Not suitable for children under 37
months.
VER:SMS-A30-EN-120612
6V10AH x2 (Fuse: 13A and 5A)
VER:SMS-A30-RC-EN-120612
6V10AH x2 (Fuse: 13A and 5A)
6V10AH x2 (Fuse: 10A)
H/LSPEED
H/LSPEED This label means the information for High/Low Speed version ONLY!

NO.
34
56
78
9
12
1
1
4
2
x1
x2
1
1
2
1
1
1
Part Part
10
11
13
12
14
x1
x2
x3
x2
x3
x2
Parts List
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
Vehicle
body
Seat
Light bar
Dashboard
Steering
wheel
Wheel
cover
View
Mirror
Rear
bumper
Searching
light
Driving
wheel Wheel
Inner
bush
Charger
Gear
box
Placed
in the
assembly
package
2WD 2WD
2WD
2WD

NO.
Part Par
21
14
8
16
15
17 18
20
19
21
22
21
1
1
26
1
25
1
27
1
24
23
1
Parts List
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
Tailight
Rear
axle
Steeing
shaft
Ø10
Locknut
M5x45
machine
screw
Ø5
nut
Ø4x16
round
head
screw
Ø12
wahser
Placed
on the
front axle
and rear
axle.
Placed
on the
front axle
and rear
axle.
Placed
on the
steering
wheel.
Placed
on the
vehicle
body
Placed
on the
steering
wheel.
Direction
motor
Remote
controller
Remote
control
device
M5x20
machine
screw
Placed
on the
remote
contorl
device
Ø5
locknut
Placed
on the
Remote
contorl
device.

B
A
CD
F
E
NO.
Part Par
NO.
Part Par
4
4
2
2
2
G
8
4
3
3
Ø4x12
screw
Ø4x16
screw
Parts List
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
Ø10
wahser
Ø12
Outer
bush
Cap nut
Split
pin
Spanner
Assembly package

1
C
E
19
19
A
B
E
2
3
4
5
6
7
8
9
11
12
13
14
15
15
17
D
16
18
25
CE
26

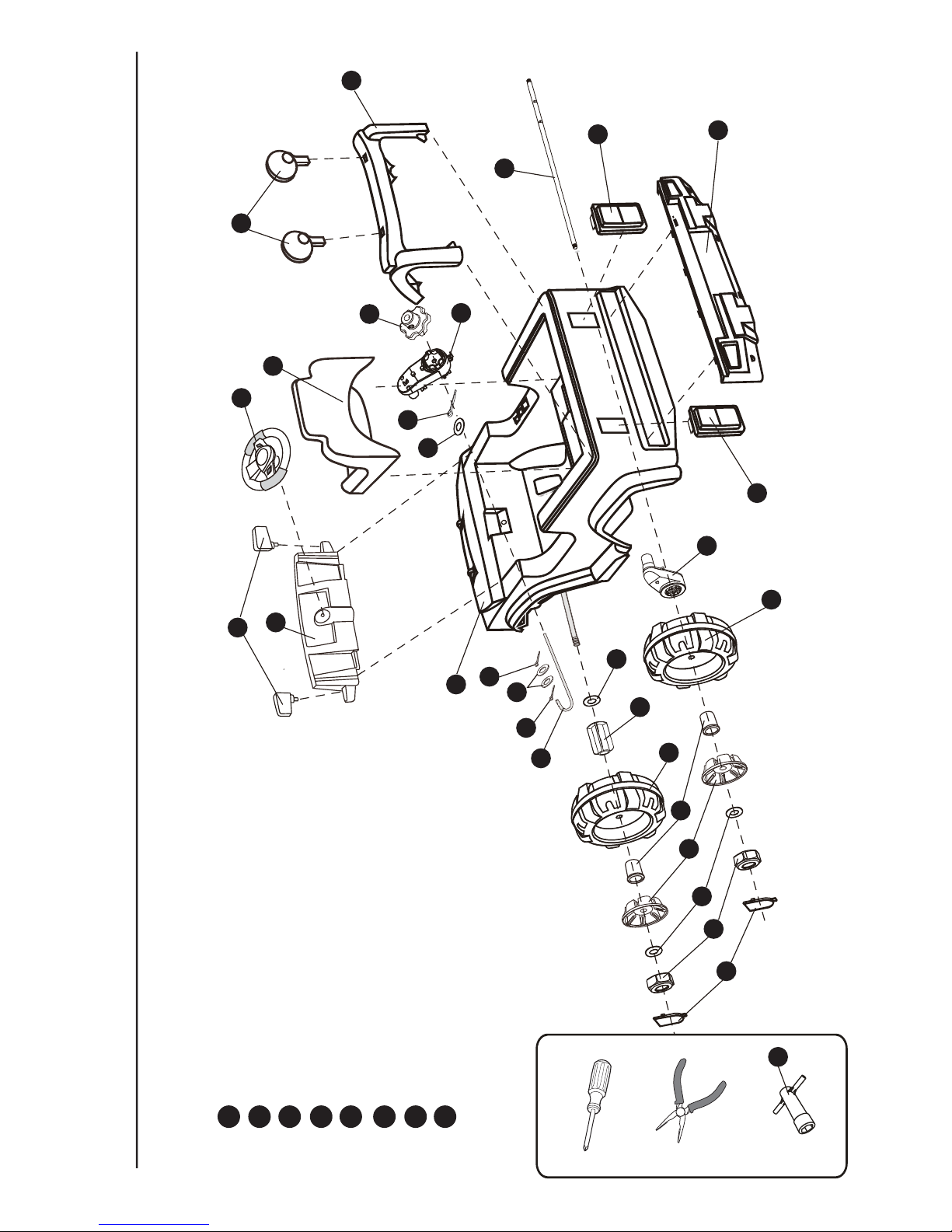

Parts Diagram
NOTE: Some parts shown are assembled on both sides of vehicle.
Tools Required
Screwdriver(not included)
Spanner
Pliers(not included)
Parts Not Shown:
Charger Ø5 nut M5x45 machine screw Ø4x12 screws Ø4x16 screws
20 10 22
F
G
Charger Ø5 nut M5x45 machine screw Remote controller M5x20 machine screw Ø5 locknut Ø4x12 screws Ø4x16 screws
20 10 22 24 23 27
F
G

1
2
Assembly Steps
• Your new vehicle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
• Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
• Assembly tool for need: screwdriver(not included) , pliers(not included)and spanner.
Ø4x16 screws
Rear bumper
Larger tab
up

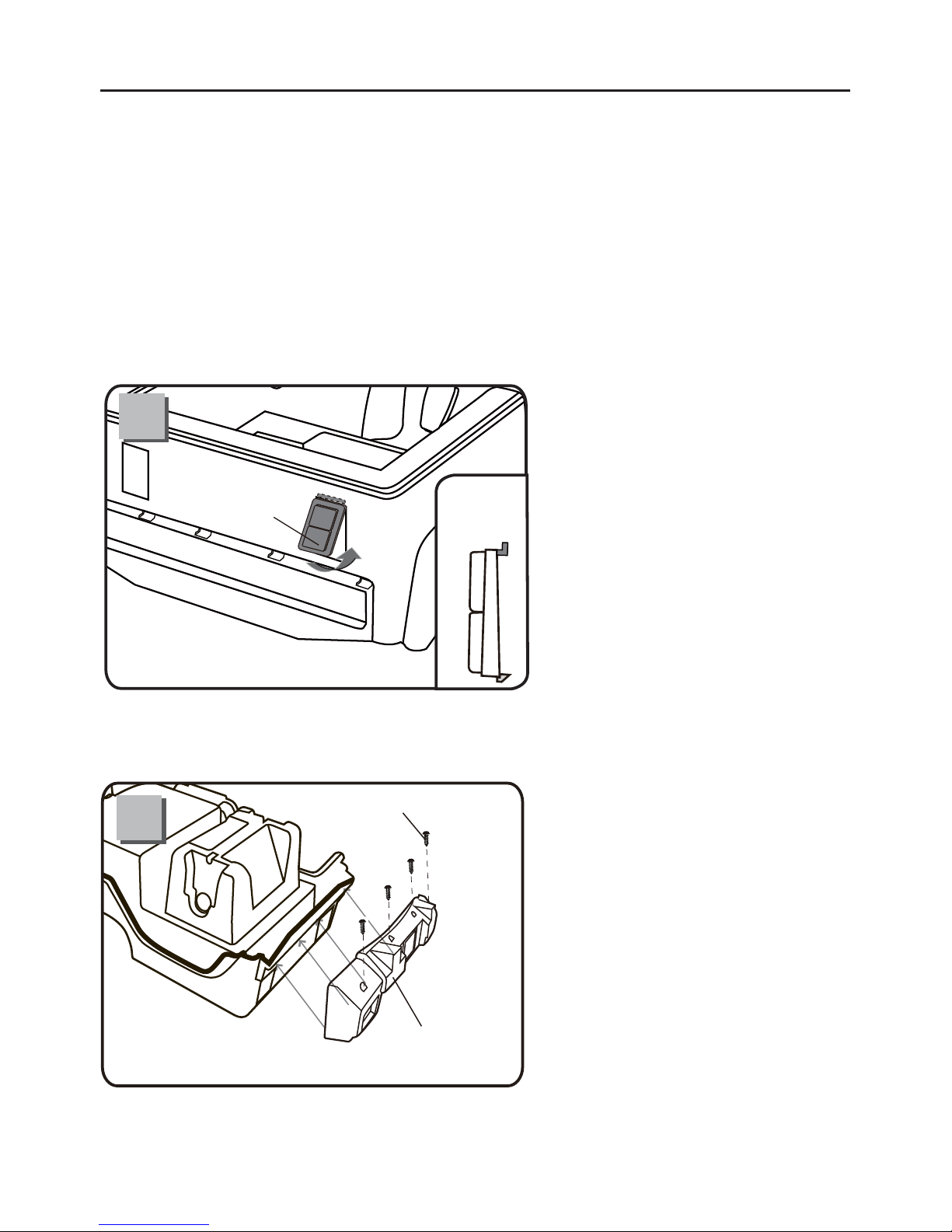

Taillight
●Turn the vehicle body upside down.
●Insert the tabs on the rear bumper into
the slots in the vehicle body, insert four
Ø4x16 screws and tighten with a
screwdriver.
●Insert the larger tab of taillight through
square opening in the vehicle. Push other end
to click the taillight into place.
●Repeat for the other taillight.

3
Assembly Steps
Rear axle
Rear axle
Ø12 washer
2WD

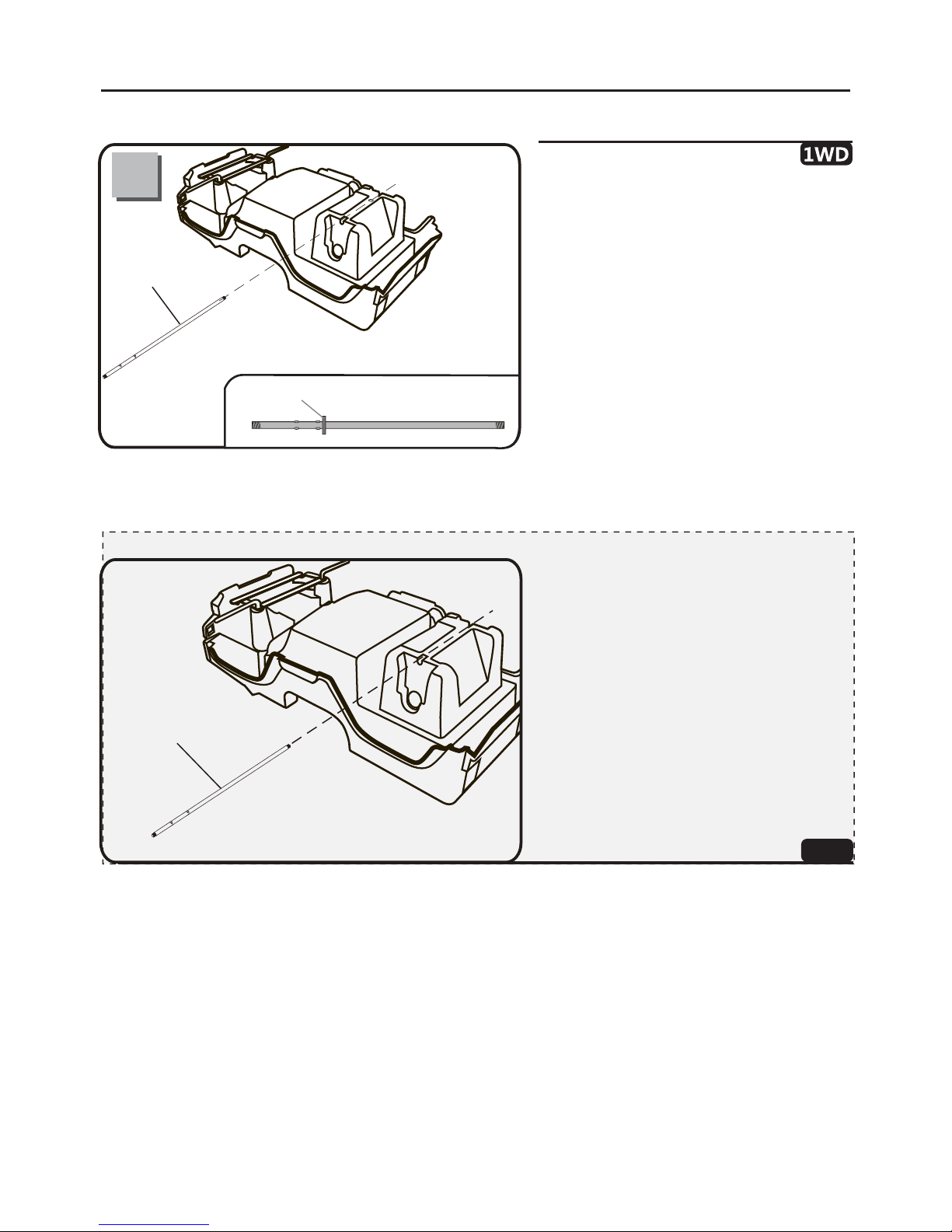

●Turn the vehicle body downside
up.
●Remove all the parts from the rear
axle.
●Slide a Ø12 washer onto the rear axle
from the longer end.
●Insert the rear axle through the hole in
vehicle body.
●Turn the vehicle body downside up.
●Remove all the parts from the rear
axle.
●Insert the rear axle through the hole in
the vehicle body.

4
Assembly Steps
Gear box
Rear axle Ø12 washer
Ø10 locknut
Cap nut
Ø12 outer bush
Wheel cover
Driving wheel
●Fit the gear box onto the rear axle, make the motor on the gear box pass through the hole in the vehicle
body wall.(NOTE: "R" labeled gear box should be fit to the "R" side of vehicle body; "L" labeled gear box
should be fit to the "L" side of vehicle body)
●Fit the driving wheel onto the rear axle, the driving wheel should match with the gear box.
●Fit a Ø12 outer bush onto the rear axle, the outer bush should match with the driving wheel.
●Fit a wheel cover onto the rear axle.
●Fit a Ø12 washer onto the rear axle.
●Fit a Ø10 locknut onto the end of the rear axle and tighten with the spanner. (DO NOT over-tighten)
●Insert the tabs on the cap nut into the slots in the wheel cover and make it click into place.
●Repeat for the other driving wheel. 2WD
●Fit the gear box onto the rear axle from the right side.(Face the rear of the vehicle)
●Fit the driving wheel onto the rear axle, the driving wheel should match with the gear box.
●Fit a Ø12 outer bush onto the rear axle, the outer bush should match with the driving wheel.
●Fit a wheel cover onto the rear axle.
●Fit a Ø12 washer onto the rear axle.
●Fit a Ø10 locknut to the end of the rear axle and tighten with the spanner. DO NOT over-tighten.
●Insert the tabs on the cap nut into the slots in the wheel cover and make it click into place.

5
Assembly Steps
IMPORTANT SUPPLEMENT TO INSTRUCTION MANUAL
After assembling any wheel to the axles, please check the gap between the
screw thread and the collapsible (refer to below picture), if the gap is too big, please
add two or three washers inside the wheel, But after tightening the nut outside the
wheel, please turn the wheel by your finger to check if the wheel can run smoothly,
this is very important, because if the wheel can run smoothly, it is ok, but if the nut
press the wheel and the wheel can’t run smoothly, the motor will be broken easily!
Then you need to decrease one or two washers to make sure the wheel can run
smoothly!
GAP

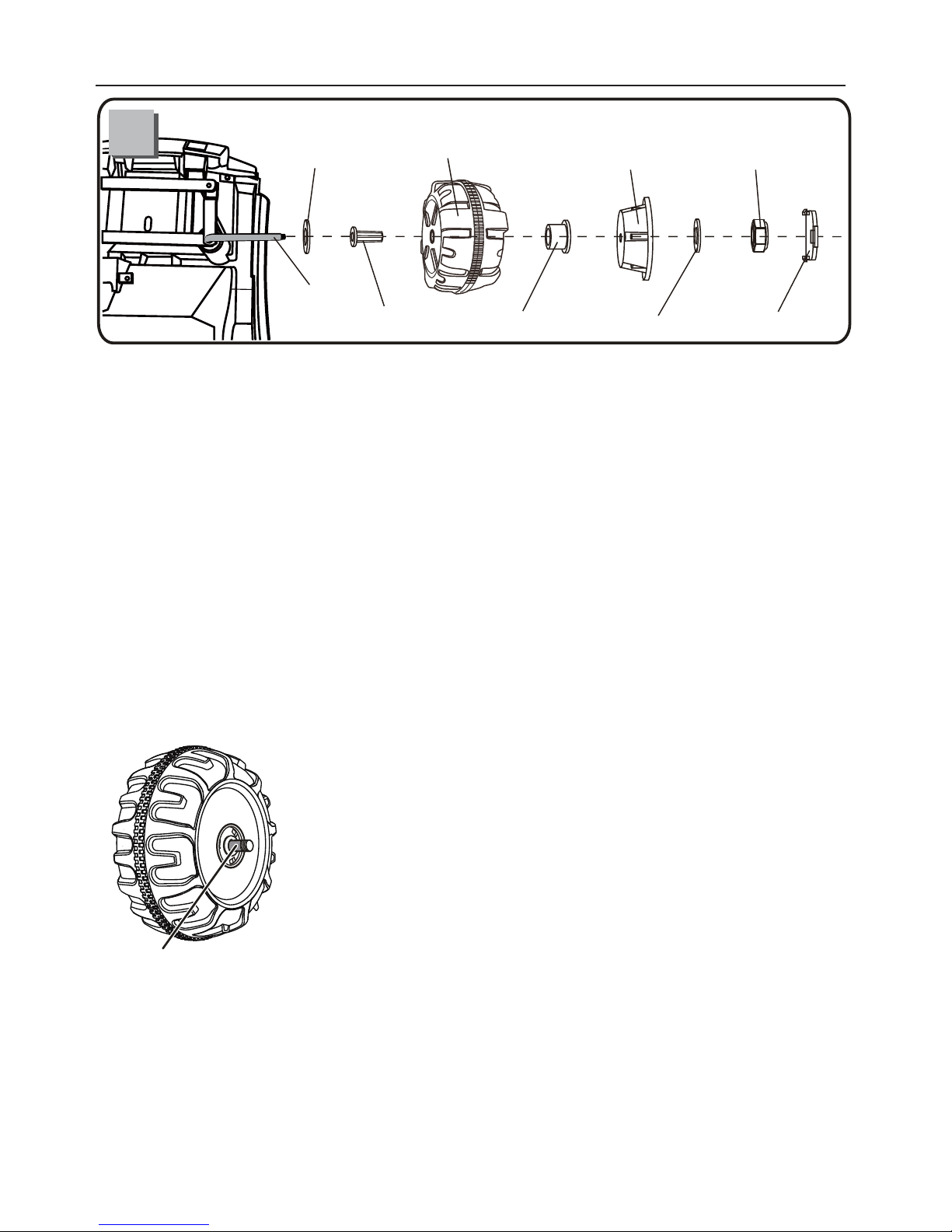

Front axle
Ø12 washer Wheel Ø10 locknut
Cap nut
Ø12 inner bush Ø12 outer bush Ø12 washer
Wheel cover
●Remove all the parts from the front axle.
●Fit a Ø12 washer onto the front axle.
●Fit a Ø12 inner bush onto the front axle.
●Fit a wheel onto the front axle and keep the inner bush match with the wheel.
●Fit a Ø12 outer bush onto the front axle and keep it match with the wheel.
●Fit the wheel cover onto the front axle.
●Fit a Ø10 locknut to the end of the front axle and tighten with the spanner. (DO NOT over-tighten, keep the
wheel can run smoothly)
●Insert the tabs on the cap nut into the slots in the wheel cover and make it click into place.
●Repeat for the other two wheel(s).

66-1 6-2
6-3
12
7
3
Assembly Steps
Ø10
washer
Ø10 washer
Ø10 washer
Split
pin
Split pin
Split pin
Steering shaft
Steering
shaft Front axle
plate

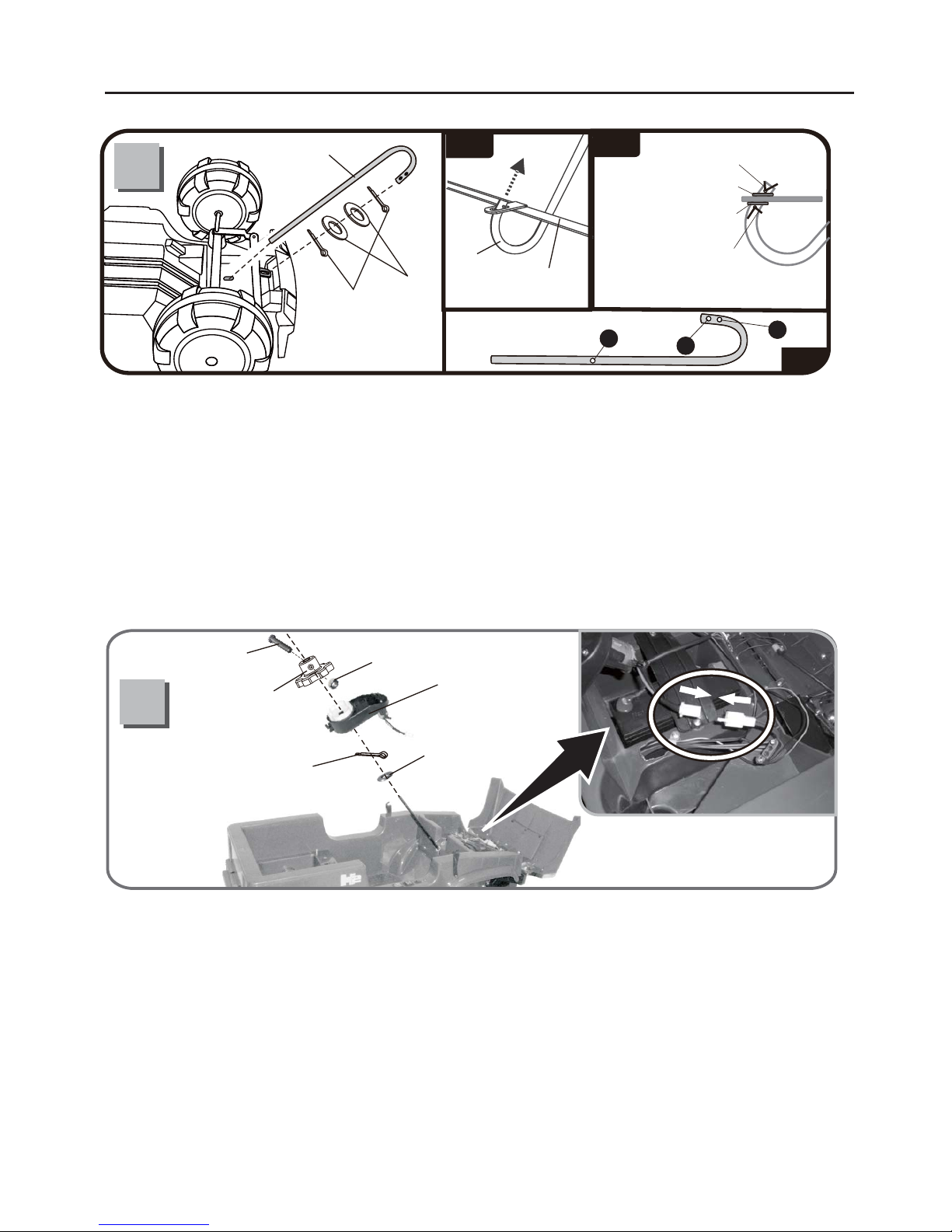

●Turn the vehicle body on its side.
●Insert the straight end of the steering shaft through the hole in the vehicle body.
●Insert a split pin through the hole ②in the steering shaft, bent the ends of the split pin back
using a pair of pliers. Fit and hold a Ø10 washer onto the steering shaft. Insert the bend end of the
steering shaft in the hole in the front axle plate (image 6-1). Fit another Ø10 washer onto the
steering shaft. Insert another split pin through the hole ①in the steering shaft, bent the ends of
the split pin back using a pair of pliers.
●Turn the vehicle body upright.
●Turn the bonnet latches on the both sides of vehicle and open the bonnet.
●Fit a Ø10 washer onto the steering shaft. And insert a split pin through the hole③(image 5-3) in the
steering shaft, bend the ends of the split pin back using a pari of pliers.
●Fit the direction motor onto the steering shaft.
●Fit the remote control device onto steering shaft, make the remote control device match with the direction
motor. Line up the hole in the remote control with the hole in the steering shaft. Insert the M5x20 machine
screw and Ø5 locknut back in the same location, and tighten with a screwdriver.
●Plug the connector on the steering motor into the connector on the vehicle body. Push firmly to make sure
the connectors are completely joined.
Ø10 locknut
Direction motor
M5x20
machine screw
Remote
contorl device
Ø10 washer
Split pin

78
9
9-1
9-2
8-1
8-2
8
Assembly Steps
Ø4x12 screws
Ø5 nut
Steering wheel
Steering shaft
M5x45
machine screw
View mirrors
Dashboard
●Use a screwdriver to remove the battery cover and insert two dry(AA) batteries, replace the
battery cover.(image 9-1)
NOTE: The product does not included dry(AA) battery.
●Remove the M5x45 machine screw and
Ø 5 nut from the steering wheel.
●Insert the steering wheel onto the end of the steering shaft.
●Insert the M5x45 machine screw through the steering wheel and steering shaft, and tighten
the
Ø 5 nut. (image 9-2)
●Fit the view mirror into the hole in the vehicle body and push until you hear it click into place.
●Repeat for the other side.
●Fit the dashboard assembly against the vehicle and keep the steering shaft pass through the
hole in the dash.
●Plug the Red and Black wires connecotr on the dash into the Red and Black wires connector on
the vehicle (image 8-1), plug the Yellow wires connecotr on the dash into the Yellow connector on
the vehicle (image 8-2).
●Insert four Ø4x12 screws and tighten with a screwdriver.

10
11
10-1
10-2
Assembly Steps
Ø4x16 screws
(round head)
Seat
Ø4x16 screws
Searching
lights
Light bar
●Inset the tabs on searching light into the
hole in the light bar, and push until you hear it
click into place.
●Repeat for the other searching light.
●Fit and hold the light bar assembly against
the vehicle body, insert four Ø4x16 screws
through the light bar assembly and into the
vehicle. Tighten the screws with a
screwdriver.
Power
connector
Battery

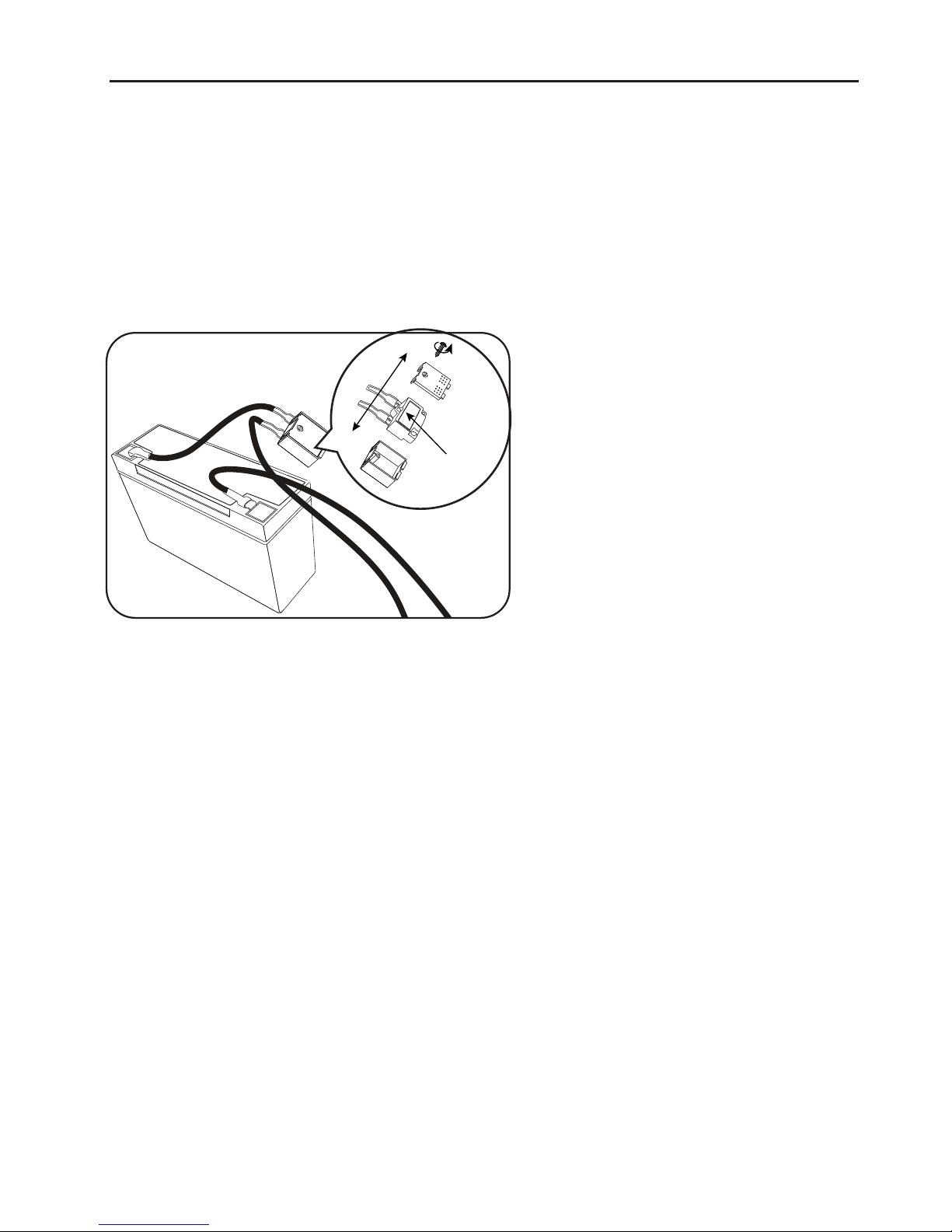

●Plug the motor connector(s) into the vehicle connector(s) under the seat.(image 10-1)
●Remove
Ø4x16 round head screws in the vehicle with a screwdriver.
●Fit the seat against the vehicle and tighten the screws with a screwdriver.
●Plug the power connector into the terminal on battery under the bonnet.(image 10-2)
●Close the bonnet.

How To Operate Your Vehicle
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION
IS REQUIRED. Always keep child in view when child is in vehicle.
• Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Suitable for age 37~96 months; Maximum user weight is 30kgs.
Rules for Safe Riding
READTHESE RULESALOUDTOYOUR CHILDANDTHEIR PLAYMATES AND MAKE SURE
THEY UNDERSTAND THEM!
• Important! Before using the vehicle for the first time, the battery needs to be charged for 4 to 6 hours, no
more than 10 hours. Only an adult can charge or recharge the battery.
• Make sure all places with the screw has already been locked.
Must confirm before using that following work which is already finished:
• This vehicle has adjustable play seat belts. please instruct children how to tie the safety belt before using,
guarantee the security.
• Always wear a helmet when riding.
• Direct Adult Supervision Required.
• Keep Children within Safe Riding Areas.
• Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps, swimming
pools or other bodies of water;
• Use the toy only on flat surfaces. such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the
vehicle only in the daytime or a well-lit area.
• It is not recommended to drive the vehicle on wet surfaces or on lopes of greater than 15 degrees.
• Do not use this vehicle outdoors when it is raining or snowing.
• Make sure you come to a complete stop before changing directions from forward to back.
• Please follow the correct weight and age limits allowed to drive this vehicle.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• In order to avoid accidents, please ensure the vehicle is safe before riding.
• Do not let any child touch the wheels or be near them when the car is moving .
WARNING!

How To Operate Your Vehicle
Use Operation
Forward-backward
switch
Foot pedal
Sound buttons
Power switch
Forward-backward
switch
Sound buttons
Foot pedal High/Low speed
switch
Power swtich
IMPORTANT!
Always stop vehicle
when changing the
speed or direction to
avoid damage the gears
and motor.
Make sure your child
knows how to steer, how
to start and stop the
vehicle and knows the
rules for safe driving. The
vehicle can be driven at a
maximum of 3~5 km/h.
ADVANCED USE -
High speed Drive
A
Use Operation B
FORWARD
1.Press the “Forward-backward switch” on the “Forward” position.
2.Press the “Foot pedal”, the vehicle drives forward.
STOP
The vehicle will stop automatically, when your child’s foot remove from the “Foot pedal”.
REVERSE
1.Press the “Forward-backward switch” on the “Backward” position.
2.Press the “Foot pedal”, the vehicle drives backward.
SOUND BUTTON
Press the buttons on the steeirng wheel for sound playing.
HIGH/LOW SPEED SWITCH (OPTIONAL)
The switch operates the vehicle to move in low or high speed.
2WD
Audio input
(OPTIONAL)
Audio input
(OPTIONAL)
CONVERSION
SWITCH
Power switch
Use Operation
CONVERSION
SWITCH
H/LSPEED

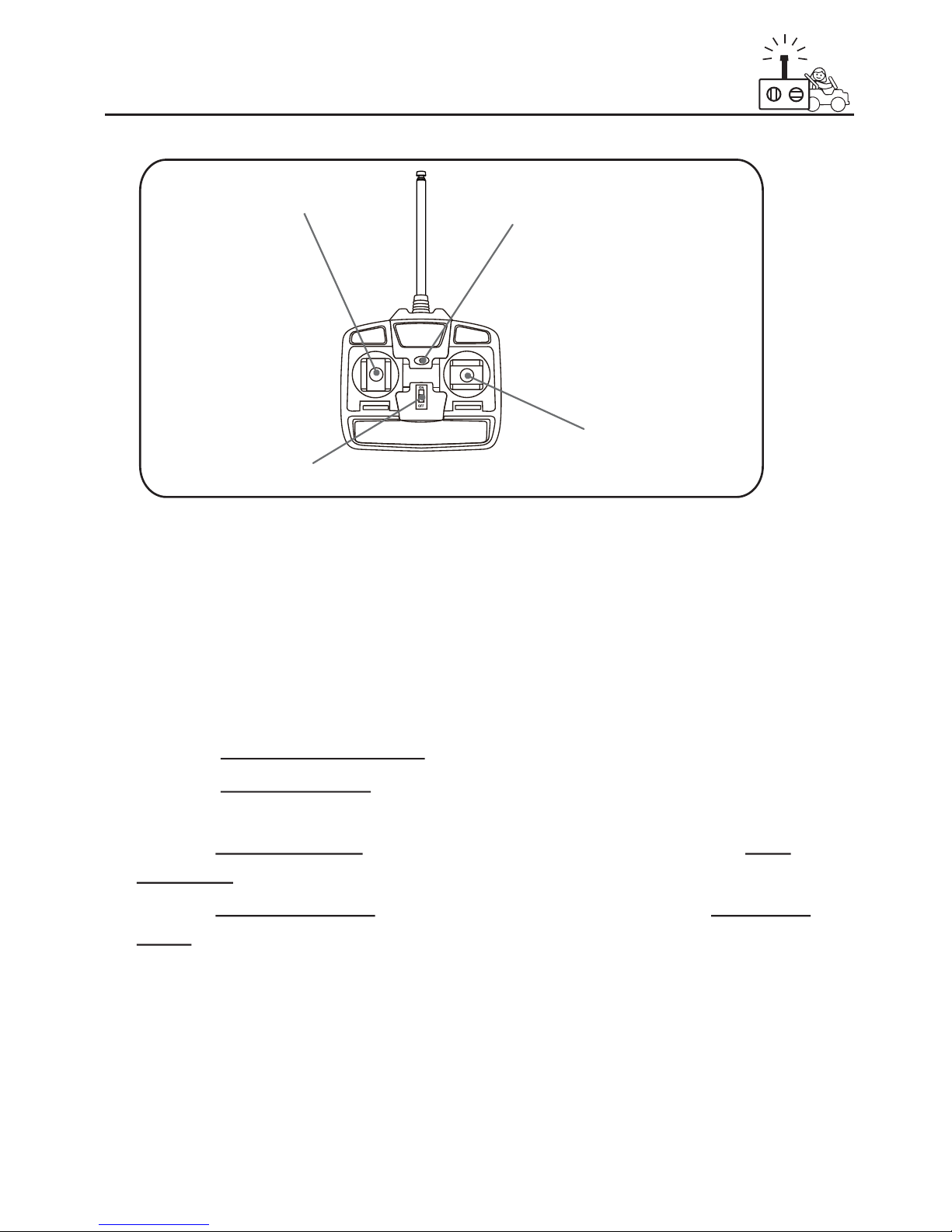

HOW TO USE THE REMOTE CONTROLLER
1. Press the CONVERSION SWITCH on the vehicle to the “Remote control” position.
2. Press the ON-OFF SWITCH on the remote controller to the “ON” position, the
indicator light will be lighting.
3. Push the LEFT JOY STICK to the front, the vehicle goes forward, pull the LEFT
JOY STICK to the back, the vehicle goes backward.
4. Push the RIGHT JOY STICK to the left, the vehicle turn left, push the RIGHT JOY
STICK to the right, the vehicle turns right.
ON-OFF SWITCH
ASSEMBLY
OPERATION
INDICATOR LIGHT
RIGHT JOY STICK
LEFT JOY STICK
ADULT OPERATING REQUIRED
1. Insert the the antenna into the controller by tweak the antenna clockwisely;
2. Lift the the battery compartment door on the back of the controller and insert two
AA(LR6) batteries.
NOTE: This product does not includ theAA(LR6) batteries.

Charging Your Vehicle
• The charging input socket is UNDER THE SEAT.
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than
10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20 hours at most.
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
• PREVENT FIRE AND ELECTRIC SHOCK:
- Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery
or the charger with another brand. Using another battery or charger my cause a fire or explosion.
- Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or
explosion or my permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge
the battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a
fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
• Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm. Wash hands after
handling.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and
corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.•
Only adults may handle or charge the battery. NEVER allow child to handle or charge the
battery. Battery is heavy and contains lead acid (electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord
and the connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a
month if not used regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips
over.
WARNING!

1
1. Open the cover of the socket (the socket is under the rear light bar)
2. Plug the charger port into the input socket.
3. Plug the charger plug into a wall outlet. The battery will begin charging.
WARNING!
This product with CHARGING PROTECTION: When charging, all the functions will be cut off!
Charging Your Vehicle

Troubleshooting Guide
PROBLEM: The vehicle does not run
PROBLEM CAUSE: The battery may low on power.
After each use, or once a month minimum, charge the battery for a full 10 hours. Do not leave the
battery on the charger for more than 20 hours.
POSSIBLE CAUSE: Thermal fuse has tripped.
POSSIBLE CAUSE: Wheel nuts are loose.
POSSIBLE CAUSE: Battery connector or wires are loose.
POSSIBLE CAUSE: Battery is dead.
POSSIBLE CAUSE: Electric system is damaged.
Water may have corroded the system, or loose dirt, gravel or sand might have jammed the switch.
Make sure the battery connector and adapter connector are firmly plugged together.
Make sure the charger is plugged into the wall outlet and the power flow to the outlet is on.
POSSIBLE CAUSE: Motor is damaged.
The motor needs professional repair.
If the nuts are not tight, the wheels will not engage the forward gears. Tighten the nut with the nut wrench.
Make Sure the battery connectors are firmly plugged in to each other.
Have you properly maintained the battery according to the directions? Is the battery old? Your
battery may need to be replaced.
■
■
PROBLEM: The battery will not recharge.
POSSIBLE CAUSE: Battery connector or adapter connector is loose.
POSSIBLE CAUSE: Charger is not plugged in.
POSSIBLE CAUSE: Charger is not working.
Is the charger warm while charging? If not, the charger may be broken and may need to be replaced.
To avoid the fuse cut off the power, follow these
guidelines:
DO NOT overload the vehicle, Maximum weight
allowed :30kg
DO NOT tow anything behind the vehicle.
DO NOT drive up steep slopes.
DO NOT drive into fixed objects, which may cause the
wheels to spin, causing the motor to overheat.
DO NOT drive in very hot weather, components may
overheat.
DO NOT tamper with the electric system, Doing so
may create a short circuit, causing the fuse to trip.
The vehicle is equipped with a self-resetting fuse. When the vehicle is overloaded or operated
incorrectly; the self-resetting fuse will be cut off for 15-20seconds before becoming operational
again. The self-resetting fuse is under the seat (Refer to the picture.)
Fuse
Battery

Troubleshooting Guide
Maintaining Your Vehicle
POSSIBLE CAUSE: Battery may be undercharged.
POSSIBLE CAUSE: Battery is old.
PROBLEM: Battery buzzes or gurgles when charging.
PROBLEM: Charger feels warm when recharging battery.
This is normal and not a cause for concern.
PROBLEM: The vehicle does not run very long.
■
■
■
You may not be charging the battery long enough. After each use, or once a month minimum, charge the
battery for 8 to 10 hours. Do not leave the battery on the charger for more than 20 hours.
The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and
varying conditions, the battery should operate for one to three years. Replace the battery with a
new one.
This is normal and not a cause for concern. It may also be silent when charging, which is also normal.
• It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential
hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and
that in the event of such damage, the toy must not be until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least
once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the vehicle
in rainy or snowy weather. Water will damage the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do
not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage moving parts, motors or the
electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the
battery connection.
