ECX BOOST ECX03032T1 User manual

Congratulations on your purchase of the ECX®
Boost™Electric Buggy. This 1/10-scale model
introduces you to the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des ECXBoost
Electric Buggy. Dieses 1/10 Scale Model öffnet
Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l’achat de l' ECXBoost
Electric Buggy. Ce modèle 1/10 vous initie à la
conduite RC.
Congratulazioni per l’acquisto di questo Boost
Electric Buggy ECX. Questa vettura in scala 1/10
vi introdurrà nel mondo dei modelli RC.
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’UTILISATION
MANUALE DI ISTRUZIONI
1/10 ELECTRIC BUGGY
ECX03032T1 | ECX03024AU | ECX03032IT1
ECX03032T2 | ECX03024AU | ECX03032IT2
®

2
EN
boost™
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For
up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product.
Safety Precautions andWarnings
As the user of this product, you are solely responsible for operat-
ing in a manner that does not endanger yourself and others or
result in damage to the product or property of others.
This model is controlled by a radio signal subject to interference
from many sources outside your control. This interference can
cause momentary loss of control, so it is advisable to always
keep a safe distance in all directions around your model as this
margin will help avoid collisions or injury.
• Neveroperateyourmodelwithlowtransmitterbatteries.
• Alwaysoperateyourmodelinopenspacesawayfrom
full-size vehicles, traffic and people.
• Neveroperatethemodelinthestreetorinpopulatedareas
for any reason.
• Carefullyfollowthedirectionsandwarningsforthisandany
optional support equipment (chargers, rechargeable battery
packs, etc.) you use.
• Keepallchemicals,smallpartsandanythingelectricaloutof
the reach of children.
• Neverlickorplaceanyportionofthemodelinyourmouthas
it could cause serious injury or even death.
• Exercisecautionwhenusingtoolsandsharpinstruments.
• Takecareduringmaintenanceassomepartsmayhavesharp
edges.
• Immediatelyafterusingyourmodel,doNOTtouchequipment
such as the motor, electronic speed control and battery,
because they generate high temperatures. You may burn
yourself seriously touching them.
• Donotputfingersoranyobjectsinsiderotatingandmoving
parts, as this may cause damage or serious injury.
• Alwaysturnonyourtransmitterbeforeyouturnonthe
receiver in the car. Always turn off the receiver before turning
your transmitter off.
• Keepthewheelsofthemodeloffthegroundwhenchecking
the operation of the radio equipment.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.
ThisisasophisticatedhobbyproductandNOTatoy.Itmustbeoperatedwithcautionandcommonsenseandrequiressomebasic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product
or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible
components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains
instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual,
prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility
of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious
injuryORcreateahighprobabilityofsupercialinjury.
Safety Precautions and Warnings ....................................2
Water-Resistant Vehicle
with Waterproof Electronics.......................................3
Specifications ................................................................3
Components....................................................................4
Vehicle Preparations ....................................................4
Charging the Vehicle Battery ............................................4
Initial Charge.....................................................................4
Charging Warnings ...........................................................4
Installing Transmitter Batteries ........................................5
Transmitter Battery Safety Precautions............................5
Removing the Vehicle Body ..............................................5
Installing the Battery in the Vehicle .................................5
Transmitter controls ..........................................................6
RF Mode............................................................................6
Getting Started..................................................................7
Installing the Vehicle Body ...............................................7
Operation.........................................................................8
When you are Finished.................................................8
Motor Care......................................................................8
Maintenance ..................................................................9
Setting the Gear Mesh......................................................9
Electronic Speed Control (ESC).........................................9
Electrical Layout................................................................9
Shock Cleaning..................................................................10
Fasteners...........................................................................10
Binding ..............................................................................11
Troubleshooting Guide ......................................................11
Limited Warranty...........................................................12
Contact Information ..........................................................12
FCC Information..............................................................13
IC Information.................................................................13
Compliance Information for the European Union..............13
Parts Diagrams.........................................................................52
Parts Lists..........................................................................54
TABLE OF CONTENTS
Age Recommendation: Not for children under 14 years. This is not a toy.

3
EN
boost™
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS
Your new Horizon Hobby vehicle has been designed and built with
a combination of waterproof and water-resistant components to al-
low you to operate the product in many “wet conditions,” including
puddles, creeks, wet grass, snow and even rain.
While the entire vehicle is highly water-resistant, it is not
completelywaterproofandyourvehicleshouldNOTbetreated
like a submarine. The various electronic components used in the
vehicle, such as the Electronic Speed Control (ESC) and servo(s)
are waterproof, however, most of the mechanical components are
water-resistant and should not be submerged.
Metal parts, including the bearings, hinge pins, screws and nuts,
as well as the contacts in the electrical cables, will be susceptible
to corrosion if additional maintenance is not performed after run-
ninginwetconditions.Tomaximizethelong-termperformance
of your vehicle and to keep the warranty intact, the procedures
described in the “Wet Conditions Maintenance” section below
must be performed regularly if you choose to run in wet conditions.
If you are not willing to perform the additional care and mainte-
nance required, then you should not operate the vehicle in those
conditions.
CAUTION:Failuretoexercisecautionwhileusingthis
product and complying with the following precautions
could result in product malfunction and/or void the warranty.
General Precautions
• Readthroughthewetconditionsmaintenanceproceduresand
make sure that you have all the tools you will need to properly
maintain your vehicle.
• Notallbatteriescanbeusedinwetconditions.Consultthe
battery manufacturer before use. Do not use Li-Po batteries in
wet conditions.
• Theincludedtransmitterisnotwaterprooforwater-resistant.If
using a different transmitter than the one included, consult your
transmitter's manual or the manufacturer before operation.
• Neveroperateyourtransmitterorvehiclewherelightningmay
be present.
• Donotoperateyourvehiclewhereitcouldcomeincontact
with salt water (ocean water or water on salt-covered roads),
contaminated or polluted water. Salt water is very conductive
and highly corrosive, so use caution.
• Evenminimalwatercontactcanreducethelifeofyourmotorif
it has not been certified as water-resistant or waterproof. If the
motorbecomesexcessivelywet,applyverylightthrottleuntil
the water is mostly removed from the motor. Running a wet
motor at high speeds may rapidly damage the motor.
• Drivinginwetconditionscanreducethelifeofthemotor.
Theadditionalresistanceofoperatinginwatercausesexcess
strain. Alter the gear ratio by using a smaller pinion or larger
spur gear. This will increase torque (and motor life) when
running in mud, deeper puddles, or any wet conditions that will
increasetheloadonthemotorforanextendedperiodoftime.
Wet Conditions Maintenance
• Removethebatterypack(s)anddrythecontacts.Ifyouhavean
air compressor or a can of compressed air, blow out any water
that may be inside the recessed connector housing.
• Removethetires/wheelsfromthevehicleandgentlyrinsethe
mud and dirt off with a garden hose. Avoid rinsing the bearings
and transmission.
NOTICE: Never use a pressure washer to clean your vehicle.
• Useanaircompressororacanofcompressedairtodrythe
vehicle and help remove any water that may have gotten into
small crevices or corners.
• Spraythebearings,drivetrain,fastenersandothermetalparts
with a water-displacing light oil or lubricant. Do not spray the
motor.
• Letthevehicleairdrybeforeyoustoreit.Water(andoil)may
continue to drip for a few hours.
• Increasethefrequencyofdisassembly,inspectionand
lubrication of the following:
• Frontandrearaxlehubassemblybearings.
• Alltransmissioncases,gearsanddifferentials.
• Motor—cleanwithanaerosolmotorcleanerandre-oilthe
bushings with lightweight motor oil.
Transmitter
Frequency 2.4GHz
Modulation DSMR, DSM2
Battery AAx4
Servo
Power Supply 4.8V~6V (shared with receiver)
OutputTorque 41.66oz(3kg-cm)
OperatingSpeed 0.23sec/60degreesoftravel
Size 55.6x18x30mm
Electronic Speed Control (ESC)
Input Voltage 6.0–8.4 V
Electric Capacity (FET) Forward 40A/180A
Electric Capacity (FET) Reverse 20A/90A
PWM Frequency 1kHz
BEC Voltage 5V/2A
Size 46.5x34x28.5mm
Weight 65 g
SPECIFICATIONS

4
EN
boost™
COMPONENTS
VEHICLE PREPARATIONS
1
CHARGINGTHEVEHICLE BATTERY
1. Connect the battery pack to the charger.
2. Connect the charger to an AC power source.
3.Allowthebatterypacktochargefor9hours.
CAUTION: If at any time during the charge process the
battery pack(s) becomes hot to the touch, unplug the
battery immediately and discontinue the charge process.
The vehicle battery charger produces 200 milliAmps per hour. Divide
the mAh capacity on the label of a battery by 200 to know how long
batterychargingwillrequire.Forexample,afullydischarged1800mAh
battery requires 9 hours to charge.
INITIAL CHARGE
Your Dynamite peak voltage detection charger includes safety circuit-
ry and programming allowing the charger to stop charging after 15
minutes, if it senses any issues that have come up in charging. The
high electrical resistance commonly found in new, unconditioned,
Ni-MH batteries can cause this safety circuit to activate turning the
charger off before a full charging cycle is complete. This is commonly
known as a “false peak” in your battery charge.
Shouldthisoccurduringyourrstchargecycle,itdoesnotneces-
sarily indicate a failure of either your charger or battery. Instead it
shows that the charger is functioning properly and that the battery is
not yet fully conditioned.
Tocompleteyourrstfullchargingcycleintheeventofafalsepeak,
restart the charger by pressing the Start button again. Repeat this
process until the charge cycle continues to charge past 15 minutes. It
maytakeasmanyas2to4restartstocompleteyourrstoneortwo
fullchargecycles.Onceyourchargercompletesachargecyclelonger
than15minutes,yourbatterywillbefullycharged.Atypicalrstfull
charge cycle should run for 9 hours, depending on the self-discharge
condition of the battery since it was shipped from the factory.
Onceyourbatteryisproperlyconditionedthroughafewfullchargeand
discharge cycles, you will see normal operation of the charger and a 9
hour charge cycle.
CHARGINGWARNINGS
WARNING:Failuretoexercisecautionwhileusingthis
product and comply with the following warnings could result
inproductmalfunction,electricalissues,excessiveheat,FIRE,and
ultimately injury and property damage.
• Readallsafetyprecautionsandliteraturepriortouseofthis
product.
• Neverleavethebatteryandchargerunattendedduringuse.
• Neverallowchildrenunder14yearsofagetochargebattery
packs.
• Neverattempttochargedeadordamagedbatteries.
• Neverchargeabatteryifthecablehasbeenpinchedorshorted.
• Neverallowbatteriesorchargertocomeintocontactwith
moisture at any time.
• Neverchargebatteriesinextremelyhotorcoldplaces
(recommended between 50–80°F (10–26°C)) or place in direct
sunlight.
• AlwaysuseonlyNi-MHrechargeablebatteries.Thischarger
cannot charge batteries such as “heavy duty”, “alkaline”,
“mercury” or “lithium” battery.
• Alwaysconnecttothechargercorrectly.
• Alwaysdisconnectthebatteryandchargerafterchargingandlet
them cool between charges.
• Alwaysinspectthebatterybeforecharging.
• AlwaysterminateallprocessesandcontactHorizonHobbyifthe
product malfunctions.
• Alwaysmakesureyouknowthespecificationsofthebatteryto
be charged or discharged to ensure it meets the requirements of
this charger.
• Alwaysconstantlymonitorthetemperatureofthebatterypack
while charging.
• Alwaysendthechargingprocessifthechargerorbattery
becomes hot to the touch or starts to change form during the
charge process.
• Alwayschargeinawellventilatedarea.
1. ECX®Boost™1/10-scale Electric Buggy
2. Spektrum™DX2E Transmitter
3.AA(4)Batteries
4. 200mA Peak Battery Charger
5. Dynamite®Speedpack™ 7.2V
Ni-MH battery (DYN1050EC)
2
5
3
4

5
EN
boost™
• Neverinstalldamagedbatteries.
• Neverinstallbatteriesofmixedtypesorofdifferentagesin
the transmitter.
• Alwaysremoveexhaustedbatteries.
• Alwaysremovebatteriesbeforestoringthetransmitter.
• LowbatterypowercanresultinlossofcontroloftheRC
vehicle.
TRANSMITTER BATTERY SAFETY PRECAUTIONS
REMOVINGTHE VEHICLE BODY
A
B

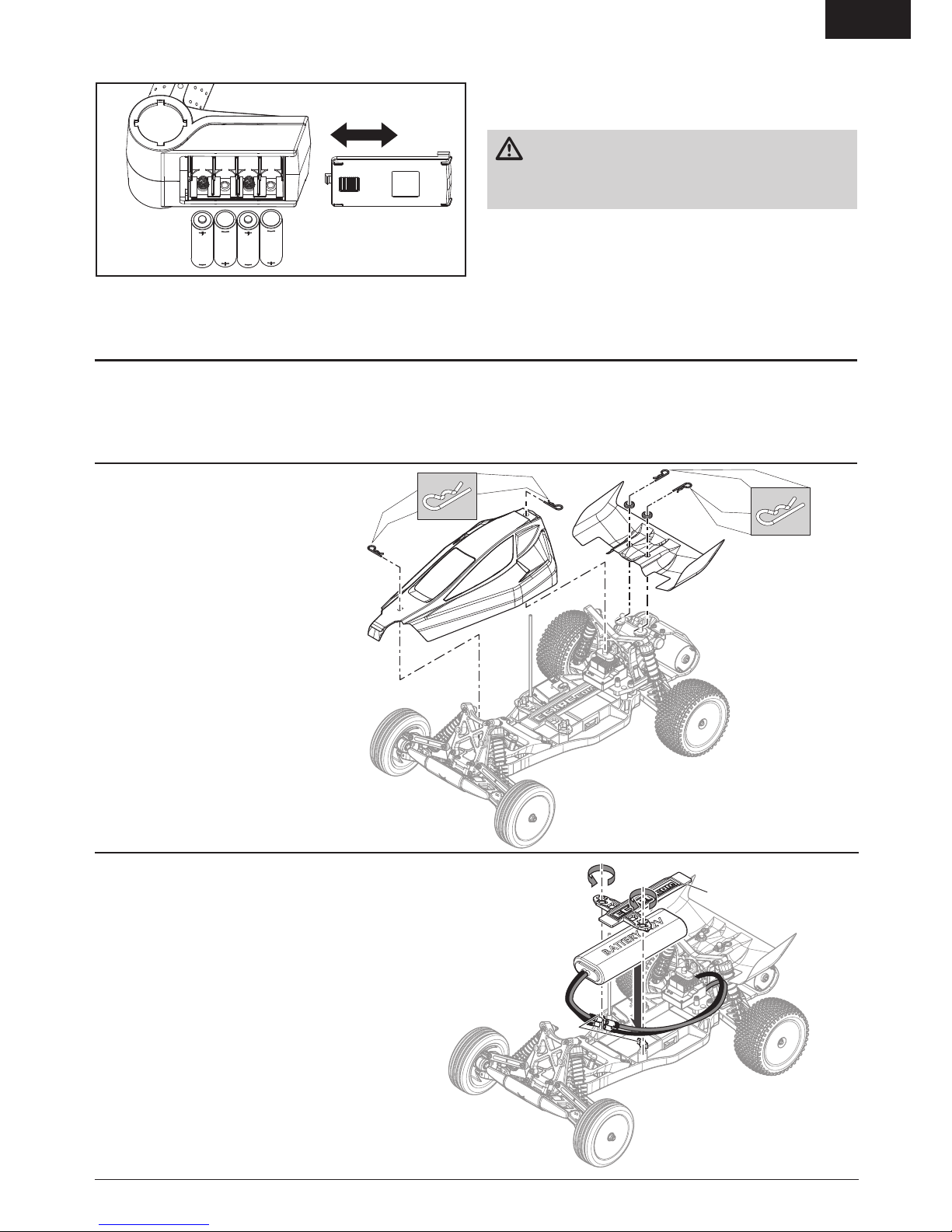

INSTALLINGTHE BATTERY INTHE VEHICLE
1. Turn the battery clips (A) clockwise to remove the battery strap (B).
2. Install a fully charged battery.
3.Installthebatterystrap.
4. Turn the battery clips counterclockwise to secure the battery strap.
If desired, you can put foam blocks (ECX2015) in front of the battery
so the weight of the battery increases rear traction or in back of the
battery to increase steering response.
INSTALLINGTRANSMITTER BATTERIES
1. Slide the panel open on the bottom of the transmitter.
2.Obeythebatteryplus(+)andminus(-)diagraminthe
transmitter to install 4 AA batteries.
3.Slidethepanelclosed.
We recommend using only alkaline AA batteries in the
transmitter, however, it is possible to use rechargeable NiMH
batteries.
CAUTION: If using rechargeable batteries, charge only
rechargeable batteries. Charging non-rechargeable
batteries may cause the batteries to burst, resulting in injury to
persons and/or damage to property.

6
EN
boost™
TRANSMITTER CONTROLS
BATTERY LEVEL
INDICATOR
Solid Green: Battery
voltage is good (above
4V).
Flashing Green: Battery
voltage is critically low
(below 4V). Replace
batteries.
THROTTLETRIM
Adjusts the neutral point
of the electronic speed
control.
STEERINGTRIM
Adjust to make the vehicle
drive straight with no input
at the steering wheel.
POWER SWITCH
Power on
or off the
transmitter.
STEERING WHEEL
Control steering. Right and
Left steering with ST. REV
Switch on N
(see ST. REV switch).
THROTTLETRIGGER
Controls power to motor for forward
or reverse (see TH. REV switch).
Stop
Reverse
(when TH.
REV switch
on N).
Forward
(when TH.
REV switch on N).
STEERING RATE
Adjusts the amount the
front wheels move when the
steering wheel is turned left
or right.
REVERSE SWITCH
Allows you to change the
direction of steering (ST. REV)
and throttle (TH. REV) controls
(default settings are “N” for
steering and “N” for throttle).
CHANGINGTHETRAVEL ADJUST SETTINGS
The travel function supports precise endpoint adjustments in
each direction for the steering and throttle channels.
1. Hold the trigger in the full brake position while powering
on the transmitter. The LED flashes rapidly, indicating the
programming mode is active.
2. Throttle End Point: Hold the trigger in the full throttle position.
Turn the TH TRIM knob to adjust the full throttle end point.
3.BrakeEndPoint:Holdthetriggerinthefullbrakeposition.
Turn the TH TRIM knob to adjust the full brake end point.
Return the trigger to the center position.
4. Left Steering End Point: Hold the steering wheel in the full left
position. Turn the ST TRIM knob to adjust the left end point.
5. Right Steering End Point: Hold the steering wheel in the full
right position. Turn the ST TRIM knob to adjust the right end
point. Return the steering wheel to the center position.
6. Power off the transmitter to save the travel adjust settings.
TheminimumTravelis75%,andtheMaximumtravelis
150%. The default travel settings are 125% steering and
100% throttle.

7
EN
boost™
GETTING STARTED

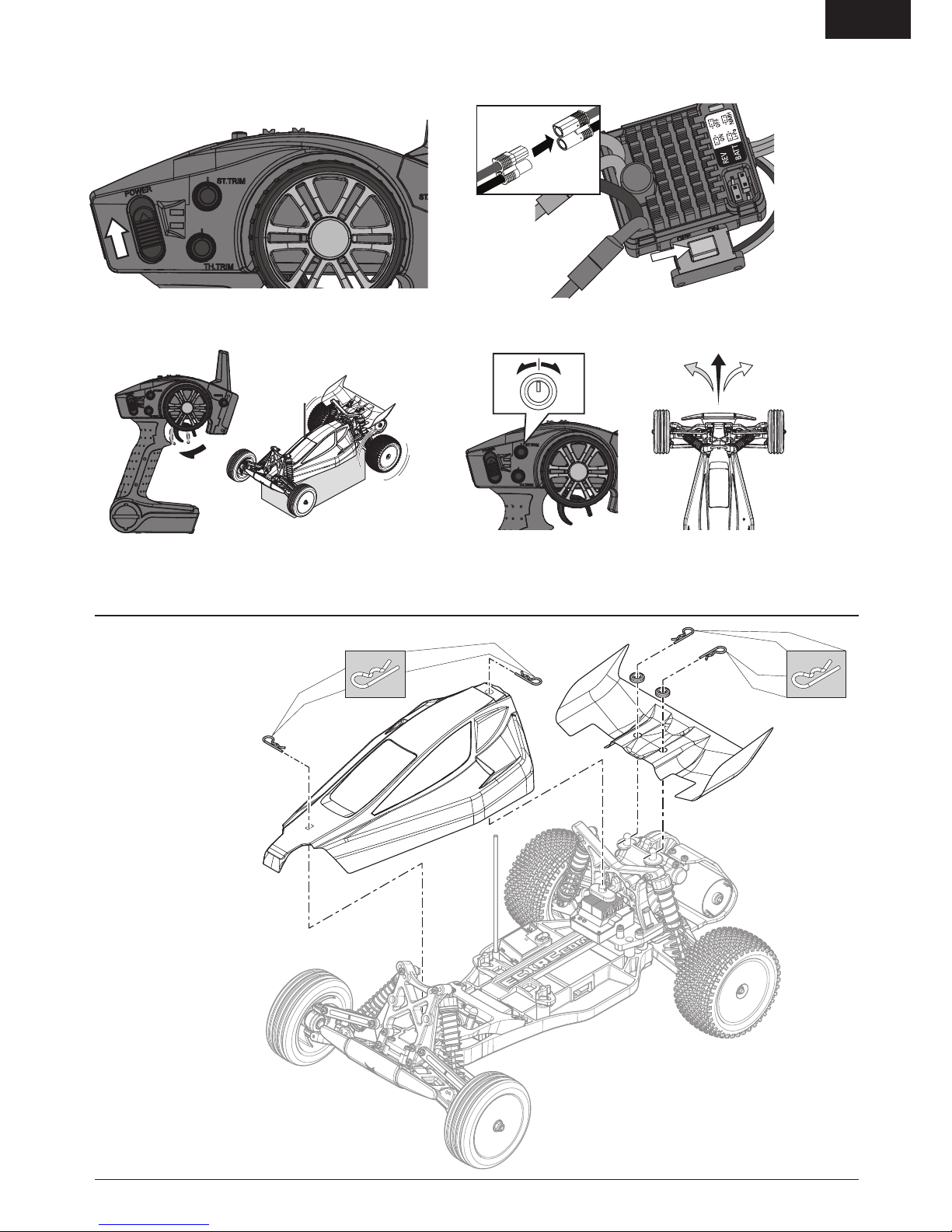

1. Power on the transmitter.
3.Doatestofthetransmitter’scontrolofthevehiclewith
the vehicle’s wheels off the ground. 4. Start driving slowly, and, if the vehicle does not go straight, adjust the steering trim dial on the transmitter.
IMPORTANT: Seat the motor brushes by driving smoothly
onaatsurfaceduringuseoftherstbatterycharge.
Properly seating the motor brushes will increase the life and
performance of the motor.
2. Power on the ESC.
INSTALLING THE VEHICLE BODY

8
EN
boost™
• ALWAYSturnonyourtransmitterbeforeyouturnonthe
receiver in the vehicle. Always power off the receiver before
turning your transmitter off.
• ALWAYSoperateyourvehicleinawideopenarea.Operating
the vehicle in a small space or indoors can cause overheating
atlowspeeds.Operatingatlowspeedincreasesheatinthe
electronicspeedcontrol(ESC).Overheatingcandamagethe
vehicle and failure may result.
OPERATION
WHENYOU ARE FINISHED
•Seatthemotorbrushesbydrivingsmoothlyonaflatsurface
during use of the first battery charge. Failing to do so can
greatly reduce motor performance and functional life.
•Prolongmotorlifebypreventingoverheatingconditions.
Unduemotorwearresultsfromfrequentturns,stopsand
starts, pushing objects, driving in deep water and tall grass,
and driving continuously up hill.
•Over-temperatureprotectionisinstalledontheESCto
prevent circuit damage, but cannot protect the motor from
driving against heavy resistance.
MOTOR CARE
1. Power off the Electronic
Speed Control (ESC). 2. Disconnect the battery.
4. Remove the battery from the vehicle.
3.Poweroffthetransmitter.
5. Recharge the battery.

9
EN
boost™
MAINTENANCE
SETTINGTHE GEAR MESH
The gear mesh has already been set at the factory. Setting the
gear mesh is only necessary when changing motors or gears.
You must remove the vehicle’s gear cover (A) to make this
adjustment.
Proper gear mesh (how the gear teeth meet) is important to the
performance of the vehicle. When the gear mesh is too loose, the
spur gear could be damaged by the pinion gear of the motor. If
the mesh is too tight, speed could be limited and the motor and
ESC will overheat.
Set the gear mesh by following these simple steps:
1. Loosen the 2 motor screws (B).
2. Put a small piece of paper (C) between the pinion and spur
gears.
3.Pushthegearstogetherwhiletighteningthemotorscrews.
4. Rotate the gears to remove the paper. The gearing should
move a small amount.
5. Reinstall the gear cover.
A
C
B
ELECTRICAL LAYOUT
For correct operation, Channels 1 and 2
must be used as shown in the wiring diagram.
The motor can be disconnected from the ESC
at the connectors in the wiring.
Part # Description
A DYN1172 Motor
B DYN1050EC Battery 7.2V
CSPMS603 Waterproof Steering
Servo
DSPMSR310 Receiver
E DYNS2210 Waterproof Electronic
Speed Control (ESC)
F Channel 1
G Channel 2
ELECTRONIC SPEED CONTROL (ESC)
Programming: The ESC comes with two jumpers pre-installed in
theREV:ONandBATT:Ni-MHcongurations.
To disable reverse or change battery type to Li-Po, disconnect the
jumper from the default port and connect it to the desired port.
Power off the ESC, then power it back on.
If the jumpers are lost or not installed, the ESC will default to
REV:ONandBATT:Li-Po.
Operation LED Status Sound at Power UP
Stop OFF
Forward Blinks
Forward (full speed) Solid
Reverse Blinks
Brake Blinks
Brake (full brake) Solid
Ni-MH/Ni-Cd Battery 1 Short Beep
2S Li-Po Battery 2 Short Beeps
ESC Ready 1 Long Beep
Battery Low Voltage Blinks
Overheat Blinks
LED
EC3EC3
A
B
CD
E
G
F

10
EN
boost™
SHOCK CLEANING
Oil-lledshockswillrequireregularmaintenanceduetothe
oil breaking down or getting dirty. This maintenance should be
performedafteraboutevery3to5hoursofuse,dependingon
the conditions that the vehicle is used in.
•Removetheshockfromthevehicle.
•Removethecapfromtheshockbodyanddisposeoffluid.
•Disassembletheshock.CleanthoroughlywithDYN5505.Dry
parts before assembly.
•Re-assembletheshockandrefilltheshockbodywithsilicone
fluid(30weightrecommended).
•Slowlymovetheshaftandpistonupanddowntoremoveair
bubbles.
•Movethepistontothemidwaypointofthebodyandinstall
the cap.
•Wipeoffanyoverflowingfluid.
•Whenproperlyfilled,thepistonshouldreboundabout3/8in
(9.5mm) after being pushed in fully.
• Re-installtheshockonthevehicle.
Ride Height Adjustment
Ride height is an adjustment that affects the way the vehicle
jumps, turns and goes over bumps. Drop one end of the
vehiclefromapproximately6inches(152mm)inheightonto
a flat surface. When dropping the front of the vehicle, after
the vehicle settles, make sure the front arms are equal and
parallel to the flat surface. Do the same with the rear to make
sure both arms are parallel with the flat surface.
Lowering the front ride height increases steering, but
decreases traction. Lowering the rear ride height increases
traction, but decreases steering.
Part # Description
ECX1036 Shock Body Set
ECX1037 Shock Caps, Pistons
ECX1038 Shock Parts Set
ECX1039 Front Shock Shaft (2)
ECX1040 Rear Shock Shaft (2)
ECX1041 Front Shock Springs (2)
ECX1042 Rear Shock Springs (2)
ECX1043 ShockO-RingSet
No. Description
TAPPING
BINDER HEAD
M3x10mm
TAPPING
BINDER HEAD
M3x12mm
TAPPING
FLAT HEAD
M3x15mm
TAPPING
FLAT HEAD
M3x12mm
TAPPING
FLAT HEAD
M3x10mm
TAPPING
BINDER HEAD
M3x18mm
TAPPING
FLAT HEAD
M2x16mm
TAPPING
BINDER HEAD
M3x16mm
No. Description
WASHER
5x7x0.5mm
E-CLIP E2.5
LOCK WASHER
FLANGED
LOCK NUT M4
WASHER
3x8x0.5mm
LOCK NUT M3
WASHER
2x7x0.5mm
SET SHAFT
SCREW
M3x13mm
No. Description
SETSCREW
M3x3mm
SETSCREW
M3x12mm
STEP SCREW
M3x0.5x13.4mm
STEP SCREW
M3x0.5x10.5mm
BUTTON
HEX
M2.5x4mm
BUTTON
HEX
M2.5x8mm
STEP SCREW
M3x0.5x7.4mm
No. Description
BINDER
HEAD
M3x8mm
BINDER
HEAD
M3x12mm
BINDER
HEAD
M3x20mm
BINDER
HEAD
M3x25mm
REAR SHOCK FRONT SHOCK
Front Shock
ECX1043
ECX1037
ECX1037
ECX1041
ECX1037
ECX1043
Rear Shock
ECX1036
ECX1038
ECX1038
ECX1043
ECX1037
ECX1037
ECX1038
ECX1042
ECX1040
ECX1057
ECX1037
ECX1043
ECX1038
ECX1039
ECX1036
ECX1038
ECX1038
ECX1037
ECX1057
FASTENERS

11
EN
boost™
Problem Possible Cause Solution
Short Run Time •Batterydamaged/notcharged
•Motordirtyorbrushesworn
•Check/changebattery
•Check/clean/replace
Sluggish Action •Motordirtyorbrushesworn
•Bindindrivetrain
•Vehiclebatteryisnotcharged
•Check/clean/replace
•Clean/adjust
•Replace/recharge
Controls Reversed •ST.REVorTH.REV •Changeswitchposition
Motor/ESC overheat •Over-gearedforthedrivingenvironment •Installsmallerpinion
Doesn’tOperate •Transmitterbatterieslow
•Transmitterpoweredoff
•ESCpoweredoff
•Vehiclebatteryisnotcharged
•Replace/recharge
•PowerOn
•PowerOn
•Replace/recharge
Poor Range •Transmitterbatterieslow
•Transmitterantennaisdamagedorloose
•Receiverantennadamaged
•Replace/recharge
•Check/tighten
•Check/repair/replace
The system will not
connect •Transmitterandreceivertooneareachother •Transmitterandreceivertoonearlarge
metal objects (vehicles, etc.)
•Receiveraccidentallyputinbindmodeso
receiver is no longer bound
•Movetransmitter8–12feet(2.4–3.6m)from
receiver
•Moveawayfromlargemetalobjects(vehicles,etc.)
•Rebindtransmitterandreceiver
The receiver goes into
failsafe mode a short
distance away from the
transmitter
•Checkthereceiverantennatobesureitis
not cut or damaged •ContactHorizonProductSupport •Makesurereceiverantennaisinanantennatube
and is above vehicle
The receiver quits re-
sponding during operation •Lowbatteryvoltage •Looseordamagedwiresorconnectors
between battery and receiver
•Completelyrechargebattery
•Doacheckofthewiresandconnectionbetween
battery and receiver. Repair or replace wires and/
or connectors
Receiver loses its bind •Transmitteraccidentallyputinbindmode,
ending bind to receiver •Bindtransmittertoreceiver
TROUBLESHOOTING GUIDE
BINDING
Binding is the process of programming the receiver to recognize
theGUID(GloballyUniqueIdentier)codeofasinglespecic
transmitter.TheDX2EandSR310areboundatthefactory.Ifyou
need to rebind, follow the instructions below.
1. With the receiver off, insert the bind plug into the BIND port
on the receiver.
2. Power the receiver through any other port. The orange LED
will flash continuously, indicating the receiver is in bind mode.
3.Withthesteeringwheelandthrottletriggerinthefailsafe
positions, normally full brakes and straight steering (see the
Failsafe section on this page for more information), press and
hold the bind button and turn on the transmitter. The green
LED on the front of the transmitter will flash within three
seconds, indicating the transmitter is in bind mode.
4. Release the bind button when the green LED flashes.
Continue to hold the steering wheel and throttle trigger in the
failsafe positions until the LED on the receiver glows solid.
5. The LED on the receiver will glow solid when the transmitter
and receiver are bound.
6. Remove the bind plug and store it in a convenient place.
You must rebind when:
• Differentfailsafepositionsaredesirede.g.,whenthrottleor
steering reversing has been changed.
• Changingreceivertypese.g.,changingfromaDSMR™
receiver to a DSM2®receiver.
• Bindingthereceivertoadifferenttransmitter.
FAILSAFE
In the unlikely event that the radio link is lost during use, the
receiver will drive the servos to their preprogrammed failsafe
positions (normally full brakes and straight steering). If the receiver
is turned on prior to turning on the transmitter, the receiver will
enter failsafe mode, driving the servos to their preset failsafe
positions. When the transmitter is turned on, normal control is
resumed. Failsafe servo positions are set during binding (see
binding a receiver above).
Bind Button

12
EN
boost™
LIMITED WARRANTY
CONTACT INFORMATION
What this Warranty Covers - Horizon Hobby, LLC (Horizon) warrants to the origi-
nal purchaser that the product purchased (the "Product") will be free from defects
in materials and workmanship at the date of purchase.
What is Not Covered - This warranty is not transferable and does not cover (i)
cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, neg-
ligence, commercial use, or due to improper use, installation, operation or main-
tenance,(iii)modicationofortoanypartoftheProduct,(iv)attemptedservice
by anyone other than a Horizon Hobby authorized service center, (v) Product not
purchased from an authorized Horizon dealer, or (vi) Product not compliant with
applicable technical regulations.
OTHERTHANTHEEXPRESSWARRANTYABOVE,HORIZONMAKESNOOTHER
WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL
IMPLIEDWARRANTIES,INCLUDING,WITHOUTLIMITATION,THEIMPLIEDWAR-
RANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A
PARTICULARPURPOSE.THEPURCHASERACKNOWLEDGESTHATTHEYALONE
HAVEDETERMINEDTHATTHEPRODUCTWILLSUITABLYMEETTHEREQUIRE-
MENTSOFTHEPURCHASER’SINTENDEDUSE.
Purchaser’s Remedy - Horizon’ssoleobligationandpurchaser’ssoleandexclu-
sive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace,
any Product determined by Horizon to be defective. Horizon reserves the right to
inspect any and all Product(s) involved in a warranty claim. Service or replacement
decisions are at the sole discretion of Horizon. Proof of purchase is required for all
warrantyclaims.SERVICEORREPLACEMENTASPROVIDEDUNDERTHISWAR-
RANTYISTHEPURCHASER’SSOLEANDEXCLUSIVEREMEDY.
Limitation of Liability - HORIZONSHALLNOTBELIABLEFORSPECIAL,INDI-
RECT,INCIDENTALORCONSEQUENTIALDAMAGES,LOSSOFPROFITSORPRO-
DUCTIONORCOMMERCIALLOSS IN ANY WAY,REGARDLESSOFWHETHER
SUCHCLAIMISBASEDINCONTRACT,WARRANTY,TORT,NEGLIGENCE,STRICT
LIABILITYORANYOTHERTHEORYOFLIABILITY,EVENIFHORIZONHASBEEN
ADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.Further,innoeventshallthe
liabilityofHorizonexceedtheindividualpriceoftheProductonwhichliabilityis
asserted.AsHorizonhasnocontroloveruse,setup,nalassembly,modication
or misuse, no liability shall be assumed nor accepted for any resulting damage or
injury. By the act of use, setup or assembly, the user accepts all resulting liability.
If you as the purchaser or user are not prepared to accept the liability associated
with the use of the Product, purchaser is advised to return the Product immediately
in new and unused condition to the place of purchase.
Law - These terms are governed by Illinois law (without regard to conflict of law
principals).Thiswarrantygivesyouspeciclegalrights,andyoumayalsohave
other rights which vary from state to state. Horizon reserves the right to change or
modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services - Your local hobby store and/or place of
purchasecannotprovidewarrantysupportorservice.Onceassembly,setuporuse
of the Product has been started, you must contact your local distributor or Horizon
directly. This will enable Horizon to better answer your questions and service you
in the event that you may need any assistance. For questions or assistance, please
visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or
call the toll free telephone number referenced in the Warranty and Service Contact
Information section to speak with a Product Support representative.
Inspection or Services - If this Product needs to be inspected or serviced and
is compliant in the country you live and use the Product in, please use the Horizon
OnlineServiceRequestsubmissionprocessfoundonourwebsiteorcallHorizon
to obtain a Return Merchandise Authorization (RMA) number. Pack the Product se-
curelyusingashippingcarton.Pleasenotethatoriginalboxesmaybeincluded,but
are not designed to withstand the rigors of shipping without additional protection.
Ship via a carrier that provides tracking and insurance for lost or damaged parcels,
as Horizon is not responsible for merchandise until it arrives and is accepted at
ourfacility.AnOnlineServiceRequestisavailableathttp://www.horizonhobby.
com/content/_service-center_render-service-center. If you do not have internet
access, please contact Horizon Product Support to obtain a RMA number along
with instructions for submitting your product for service. When calling Horizon, you
will be asked to provide your complete name, street address, email address and
phone number where you can be reached during business hours. When sending
product into Horizon, please include your RMA number, a list of the included items,
and a brief summary of the problem. A copy of your original sales receipt must
be included for warranty consideration. Be sure your name, address, and RMA
number are clearly written on the outside of the shipping carton.
NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with
a Li-Po battery, please contact the appropriate Horizon Product Support
office.
Warranty Requirements - For Warranty consideration, you must include
your original sales receipt verifying the proof-of-purchase date. Provided
warranty conditions have been met, your Product will be serviced or replaced free
of charge. Service or replacement decisions are at the sole discretion of Horizon.
Non-Warranty Service - Should your service not be covered by warranty,
service will be completed and payment will be required without notifi-
cation or estimate of the expense unless the expense exceeds 50% of
the retail purchase cost. By submitting the item for service you are agreeing to
paymentoftheservicewithoutnotication.Serviceestimatesareavailableupon
request. You must include this request with your item submitted for service. Non-
warranty service estimates will be billed a minimum of ½ hour of labor. In addition
you will be billed for return freight. Horizon accepts money orders and cashier’s
checks,aswellasVisa,MasterCard,AmericanExpress,andDiscovercards.By
submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and
Conditions found on our website http://www.horizonhobby.com/content/_service-
center_render-service-center.
ATTENTION: Horizon service is limited to Product compliant in the coun-
try of use and ownership. If received, a non-compliant Product will not
be serviced. Further, the sender will be responsible for arranging return
shipment of the un-serviced Product, through a carrier of the sender’s
choice and at the sender’s expense. Horizon will hold non-compliant
Product for a period of 60 days from notification, after which it will be
discarded.
Country of Purchase Horizon Hobby Contact Information Address
UnitedStatesofAmerica
Horizon Service Center
(Repairs and Repair Requests) servicecenter.horizonhobby.com/ RequestForm/
4105 Fieldstone Rd
Champaign, Illinois, 61822 USA
Horizon Product Support
(Product Technical Assistance)
www.quickbase.com/db/
bghj7ey8c?a=GenNewRecord
888-959-2306
Sales [e-mail]
888-959-2306
UnitedKingdom Service/Parts/Sales:
Horizon Hobby Limited
[e-mail] Units 1–4 , Ployters Rd, Staple Tye
Harlow, Essex, CM18 7NS, United
Kingdom
[phone]

13
EN
boost™
Declaration of Conformity
(inaccordancewithISO/IEC17050-1)
No. HH2014121008
Product(s): Boost 1:10 White/Red RTR; Boost 1:10 Black/Green RTR
(SpektrumDX2ETransmitterandSR310Receiverincluded)
ItemNumber(s): ECX03032IT1,ECX03032IT2
Equipment class: 1
The object of declaration described above is in conformity with the re-
quirementsofthespecicationslistedbelow,followingtheprovisions
of the European R&TTE directive 1999/5/EC, EMC Directive 2004/108/
EC and LVD Directive 2006/95/EC:
EN 300-328 V1.8.1
EN 301 489-1 V1.9.2: 2012
EN 301 489-17 V2.1.1: 2009
EN 60950-1:2006+A11:2009+A1:2010+A12: 2011
EN 62311: 2008
EN 55022:2010 + AC:2011
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
Signed for and on behalf of:
Horizon Hobby, LLC
Champaign,ILUSA
12.10.2014
Instructions for disposal ofWEEE
by users in the European Union
This product must not be disposed of with other waste. Instead,
it is the user’s responsibility to dispose of their waste equip-
ment by handing it over to a designated collections point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at
the time of disposal will help to conserve natural resources and
ensure that it is recycled in a manner that protects human health
and the environment. For more information about where you can
drop off your waste equipment for recycling, please contact your
localcityofce,yourhouseholdwastedisposalserviceorwhere
you purchased the product.
COMPLIANCE INFORMATION FORTHE EUROPEAN UNION
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION:Changesormodicationsnotexpresslyapprovedby
the party responsible for compliance could void the user’s
authority to operate the equipment.
This product contains a radio transmitter with wireless technology
which has been tested and found to be compliant with the applicable
regulationsgoverningaradiotransmitterinthe2.400GHzto2.4835GHz
frequency range.
Antenna Separation Distance
When operating your Spektrum transmitter, please be sure to maintain
aseparationdistanceofatleast5cmbetweenyourbody(excluding
ngers,hands,wrists,anklesandfeet)andtheantennatomeetRF
exposuresafetyrequirementsasdeterminedbyFCCregulations.
Thefollowingillustrationsshowtheapproximate5cmRFexposurearea
and typical hand placement when operating your Spektrum transmitter.
FCC INFORMATION IC INFORMATION
ThisdevicecomplieswithIndustryCanadalicense-exemptRSS
standard(s).Operationissubjecttothefollowingtwoconditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause unde-
sired operation of the device.
Country of Purchase Horizon Hobby Contact Information Address
Germany Horizon Technischer Service [e-mail] Christian-Junge-Straße 1
25337 Elmshorn, Germany
Sales: Horizon Hobby GmbH [phone]
France Service/Parts/Sales:
Horizon Hobby SAS
[e-mail] 11 Rue Georges Charpak
77127 Lieusaint, France
[phone]
China Service/Parts/Sales:
Horizon Hobby – China
[e-mail] Room 506, No. 97 Changshou Rd.
Shanghai, China 200060
[phone]
Mike Dunne
ExecutiveVicePresidentProductDivisions,HorizonHobby,LLC

®
52
boost
M3X10
M3X12
M3X12
M3X18
M3X12 M3X12
M3X12
M3X16
M3X25
M3X12
M2.5X4
M3X12 M3X18
M3X18
M2X8
M3X8
M3X10
M4.3X13
M4.3X13
M4.3X13
M4.3X13
M3X25
8
47 10
3
9
6
274
20
47
10
6
44
13
6
2
17
1
211
31
20
16
19 7
23
21
18
31
6
23
23
14
13
22

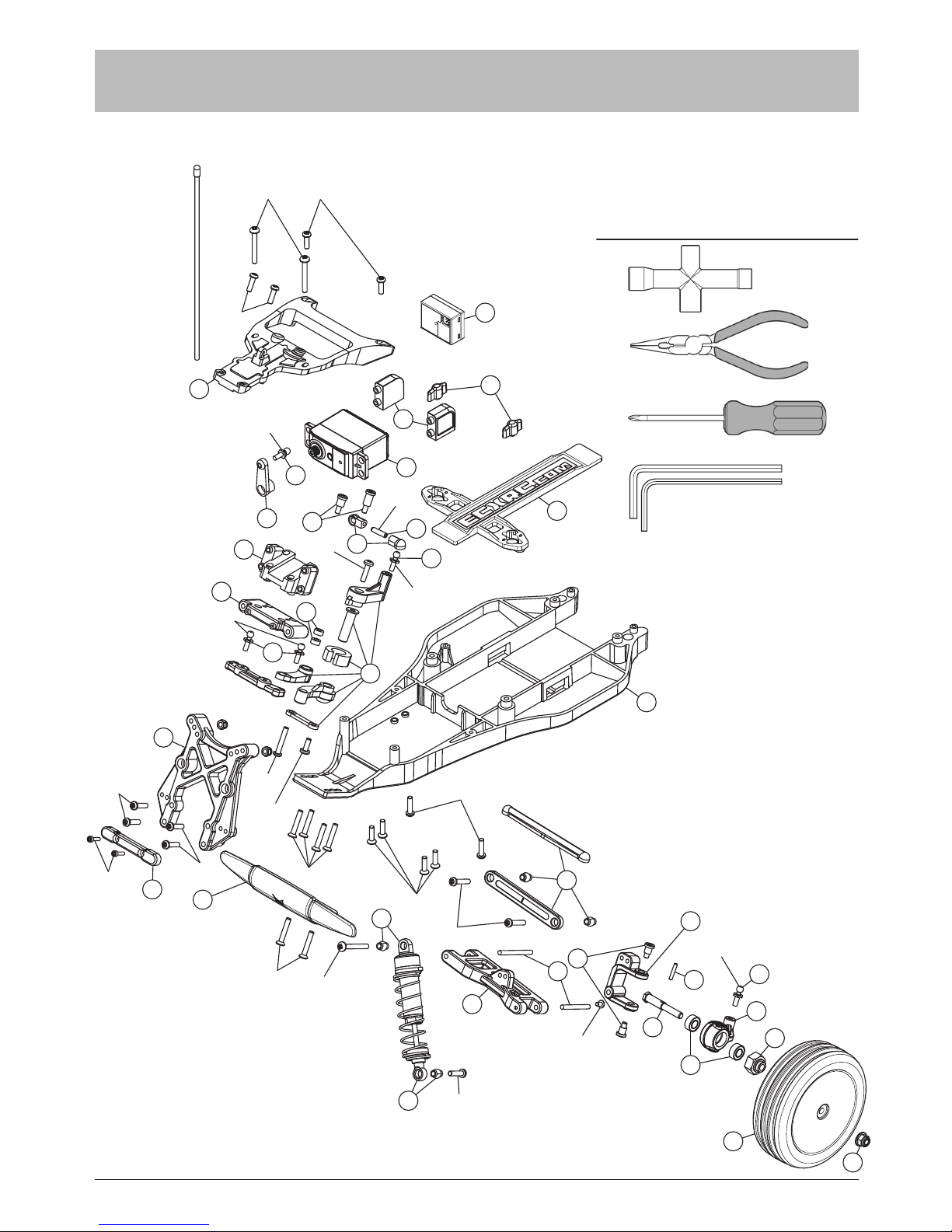

PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES |
ESPLOSO DEL MODELLO CON REFERENZA PEZZI
1.5 mm
2 mm
RECOMMENDED ITEMS
EMPFOHLENE WERKZEUGE
OUTILS RECOMMANDÉS
ATTREZZI CONSIGLIATI

®
53
boost
41
34 34 34
34 34
14
43
12
12
10
3
43
17
31
31
19 29 24
29
20 26
26
28
27
27
23
19
14
15 22
21
37
3340
14
3314
42
32 32
22
35
35
35 14
14
36
25 38 35 33 33
33
35
39
35 33
33 33 38 25
36
36
39
5
33
M2.5X4 M2.5X8
M2.5X8
M3X3
M3X18
M3X12
M3X12
M2X16
M2X16
M3X16
M3X12
M3X20
M3X18 M3X12
M2.5X4
M2.5X4
M3X12
M3X12
M3X12
M3X12
M3X16 M3X13
M3X12
30
Wheninstallingthewheel,makesurethedrivehexisalignedwiththedrivepin.Whenthedrive
hexisremoved,thedrivepincanfalloutoftheaxle.
Bitte achten Sie bei der Radmontage darauf, dass die Radachse im Radmitnehmer sitzt und dass der
der Querstift nicht heraus fällt.
Lorsdel’installationdelaroue,assurez-vousquel'hexagonederoueestalignéaveclagoupille
d'entraînement.Encasdedémontagedel'hexagone,lagoupillepeutsortirdel'axeettomber.
Quando montate le ruote, accertatevi che il trascinatore esagonale sia allineato con la spina del
mozzoruota.Quandotoglieteiltrascinatoreesagonalelaspinapuòslarsidalmozzo.
PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES |
ESPLOSO DEL MODELLO CON REFERENZA PEZZI
The slipper clutch can be adjusted using
this locknut (ECX1060). Fully tighten the
locknut, then loosen the nut two full
turns.
Die Rutschkupplung kann durch diese
Stopmutter eingestellt werden (ECX1060).
ZiehenSiedieMutteranunddrehenSie
dannvollezweiUmdrehungenzurück.
Il est possible d’ajuster le sliper par ac-
tion sur cet écrou de blocage (ECX1060).
Veillez à serrer l’écrou de blocage à fond.
Ensuite, devissez l’écrou de trois tours
complets.
La frizione può essere regolata con
questo dado autobloccante (ECX1060).
Prima avvitate completamente il dado,
poi svitatelo 2 giri.

®
54
boost
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio
Part # | Nummer
Numéro | Codice Description Beschreibung Description Descrizione
1 ECX3007 Main Chassis Chassis Châssis principal Telaio principale
2 ECX1028 Servo Saver Set Servo Saver Set Sauve servo Set salvaservo
3
ECX1092 Rear Suspension Mount Set Querlenkerhalter hinten Jeu de renfort de
suspension arrière
Supporti braccetti sosp.
posteriori
4 ECX1050 SetscrewM3x12(4) SchraubenSetM3x12(4) JeudevisM3x12(4) GraniM3x12(4)
5 ECX1098 Motor Screw/Washer Set Motor Screw/Washer Set Vis Moteur/Set Rondelles Viti per il motore/ set di
rondelle
6 ECX1058 Ball Stud (6) Kugelkopf (6) Rondelle (6) SfereUniball(6)
7 ECX1065 Shoulder Screw Set (8) Passschrauben Set (8) Jeu de vis d’épaulement (8) Set viti a doppio stadio (8)
8 SPMSR310
3-ChDSMRSportReceiver
(Coated)
3KanalDSMRSport
Empfänger (beschichtet)
RécepteurDSMR3voies
étanche
Ricevitore Sport (con rives-
timento protettivo)
9 ECX13000 Waterproof Steering Servo Lenkservo, wasserdicht Servo de direction étanche Servo per lo sterzo, imper-
meabile
10 SPMSS6170
Standard Digital Surface
Servo, WP
Standard Digital Surface
Servo Spritzwasserge-
schützt
Servo digital standard
surface, étanche
Servo standard digitale
car, WP
11 ECX231000 Front Bumper/Motor Guard
Stoßfänger vorne
Motorschutz
Pare-chocs avant/ Protection
moteur Paraurti Ant/Ripara Motore
12 ECX3015 Body Mount Set Body Mount Set Set Montage Carrosserie Set di montaggio per la
carrozzeria
13 ECX43005
Front Mounted Wheel/
Tire (2) Mounted Wheel/Tire (2) Roue Montée/Pneu (2) Ruote e gomme montate (2)
14 ECX1015 Wheel Bearing Set Radlagersatz Set Jeu de roulement de roue Set cuscinetti ruote
15 ECX43006 Black Wheel Spiked Tire (2)
Rear
Reifen schwarz m. Spikes
Heck (2)
Pneu arrière à picots monté
sur jante noire (2) Gomme posteriori a pin (2)
16 ECX3008 Front Suspension Arm Set Querlenker Set vorne Jeu de bras de suspension
avant
Braccetti delle sospensioni
anteriori
17 ECX3010 Shock Tower Set Dämpferbrücke Jeu de support
d’amortisseur
Supporto ammortizzatori
posteriori
18 ECX1035 FrontAxle(2) Radachse vorne (2) Axederoueavant(2) Mozzi ruota anteriori (2)
19 ECX1044 Hinge Pin Set Querlenkerbolzen Set Jeud'axesdesuspension Set perni sospensioni
20 ECX3012 Camber, Toe Link Set Spur- Sturzstangenset Jeu de biellettes de carros-
sage et de pincement
Set tiranteria Camber e
convergenza
21 ECX1049 Wheel Pins (4) Radmitnehmerstifte (4) Goupilles d'entraînement (4) Spine trascinatori ruote (4)
22 ECX1060 M4 Locknut (4) M4 Stopmutter (4) Ecrous de roues M4 (4) Dadi autobloccanti M4 (4)
23 ECX234000
Steering Block, Rear Hub
Set Lenk- und Rädträger hinten
Jeu de fusées avant et
arrière avec étriers portes
fusées avant
Set blocco sterzo, mozzo
posteriore
24 ECX3009 Rear Suspension Arm Set Querlenker Set hinten Jeu de bras de suspension
arrière
Braccetti delle sospensioni
posteriori
25 ECX1021 Transmission Case Set Getriebegehäuse Ensemble carter de
transmission Set scatola trasmissione
26 ECX232004 DriveshaftShortPlasticOnly Antriebswelle kurz, Kunststoff Cardan court en plastique seul Trasmissione Corta in Plastica
27 ECX232005 Driveshaft Pivot Ball (4)
Antriebswellen Kugelkopf
(4) Croisillon de cardan (4) Attacco a sfera semiasse
(4)
28 ECX232001 RearAxle Wellenmitnehmer hinten Axederouearriere Mozzi routa anteriori
29 ECX1045 Hinge Pin Screws (8)
Querlenkerbolzen Schrauben
(8) Visdexationderenfort(8) Viti per perni sospensioni (8)
30 DYNS2210 60A FWD/REV Brushed ESC 60A Vorwärts/Rückwärts
Bürstenregler
Variateur 60A Marche Av/Arr
pour moteur brushed
60A FWD/REV regolatore a
spazzole
31 ECX1037 Shock Caps, Pistons Stoßdmämpferkappen
Kolben
Bouchons, pistons et rotules
d'amortisseurs
Set tappi e pistoni
ammortizzatori
32 ECX1027 Gear Cover Gear Cover Carter de Réducteur Copertura per ingranaggi
33 ECX1022 Transmission Gear Set Getriebe
Couronne et pignons
intermédiaires,corps et
pignons de différentiel
et ingranaggi trasmissione

®
55
boost
Part # | Nummer
Numéro | Codice Description Beschreibung Description Descrizione
34
ECX1024 Slipper Clutch Plates, Pads,
Spring
Rutschkupplung Teilesatz Garnitures,plateauxet
ressort de slipper Piattelli frizione, disco, molla
35 ECX1025 Transmission Idler Shaft,
Drive Pins
Hauptgetriebewelle Set
Arbre secondaire de
transmission avec goupilles
d'entraînement
Alberino intermedio con
spina
36
ECX1026 Transmission Drive Shaft (2) Getreibeausgangswelle (2) Axedesortiededifférentiel(2) Mozzi Differenziale (2)
37 ECX1052 Washer Set UnterlegscheibenSet Jeu de rondelles Set rondelle
38 ECX1055 Bearings10x15x4(2) Lager10x15x4(2) Roulements10x15x4(2) Cuscinetti10x15x4(2)
39 ECX1059 M3Locknut(4) M3Stopmutter(4) Ecrouauto-freinéM3(4) DadiautobloccantiM3(4)
40 ECX1076 Spur Gear Hauptzahnrad Couronne Corona
41 ECX3018 20-Tooth Pinion Gear 20-Tooth Pinion Gear Pignon 20 dents Pignone a 20 denti
42 DYN1171 Motor Motor Moteur Motore
43 ECX1048 Body Clip Body Clip Clips Carrosserie Clippe per carrozzeria
44 ECX1056 Bushing3x6x2.8mm(2) Buchse3x6x2.8mm(2) Bague3x6x2,8mm(2) Boccole3x6x2.8mm(2)
45 ECX1029 Top Plate Chassioberteil Plaque frontale Piastra superiore
46 ECX1093 Body Mount Set Aufnahme Karosseriehalter Set Montage Carrosserie Set di montaggio per la
carrozzeria
47 ECX1023 Top Shaft/Spacer Top Shaft/Spacer Set de Goupilles Set di spessori
48 ECX1033 SetscrewM3x10 Sicherungsschrauben (4) Vis (4) Viti (4)
ECX230004 Body, White/Red: Boost ECX Boost: Karosserie
Weiss Rot
Carrosserie blanche/rouge -
Boost Carrozz. Bianco/Rosso Boost
ECX230005 Body, Black/Green: Boost ECX Boost: Karosserie
Schwarz / Grün
Carrosserie noire/verte -
Boost Carrozz. Verd./Nero Boost
SPM2322 DX2E 2-Channel DSM
Surface Radio
DX2E 2-Kanal DSM
Fernsteuerung DX2E 2 voies DSMR DX2E 2-canali DSM
radiocomando car
DYN1050EC Ni-MH battery Ni-MH akku Batterie Ni-MH Batteria Ni-MH
DYNC2000CA
Prophet™SportNiMH35W
AC Charger
ProphetSport35WNi-MH
Ladegerät
ProphetSport35WChargeur
Ni-MH
ProphetSport35W
Caricabatterie Ni-MH

www.ecxrc.com
ECX03032T1 | ECX03024AU | ECX03032IT1
ECX03032T2 | ECX03024AU | ECX03032IT2
®
© 2015 Horizon Hobby, LLC. ECX, the ECX logo, Boost, Prophet, Dynamite, Speedpack, DSMR, DSM2 and the Horizon Hobby logo are
trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of
Bachmann Industries, Inc.
Revised11/2014 37872.5
