USER’S GUIDE
CIO-32
IP module:
Counter/Timer and parallel I/O
Edition 4003
http:// support.actis-computer.com
[e-mail]
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2
CIO-32
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
3
Table of contents
1. Introduction...........................................................................................................5
2. Summary of features ..........................................................................................5
3. Description............................................................................................................5
3.1. Block diagram...........................................................................................5
3.2. IP spaces...................................................................................................6
3.3. I/O space ................................................................................................................7
3.4. ID space ....................................................................................................7
3.5. MEM space...............................................................................................8
3.6. Wait state cycles.......................................................................................9
4. CIO-32 characteristics ........................................................................................9
5. Zilog CIO Z8536 ................................................................................................. 10
5.1. General-purpose ports.......................................................................... 11
5.2. Special-purpose port ............................................................................ 11
5.3. Counter/Timers ...................................................................................... 12
5.4. CIO Interrupt function............................................................................. 12
5.5. Interrupt timing........................................................................................ 12
5.6. Z8536 registers access........................................................................ 13
6. Connection......................................................................................................... 17
7. Component location ........................................................................................ 18
8. OEM Warranty......................................................................................................... 19
9. Ordering Information ............................................................................................ 20
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CIO-32
4
For up to date documentation, please refer also to our web site at http://www.actis-computer.com .
While efforts have been made to ensure the accuracy of this document, and although the information
contained in this document is believed to be correct, ACTIS Computer S.A. can not be held
responsible for any error or for any resulting consequential losses. ACTIS Computer S.A may change
or improve the specifications of its products at any time without prior notification.
Total or partial reproduction of this document or any kinds is not allowed without the written
authorization of ACTIS Computer.
Licenses and trademarks
All licenses and trademarks are property of their respective owners.
This manual is copyrighted, all rights reserved. It may not be copied, photocopied, translated, or
reduced to any electronic medium or machine-readable form without ACTIS Computer prior permission.
© ACTIS Computer, 2001
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
5
1. Introduction
The CIO-32 module of ACTIS Computer S.A. is a Counter/timer and parallel I/O unit
(CIO) compatible with the IP specification. This module provides four general-purpose
8-bit ports, two special-purpose 4-bit ports, and six 16-bit counter/timers.
An on-board 2 kByte EEPROM provides IP identification codes and module specific
data.
A complete industrial OS-9 environment is available for the CIO-32 module.
2. Summary of features
•Single-size IP module.
•Compatible with the IP specification (Rev. 0.7.1).
•Four general-purpose 8-bit ports.
•Two special-purpose 4-bit ports.
•Six 16-bit counter/timers.
•Flexible pattern-recognition logic for interrupt generation.
•All signals in TTL levels.
•2 kByte of non-volatile memory (EEPROM).
•Industrial temperature grade available (-40 to +85 °C).
3. Description
The CIO-32 IP contains two Zilog Counter/timer and parallel I/O Z8536. Each device
has two general-purpose 8-bit ports, one special-purpose 4-bit and three 16-bit
counter/timers.
All CIO-32 I/O signals, TTL levels, are directly connected from CIO controllers to the IP
50-pin I/O connector.
A 2 kByte, 8-bit data path, of non-volatile memory is present on the CIO-32 module,
this memory is divided in two sections. The first contains the identification data (64
Byte), providing the module information such as; the module type, the manufacturer
code, the module and driver revision, etc.
This information defines an auto-configuration system on each power up. The second
is less than 2 kByte (2 kByte -64 Byte) and contains specific user's data such as:
calibration data, configuration information, driver for operation system, etc.
3.1. Block diagram
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CIO-32
6
The hardware architecture of the CIO-32 is divided in 3 main sections:
•The IP bus interface, controlling the timing access of the CIO controllers
and the on-board memory.
•The CIO controllers, Zilog Z8536.
•The 2 kByte of non-volatile memory including the identification ROM and
module specific data.
ID ROM
2 kB
EEPROM
IP Bus
Interface
CIO (0)
controller
Z8536
IP Bus
CIO (1)
controller
Z8536
I/O interface
Port A, B (8-bit)
Port E (4-bit)
Timer 1, 2, 3 (16-bit)
Port C, D (8-bit)
Port F (4-bit)
Timer 4, 5, 6 (16-bit)
3.2. IP spaces
The following table shows the four CIO-32 memory spaces.
MEM space (2 kByte -64 Byte) of non-volatile memory
ID space IP identification codes
I/O space CIO controllers access
INT Ack Interrupt acknowledge
The base address of these spaces is depending on the IP carrier.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
7
3.3. I/O space
The two CIO controllers are mapped into the IP I/O space. Data and command
registers of the CIO controllers are placed on 16 consecutive addresses (8-bit data
path).
I/O space adr. Register Description
CIO (0) controller
$1 PEDR Port E Data Register
$3 PBDR Port B Data Register
$5 PADR Port A Data Register
$7 CR0 Control Register 0
CIO (1) controller
$9 PFDR Port F Data Register
$B PDDR Port D Data Register
$D PCDR Port C Data Register
$F CR1 Control Register 1
All port configurations are defined with the CIO control registers. The data registers
allow the value of each ports to be accessed directly.
3.4. ID space
The identification space is defined as follows:
ID space adr. Description value
$01 Ascii "I" $49
$03 Ascii "P" $50
$05 Ascii "A" $41
$07 Ascii "C" $43
$09 Manufacturer identification $99
$0B Module type $03
$0D Revision module
$0F Reserved $00
$11 Driver ID, low byte
$13 Driver ID, high byte
$15 Number of bytes used $0C
$17 CRC
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CIO-32
8
$3F
$19
User space
The fourth bytes contain the ASCII text "IPAC". This clearly identifies the ROM
beginning.
The manufacturer code identifies ACTIS IP.
The CIO-32 device is defined by the module type byte.
The next byte identifies the IP revision, in accordance with the following definition.
Revision ASCII car. hex. value
first "_" (space) $5F
next "A", "B", ... $41, $42, ...
The byte $0F is reserved for future extension.
The byte $11 and $13 allows identification of the IP software driver.
The number of bytes used in the identification space is stored at the address $15.
To verify the identification data integrity, the byte $17 contains a 8-bit Checksum
Redundant Code (CRC). This CRC covers only the number of identification codes set
by the manufacturer. The CRC used is an industry standard. It's the low 8-bit of the
FCS as described in CCITT T.30 (Fascicle VII.3) section 5.3.7.
The next bytes $19 to $3F are free for user data storage.
3.5. MEM space
As 2 kByte memory device is present on the board and only 64 Byte are used for
identification space, the rest is mapped into the IP memory space.
The first usable address of this memory is $40.
A minimum time of 2 ms must be asserted between the last write and the next read
cycle to guarantee the correct data writing. If a read cycle is produced before the
achievement of the previous writing, the data bus D7 provides an inverted value of the
last data loaded.
A minimum time of 2 ms must be asserted between the reset and the first write cycle.
Note: only IP carrier asserting no hold cycle can access this space.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
9
3.6. Wait state cycles
The following table shows the number of wait states asserted in each
IP space.
Space Wait state
Read Write
I/O 22
Identification 22
Memory 22
Interrupt acknowledge 4N.A.
4. CIO-32 characteristics
Symbol Parameters Test conditions Min Max Unit
VIH Input high voltage 2 Vcc + 0.3 V
VIL Input low voltage -0.3 0.8 V
VOH Output high voltage IOH=-250 µA 2.4 V
VOL Output low voltage IOL=+2 mA
IOL=+3.2 mA
0.4
0.5
V
ICC Vcc supply current 560 mA
PCLK Peripheral clock
4 MHz
Ta Operating ambient
temperature
CIO-32 (commercial)
CIO-32X (industrial)
0 to +70
-40 to +85
°C
Tstg Storage temperature -60 to +150 °C
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CIO-32
10
5. Zilog CIO Z8536
The CIO-32 IP contains two Z8536 devices, and the following description gives you
the features of these CIO controllers.
Each Z8536 device provides two general-purpose 8-bit ports (port A-B or C-D of the
CIO-32 respectively), one special-purpose 4-bit port (port E or F of the CIO-32
respectively), and three 16-bit counter/timers (timer 1 to 6 of the CIO-32).
Zilog Z8536
CIO(0)
Port A
Port B
Timers 1-2
Port C
Timer 3
IRQ
Control
8-bit
8-bit
4-bit
Zilog Z8536
CIO(1)
Port A
Port B
Timers 1-2
Port C
Timer 3
IRQ
Control
8-bit
8-bit
4-bit
IRQ0
IRQ1
Logic control
IndustryPack™
I/O interface
IndustryPack™
logic interface
Port A
Port B
Timers 1-2
Port E
Timer 3
Port C
Port D
Timers 4-5
Port F
Timer 6
Each CIO controller provides an interrupt connected to IRQ0 and IRQ1 of the IP logic
interface respectively.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
11
5.1. General-purpose ports
These ports can be programmed either as a handshake-driven, and as single or as
double buffered port (input, output, or bi-directional) with the direction of each bit
individually programmable. These two ports (ports A-B or C-D of the CIO-32) can also
be linked to form a 16-bit I/O port with handshake. Each port can generate an interrupt
when a specific pattern-recognition is detected. This pattern offers a very large
flexibility for a specific OR/AND condition, the polarity and the transition detection
(state or edge) are independently programmable for each bit-port.
The second port (port B or D of the CIO-32) allows an external access to the first and
second software counter/timers (counter/timers 1-2 or 4-5 of the CIO-32).
To control these capabilities, both ports contain 12 registers. The command and
status registers define the primary port functionalities. Two registers are employed to
define the port specification and handshake modes. The I/O data is accessed through
the input, output and buffer registers. The data direction, data path polarity and special
I/O control registers allow programming each bit. The pattern-recognition is defined
with the pattern polarity, pattern transition and pattern mask registers.
5.2. Special-purpose port
The function of this port (port E or F of the CIO-32) is defined in accordance with the
role of the general-purpose ports. This port can provide either handshake lines for the
general-purpose ports, either an external access to the third counter/timer
(counter/timers 3 or 6 of the CIO-32) or either conventional I/O lines.
Only three registers (data path polarity, data direction, and special I/O control) are
necessary to control the port C when the general-purpose ports functionalities (ports
A-B or C-D of the CIO-32) have been specified.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CIO-32
12
5.3. Counter/Timers
All the three counter/timers (counter/timers 1 to 6 of the CIO-32) are functionality
identical.
Three output modes are available: pulse, one-shoot, and square-wave. The operating
mode of the counter/timer can be programmed either as retriggerable or as non-
retriggerable.
Up to four control lines are provided for timer/counter operation: counter input, gate
input, trigger input, and counter/timer output.
Each counter/timer provides a time-constant register containing the initial value of the
down-counter. At any time the current count register shows the content of the down-
counter. Two other registers are used: the control register to set the timer/counter
configuration, and the the timer/counter status register.
5.4.CIO Interrupt function
Five registers control the CIO interrupt functions: the master interrupt control, three
interrupt vector registers, and the current interrupt vector register.
The hardware daisy-chain operation is not implemented, because each CIO
controllers has its own interrupt request line into the IP logic interface.
5.5. Interrupt timing

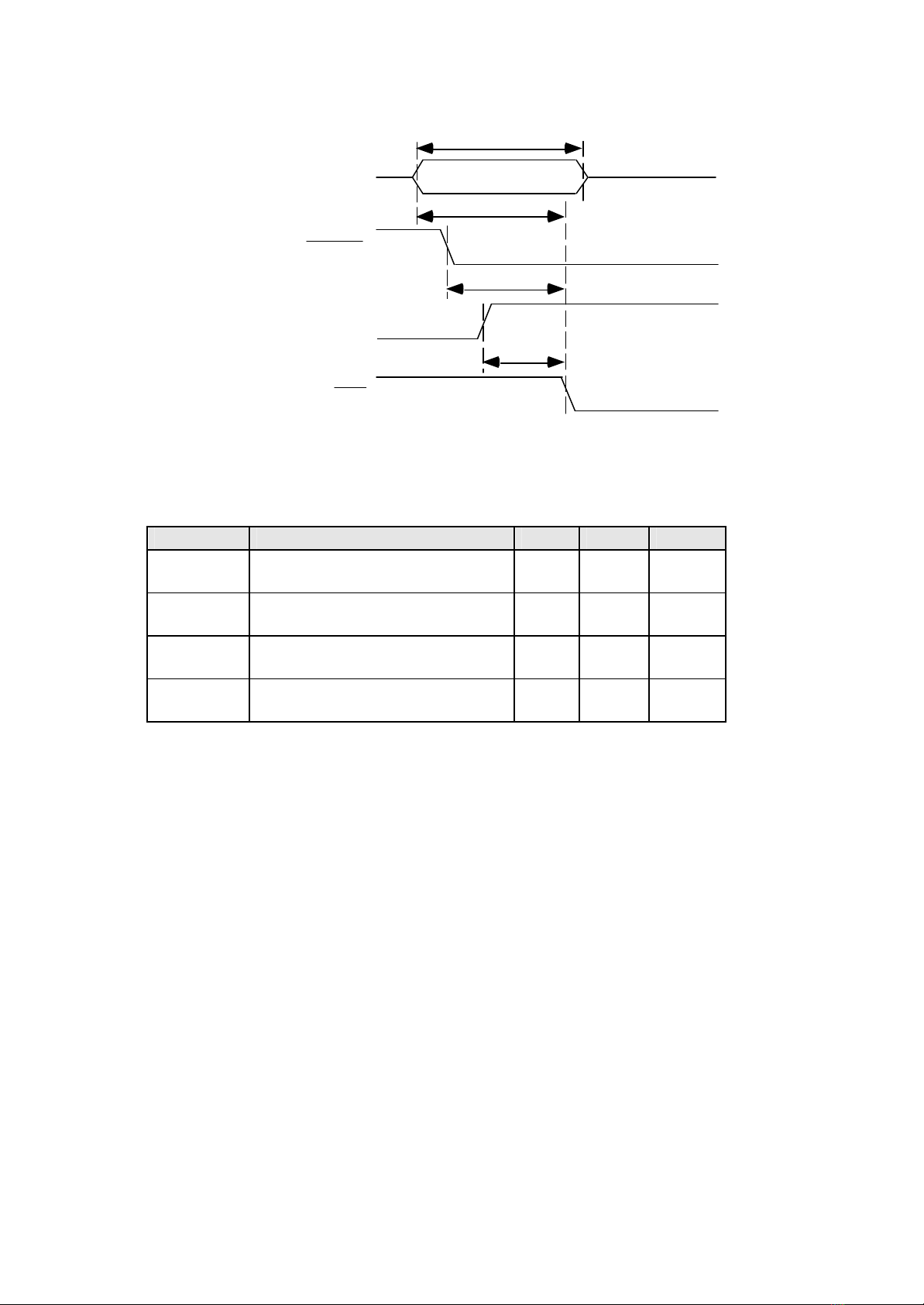

The following timing descriptions give the delay for interrupt generation.
In bit port mode, an interrupt is generated when the pattern-recognition is detected.
In handshake port operation, the external ACKIN signal strobes the input data into the
CIO and an interrupt is actived to indicate to the host that a valid input data is present.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
13
Pattern matches
Pattern match
input(s)
ACKIN
Counter
input
INT
TdPM
TdACK
TdC
TwPM
Symbol Parameters Min Max Unit
TwPM Pattern match input valid
(bit port)
750 ns
TdPM Pattern match to INT delay
(bit port)
1.3 µs
TdACK ACKIN to INT delay
(port with handshake)
3.1 µs
TdC Counter input to INT delay
(timer mode)
1.2 µs
5.6. Z8536 registers access
Two cycles are necessary to address an internal register, as the internal CIO registers
are accessed through an internal pointer register.
The first cycle is the write pointer operation, into the control register (CR0 and CR1, on
CIO-32) which selects the internal register. The next cycle is the data access
operation.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CIO-32
14
The following state machine shows the internal register operation.
data
access
reset
state
WR
RD RD or WR
software reset (D0 = 1)
write
pointer
state 0 state 1
hardware or
software reset
WR
D0 = 0
initialisation
RD or WR
D0 = 1
The CIO is on the reset state, after hardware or software reset. The software reset is
accomplished by writing D0=1 in CR0 or CR1 registers of the CIO-32. On the CIO-32
IP, the hardware reset is accomplished when the reset signal is asserted on the IP
logic interface. To leave this state, an initialization cycle is necessary: write D0=0 in
the control register, otherwise during a read cycle the CIO device returns always
D0=1. The state 0 waits for the pointer writing (in the control register) for the internal
register selection. After the data access (read or write cycle), the state machine
returns to the state 0, waiting for the next pointer writing.
A minimum time of 500 ns is required between the pointer writing and the data
access operation.
Pointer
Data
Write
500 ns min.
Data access
All internal CIO registers, including the internal data register, are accessed through
this method. The pointer register is automatically cleared after each following read or
write cycle.
A direct register access, without pointer writing cycle, is available for the data register
with the PADR to PDDR registers (see I/O space section).
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
15
The following table shows the internal CIO registers.
CIO
Internal
addr.
Cycle Registers
Main control registers
$00 R/W Master interrupt control
$01 R/W Master configuration control
$02 R/W Port A or C interrupt vector
$03 R/W Port B or D interrupt vector
$04 R/W Counter/timer interrupt vector
$05 R/W Port E or F data path polarity
$06 R/W Port E or F data direction
$07 R/W Port E or F special I/O control
Most often accessed registers
$08 R/partial W Port A or C command and status
$09 R/partial W Port B or D command and status
$0A R/partial W Counter/Timer 1 or 4 command and status
$0B R/partial W Counter/Timer 2 or 5 command and status
$0C R/partial W Counter/Timer 3 or 6 command and status
$0D R/W Port A or C data
$0E R/W Port B or D data
$0F R/WPort E or F data
Port A specification registers
$20 R/W Port A or C mode specification
$21 R/W Port A or C handshake specification
$22 R/W Port A or C data path polarity
$23 R/W Port A or C data direction
$24 R/W Port A or C special I/O control
$25 R/W Port A or C pattern polarity
$26 R/W Port A or C pattern transition
$27 R/W Port A or C pattern mask
Port B specification registers
$28 R/W Port B or D mode specification
$29 R/W Port B or D handshake specification
$2A R/W Port B or D data path polarity
$2B R/W Port B or D data direction
$2C R/W Port B or D special I/O control
$2D R/W Port B or D pattern polarity
$2E R/W Port B or D pattern transition
$2F R/W Port B or D pattern mask
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CIO-32
16
Counter/Timer related registers
$10 RCounter/Timer 1 or 4 current count MSB
$11 RCounter/Timer 1 or 4 current count LSB
$12 RCounter/Timer 2 or 5 current count MSB
$13 RCounter/Timer 2 or 5 current count LSB
$14 RCounter/Timer 3 or 6 current count MSB
$15 RCounter/Timer 3 or 6 current count LSB
$16 R/W Counter/Timer 1 or 4 time constant MSB
$17 R/W Counter/Timer 1 or 4 time constant LSB
$18 R/W Counter/Timer 2 or 5 time constant MSB
$19 R/W Counter/Timer 2 or 5 time constant LSB
$1A R/W Counter/Timer 3 or 6 time constant MSB
$1B R/W Counter/Timer 3 or 6 time constant LSB
$1C R/W Counter/Timer 1 or 4 Mode Specification
$1D R/W Counter/Timer 2 or 5 Mode Specification
$1E R/W Counter/Timer 3 or 6 Mode Specification
$1F RCurrent vector
For more details on register programming and SCC functionalities, please refer to the
Zilog "Z8036 Z-CIO/Z8536 CIO Counter/Timer and Parallel I/O Unit" technical
manual.
A standard OS-9 driver is available from ACTIS Computer.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
17
6. Connection
The CIO-32 signals of the four general-purpose 8-bit ports and the two special-purpose 4-
bit ports are present on the 50-pin IP I/O connector. The power supply +5V is also provided
for external signal conditioning, and it's short-circuit protected from CIO-32 revision "A"
module.
Signals Description
PortA[7:0] Port A general-purpose 8-
bit port
PortB[7:0] Port B general-purpose 8-
bit port
PortC[7:0] Port C general-purpose 8-
bit port
PortD[7:0] Port D general-purpose 8-
bit port
PortE[3:0] Port E special-purpose 4-
bit ports
PortF[3:0] Port F special-purpose 4-
bit ports
VDD + 5 V, 500 mA max.
Fuse protected on
revision A.
GND Ground
This connection is compatible with the I/O connection
standard, on the 50-pin IP I/O connector, defined by ACTIS
Computer.
An adaptor module (DB25D) from ACTIS Computer is also
available for an easily user connection. It provides two DB-
25 connectors and measures 3HE x 4TE on front panel.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CIO-32
18
7. Component location
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

User's guide
19
8. OEM Warranty
ACTIS Computer warrants that its Product sold hereunder, excluding software, will at the time of
shipment be free from defects in material and workmanship and will conform to ACTIS Computer's
applicable specifications or, if appropriate, to CUSTOMER's specifications previously accepted by
ACTIS Computer in writing. If Products sold hereunder are not as warranted, ACTIS Computer shall, at
its option and as CUSTOMER's exclusive remedy, either refund the purchase price, or repair or replace
the Product, provided proof of purchase and written notice of nonconformance are received by ACTIS
Computer within the applicable periods noted below and provided said nonconforming Products are,
with ACTIS Computer's written authorization, returned in protected shipping containers FOB ACTIS
Computer's plant within thirty (30) days after expiration of the warranty period. Upon verification by
ACTIS Computer that the Product does not conform to this warranty, ACTIS Computer will reimburse
CUSTOMER for the cost of transporting the goods to and from ACTIS Computer's plant. This warranty
shall not apply to any Products ACTIS Computer determines have been, by CUSTOMER or otherwise,
subjected to testing for other than specified electrical characteristics or to operating and/or
environmental conditions in excess of the maximum values established in applicable specifications, or
have been the subject of mishandling, misuse, neglect, improper testing, repair, alteration, damage,
assembly or processing that alters physical or electrical properties.
This Limited Warranty is effective from the date of sale and shall expire on the expiration date of the
applicable hardware product warranty period. The expiration date is defined as three-year for
mezzanine modules and the relevant transition modules, and one-year for all cPCI and VME boards.
CUSTOMER must notify ACTIS Computer, in writing, no later than thirty days after expiration of this
Limited Warranty of Product that does not conform to this Limited Warranty. In the event that the
Product does not conform to this Limited Warranty, ACTIS Computer shall, at its option, repair,
replace or refund the purchase price of the non-conforming Product. The remedies provided herein are
the sole and exclusive remedies for a breach of this Limited Warranty.
ACTIS Computer hereby disclaims all implied warranties, including implied warranties of
merchantability or fitness for a particular purpose. ACTIS Computer shall not be liable for any
special, incidental or consequential damages due to a breach of this (Limited) Warranty.
Warranty Service and Return Information
Please contact the place of purchase for return procedures. If customer purchased product(s) directly
from ACTIS Computer, then customer shall return the product(s) to ACTIS Computer pursuant to the
following terms. Customer must obtain a Return Material Authorization ("RMA") number by calling
customer service at [phone]. Returned products should be shipped to the following address
within 10 days of receiving an RMA number to avoid charges for the replacement product:
ACTISComputer S.A.
Attn:RMA Dept RMA#_______
19,chemin du Champ-des-Filles
1228 Plan-Les-Ouates
Switzerland
Please retain shipping information, including tracking numbers. If ACTIS Computer determines that
failure of the product(s) was not a result of a defect in materials or workmanship, ACTIS Computer
reserves the right to charge customer for parts and labor at ACTIS Computer's then current labor rate.
ACTIS Computer will advise customer prior to assessing these charges.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
