Listen Technologies ListenPoint User manual

IN
OUT
IN
OUT
BALANCED AUDIO TELECONFERENCE TO R M 19 V DC
OUT
AU X IN
R
L
RESET
2 3 41
Power On/Off
Control Dial:
Control volume levels and scroll
through menus, turn dial to scroll
and push dial to select a menu item.
Headphone
Volume
Headphone
Jack
Balanced Audio In/Out: Used
for audio to or from professional
devices such as a mixing
console. (C6 Control Unit only)
Teleconferencing In/Out:
Connect to VOIP or audio
conferencing system, see
installation guide for more
info. (C6 Control Unit only)
USB Port:
Connect the CU to a
PC for control or custom
conguration, see
customization guide
for more info.
Auxillary Inputs:
Connect your CD player,
MP3 player, DVD, or other
audio sources here.
Line Out/ALS Out:
Use to send a
recording feed or to
an Assistive Listening
output.
Power
Input
RM Connection:
Cat-5e connection
to the Room
Module (RM).
System
Reset: Hold
for three (3)
seconds to
reset system.
© 2010 Listen Technologies Corporation®All Rights Reserved 20100224
ListenPoint®Control Unit Quick Reference
LCD Display
(C6 Control Unit Shown)

© 2010 Listen Technologies Corporation®All Rights Reserved 20100224
ListenPoint®Customization Quick Reference

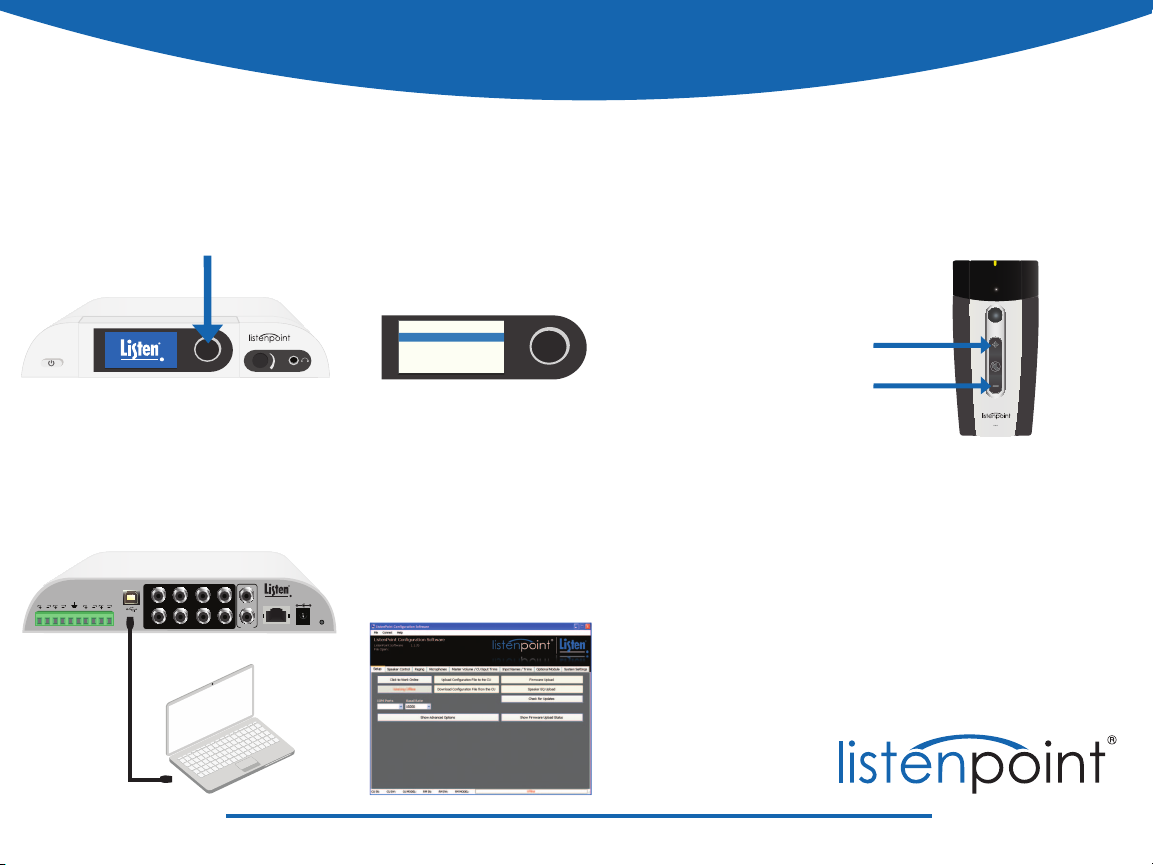

Control Unit Customization - Two Ways
Directly on LCD Display on Control Unit:
Press and hold rotary knob to enter customization mode.
Top Level Menu
Speaker Control
Paging
Microphones
Auto Select On
Top Level Menu
Speaker Control
Paging
Microphones
Auto Select On
Customization Screen
Via ListenPoint Software:
Download ListenPoint Software at:
www.listentech.com/support-tools-downloads
Software Customization Screen
IN
OUT
IN
OUT
BALANCED AUDIO TELECONFERENCE TO R M 19 V DC
OUT
AU X IN
R
L
RESET
2 3 41
USB Cable
M1 Microphone/Media Interface
Customization
For certain M1 customizations, you must
simultaneously press the UP and DOWN buttons
while the M1 is connected to the ListenPoint
system, the yellow LED will ash.
Detailed Customization
For more detailed customization options for both
the Control Unit and M1, download the ListenPoint
Customization Guide at:
www.listentech.com/support-tools-downloads
or contact Listen at:
+1.801.233.8992 • 1.800.330.0891 North America
The user is cautioned that any changes or modications not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
