Actox ABD125KX User manual

ABD125KX User Manual
Page 1 of 34
ABD125KX / ABD125KXF
125 W Extended Ku-Band BUC
USER MANUAL

ABD125KX User Manual
Page 2 of 34
Table of contents
Introduction……………………………………………….……………..………...5
Receiving and
inspection…………………………………………………..…………………...…..6
Equipment Damage or Loss
Return of Equipment
Preparing for
installation…………………………………………………….…………..…….…..7
Safety Precautions
General
description………………………………………………..…………….……….…..8
Considerations
Securing the Block Up Converter
Installing the Block Up
Converter…………………………………………………………………………………….…………...9
LED Indicators, Connector Pin Assignment, 10MHz Reference
Powering Options, Setting L.O., Setting Tx/Rx Frequencies
Recommended Test
Equipment…………………………………………………………………….………………………...11
Assembly and
Installation………………………………………………………………….………12
Connections and Mounting Hardware
Functional
Overview………………………………………………………….………………..13
General
IF/RF Conversion and Amplification
Monitor and Control (optional)

ABD125KX User Manual
Page 3 of 34
Operation Procedure……………………………………….....………..….……...14
Maintenance……………………………………….………………….................15
Preventive Care
Procedure
Block Up Converter Cooling System Preventive Maintenance
Performance Check
Troubleshooting
Out-of Warranty Repair
Appendix 1 Technical
Specifications…………..………………………………….……...........…..…..17

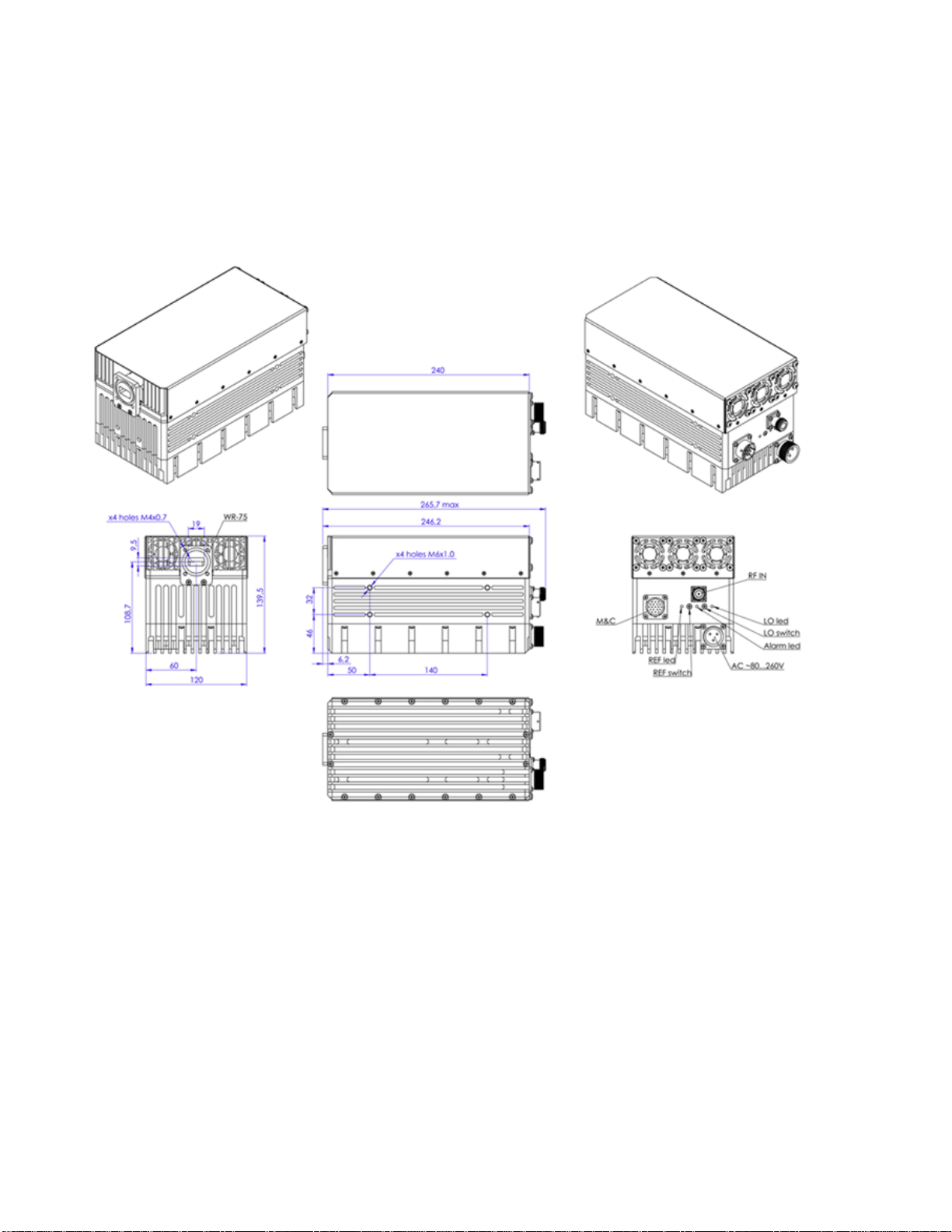

Appendix 2 Mechanical
Drawing………………………………………….……………….…….…....….18
Appendix 3 Spare Parts………………………………………………….…….…..19
Appendix 4 M&C Commands ………………...…….…………………………..….….……..….20
Appendix 5 M&C Connection Instructions………………………………………....…………25

ABD125KX User Manual
Page 4 of 34
Scope
This document covers the installation, operation, and maintenance of the ABD125KX BUC. It contains
information intended for engineers, technicians and operators working with the block up converter.
To make inquiries, or to report errors of fact or omission in this document, please contact Actox Corporation
at toll free 866-888-6087.

ABD125KX User Manual
Page 5 of 34
INTRODUCTION
The ABD125KX is a reliable, high quality, cost efficient stand-alone block up converter. The application for
this block up converter is Ku-Band VSAT communication in an outdoor environment. This line of superior
products, engineered using state of the art technology, is characterized by unparalleled durability and
dependability.
This is the smallest and lightest 125W L-To Ku-Band Block Up Converter and is designed to be mounted on
the feed horn. The unit is ideal for portable and mobile applications.
KEY FEATURES
13.75-14.50 GHz
950 to 1,700 MHz
Smallest package size and weight
Double L.O. 12.80 and 13.05 GHz
Auto-ranging 80 - 240 VAC
Low power consumption (552W max)
Digital temperature compensation
L.O. lock and amplifier LED
M&C – combined RS-232/485,
Ethernet (HTTP and SNMP)
FSK
RoHS compliant

ABD125KX User Manual
Page 6 of 34
Receiving and Inspection
The block up converter is designed to function outdoors and will arrive in a standard shipping container.
Immediately upon receipt of the block up converter, check the packing slip against the actual equipment you
have received. Inspect the shipping containers exteriors for visible damage incurred during shipping.
CAUTION!
Handle the block up converter with extreme care. Excessive shock may damage block up
converter’s delicate internal components.
Using the supplied packing list, verify that all items have been received and undamaged during shipment.
Verify that all items are complete. If there are any omissions or evidence of improper packaging, please notify
Actox Corporation immediately.
Equipment Damage or Loss
Actox Corporation is not responsible for damage or loss of equipment during transit. For further
information, contact the responsible transport carrier.
When declaring equipment as damaged during transit, preserve the original shipping cartons to facilitate
inspection reporting.
Return of Equipment
When returning equipment to Actox Corporation for repair or replacement:
Identify, in writing, the condition of the equipment,
Refer to the Invoice, Purchase Order and the date the equipment was received.
Notify Actox Corporation RMA department of the equipment condition and obtain a Return Material
Authorization (RMA) number and shipping instructions.
NOTE
Do not return any equipment without an RMA number.
This is important for prompt, efficient handling of the
returned equipment and of the associated complaint.

ABD125KX User Manual
Page 7 of 34
Preparing for Installation
Before attempting to install or use the block up converter, we recommend that you first familiarize yourself
with the product by reading through this manual. Understanding the operation of the system will reduce the
possibility of incorrect installation, thereby causing damage or injury to yourself or others. The block up
converter must be installed in accordance with the conditions and recommendations contained in the following
sections.
Safety Precautions
Carelessness or mishandling of the block up converter may damage the unit causing serious injury to yourself
or others. Please adhere to the following:
WARNING!!
If your unit is equipped with an AC power cord and plug, do not tamper with, or attempt to
reconfigure, the cord or plug supplied with the unit, as this can:
Result in personal injury;
Void the warranty;
Cause damage to the units or related equipment.

ABD125KX User Manual
Page 8 of 34
INSTALLATION AND OVERVIEW
General Description
This section describes the installation and theory of operation of the block up converter.
ABD125KX is powered by +80~+240 VAC via IF cable or MS connector.
It will amplify an input signal from an L-Band RF source up to a power level of 125 Watts (min) CW in Ku-
Band.
The block up converter can be used as a stand-alone unit or in a redundant configuration.
Specifications
Table 1 summarizes the specifications of the ABD125KX BUC. For mechanical specifications, refer to the
outline drawing, Appendix 1.
General Considerations
The block up converter shall meet all specifications over full bandwidth and under all environmental
conditions when terminated with a load of VSWR at 2:1 unless otherwise specified. All RF specifications
shall be met within five minutes after applying power, except gain flatness, which shall be met after a warm-up
period of ten minutes. During the warm-up period, the block up converter shall not exhibit any alarm or
require an RF mute input signal to reset any alarm/fault latches.
Securing the block up converter
Align the block up converter output waveguide flange with the mating flange of the antenna feeder waveguide.
Using the O-ring and hardware provided, connect the antenna feeder waveguide. Torque the flange screws to
16 inch-pounds (1.8 N-m). Attach the proper cables for waveguide for IF input, AC power and M&C if
equipped to the corresponding connectors of the block up converter.
The cylindrical connectors are labeled clearly and have different pin layouts. It is impossible
to incorrectly install the mating connectors.

ABD125KX User Manual
Page 9 of 34
Installing the Block-Up Converter
Tools and Test Equipment
Have on hand a standard electrician's tool kit and any tools listed in the antenna
manufacturer's installation instructions.
Site Considerations
The BUC is designed to mount on the antenna. Locate and install the antenna according to
instructions supplied by the antenna manufacturer. Choose an area that is free of extraneous
interference from motors and electrical equipment and has a clear line of sight from the
antenna to the satellite. Lightning arrestors should be used at the site to protect personnel and
equipment.
Preparation
Mounting Considerations:
Optional Mounting Brackets are available that will facilitate mounting for most antennas.
The ODU must be mounted such that:
- Sufficient support is afforded to the BUC, the LNB and the Power supply to minimize the
effects of antenna sway in strong winds.
- Air movement across the heat fins is possible.
- The length of the Power supply cables is taken into consideration in determining the
mounting location of the power supply.
Throughout installation and during any polarization, azimuth or elevation adjustment, ensure
that cables and waveguide are not crimped or pinched.

ABD125KX User Manual
Page 10 of 34
SSPALEDGreenAllOK
SSPALEDRedSummaryAlarm
L.O.LEDGreenL.O.issetto13.05GHz
L.O.LEDGreenblinkingL.O.issetto12.80GHz
NOLEDindicatorsNOPOWER
10MHzLEDGreenExternal10MHzReference
10MHzLEDRed10MHzisAbsent
10MHzLEDGreenBlinkingInternal10MHzReference
10MHz Reference
The BUC must receive a stable external 10MHz reference provided by a stable signal source such as a signal generator,
satellite modem or injected externally with a Bias T (for example, ABT6ARN/ABT6ARF manufactured by Actox
Corporation) or a similar bias T type.
Please make sure to check the sticker on the BUC for the appropriate power source before any power
connections are performed.
LED Indication

ABD125KX User Manual
Page 11 of 34
Recommended Test Equipment
The following equipment or equivalent is recommended for installation and system
alignment:
Equipment Type
Spectrum Analyzer HP8563E
Digital Voltmeter Fluke 8050
Adapter Waveguide to coax C or Ku-band
RF cables With calibrated insertion loss up to 15GHz
40 dB attenuator High Power to match HPA output.
Assortment of cables, connectors and adapters (calibrated up to 18 GHz).
Ensure that the BUC TX output power is disabled to prevent accidental transmission interference with
adjacent satellites or transponders before attempting to align or performing any other operation
involving the ODU. Before attempting any system change, carefully evaluate the possible effects of the
transmitted signal

ABD125KX User Manual
Page 12 of 34
Connections and Mounting Hardware
The IF input connection requires a coaxial cable with an F or N type connector. The RF output requires a
waveguide with a WR-75G flat flange. An O-ring shall be used to seal the waveguide connection.
Assembly and Installation
Use the information in this section as a guide to assemble and install the block up converter. The specified
humidity is up to 100% during operation. However, installation should be carried out in dry conditions, free of
salt spray or excessive humidity. This will eliminate the possibility of moisture and other foreign substances
from entering the output waveguide flange.
CAUTION!!
Only authorized technical personnel should perform the Installation and
proper electrical hookups of the block up converter.
The block up converter is designed to operate in an outdoor environment and is waterproof when mounted in
the correct orientation. To provide a sufficient airflow, the block up converter should be mounted with a
minimum clearance of 3 inches on all four sides and the bottom. Adequate cooling for the block up converter
will provide years of top performance.

ABD125KX User Manual
Page 13 of 34
Functional Overview
General
This section describes the block up converter functions in detail. The functional overview explains the RF
amplification, monitor & control and power distribution.
IF/RF Conversion and Amplification
The IF Input requires a signal with a 10MHz reference, and 80-240 VAC power source. 2-4.5Amps nominal
enters the BUC by a coaxial cable, converted to Ku-Band by the BUC and goes through an internal isolator
and reject filter, which provides a good VSWR at the input. Under normal operation, the RF amplifier will
amplify the RF Input signal level up to a power level of 51 dBm or 125 Watts CW minimum.
To achieve the rated output power of the RF Amplifier, provide the necessary gain and low insertion loss. The
amplified signal is transmitted through the output waveguide section to a satellite up-link system.
Monitor and Control (optional)
The block up converter may have a RS-485 and RS-232 serial interface. With this option the block up
converter can communicate to the indoor unit or redundancy control block up converter via RS-485 or RS-232.
The control system can provide the following M&C functions:
BUC Alarm (via RS-485/RS-232): when an input BUC within the block up converter system current
draw is below 0.3A, a BUC alarm signal will be transmitted via the RS-485/RS-232 serial interface.
Mute Control (via RS-485/RS-232)
Mute Control (via hardware line): TTL high level signal will mute a block up converter
Output Power Monitoring: 20 dB dynamic range (via RS-485/RS-232)
Base Plate Temperature Monitoring (via RS-485/RS-232)

ABD125KX User Manual
Page 14 of 34
Operation
It shall be performed by authorized personnel prior to maintenance and/or repair.
Procedure
Verify that the installation procedure described was completed. A complete physical check of the customer’s
system is suggested.
WARNING!!
The output power available at the output waveguide flange is extremely
hazardous. Under no circumstances should block up converter be operated
without the waveguide feed or a high power load attached. Do not operate
this equipment in the presence of flammable gases or fumes. Failure to
observe this precaution will result in personal injury. Safe and careful
installation of this block up converter will eliminate the possibility of
accidents and provide years of top performance.
Verify the antenna feed waveguide connection is properly done before the block up converter is energized.
NOTE
The block up converter can withstand any source or load VSWR. However,
the block up converter will meet all specification requirements only if the
source/load VSWR is sufficient. Normal operation is not possible if the
antenna feeder VSWR is greater than 2:1.
Turn ON the power and allow a warm up period of twenty minutes before operating the block up converter.
This will assure stable gain and power. The block up converter can function with a coupler when a direct
measurement of the output power is made.

ABD125KX User Manual
Page 15 of 34
Maintenance
This section contains information on how to maintain, troubleshoot and repair the block up converter. The
block up converter is extremely reliable, requiring very little preventive maintenance, or repair. Should there
be a malfunction, this section also contains technical information to help diagnose basic failures.
Preventive Maintenance
WARNING!!
Shut down the block up converter before disassembly and remove all cables
and connectors. Failure to observe this precaution may result in personal
injury or death. This includes the removal of any RF power originating from
other system components.
When the block up converter is in the hot stand-by mode in a redundant system, switch it to the operation
mode at least once every three months.
When the block up converter is in the cold stand-by mode in a redundant system, switch it to the operation
mode at least once every three months.
Block up converter Cooling System Preventive Maintenance
Preventive maintenance is limited to checking the performance of the block up converter cooling system. No
electrical or mechanical adjustments are required for normal operation.
.

ABD125KX User Manual
Page 16 of 34
Performance Check
Verify the system is properly set up.
It is recommended to measure the following parameters for ensuring that the block up converter is in good
working condition:
-Gain and Gain flatness
-RF load VSWR and RF source VSWR
-Two-Tone Inter-modulation Distortion
-Return Loss at connectors of the block up converter
Using a Source and an IF input signal level within the small signal region of the block up converter, measure
the power level at connectors IF or MS connector. Plot the swept response on a test data sheet. From the plot,
determine gain and gain flatness.
Plot the swept return loss for both the IF Input and RF Output signals on a test data sheet. From the plot
determine the return loss.
From the output power measurements determine rated output power. Record value on a test data sheet.
Measure the Two-tone Inter-modulation Suppression using two equal signals separated by 5 MHz. Record
value on test data sheet.
WARNING!!
Cable connection and disconnection shall be done carefully to avoid physical
damage to the cables and connectors, which may cause intermittent problems
in the future.
Out-of Warranty Repair
A non-warranty and out-of-warranty repair service is available from Actox Corporation for a nominal charge.
The customer is responsible for paying the cost of shipping the BUC both to and from Actox Corporation for
these repairs.
Symptom Action
Fails performance test Check power source, RF source, cabling and connectors. Check LED indicators for
status and if the light is red contact Actox Corporation. If we are not able to assist
you remotely, return block up converter to Actox Corporation after RMA number
has been issued.

ABD125KX User Manual
Page 17 of 34
Appendix 1
TECHNICAL SPECIFICATIONS
RF frequency
14.00 to 14.50 GHz
13.75 to 14.50 GHz
Dual local oscillato
r
- switchable 13.05 GHz and 12.80 GHz
IF frequency 950 to 1,700 MHz
Output power
125W min. (+51 dBm)
60W (+47.8 dBm) @ PLINEAR
IF connector N-type or F-type (field-exchangeable)
Power supply
ABD100KX- auto-ranging
80~240 VAC via MS connector, 552W typ.
Output interface WR-75 G
Gain 68 dB min., 72 dB nominal
IMD3 (two tones) -26 dBc max. 2 signal 5MHz apart at PLINEAR
L.O. leakage -45 dBm max
Spurious -50 dBc max
Spectral regrowth
(QPSK at 1.5x and OQPSK at 1.0x symbol rate offset
with 2dB back-off from rated output power) -30 dBc
TX Gain variation
TX Gain stability over temperature range
± 0.5 dB over 40MHz
± 1.8 dB over full band
± 1.5 dB typ., ± 1.8 dB max.
Requirement for external reference via IF cable
frequency 10 MHz (sine-wave)
input power -5 to +5 dBm @ input port
Phase noise
(Exceeds Intelsat’s standard IESS308/309) -55 dBc/Hz max. @ 10 Hz
-65 dBc/Hz max. @ 100 Hz
-75 dBc/Hz max. @ 1 KHz
-85 dBc/Hz max. @ 10 KHz
-95 dBc/Hz max. @ 100 KHz
Noise power density Transmit
Receive -80 dBm/Hz (max)
-125 dBm/Hz (max)
Noise figure 15 dB max
Input V.S.W.R. 2 : 1 max
Output V.S.W.R. 2 : 1 max. (with optional output isolator 1.10:1 max.)
Mute Shut off the BUC in case of L.O. unlocked
M&C RS-232 and RS-485, Ethernet (HTTP and SNMP)
FSK Multiplexed on TX IFL, compatible with Comtech and Paradise
Status LED
Amplifier RED
GREEN
L.O. GREEN
GREEN blinking
10MHz GREEN
GREEN blinking
RED
Summary alarm
All OK
Standard L.O. 13.05 GHz
Extended L.O. 12.80 GHz
External 10MHz reference
Internal 10MHz reference
No 10MHz reference detected
Temperature range (ambient)
operating -40 deg C to +55 deg C
storage -55 deg C to +85 deg C
V
ibration and shock Complies with MIL-STD-810E
Dimensions & housing 246.2 (L) x 120 (W) x 139.5 (H) mm
9.84” (L) x 4.8” (W) x 5.5” (H)
Weight 7.53 kg (16.0 lbs) max

ABD125KX User Manual
Page 18 of 34
Appendix 2
Mechanical Drawing

ABD125KX User Manual
Page 19 of 34
Appendix 3
Spare Parts
The following sheet can be copied and used as a fax form to order the required spare parts. Please make sure
to include all identifying information to facilitate the processing of your order. The order may be sent via
email to the following address.
Fax: [phone]
Email: [email protected]
For additional information, please contact our customer service department at:
[phone] or 1-866-888-6087
Actox Corporation
designers and manufacturers of telecom & wireless products
Spare Parts Order Form ABD125KX Ext. C-Band BUC
From:
Place By: Signature:
Telephone:
Fax Email:
Part Description Part Number Quantity Unit
Price* Line Total*
Fax to: Customer Service 1-866-888-6087

ABD125KX User Manual
Page 20 of 34
Appendix 4 M&C Commands
Reply Packet format Explanation Interpretation Examples
ACK (Acknowledge 7E FX E0 ZZ 7F Acknowledge that the
received packet was
properly processed.
X = Device address of the packet
source device.
ZZ = CRC.
1) reply: 7E FF E0 E0
7F
(ACK reply sent from
the BUC)
NACK (Not
Acknowledge) 7E FX F1 YY ZZ
7F
Indicate that a
problem was
encountered with
the received packet.
X = Device address of the packet
source device.
YY = Error code
(03 = Incorrect CRC
18 = Unrecognized command
30 = Set command attempted on a
restricted database element)
ZZ = CRC.
1) reply: 7E FF F1 03
F2 7F
(NACK reply sent from
the BUC for an
invalid CRC)
2) reply: 7E FF F1 18
E9 7F
(NACK reply sent from
the BUC for an
unrecognized
command).
Command Packet
format Explanation Possible replies Interpretation Examples
1) cmd: 7E FF 02 06 06 02
7F
reply: 7E FF 84 06 06 01 02
87 7F
Get Device
Temperature
7E FF 02
06 06 02
7F
Query device for
current temperature
Update Device
Temp: 7E FF 84 06
06 TT TT ZZ 7F
TT TT = Device temp in °C
+ 273. ZZ = CRC.
(Temp = 0x0102 = 0d258 –
273 = -15°C) 2) cmd: 7E FF
02 06 06 02 7F
reply: 7E FF 84 06 06 01 34
B1 7F
(Temp = 0x0134 = 0d308 –
273 = +35°C)
Get Power
Supply
Temperature
7E FF 02
06 07 03
7F
Query device for
current power supply
temperature
Update Device PS
Temp: 7E FF 84 06
07 TT TT ZZ 7F
TT TT = PS temp in °C +
273. ZZ = CRC
1) cmd: 7E FF 02 06 07 03
7F reply: 7E FF 84 06 07 01
02 86 7F (Temp = 0x0102 =
0d258 – 273 = -15°C) 2)
cmd: 7E FF 02 06 07 03 7F
reply: 7E FF 84 06 07 01 34
B0 7F (Temp = 0x0134 =
0d308 – 273 = +35°C)
1) cmd: 7E FF 02 17 FF EA
7F
reply: 7E FF 84 17 FF 01 2C
41 7F
Get Output
Power
7E FF 02
17 FF
EA 7F
Query device for
current output power
Update Output
Power: 7E FF 84 17
FF PP PP ZZ 7F
PP PP = Output power in 10
x dBm. ZZ = CRC.
(Power = 0x012C = 0d300 =
30.0dBm.) 2) cmd: 7E FF 02
17 FF EA 7F
reply: 7E FF 84 17 FF 01 A0
CD 7F
(Power = 0x01A0 = 0d416 =
41.6dBm.)
Get Gain
7E FF 02
18 FF E4
7F
Query device for
current gain. Note:
value is depending of
attenuation settings.
Update Gain: 7E FF
84 18 FF GG GG ZZ
7F
GG GG = Gain in 10 x dB.
ZZ = CRC.
1) cmd: 7E FF 02 18 FF E5
7F reply: 7E FF 84 18 FF 02
8A 69 7F (Gain = 0x028A =
0d650 = 65.0dB.) 2) cmd:
7E FF 02 18 FF E5 7F reply:
7E FF 84 18 FF 01 F9 F7 7F
(Gain = 0x01F9 = 0d505 =
