Convection Oven
Operation Manual
COH-2670W

OPERATION MANUAL PAGE 1

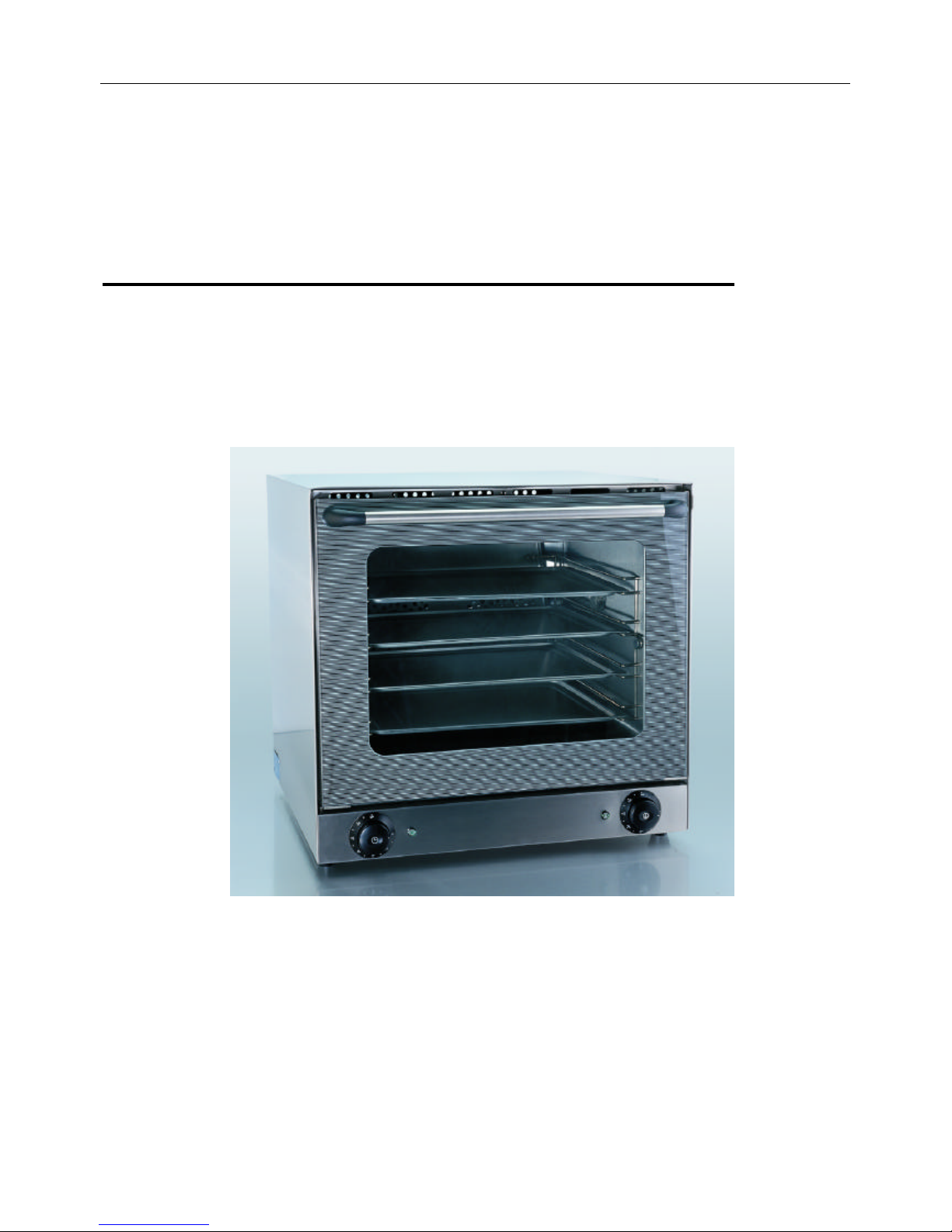

Electric Convection Oven
Operation Manual
lThank you for purchasing the COH-2670WElectric Convection Oven.
lTo ensure proper operation, please read this manual carefully before use.
lAfter reading, retain this manual in a convenient place for further reference.
SAVE THESE INSTRUCTIONS

OPERATION MANUAL PAGE 2
Contents
1. Safety Guidelines………………… ……………… ……………………………………..……3
1.1 Notes on installation……………………… ………………………………………………3
1.2 Noteson operation…………………………………………………………………………3
2. Purpose of Using the Oven……………………………………………………………………4
3. Using the Oven………………………………………………………… ………………………4
3.1 Preparationsbefore Use……………………………… ……… …………………………4
3.2 Instructionsfor Use………………………………………………………………………… 5
4. Maintenance of Oven………………………………………………………………………… 6
5. Storing the Oven………………………………………………… …………… …… ……… 7
6. Specification…..………………………………………… ……………………………………7

OPERATION MANUAL PAGE 3
1. Safety Guidelines
1.1 Notices on installation
WARNINGS
lInstall the oven, in a suitable location away fromwater, and close to a fire extinguisher.
lInstallation of the oven must comply with industry standards. Incorrect installation can cause accidents,
electrical shock, fire.
lThe rubber feet must be installed on the equipment firmly. Do not use the oven without feet.
lDo not install the equipment on the floor.
lBe sure to install the oven on a flat and stable surface. Otherwise the unit may topple over, causing
injury or burns.
lBe sure to provide clearance of at least 4inches (10cm) between the unit and walls.
Insufficient clearance may cause generated heat to damage the other surrounding items.
lRemove all the adhesive film which coversthe body surface before using.
lBe sure to connect the power cord in compliance with industry standards.
lCheck the power supplyto see if it is correct for the specification of the oven. The working voltage range
can not deviate by ±10% when the oven is working.
Violating this standard can cause electrical shock or fire. If you cannot identify the specification of the
power supply used, consult the supplier.
lBe sure to connect a ground wire to the oven.
Operating the oven without grounding can cause an electrical shock or fire by a short circuit.
lA bi-pole switch must be installed between the oven and the power.
lDo not bundle up the power cord.
lDo not step on, squeeze, or forcedly twist the power cord; otherwise the power cord can become
damaged, causing electrical shock or fire.
If your power cord has been damaged, consult the supplierfor replacement.
1.2 Notices on operation
WARNINGS
lDo not use combustibles (e.g., thinner), combustible gases, or volatile matter near the oven; otherwise
an explosion or fire could be caused.
lDo notput anything on top of the oven while oven is in use.
lThe metal parts and glass window of the door become extremely hot during use; be careful not to
touch them when opening and closing the door.
lWhen hot, do not apply water to the glass window. It may cause the glass to break.
lDo not touch any place except for the handle and switch during use,otherwise you could suffer burns
since the body is very hot.
lIf the oven has been submerged due to a disaster or other problem, replace unit. Otherwise, electrical
shock or fire can be caused.
lConsult the supplier where you purchased the oven for repairs.

OPERATION MANUAL PAGE 4
Incorrect repairs can cause electrical shock, burns, fire or accidents.
lDo not disassemble the oven.
lWhen removing dirt from the oven, do not use chemicals, such as thinner or benzene.
lDo not stack the oven by three or more (120Kg (280lb)).
lClean the inside daily.
2.Purpose of Using the Oven
The oven was designed only to be used baking and reheating purposes. Do not use for other purposes.
3. Using the Oven
3.1 Preparations before using
A. Feet assembly
lThe feet are placed inside the appliance and must be assembled. Do not use the appliance without
feet.
lScrew the support feet to the bottom of the appliance.
lAdjust the appliance height by screwing or unscrewing the feet themselves.
B. Positioning
lInstall the oven on a flat and solid surface.
C. Remove the protective film.
D. Take out the tray from the body and wash it.
E. Wipe the inside and outside of the oven with a damp cloth. Then, wipe with a dry cloth.
F. Electrical connection
lBefore connecting make sure that the voltage and the frequency correspond to that stated on the rating
plate on the appliance.
lPlace a bi-polar switch between the appliance and the network accessible after installation, whose
contacts have a minimum opening distance of 3mm, with an appropriate input.
lThe appliance must be connected to the ground line of the network.
lThe conductor must have a minimum section of 10 mm2.
lConnect the power cord to the electrical outlet. Be sure the power cord is strongly kept in position.
3.2 Instruction for Use
3.2.1 How to use Timer
A. Set the time switch knob to the number which indicates the cooking time required by the food you are
going to cook.
B.Set the timer by turning it clockwise. The oven will turn off automatically at the end of the selected time
and a bell will ring.
C.The oven can be turned off manually during cooking by turning the timer counter-clockwise to the “0”
position.
3.2.2 Convection cooking
A. Turn on the power to the oven.
B. Set the temperature control to the desired temperature (0-570°F).
C. Turn the timer to the desired time (0-120min). The temperature light, timer light, and the inside lamp are

OPERATION MANUAL PAGE 5
on.
D. The temperature light will switch off when the temperature risesto the desired level.Then it will switch on
when the temperature drops down. This process will occur automatically.
4. Maintenance of oven
A. Turn off the power switch and disconnect the power cord from the supply.
B. Do not clean the oven until it is completely cooled down.
C. Wipe the oven using a damp cloth.
5. Storing the Oven
A. When not in use, turn off the power switch and disconnect the power cord from the supply.
B. Bundle up the power cord and put the bundle on the body.
C. Cover the body with a plastic bag and pack it in a corrugated cardboard box.Store it in a location with
low humidity.
6. Specifications
Model COH-2670W
Supply voltage 208-220 V
Rated demanded
2670W
Lighting Power 30W
Safety device Temperature fuse 626°F
Functions Convection heater
WARNING
1. When inspecting, cleaning, or maintaining the body, be sure to turn off the power switch and
disconnect the power supply; otherwise you could get an electrical shock caused by a short circuit.
2. Clean the inside of the oven daily to keep it clean.
3. When cleaning the inside of the oven, do not use any detergents, such as acidic detergent or
cleansers.

OPERATION MANUAL PAGE 6

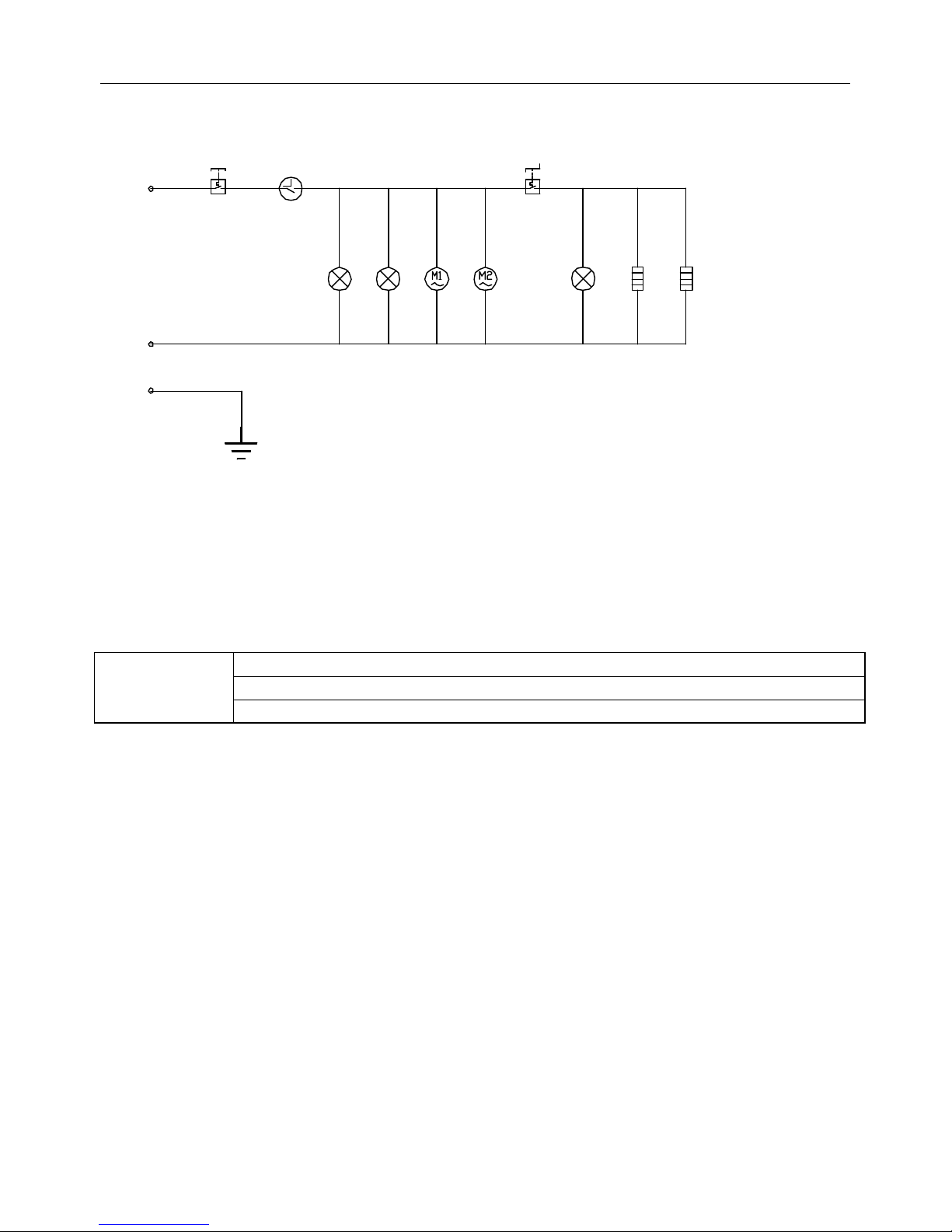

Electric circuit diagram
Ｌ
Ｎ
Ｅ
－Ｓ１ －Ｓ２－ＰＴ
－ＨＬ１ －ＥＬ －ＨＬ２ －ＥＨ１ －ＥＨ２
(COH-2670W)
EH1---Upper Heater EH2--- Main Heater EL---Inside Lamp M1?M2---Convection fan
S2---Thermostat for Upper Heater S1---Fuse PT---Timer HL1~HL2---Pilot Light
Dimensions, Capacities, Weights
Dimensions: 595×595×570（㎜）
Inner: 460×380×360 (㎜)
COH-2670W
Weight: 35kg

Diagram
of
Convection
Oven

SN Name Material Specification Qty
1Bar, under door S.S 1
2Outer toughened glass Toughened glass 577*448*5 1
3Screw S.S M4*8 4
4Door post S.S 2
5Door hinge Zincificated 2
6Sunk screw S.S M5*8 2
7Handle terminal end Bakelite 2
8Inner toughened glass Toughened glass 492*442*5 1
9Screw S.S M4*8 8
10 Switch, back heating element Bakelite ￠70 1
11 Switch base, back heating element Bakelite ￠51 1
12 Indicator light, timer ￠13，green 1
13 Power indicator light ￠13，green 1
14 Switch of timer Bakelite ￠40 1
15 Switch base of timer Bakelite ￠51 1
16 Front bottom Plate, outer shell S.S 1
17 Base plate Aluminum plating 1
18 Timer 0-120MIN ,16A 1
19 Foot Bakelite 4
20 Crosshead screw 20
21 Wire jacket Brass 1
22 Power wire 1
23 Temperature limit controller S.S 1
24 Earth Screw 1
25 Thermostat 1
26 Inner body support rack S.S 2
27 Inner body S.S 1
28 Door hinge fixture rack 2
29 Crosshead screw S.S M5*10 7
30 Back heat preservation asbestus 1
31
Inner body heat preservation
asbestus 1
32 Outer Shell S.S 1
33 Back cover board Aluminum plating 1
34 Motor 25W 2
35 Door glue 1
36 Floodlight base 1
37 Floodlight 35W 1
38 Lamp chimney Toughened glass 1
39 Heating element S.S 1.26KW 2
40 Fixture screw S.S M5*12 8
41 Wind blade S.S 2
42 Fixture nut of wind blade S.S M5 2
43 Guide wind board S.S 1
44 Rack S.S 2
45 Bar, on the door S.S 1
46 Door Handle S.S ￠19*1.5 1
47 Fixture screw S.S M5*25 2
Part List of Convection oven
