General presentation of the MSX-Box MSX-Box-500
1General presentation of the MSX-Box
1.1 Side view (left)
Fig. 1-1: Side view (left)
Switch “I” = ON (switched on)
Switch “0” = OFF (switched off)
* Power cable is contained in the standard delivery.
www.addi-data.com 5

General presentation of the MSX-Box MSX-Box-500
www.addi-data.com 6
1.2 Front side
Fig. 1-2: Front side
When the display „”Power“ lights, the MSX-Box is switched on.
Fig. 1-3: Side view (right)
i IMPORTANT!
The standard delivery of the MSX-Box does not include a PC board.

Mounting the MSX-Box MSX-Box-500
2Mounting the MSX-Box
2.1 DIN rail mounting
WARNING!
Should you have already mounted the MSX-Box and want to
transport it in a switch cabinet or in other systems, do ensure that
there is sufficient transportation lock. The MSX-Box could fall e.g.
from the DIN rail, which could lead to the damage of the MSX-Box,
boards and/or other objects/persons.
2.1.1 Fasten the rail clamp to the MSX-Box
Fasten the clamp in the holes with the 2 screws delivered with the MSX-Box.
i IMPORTANT!
The spring within the clamp points to the ground (see figure below).
Fig. 2-1: Fastening clamp
Fig. 2-2: Mounting the clamp
www.addi-data.com 7

Mounting the MSX-Box MSX-Box-500
2.1.2 Mounting the MSX-Box to the DIN rail
Introduce the clamp by placing the spring under the rail
Fig. 2-3: Guiding the clamp to the rail
Lift the MSX-Box until the upper part of the clamp locks on the rail.
Fig. 2-4: Rail mounting
www.addi-data.com 8

Mounting the MSX-Box MSX-Box-500
www.addi-data.com 9
2.2 Wall mounting
2.2.1 Fasten the wall boards to the MSX-Box
Fasten the clamps in the holes with the 2 delivered screws.
Fig. 2-5: Mounting the wall boards
Right side
Left side
(switch)
2.2.2 Location of the wall board
Fig. 2-6: Fastened wall boards

Board installation MSX-Box-500
3Board installation
Switch off the MSX-Box and all the units connected to the MSX-Box.
Pull the Box mains plug from the socket.
Unscrew the 6 screws from the housing lid.
Fig. 3-1: Unscrew the housing lid
WARNING!
Be careful when lifting the lid: an earthing line is connected to the lid
through a ribbon connector
You can remove the earthing line or lay the lid reversed to the side.
Unscrew the board holding clamp (if mounted).
Fig. 3-2: Unscrew the board holding clamp
www.addi-data.com 10

Board installation MSX-Box-500
Discharge yourself from electrostatic charges.
Remove the back cover of the selected slot.
Take the board out of its package.

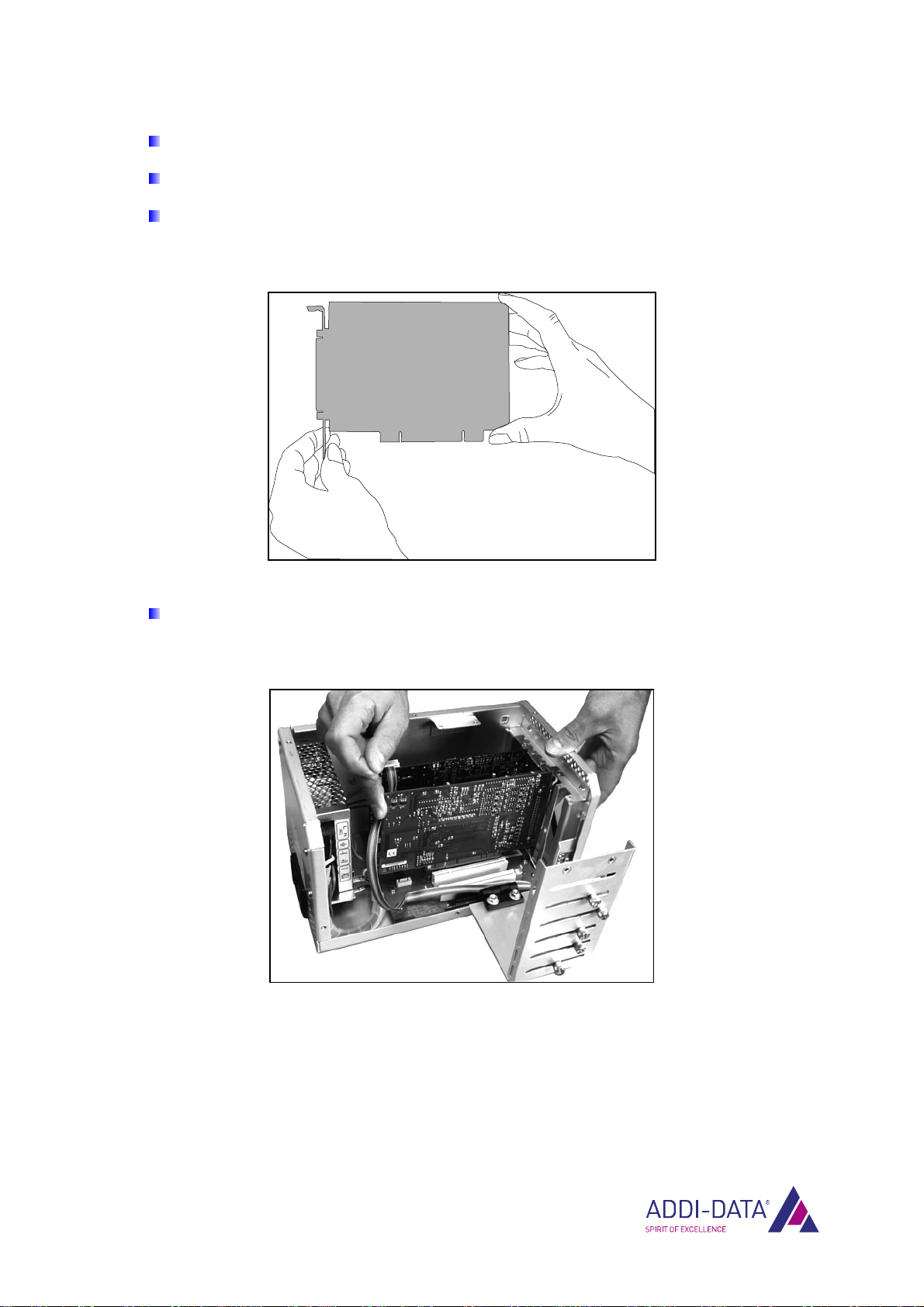

Fig. 3-3: Correct handling of the board
Insert the board vertically into the chosen slot.
Fig. 3-4: Inserting the board
www.addi-data.com 11

Board installation MSX-Box-500
www.addi-data.com 12
Fasten the board to the rear of the housing with the screw which was fixed on the back
cover.
Fig. 3-5: Fasten the board
Screw the board holding clamp and the earthing line.
Push the screw to the rear or the front of the clamp to fix the board.
Fig. 3-6: Fix the board with the holding clamp
Tighten all the loosen screws of the housing lid.

Connecting the MSX-Box to the peripheral MSX-Box-500
4Connecting the MSX-Box to the peripheral
4.1 Connecting the network cable

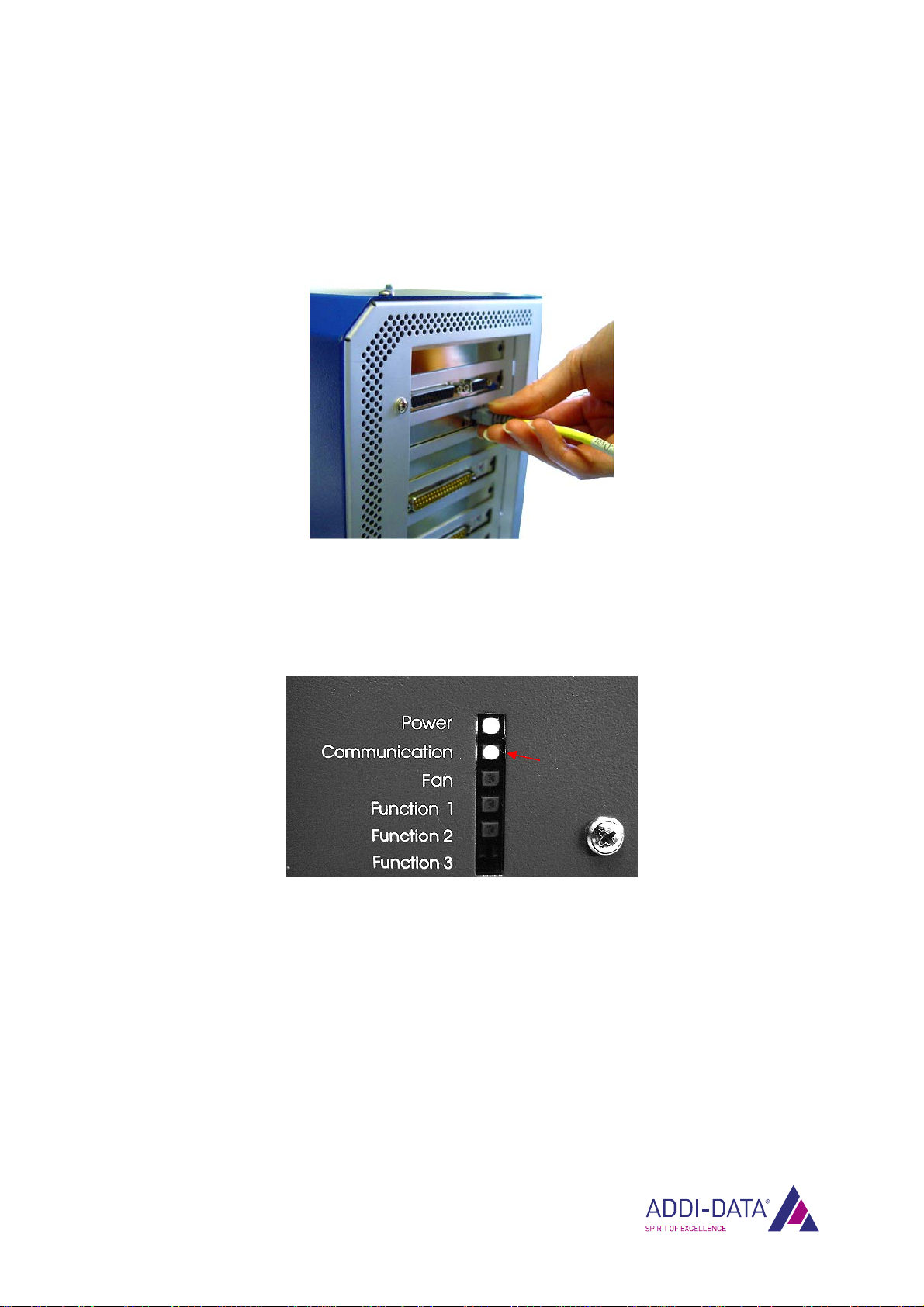

Fig. 4-1: Connecting the network cable
The "Communication" LED blinks when the cable is connected to an active network.
Fig. 4-2: "Communication" LED
www.addi-data.com 13

Contact and support MSX-Box-500
5Contact and support
Do you have any questions? Write or phone us:
Address: ADDI-DATA GmbH
Airpark Business Center
Airport Boulevard B210
77836 Rheinmünster
Germany
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Manual and software download from the Internet:
www.addi-data.com
