SI Pegasus User manual

Pegasus
Installation Instructions
400243 |v. 1.0 |29 August 2023
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-PEGASUS1
R.RX
R.TX
PROG
RF
LEARN

Please use this QR Code to access more
documents and Video Tutorials related to the
product.
FCC INFORMATION
This device complies with FCC RF radiation exposure limits set forth for general population.
This device must be installed to provide a separation distance of at least 20cm from all persons
and must not be co-located in conjunction with any other antenna or transmitter. This device
complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. NOTE: This
equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the the interference by one or more of the following measures:- - - -
Reorient or relocate the receiving antenna. - Increase the separation between the equipment
and receiver. - Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
This device complies with Canada's license-exempt RSSs. Operation is subject to the following
two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Scan the QR code to scan Pegasus specsheet
Tech Specs

Technical Support: 512.832.6939
Hours of Support: 7:30am - 5pm CST
[email protected]
[email protected]
CONTENTS
Parts in the Box 4
Mounting Options 5
RJ45 and Power Pinouts 6
GPI/O and Dry Contact Pinouts 7
IR HEX codes 8
LED Details 9
User Button Actions 10
Learning Somfy/Olibra Remotes, Keypads & Sensors 11
Learning Pico Remotes to Control a 485 Motor 12
Programming an RTS Motor Channel 13
RTS Smart Repeater Setup 14
RTS to 485 Smart Receiver Setup 15
485 to RTS Smart Transmitter Setup 16
Network Mode 17
Factory Reset 18

4

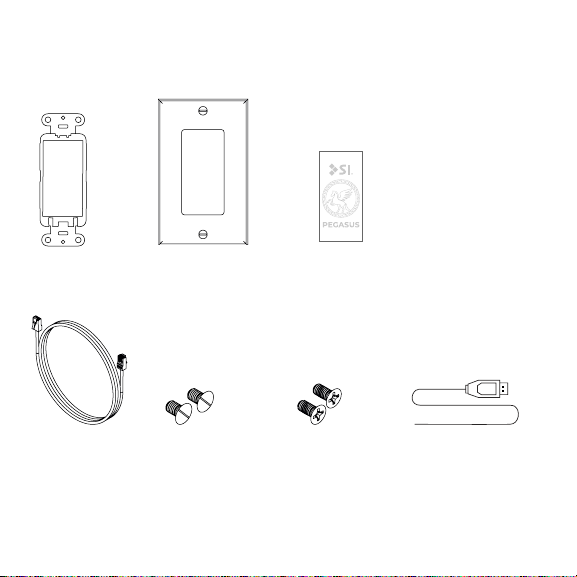

PARTS IN THE BOX
(1) White Decora
Wall Trim Plate
(1) Pegasus (1) Pegasus
Decora Label
(1) AUX USB
Power Cable
(1) CAT5e (2) J Box
screws
(2)Trim plate
screws

5
Left or Right Din Rail
mounting
Standard single or
multiple gang J Box
MOUNTING OPTIONS
Choose your mounting:
Pegasus Pro-tip
It is best not to mount Pegasus in a metal J Box

6
RJ45 AND POWER PINOUTS
5 position removable screw-down Terminal
block connector for GPI/O
Aux power Input (7-28vDC)
Data +(WHT/ ORG)
Data - (ORG)
N/A (WHT/ GRN)
N/A (GRN)
Power + (BLUE)
Ground - (WHT/ BRWN)
Ground - (BRWN)
Power + (WHT/ BLUE)
485 Connection (TIA 568B) RJ Pin Outs
1
8
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-PEGASUS1
R.RX
R.TX
PROG
RF
LEARN
- Ground (USB Black)
+7-28vDC Positive (USB Red)

7

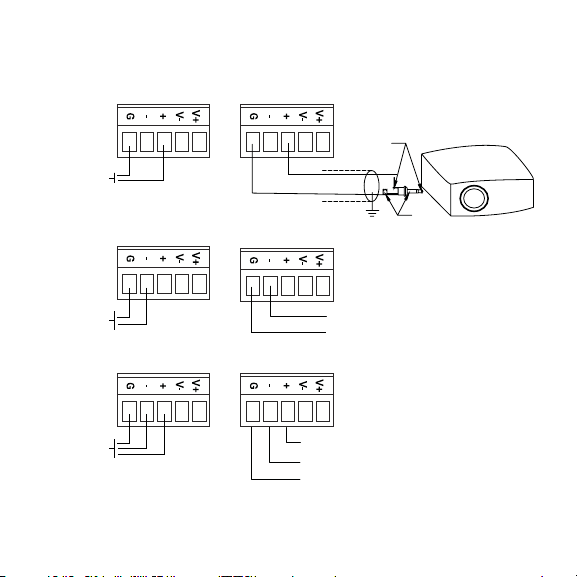

GPI/O AND DRY CONTACT PINOUTS
UP
STOP
12 V Trigger
Sleeve
Tip DC
0 - 10V Input
GND (PINK) (-)
POSITIVE (VIOLET) (+)
IR Input
BLACK (IR/SERIAL-)(GND)
YELLOW (IR/SERIAL+)(485 DATA -(SIG OUT))
GREEN(DATA +(VSI)
Dry Contacts
DOWN

8
IR HEX CODES
0000 006c 0000 000c 0006 011b 0006
011b 0006 00bb 0006 00bb 0006 00bb
0006 00bb 0006 00bb 0006 00bb 0006
00bb 0006 00bb 0006 011b 0006 08a4
0000 006c 0000 000c 0006 011b 0006
011b 0006 00bb 0006 00bb 0006 00bb
0006 00bb 0006 00bb 0006 00bb 0006
00bb 0006 011b 0006 011b 0006 08a4
0000 006c 0000 000c 0006 011b 0006
011b 0006 00bb 0006 00bb 0006 00bb
0006 00bb 0006 00bb 0006 00bb 0006
00bb 0006 011b 0006 00bb 0006 08a4
UP
STOP
DOWN
Third party IR universal control systems may be used to control
the screen or using these hex codes: (Available on the website too.)
* Not included / optional

9
LED DETAILS
Compatible Mode
ON when in Compatible
Mode
UP GPI/O
Briefly turns on with a valid up
signal on the GPI/O Connector
Repeater Mode Transmit (Tx)
On SOLID when IN Repeater
RX Mode
Repeater Mode Receive (Rx)
On SOLID when IN Repeater
RX Mode
Sub GHz Signal
Briefly turns on with any valid
Sub GHz Data (Receiving or
Trasmitting)
Both Rx and Tx LED's
remain on when in Rx/Tx
repeater mode
Learn
Flashes when learning a
remote
485 Data/Power
ON, when power from
BUS or AUX is applied
and flashes OFF with
485 data on Bus
DOWN GPI/O
Briefly turns on with
a valid signal on the
GPIO/O Connector
Local Mode
ON when in Local Mode
R.RX
R.TX
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-PEGASUS1
R.RX
R.TX
PROG
RF
LEARN

10
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-PEGASUS1
R.RX
R.TX
PROG
RF
LEARN

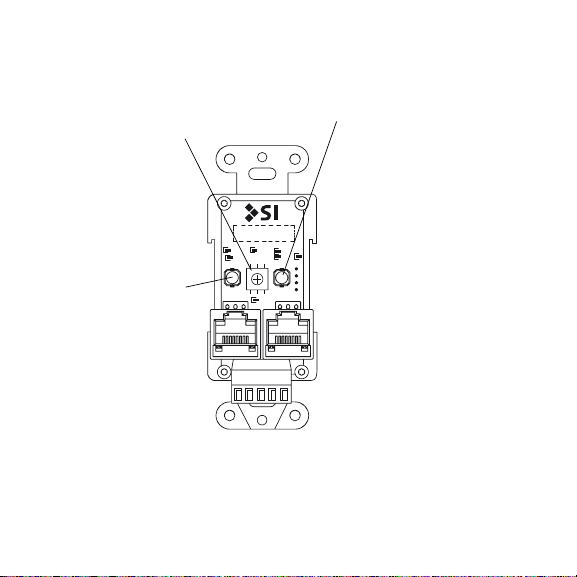

USER BUTTON ACTIONS
16 Rx/16 Tx Channels O-F
Note: moving the Hex to C.E.F.
will change the transceiver to
one of three repeater functions
in local mode
HEX Switch Fixed Channels
C = Repeater Transmit Mode (Tx)
R.TX LED ON (Transmits relayed 485
repeater groups)
D = Repeater Receive Mode (Rx)
R.Rx LED ON (relays received RF cmds
and sends over 485)
E = Repeater Legacy Mode (Rx/Tx) Both
R.Rx and R.Tx LED ON (repeats cmds
from Rx. to Tx)
F = Motor Channel / GPI/O Output
Default
Program Button
Press and release sends pairing
command. Use this button to
program SubGHz Motors.
Hold button (3 seconds to reboot and
boot in compatibility mode (Compat
LED turns on)(Legacy mode is
default)toggle
Holding both Program and Learn
button down for approx. 3 secs will
factory reset, all LED's will come on
(erases all channels in and out and
puts Pegasus back in Local mode and
Legacy compatibility)
Learn Button
Press this button (LED starts
flashing) to LEARN a Sub GHz
keypad, remote or sensor on
the currently set Hex CH (up
to 16)
Hold button (3 seconds)
(until LED comes on to erase
the current Hex set remote
channel)
Hexadecimal Switch

11
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-
R.RX
R.TX
PROG
RF
LEARN

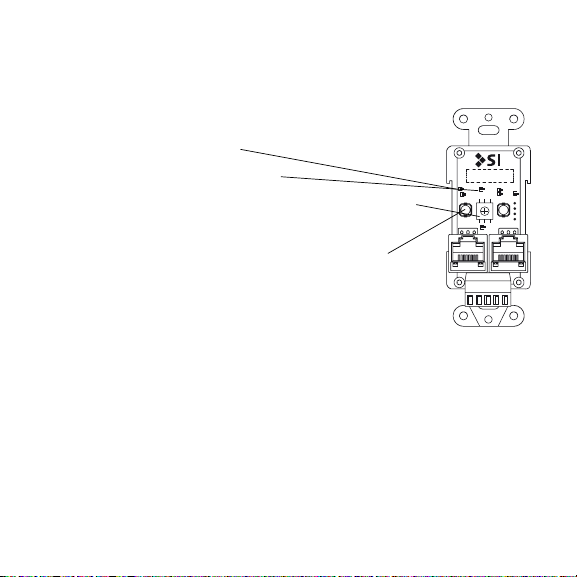

LEARNING SOMFY OR OLIBRA
REMOTES, KEYPADS & SENSORS
Use the Terminal Block or 485 Bus for power
Ensure Compat LED is OFF
Ensure the Local LED (red) is ON
Adjust the HEX(0-F) to the desired Channel to learn
the remote, keypad or sensor
Press the Learn Button (Light will start to flash).
On the device you wish to learn click the program
button once and if the device transmits you will see
the RF LED light up and the Learn LED will stop flashing
Note: The program button on the remote device is typically found on
the back and in some cases the case may need to be temporarily
removed to gain access
Connect a 485 motor to one of the 485 ports, and you can now test
the learned remote, keypad or sensor
If you want to learn other devices just repeat the above steps from
the HEX adjustment down for up to 16 devices

12
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-
R.RX
R.TX
PROG
RF
LEARN

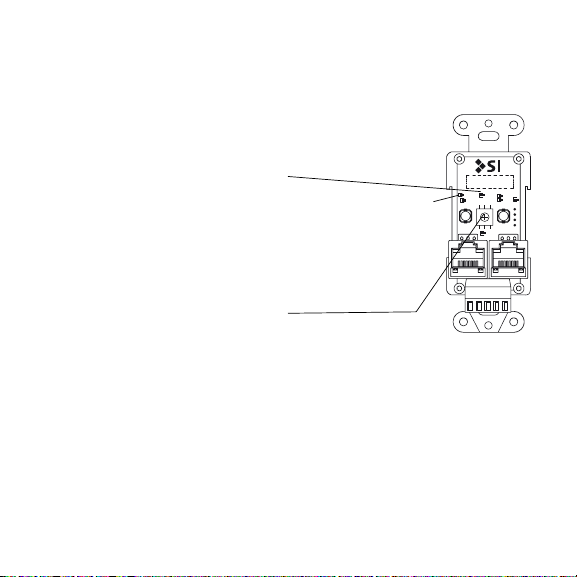

LEARNING PICO REMOTES TO
CONTROL A 485 MOTOR
Use the Terminal Block or 485 Bus to power up
Pegasus
Ensure the Local LED (red) is ON
Check to see if the Compat LED is ON, if it is skip over
the next step
Press and hold the PROG button down for 3 seconds,
LED’s will flash on, and the Compat LED will turn ON
Adjust the HEX to the Channel you wish to learn the
remote, keypad or sensor to (0-F)
Press the Learn Button (Light will start to flash)
On the device you wish to learn hold any button down for approx. 7
seconds The Learn LED will stop flashing indicating the device was
learned
Ensure a 485 motor is powered up and connected to one of the 485
ports, and you can now test the learned remote
If you want to learn other devices just repeat the above steps from
the HEX adjustment down, for up to 16 devices

13
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-
R.RX
R.TX
PROG
RF
LEARN

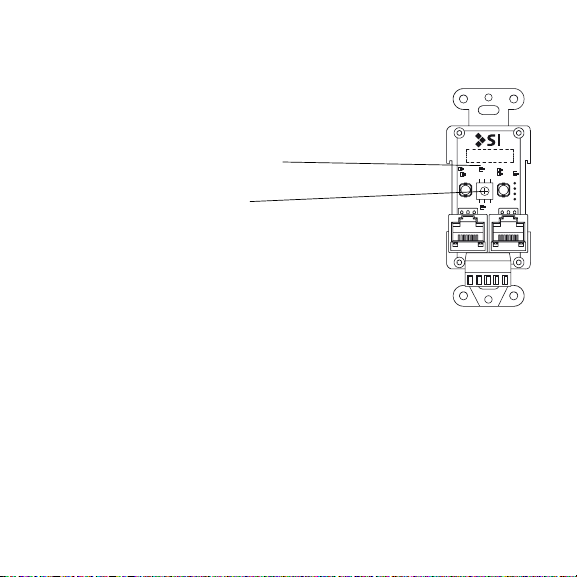

PROGRAMMING AN RTS MOTOR
Use the Terminal Block or 485 Bus to power up
Pegasus
Ensure the Local LED (red) is ON
Place the desired Motor into learn mode
This can be done with an accompanying remote by
holding the up and down button until the motor jogs
once, or if you do not have a remote then hold the
motor programming button typically found on the
motor head until the motor jogs once.
Some RTS motors have a yellow LED that will begin
flashing
Next press the Prog button on Pegasus, and the motor will jog once
confirming you have programmed the motor.
You can now use the GPI/O inputs or 485 commands to test your
RTS Motor

14
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-
R.RX
R.TX
PROG
RF
LEARN

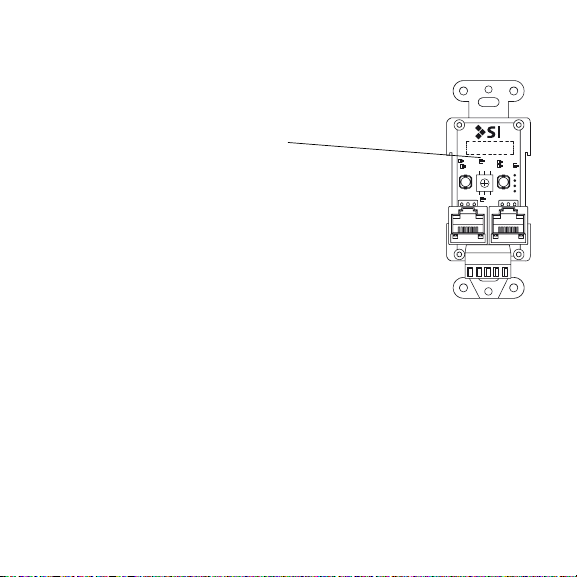

RTS SMART REPEATER SETUP
Use the Terminal Block or 485 Bus to power up
Pegasus
Ensure the Local LED (red) is ON
Set HEX switch to channel E
Verify that Both the R.RX and R.TX LED’s turn on
and stay lit
Any valid RTS RF signal will now come in, and then be retransmitted
back out

15
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-
R.RX
R.TX
PROG
RF
LEARN
RTS to 485 SMART RECEIVER SETUP
Use the Terminal Block or 485 Bus to power up
Pegasus
Ensure the Local LED (red) is ON
Set HEX switch to channel D
Verify that the R.RX LED turns on and stay lit
Connect a CAT 5e or greater 24AWG cable to one of the 485 data
ports
Any valid RTS RF signal will now come in, and then be formatted
and sent out the 485 bus for other Pegasus configured as an RTS
Smart Transmitter to re-transmit up to 4000’ away

16
DATA
Pegasus
302304
V+
V-
+
G
-
COMPAT LOCAL
CHANNEL
FCC ID: 2ASYG-
R.RX
R.TX
PROG
RF
LEARN
485 TO RTS SMART TRANSMITTER
SETUP
Use the Terminal Block or 485 Bus to power up
Pegasus
Ensure the Local LED (red) is ON
Set HEX switch to channel C
Verify that the R.TX LED turns on and stay lit
Connect a CAT 5e or greater 24AWG cable to one of the 485 data
ports.
Any valid 485 smart receiver group message will now be formatted
as an RTS message and repeated out the RF output

17
NETWORK MODE
Please connect Pegasus to a 485 bus port segment with a
TRO.Y connected.
Please refer to Pegasus Transceiver
Configuration Section in TRO.Y / 2
Programming Manual. scan QR code

18
FACTORY RESET
To factory reset Pegasus press and hold both the Learn and
Programming buttons for approx 3 seconds until all led's come on.
This will erase any remotes, or motors stored, switch modulation
back to Legacy and place the Pegasus in the Local mode.

19
Lutron, Pico, RadioRA 2, RadioRA3, and Clear Connect are
trademarks or registered trademarks of Lutron Electronics Co.,
Inc., in the U.S and / or other countries. Somfy, SDN, and RTS
are trademarks or registered trademarks of Somfy Systems,
Inc. We use the trademarks for the sole purpose of identifying
products compatible with TRO.Y, Helen or Pegasus. This use
does not imply any endorsement by or affiliation with the
trademark owners.

20
Copyright 2019 US SHADE CORPORATION
Screen Innovations
9715-B Burnet Rd, Suite 400 Austin, TX 78758
512.832.6939
www.screeninnovations.com
400243 |v. 1.0 |29 August 2023
