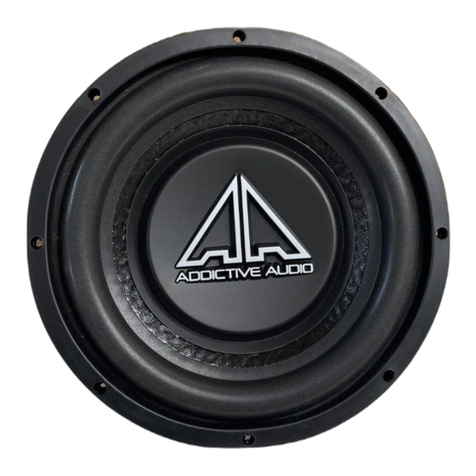

Addictive audio AA10V2 User manual

VERSION 2 SUBWOOFERS
Copyright 2011 Addictive Audio. All rights reserved.
C
OD
ID
MD
-----------------------------------
10v2
OD = 10 7/8"
ID = 9 3/8"
MD = 5 3/4"
Displacement:
0.11 cu.ft.
12v2
OD = 12 7/8"
ID = 11 3/8"
MD = 6 1/8"
Displacement:
0.176 cu.ft.
15v2
OD = 15 1/2"
ID = 14"
MD = 7 1/8"
Displacement:
0.22 cu.ft.
SPECS
RECOMMENDED SEALED ENCLOSURE *RMS* POWER RANGES FOR SINGLE SUBWOOFER
400 450 500 550 600 650 700
aa10v1
aa12v1
KEY: UNDER POWERED OPTIMUM CAUTION WARRANTY VOID
(APPROXIMATELY 20% LESS POWER HANDLING IN PORTED ENCLOSURES)
aa10v2
-Mechanical Parameters-
Fs
Qms
Vas
Cms
Mms
Xmax (one way linear)
P-Dia
Sd
-Electrical Parameters-
Qes
Re
Le
Z
BL
-Electromech. Parameters-
Qts
no
1-W SPL
2.83-V SPL
Efficiency Bandwidth Product = 54Hz
37.33 Hz
5.431
15.165 liters
0.981 mm/N
166.97 g
16.0 mm
210 mm
330 sq. cm
0.609
0.159 %
86.4 dB
93.85 dB
aa12v2
-Mechanical Parameters-
Fs
Qms
Vas
Cms
Mms
Xmax (one way linear)
P-Dia
Sd
-Electrical Parameters-
Qes
Re
Le
Z
BL
-Electromech. Parameters-
Qts
no
1-W SPL
2.83-V SPL
Efficiency Bandwidth Product = 56Hz
33.889 Hz
5.89
35.797 liters
0.869 mm/N
225.6 g
17.0 mm
260 mm
530 sq. cm
0.709
1.7 ohms
1.758 mH
2.0 ohms
11.717 Tm
0.633
0.265 %
89.10 dB
95.54 dB
(parallel]
(parallel]
0.687
1.7 ohms
1.421 mH
2.0 ohms
10.107 Tm
aa15v2
-Mechanical Parameters-
Fs
Qms
Vas
Cms
Mms
Xmax (one way linear)
P-Dia
Sd
-Electrical Parameters-
Qes
Re
Le
Z
BL
-Electromech. Parameters-
Qts
no
1-W SPL
2.83-V SPL
Efficiency Bandwidth Product = 58Hz
32.84 Hz
4.1
74.75 liters
0.814 mm/N
296.10 g
18.0 mm
322 mm
810 sq. cm
0.569
1.7 ohms
1.938 mH
2.0 ohms
11.968 Tm
0.5
0.419 %
91.2 dB
97.66 dB
(parallel]

WIRING DIAGRAM
+
-
-
+
SINGLE WOOFER
AT 8 OHM MONO
+12V REM GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
SINGLE WOOFER
AT 2 OHM MONO*
+12V RE M GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
TWO WOOFERS AT 4 OHM MONO
+
-
-
+
+
-
-
+
+12V RE M GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
+
-
-
+
TWO WOOFERS AT 2 OHM STEREO
+12V REM GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
DUAL 4ohm DUAL 4ohm DUAL 4ohm
DUAL 4ohm
+
-
-
+
DUAL 4ohm
+
-
-
+
TWO WOOFERS AT 1 OHM MONO*
+12V RE M GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
DUAL 4ohm
+
-
-
+
DUAL 4ohm
*CHECK TO MAKE SURE YOUR AMPLIFIER IS STABLE AT 1 OHM MONO
*CHECK TO MAKE SURE YOUR
AMPLIFIER IS STABLE AT
2 OHM MONO
+
-
-
+
DUAL 4ohm
+
-
-
+
SINGLE WOOFER
AT 4 OHM MONO
+12V REM GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
SINGLE WOOFER
AT 1 OHM MONO*
+12V REM GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
TWO WOOFERS AT 2 OHM MONO
+
-
-
+
+
-
-
+
+12V RE M GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
+
-
-
+
TWO WOOFERS AT 1 OHM STEREO
+12V RE M GND
POWE R INPUT SPEA KER OUTP UT
+ + - -
+ - + -
DUAL 2ohm DUAL 2ohm DUAL 2ohm
DUAL 2ohm
+
-
-
+
DUAL 2ohm
*CHECK TO MAKE SURE YOUR
AMPLIFIER IS STABLE AT
2 OHM MONO
IF INSTALLING AN ADDICTIVE AUDIO
AMPLIFIER USE WIRING DIAGRAM IN
AMPLIFIER MANUAL
+
-
-
+
DUAL 2ohm
TO STRAP TWO AMPLIFIERS
TO ONE WOOFER, PLEASE SEE
AMPLIFIER OWNERS MANUAL.
DO NOT WIRE LIKE
THIS WHEN USING
A MONO AMPLIFIER
AS YOU WILL BE AT
.5ohm AND CAN
SEVERLY DAMAGE
YOUR AMPLIFIER
DUAL 4ohm WOOFERS
DUAL 2ohm WOOFERS

TUNING TABLE
ENCLOSURE TYPES: SLOT PORT & SEALED
E D C B A

1 WOOFER ENCLOSURES 2 WOOFER ENCLOSURES (COMMON CHAMBER)
SEALED MINIMUM: .6cu.ft. Internal
SEALED MAXIMUM: 1.5cu.ft. Internal
PORTED DESIGNS (GROSS INTERNAL CU.FT.):
A: 1.24cu.ft. Internal - PORT: 12sq.in / 17”L
B: 1.45cu.ft. Internal - PORT: 12sq.in / 17”L
C: 1.56cu.ft. Internal - PORT: 12sq.in / 19”L
D: 1.72cu.ft. Internal - PORT: 12sq.in / 19”L
E: 1.88cu.ft. Internal - PORT: 12sq.in / 19”L
SEALED MINIMUM: 1.1cu.ft. Internal
SEALED MAXIMUM: 2.8cu.ft. Internal
PORTED DESIGNS (GROSS INTERNAL CU.FT.):
A: 2.1cu.ft. Internal - PORT: 25sq.in / 20”L
B: 2.42cu.ft. Internal - PORT: 25sq.in / 20”L
C: 2.81cu.ft. Internal - PORT: 25sq.in / 20”L
D: 3.05cu.ft. Internal - PORT: 25sq.in / 20”L
E: 3.55cu.ft. Internal - PORT: 25sq.in / 20”L
1 WOOFER ENCLOSURES 2 WOOFER ENCLOSURES (COMMON CHAMBER)
SEALED MINIMUM: .7cu.ft. Internal
SEALED MAXIMUM: 1.75cu.ft. Internal
PORTED DESIGNS (GROSS INTERNAL CU.FT.):
A: 2.1cu.ft. Internal - PORT: 25sq.in / 20”L
B: 2.42cu.ft. Internal - PORT: 25sq.in / 20”L
C: 2.81cu.ft. Internal - PORT: 25sq.in / 20”L
D: 3cu.ft. Internal - PORT: 25sq.in / 20”L
E: 3.5cu.ft. Internal - PORT: 25sq.in / 20”L
SEALED MINIMUM: 1.3cu.ft. Internal
SEALED MAXIMUM: 3.5cu.ft. Internal
PORTED DESIGNS (GROSS INTERNAL CU.FT.):
A: 3.05cu.ft. Internal - PORT: 38sq.in / 20”L
B: 3.58cu.ft. Internal - PORT: 38sq.in / 20”L
C: 4cu.ft. Internal - PORT: 38sq.in / 20”L
D: 4.57cu.ft. Internal - PORT: 38sq.in / 20”L
E: 4.93cu.ft. Internal - PORT: 38sq.in / 20”L
1 WOOFER ENCLOSURES 2 WOOFER ENCLOSURES (COMMON CHAMBER)
SEALED MINIMUM: 1.2cu.ft. Internal
SEALED MAXIMUM: 2.2cu.ft. Internal
PORTED DESIGNS (GROSS INTERNAL CU.FT.):
A: 2.75cu.ft. Internal - PORT: 32sq.in / 17”L
B: 3.13cu.ft. Internal - PORT: 32sq.in / 19”L
C: 3.58cu.ft. Internal - PORT: 32sq.in / 19”L
D: 3.93cu.ft. Internal - PORT: 32sq.in / 19”L
E: 4.43cu.ft. Internal - PORT: 32sq.in / 19”L
SEALED MINIMUM: 2.2cu.ft. Internal
SEALED MAXIMUM: 4cu.ft. Internal
PORTED DESIGNS (GROSS INTERNAL CU.FT.):
A: 4.27cu.ft. Internal - PORT: 48sq.in / 16”L
B: 4.97cu.ft. Internal - PORT: 48sq.in / 16”L
C: 5.62cu.ft. Internal - PORT: 48sq.in / 16”L
D: 6.2cu.ft. Internal - PORT: 48sq.in / 16”L
E: 7.1cu.ft. Internal - PORT: 48sq.in / 16”L
10V2 ENCLOSURES
12V2 ENCLOSURES
15v2 ENCLOSURES

Addicve Audio Subwoofer/Amplifier Pairing Chart
This chart is designed to assist you in pairing Addicve Audio woofers and amplifiers for best performance and reliability. "Enclosure Preference" is there to help steer you in the right direcon.
Please consult the woofer owners manual or email box@addicve-audio.com for custom enclosure assistance.
Number of Woofers 1 Woofer 2 Woofers 3 Woofers 4 Woofers 5 Woofers 6 Woofers Break-In period
Enclosure
Preference
Woofer Model
F300.1 Fleck @4ohm F300.1 Fleck @2ohm P60.1D Pure @ 1.33ohm P60.1D Pure @1ohm N/A P120.1D Pure 2 weeks
B450.1 Boost @4ohm B450.1 Boost @2ohm @ 1.33ohm
P7.4+35.1 @2ohm (on sub channel)
F300.1 Fleck @2ohm P25.2 Pure @4ohm P120.1D Pure @ 1.33ohm P200.1D Pure @1ohm N/A P250.1 Pure 3 weeks
B450.1 Boost @2ohm P60.1D Pure @1ohm P7.4+35.1 @ 2.66ohm @ 1.33ohm
P7.4+35.1 @2ohm
F300.1 Fleck @4ohm B450.1 Boost @2ohm P60.1D Pure @ 1.33ohm P60.1D Pure @1ohm N/A N/A 1 week
B450.1 Boost @4ohm P60.1D Pure @2ohm
P7.4+35.1 @2ohm
CAUTION
F300.1 Fleck @2ohm B450.1 Boost @2ohm B450.1 Boost @ 2.33ohm P120.1D Pure @1ohm N/A P200.1 Pure 2 weeks
B450.1 Boost @4ohm P25.2 Pure @4ohm P60.1D Pure @ 1.33ohm @ 1.33ohm
P60.1D Pure @2ohm P7.4+35.1 @ 2.66ohm
P7.4+35.1 @4ohm
F300.1 Fleck @2ohm B450.1 Boost @2ohm P60.1D Pure @ 1.33ohm P120.1D Pure @1ohm N/A P200.1 Pure 2 weeks
B450.1 Boost @4ohm P25.2 Pure @4ohm P120.1D Pure @ 2.66ohm @ 1.33ohm
P60.1D Pure @1ohm P7.4+35.1 @ 2.66ohm
P7.4+35.1 @2ohm
P60.1D Pure @1ohm P120.1D Pure @1ohm P200.1 Pure @ 1.33ohm P200.1 Pure @1ohm N/A P250.1 Pure 3 weeks
P7.4+35.1 @2ohm @ 1.33ohm
P120.1D Pure @1ohm P200.1D Pure @1ohm P250.1D Pure @ 1.33ohm P250.1D Pure @1ohm N/A N/A 4 weeks
(2) P200.1 Strapped
@ 2ohm
P120.1D Pure @1ohm P250.1D Pure @1ohm (2) P200.1D Strapped (2) P250.1D Strapped N/A N/A 4-6 weeks
P200.1D Pure @1ohm @ 2ohm @ 2ohm
Heavily reinforced
custom sealed,
vented or bandpass
enclosure
recommended.
Vented or Bandpass
best.
Version 3
Version 4
Small vented or
bandpass.
Sealed, vented or
bandpass.
Sealed or vented.
Very adaptable.
Most premade
enclosures will
work fine.
Small sealed
Sealed or vented,
premade OK.
Vented best.
Sealed, vented or
bandpass,
premade OK if
well built.
Custom built
sealed, vented or
bandpass
recommended.
NFW69
Excruci8
Shake
Version S
Version 1
Version 2

LIMITED WARRANTY INFORMATION
Addictive Audio warrants this product to be free from defects in material and workmanship under normal
use for a period of one (1) year from date of original purchase when installed by an authorized dealer.
Items not installed by an authorized dealer will be warrantied for ninety (90) days from date of original
purchase. All returns must be accompanied with original sales receipt. Should service be necessary under
this warranty for any reason due to manufacturing defect or malfunction during the warranty period,
Addictive Audio will replace or repair (at its discretion) the defective merchandise with equivalent merchadise
at no charge. Discontinued products may be replaced with equivalent products.
This warranty is valid only for the original purchaser and is not extended to owners of the product
subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period
of the express warranty as provided herein beginning with the date of original purchase at retail, and no
warranties, weather express of implied, shall apply to this product thereafter. Some states do not allow
limitations on implied warranties, therefore these exclusions may not apply to you.
THE FOLLOWING IS NOT COVERED BY WARRANTY
This warranty is valid only if the product is used for the purpose for which it was designed. It
does not cover:
- Dammage to cone, dustcap, or surround
due to installation slips.
- Speakers with silicon caulk used for
gasket material.
- Speakers dammaged due to amplifier
clipping or distortion.
- Dammage caused by exposure to water
and/or excessive heat.
- Dammage through negligence, misuse, or
accident.
- Items physically damaged due to abuse.
- Freight damage.
- The cost of shipping product to Addictive
Audio Service Center.
- Items previously repaired by any
unauthorized individuals or dealers.
- Items returned from unauthorized
individuals or dealers.
- Items returned without original sales
receipt
- Return shipping on non-defective items.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE
Please follow each step below completely. Warranty or service will not be honored unless
each and every step below is completed.
1. Obtain an Return Authorization Number
- Go to: www. addictive-audio.com and click "SUPPORT" then click "OBTAIN R.A.#"
2. Pack items in original container(s) or in a package that will prevent shipping dammage.
- Original sales receipt from Authorized Dealer must be included for each item returned.
3. The RA# should be clearly marked on outside of the package. Return only defective
components.
4. Freight must be prepaid; items received freight collect will be refused.
After completing all 4 steps above, please send package to the address notated in the
RA# form that has been sent back to you.
Failure to complete any one of the steps above when obtaining warranty/service may void your warranty.
