ADEK MB800 User manual

MB800
Pentium 4 Intel 845G
Industrial Motherboard
USER’S MANUAL
Version 1.0B

ii MB800 User’s Manual
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
IntelandPentium4 areregisteredtrademarksof IntelCorporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

MB800 User’s Manual iii
Table of Contents
Introduction...............................................................1
Product Description..........................................................1
Checklist...........................................................................2
Specifications....................................................................3
Board Dimensions.............................................................4
Installations ..............................................................5
Installing the CPU.............................................................6
ATX Power Installation ....................................................7
MicroPCI Daughter Card Installation................................7
Installing the Memory.......................................................8
Setting the Jumpers...........................................................9
Connectors on MB800.....................................................13
Watchdog Timer Configuration.......................................29
BIOS Setup..............................................................29
Drivers Installation.................................................51
Intel Chipset Software Installation Utility........................52
Intel 845G Chipset Graphics Driver Installation ..............55
Intel Application Accelerator Installation ........................57
Sigmatel AC97 Codec Audio Driver Installation .............61
Intel PRO LAN Drivers Installation.................................63
Appendix.................................................................65
A. I/O Port Address Map ................................................65
B. Interrupt Request Lines (IRQ)....................................66

iv MB800 User’s Manual
This page is intentionally left blank.

INTRODUCTION
MB800 User’s Manual 1
Introduction
Product Description
The world's first Pentium 4 industrial motherboard, MB800, is based on
the Intel 845G chipset. It packs the key features of the 845G chipset,
including 533MHz processor side bus and integrated LAN and graphics.
The 845G chipset includes Intel's new ICH4 I/O control hub that
supports USB 2.0 with peak transfer rate of up to 480Mbps.
The AGP4X integrated graphics supports interface such as TV out,
LVDS and CRT. It can have up to DVMT 64MB shared memory.
One-channel and dual-channel digital display are supported with
resolutions of up to 1600x1200 and 2048x1536 @ 60Hz respectively.
The MB800 motherboard supports Pentium 4 processors of up to
2.6GHz+ and comes optionally with a secondary LAN that supports
either up to 1000Mb/s (Gigabit LAN) or 100Mb/s data transfer rate. Two
DDR slots on board support up to 2GB of DDR200/266 non-ECC DDR
SDRAM modules. Hardware monitoring is available with the Winbond
W83627HF chipset on board.
Other special features of the board includes 256-level watchdog timer,
DiskOnChip socket, digital I/O (4 in / 4 out) and PCI to ISA bridge.
Measuring 305mm by 244mm, MB800 also has an AGP slot, three PCI
slots, three ISA slots and a MicroPCI socket. With ISA slots on board and
a long life cycle, MB800 is the powerful platform of choice for industrial
applications.

INTRODUCTION
2MB800 User’s Manual
Checklist
Your MB800 package should include the items listed below.
•The MB800 Industrial motherboard
•This User’s Manual
•1 IDE Ribbon Cable
•1 Floppy Ribbon Cable
•1 Bracket for 1 Serial Port
•1 Bracket for 2 Serial Ports
•I/O Shield Plate
•1 CD containing the following:
•Chipset Drivers
•Flash Memory Utility

INTRODUCTION
MB800 User’s Manual 3
Specifications
CPU Socket Socket 478
CPU Intel Pentium 4, 1.70GHz ~ 2.60GHz+
CPU PSB
(Processor Side Bus)
400MHz (100MHz x4), / 533MHz (133MHz x4)
Chipset Intel 845G / GE Chipset
L2 Cache 128K/256K/512K, CPU integrated
BIOS Award BIOS, ACPI supported
System Memory Two DDR slots
Support up to 2GB DDR200/266 non-ECC DDR SDRAM
DDR333 supported by 845GE (MB800H / MB800FH)
Hyper Threading Supported by 845GE chipset (MB800H / MB800FH)
Onboard VGA Intel 845G / GE chipset integrated, AGP 4X
Supports CRT VGA interface
Optionally supports TMDS, LVDS, TV-out interface
Supports DVMT 64MB shared memory
Supports Dual channel DVO port
CRT Monitor: up to 2048x1536 @60Hz
Supports one-channel digital display, 1600x1200 @60Hz
Supports dual-channel digital display, 2048x1536 @60Hz
Primary LAN ICH4 integrated Ethernet, 10/ 100Base-TX
Secondary LAN
(option) Intel 82540EM (Gigabit LAN) / 82551QM (10/100Mb)
Audio ICH4 integrated audio with AC97 Codec
Audio connectors on board
LPC I/O Winbond 83627HF supports IrDA x 1, Parallel x 1, COM1
(RS232), COM2 (RS232/422/485), FDC up to 2.88MB (3
Mode support) Hardware Monitor
IDE Interface Built in ICH4; Two enhanced IDE supports 4 IDE devices
including UDMA33/66/100, PIO mode 4 and bus master
FDD Interface Supports up to two floppy disk drives: 3.5" and/or 5.25"
drives; 3 Mode support
Parallel Port One parallel port supports SPP/EPP/ECP
Serial Ports One RS-232/422/485 and three RS-232 ports
COM3 and COM4 supported by Winbond 83877
Watchdog Timer Generates system reset; 256 levels
SSD Interface Supports 2MB~288MB M-Systems DiskOnChip flash disk
H/W Monitoring Built in Winbond W83627HF; monitors system/CPU
temperature and voltage status
USB USB 1.1 and 2.0 compliant
Supports 4 USB ports
IrDA Pin header
Keyboard / Mouse PS/2 type keyboard and mouse connectors
Digital I/O 4 in / 4 out
Expansion Slots 1 AGP, 3 PCI, 3 ISA, 1 MicroPCI
PCI to ISA Bridge Winbond 83628, Winbond 83629
Power Connector ATX 12V power connector
(J10, J12 connectors)
Form Factor ATX Motherboard
Dimensions 305mm x 244mm (12” x 9.6”)

INTRODUCTION
4MB800 User’s Manual
Board Dimensions

INSTALLATIONS
MB800 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the MB800 in order to set up a workable system. The
topics covered are:
Installing the CPU.................................................................6
ATX Power Installation........................................................7
MicroPCI Daughter Card Installation....................................7
Installing the Memory...........................................................8
Setting the Jumpers...............................................................9
Connectors on MB800 ........................................................13

INSTALLATIONS
6MB800 User’s Manual
Installing the CPU
The MB800 motherboard supports a Socket 478 processor socket for
Intel Pentium 4 processors.
The Socket 478 processor socket comes with a lever to secure the
processor. Raise this lever to about a 90°angle to allow the insertion of
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, return the lever
to the lock position. Refer to the figures below.
After you have installed the processor into the socket, check if the
jumpers for the CPU type and speed are correct.
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

INSTALLATIONS
MB800 User’s Manual 7
ATX Power Installation
Power is provided to the MB800 motherboard with the J10 standard ATX
power supply connector and J12 ATX 12V power connector. These two
power connectors should be utilized for the motherboard to function.

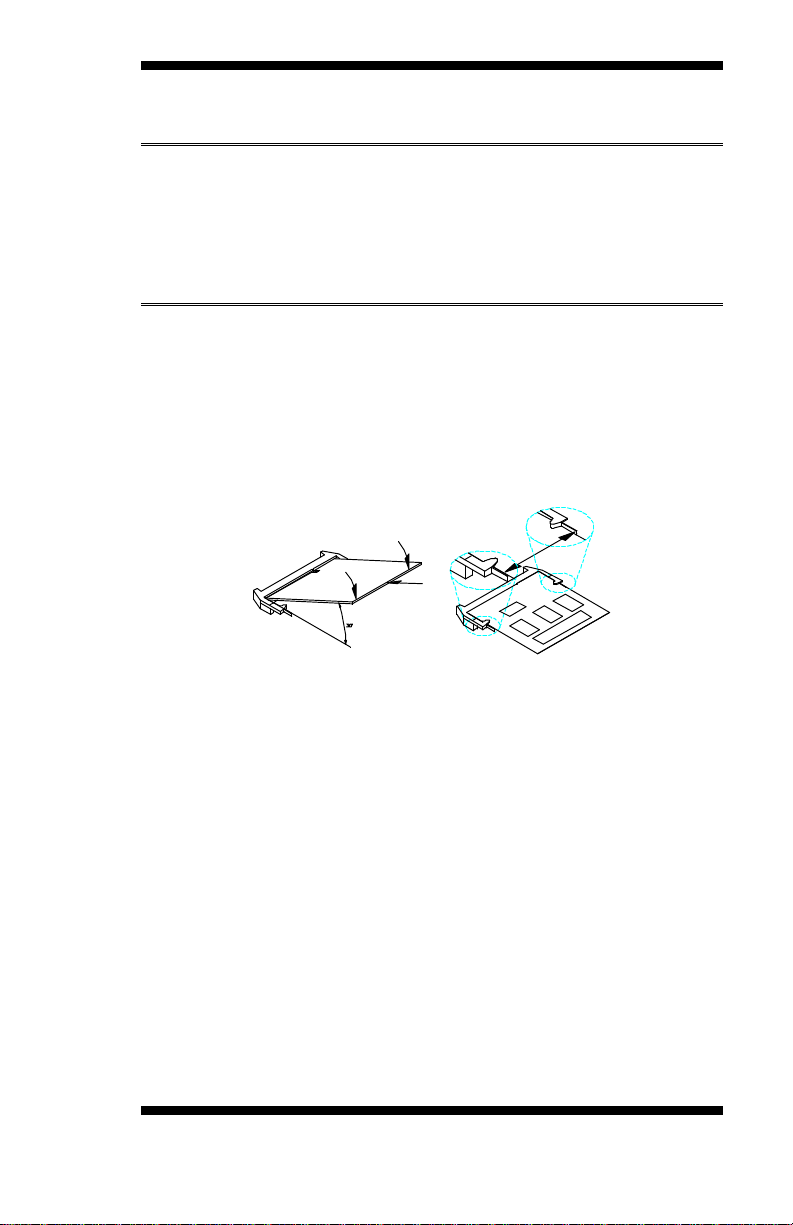

MicroPCI Daughter Card Installation
To insert the MicroPCI daughter cards, position it at 30°to the PCB and
gently push it into the MicroPCI connector (See Figure 1 below). The
card will not fit when inserted at an angle of 45°or 15°. Once inserted,
slowly press the card towards the PCB until it locks on both sides to the
clips of the connector. Screw the card to the PCB to secure the
installation. To remove the MicroPCI card, pull the ‘clips’ sideways as
shown in Figure 2 below.
Figure 1. Figure 2.

INSTALLATIONS
8MB800 User’s Manual
Installing the Memory
The MB800 motherboard supports two DDR memory sockets for a
maximum total memory of 2GB in DDR memory type. The memory
module capacities supported are 64MB, 128MB, 256MB, 512MB and
1GB. The following table lists the supported DDR DIMM
configurations. Intel 845G supports configurations defined in the JEDEC
DDR DIMM specification only (A,B,C). Non-JEDEC standard DIMMs
such as double-sided x16 DDR SDRAM DIMMs are not supported.
Supported DDR DIMM Configurations.
Density 64 Mbit 128Mbit 256Mbit 512Mbit
Device
Width X8 X16 X8 X16 X8 X16 X8 X16
Single/
Double SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS
184-pin
DDR 64/128MB
32MB/NA 128/256M
B64MB/NA 256/512M B128MB/NA
512/1024
M256MB/NA
Installing and Removing Memory Modules
To install the DDR modules, locate the memory slot on the motherboard
and perform the following steps:
1.Hold the DDR module so that the key of the DDR module align with
those on the memory slot.
2.Gently push the DDR module in an upright position until the clips of
the slot close to hold the DDR module in place when the DDR module
touches the bottom of the slot.
3.To remove the DDR module, press the clips with both hands.
DDR Module
Lock
L
ock
Lock Lock

INSTALLATIONS
MB800 User’s Manual 9
Setting the Jumpers
Jumpers are used on MB800 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MB800 and their respective functions.
Jumper Locations on MB800 ...........................................................10
Configuring the CPU Frequency......................................................11
JP3, JP4, JP5: RS232/422/485 (COM2) Selection........................11
JP6, JP7, JP8, JP9, JP10: CRT VGA Signal Select.........................11
JP12: DiskOnChip Address Select....................................................11
JP14: Gigabit LAN Enable/Disable..................................................12

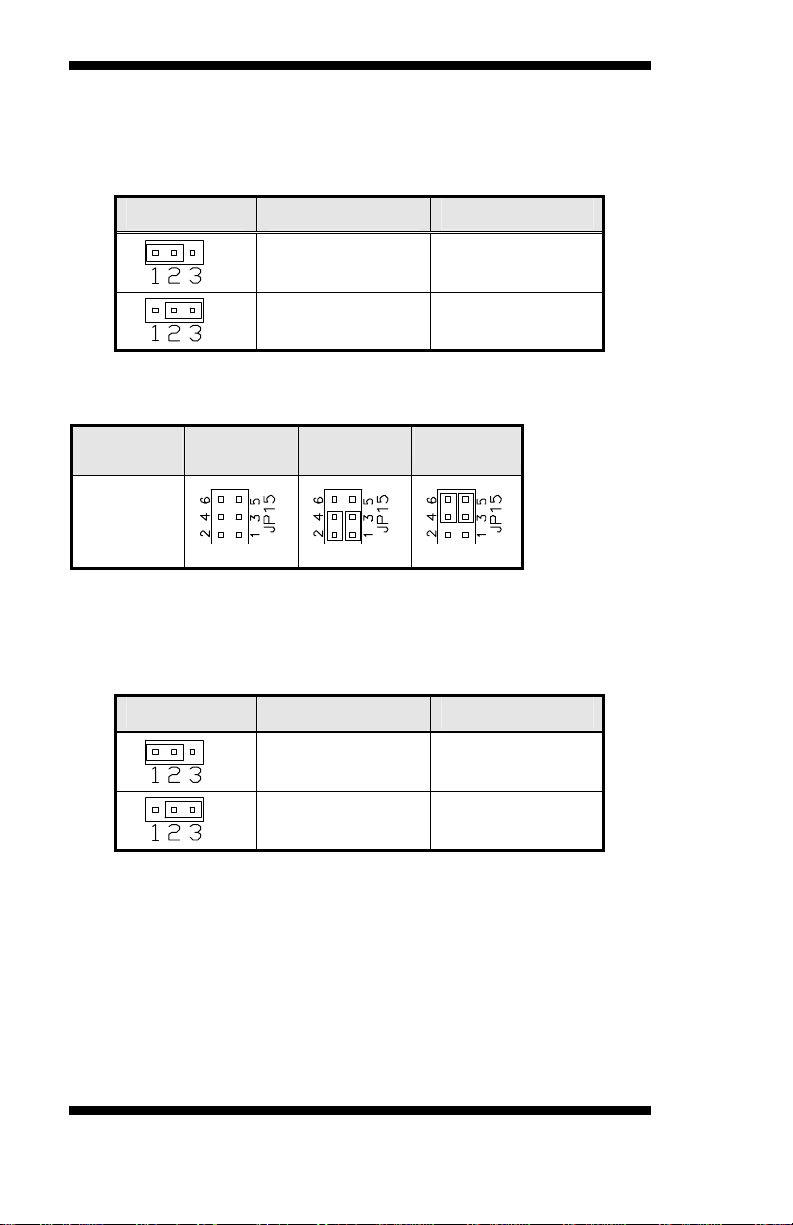

JP15: COM4 RI/Voltage Selection..................................................12
JP17: Clear CMOS Contents............................................................12

INSTALLATIONS
10 MB800 User’s Manual

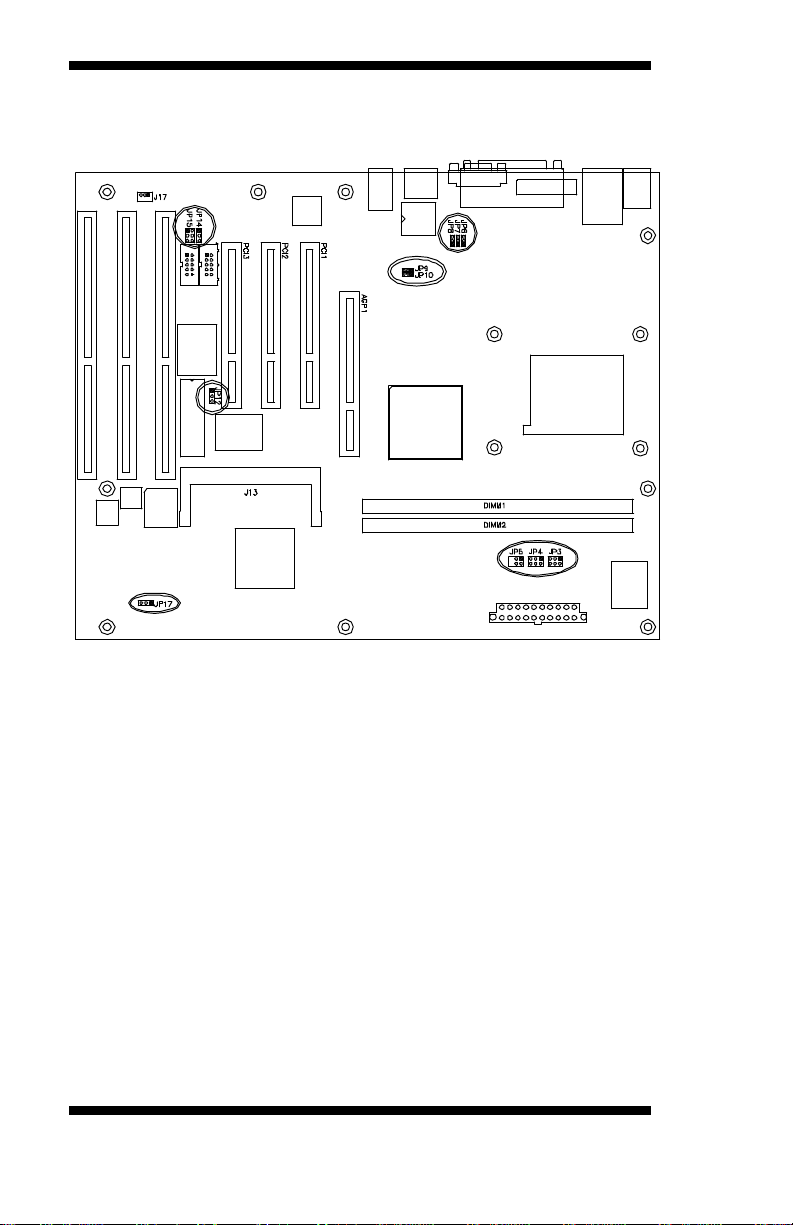

Jumper Locations on MB800
Jumper..................................................................................... Page No.
JP3, JP4, JP5: RS232/422/485 (COM2) Selection........................11
JP6, JP7, JP8, JP9, JP10: CRT VGA Signal Select.........................11
JP12: DiskOnChip Address Select....................................................11
JP14: Gigabit LAN Enable/Disable..................................................12
JP15: COM4 RI/Voltage Selection..................................................12
JP17: Clear CMOS Contents............................................................12

INSTALLATIONS
MB800 User’s Manual 11
Configuring the CPU Frequency
The MB800 motherboard does not provide DIP switches to configure the
processor speed (CPU frequency). The CPU frequency and processor side
bus of the processor can be automatically detected by the motherboard.
JP3, JP4, JP5: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function RS-232 RS-422 RS-485
Jumper
Setting
(pin closed)
JP3:
1-2
JP4:
3-5 & 4-6
JP5:
3-5 & 4-6
JP3:
3-4
JP4:
1-3 & 2-4
JP5:
1-3 & 2-4
JP3:
5-6
JP4:
1-3 & 2-4
JP5:
1-3 & 2-4
JP6, JP7, JP8, JP9, JP10: CRT VGA Signal Select
Use JP6, JP7, JP8, JP9, and JP10 to select the CRT VGA signal, either
from the on board VGA or from an optional MicroPCI VGA.
JP6/7/8/9/10 Function
On Board VGA
MicroPCI VGA
JP12: DiskOnChip Address Select
JP12 Address
D0000-D7FFF
D8000-DFFFF (default)

INSTALLATIONS
12 MB800 User’s Manual
JP14: Gigabit LAN Enable/Disable
If your motherboard comes with the Gigabit LAN functionality, you can
use this jumper to enable or disable it.
JP14 Setting Function
Pin 1-2
Short/Closed Enable
Pin 2-3
Short/Closed Disable
JP15: COM4 RI/Voltage Selection
COM4
Function RI 5V 12V
Jumper
Setting
JP17: Clear CMOS Contents
Use JP17, a 3-pin header, to clear the CMOS contents. Note that the
ATX-power connector should be disconnected from the motherboard
before clearing CMOS.
JP17 Setting Function
Pin 1-2
Short/Closed Normal
Pin 2-3
Short/Closed Clear CMOS

INSTALLATIONS
MB800 User’s Manual 13
Connectors on MB800
The connectors on MB800 allows you to connect external devices such as
keyboard, floppy disk drives, hard disk drives, printers, etc. The following
table lists the connectors on MB800 and their respective functions.
Connector Locations on MB800......................................................14
IDE1, IDE2: EIDE Connectors.........................................................15
FDD1: Floppy Drive Connector.......................................................16
FAN1: CPU Fan Power Connector..................................................16
FAN2: System Fan Power Connector ..............................................16
FAN3: Chassis Fan Power Connector..............................................17
J1: PS/2 Keyboard and PS/2 Mouse Connectors.............................17
J2: USB and LAN1 RJ45 Connectors..............................................17
J3, J11, J15, J16: Serial Ports...........................................................18
J4: Parallel Port Connector...............................................................19
J5: VGA CRT Connector..................................................................19
J6: Gigabit LAN RJ45 Connector ....................................................19
J7: Line Out, Line In, Mic Connector...............................................20
J8: IrDA Connector ...........................................................................20
J10: ATX Power Supply Connector .................................................20
J12: ATX 12V Power Connector .....................................................20
J13: MicroPCI Socket Connector.....................................................21
J14: CD-In Audio Connector............................................................21
J17: Wake on LAN Connector..........................................................21
J18: Digital I/O Connector (4 in, 4 out)...........................................21
J19: USB Connector..........................................................................22
J20: System Function Connector......................................................22

INSTALLATIONS
14 MB800 User’s Manual
Connector Locations on MB800
IDE1, IDE2: EIDE Connectors
FDD1: Floppy Drive Connector
FAN1: CPU Fan Power Connector
FAN2: System Fan Power Connector
FAN3: Chassis Fan Power Connector
J1: PS/2 Keyboard and PS/2 Mouse Connectors
J2: USB and LAN1 RJ45 Connectors
J3, J11, J15, J16: Serial Ports
J4: Parallel Port Connector
J5: VGA CRT Connector
J6: Gigabit LAN RJ45 Connector
J7: Line Out, Line In, Mic Connector
J8: IrDA Connector
J10: ATX Power Supply Connector
J12: ATX 12V Power Connector
J13: MicroPCI Socket Connector
J14: CD-In Audio Connector
J17: Wake on LAN Connector
J18: Digital I/O Connector (4 in, 4 out)
J19: USB Connector
J20: System Function Connector

INSTALLATIONS
MB800 User’s Manual 15

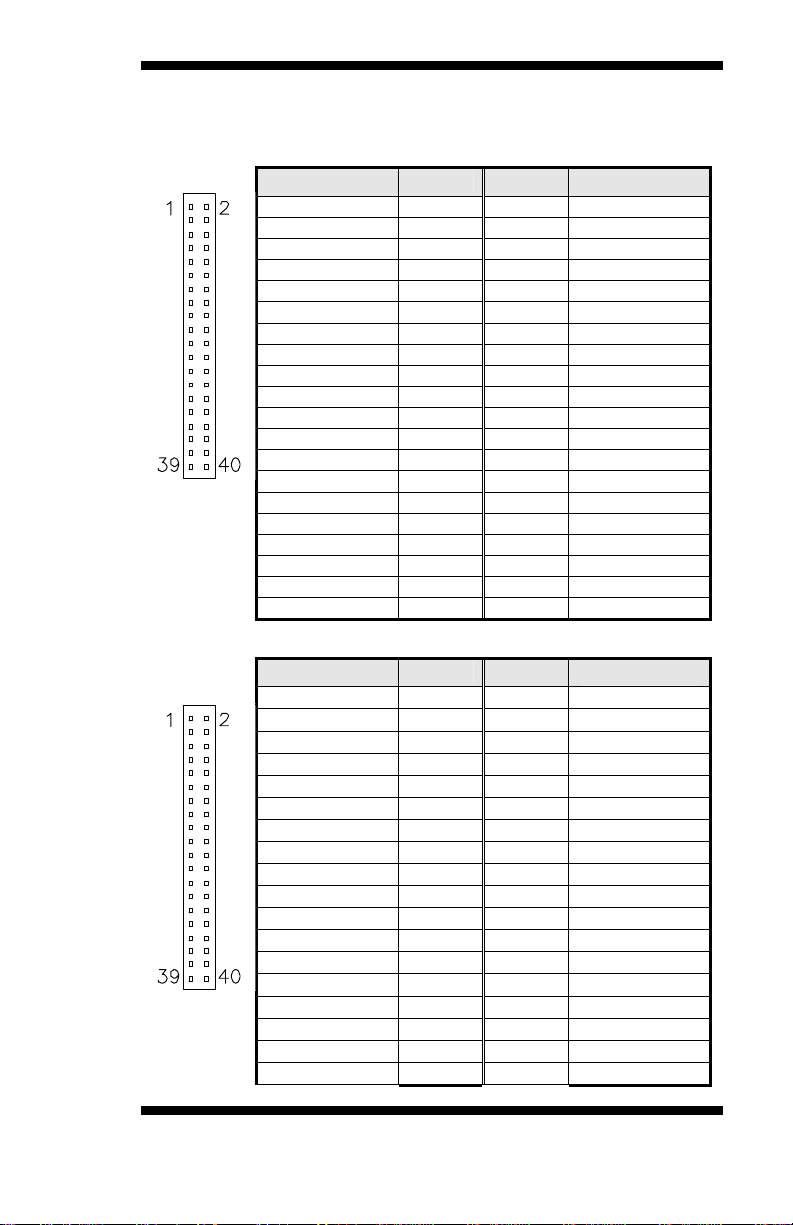

IDE1, IDE2: EIDE Connectors
IDE1: Primary IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 12Ground
Host data 7 34Host data 8
Host data 6 56Host data 9
Host data 5 78Host data 10
Host data 4 910 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect
Address 1 33 34 No connect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
IDE1
Activity 39 40 Ground
IDE2: Secondary IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 12Ground
Host data 7 34Host data 8
Host data 6 56Host data 9
Host data 5 78Host data 10
Host data 4 910 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ1 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK1 29 30 Ground
IRQ15 31 32 No connect
Address 1 33 34 No connect
IDE2
Address 0 35 36 Address 2

INSTALLATIONS
16 MB800 User’s Manual
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
FDD1: Floppy Drive Connector
FDD1 is a 34-pin header and will support up to 2.88MB floppy drives.
Signal Name Pin # Pin # Signal Name
Ground 12RM/LC
Ground 34No connect
Ground 56No connect
Ground 78Index
Ground 910 Motor enable 0
Ground 11 12 Drive select 1
Ground 13 14 Drive select 0
Ground 15 16 Motor enable 1
Ground 17 18 Direction
Ground 19 20 Step
Ground 21 22 Write data
Ground 23 24 Write gate
Ground 25 26 Track 00
Ground 27 28 Write protect
Ground 29 30 Read data
Ground 31 32 Side 1 select
FDD1
Ground 33 34 Diskette change
FAN1: CPU Fan Power Connector
FAN1 is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin # Signal Name
1Ground
2+12V
3Rotation detection
FAN2: System Fan Power Connector
FAN2 is a 3-pin header for the system fan. The fan must be a 12V fan.
Pin # Signal Name
1Ground
2+12V
3Rotation detection
