Arbor Technology MB-i89Q0 User manual

1
MB-i89Q0
Micro-ATX Industrial Motherboard
User’s Manual
Version 1.0
2018.04

- 2 -
Revision History
Version Release Time Description
1.0 2018.04 Initial release

- i -
Contents
Preface .............................................................................................iii
Copyright Notice....................................................................... iii
Declaration of Conformity......................................................... iii
CE ..................................................................................... iii
RoHS................................................................................. iv
SVHC / REACH................................................................. iv
About This User’s Manual ......................................................... v
Warning ..................................................................................... v
Replacing the Lithium Battery ................................................... v
Technical Support...................................................................... v
Warranty................................................................................... vi
Chapter 1 - Introduction ..................................................................1
1.1. Packing List ........................................................................2
1.2. Ordering Information ..........................................................2
1.3. The Installation Paths of CD Driver ....................................3
1.4. Specications .....................................................................4
1.6. Board Dimensions ..............................................................6

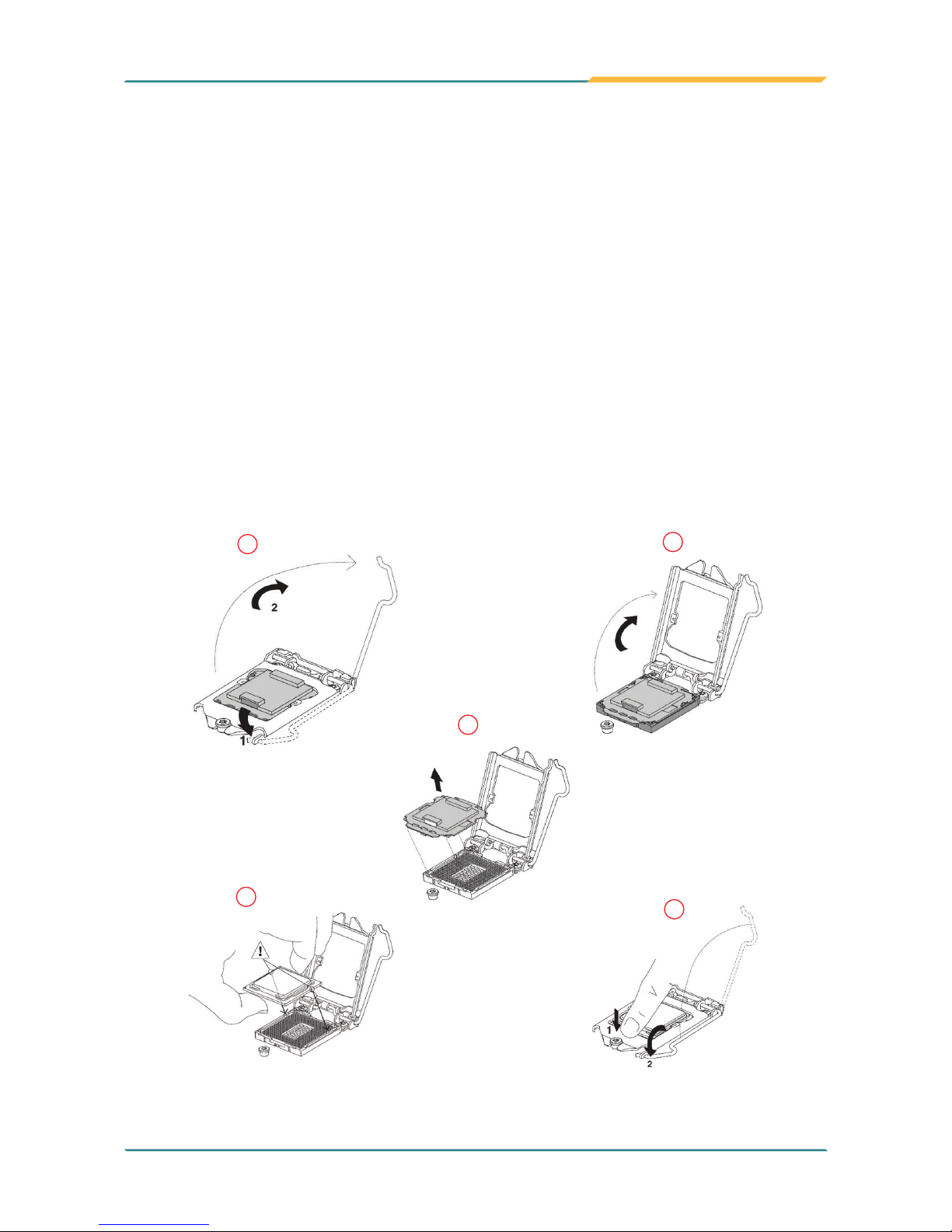

1.7. Installing the CPU...............................................................7

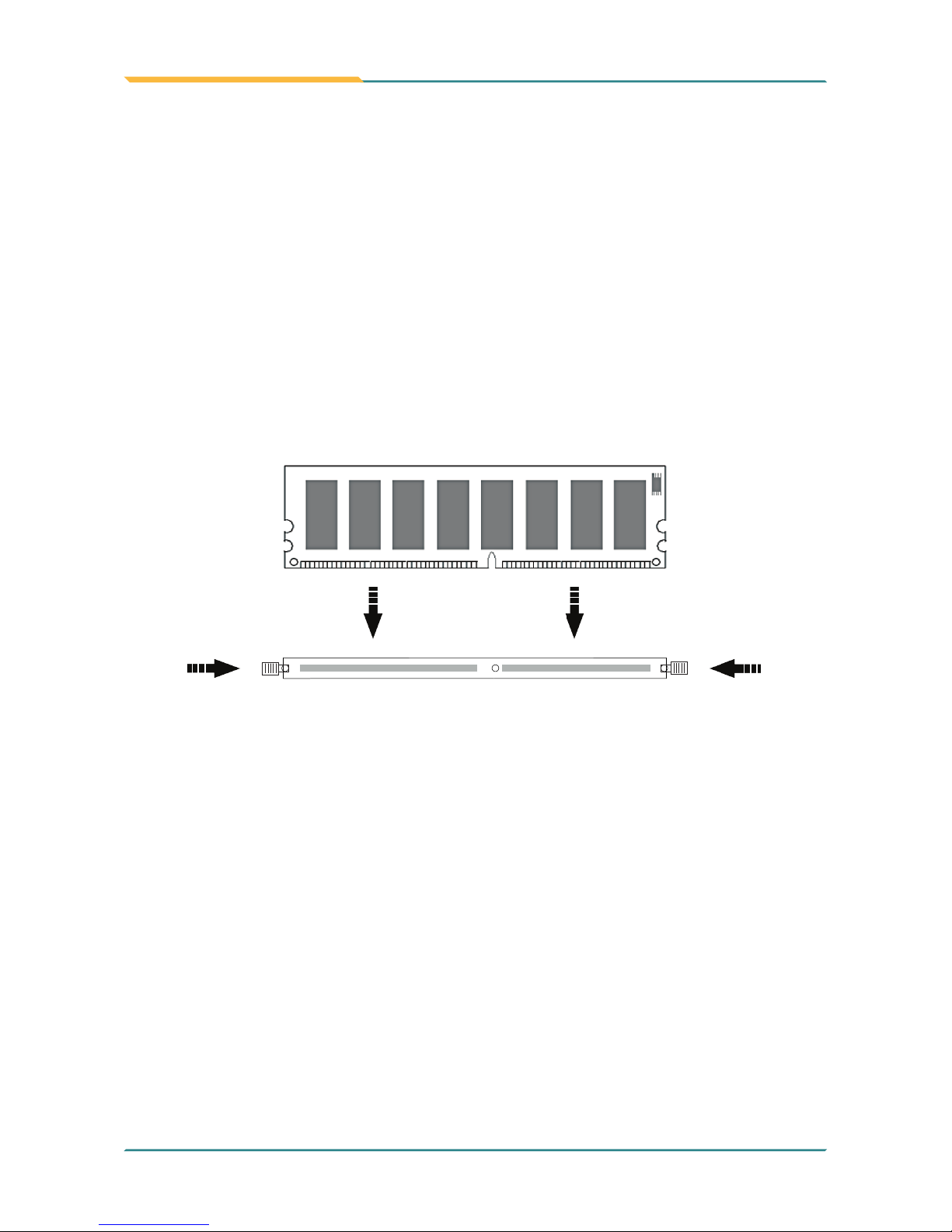

1.8. Installing the Memory .........................................................8
Chapter 2 - Installation ....................................................................9
2.1. Block Diagram .................................................................10
2.2. Jumpers & Connectors Quick Reference......................... 11

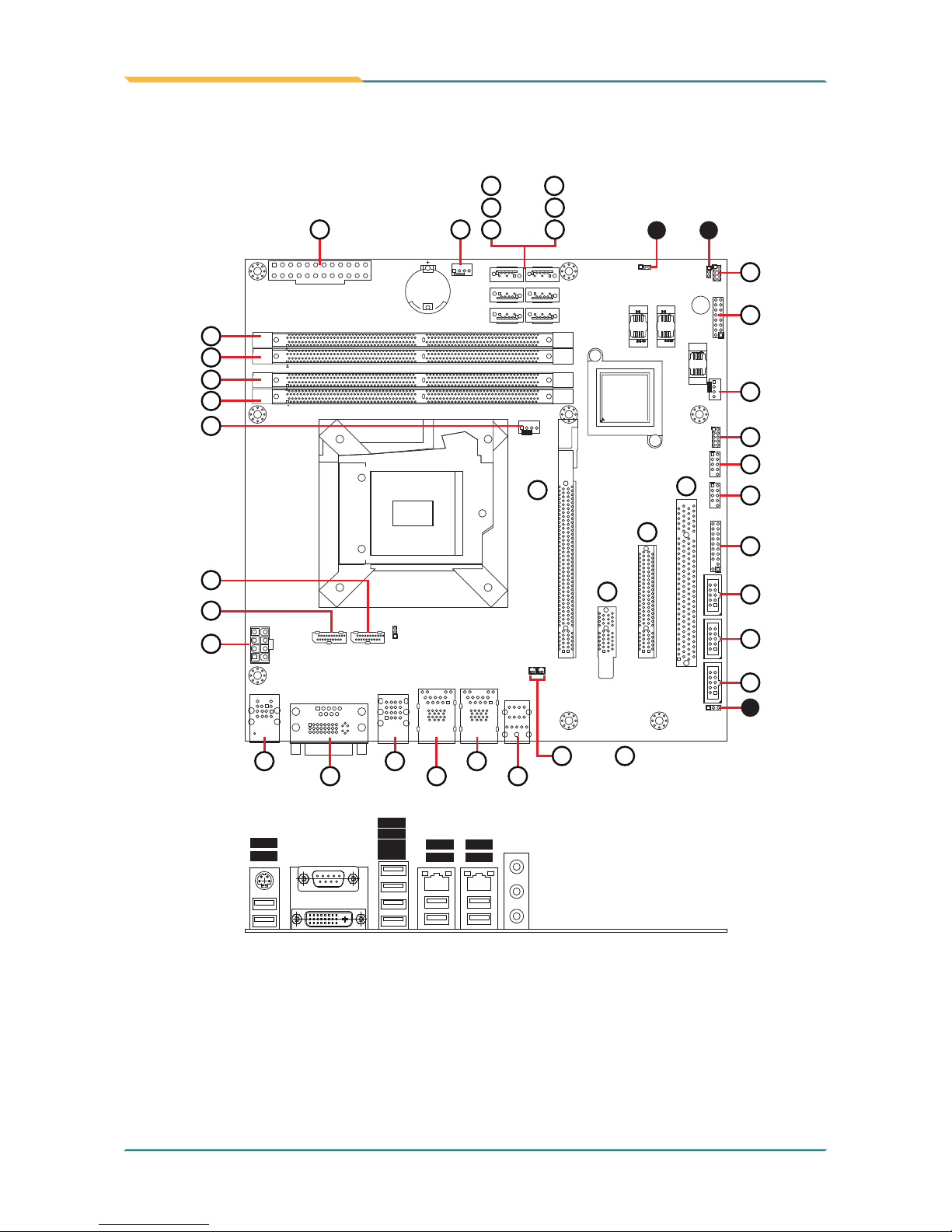

2.2.2. Jumpers & Connectors Location............................12
2.2.3. Jumpers .................................................................13
Chapter 3 - BIOS.............................................................................41
3.1 Main .........................................................................42
3.2 Advanced .................................................................44
3.2.1 CPU Conguration .................................................45
3.2.2 Trusted Conguration.............................................47
3.2.3 PCI Subsystem Settings ........................................48
3.2.4 SATA Conguration ................................................49
3.2.5 ACPI Settings.........................................................50
3.2.6 Super IO Conguration ..........................................51
3.2.7 Hardware Monitor...................................................53
3.2.8 S5 RTC Wake Settings ..........................................54

- ii -
Contents
3.2.9 CSM Conguration.................................................55
3.2.10 NVMe Conguration.............................................56
3.2.11 USB Conguration................................................57
3.3 Chipset.....................................................................59
3.3.1 Graphics Conguration ..........................................61
3.3.2 PEG Port Conguration..........................................62
3.3.3 Memory Conguration............................................64
3.3.4 PCI Express Conguration.....................................65
3.3.5 USB Conguration .................................................66
3.4 Security ....................................................................67
3.5 Boot..........................................................................68
3.6 Save & Exit...............................................................69
Appendix ..........................................................................................70
Appendix A. Anti-Crash Technology for BIOS Recovering .....71
A.1 Auto Recovery ...........................................................71
A.2 BIOS Update using ACT Utility ..................................72
A.3 How to Get ACT Utility ...............................................75
Appendix B. Watchdog Timer (WDT) Setting ..........................76

- iii -
Preface
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Declaration of Conformity
CE
The CE symbol on your product indicates that it is in compliance with the
directives of the Union European (EU). A Certicate of Compliance is available
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from ARBOR. Please contact
your local supplier for ordering information.
This product has passed the CE test for environmental specications. Test
conditions for passing included the equipment being operated within an
industrial enclosure. In order to protect the product from being damaged by
ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the
use of CE-compliant industrial enclosure products.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

- iv -
Preface
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference
that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
ARBOR Technology Corp. certies that all components in its products are
in compliance and conform to the European Union’s Restriction of Use of
Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive
2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main
purpose of the directive is to prohibit the use of lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated
diphenyl ethers (PBDE) in electrical and electronic products. Member states of
the EU are to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not
contain unintentional additions of lead, mercury, hex chrome, PBB or PBDB that
exceed a maximum concentration value of 0.1% by weight or for cadmium
exceed 0.01% by weight, per homogenous material. Homogenous
material is dened as a substance or mixture of substances with uniform
composition (such as solders, resins, plating, etc.). Lead-free solder is used for all
terminations (Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the
earth we live, Arbor hereby conrms all products comply with the restriction

- v -
Preface
of SVHC (Substances of Very High Concern) in (EC) 1907/2006 (REACH
--Registration, Evaluation, Authorization, and Restriction of Chemicals)
regulated by the European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)
About This User’s Manual
This user’s manual provides general information and installation instructions
about the product. This User’s Manual is intended for experienced users and
integrators with hardware knowledge of personal computers. If you are not
sure about any description in this booklet. Please consult your vendor before
further handling.
Warning
Single Board Computers and their components contain very delicate
Integrated Circuits (IC). To protect the Single Board Computer and its
components against damage from static electricity, you should always follow
the following precautions when handling it :
1. Disconnect your Single Board Computer from the power source when you
want to work on the inside.
2. Hold the board by the edges and try not to touch the IC chips, leads or
circuitry.
3. Use a grounded wrist strap when handling computer components.
4. Place components on a grounded antistatic pad or on the bag that comes
with the Single Board Computer, whenever components are separated
from the system.
Replacing the Lithium Battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash-can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
If you have any technical difculties, please do not hesitate to call or e-mail our
customer service.
http://www.arbor-technology.com
E-mail:[e-mail]

- vi -
Preface
Warranty
This product is warranted to be in good working order for a period of two years
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of,
or inability to use this product. Vendor will not be liable for any claim made by
any other related party.
Vendors disclaim all other warranties, either expressed or implied, including
but not limited to implied warranties of merchantability and tness for a
particular purpose, with respect to the hardware, the accompanying product’s
manual(s) and written materials, and any accompanying hardware. This limited
warranty gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1. Packing List
Before starting with the installation, make sure the following items are
shipped. If any item appears damaged or is missing, contact your vendor
immediately:
1 x MB-i89Q0 Industrial Motherboard
1 x Driver CD
1 x Quick Installation Guide
1 x I/O Bracket
1.2. Ordering Information
MB-i89Q0 Socket LGA1151/ PCH Q170 for Intel®6th Gen.
processor micro-ATX motherboard
CPF-67Q0-C1 CPU COOLING FAN FOR LGA1151
Optional Accessories
SCDB-3291 TPM 1.2 Daughter board with Infineon OPTIGA TPM
SLB9660
SCDB-3292 TPM 2.0 Daughter board with Infineon OPTIGA TPM
SLB9665
CBK-11-89Q0-00
Cable kit
2 x USB 2.0 cable w/ bracket (2 ports / cable)
1 x COM port cable
6 x SATA cables
2 x DP cables

- 3 -
Introduction
1.3. The Installation Paths of CD Driver
The CPU board supports Windows 10 64-bit. Find the necessary drivers by
the following paths on the CD that comes with your purchase.
Windows 10 64-bit
Chipset \i89X\Chipset\Chipset_10.1.1.13_Public
Audio \i89X\Audio\7687_PG436_Win10_Win8.1_Win8_Win7_WHQLx64
LAN \i89X\Ethernet
Graphic \i89X\Graphic\IntelR Graphics Driver Production Version
15.40.16.64.4364
ME \i89X\ME\Intel(R)_ME_11.0_Corporate_11.0.0.1202
RAID \i89X\RAID\Intel Rapid Storage Technology Driver 14.8.0.1042

- 4 -
Introduction
1.4. Specications
Form Factor Micro-ATX Industrial Motherboard
CPU Support 6th Generation Intel®Core™ i7/i5/i3
processors in LGA1151 socket
Memory 4 x 288-pin DDR4 Long-DIMM sockets, supporting
2133/1866MHz SDRAM up to 64GB
Chipset Intel®PCH Q170
BIOS AMI UEFI ROM
TPM Support TPM 1.2 & 2.0 daughterboard via LPC
connector (optional)
Watchdog Timer 1~255 levels reset
Super IO Chipset FINTEK F81768
FINTEK F81216AD (OEM request)
Serial Port 2 x RS-232 ports,
up to 4 x RS-232 ports (OEM request)
USB Port 10 x USB 2.0 ports, 4 x USB 3.0/2.0 ports
Keyboard & Mouse 6-pin wafer connector for PS/2 keyboard/ mouse via
Y-cable
Expansion Bus
1 x PCI slot
1 x PCIex16 Gen 3.0 slot
1 x PCIex4 in x8 slot
1 x PCIex1 slot
Storage Six Serial ATA ports with 600MB/s HDD transfer rate
RAID 0, 1, 5, 10 supported
Ethernet Chipset 1 x Intel®i210AT PCIe GbE controller
1 x Intel®i219LM PCIe GbE PHY
Audio Interface Realtek®ALC269 5.1 Channel HD Audio CODEC,Mic-
in/ Line-in/ Line-out with Amplifier
Graphic Chipset Integrated Intel®HD Graphics 5x0
Graphic Interface 1 x DVI-I port, 2 x DisplayPort ports
Power Requirement 24-pin + 4-pin ATX power connector

- 5 -
Introduction
Power Consumption 2.34A @+12V with i3-6100 (Typical)
3.83A @+12V with i7-6700 (Typical)
Operating Temp. 0 ~ 60ºC (32 ~ 140ºF)
Operating Humidity 10 ~ 95% @ 60ºC (non-condensing)
Dimension (L x W) 244 x 244 mm (9.6” x 9.6”)
Recommended CPU List:
Intel®Core™ i7-6700 quad-core 3.4 GHz processor
Intel®Core™ i5-6500 quad-core 3.6 GHz processor
Intel®Core™ i3-6100 dual-core 3.7 GHz processor

- 6 -
Introduction
1.6. Board Dimensions
Unit:mm
9.76
42.4
75.05
96.91
137.38
118.38
1.6
KB/MS
USB
COM/DVI-I USBx4 LAN/USB LAN/USB Line in/out/Mic
33.02
165.1
237.49
243.84
6.35
163.83
229.87
209.55
10.16
243.84
4
1
NO COMPONENT
NO COMPONENT
143
1442
78
287
288
145
146 222
77
221
143
144
2
78
287
288
145
146 222
77
221
143
1442
78
287
288
145
146 222
77
221
143
1442
78
287
288
145
146 222
77
221
1 2
1
1
1 2
15 16

- 7 -
Introduction
1.7. Installing the CPU
The LGA1151 processor socket comes with a lever to secure the processor.
Please refer to the pictures step by step as below.
1. Push the lever down to unclip it and lift it.
2. Open the load plate.
3. Remove the protective cover from the load plate. Do not discard the protective
cover. Always replace the socket cover if the processor is removed from the
socket.
4. Hold processor with your thumb and index ngers, oriented as shown. Ensure
your ngers align to the socket cutouts. Align the notches with the socket.
Lower the processor straight down without tilting or sliding the processor in
the socket.
5. Close the load plate. Pressing down on the load plate, close and engage
the socket lever.
12
3
5
4

- 8 -
Introduction
To install the Memory module, locate the Memory DIMM slot on the board and
perform as below:
1. Hold the Memory module so that the key of the Memory module align with
those on the Memory DIMM slot.
2. Gently push the Memory module in an upright position and a right way
until the clips of the DIMM slot close to lock the Memory module in place,
when the Memory module touches the bottom of the DIMM slot.
3. To remove the Memory module, just pressing the clips of DIMM slot with
both hands.
Lock Lock
1.8. Installing the Memory

2Chapter 2
Installation
Chapter 2 - Installation

- 10 -
Installation
2.1. Block Diagram
2 x USB 2.0 Ports
1 x RS-232 port COM2
Pin-header
PS/2 Keyboard/ Mouse
KBMS_USB1
Stacked PS/2
USB Type A
1 x RS-232 port
LPC I/F Fintek
F81768D
Super IO
2 x RS-232 ports COM3, 4
Pin-header
(OEM-request)
LPC I/F Fintek
F81216AD
Super IO
eDP Analog RGB
COM1_DVI1
DB9 female conn.
(up side)
DVI-I conn.
(low side)
DDI port
Chrontel
CH7517A
SATA 1, 2, 3, 4, 5, 6
SATA1 ~ 6
SATA connectors
1 x PCIex4
PCIe3
PCIex8 slot
1 x PCIex1
PCIe2
PCIex1 slot
1 x PCIex1
PCI I/F
PCI1
PCI slot
LPC I/F
4 x USB 2.0 Ports
USB2,3
Pin-header
DIMM1~4
Dual Channel
DIMM DDR4 sockets
DDR4 2133/1866MHz
PCIe1
PCIex16 slot
PCIex16 lanes
2 x USB 3.0/2.0 Ports
GbE
Intel i219LM
GbE PHY
1 x PCIex1 LAN1
RJ-45 connector
& Double Stacked
USB Type A
connector
2 x USB 3.0/2.0 Ports
GbE
Intel i210
GbE Controller
1 x PCIex1 LAN2
RJ-45 connector
& Double Stacked
USB Type A
connector
USB1
4x stacked USB 2.0
4 x USB 2.0 Ports
2 x DDI ports DP1,2
Internal connector
DMI3
FDI
Socket
LGA1151
6th/7th Gen
Intel®
Core i7/i5/i3
Processor
(Skylake-S)
Intel®
Q170 non-ECC
PCH
LPC1
Pin-header
(optional)
SCDB-3291 (TPM 1.2)
SCDB-3292 (TPM 2.0)
LPC I/F
TPM 1.2/ 2.0
Infineon SLB9660/
SLB9665
LPC1
Pin-header
PCIe to
PCI Bridge
HD Audio
ALC269
Line-out/ Line-in/MIC-in
Amplifier
AUDIO1
Phone jacks
SPKR1,SPKL2
1x2-pin wafer conn.
Realtek
Anti-Crash Technology (ACT)
•BIOS Monitoring
•BIOS Recovery Automatically
•BIOS & MCU Flash Synchronous Upgrade
ACT Block Diagram
System BIOS
Flash
BIOS ACT
RS232
UART TTL level (COM1)
SPI
SPI
Embedded
Board
External Flash
MCU
PIC32MX220F032C

- 11 -
Installation
2.2. Jumpers & Connectors Quick Reference
Jumpers
Jumper Description
➊JBAT1 CMOS Setting
➋JPIC1 ACT Function Setting
➌JPATATX1 AT/ATX Mode Selection
Connectors
Connector Description
①ATX1 ATX Power Connector
②⑪SYSFAN1, 2 Fan Power Connectors
③~⑧SATA1~6 Serial ATA Connectors
⑨JICSP1 For Internal Use Only
⑩JFRT1 Connectors for front-panel switches and LED status lamps
⑫LPC1 Low Pin Count Connector
⑬⑭USB3, 2 USB 2.0 Connectors
⑮TPM1 TPM Connector
⑯⑰⑱COM2, 3, 4 RS-232 Connectors
⑲⑳SPKR1, SPKL1 Speaker Connectors
21
AUDIO1 Audio Interface Port
22 23
LAN1, 2 RJ-45+USB 3.0 Stacked Connectors
24
USB1 USB 2.0 Stacked Connectors
25
DVI1 Stacked COM1 & DVI-I Connectors
26
KBUSB1 PS/2 Keyboard & USB 2.0 Stacked Connectors
27
JATX1 ATX 12V Connector
28 29
DP1, 2 DisplayPort Connectors
30
CPUFAN1 CPU Fan Power Connector
31
PCIE1 PCI Express x16 Gen 3.0 Slot
32
PCIE2 PCI Express x1 Slot
33
PCIE4 PCI Express x8 Slot with x4 Single
34
PCI1 PCI Slot
35
~
38
DIMM1~4 288-pin DDR4 Memory Slots

- 12 -
Installation
2.2.2. Jumpers & Connectors Location
4
1
NO COMPONENT
NO COMPONENT
143
1442
78
287
288
145
146 222
77
221
143
144
2
78
287
288
145
146 222
77
221
143
1442
78
287
288
145
146 222
77
221
143
1442
78
287
288
145
146 222
77
221
1 2
1
1
1 2
15 16
COM
DVI-I
LAN Line in
Line out
Mic
USB 2.0 x4
USB2
USB1
LAN
USB4
USB3
KB/MS
USB5
USB6
USB7
USB8
USB9
USB10
SYSFAN1
USB3
JICSP1
JPIC1
JFRT1
DP1
JATX1
DP2
AUDIO1DVI1
USB1 LAN1
LAN2
ATX1
JBAT1
USB2
JPATATX1
SPKL1 SPKR1
KBUSB1
SYSFAN2
PCI1
PCIE4
PCIE2
PCIE1
CPUFAN1 LPC1
2
SATA2SATA1
34
1
11
12
13
14
TPM1
15
COM2
16
COM3
17
COM4
18
20 19
212325
22
24
26
27
28
29
30
31
32
33
34
10
9
SATA4SATA3
5 6
SATA6SATA5
8
7
35
DIMM1
36
DIMM2
37
DIMM3
38DIMM4
1 2
3
