adept technology T6100 User manual

Easy touch Easy warm
Thermostat Instruction
INSTALL

01 Thermostat description
03 Technical specification
04 Display symbols
05 WiFi connection（Only for T6100）
06 Function & User operation
07 Advanced setting
09 Dimension
10 Installation and wiring instructions
08 Troubleshooting
02 Main functions of T6100
Table of Contents
01
01
01
02
03
05
10
12
12
13
APP for T6100

MAIN FUNCTIONS OF T6100
THERMOSTAT DESCRIPTION
Supply voltage: 85-265Vac 50/60Hz Maximum switching current: 15A
Holiday funcon
Time display
Hold funcon
Key-lock
Off me frost protecon
Floor high temperature protecon
Open window detecon funcon
TECHNICAL SPECIFICATION
IP rang: IP21Standby power: ＜2W Wire diameter: ≤2.5mm²
Reverse output funcon
Sensor selecon
DISPLAY SYMBOLS

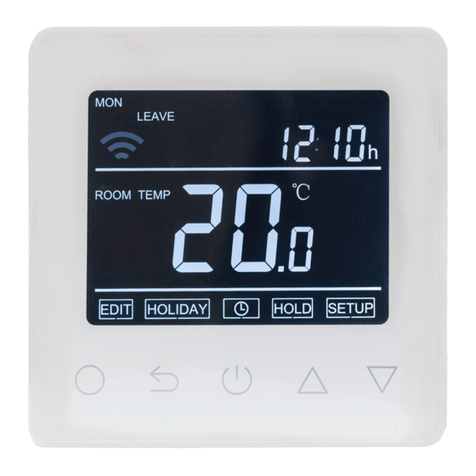

T6100 is a smart thermostat used to control electric heang devices or valve actuator.
It will keep your home at comfortable temperature while minimizing energy use.
T6100 is a WiFi version for wireless-connecon. You can download the APP on your
smart phone to control your electric heang system wherever you are.
01 02
Frost symbol
Day indicator
Period indicator
Holiday le
Hold le
Clock
Degrees Celsius
Fahrenheit
Floor limit symbol
Advanced Setup
Hold parameter edit
Down
Up
WiFi
Key lock indicator
Floor Temp
Room Temp
Set
Flame symbol
Temperature
Program Parameter edit
Holiday Parameter edit
Clock Parameter edit
Confirm
Return
Power
℉
℃
TEMP
HIGH
SET
ROOM TEMP
FLOOR TEMP
HOLD
h
HOLIDAY
EDIT
SAT
FRITHU
WED
MON TUE SUN
WAKE LEAVE RETURN SLEEP LEFT
HOLIDAY HOLD SETUP

WIFI CONNECTIONION
Step 3: Click “Add Device”on the boom of the screen.
Step 5: Fill in the WiFi network password, click “confirm”.
Step 7: You can set the temperature, change the paern, switch on/off,
lock key or do other operaons on the main interface.
Step 1: Scan the QR code through a browser or download the
APP from Google Play or APP Store.
Step 2: Click the APP, then log in with the registered
phone number or email address.
Step 4: Check the thermostat WiFi flag to
make sure it is fast flashing. If not, operate
the thermostat according to the APP ps
unl it flashes quickly. Then click the
“Make sure WiFi is flashing quickly”
buon.
Step 6: Click “Done”aer the APP is connected to the
thermostat successfully or click “Share with family”.
03 04

Seng Key-lock can prevent children and others from switching thermostat parameters.
In normal med power ’on’ mode, press for 3 senconds to lock the thermostat and
again for 3 seconds to cancel.
Press to turn on/off
FUNCTION & USER OPERATION
On/Off
Temporarily override temperature
Set the Time
Key-lock
Note: When frost protecon mode is acve, the thermostat will maintain
the frost protecon temperature when in power ‘off’ mode.
In normal med power ‘on’ mode, press △or ▽to change the current
period temperature seng. The new set temperature will flash for 30
seconds. The thermostat will revert to the normal programmed
seng at the start of the next me period.
In normal med power ‘on’ mode, Press and the clock symbol will flash.
Press again to enter day set.
Press △or ▽ to set day.
Press to confirm and enter hour set.
Press △or ▽ to set hour.
Press to confirm and enter minute set.
Press △or ▽ to set minute.
Press to confirm then press to revert to normal screen.
Note: The T6100W updates the me automacally when connected to the internet in the
condion that the APP agree to locate.
05 06

Holiday mode
Hold mode
In holiday mode, the T6100 will maintain the set temperature unl the holiday me ends.
In normal med power ‘ on ‘ mode, press to enter seng.
Press △or ▽ to select holiday.
Press to enter holiday days set.
Press △or ▽ to set holiday days .
Press to enter holiday temperature seng.
Press △or ▽to set the holiday temperature.
Press for confirmaon.
Note: Set the holiday days to zero or double press to cancel holiday mode.
The T6100 will maintain the ‘ hold temperature ‘ unl the hold period ends.
In normal med power ‘ on ‘ mode, press to enter seng.
Press △or ▽ to select hold.
Press to enter hold ON/OFF.
Note: Set hold OFF or double press to cancel hold mode.
The weekly circulaon digital programming mode of T6100 is highly free. It uses 7 days as a circulaon. The
parameters are the same from Monday to Friday, Saturday and Sunday can be set separately.
Press △or ▽ to set Hold ON.
Press to enter hold temperature seng.
Press △or ▽ to set the hold temperature.
Press to confirm.
07 08
In normal med power ‘ on ‘ mode, press to enter seng.
Press △or ▽ to select edit.
Press to enter day selecon.
Press △or ▽ to select the day to be set.
Press to enter period selecon.
Press △or ▽ to select the period to be set.
Press to enter start me set.
Program parameter setting

The thermostat can detect an open window by registering a rapid drop in temperature. With the
funcon enabled, the thermostats shuts off the heang for 15 minutes if an open window id
detected. It is energy saving and can protect the floor. When the window closed, please press for
twice then back to the regular program status. Notes: This funcon cannot be prohibited.
Open window detection
Period parameter table (inial value)
Mon----Fri 7:00 22℃8:30 19℃
8:30 22℃
17:00 22℃22:00 19 ℃
22:00 19℃17:00 22℃8:00 22℃Sat
8:30 22℃22:00 19℃17:00 22℃8:00 22℃
Sun
Week Wake Leave Return Sleep
ADVANCED SETTING
Press △or ▽ to select start me hour.
Press to enter minute set.
Press △or ▽ to select start me minute.
Press to enter temperature set.
Press △or ▽ to select temperature.
Press to confirm and move on to next me period.
Cauon: These are normally set by technicians during inial installaon.
In normal med power ‘on’ mode, press to enter seng.
Press △or ▽ to select setup.
Press to enter advanced seng.
Each parameter can be accessed by pressing and adjust the values as required.(the default
values are recommended and changing these may adversely affect the way the thermostat works.)
09 10

1.Room sensor temperature calibraon: calibrate the temperature detected by room sensor.
2.Floor sensor temperature calibraon: calibrate the temperature detected by floor sensor.
3.Frost protecon: If the frost protecon funcon opened, the screen will display “ ” when
the thermostats are OFF, it will keep the room and floor at a lower temperature in order to protect
the pets and plants in your house. Also, it can keep your pipe from freeze broken when using the
water heang system.
4.Sensor selecon: The room sensor is used to control the room temperature. The floor sensor is
used to control the floor temperature. By using both of them, you can not only control the room
temperature but also avoid high floor temperature.
5.Floor temperature limitaon: When you choose both sensors, you can set the maximum floor
temperature value, system will stop heang if the floor temperature exceed this value.
6.Temperature unit: ℉and ℃ can be selected.
7.Output delay: The shortest period me between heang and stop heang in the condion
when the temperature changes sharply.
8.Temperature deviaon control: The deviaon is 1℃. This means If you set a temperature value,
the heang temperature will be 1℃ lower than the set temperature. The system will stop heang
when the temperature are 1℃ higher than set temperature.
1
2
3
No. Name Default Ranges
Room temperature calibraon 0 ℃
0 ℃
ON
- 5℃-- 5℃
- 5℃-- 5℃
OFF/ON
Floor temperature calibraon
An-frozen funcon
4
5
6
7
8
9
11
10
5℃
02
30℃
℃
5℃--15℃
00：Built-in sensor
01：Floor sensor
02：Both sensors
20℃-50℃
00：℃
01：℉
00:0s
01:30s
02:60s
03:90s
00：0.5℃
01：1℃
02：2℃
03：3℃
00：no reset
01：reset
An-frozen temperature
Sensor selecon
Floor temperature limit(both sensors)
Temperature unit
Output delay
Temperature deviaon control
Parameter Inializaon
Reverse output
00
1℃
00
OFF OFF/ON
INTRODUCTION
PARAMETER
PARAMETER
1211

9.Reverse output: This funcon works for the cooling system. When the temperature are higher
than set temperature, the thermostat will disconnect the cooling system, otherwise, it will
connect the cooling system.
10.Parameter inializaon: All seng parameters are restored to default values. Installation
TROUBLESHOOTING
DIMENSION (MM)
INSTALLATION AND WIRING INSTRUCTIONS
E1 = Built-in sensor short-circuit or disconnected.
E2 = Floor sensor short-circuit or disconnected.
Note: Should a sensor fault display, please connect us for assistance.
Fault Codes
Wire the back secon as shown in
the wiring diagram.
Loosen fixing screw on the base of
the thermostat and separate front
panel from back secon.
13 14
Step 1 Step 2
87
51
51
42
2616
60
87

mounted in a standard 86L×86W×35H(mm) wall box.
Replace front panel whilst ensuring
the pins engage properly in the
circuit board socket.
Fix the back secon to wall box
with screws provided.
Cauon: Ensure power is disconnected when wiring!
15
Step 3 Step 4
The T6100 series thermostat should be
NOTE:
Power Load
1
Wiring instructions
