Instruction Manual
1
Electric Cooker With Electric Oven
MANUAL INSTRUCTIONS
(Read the machine carefully before using it.)

Instruction Manual
2
Welcome to purchase and use luxury combination furnace series products。
In order to facilitate you to better use the functions of this product and reduce unnecessary
damage or personal injury, please read the product instructions carefully before use and keep them
properly for future reference.。
Warning! Any modification, incorrect installation, adjustment, maintenance or maintenance
may result in property loss or personal injury. If adjustment or maintenance is required, contact
the supplier and be carried out by trained professionals.
Warning! For your safety, please do not store or use inflammable and explosive gases, liquids
or articles near this product.
Warning! The shell of the machine must be grounded to ensure safety. Thank you for your
cooperation!
The product has the advantages of beautiful appearance, reasonable structure, convenient
operation, constant temperature control, fast heating speed and power saving. It can be boiled,
fried, steamed, stewed, boiled, stewed and other operations, safe and reliable, is your ideal
kitchen assistant.
I、Structural Performance Characteristics:
1、The cooking stove of this series of products is controlled by four heads independently. It
can process many kinds of different foods at the same time.
2、There is an independent adjustable temperature controller, which can adjust the
temperature range from 50 to 300%. At the same time, a power supply indicator and a heating
indicator are installed to facilitate the observation of heating conditions.
3、Because the heat is transferred directly through the contact of the furnace surface, the
pan must be flat-bottomed. Three heat transfer modes, heat convection, heat conduction and heat
penetration, are used to speed up cooking speed. The annular heating disc and the hot spinning
system cooperate with each other to achieve the best energy saving effect. Quick cooking,
concentrated heat source, energy saving and power saving.
4、Easy to clean: Just gently wipe and then clean.
II、Basic parameters:
Model
HRQ-962A
HRQ-912A
volts
380V/50Hz
380V/50Hz
power
2×3+2.6×3+4.8kW
2×2+2.6×2+4.8kW
Temperature setting range
50-300℃
50-300℃
size(mm)
1200×900×920
800×900×920
Number of cooking
6
4

Instruction Manual
3

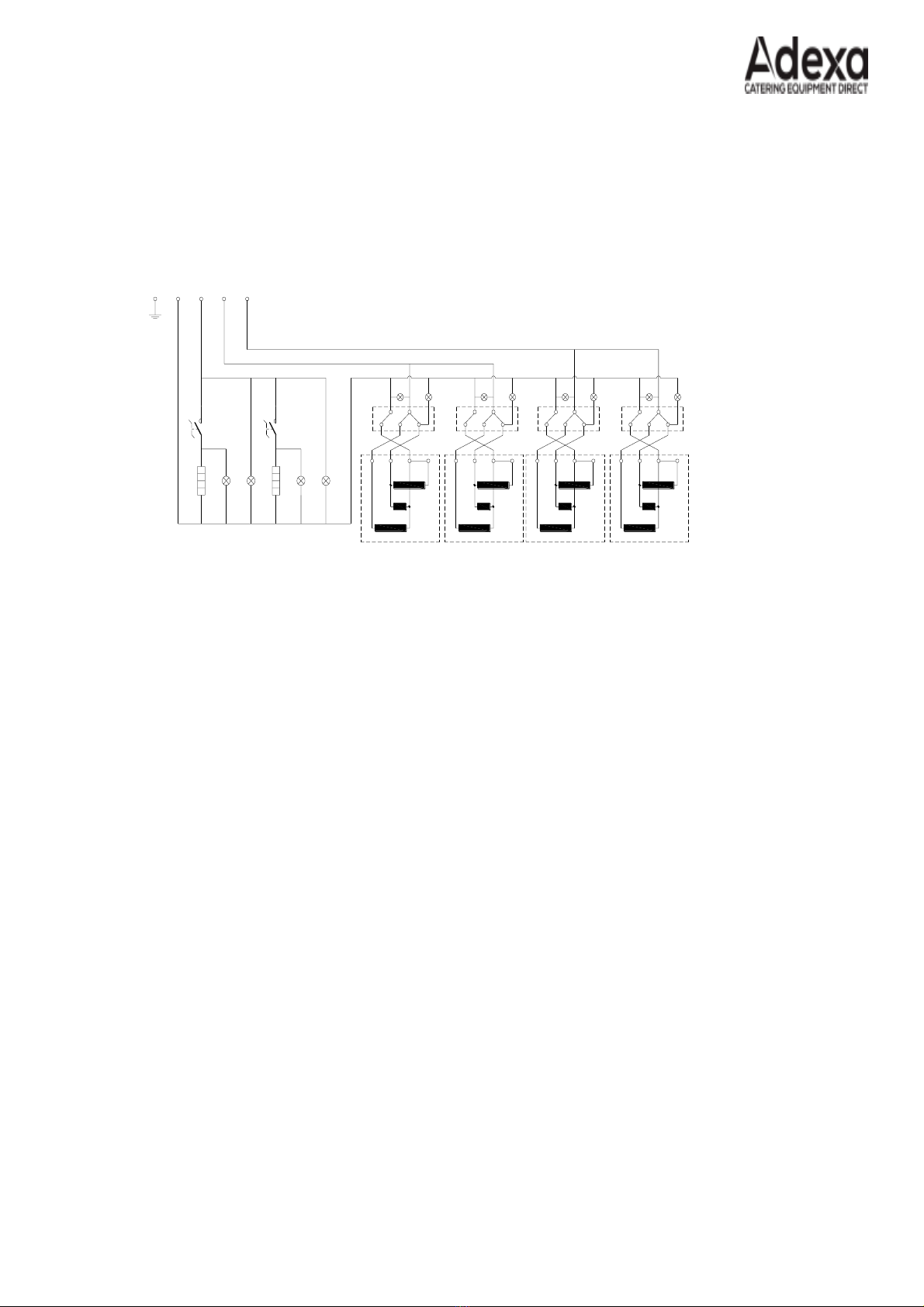

III、Electrical schematic diagram
E
HL12
EH3
EH1
ST1
3
NL1 L2 L3
HL11HL10HL9
HL3
SD1
2 3 4
4 2 1
ST2
HL7 HL1 EH2 HL8 HL2
HL4
SD2
2 3 4
HL5
SD3
2 3 4
HL6
SD4
2 3 4
EH4
3 4 2 1
EH5
3 4 2 1
EH6
3 4 2 1
EH1 / EH2--------Baking furnace heating pipe EH3~EH6--------Cooking stove tray
ST1 / ST2---------Thermostat SD1~SD4--------Gear switch
HL1~HL6-------Thermostat HL7~HL12-------Heating indicator
Ⅳ、Operation procedure:
1、To check whether the installation of power supply is normal, it is necessary to ensure that
the supply voltage is in line with the furnace voltage.
2、Four gear switches are set on the front panel of the furnace body, which can be used
independently or simultaneously. Each switch corresponds to a heating plate. Each
temperature control of the baking furnace corresponds to the upper and lower heat pipes.
3、Turn on the power supply and the green indicator lights on. At this time, the current has
been supplied to the furnace. There are three gears in each switch of cooking oven.
According to their own needs, they are the largest in three gears, the middle in two gears
and the smallest in one. The oven rotates the thermostat clockwise and adjusts it to the
desired position. At this time, the yellow indicator lights up, indicating that the heating
pipe has been working and began to heat up.
4、When the temperature rises to the set temperature, the thermostat can automatically cut
off the power supply, at the same time the yellow indicator lights out and the heating
pipe stops working. When the temperature drops slightly, the thermostat can
automatically switch on the power supply, the yellow indicator lights up, the heating
pipe resumes work, and the temperature rises. Such repeated circulation ensures that the
furnace body keeps constant temperature within the set range.
5、When the work is finished, please rotate the thermostat in a counter-clockwise direction
and cut off the power supply to ensure safety.
6、Be sure to cut off the power supply of the cooker before cleaning and maintenance. When
the stove surface is cooled, the neutral detergent or clear water is dripped on the stove

Instruction Manual
4
surface and wiped with paper towel or soft cloth.
7、No corrosive or irritating chemical reagents shall be used. Cleaning and maintenance of
the product must wait until the cooker is completely cooled.
Ⅴ、Installation Notes:
1、The operating voltage of the equipment must be in accordance with the supply voltage.
2、Users need to install appropriate leakage protection switches near the furnace body.
3、Copper equipotential terminal is arranged below the rear part of the box body. Copper
core conductor of no less than 1.5mm2 is used to connect reliably according to the
regulations.
4、The installation of this stove should be operated by professional and technical personnel.
5、Before use, check whether the wiring is loose, whether the voltage is normal and whether
the safe grounding is reliable.。
6、The shell of the machine must be grounded to ensure safety.。
Ⅵ、General Fault Handling:
Special attention
This product needs to be operated by a trained chef or experienced person.
No modification! The modification of products will lead to serious accidents.
Cut off the power supply before cleaning。
When cleaning, do not flush the original stoves or appliances with water. Electric
shock accidents may occur because of water leakage.
High temperature can cause burns. Because of the high temperature, do not touch the
panel directly by hand, especially near the high temperature area in the center of the
heating plate.
It is forbidden to use power sources other than the voltage indicated by the product.
It is forbidden to use switches that do not conform to safety regulations.
When lightning approaches, the power supply should be disconnected to stop using.
Avoid electrical damage caused by lightning strike.
It is forbidden to use hard and sharp objects to destroy the surface of furnace body and
electric heating disc.
Installation and maintenance of electrical appliances must be carried out by qualified
professionals.
Hands should be dry in installation and use, plugs and switches should be kept dry.
If the soft wire of power supply is damaged, in order to avoid danger, it must be
replaced by full-time personnel such as the manufacturer or its maintenance
department.
Fault phenomenon
Reason
Elimination method
1、Close the switch and turn on
the power supply. The
power indicator is not on or
heated.
1、There is no power
supply on the line.
1、Check power supply
2、The heating indicator is on,
but the temperature does not
rise.
1、Loosening or falling
off of heating pipe
wiring
2、The heating pipe has
burnt out.
1、Fastening the connecting
wires and screws at both
ends of the heating pipe
2、Replacement of heat pipe
3、The heating indicator is on
and thesetting temperature
is not raised.
1、The thermostat has
burnt out
1、Replacement of
Temperature Controller

Instruction Manual
5
The above fault items are for reference only. If any fault occurs, it should stop using immediately and
inform professional personnel to check and repair as soon as possible.
Ⅶ、Cleaning and Maintenance:
1、Before cleaning, power should be cut off to prevent accidents.
2、After each day's work, wash with a wet towel without corrosive detergent. It is strictly forbidden
to wash the electrical box directly with water to prevent water from infiltrating into the electrical
box and causing circuit damage.
3、If not used at any time, the thermostat and power switch should be turned off.
4、When not in use for a long time, the stove should be clean and placed in a well-ventilated,
non-corrosive gas warehouse.
Ⅷ、Transportation and custody
During transportation, violent vibration and collision should be prevented. When not in use for a
long time, it should be stored in a well-ventilated, air-dry, non-corrosive gas warehouse; when
temporarily stored, rain-proof and anti-corrosion measures should be taken.
Ⅸ、Routine inspection:
Every day before and after use, pay attention to check the state of the machine: is the front box
variant? Is the power cord aged, cracked or damaged? Is the control panel damaged?
Usage: Is there any burnt odor or odor? Is the switch not in good contact? Is the temperature out of
control or leakage?
Warning!
Daily examinations must be carried out regularly. Accidents can be avoided.
If you feel that the circuit is out of order or the temperature is abnormal, you should
stop using it immediately and notify the professional to check and repair it as soon as
possible.
4、Temperature control is
normal, but indicator is not
on
1、Indicator lamp
burned out
1、Replacement of indicator
lamp

Instruction Manual
6
Warranty card
Product
name
User name or
address
Date of
purchase
year month day
Distribution unit
(Gai Zhang)
Factory
number
This product implements "three packages". If the failure can not be eliminated by users, they can
contact our factory or local maintenance department to solve the problem and repair it free of
charge within half a year after sale.
Ⅰ、The user fills in the warranty card at the time of purchase, and it is valid with the seal of the
distributor. Later, it will be repaired on the basis of the card.
Ⅱ、Where the installation is not in accordance with the instructions, improper use, collision and
other damage, the need for flat replacement of parts of the product, the factory only recovers the
cost of parts.
Ⅲ、In case of "three packages" maintenance, please notify us by letter or telephone, and explain the
product number and damage.
