Garwoods EC-1288 Manual

1
Single-Zone Induction Cooker
單頭電磁爐
Model/型號：EC-1288
Installation & Operating Instructions
產品使用說明書

2
1、 Product Introduction-------------------------------------------------- 3
1.1 .Introduction Of Product
1.2 .Function & Characteristics
2、 Installation Guideline-------------------------------------------------- 4-6
3、 Control Panel Instructions-------------------------------------------- 7
4、 Operation ethod----------------------------------------------------- 8-10
4.1 .Operation Instructions
4.2 .Usable and Non-usable Cookware
4.3. Heating Power Level
4.4. Caution
5、 Safety Precautions----------------------------------------------------- 10-11
5.1 . Safety Notes
5.2 . Warning
6、 Daily aintenance----------------------------------------------------- 11
7、 Product Specification-------------------------------------------------- 12
8、 Trouble-Shooting Guideline------------------------------------------ 12-13
8.1 . Code Of Breakdown
8.2 . Trouble Shooting
CONTENTS

3
1、Product Introduction
1.1、Introduction Of Product：
Thank you for choosing Garwoods EC Induction Cooker ( odel

EC-1288). This product
utilizes electromagnetic heating theory and be controlled by the micro-computer touching
sensor control system. There are multi-functions which cater for any delicious cuisine. It
is the ideal product for modern family. Please read this operation manual carefully before
installing or using this product.
1.2 、Function & Characteristics：
 Energ -efficient

It utilizes the brand-new calefaction principle. The thermal efficiency is
extremely high. It is both time-saving & energy-saving. Calefaction begins when a boiler
is on and heating is stopped when the boiler is removed.
 Multi-function

It utilizes newest micro-computer chip program control. It offers
multiple scales for heating power level regulation. Also, it offers timing regulation of as
long as 99 mins. It can automatically check whether there is cooker on or not.
 Safet & Environmental Friendl

Safety & Environmental Friendly of the product is on
our top priority. 1) Only cookware with a ferromagnetic material would be heated; 2)
Over-heating protection; 3) If the body temperature of cookware is too high or the
voltage change causes too strong electric current, the cooker will enter into a
self-protection system; 4) Automatic shut off by entering into a self-protection system
after 2 hours not in use during cooking; 5) The surface of the cooker is a high quality
heat-resistant ceramic glass that is insulated and guarded from leakage; 6) No need to
worry about bringing possible damage to the cooker when overflowing of soup; 7) The
cooker is free from typical problems such as leakage, explosion, flaming burns etc. The
chance of accidents are greatly reduced; 8) Fireless and smokeless cooking is easier
made for any cuisine. eanwhile, it will keep your family members out of respiratory
system allergy.
 Eas -to-clean Surface

Ceramic glass top panel is easy to clean. Wipe it with a damp
cloth after cooking.
 Touch Buttons Operation

Touch button design are easy for use.

4
2、Installation Guideline
★ Installation should be followed below requirements：

The walls on top of the working face and next to the installation of induction cooker
must be heat-proof.

The laminated boards and adhesive used for installation must be heat-resistant.

For any installation method, the air under the cooker and behind the cooking range
should have enough space for cooling in order to ensure the safety of operating the
induction cooker.

Based on the prescribed dimensions, a square hole is opened on the work table. Ensure
the distance between any side of the work table and the walls is

100mm.

Protect the opening: If in contact with damp, the laminated boards used in marking the
work table will easily expand more. It is required to stick varnish or special adhesive onto
the edge of the opening in order to prevent any steam from condensation under the
work table.

For any condition of installation, the induction cooker should have a good ventilation
condition with air inlet and air outlet not blocked.

Don’t place other equipments on the working face of the double cooking zones of the
induction cooker and within the range of 30cm around the working face.

If choosing a table-top installation, ventilation hole shall be at least 100mm from wall
surface.

The induction cooker must be complied with a 13A power outlet.

This product is also suitable for free-standing use.
★ Steps on Installation：

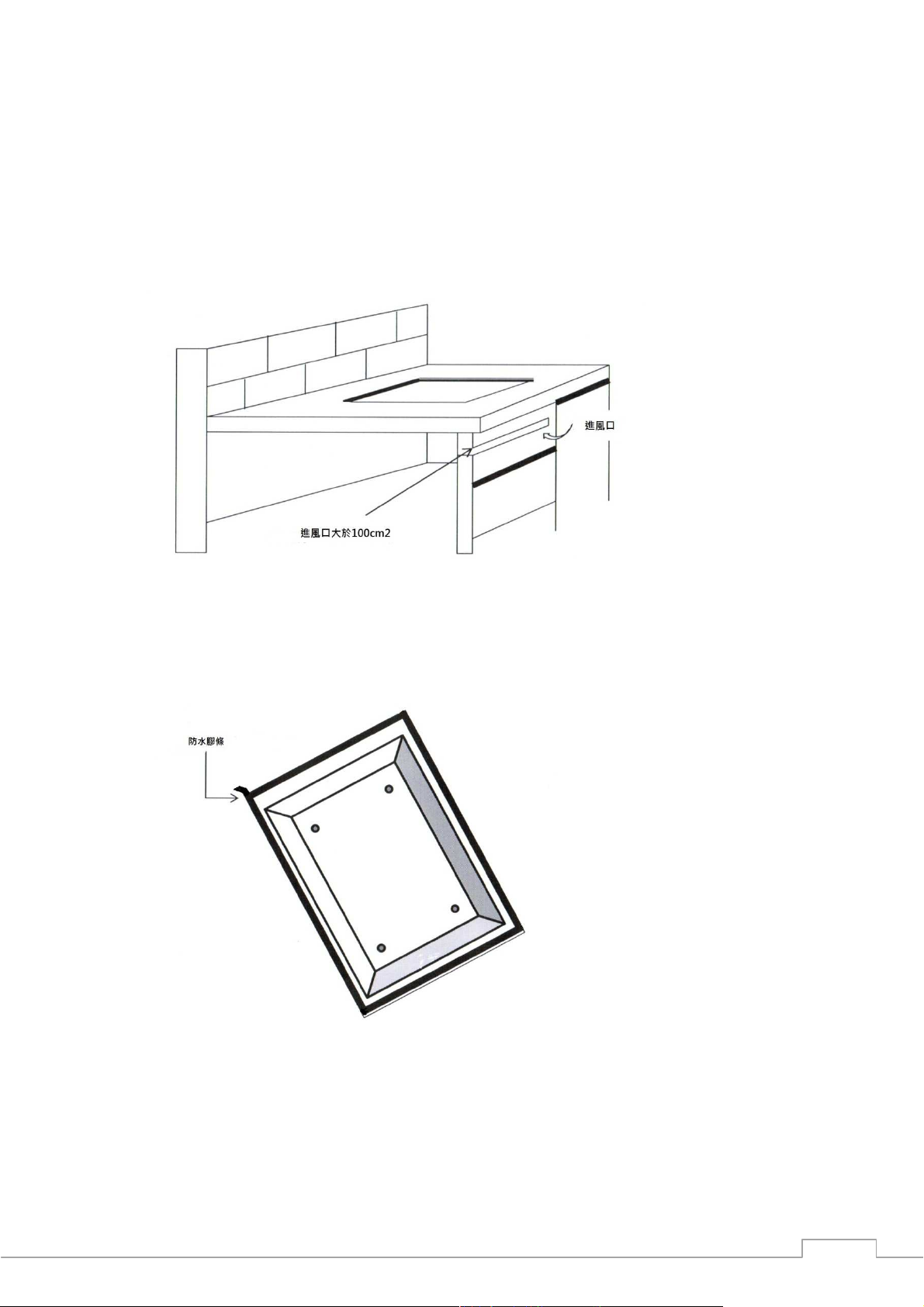

~ Open an installation hole on the worktop of cabinet as per

illustration 1

.
(Note : The height shall be more than 100mm)
Cut out dimensions(unit/mm)

(W) 315 x (D) 415

illustration 1


5
~ In front of the cabinet, open an air inlet with more than 100cm2 under the location of
induction cooker as per

illustration II

. If the cabinet is not sealed, the air inlet may not be
opened so as to ensure heat elimination.

illustration II

~ Before put the induction cooker into the hole, an water-proof type is properly applied on
the bottom of front panel of the induction cooker as per

illustration III

.

illustration III


6
~ Put induction cooker into hole. Insert plug of power line into corresponding socket. The
induction cooker can be used after power connection as per

illustration IV

.

illustration IV


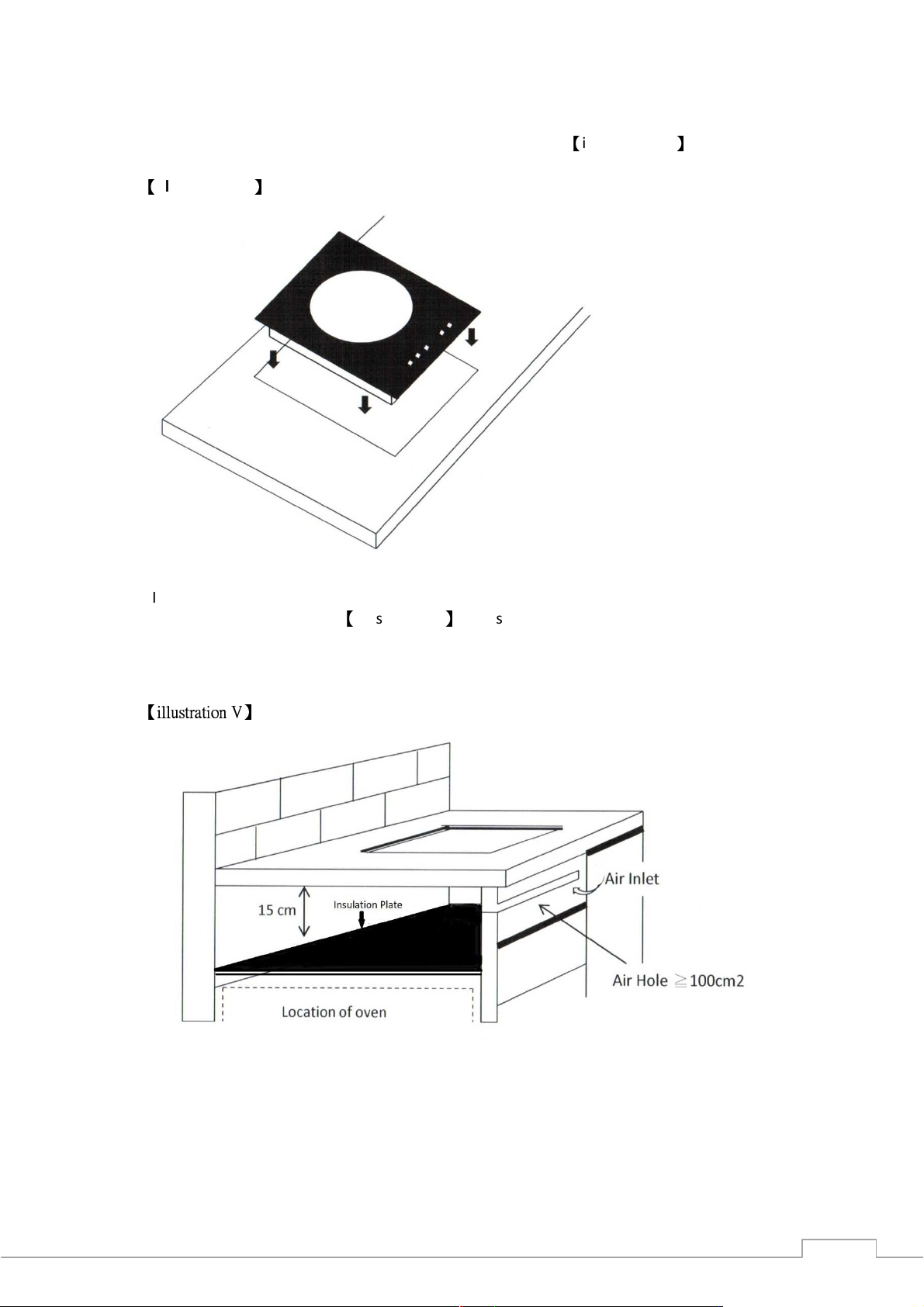

~ If the induction cooker is installed above an oven, fix an insulation part at least 15cm under
the induction cooker as per

illustration V

. Also, open an air inlet with more than
100cm2 under the location of the induction cooker to ensure ventilation and operation in
good conditions
 
 !"#$

7

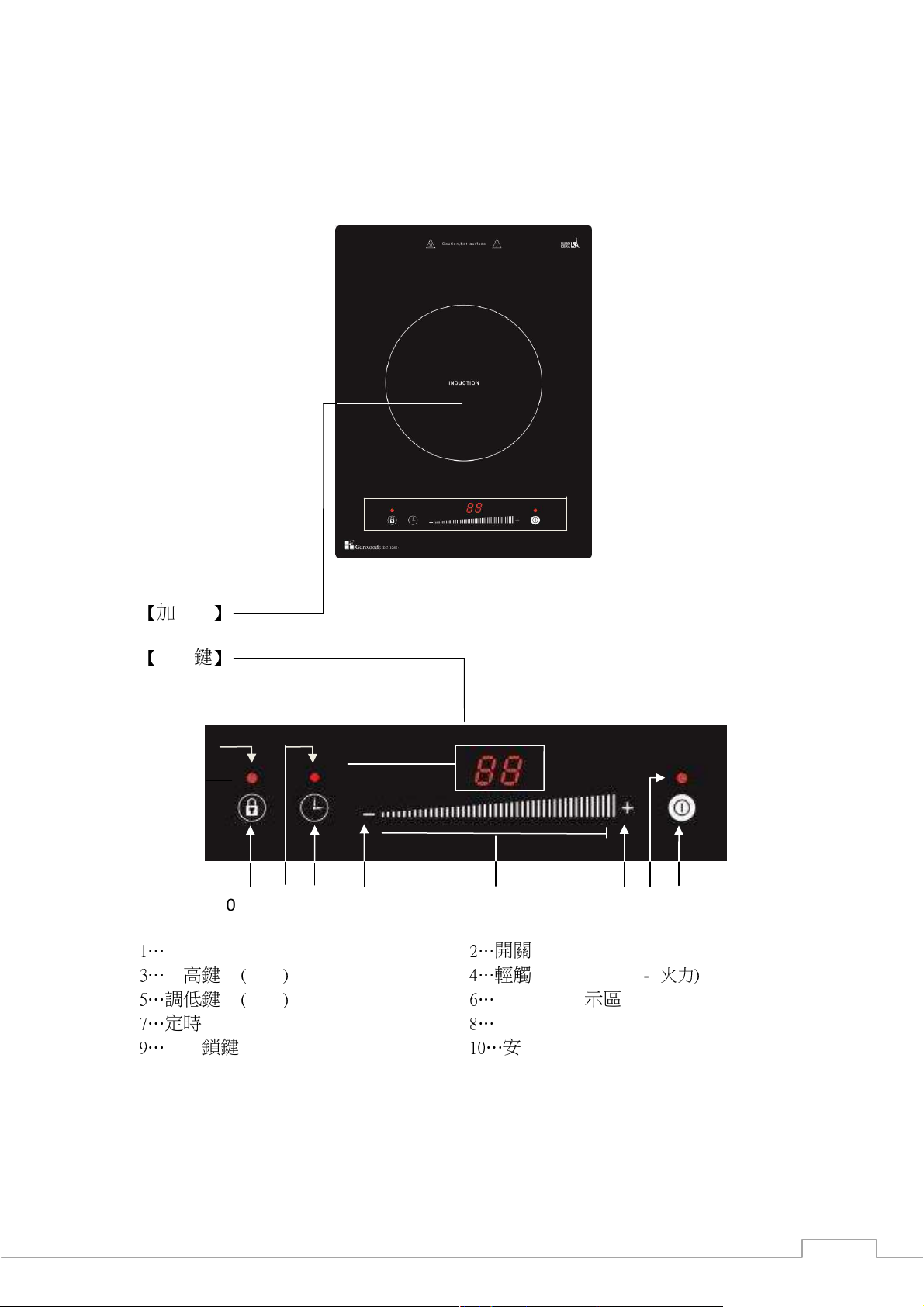

3、Control Panel Instruction

Cooking Zone


Control Panel

10 9 8 7 6 5 4 3 2 1
1…On/Off 2…On/Off Indicator
3…Plus Key –Timer 4…touchSlider bar – Power
5… inus Key – Timer 6…LED Digital Indicator
7…Timer Key 8…Time Indicator
9…Lock Key 10…Lock Indicator

8
4、Operation Method
4.1、Operation Instructions：
 Power Connection

After power connection, buzzer will make a short sound and the
induction cooker keeps at the stand-by mode. LED digit will show (- - ).
 On switching

Place cookware on heating zone (Pls. refer to Usable and Non-usable
Cookware), by pressing the “ON/OFF” key, buzzer will make a short sound and the
on/off indicator will be on. LED digit will show the pre-set power level “4”.
 Power Level Alteration

At the power function, touch the sliderbar from left to right side
to increase the power level or decrease the power level from right to left side. LED digit
shows set power level.
 Selecting Timer

By pressing
%
Timer
&
key, the time indicator will be on. At the time, by
pressing
%'&
Or
%(&
key to set the required time. The operational setting range is
between 1 min. and 99 min. (Display form in
)
mins
*
) After setting, the LED will show
the required time. When set time is reached, buzzer will make a long sound and the
induction cooker stops heating. To cancel time setting, set the timing to “ZERO”.
 Lock Function

By pressing the
%
Lock
&
key, buzzer will make a short sound and a red dot
will be on. At this time, all keys will be locked in order to avoid mis-operation. By
pressing
%
Lock
&
key 3 sec. again, buzzer will make a short sound and a red dot will be off.
The induction cooker will be locked automatically after 15 sec. when switching off.
For restarting the induction cooker, by pressing the
%
Lock
&
key 3 sec. again, buzzer will
make a short sound and the red dot will be off, then by pressing the
%
ON/OFF
&
key to
enter the normal cooking mode by other function keys.
 Off Switching

During heating, by pressing
%
ON/OFF
&
key to switch off.
+

9
4.2、Usable and Non-usable Cookware：
~ Please refer to below information to select a suitable cookware cater for all delicious
cuisine by the induction cooker.
Usable Cookware Non-usable Cookware

Materials

Iron, cast iron, stainless steel
and enamel cookware.

Materials

Cookware made of pottery,
aluminum, glass, copper or bronze.

Shape and size

The diameter more
than
120mm (4.5 inches) are recommended.

Shape and size

The bottom diameter of
the cookware is less than 120mm (4.5
inches). And, the cookware with curved
bottom, with concave bottom (the concave
depth
,
4mm) or with legs (the
height
,
4mm).

Sorts of sui
table cookware

Stainless
steel kettle, iron tray, bottom pan, iron pot,
iron tray, enamel pot etc.

Sorts of un
-
suitable cookware

Copper,
bronze and aluminum pot, glass pot,
pottery pot, bronze pan etc.
 !"#$
~ Put the suitable cookware on the central position of the heating zone.
~ It is normal that sound
%
ze..ze..
&
from the cookware when heating.
4.3、Heating Power Level：
Level
Power
7
2
8
00W
6
2
4
00W
5
20
00W
4
1
6
00W
3
1
2
00W
2
8
00W
1
400W
0
0W

10
4.4、Caution：
 Don’t place any metal cooking utensils, e.g. knife, fork, spoon, lid over the heating zone
to avoid getting burnt.
 Don’t place an empty cookware on the heating zone that will cause damage of the
induction cooker.
 Beware of the cookware gets overheated and burnt while heating up oil.
 Please use level 4 for deep fry cooking. Otherwise the induction cooker will turn off
automatically after cooking around 20 minutes. And the LED indicator will show the
%
E2
&
.
5、Safet Precautions
5.1 Safet Notes：
 No other objects then cookware to be placed on the calefaction area.
 Do not insert any objects like iron wire etc. into the vent in order to prevent any electric
shock.
 Do not put anything to block the air outlet
-
 Do not heat up unopened tins of food on the heating zone as pressure will build up in
the tin and it can explode, which in turn could result in injury and scalding or damage.
 Do not use the induction cooker in a high temperature environment. Keep it far away
from fire.
 Always keep children away from the induction cooker.
 Keep a distance between the water supply and the induction cooker, to prevent any
electric shock and interference or malfunction on function of the induction cooker.
 Water or lliquid on the control panel will affect interference or malfunction on function
of the induction cooker.

11
5.2、Warning：
 The induction cooker must not be installed over any metal work top or electrical
appliances such as dishwasher, oven, and fridge etc.
 Do not place metallic objects such as knives, forks, scoops or spoons on the induction
cooker, calefaction area in order to prevent any danger caused by high temperature
 The plate of the induction cooker is hot after cooking; do not touch the heating area by
hand.
 If power wire is broken, you must shut off the power supply immediately and contact
our After Sales Service professional to change the broken wire. User does not allow
repairing by yourself, otherwise the maintenance of the induction cooker will be invalid.
 Do not smash the glass surface, switch off the induction cooker when the glass surface is
cracked.
6、Dail Maintenance
 Clean the induction cooker only when it has cooled down.
 Do not put any tinder of acid or alkaline materials near the induction cooker in order to
avoid the electric circuits inside the stove from the erosive damages of acidity and
alkali which can affect the life span of the induction cooker.
 Never use a steam cleaner or aggressive or abrasive detergent to clean the induction
cooker.
 Do not wash the induction cooker directly with water.
 When cleaning the ceramic surface, wipe all coarse soiling off using a damp soft cloth
and apply a few drops of proprietary-cleaning agent for ceramic surfaces.
 Do not let the bottom of the induction cooker rubs the glass surface of the working
area so as to prevent lacerating. (The laceration of the glass surface of the working area
does not affect the normal operation of the induction cooker).
 The air inlet should be cleaned regularly in order to have a good ventilation
condition.
 Be sure to remove stains from the bottom of cookware. Otherwise, the stains will be
scorched and stuck on the top plate.

12
7、Product Specification
Description Single-zone Induction Cooker
Model EC-1288
Power Suppl AC220V/50Hz
Total Rated Power 2800W
Overall Dimension(W x D x H) 345 x 450 x 60 mm
Net Weight 7 Kg
8、Trouble-shooting Guideline
8.1、Code Of Breakdown：
In case of improper installation or use, abnormal power supply or breakdown of the
induction cooker, the LED digit on front panel will display code of breakdown.
Code of breakdown Root cause of breakdown
E0 Failure of Circuit
E1 Cookware not be sensed on the cooking zone
E2 High temperature inside induction heater
E3 Failure of heater temperature sensor
E4 Failure of IGBT temperature sensor
E5 High power voltage
E6 Low Power voltage

13
8.2、Trouble Shooting：
Garwoods’s induction cooker has adopted the most advanced micro-computer inspection
and control technology. Some phenomena appeared in the course of working may not
indicate problems to occur.
Please check the induction cooker according to the follow specifications

Situation Reason Solution
The heater works for a while
and stops, indicating
.
E2
/
.
1. The inlet of fan is off.
2. The fan stops working.
3. The surrounding
temperature is too high.
Pls. check if there is some
heating device nearby.
4. The temperature of the
stuff being heated rises
too high.
1. Clean and remove the stuff
in the inlet.
2. Ask help from a
professional service
technician.
3. Improve the ventilation.
4. Remove the cause for fry
heating and continue to
use the cooker after the
calefaction area is cooling
down.
The heater works for a while
and stop, indicating
.
E3
/
or
.
E4
/
.
The temperature sensor
breakdown.
Ask help from a professional
service technician.

14
一、 產品簡介---------------------------------------------------------------- 14
I . 產品介紹
II . 性能特點
二、 產品安裝說明--------------------------------------------------------- 15-18
三、 控制面板說明----------------------------------------------------------- 19
四、 產品操作說明----------------------------------------------------------- 20-22
I . 操作說明
II . 鍋具的選擇與使用
III. 火力段數及 率說明
IV、警告事項
五、使用注意事項--------------------------------------------------------- 22-23
I . 安全注意事項
II . 警告
六、日常 養注意事項--------------------------------------------------- 23
七、產品規格--------------------------------------------------------------- 24
八、維修指南--------------------------------------------------------------- 24-25
I . 錯誤代碼
II . 簡易故障的判別和排除
目錄

15
一、產品簡介
I、產品介紹
多謝選購Garwoods EC智能電磁爐 (型號：EC-1288) 。本產品採用先進電磁加
熱方式，微電腦控制，輕觸式操作，安全耐用。適合各種不同的烹飪需求，是現
代家庭廚房的理想之選。請在安裝或使用本產品之前閱讀本說明書。
II、性能特點
 節能效益： 本產品採用全新加熱原理，傳熱效率高，省時省電，鍋具放
置電磁爐後開始加熱，取走鍋具後立即停止加熱。從而達到
煮食節能目的。
 齊全功能： 採用最新微電腦晶片程式操作，具有多段火力段數調節，99
分鍾定時操控，自動鍋具檢測等 能，方便實用。
 環保安全： 本產品在設計上充分考慮使用者的安全及環境保護。1)加熱
區只能感應適用電磁爐的鍋具；2)設有過熱保護裝置；3)當鍋
體溫度過高或電壓變動導致電流過大，本產品將自動進入保
護狀態；4)使用過程中如無指令接收達到兩小時後，自動停
機保護啟動；5)爐面選用高級耐熱微晶玻璃面板，絕緣防漏；
6) 無需擔心湯水溢出燒壞電磁爐；7)無煤氣爐常見的洩漏、
爆炸、明火灼傷等危險，減少意外事故的發生；8)烹調過程
中無明火、無煙，令烹飪變得潔淨容易，令家居環境清新及
家人健康。
 容易清潔： 高級耐熱微晶玻璃面板、易潔耐用。烹調後，只須用布輕輕
一抹即可。
 輕觸式操作： 輕觸式觸控設計，只需要用手指輕輕觸摸玻璃控制面板上
能鍵即可，簡便易用。

16
二、產品安裝說明
★安裝須遵守以下說明要求：
1、 工作枱面及靠近電磁爐的牆壁必須是耐熱的。
2、 用於安裝電磁爐與廚櫃的層板和膠黏劑必須是耐熱的。
3、 在任何安裝方式中，應確保爐具底下及爐面後側能徹底散熱，以確保安
全。
4、 按規定尺寸在枱面上開一個安裝孔，同時確保任何一面距牆面距離至少
100mm。
、 安裝孔防水保護：若與濕氣接觸，製作廚櫃所用的層板相對容易膨脹，在
開口邊緣塗上透明漆或專用膠黏劑，可防止水氣滲入造成篜氣在廚櫃枱面
下產生冷凝。
6、 在各種安裝條件下，電磁爐都需要良好的通風，要確保進氣口和出氣口不
會被堵塞。
7、 電磁爐爐面四周及爐面垂直上方30cm的範圍內不要設置其它設備。
8、 如選擇座檯式安裝時，亦須確保排風口距離牆壁至少100mm。
9、 使用此型號電磁爐時必須配備13安培獨立開關掣或固定接線座。
10、 本產品亦可用作座檯式使用。
★安裝步驟
1. 在需安裝電磁爐的廚櫃枱上按照【安裝圖 一】尺寸開一安裝孔
（注意：高度距離枱面需超過100mm）。
開孔尺吋(單位/mm)：(闊) 315 x (深) 415
【安 圖 一】

17
2. 在櫥櫃前側電磁爐放位置的下方開出一個大於100c㎡的進風口如【安裝圖
二】, 以確保電磁爐有足夠的散熱，如果櫥櫃不是密封式的，可以不開此口，
但電磁爐下方不可有任何雜物堵窒通風。
【安 圖 二】
3. 安裝電磁爐在櫥櫃枱面前，必須將隨爐具所附的防水膠條如【安裝圖 三】，
貼在面板下方的四邊。
【安 圖 三】

18
4. 將貼好防水膠條的電磁爐放入枱面開孔中如【安裝圖 四】，然後將電源線
插頭插入對應的插座中，通電即可正常使用。
【安 圖 四】
5. 如安裝電磁爐在烤箱上方時，櫥櫃內電磁爐與烤箱中必須加裝一個隔熱板如
【安裝圖 五】隔熱板與電磁爐底部至少有15cm的距離：電磁爐安裝位置的
前側必須開出一個大於100c㎡的進風口以確保電磁爐磁與烤箱能夠有足夠
的通風。
【安 圖 五】
六、鍋具的選擇與使用

19
三、控制面板說明

加熱區


能鍵

10 9 8 7 6 5 4 3 2 1
0
開關鍵
0
開關指示燈
0
調高鍵 -
1
定時
2 0
輕觸滑動操控條碼- (
342
0
調低鍵 -
1
定時
2 0
LED數碼顯示區
0
定時鍵
0
定時指示燈
0
安全鎖鍵
0
安全鎖指示燈

20
四、產品操作說明
I、操作說明：
 通電： 電源接通後，蜂嗚器會發出一短聲，表示電源已接通，電磁爐
處於待機狀態。LE 數碼顯示會顯示為 (- - )。
 開機： 在加熱區放置所需的鍋具(請参考鍋具的選擇和使用) ，按
“開關鍵”，蜂嗚器會發出一短聲，開關指示燈會亮，LE 數碼
顯示會顯示為預設火力段數 “4”。
 調整火力： 當火力 能運作時，輕觸滑動操控條碼可調高或調低火力段數，
由左至右方向為“火力調高”或由右至左方向為“火力調低”
，而LE 數碼顯示區亦顯示所設定的火力段數。
 設置定時： 按“定時鍵”，定時指示燈會亮，然後按“+”或“-”置定所需
要的定時時間。此時LE 數碼顯示區內會顯示設定時間(顯示格
式為《分鐘》) ，時間設定範圍為時間設定範圍為1分鐘至99分。
當達到所設定的時間時，蜂嗚器會發出一長聲，電磁爐會停
止加熱。若要取消定時設定，需要將定時時間設為0。
 鎖 定： 按住“鎖定鍵”，蜂鳴器會發出一短聲，同時鎖定指示燈會亮
着，此時鎖定 能啟動，其它按鍵將會被鎖定而無法操作以防止
兒童觸碰或其他意外觸碰操作。若取消鎖定 能，再次按住“鎖
定鍵”3秒，蜂鳴器發出一短聲，鎖定指示燈熄滅，鎖定狀態被
解除。
在關機狀態後15秒，電磁爐會自動上鎖，所有按鍵都不能
操作。若需開啟電磁爐，先按“鎖定鍵”3秒 ，蜂鳴器會
發出一短聲，鎖定指示燈熄滅，鎖定狀態被解除，然後按“開關
鍵”，其他按鍵才可使用。
 關機： 加熱過程中，按“電源開關”鍵即可關機。
