Adexa SC52 User manual

INSTRUCTION MANUAL
FOR
DISPLAY COOLER
SC52
Please read this manual
carefully, and make sure
to keep this manual in the
place accessible by the
user at any time.
Importer:
Adexa Direct Limited
UNIT 1 SWIFT POINT, COSFORD LANE, SWIFT VALLEY IND EST, RUGBY CV21 1QN
[e-mail]
01483 931040

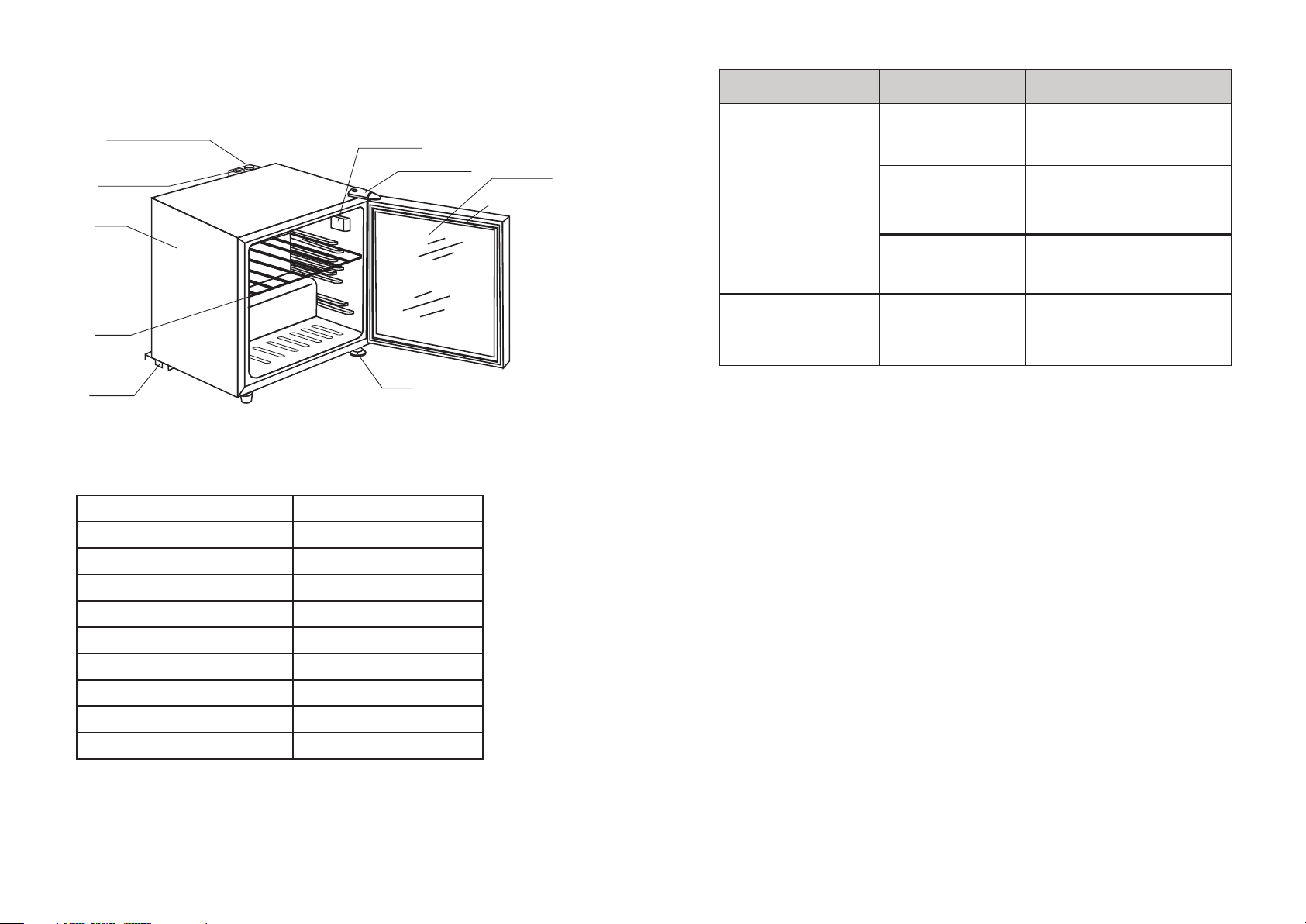

1、Structural diagram
2、Specifications
Model
Climatic class
Storage Temperature ( ℃)
Anti-shock protection class
Capacity (L)
Rated Voltage (V)
Rated Frequency (Hz)
LAMP max power(W)
Power consumption:(kW·h/24h)
Refrigerant/Charging (g)
SC52
N
0～10
Ⅰ
52
220V
50Hz
10
0.85
R600a/24
The above specifications are subject to improvements.
Caution: Dismantling the unit by non-professional
staff is prohibited, it will cause hazard.
Light Switch
Thermostat knob
Case
Shelf
Brace
Hinge Cover Glass Door
Magnetic SeaL
Inner Light
Foot
Problems Possible cause Ways to solve problems
The unit is not level Adjust the adjustable legs
The fastener of the
unit is loose Fasten the loose fastener
Pipes are touching
the compressor
Careful separate the touched
pipes
Light is not on The light is burned
out Replace the light
Too high noise

3. Safety Cautions
1) This unit uses AC220V/50Hz power, there should be a 500va
stabilizer if the voltage fluctuation exceed AC198V～242V
2) The user should hold the plug when the power is on/off, dragging or
pulling the power cord is prohibited.
3) Do not remove the power cord or plug
4) Must use dependent socket and reliable ground wire. Ground wire
must not connect with the null line of the gas pipe, warm gas pipe, water
pipe and must be single power
5) Never splash water on the unit directly.
6) Keep away from explosive, hazardous goods such as ether, gas,
alcohol, bonding agents, gunpowder etc.
7) Keep away from spray of inflammables such as paints, coating
materials etc.
8) After the unit is switched off, it should not be restarted within 5
minutes.
9) Do not leave the power cord under any heavy objects including the
unit itself.
10) Do not drill holes or install other objects on the casing.
11) This cooler is not suitable for storage pharmaceutical products.
4. Portage and storage
1) Keep the unit vertical when carrying the unit, the angle to the
°
horizontal line should not be over 50 ，otherwise it will damage the
compressor and affect normal operation of the unit.
2) The unit should be place on a solid and firm ground, take away the
bottom pack to lower the shock and noise.
3) Leave at least 20 cm of distance between the back of the unit and the
°
wall for ventilation and leave a space with an open angle of 160 for the
door.
4) Keep the unit away from heat sources and avoiding direct sunlight.
5) Never place the unit on a location where water can reach or with high
moisture. Splashed water and dirt should be wiped off in time by using
a soft cloth.
6) Do not place the unit in the environment cold enough to be iced.
5. Preparation
1) Remove the carton and packing foam (including the bottom foam)
before using.
2) Clean the unit before using.
3) Adjust the foot to make the unit steady according to the ground
condition to lower the shock and noise.
Problems Possible cause Ways to solve problems
Abnormal operation of
the compressor or has
buzz sound
The power voltage
is out of the rated
range.
Disconnect the power supply
immediately and reconnect
with it after normal voltage.
It is necessary to have a
voltage stabilizer in case of
poor power supply.
Compressor operates
too
long time and no frost
on the surface of inner
cabinet
Refrigeration system
is at fault (leakage
or blocked)
Send the unit to service
department for repair
There is frost or ice on
the walls of the inner
cabinet and too low
internal temperature,
the compressor
operates never stop
Thermostat does not
work
Ask service department for
repair
Bad heat issipation
and ventilation of
casing, the ambient
temperature is too
high
Improve ventilation and ower
the ambient mperature.
Too much warm
food was put in at
one time
Take out some food
Door open requently
and long time door
opening
Decrease number and time of
door opening.
The internal
temperature is too
high and the
compressor operates
never stop

4) After moving the unit, place the unit for 30 minutes before switching it on.
Running: close the door and connect the power, turn on the lamp switch on the
control panel, the lamp is on. Half an hour later, the temperature inside the case
lower apparently, it indicates the unit on be normally used
5) After connecting the power, the unit should be kept empty for one hour.
6. Setting and adjustment of temperature
1) Adjust the storage temperature through the temperature controller located on
the back of the case(see the picture), adjust the temperature according to the
ambient temperature and the foodstuff.
2) See the following picture about the knob scale. The temperature adjustable
capacity is from “1”-“5”, adjust the storage temperature by turning the
temperature controller clockwise. The higher of the number shows the lower of
the storage temperature. The knob can turn freely but can't turn clockwise from
“5”to “1”. Factory setting position is on “3”.
Lamp Switch Thermostat knob
Control Panel
on off
3) Check if the scale is on an appropriate position before using,
frequent adjustment is not appropriate when using. Normally in
summer, the ambient temperature is high, anti clockwise turn the knob
to “2”, while in winter, the ambient temperature is low, clockwise turn
the knob to “4”.
4) Position “0” represent stop running.
7. Storage of articles
1) Do not put large amount of articles into the unit at one time, you should
leave some space around the foodstuff to let cold air inside the cabinet counter
to flow. Keep bottled articles away from the walls of interior cabinet so as not
to freeze it until broken.
2) Do not put warm food into the unit directly until they are cooled under
normal temperature, it will facilitate to lower its energy consumption and
prolong service life of the compressor.
8. Maintenance
Disconnect the power supply before maintenance for the machine!
1) Keep the door gasket clean, remove it from the door and wash it.
Dry and seal it as before. Putting some talcum powder on the magnetic
surface would prolong its service life.
2) Bulb replacement： remove the lamp shade, take out the bulb,
replace with a new bulb, then mount it again.
3) If there is heavy frost on the evaporator after long usage, take out the
stuff inside the case, disconnect the power, the frost will melt
automatically, clean up the water and connect the power again.
4) Use a soft cloth and dip some water or soap (Non-caustic, neutral
detergent is also available) to clean the unit. Dry the unit after cleaning
to avoid rust.
5) Do not use organic liquid, boiled water, washing powder or acid
stuff to clean the unit. Rinsing the case by water is not allowed, don't
use hard brush, steel brush to clean the case.
6) If the unit will not be used for a long time, disconnect the power,
clean it by following the above steps, wipe off the water inside the case
with a soft cloth.
9、 Caution
1) The unit is not suitable for storage of blood, pharmaceutical
products and biological products
2) Do not place heavy articles on the top of the unit.
3) In case of trouble, please ask professional person for service, do not
dismantle the unit without prior authority to avoid hazard.
10、Normal Phenomena
1) Sometime hear light sound of water flowing in the unit, this is the
sound of refrigerant flowing inside the pipe.
2) the top ,and the two sides of the casing will be warm, even too hot.
3) In a humidity place, there is dew on the casing or the door, it can dry
by dry cloth.
11、Troubleshooting guide
Problems Possible cause Ways to solve problems
The units does not
work
Bad connection of
plug
re-connect the plug to
power supply
