OPERATING INSTRUCTIONS
OUTDOOR GAS GRILL
（Drawings for reference only）
Model No.: E50N52N24-SB
Description:
WARNING
FOR YOUR SAFETY
FOR OUTDOOR USE ONLY
(OUTSIDE ANY ENCLOSURE)
Read this instruction carefully and ensure that your grill is properly installed, assembled,
maintained and serviced in accordance to these instructions. Failure to follow these instructions
may result in serious bodily injury and/or property damage. If you have any questions concerning
the assembly or operation of this barbecue, please consult your dealer, your gas supplier, the
manufacturer or agent.
Notes to the user:
“READ THE INSTRUCTIONS BEFORE USING THE APPLIANCE”.
“USE OUTDOORS ONLY”.
“WARNING ACCESSIBLE PARTS MAY BE VERY HOT. PLEASE KEEP YOUNG CHILDREN
AWAY”.
“RETAIN FOR FUTURE REFERENCE”.
“DO NOT MOVE THE APPLIANCE DURING COOKING”
Gas BBQ grill
Ade>�a
  

1
IMPORTANT: READ ALL INSTRUCTIONS AND OPERATIONS BEFORE OPERATING THIS UNIT.
FOLLOW ALL STEPS IN ORDER. NEVER ALLOW CHILDREN TO OPERATE THIS UNIT.
Warnings:
Only to be used outdoors.
Read the instructions before using the appliance.
Accessible parts maybe very hot, keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas cylinder after use.
Any modification of the appliance may be dangerous.
Parts sealed by the manufacturer or his agent must not be altered by the user.
Do not modify the appliance.
Attention:
Some parts of this appliance become veryhot,
take special care when children or elderlyare present.
For your safety:
Do not store or use gasoline or mentholated fuels or any other flammable vapors and liquids
in the vicinity of this or any other appliance.
Never light a gas grill with gasoline or comparable fluids!
Suggestion: user should not change the assembly that the manufacturer packaged.
Certain Liquid gas dealers may fill liquid gas cylinders for use in the grill beyond cylinder
filling capacity. This “Overfilling” may create a dangerous condition. “Overfilling” tanks can
build up excess pressure. As a safety device, the tanks pressure relief valve will vent gas
vapor to relieve this excess pressure. Thisvapor is combustible and therefore canbe ignited.
To reduce this danger, you should take the following safety precautions:
A. When you have your tank filled, be sure you tell the supplier to fill it to no more than 80%
of its total capacity.
B. If you own or use an extra spare tank, or have a disconnected tank, you should never
store it near or under the grill unit or heat box, or near any other ignition or heat source.
USE AND CHARACTERISTICS
The barbecue grillis safe andeasyto use. Please ensure you onlyuse your barbecue at the
correct pressure the appliance is designed for.
Foodcan be barbecued onthe cooking grid eitherwithor without the lid being closed. When
the lid is closed for 5 minutes, the lid must be open for 1 minute to release heat.
With a grease tray or a grease cup under the case.
Adequate ventilation is vitalforcombustion and efficiencyperformance of the barbecue. This
will ensure the safety of the user and other people in the vicinity of the area where the
appliance is being used. Never use the appliance in any enclosed covered area.

2
When the wind speed is above 2m/s, don’t use gas grill facing to the wind.
The appliance is designed for use outdoors only.
Warning! Accessible parts may be very hot. Keep young children away.
Read the instructions before using the appliance.
Do not move the appliance while in use.
Turn off the appliance at the cylinder valve or regulator after use.
Any modification to the appliance may be dangerous and may cause injury or
property damage.
The parts sealed by the manufacturer or his agent shall not be manipulated by the
user.
Any unauthorised modification of the appliance will invalidate the guarantee on this
appliance.
Do not modify the appliance
Never mount the cylinder under the barbecue on the base shelf as this could result in
serious injury to the user, other people and/or property.
Use protective gloves when handling particularly hot components.
The appliance must not have any overhead obstruction. E.g. trees, shrubs, lean to roofs.
The appliance must be installed with a clearance of 1 m around the appliance.
The appliance must not be used near flammable materials. (Petroleum based products,
thinners or any other solid object that carries a flammable warning label.)
Close the valve of the gas cylinder or the regulator after use.
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
1. Technical data

3
a)Choose the proper regulator according to appliance category and gas pressure in the table
above, for example, Use 30mbar regulator with appliance category I3B/P for propane gas.
The gas regulator should be in accordance with EN 16129 and comply with local code.
b) Marking on injector, for example,0.86 indicates that the size of the injector is 0.86mm.
2. Mounting steps
Make sure your grill is assembled properly. Detailed assembly instructions are packed with
each grill giving specific assembly procedures for each model. Follow these instructions
carefully to ensure the correct and safe assembly of the grill.
Caution: Although we take every effort to ensure that the assembly process is as easy as
possible, it is inherent with fabricated steel parts that corners and edged can cause cuts if
improperly handled during assembly procedures. Be careful while handling any parts during
assembly. It is strongly recommended that you protect hands with a pair of work gloves。
3. Preparation
You will need LPG gas bottle and proper regulators under the gas pressure to operate this
gas grill. The regulators should be comply with EN12864 with current version and national
regulation.
See point 6 for farther instructions.
Energy saving tips:
Butane(G30) 28-30 mbar 0.86mm 0.76mm 14.5 kW 1054g/h
Propane(G31) 37 mbar 0.86mm 0.76mm 14.5 kW 1034g/h
BE,CY,DK,EE,FI,HU,
LT,NL,NO,SE,SI,SK,
RO,HR,
TR,BG,LU,MT,JO
I3B/P(30) Butane/Propane 30 mbar 0.86mm 0.76mm 14.5 kW 1054g/h
AT,CH,DE,SK I3B/P(50) Butane/Propane 50 mbar 0.75mm 0.66mm 14.5 kW 1054g/h
PL I3B/P(37) Butane/Propane 37 mbar 0.82mm 0.66mm 14.2kW 1032g/h
E50N52N24-SB
Main
Burner
Injector
Size Ø
Side
Burner
Injector
Size Ø
Use Outdoors Only .
Read the instructions before using the appliance.
The gas cylinder should not be placed inside BBQ.
Warning : Accessible parts may be very hot. Keep young children away.
Country of
Destination
BE,CH,CY,CZ,ES,
FR,GB,GR,IE,IT,LT,
LU,LV,PT,SK,SI
Appliance Category
I3+(28-30/37)
Gas and Supply
Pressure
Product name: Outdoor gas Grill
Pin Number: 0063CN7292
Serial Number:
Total Nominal Heat
Inputs (Hs)
0063-21
Made in China
ADEXA DIRECT LIMITED
Ground Floor, Unit 1, 214 Purley Way,
Croydon CR0 4XG United Kingdom
T:([phone] [email protected]
www.adexa.co.uk

4
a) Reduce the opening time of the lid.
b) Turn the grill off as soon as cooking is completed.
c) Preheat the gas grill for 10 to 15 minutes only.(Except for the first use)
d) Do not preheat longer then recommended.
e) Do not use a higher setting than required.
f) Connect the hose and regulator to the gas container at the left side of the gas
grill .Keeping in mind that the gas container must be kept away from heat and in a safe
position .The hose dimension is 8-10mm diameter. The Length of hose recommended
which shall not exceed 1.5m.
4. Installation
After purchasing your gas cylinder you will then be ready to set it up with your gas grill.
a) When changing the gas cylinder which shall be carried out away from any source
of ignition. Position the gas cylinder at left side or inside of your BBQ, keeping in
mind that the bottle must be kept away from heat and in a safe position.
b) When ready to use your gas grill insert the regulator into the gas bottle valve and tighten
firmly.
Warning: Before attempting to light your gas grill you must refer to your lighting
instructions and warning / safety points.
Check the hose before each use, searchingfor cracking, cuts oranyabrasions. Ifthe hose is
found to be faulty in any way do not attempt to use your gas grill.
When changing your gas bottle ensures that there are no sources of ignition close by i.e.
fires, cigarettes, naked flames etc. Make sure that the appliance is switched off.
Ensure that the hose is not subjected to twisting which will affect the gas flow when
installing your gas grill. Also the hose must not have undue tension and must not touch any
part of the gas grill which may be hot.
Please choose flexible hose whose heatproof higher than 80℃
Flexible tube should be changed every 2 years; It’s necessary to change the flexible
tube when the national conditions require it.
How to change your cylinder
Note:Turn off the switch of cylinder (No spanner is required)
put the gas cylinder outside the grill, The height of the gas cylinder is below the 80cm,
and the width is within 35cm,Net weight of gas cylinder should not be more than
15KG;

5

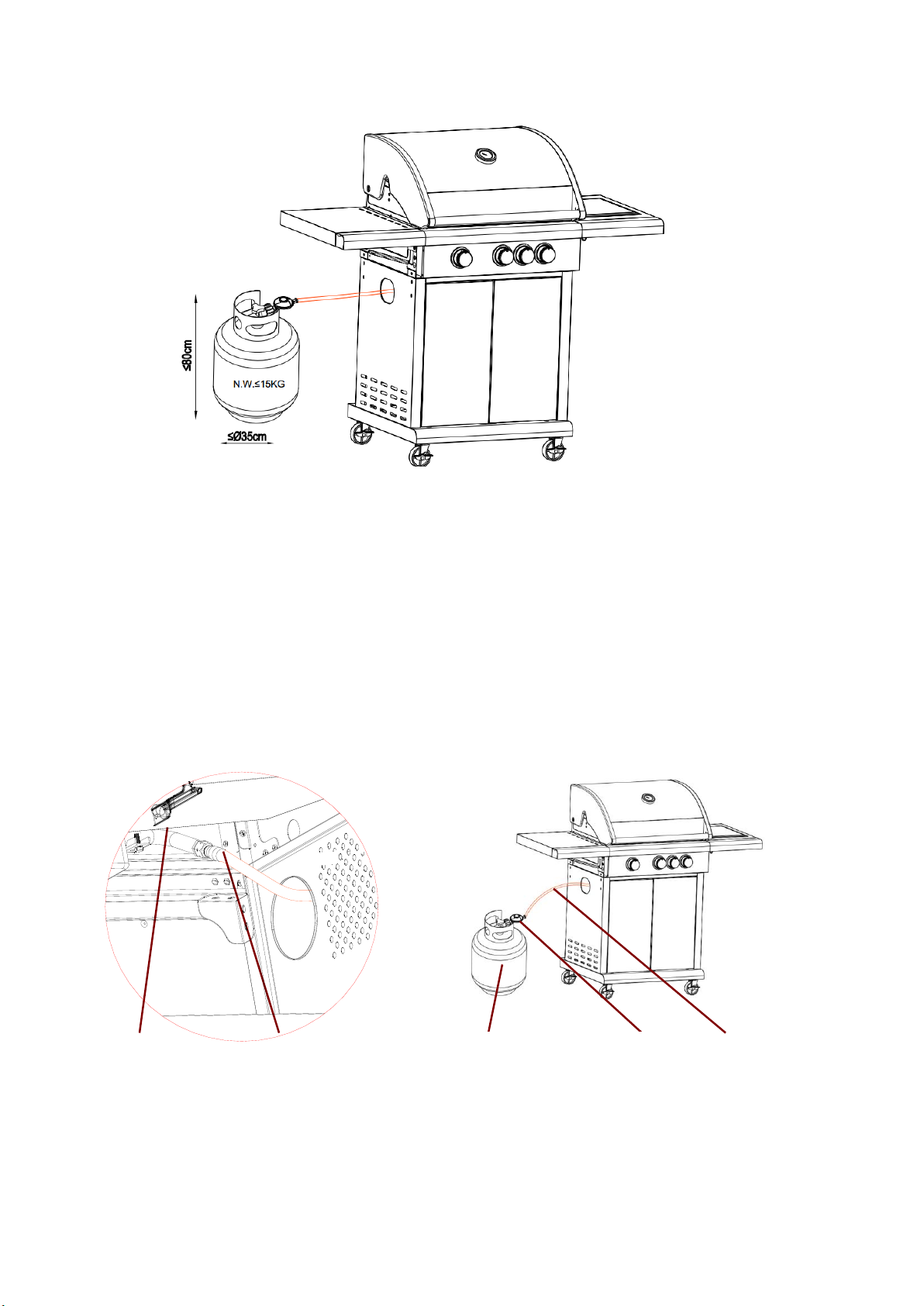

Figure 1
How to connect a gas bottle
a) Turn the orange cap so that the arrow is pointing to the gap in the shroud.
b) Remove the orange safety cap by pulling the lanyard out, then out. Do not use tools.
Leave the cap hanging.
c) Check that the black sealing washer is fitted inside the cylinder valve. Connect the
regulator to the valve.
d) Turn the switch clockwise on gas bottle-then turn on the gas grill as instructed.
Figure 2
Gas Connector
Illustration for the connection of
BBQ and Hose
Hose
Illustration for the connection of Gas
Cylinder, Regulator and Hose
Gas Cylinder
Regulator
Hose

6
Warning: Always test gas line for leaks at connector with soap water finishing all
connections.
How to disconnect a gas bottle
a) Except for twin-cylinder installations with a changeover valve, turn off the gas tap if fitted
to the appliance. Wait until the burner and pilot light have gone out. For installations with
a changeover valve, it is only necessary to switch off the empty cylinder.
b) Replace the orange safety cap onto the empty cylinder.
5. Warning and safety points
Please read the following points before using your gas grill:
a) Read the instructions before using the appliance. If instructions are not followed it
may cause problems in use.
b) This gas grill accessible parts maybe very hot when being used. Keep young
children away. Use protective when handling particularly hot components.
c) In the event of a gas leak, Turn off the gas supply at the gas bottle, extinguish any open
flames, open lid and if leak continues, check for damages, poor connections etc. Contact
your local gas dealer immediately if the problem can’t be solved.
d) Do not move Gas grill during use.
e) Do not use or store any liquids，vapors or other materials in the vicinity when operating
the gas grill.
f) This gas grill only to be used outdoors.
g) Do not use a naked flame to check for gas leaks.
h) Do not operate gas grill if there is a gas leak. Turn off the gas supply.
i) Do not attempt to disconnect any gas fitting part if your gas grill is being used, on the gas
grill or the gas regulator / bottle.
j) Care is advised when operating your gas grill, you should never leave unattended when
in use. Turn off the gas supply at the gas container after use.
k) The gas grill should be cleaned after use. Don’t obstruct the fire opening of the container
compartment. If the fire opening is obstructed, please use Φ1.6mm round stick to
dredge.
Take care not to enlarge burner ports or orifice/nozzle openings when cleaning the
burner or valves.
l) Do not attempt to use this appliance in a garage or any enclosed area. Also this
appliance must be keep away from flammable materials, etc. We recommend
keeping a distance of at least 0.5 to 1.0 meter clearof any flammable materials.
m) We would recommend that this gas grill should be serviced by your local gas retail outlet
at least once a year by a competent engineer. Do not attempt to service this appliance
yourself.
n) Any modification of the appliance may be dangerous. Do not attempt any
unauthorized interference of the main controls on this gas grill, i.e. gas taps, injectors,
valves etc.

7
Figure 3
WARNING: The Handle Black Area (See Above Picture for Reference) Will Become Hot
When the Gas grill In Use, BE CAREFUL! Do Not Touch The Black Area.
6. Safety precautions
a) Always test gas line for leaks at connector with soapy water after making connections.
b) The top lid must always be open when lighting the burner.
c) Use oven gloves and sturdy, long handled gas grill tools when cooking on the grill.
d) Be prepared if an accident or fire should occur. Know where the first aid kit and fire
extinguishers are and know how to use them.
e) Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
f) Always cook with great care.
g) Do not heat any unopened glass or metal container of food on the grill. Pressure may
build up and cause the container to burst, possibly resulting in serious personal injuryor
damage to the grill.
7. Lighting instructions
Caution: The lid must be open when lighting the burner!
Do not stand with your face directly over the gas grill when lighting it.
Your gas grill will have following method of ignition:
Pilot Gas Control Ignition(Main burner or main burner with side burner or main burner
with side burner and back burner ):
With all gas controls on the Gas grill in the “OFF” position“ OFF”, turn the gas cylinder
valve to the on position at the regulator. To create a spark you must press the gas control
knob (A) and hold in this position for 3-5 seconds to allow gas flow and then turn
anticlockwise to” HI” (B). It can spark to the burner lighting tube (C). You will hear a “snap”
from the igniter and you will also see a orange flame coming from the burner lighting tube at
the left side of the burner (D).
Continue to hold the gas control knob in for two seconds after the “snap”, this will allow gas
to flow completely down the burner tube (E) and insure ignition.
When the burner is alight, adjacent burners will cross light when their controls are turned to
“HI”
At “HI” setting the burner flame should be approximately 12-20mm long with a minimum of
orange flame. Turn the gas control knob fully anticlockwise for minimum setting.
Should you have any difficulty lighting your gas grill following the above steps, contact your

8
dealer for advice.
If the automatic ignition can’t be used, please remove the cooking grill and heat
diffuser(hotplate ), and turn the valve anticlockwise to 90°，to light with BBQ lighter in the
distance of 5mmtothe burner fire hole. Replace the cooking grill and heat diffuser(hotplate),
please wear the fireproof and heat resisting gloves.
Figure 4
8. Storage
Your Gas Bottle must be stored outdoors in a well ventilated area and must be disconnected
from your gas grill when not being used. Ensure that you are outdoors and away from any
sources of ignition before attempting to disconnect your gas bottle from your gas grill.
When you are using your gas grill after a period of storage, please ensure to check for gas
leaks and check for any obstructions in the burner etc. before using. Also follow the cleaning
instructions to ensure gas grill is safe.
If gas grill is stored outdoors ensure to check that all areas under the front panel are free
from any obstructions (insects etc.) This area must be kept free as this may affect the flow of
combustion or ventilation air.
9. Cleaning instructions
Warning : If the burnerstill does not light ,turn the gascontrol knob to” OFF”
and wait for 2 minutes for the unburnt gas to evaporate before lighting again.

9
Maintenance is recommended that every 90 days for your gas grill, but it is absolutely
necessary to perform maintenance at least once a year. By doing so, you will extend the life
of your gas grill.
Your gas grill is easy to clean with minimum effort, just follow these helpful hints for cleaning
convenience.
Trouble Shooting
Emergencies
Possible cause
Prevention/ Solution
Gas leaking from
cracked/cut/burned hose
Damaged hose
Turn off gas at LP tank, if hoes is cut or
cracked, replace hose.See LP tanklead
test and connection regulator to the LP
tank
Gas leaking fromLP tank
Mechanical failure due to resting or
mishandling
Turn off LP tank valve
Gas leaking from LP tank
valve
.Failure or tank valve from mishandling
or mechanical failure
Turn off LP tank valve. Return LP tank to
gas supplier
Gas leaking between LP
tank and regulator
connection
Improper installation, connection not
tight, failure of rubber seal
Turn off LP tank valve, remove regulator
from cylinder and visuallyinspect rubber
seal for damage, see LP tank test and
connection regulator to the LP tank
Fire coming through control
panel
Fire in burner tube section of burner due
to partial blockage
Turn off control knobs and LP tank valve.
After fire is out and grill is cold, remove
burner andinspect for spider nests or rust.
see natural hazard and cleaning the
burner assembly pages.
Troubleshooting: Problem
Possible cause
Prevention/ Solution
Grease fire or continuous
excessive flames above
cooking surface
Too much grease buildup in burner area
Turn off LP Tank. Leave lid open to allow
flames to die down. After cooling, clean
food particles and excess grease from
inside firebox area, grease cup/pan/tray,
and other surfaces

10
Burner will not light using
ignitor
Gas issues
1.Trying to light wrong burner
2. Burner not engaged with control valve
3. Obstruction in burner
4.No gas flow
5.Vapor lock at coupling nut to LPtank
6. Coupling nut ad LP tank valve not fully
connected.
1. See instructions on control panel and
section in the Use and Care.
2. Make sure valve are positionedinside of
burner tubes.
3. Ensure burner tubes are not obstructed
with spider webs or other matted, see
cleaning section of use and care
4.Make sure LP tank is not empty. If LP
tank is not empty, refer to “sudden drop in
gas flow.
5.Turn off knobs and disconnect coupling
nut fromLP tank. Reconnect and retry.
6. Turn the coupling nut approximately
one-half to three-quarters
Burner will not light using
ignitor
Electrical issues:
1. Electrode cracked or broken;” sparks
at crack.”
2. Electrode tipnot in proper position
3. Wire and/or electrode covered with
cooking residue.
4. Wires are loose or disconnected
5. Wires are shorting (sparking) between
igitor and electrode.
6. push button sticks at bottom sparking
between ignitor and electrode
1.Replace electrode.
2.Tip of electrode should be pointing
toward port hole in burner. The distance
should be 1/8” to 3/16”. Adjust if
necessary.
3.Clean wire and or electrode with rubbing
alcohol and clean swab.
4.Reconnect wires or replace
electrode/wire assembly.
5.Replace ignitor wire
6.Replace ignitor
7.Inspect wire insulation and proper
connection. Replace wires if insulation is
broken.
Burner will not mach light
See ”gas issues;” on previous page.
2. Improper method of match-lighting
1. See “Pilot Gas Control Ignition” section
of use and care.
Sudden drop in gas flow or
lowflame
1. Grease buildup.
2. Excessive fat in meat.
3. Excessive cooking temperature
1. Clean burnersand inside of grill/ firebox
2. Trimfat from meat before grilling.
Flames blow out
High or gusting winds. Low on LP gas.
Excess flow valve tripped.
Turn front of grill to face wind or increase
flame height.
Refill LP tank.
Refer to “sudden drop in gas flow” above.
Persistent grease fire
Grease trapped by food buildup around
burner system.
Turn knobstoOFF. Turngasoff atLP tank.
Leave lidin position and let fire burn out.
After grillcools, remove and clean all parts

11
Flashback…
(fire in burner tube(s)
Burner and burner tubes are blocked
Turn knobs to OFF. clean burner
and/orburner tubes. See burnercleaning
section of use and care manual
Flare-up
1. Grease buildup.
2. Excessive fat in meat.
3. Excessive cooking temperature
1. Clean burners and inside of grill/
firebox
2. Trimfat from meat before grilling.
3. Adjust (lower) temperature
Unable to fill LP tank
Some dealershave older fill nozzles with
worn threads.
Turn worn nozzles don’t have enough
“bite” to engage the valve. Try a second LP
dealer.
One burner does not light
from other burner(s)
Grease buildup or food particlesin endof
carryover tube
Clean carry-overtube with wire brush
If your problem is not resolved from the information above, please Contact your local gas
dealer.
a) Turn the burner on for 15 to 20 minutes. Ensure appliance is cold before continuing.
b) Grids should be cleaned periodically by soaking and washing in soapy water.
c) The interior surfaces of the grill housing cover should also be washed with hot, soapy
water. Use a wire brush, steel wool or a scouring pad to remove stubborn spots.
d) Periodically check the burner to see that it is free from insects and spiders which may
clog the gas system, deflecting gas flow. Ensure to clean venturi pipes on burner very
carefully, make sure that there are no obstructions. We recommend that you use a pipe
cleaner to clean the venturi pipe area.
e) Any modifications of this appliance maybe dangerous and are not permitted.
10. Gas grill Safety Hints
Stand your gas grill on a safe level surface, away from inflammable items such as wooden
fences or overhanging tree branches.
Never use your gas grill indoors!
Once lit do not move your gas grill or leave it unattended.
Keep children and pets at a safe distance from the gas grill.
Keep a fire extinguisher handy.
The gas grill will become hot when in use, so handle lids etc. with the help of gloves.
Ensure that the appliance has completely cooled down before storing.
Use outdoors only!
Read the instructions before using the gas grill.
Assessable parts may be very hot, Keep young children away!
Do not move the gas grill during using.
Turn off the gas supply at the gas container after use.
Any modification of the appliance may be dangerous and be not permitted.
