ADJ Fog Fury Jett Pro User manual

User Instructions
2/17
Caution: Fog Machines may set o Smoke Alarms!
Fog Fury Jett Pro
MODEL - Fog Fury Jett Pro
VOLTAGE*: 120v or 230V, 50/60Hz
LED: 28 x 3-Watt LEDs (6 Red, 7 Green, 6
Blue, 3 Amber, & 6 UV)
HEATER: 1450W
POWER CONSUMPTION: 1550W
WEIGHT: 21 Lbs. / 9.5 Kgs
DIMENSIONS: 16.5” x 12.5” x 8”
419 x 315 x 206mm
BREAKER: 16A (120V) / 10A (230V)
WARM UP TIME: 9 Minutes
TANK CAPACITY: 2.5 Liter
OUTPUT: 40,000 cubic feet per minute
FLUID CONSUMPTION: 150ml/min
FLUID TYPE: Water Base American DJ Fog Juice
DMX CHANNELS: 5 DMX Channel Modes: 1/2/3/7/9
DUTY CYCLE: Not to exceed 6 hours turned on.
WARRANTY: 1 Year (365 Days) For the Fog Machine
2 Year (730 Days) For the LED
*Voltage is preset at the factory and may not be changed
Fog Fury Jett Pro Specifications
ADJ Products, LLC
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: [phone] / Fax: [phone]
Web: www.adj.com / E-mail: [email protected]
A.D.J. Supply Europe B.V.
Junostraat 2
6468 EW Kerkrade
The Netherlands
[email protected] / www.adj.eu
Tel: [phone] / Fax: [phone]

©2017 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building, and
electrical damages, injuries to any persons, and direct or indi-
rect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result
of the improper, unsafe, unsucient and negligent assembly,
installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you! ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 22
Fog Fury Jett Pro Warranty
MANUFACTURER’S LIMITED WARRANTY
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products
to be free of manufacturing defects in material and workmanship for a prescribed period from
the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the
product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#)
before sending back the product–please contact ADJ Products, LLC Service Department
at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All
shipping charges must be pre-paid. If the requested repairs or service (including
parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return
shipping charges only to a designated point within the United States. If the entire instrument is
sent, it must be shipped in it’s original package. No accessories should be shipped with the product. If
any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any
manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the
product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior
written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because
not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintnance, cleaning or periodic check
up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August
15, 2012, and bear indentifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness,
are limited in duration to the warranty period set forth above. And no warranties, whether expressed or
implied, including warranties of merchantability or fitness, shall apply to this product after said period
has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as is
expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or
damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
 •NonL.E.D.LightingProducts=1-year(365days)LimitedWarranty(Such as: Special Effect
Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par
Cans, Trussing, Lighting Stands etc. excluding LED and lamps)
 •LaserProducts=1Year(365Days)LimitedWarranty(excluding laser diodes which have a 6 month
limited warranty)
 •L.E.D.Products=2-year(730days)LimitedWarranty(excluding batteries which have a 180 day lim-
ited warranty). Note:2YearWarrantyonlyappliestopurchaseswithintheUnitedStates.
 •StarTecSeries=1YearLimitedWarranty(excluding batteries which have a 180 day limited warranty).
•ADJDMXControllers=2Year(730Days)LimitedWarranty

Introduction: Congratulations, you have just purchased one of the
most reliable fog machines on the market today! The Fog Fury Jett Pro
commercial fog machine have been designed to perform reliably for
years when the guidelines in this booklet are followed. Please read and
understand the instructions in this manual carefully and thoroughly
before attempting to operate this unit. These instructions contain
important information regarding safety during use and maintenance.
Customer Support: ADJ Products, LLC provides a toll free customer
support line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. For service related issue please contact ADJ Products,
LLC. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when
ever possible.
SAFETY ISSUES:
NEVER POINT OR AIM A FOG MACHINE TOWARDS PEOPLE OR
THEIR CLOTHING. THIS UNIT EMITS HOT VAPOR AND SHOULD
BE USED WITH THE SAME CARE THAT YOU WOULD OBSERVE
WHEN USING AN ELECTRIC KETTLE OR IRON.
Fog Fury Jett Pro Introduction
Please Note: Specications and improvements in the design of
this unit and this manual are subject to change without any prior
written notice.
ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 2
The Fog Fury Jett Pro fog machine carries a one year (365 days)
limited warranty. The LED system carries a two year (730 days) lim-
ited warranty. Please fill out the enclosed warranty card to validate
your purchase. All returned service items whether under warranty or
not, must be freight pre-paid and accompany a return authorization
(R.A.) number. The R.A. number must be clearly written on the out-
side of the return package. A brief description of the problem as well
as the R.A. number must also be written down on a piece of paper
and included in the shipping container. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You may
obtain a R.A. number by contacting customer support at (800) 322-
6337.
Fog Fury Jett Pro Warranty Registration
If you experience low fog output, pump noise, or no fog output at all,
disconnect and discontinue use immediately. Do not attempt to con-
tinue pushing the remote control’s activation button as this may dam-
age the fog machine. Check the fluid level, the external fuse, remote
connection, and be sure the wall outlet is sending power. If all of the
above appears to be okay, and the unit fails to operate correctly, the
unit will require service. Please contact ADJ Products, LLC.
Fog Fury Jett Pro Trouble Shooting
When storing your fog machine be sure to store it in a cool area.
Cover the machine so that dust does not build up on the unit. When
storing the machine for long periods of time, it is highly advised to at
least run the machine every 3-4 months. Long periods of inactivity
can severly shorten the life of your machine. Only run water based
fog juice through your machine. Never run plain water, vinegar, or any
other liquid solution through your machine. Running anything other
then water based fog juice will severly damage your machine.
Fog Fury Jett Pro Proper Storage and Maintenance
ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 21

ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 5

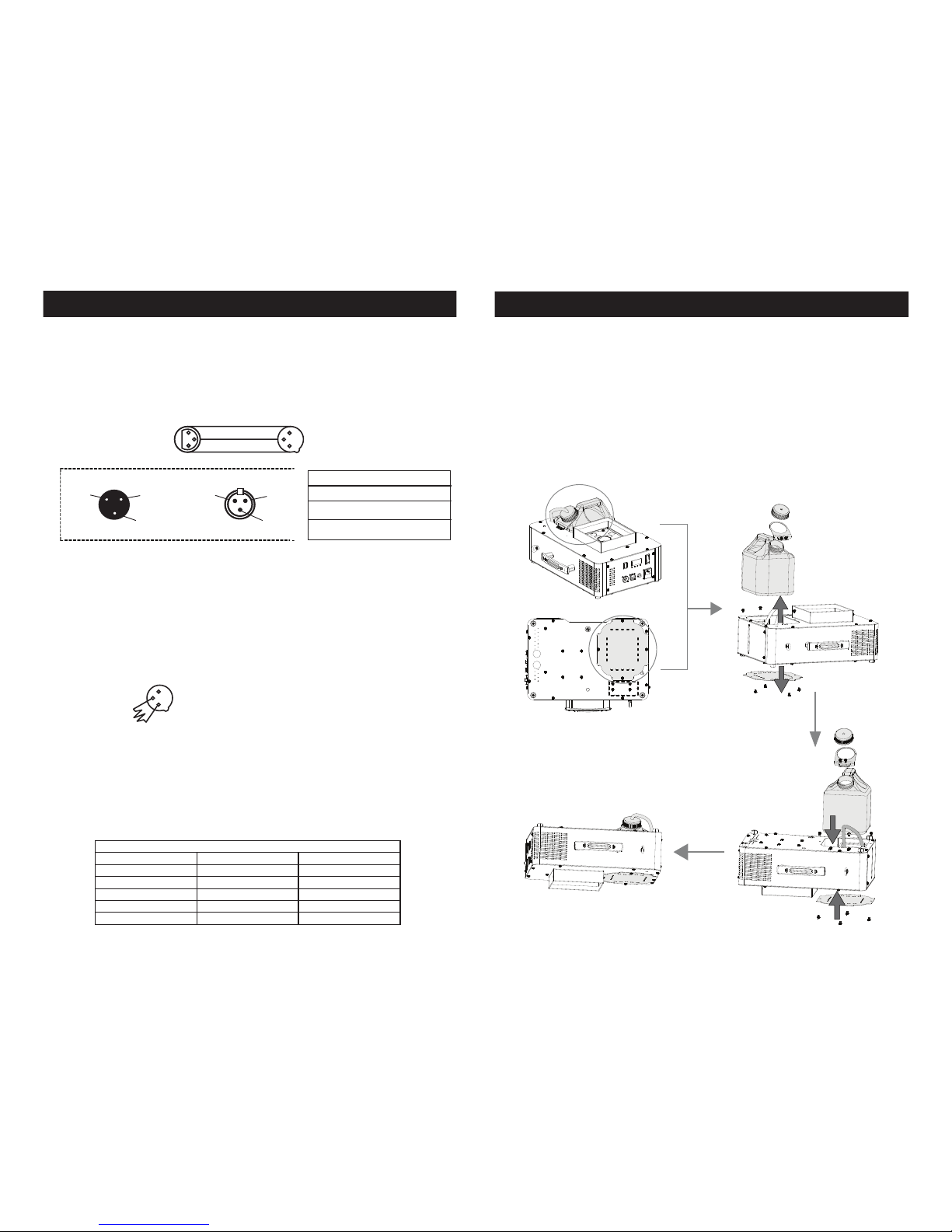

Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination. When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Fog Fury Jett Pro DMX Information
ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 18
Fog Fury Jett Pro Truss Mounting
The Fog Fury Jett Pro can be used in three ways; right side
up on the oor, sideways with the handle facing up, or upside
down hung from trussing. When hanging the machine upside
down, the tank must be removed and switched to the bottom
of the unit so that the tank will remain right-side up. Follow
the diagrams below to remove the tank and change it so that
it remains right-side up. See the next page for the mounting
diagram. NOTE: Please remove the fog juice from the tank
before doing this.

ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 7
Fog Fury Jett Pro Set-Up
1. Open the shipping carton and carefully remove the unit from the
shipping carton.
2. Be sure to remove all the packing material especially around the
nozzle.
3. Set the fog machine on a flat dry surface. Fill the fog fluid reser-
voir with American DJ brand fog juice. Place the feeder tube with
the filter deep inside the reservoir and tighten the cap.
4. Firmly attach the remote control receiver to the rear remote control
socket on the unit.
5. Plug the unit in to a matching power supply. At this time the red
LED located on the remote receiver will glow red, this indicates that
the unit is heating up. Wait about nine minutes for the fogger
to reach normal operating temperature. When it has reached the
temperature, the green LED on the remote receiver will glow.
6. Either press the remote button to emit fog or use the manual but-
ton on the rear of the unit to emit fog.
7. Follow the operating instructions on the next few pages for proper
operation.
NOTE: If the LED under the reservoir begins to flash, this indi-
cates that fog juice fluid is low.
ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 16

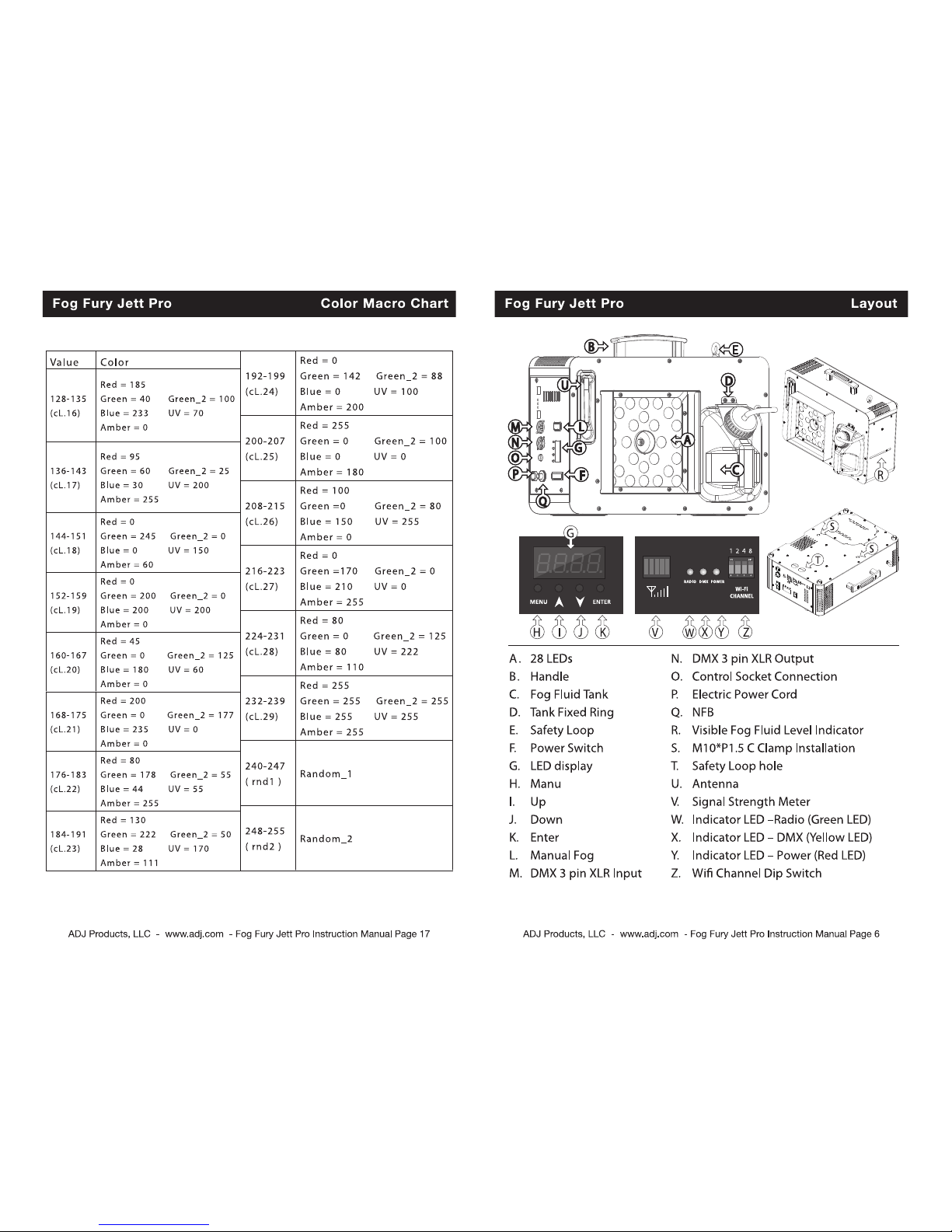

Fog Fury Jett Pro Color Macro Chart
Value Color
0-7
(L .oFF)OFF
8-15
(cL.01)
Red = 255
Green = 0Green_2= 0
Blue = 0 UV = 0
Amber = 0
16-23
(cL.02)
Red = 0
Green =25 5 Green_2= 255
Blue = 0 UV = 0
Amber = 0
24-31
(cL.03)
Red = 0
Green = 0Green_2 = 0
Blue = 255 UV = 25 5
Amber = 0
32-39
(cL.04)
Red = 0
Green = 0Green_2 = 0
Blue = 0 UV = 0
Amber = 255
40-47
(cL.05)
Red = 0
Green =0Green_2 = 0
Blue = 0 UV = 255
Amber = 0
48-55
(cL.06)
Red = 255
Green = 0Green_2 = 0
Blue = 255 UV = 255
Amber = 0
56-63
(cL.07)
Red = 0
Green =25 5 Green_2 = 0
Blue = 0 UV = 0
Amber = 255
64-71
(cL.08)
Red = 255
Green = 0 Green_2 = 0
Blue = 0UV = 255
Amber = 0
72-79
(cL.09)
Red = 0
Green = 0Green_2 = 0
Blue = 255 UV = 0
Amber = 255
80-87
(cL.10)
Red = 0
Green = 0Green_2 = 255
Blue = 255 UV = 0
Amber = 0
88-95
(cL.11)
Red = 255
Green = 0Green_2 = 255
Blue = 0 UV = 0
Amber = 0
96-103
(cL.12)
Red = 255
Green =0Green_2 = 255
Blue = 255 UV = 0
Amber = 0
104-111
(cL.13)
Red = 82
Green = 0Green_2 = 170
Blue = 120 UV = 0
Amber = 50
112-119
(cL.14)
Red = 0
Green = 180 Green_2 = 65
09=VU0=eulB
Amber = 220
120-127
(cL.15)
Red = 63
Green = 75 Green_2 = 145
Blue = 0 UV = 190
Amber = 44

ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 9
dX - DMX Channel Mode and DMX Address Setting.
1. Press the either the MENU button until “dX” is displayed. “X” rep-
resents the current DMX channel mode that is displayed. There are 5
DMX channel modes. See pages 12-13 for the DMX channel modes
and traits.
2. When you nd your desired DMX channel mode press the ENTER
button. “A.XXX” will be displayed. “XXX” represents the current
displayed DMX address. Use the UP or DOWN buttons to nd your
desired DMX address.
CH.X - This is the wireless remote channel setting.
1. Press the MENU button until “CH.X” is displayed. “X” represents
the current remote channel that is displayed (A-d). “A-D” correspond
to the buttons on the wireless remote. Example: If the xture is set to
“CH.B” the corresponding button on the remote will emit fog when
the button is pressed. Note: You can set more than one machine to
the same wireless remote setting.
2. Press the ENTER button to access the color macro submenu. Use
the UP or DOWN buttons to scroll through and select 1 of 64 color
macros or random macros. When you press the corresponding button
on the wireless remote to the setting (A-d) you have selected on the
unit, the color you have selected will be the color that is output along
with the fog that is emitted. Note: When in any color submenu,
after 4 seconds of no operation, xture will revert back to “CH.A”.
Fog Fury Jett Pro System Menu
ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 14
Channel Value Function
1 FOG
0 - 31 OFF
32 - 255 MAX FOG
2 RED
0 - 255 0% - 100%
3 GREEN 1 (OUTER LEDS)
0 - 255 0% - 100%
4 BLUE
0 - 255 0% - 100%
5 AMBER
0 - 255 0% - 100%
6 GREEN 2 (INNER LEDS)
0 - 255 0% - 100%
7 UV
0 - 255 0% - 100%
Fog Fury Jett Pro 7 Channel Mode

ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 10
DMX Mode:
Operating through a DMX controller givesthe user the freedom to
create their own programs tailored to their own individual needs.
DMX control for the Fog Fury Jett Pro can be used to just control light
output with no fog output, or it can be used to control both. The Fog
Fury Jett Pro has 5 DMX channel modes; 1, 2, 3, 7, & 9 channels. See
pages 14-17 for the DMX channels and traits.
1. This function will allow you to control each individual fixture’s
traits with a standard DMX 512 controller.
2. Press the either the MENU button until “dX” is displayed. “X” rep-
resents the current DMX channel mode that is displayed. There
are 5 DMX channel modes.
3. When you nd your desired DMX channel mode press the ENTER
button. “A.XXX” will be displayed. “XXX” represents the current
displayed DMX address. Use the UP or DOWN buttons to nd
your desired DMX address.
4. Please see pages 12-13 for DMX channel modes, values and
traits.
5. After you have set your DMX address plug in the fixture via the
XLR connections to any standard DMX controller.
Fog Fury Jett Pro DMX Mode
ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 13
Fog Fury Jett Pro 3 Channel Mode
Channel Value Function
1 FOG
0 - 31 OFF
32 - 255 MAX FOG
2 0 - 255 COLOR MACROS
Please see page 15 for Color Macros
3 STROBING
0 - 31 OFF
32 - 95 STROBING SLOW - FAST
96 - 159 PULSE EFFECT
160 - 255 RANDOM STROBE SLOW - FAST
Fog Fury Jett Pro 1 Channel Mode
Channel Value Function
1 FOG & RANDOM COLOR CHANGE
0 - 31 OFF
32 - 255 MAX FOG & COLOR CHANGE
Fog Fury Jett Pro 2 Channel Mode
Channel Value Function
1 FOG
0 - 31 OFF
32 - 255 MAXIMUM FOG
2 0 - 255 COLOR MACROS
Please see page 15 for Color Macros

ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 12
Fog Fury Jett Pro Wireless Remote Operation
Always be sure to maintain an adequate supply of American DJ
Brand Fog Juice in the fluid reservoir. Running the fog machine
dry will cause pump failure and or clogging. This is the largest
cause of failure in fog and haze machines. Only American DJ Fog
Juice is recommended and not all fog juice is created equal.
Wirelesss Remote Operation:Start by connecting the remote
receiver to the fog machine. Set the machine to your desired wireless
remote channel setting. See page 9. Once the machine is plugged
in and turned on, a red power LED on the receiver will glow indicat-
ing the unit is receiving power. The unit has a warm up time of about
nine (9) minutes. After the unit has warmed up, a GREEN LED on
the receiver will light indicating the unit is ready to emit fog. To emit
fog, simply press the corresponding number button on the remote
for desired length of time. If the GREEN LED is on and fog does not
come out after holding the button down for 30 seconds, check the
fluid tank and make sure you have enough fog juice.
Caution: Before removing or replacing the remote control unit
disconnect the power supply.
ON DIP
1 2 3 4
Frequency 0
ON DIP
1 2 3 4
Frequency 1
ON DIP
1 2 3 4
Frequency 2
ON DIP
1 2 3 4
Frequency 3
ON DIP
1 2 3 4
Frequency 4
ON DIP
1 2 3 4
Frequency 5
ON DIP
1 2 3 4
Frequency 6
ON DIP
1 2 3 4
Frequency 7
ON DIP
1 2 3 4
Frequency 8
ON DIP
1 2 3 4
Frequency 9
ON DIP
1 2 3 4
Frequency 10
ON DIP
1 2 3 4
Frequency 11
ON DIP
1 2 3 4
Frequency 12
ON DIP
1 2 3 4
Frequency 13
ON DIP
1 2 3 4
Frequency 14
ON DIP
1 2 3 4
Frequency 15
WiFly Channel Setting Chart
ADJ Products, LLC - www.adj.com - Fog Fury Jett Pro Instruction Manual Page 11
With this feature you are able to control the unit with DMX without the
need of XLR cables. Your DMX controller must be connected to a ADJ
WiFly TransCeiver to use this function. You are able to communicate
up to 400 feet (open line of sight)
1. Set the antenna to either a up position or down position.
2. Set the Wireless address using the dipswitches on the rear of the
the unit. The address must match the address set on the WiFly
Transceiver.
3. After you have set the WiFly address, apply power to the ADJ
WiFly Transceiver. The fixture must be set up first before you apply
power to WiFly Transceiver.
5. If everything is set up properly and the fixture is receiving a
Wireless signal, Wireless status indicator LED will glow green.
6. The Signal strength meter will display how strong of a signal the
unit is receiving.
Note: If the sync does not work, switch the power off then on again.
Fog Fury Jett Pro WiFly DMX Set Up
This feature will let you link units to run in a master-slave mode with-
out the use of XLR cables.
1. Set the WiFly address to your desire. The addresses on each fix-
ture must be the same.
2. After you have set the WiFly address, select your “Master” unit
and set your desired operating mode.
3. When using the Wireless remote control, each unit must have the
included remote receiver plugged in. The units can be set to dif-
ferent colors if desired.
Fog Fury Jett Pro WiFly Master-Slave Set Up
