GENERAL INFORMATION
Unpacking: Thank you for purchasing the Saber Spot WW by ADJ Products, LLC. Every Saber Spot WW has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully
inspect your fixture for any damage and be sure all equipment necessary to operate the unit has arrived intact.
In the event damage has been found or parts are missing, please contact our toll free customer support
number for further instructions. Please do not return this unit to your dealer without contacting customer
support first.
Introduction: The Saber Spot WW is a DMX intelligent LED fixture. The Saber Spot WW can operate as a
stand alone fixture or in a Master/Slave set up. The Saber Spot WW has three operating modes; WW dimmer
mode, show mode, & DMX controlled. This fixture is suitable for theaters, studios, retail stores, and other
similar locations. For best results use fog or special effects smoke to enhance the beams projections.
Customer Support: If you encounter any problems, please contact your trusted American Audio shop.
We also offer the possibility, to contact us directly: You can contact us via our website www.americandj.eu or
via email: [e-mail]
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly into the light source at all times!
GENERAL INSTRUCTIONS
To optimize the performance of this product, please read these operating instructions carefully to familiarize
yourself with the basic operations of this unit. These instructions contain important safety information regarding
the use and maintenance of this unit. Please keep this manual with the unit, for future reference.
FEATURES
•DMX-512 Protocol Compatible (3 DMX Channel Modes: 1/2/4)
• 3 Operating Modes - Show Mode, WW Dimmer Mode & DMX Control
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• Digital Display for Address and Function Setting
• UC IR Compatible (Not Included) & Airstream App Compatible
• Power Cord Daisy Chainable (See page 15)
HANDLING PRECAUTIONS
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will
void your manufactures warranty. In the unlikely event your unit may require service please contact ADJ
Products, LLC.
During operation the housing may become extremely hot. Avoid touching the unit with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modification to this unit.

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 5
SAFETY PRECAUTIONS
For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You
Attempt To Install Or Operate This Unit!
• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce
the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm) between
this device and a wall.
•Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product outdoors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 15 for
cleaning details.
• Heat -This fixture should be situated away from heat sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a marked change in performance.
DMX SET UP
Power Supply: The ADJ Saber Spot WW contains a automatic voltage switch, which will auto sense the
voltage when it is plugged into the power source. With this switch there is no need to worry about the correct
power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and controller
manufactures as a form of communication between intelligent fixtures and controllers. A DMX controller sends
DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture
to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only
have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufactures to be linked
together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To
ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path
possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For
example; a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at
the end, or anywhere in the middle. Therefore, the first fixture controlled by the controller could be the last
fixture in the chain. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA
assigned to address 1 to that unit, no matter where it is located in the DMX chain.

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 6
DMX SET UP (continued)
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): The Saber Spot WW can
be controlled via DMX-512 protocol. The Saber Spot WW has 3 DMX channel modes. The DMX address is set
electronically using the controls on the rear panel of the unit. Your unit and your DMX
controller require a approved DMX-512 110 Ohm Data cable for data input and data
output (Figure 1). We recommend Accu-Cable DMX cables. If you are making your own
cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be
purchased at almost all professional sound and lighting stores). Your cables should be
made with a male and female XLR connector on either end of the cable. Also remember
that DMX cable must be daisy chained and cannot be split.
Notice: Be sure to follow figures two and three when making your own cables. Do not use the ground lug on
the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor
to come in contact with the XLR’s outer casing. Grounding the shield could cause a short circuit and erratic
behavior.

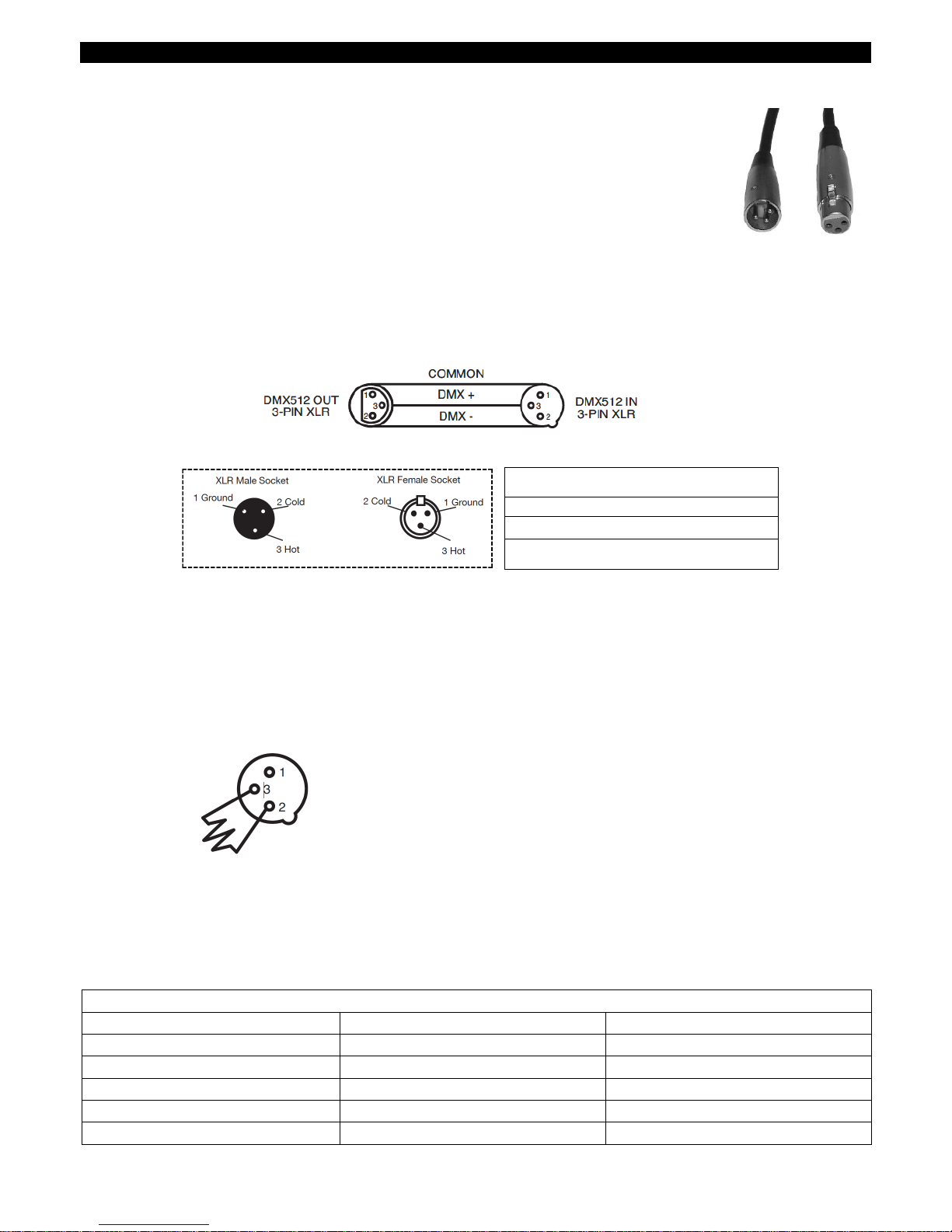

Figure 2
XLR Pin Configuration
Pin1 = Ground
Pin2 = Data Compliment (negative)
Pin3 = Data True (positive)
Figure 3
Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on
the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected
between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR
connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number
Z-DMX/T) will decrease the possibilities of erratic behavior.
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA transmission in
place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin
data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most
electric stores. The chart below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor
3-pin XLR Female (Out)
5-pin XLR Male (In)
Ground/Shield
Pin 1
Pin 1
Data compliment (- signal)
Pin 2
Pin 2
Data True (+ signal)
Pin 3
Pin 3
Not used
Pin 4 - Do Not Use
Not used
Pin 5 - Do Not Use
Figure 1

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 7
SYSTEM MENU
Display Menu
Software Update
Please Wait ...
ADJ
SOFTWAREV 1.0 3
Special Remark
About LED protection:
When reach 65 degree, the power consumption is reduced to 82%.
When the sensor is damaged, the power consumption is reduced to
65%.
SN
MENU DISPLAY
FUNCTION
1
DMX MODE
ADDR:001
Address setting
001- 512
2
CHANNNEL 4CH
1/2/4CH (see channel mode)
3
Slave
Slave mode
4
LOOK
Store:01
Store mode 01- 13
5
Reset ?
NO
Yes,press ENTER to resume the
factory default setting
6
Manual
W000-255 S 000- 255
Manual dimmer
W 000-255
strobe: S000- 255
7
DimCurve
Standard
5 kinds Dimmer curve
Standard , Stage, TV, Architec,
Theatre
8
NO DMX
No DMX mode
Hold
Blackout, Hold, LOOK
9
TempUnit
C/ F
10
Temp Val
Temperature show:xxx F
11
AUTOLOCK
Display keylock OFF/ON
12
IR Active
IR setting OFF/ON
13
FlipDisplay
Flip display OFF/ON
System Menu: When making adjustments press ENTER to confirm your setup then press and hold the
MENU button for at least 3 seconds. To exit without making any adjustments press the MENU button.
The display will lock after 30 seconds, press the MENU button for 3 seconds to unlock.
DMX MODE - DMX Address Setting.
1. Press the either the MENU, UP, or DOWN buttons until “DMX MODE” is displayed, press ENTER.
2. The current address will now be displayed and flashing. Press the UP or DOWN buttons to find your desired
address. Press ENTER to set your desired DMX address.
CHANNEL - This will let select your desired DMX channel mode.
1. Press the either the MENU button until “CHANNEL” is displayed, press ENTER. The current DMX channel
mode will be displayed.
2. Press the UP or DOWN buttons to find your desired DMX channel mode and press ENTER to confim and
exit.
SLAVE - This will let you set the unit as the slave in a master/slave configuration.
1. Press the MENU button until “SLAVE” is displayed, press ENTER.

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 8
SYSTEM MENU (continued)
LOOK - In this mode you can run a show mode.
1. Press the MENU button until “LOOK” is displayed, press ENTER.
2. Use the UP or DOWN buttons to find your desired mode.
RESET - This function will return the unit to its default settings.
1. Press the the MENU button until “RESET” is displayed and press ENTER.
2. The display will show either “NO” or “YES”. Press the UP or DOWN buttons so that “YES” is displayed.
Press ENTER and the unit will reset back to default settings.
MANUAL - This function will allow you to manually adjust each LED output intensity and strobe rate.
This function is also a manual testing mode.
1. Press the MENU button until “MANUAL” is displayed, press ENTER.
2. Using the UP or DOWN buttons scroll to the Strobe setting and press ENTER. Use the UP or DOWN
buttons to set the strobe setting to “255”, and press ENTER again
3. After you have set the strobe setting to “255”, press the UP or DOWN buttons so that W:XXX is displayed
and press ENTER. Now use the UP or DOWN buttons to adjust the output intensity.
4. If you would like the unit to strobe, scroll back to the strobe setting and press ENTER. Use the UP or DOWN
buttons to adjust the strobe rate. Press ENTER once you have found your desired strobe rate.
DimCurve - This will let select your desired dimmer curve.
1. Press the MENU button until “DimCurve” is displayed, and press ENTER. 1 of 5 dimmer curves will be
displayed. “STANDARD”, “STAGE”, “TV”, “ARCHITEC” (Architectural), or “THEATRE”. See the dimmer curve
chart on page 12 for more info.
2. Press the UP or DOWN buttons to find your desired dimmer curve and press ENTER to confim.
NO DMX - This mode can be used as a precaution mode, that in case the DMX signal is lost,
interrupted, or power is lost, the operating mode chosen in the setup is the running mode the fixture
will go into when the DMX signal is lost. You can also set this as the operating mode you would like
the unit to return to when power is applied.
1. Press the MENU button until “NO DMX” is displayed, and either “Look”, “Blackout”, or “Hold” will be
displayed beneath.
2. Press ENTER and the bottom choice will begin to flash. Use the UP or DOWN buttons to choose an
operating mode you would like the unit to start up in when power is applied or the DMX signal is lost.
• Look (Master Slave) - If the DMX signal is lost or power is applied, the unit will automatically run a built-in
show.
• Blackout - If the DMX signal is lost or interrupted, the unit will automatically go into stand by mode.
• Hold - If the DMX signal is lost the fixture will stay in the last DMX setting. If power is applied and this mode
is set, the unit will automatically go into the last DMX set up.
3. Press ENTER to confirm your desired set up.
TempUnit - With this function you can switch the temperature display to show either Celsius or
Fahrenheit.
1. Press the MENU button until “TempUnit” is displayed, press ENTER.
2. Use the UP or DOWN buttons to switch between Celsius or Fahrenheit. Press ENTER to select your
desired setting.

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 9
SYSTEM MENU (continued)
Temp Val - With this function you can check the temperature of the fixture.
1. Press the MENU button until “Temp Val” is displayed, press ENTER.
2. The fixture temperature will now be displayed. Press MENU to exit.
AUTOLOCK - With this function you can have the keys lock off after 10 seconds of no use.
1. Press the MENU button until “AUTOLOCK” is displayed, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to have the keys
lock after 10 seconds, or “OFF” so that the keys will remain unlocked.
3. Press ENTER to confirm.
IR Active - With this function you can activate the IR function and use the UC IR or Airstream app to
control the unit.
1. Press the MENU button until “IR Active” is displayed, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to activate IR
function, or “OFF” to turn off the IR function.
3. Press ENTER to confirm. See page 10 for IR controls.
FlipDisplay- This function will reverse the display 180º.
1. Press the either the MENU button until “FlipDisplay” is dis played, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to flip the
display, or “OFF” to keep the display normal.
3. Press ENTER to confirm.
OPERATION
Universal DMX Control: This function allows you to use a universal DMX-512 controller to control the colors,
master dimmer and strobe. A DMX controller allows you to create unique programs tailored to your individual
needs.
1. The Saber Spot WW has 3 DMX channel modes. See page 11 for detailed description of the DMX values
and traits.
2. To control your fixture in DMX mode, follow the set-up procedures on pages 5-6 as well as the set-up
specifications that are included with your DMX controller.
3. Use the controller’s faders to control the various DMX fixture traits.
4. This will allow you to create your own programs.
5. Follow the instruction on page 7 to select your DMX channel mode and set your desired DMX address.
6. For longer cable runs (more than a 100 feet) use a terminator on the last fixture.
7. For help operating in DMX mode consult the manual included with your DMX controller.
Show Mode: This mode allows either a single unit or several units linked together to run a built-in program.
1. Press the MENU button until “Look” is displayed, and press ENTER.
2. Press the UP or DOWN buttons to find your desired show.

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 10
MASTER-SLAVE SET UP
Master-Slave Operation This function will allow you to link up to 16 units together and operate without a
controller. In a Master-Slave set up, one unit will act as the controlling unit and the others will react to the
controlling units programs. Any unit can act as a Master or as a Slave.
1. Using approved DMX data cables, daisy chain your units together via the XLR connector on the rear of the
units. Remember the Male XLR connector is the input and the Female XLR connector is the output. The first
unit in the chain (master) will use the female XLR connector only - The last unit in the chain will use the male
XLR connector only. For longer cable runs we suggest a terminator at the last fixture.
2. On the Master unit find your desired operating mode.
3. On the slave units press the MENU button until “Slave” is displayed.
4. The slave units will now follow the Master unit.
INSTALLING THE FROST LENS
The Saber Spot WW Plus comes with 2 frost filters. Install the filter in front of the lens and put the inlcuded
retainer ring top to hold the lens in place.
UC IR OPERATION
The UC IR (sold separately) infrared remote gives you control of various functions (See below). To control
the fixture you must aim the remote at the front of the fixture and be no more than 30 feet away.
The Saber Spot WW is also compatible with the Airstream IR app. The IR transmitter is available through any
ADJ dealer or through the ADJ parts website. Plug the transmitter into the headphone jack of your iOS phone
or tablet. To control your IR fixture you must raise the volume to the maximum on your iOS phone or tablet and
aim the transmitter at the front of the fixture and be no more than 15 feet away. After you have purchased the
Airstream IR transmitters, the app is a free download from the app store for your iOS phone or tablet. The app
comes with 3 pages of control depending on the IR fixture you are using. Please see below for IR functions
including the corresponding app page.
Works with App page 1.
STAND BY - Press this button to go into DMX mode or IR active.
FULL ON - Press this button down to fully light up the unit.
STROBE - Press this button to activate strobing. Use the “Dimmer +/- to adjust the strobe rate.
FADE/GOBO - Press this button to activate fade mode. Continue to press this button to find your desired fade
speed.
“DIMMER +” and “DIMMER -” - Use these buttons adjust the strobe rate and output intensity in color mode.
COLOR - This button is will activate the warm white color. You must first press Full On then press Color twice
until it blacksout. Then you can use the Dimmer +/- to adjust the output intensity.
1-9 - These buttons are invalid for this fixture.
SOUND ON & OFF - These buttons are invalid for this fixture.
SHOW 0 - This button is invalid for this fixture.

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 11
1 CHANNEL MODE
Channel
Value
Function
1
WARM WHITE
0 - 255
0% - 100%
2 CHANNEL MODE
Channel
Value
Function
1
WARM WHITE
0 - 255
0% - 100%
SHUTTER/STROBE
2
0 - 31
LED OFF
32 - 63
LED ON
64 - 95
STROBING SLOW - FAST
96 - 127
LED ON
128 - 159
PULSE STROBE SLOW - FAST
160-191
LED ON
192 - 223
RANDOM STROBE SLOW - FAST
224 - 255
LED ON
4 CHANNEL MODE
Channel
Value
Function
1
WARM WHITE
0 - 255
0% - 100%
2
WARM WHITE FINE
0 - 255
0% - 100%
3
SHUTTER/STROBE
0 - 31
LED OFF
32 - 63
LED ON
64 - 95
STROBING SLOW - FAST
96 - 127
LED ON
128 - 159
PULSE STROBE SLOW - FAST
160-191
LED ON
192 - 223
RANDOM STROBE SLOW - FAST
224 - 255
LED ON
4
DIMMER CURVES
0 - 20
STANDARD
21 - 40
STAGE
41 - 60
TV
61 - 80
ARCHITECTURAL
81 - 100
THEATRE
101 - 255
DEFAULT DIMMERSETTING

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 12
DIMMER CURVE CHART
Ramp Effect
0S(FadeTime)
1S (FadeTime}
Trise (ms)
Tdown (ms)
Trise (ms)
Tdown (ms)
Standard
0
0
0
0
Stage
780
1100
1540
1660
TV
1180
1520
1860
1940
Architectural
1380
1730
2040
2120
Theatre
1580
1940
2230
2280
CAD DRAWING
Dimmer

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 13

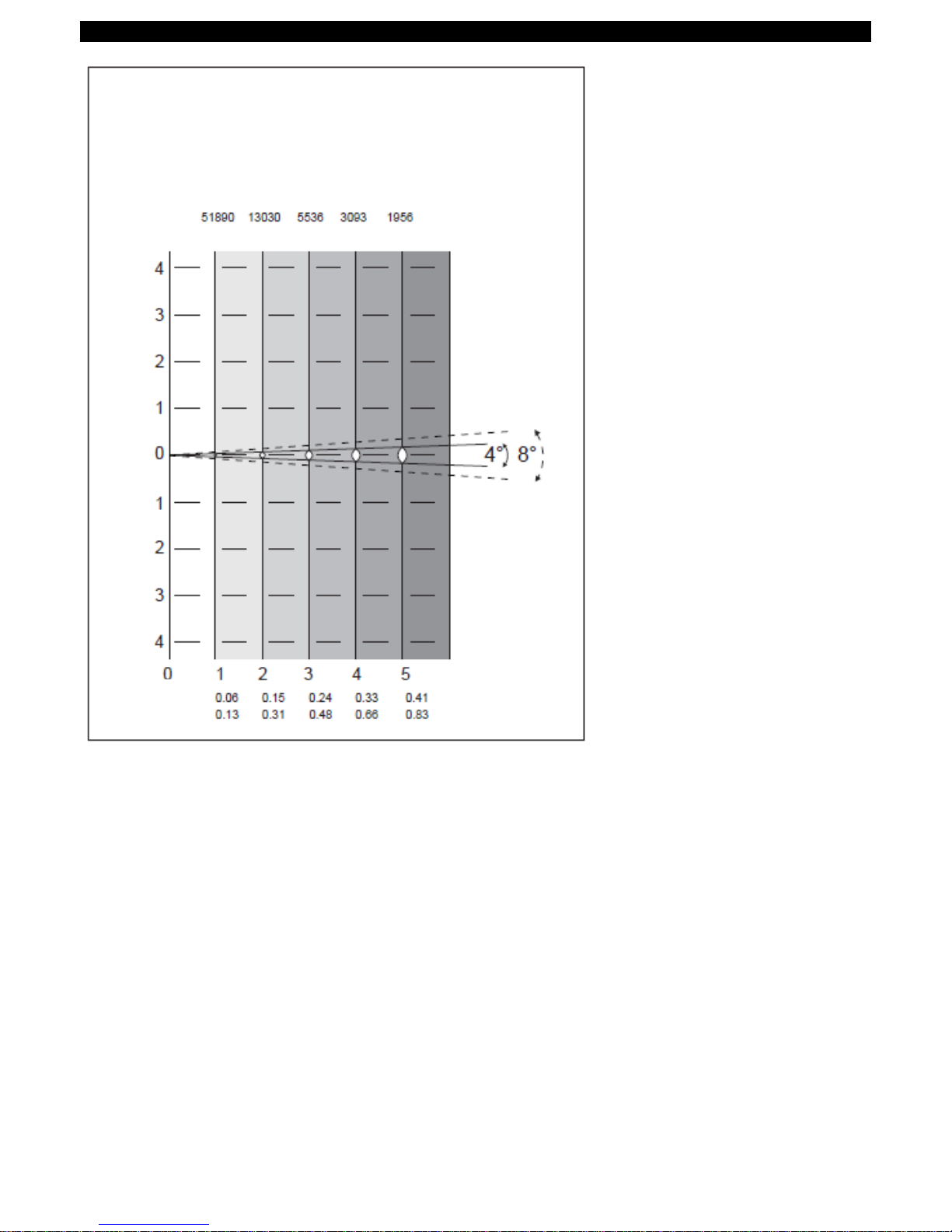

PHOTOMETRIC CHART
Beam angle 4°
Field angle 8°
Intensity (LUX)
Full LEDs
4° Diameter(m)
8° Diameter(m)
Beam opening(m)

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 14

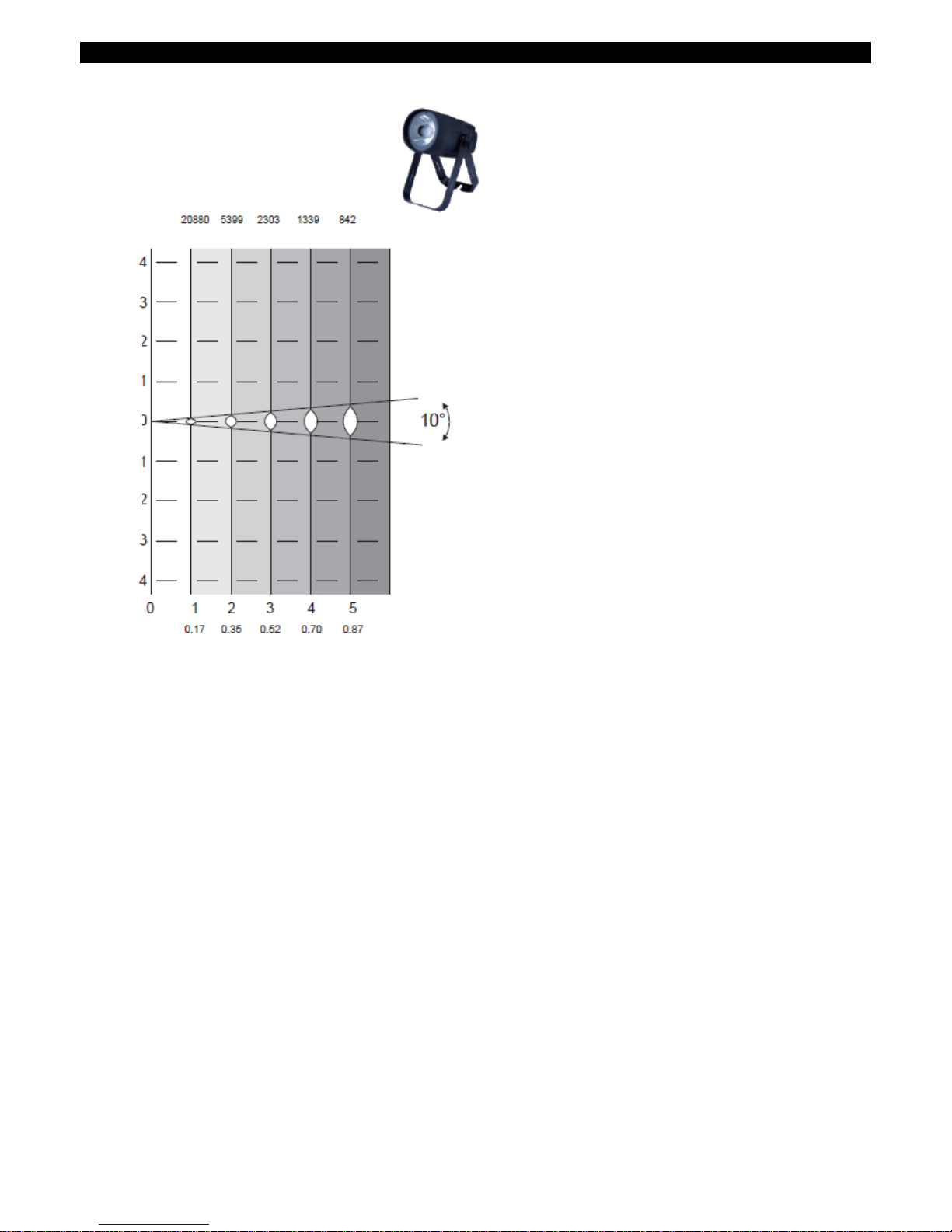

PHOTOMETRIC CHART (continued)
Beam angle 10° (single face)frost filter
Intensity (LUX)
Full LEDs
Beam opening(m)
10° Diameter(m)

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 15
PHOTOMETRIC CHART (continued)
POWER CORD DAISY CHAIN
With this feature you can connect the fixtures to one another using the PowerCON input and output
sockets. The quantity that can be connected is 36 fixtures maximum @ 110V and a maximum 65
fixture’s @ 240V. After maximum limit has been reached you will need to use a new power outlet. They
must be the same fixtures. DO NOT mix fixtures.
CLEANING
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be
carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the
fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend cleaning on a monthly
basis. Periodic cleaning will ensure longevity, and crisp output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics with glass cleaner and a soft cloth every 20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every 30-60 days.
5. Always be sure to dry all parts completely before plugging the unit back in.
TROUBLE SHOOTING
Trouble Shooting: Listed below are a few common problems that you may encounter, with solutions.
No light output in WW Dimmer Mode;
1. Be sure the strobe setting is set to value 255.
Beam angle 45° (double face)frost filter
Intensity (LUX)
Full LEDs
Beam opening(m)
45° Diameter(m)

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 16
SPECIFICATIONS
Model:
Saber Spot WW
Voltage:
LEDs:
LED Life:
Beam Angle:
Power Consumption:
Power Cord Daisy Chain:
Dimensions:
Weight:
Colors:
Duty Cycle:
DMX:
Sound Active:
Working Position:
100~240V, 50/60Hz
1 x 15W WW LED
10,000 Hrs.
4 Degrees
10 Degrees (Frost Filter 1)
45 Degrees (Frost Filter 2)
15W
36 Fixtures Max. (110V)
65 Fixtures Max. (240V)
6.7”(L) x 5.3”(W) x 8.5”(H)
170 x 135 x 215mm
2.6 Lbs. / 1.2 kgs.
WW
None
3 DMX Channel Modes: 1/2/4
No
Any Safe, Secure Position
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change
without any prior written notice.
Auto Sensing Voltage: This fixture contains a automatic voltage switch, which will auto sense the voltage
when it is plugged into the power source.

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 17
ROHS - A great Contribution to the Conservation of Environment
Dear Customer,
The European Union has adopted a directive on the restriction / prohibition of the use of hazardous
substances. This directive, referred to as ROHS, is a frequently discussed topic in the electronic industry.
It restricts, among other things, six materials: Lead (Pb), Mercury (Hg), hexavalent chromium (CR VI),
cadmium (Cd), polybrimated biphenyls as flame retardant (PBB), polybrominated diphenyl, also a flame
retardant (PBDE). The directive applies to nearly all electronic and electrical devices whose mode of operation
involves electric or electromagnetic fields –in short: each kind of electronics we have around us in our
households or at work.
As manufacturers of products of the brands of AMERICAN AUDIO, AMERICAN DJ, ELATION Professional
and ACCLAIM Lighting, we are obligated to comply with the RoHS directive. Therefore, as early as two years
prior to the directive coming into force, we started our search for alternative environmentally friendly materials
and manufacturing processes.
Well before the RoHS directive took effect, all of our products were manufactured meeting the standards of the
European Union. With regular audits and material tests we can still assure that the components we use are
always RoHS-compliant and that the manufacturing process, as far as the state of technology allows, is
environmentally friendly.
The ROHS directive is an important step to the protection of our environment. We, as manufactures, feel
obligated to make our contribution in this respect.

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 18
WEEE –Waste of Electrical and Electronic Equipment
Every year thousands of tonnes of electronic components, which are harmful to the environment, end up at the
waste disposals around the world. To ensure the best possible disposal or recovery of electronic components,
the European Union has adopted the WEEE directive.
The WEEE-system (Waste of Electrical and Electronic Equipment) can be compared with the system of the
“Green Spot”, which has been in use for several years. The manufactures have to make their contribution to
the utilization of waste at the time they release the product. Money resources obtained by doing so will be
applied to develop a common system of waste management. Thereby we can ensure professional and
environmentally friendly scraping and recycling program.
As manufactures, we are part of the German system of EAR and we make our contribution towards it.
(Registration in Germany: DE41027552)
That means that products of AMERICAN DJ and AMERICAN AUDIO can be left in the collection points free of
charge and they will be used in the recycling program. Products of ELATION Professional, which are used
only by professionals, shall be handled by us. Please send Elation products directly to us at the end of their
lifetime so that we can professionally dispose of them.
Like the above ROHS, the WEEE directive is an important contribution to the environment protection and we
are glad to help to clean the environment with this disposal system.
We are happy to answer any of your inquiries and welcome your suggestions at: [e-mail]

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 19
NOTES

A.D.J. Supply Europe B.V. –www.americandj.eu –Saber Spot WW User Manual Page 20
NOTES
