Adler AG 745-34 Speedpocket User manual

Manual, complete
745 - 34 Speedpocket
Sewing unit for runstitching
of rectangular piped pockets
Operating Instructions
Installation Instructions
Service Instructions
Instructions for programming DAC
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon + 49 (0) 5 21 / 9 25-00 • Telefax + 49 (0) 5 21 / 9 25 24 35 • www.duerkopp-adler.com
1
2
3
4
Ausgabe / Edition: 08/2005 Printed in Federal Republic of Germany Teile-Nr./Part.-No.: 0791 745171

745 - 34 Speedpocket
Manual, complete
Summary
Operating Instructions
Installation Instructions
Service Instructions
Instructions for programming DAC
Interconnection diagram
9870 745131 B
9890 745001 B
Pneumatic circuit plan
9770 745002

Index Page:
Preface and general safety instructions
Part 1: Operating Instructions 745-34 Speedpocket
1. Description of product ........................................ 3
1.1 Description of proper use ........................................ 3
1.2 Briefdescription............................................. 3
1.3 Technicaldata .............................................. 4
1.4 Optional equipment ........................................... 5
2. Operation ................................................. 7

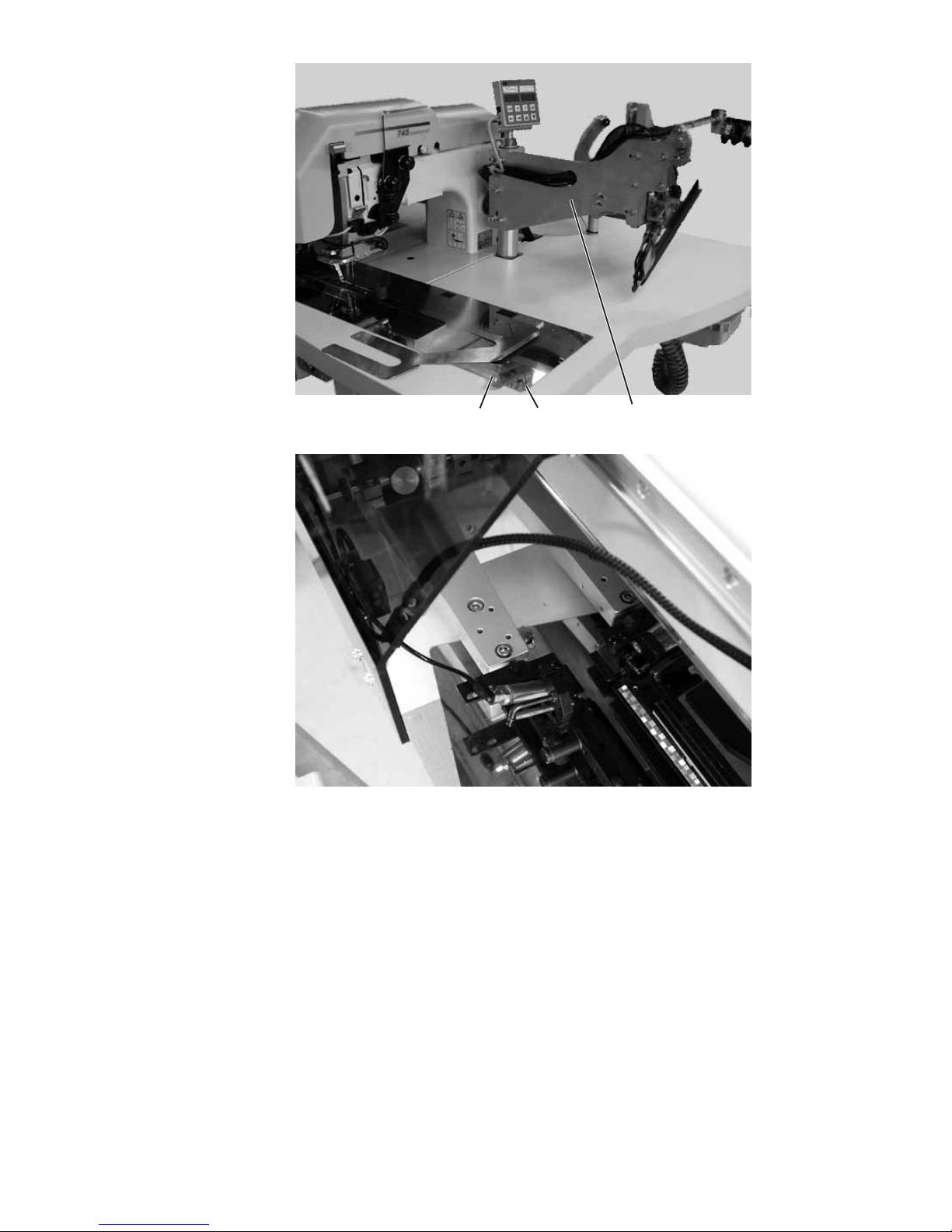

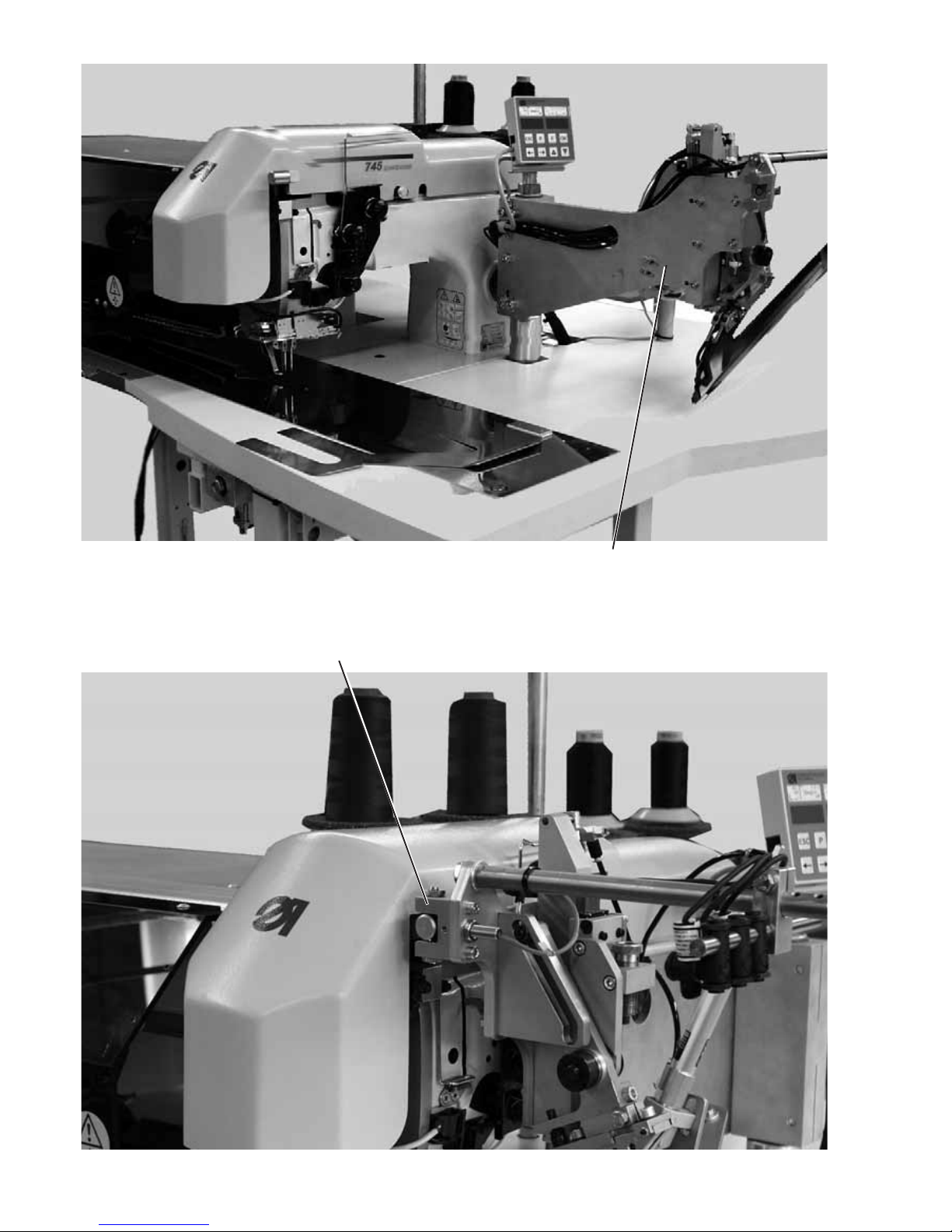

2.1 Swingingthefoldingstationaside................................... 7

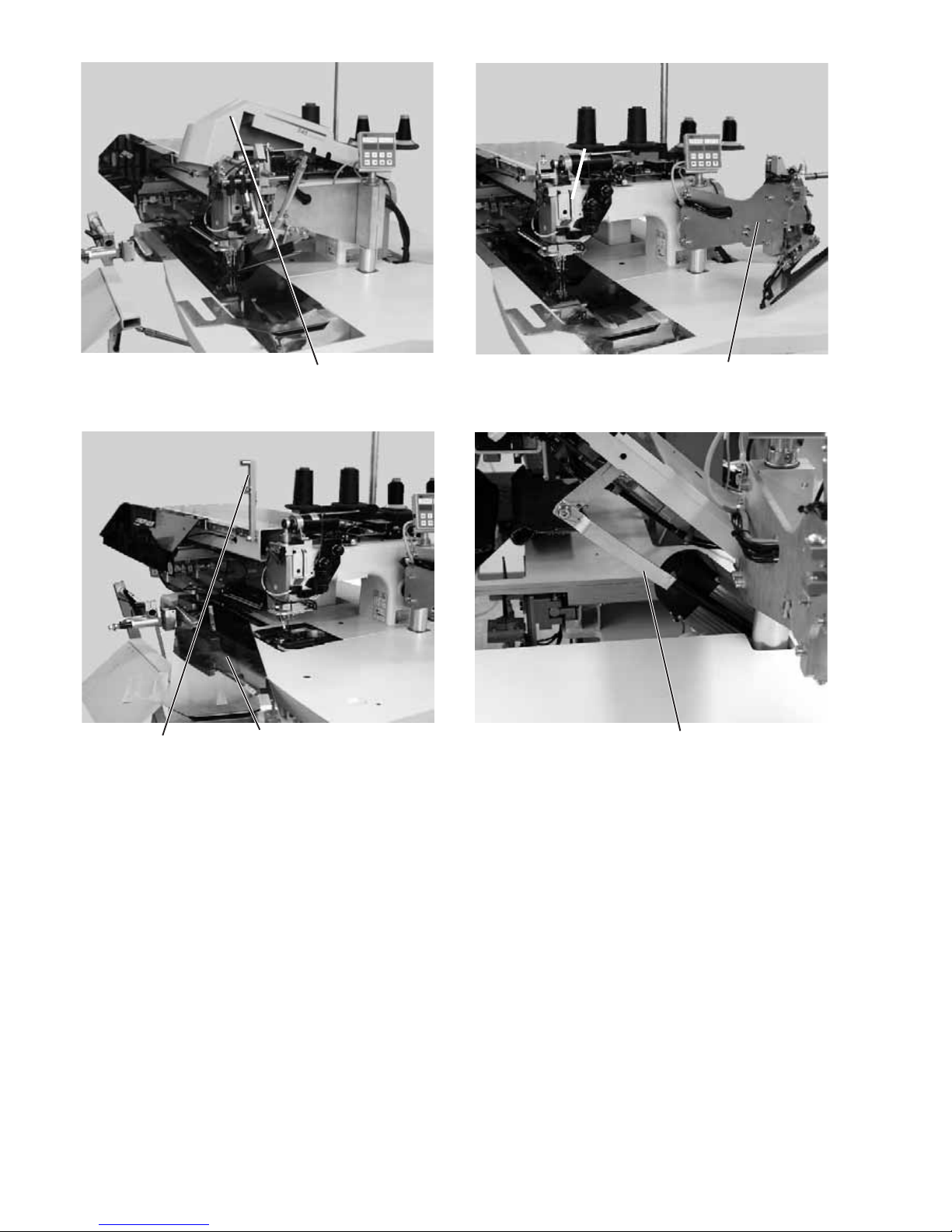

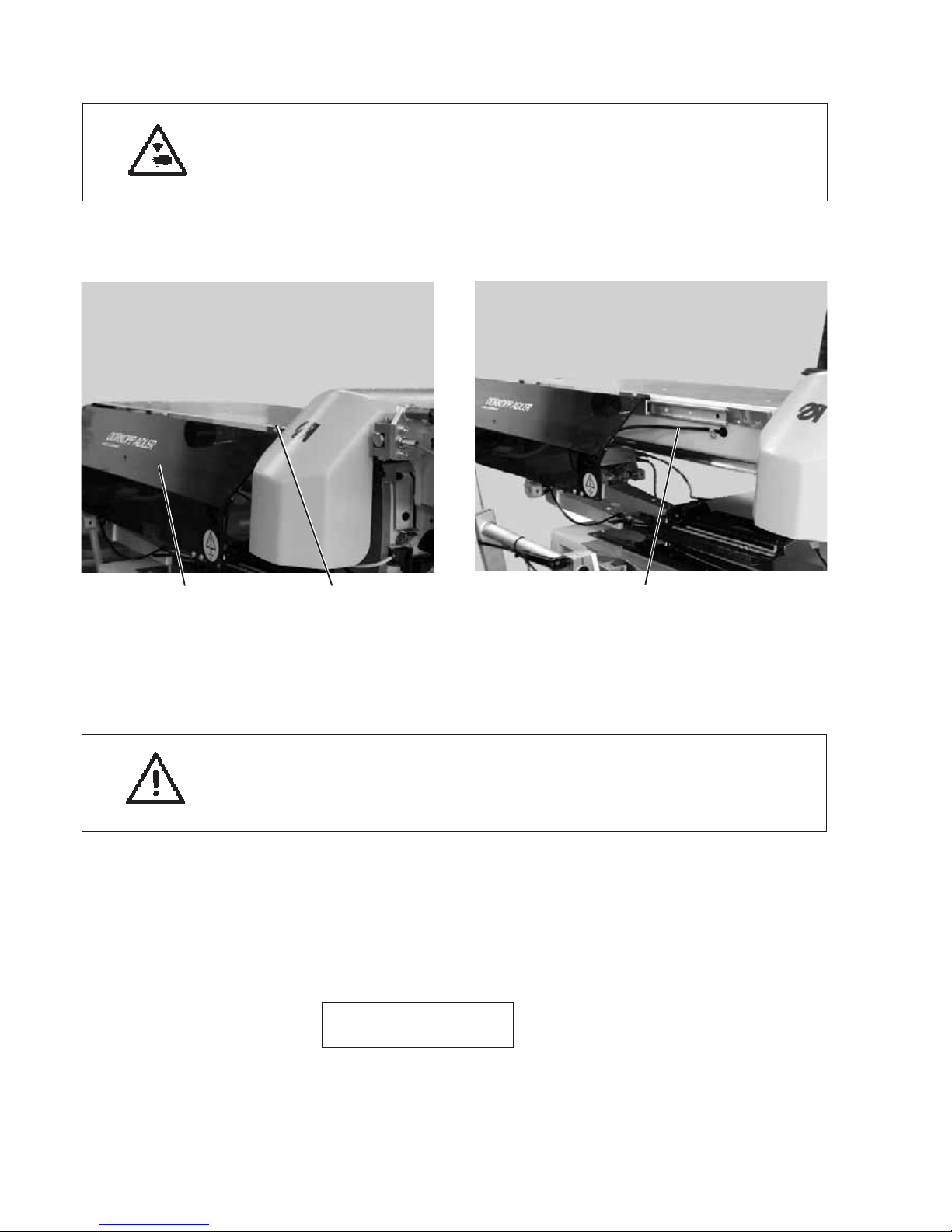

2.2 Pushing the covering hood back and removing the fabric sliding sheet ............ 8
2.3 Tilting the machine head up ...................................... 11

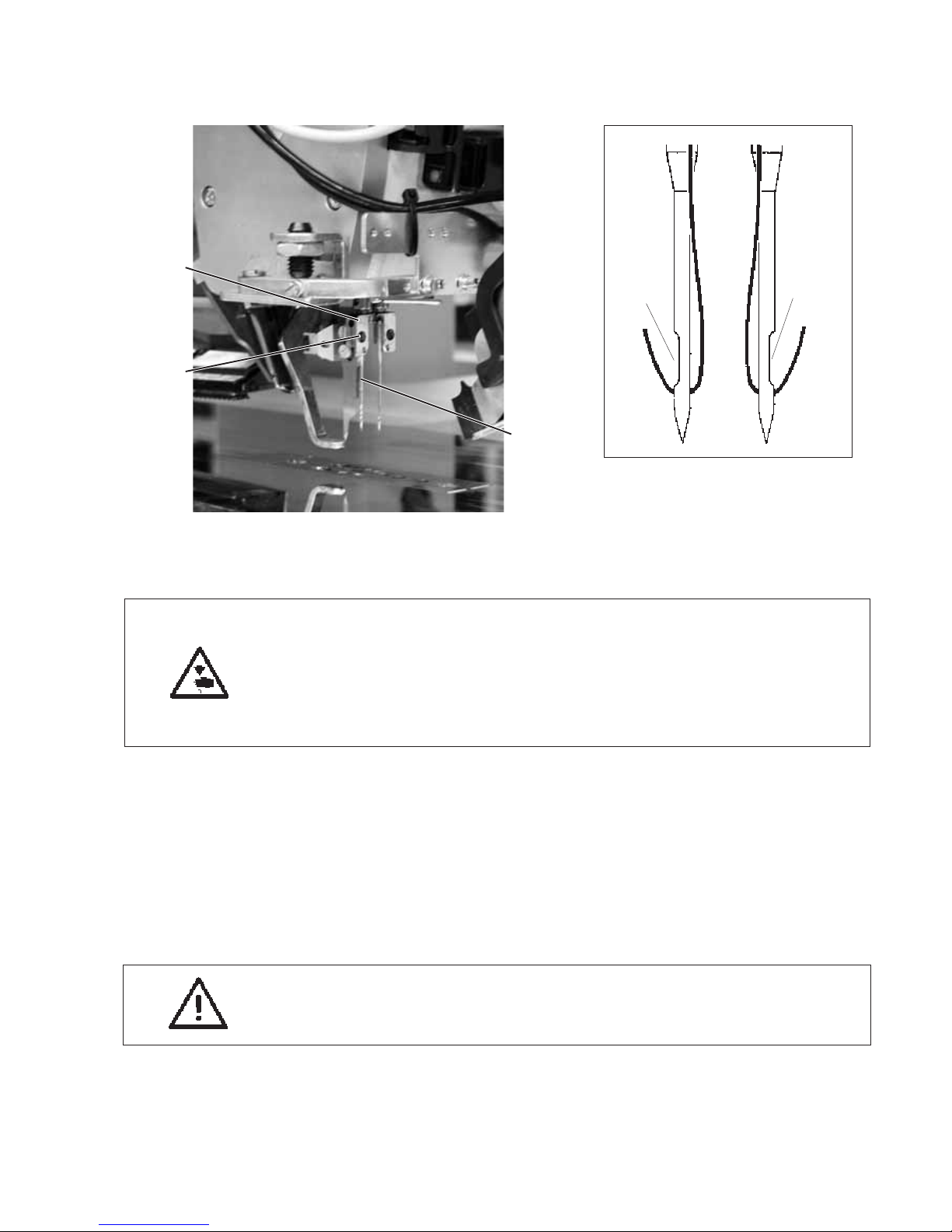

2.4 Needles and threads .......................................... 12

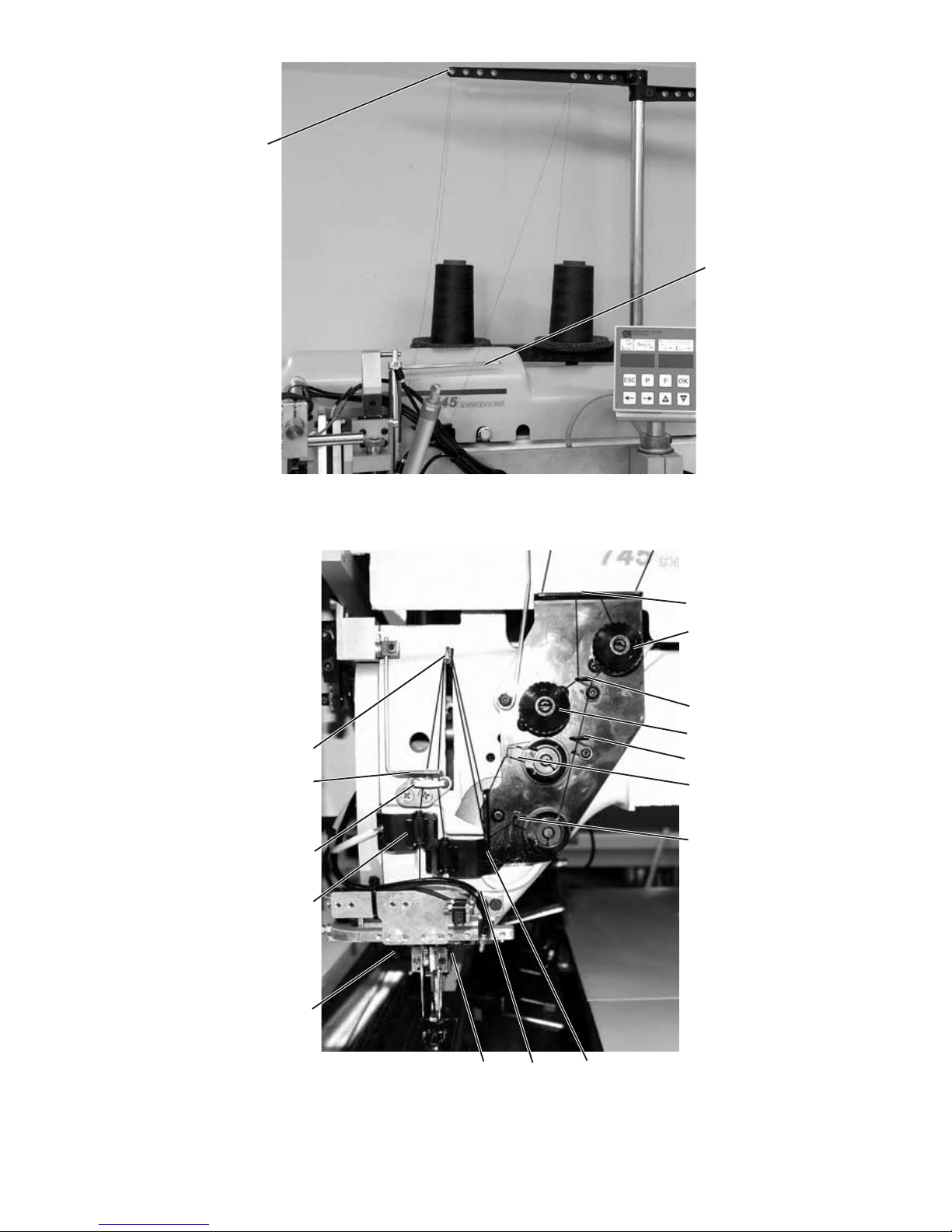

2.5 Threading in the needle thread .................................... 15

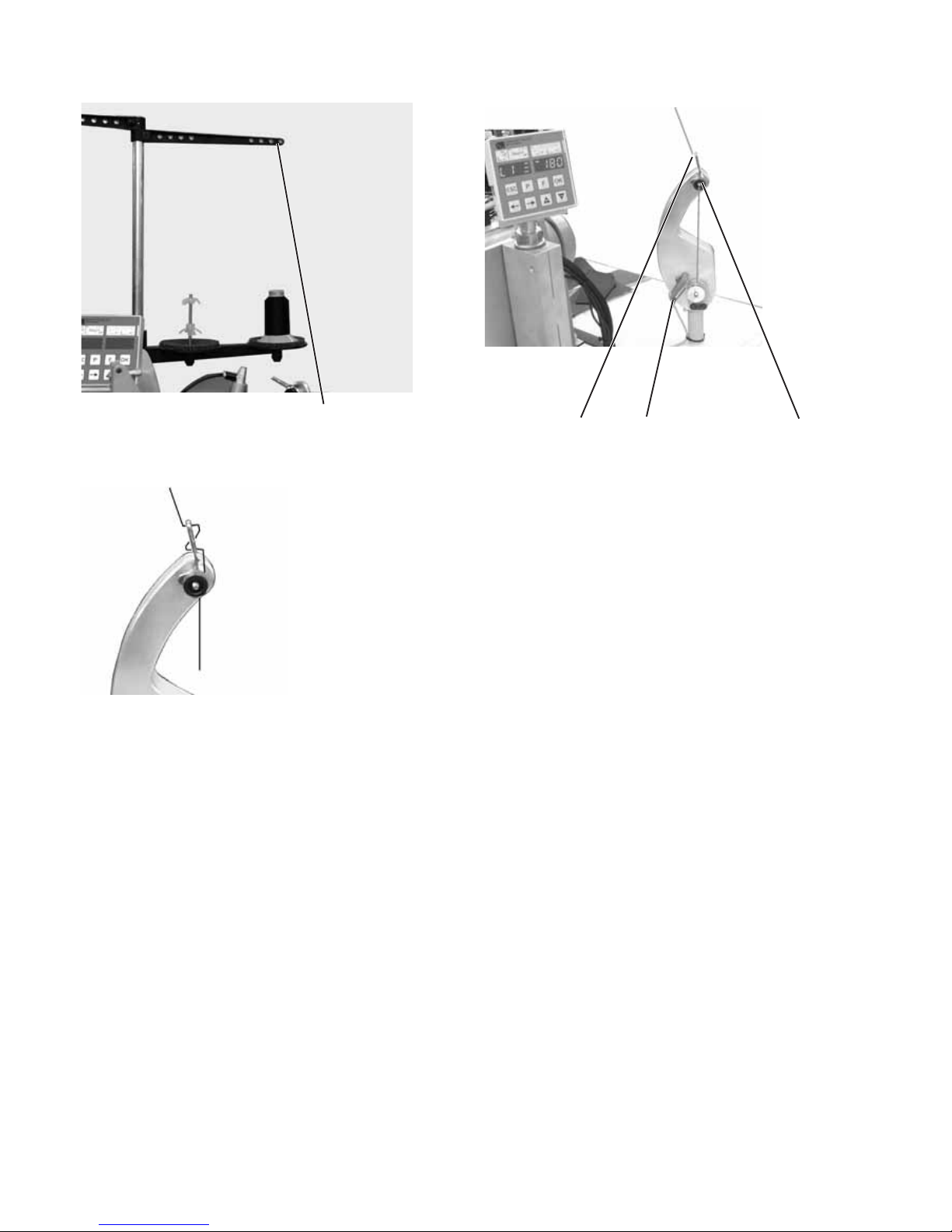

2.6 Winding up the hook thread ...................................... 16

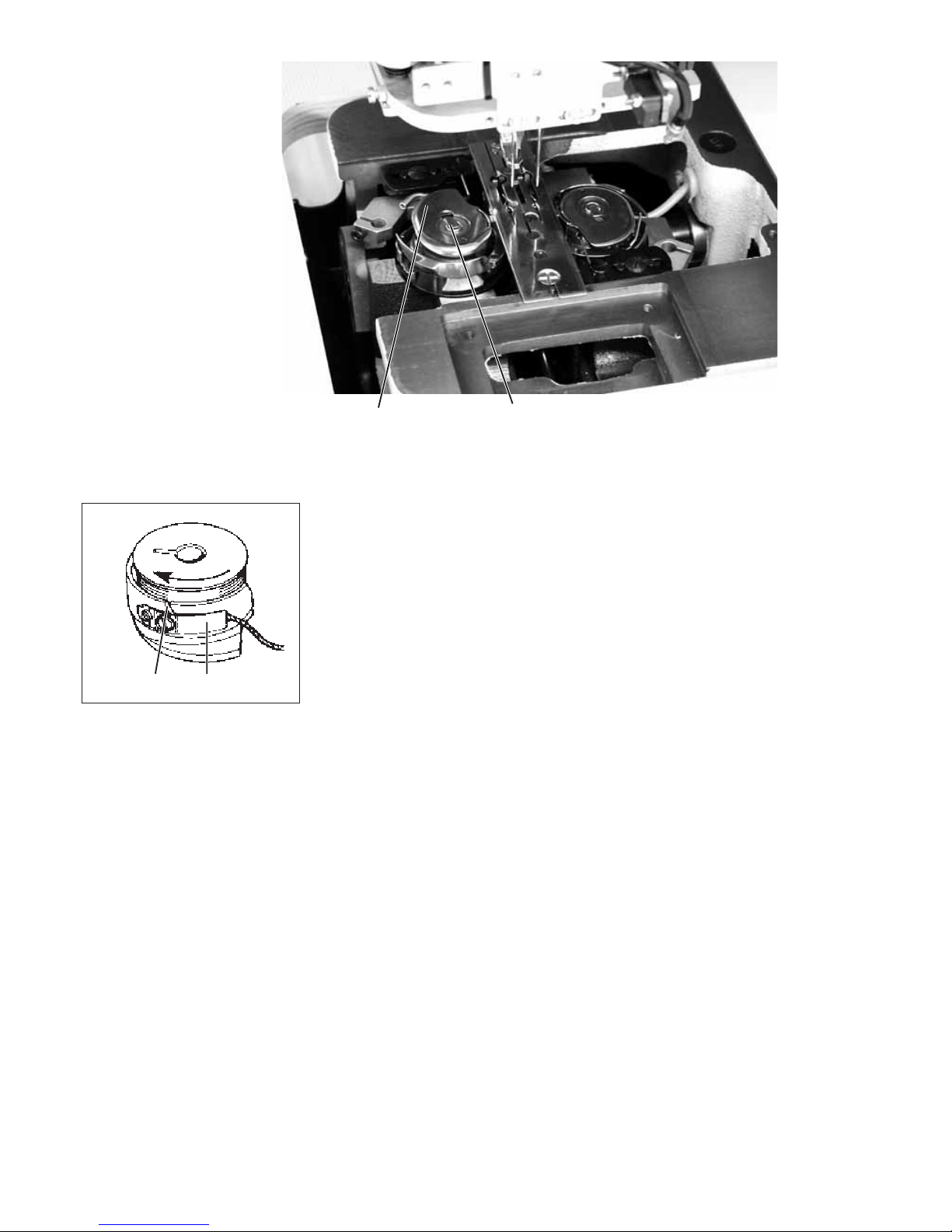

2.7 Changing the bobbins .......................................... 17
2.8 Threadtension.............................................. 19
2.9 Stackingcontrol ............................................. 20
2.10 Cornerknifestation........................................... 21
2.10.1 Swingingthecornerknifestationout/in .............................. 22
2.10.2 Adjustingthecornerknives ...................................... 23
2.11 Referenceposition-Startingthesewingcycle-Quickstop................... 24
2.12 Flapandpipingprojection ....................................... 25
2.13 Piping strip length ............................................ 26
2.14 Workingmethod ............................................. 27
2.14.1 Working method (production of trousers) .............................. 28
2.14.2 Sewingwithflap............................................. 31
2.14.2.1 Sewing without light-barrier ...................................... 31
2.14.2.2 Sewingwithlight-barrier ........................................ 33
3. Maintenance ............................................... 34
3.1 Cleaning .................................................. 34
3.2 Weeklylubrication............................................ 36

1. Description of product
1.1 Description of proper use
The 745-34 Speedpocket is a sewing unit determined to sew light to
medium-weight material, i.e. fabrics made of textile fibres or leather.
These materials are used in the clothing industry.
Generally only dry material should be processed with this machine. It
should not contain any hard objects.
In general, the seam is made with core thread, Polyester fibre or cotton
threads.
The dimensions for needle and hook threads can be taken from the
table in chapter 2.4.
Before using any other threads it is necessary to estimate the
consequent risks and to take corresponding safety measures, if
required.
This sewing unit must be installed and operated in dry and well-kept
rooms only. If it is operated in other rooms, which are not dry and
well-kept, further measures, which are to be agreed upon, can become
necessary (see EN 60204-31:1999).
We, as a manufacturer of industrial sewing machines, take it for
granted that at least semi-skilled operators will be working on our
products so that we can assume that all usual operations and, where
applicable, their risks are known to them.
1.2 Brief description
The Dürkopp-Adler 745-34S is a sewing unit for runstitching
of rectangular piped pockets.
The piping strips and additional parts are fed manually. Pocket length
20-200 mm (with flap 180 mm max.).
Machine head
–Twin needle lockstitch execution
–Large vertical hooks
–Externally driven center knife
–Thread trimming device for needle and hook threads
–Thread monitor for the needle threads
–DC direct sewing drive
Step motors for the material feed
New generation of control “DAC III” (DÜRKOPP ADLER Control)
The comprehensive testing and monitoring system MULTITEST is
integrated in the DAC III.
A microcomputer assumes the control tasks, monitors the sewing cycle
and indicates faulty operation and malfunctions on the display.
5
